Anatomy & Physiology Ch 7 Midway: Sutures + Brain case

Sutures, Mandible/Maxilla, Orbit, Lacrimal,

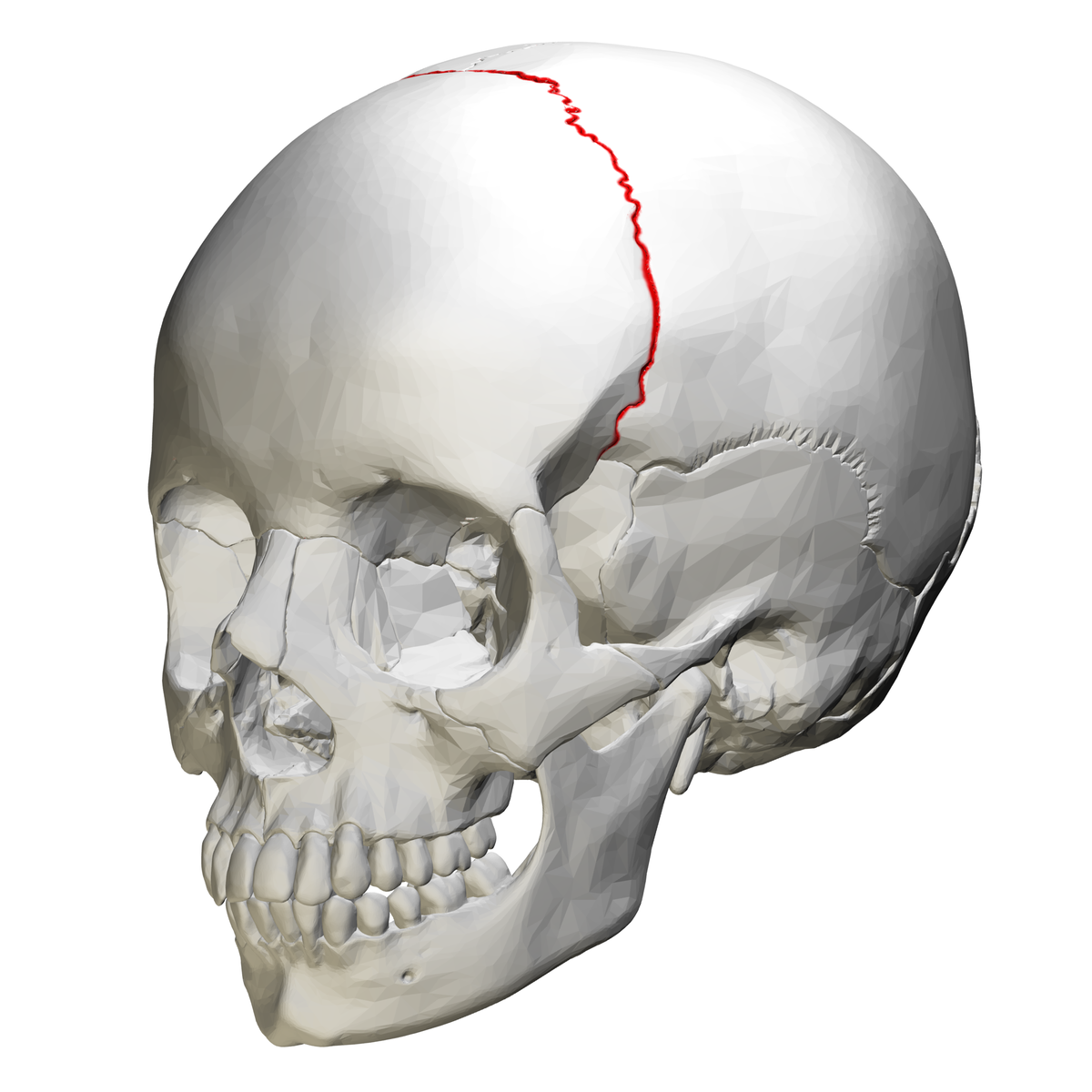

What suture is this?

Coronal Suture

What suture is this?

Sagittal Suture

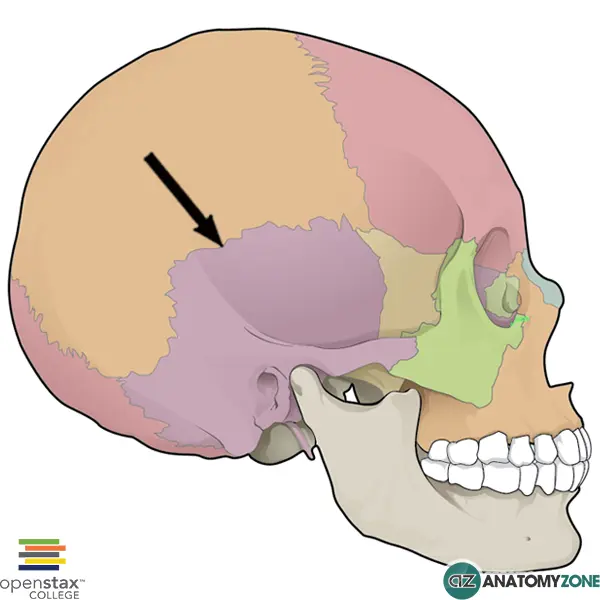

What suture is this?

Squamous Suture

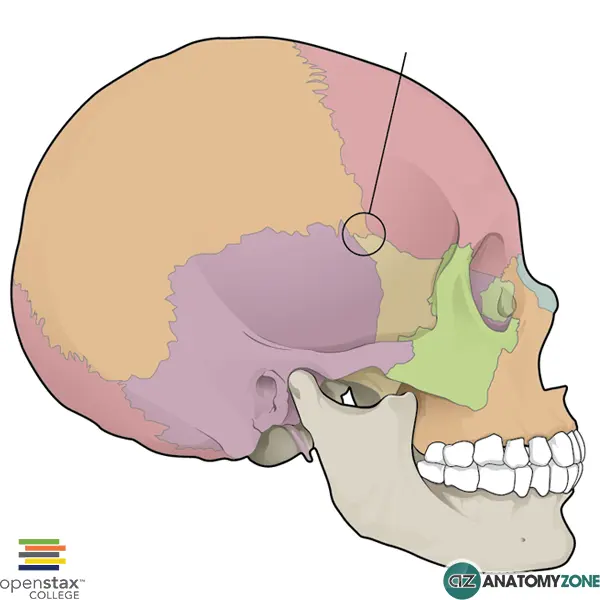

What suture is this?

Pterion

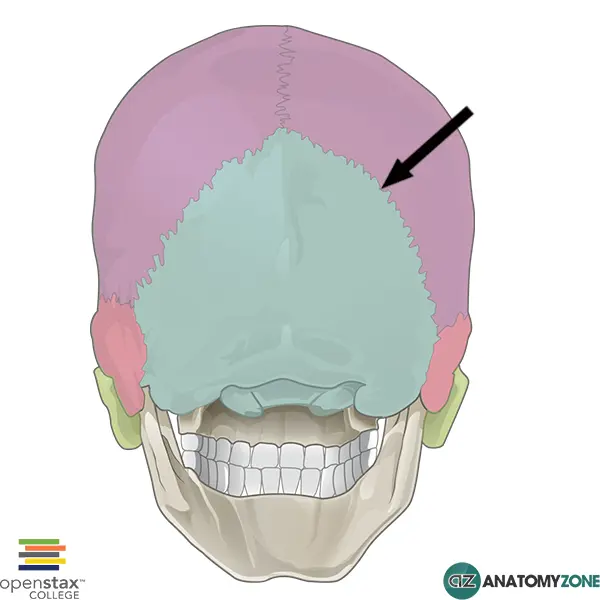

What suture is this?

Lambdoid Suture

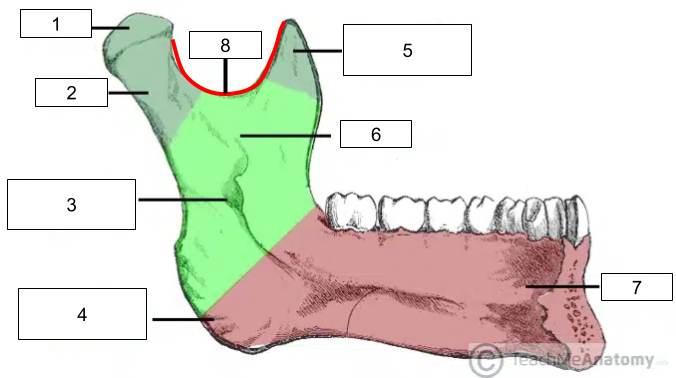

What is #4

Angle of the mandible

What is #5

Coronoid Process

What is #6

Ramus

What is #7

Body of the mandible

What is #8

Mandibular notch

What is #1

Head of the mandible

What is #2

Condyle / Condylar process

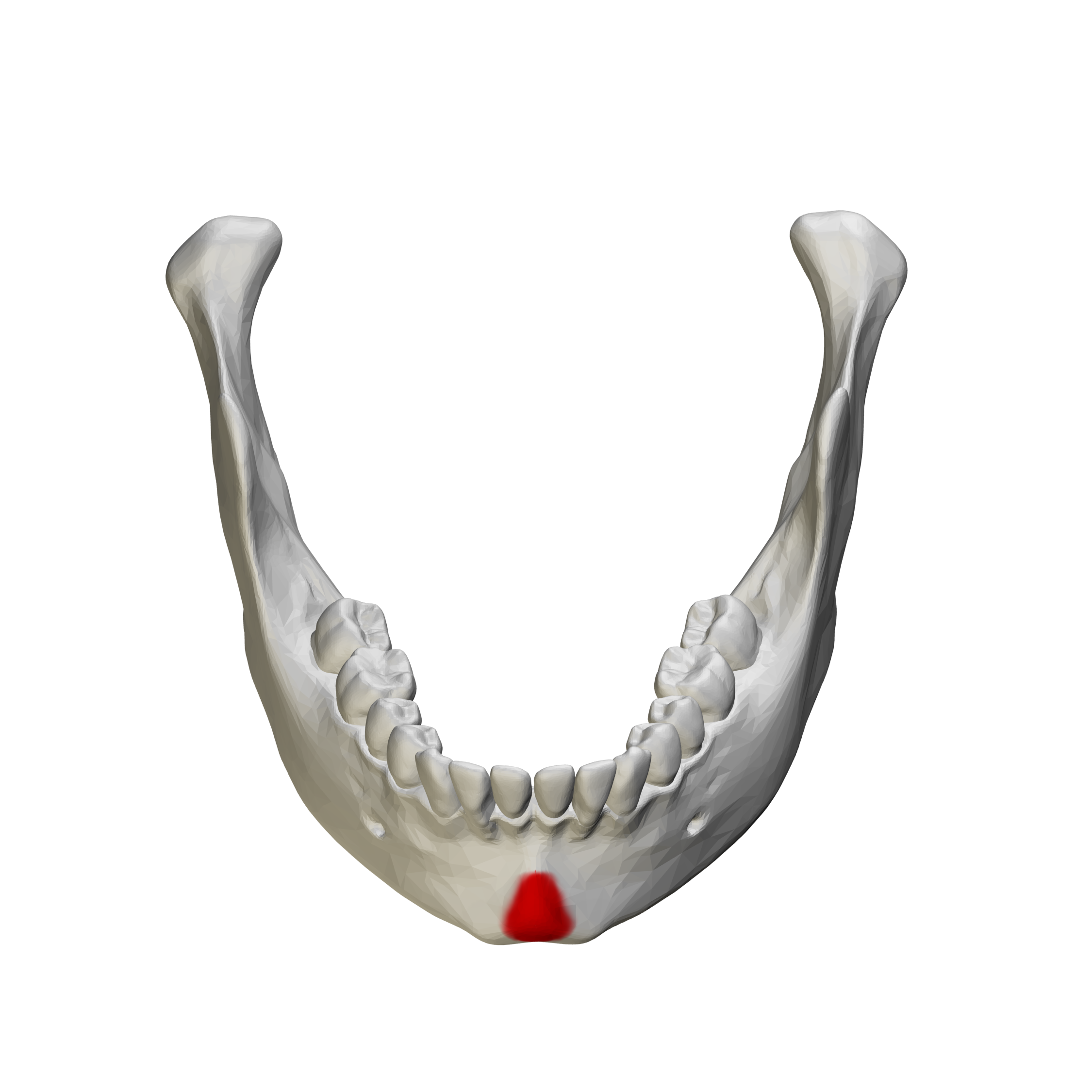

What is this (red)

Mental protuberance

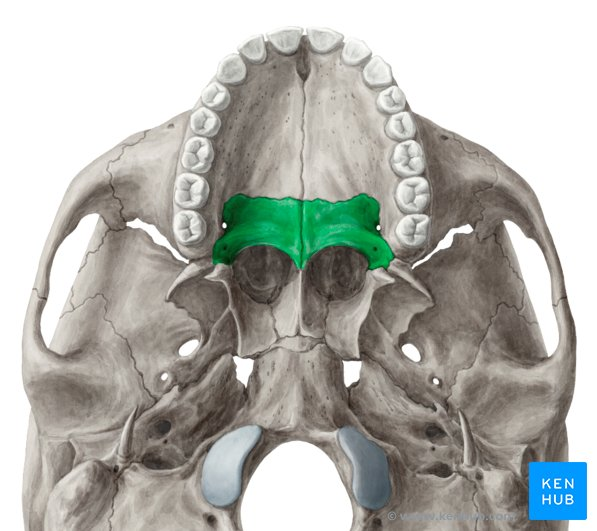

What bone is this?

Horizontal plate of palatine bone

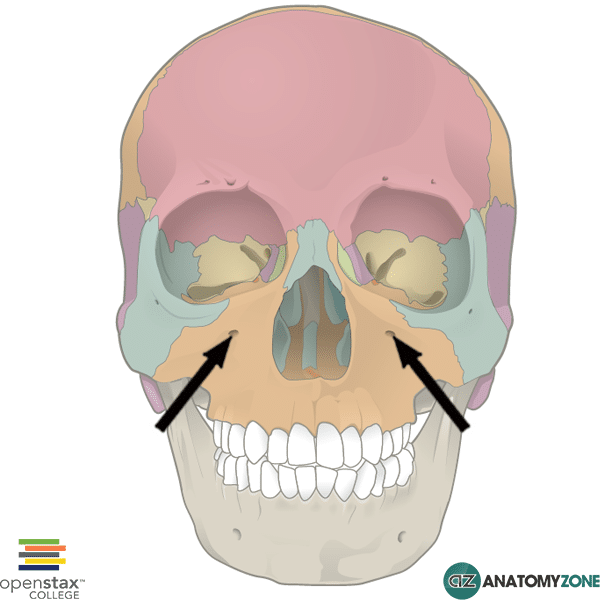

What is this?

Infraorbital foramen

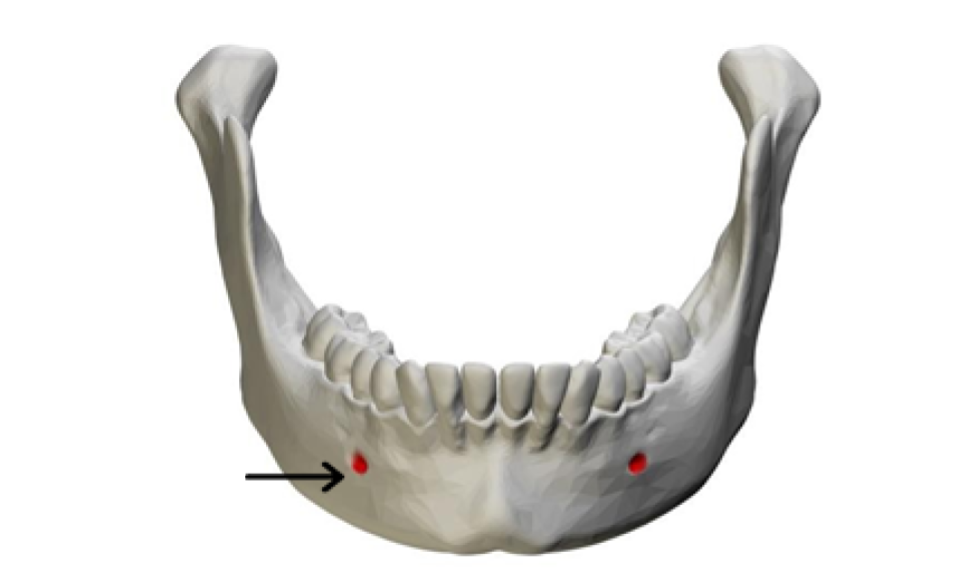

What part of the mandible is this?

Mental foramen

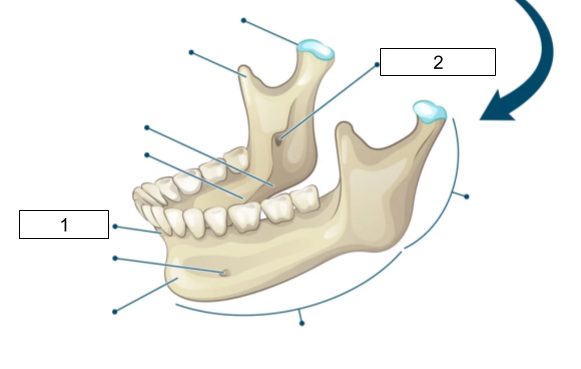

What is #1 (Mandible)

Alveolar Process of the mandible

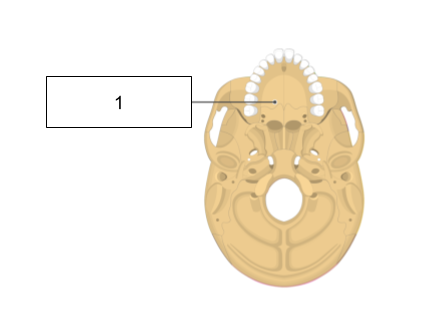

What is this?

Palatine process of maxillary bone

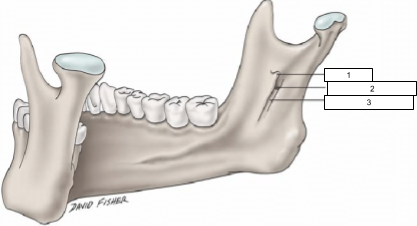

What is #1

Lingula

What is #2

Mandibular foramen

What bone is this?

Vomer

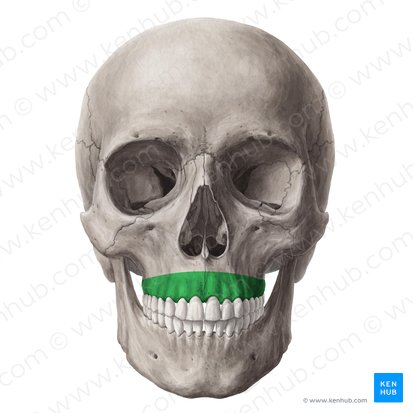

What part of the maxillary bone is this?

Alveolar process of the maxilla

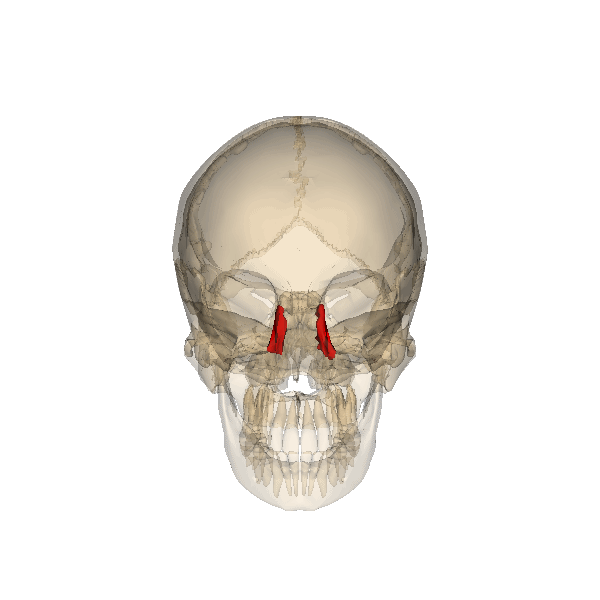

What bone is this?

Lacrimal Bone

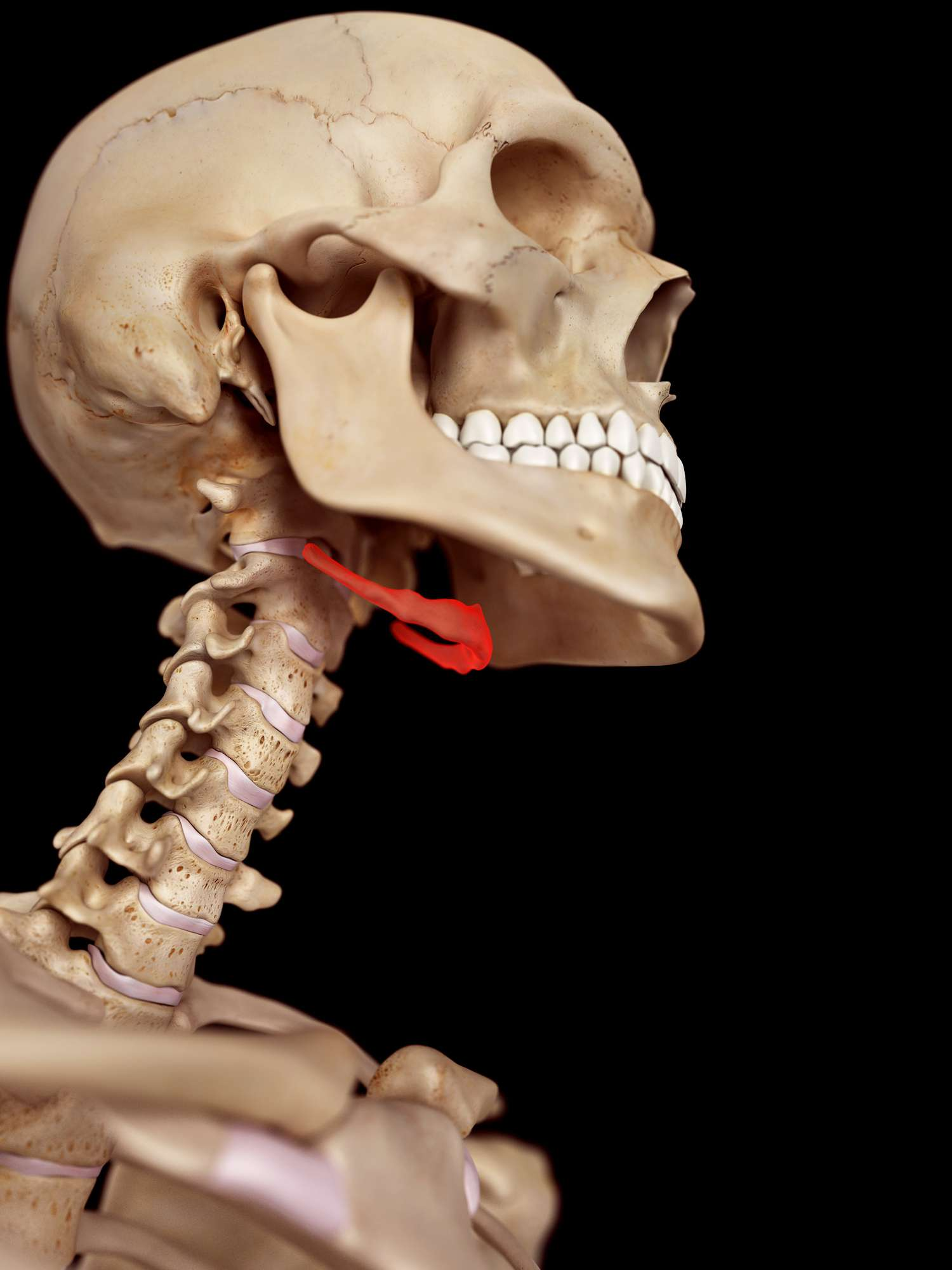

What bone is this?

Hyoid Bone

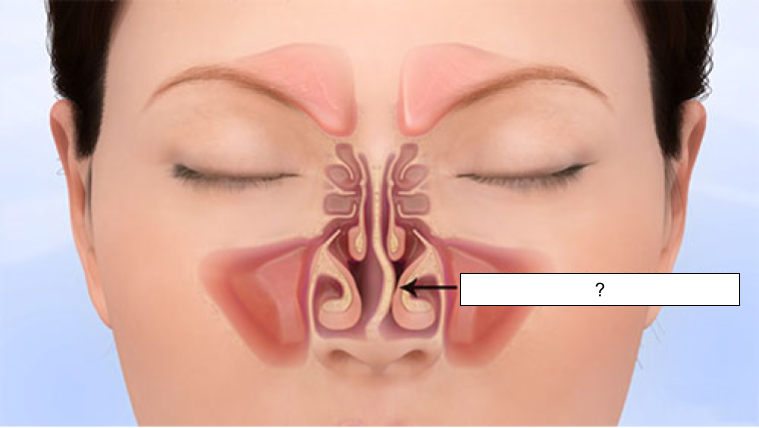

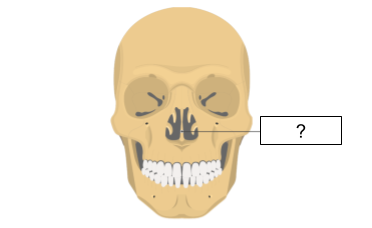

What part of the nasal bone is this?

Inferior Nasal Concha Bone

What bone does the head of the mandible articulate with to form the TMJ (temporomandibular joint) ?

Temporal Bone

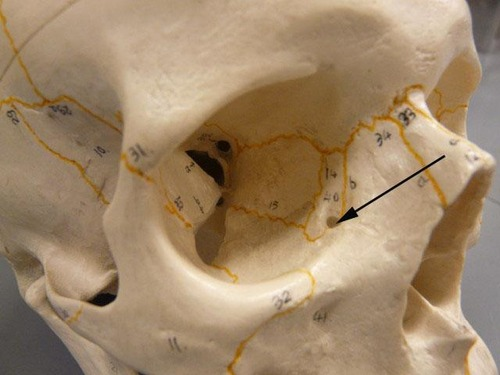

What is this?

Nasolacrimal canal

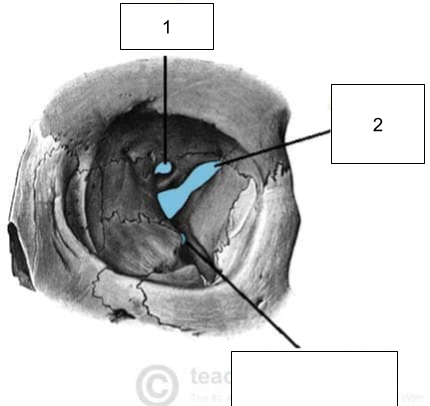

What part of the orbit is #1?

Optic Canal

What part of the orbit is #2?

Superior Orbital Fissure

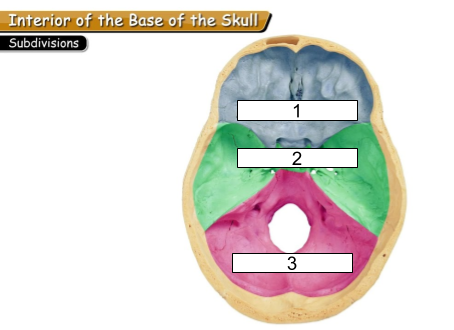

What is #1?

Anterior Cranial Fossa

What is #2?

Middle Cranial Fossa

What is #3?

Posterior Cranial Fossa

3 parts of the nasal septum

Perpendicular Plate, vomer, septal cartilage

3 openings in the middle cranial fossa

Optic canal, Superior Orbital Fissure, Carotid Canal

What does she have?

Deviated Nasal Septum

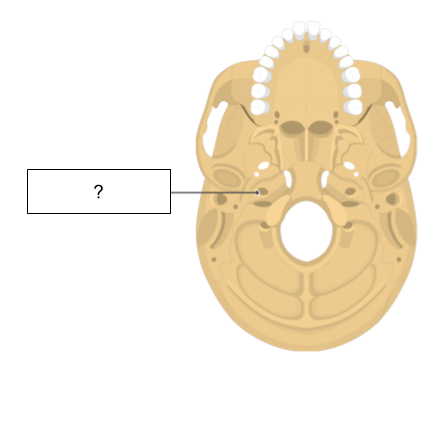

What is this?

Carotid Canal

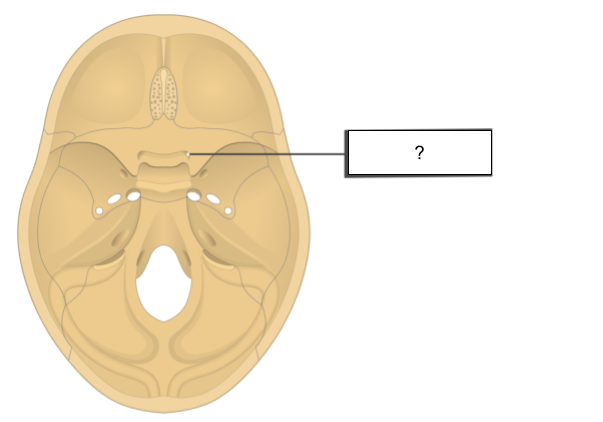

What is this?

Optic canal

2 functions of sinuses

lightening the skull, adding resonance to the voice

What artery goes through the optic canal

Optic artery

What fossa does the head of the mandible articulate with

Mandibular Fossa
