PXS(1) - Passive Core Cooling
Studied by 0 people
Learn
Practice Test
Spaced Repetition
Match
Flashcards1/25
There's no tags or description
Looks like no tags are added yet.
Name | Mastery | Learn | Test | Matching | Spaced |
|---|
No study sessions yet.
26 Terms
Simplified Diagram
ECCS Criteria
(CLOTH)
C - Coolable geometry
L - Longterm capability
O - Oxidation limited to 0.17(17%) thickness
T - Temperature limited to 2,200°F
H - Hydrogen production limited to 1%(0.01) assuming total cladding interaction

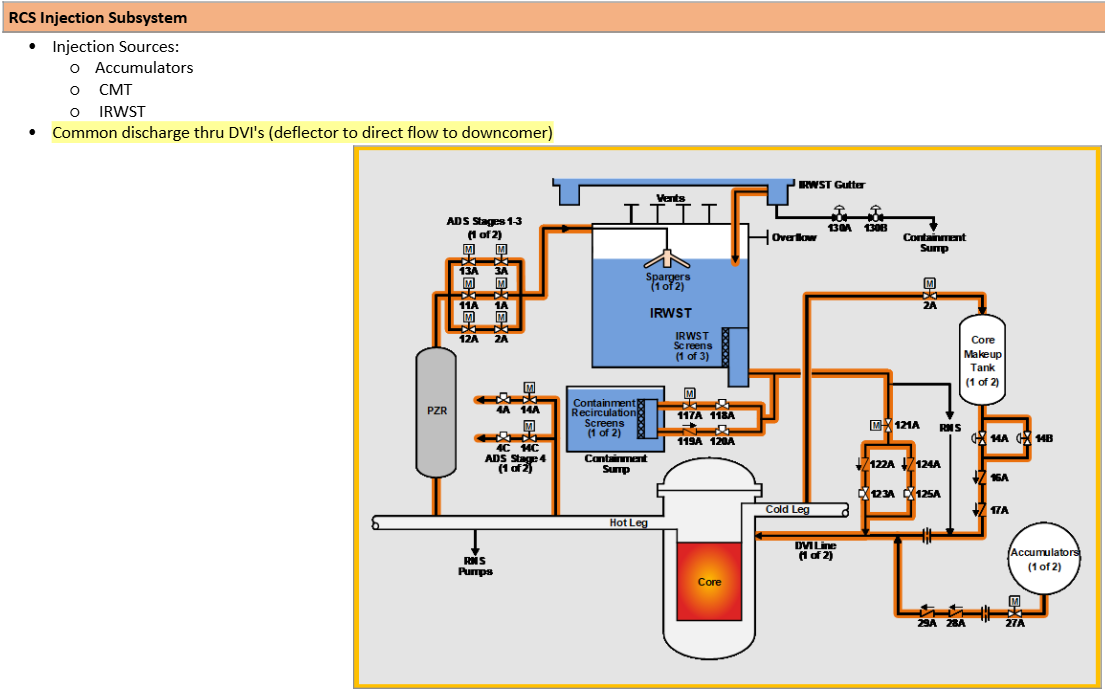

RCS Injection Capabilities

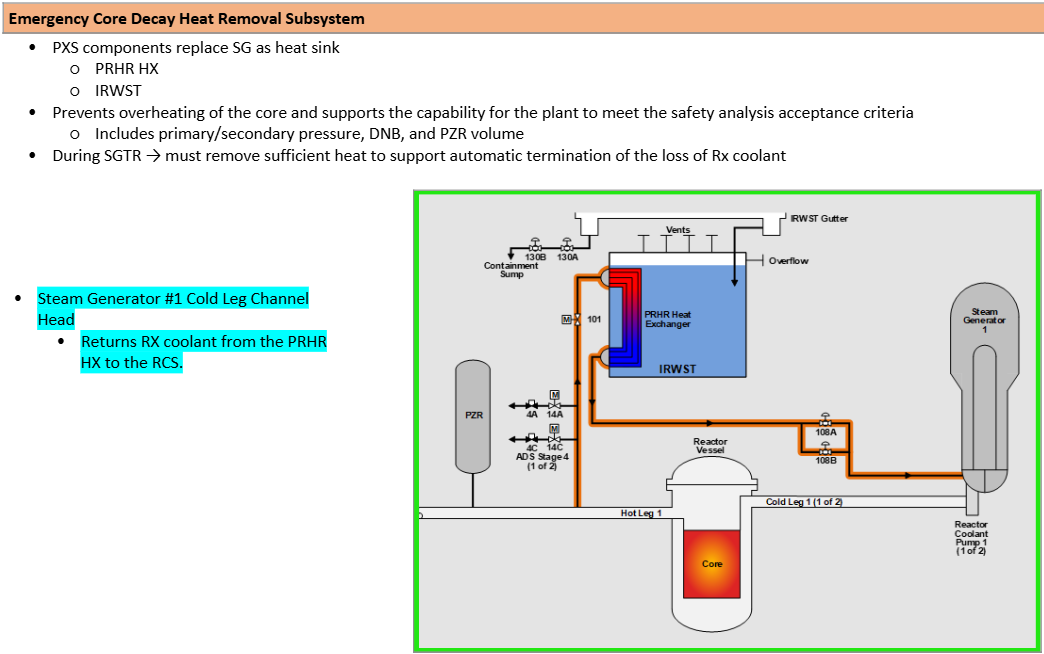

Emergency Heat Removal

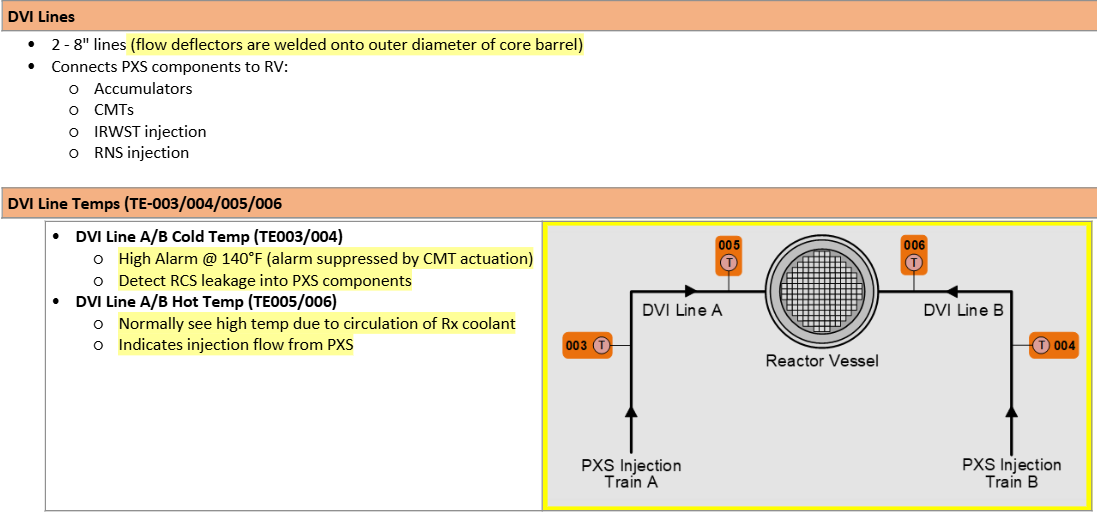

DVI Lines

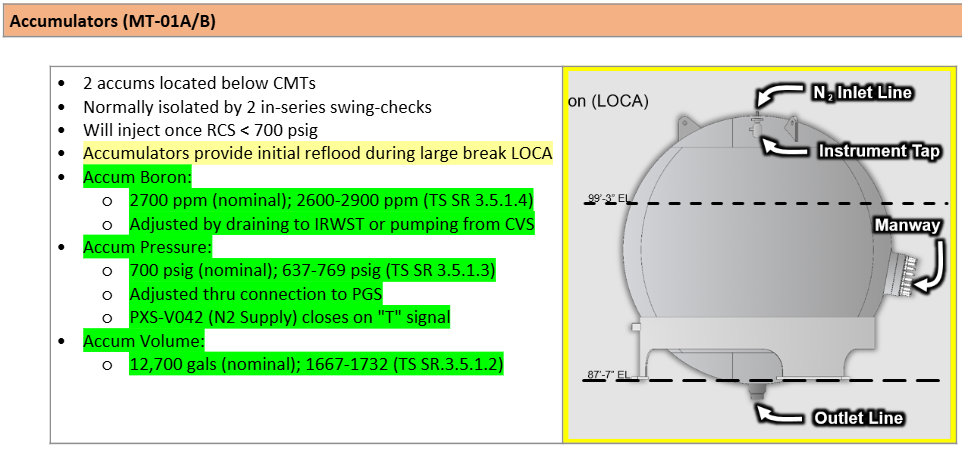

Accumulators

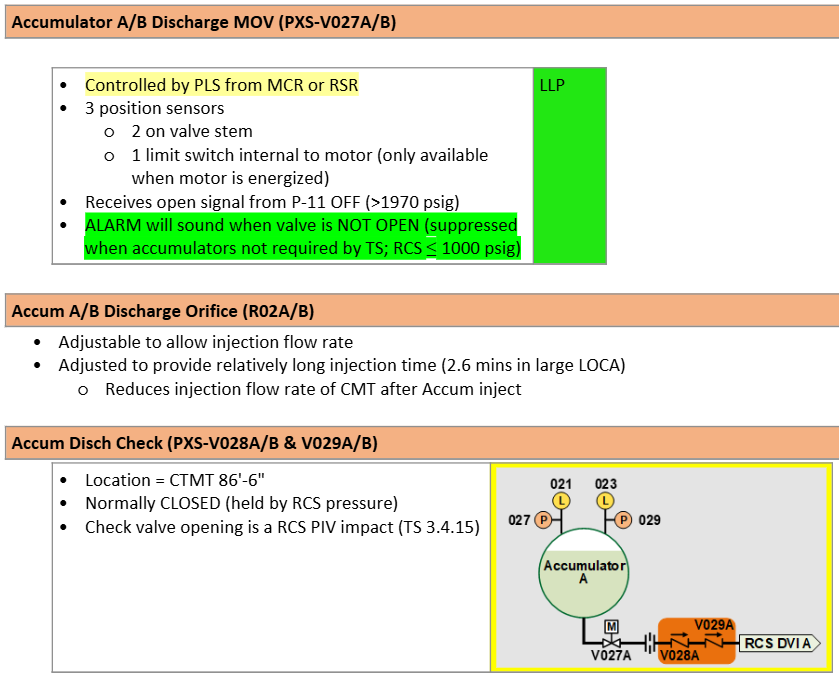

Accumulator Discharge Lines

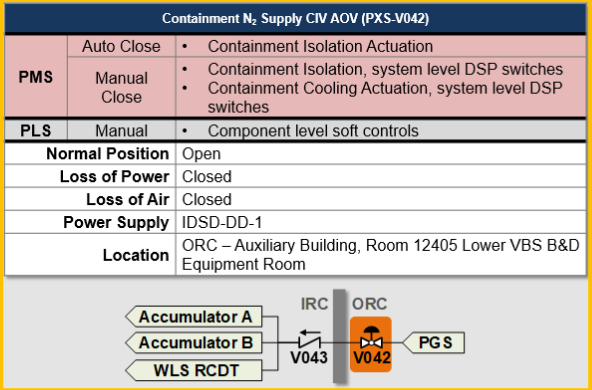

Containment Nitrogen Supply

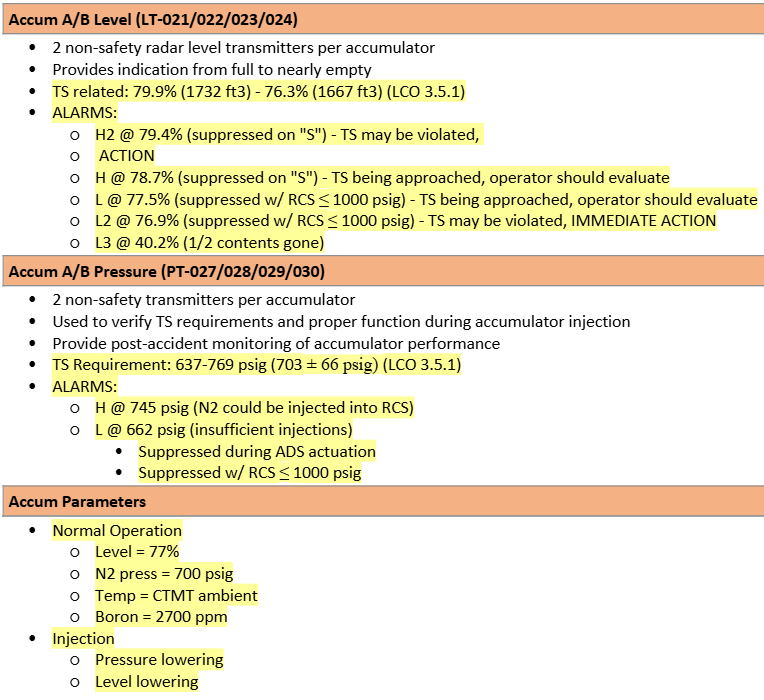

Accumulator Parameters

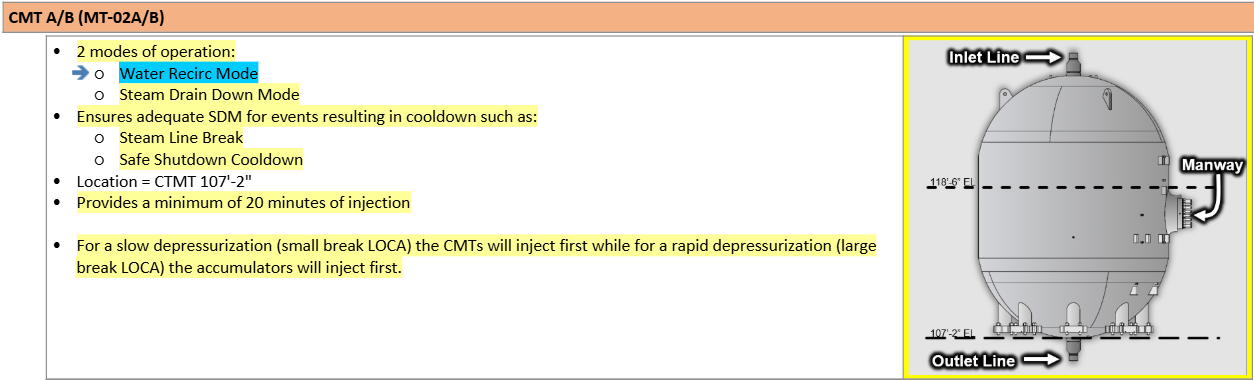

CMTs

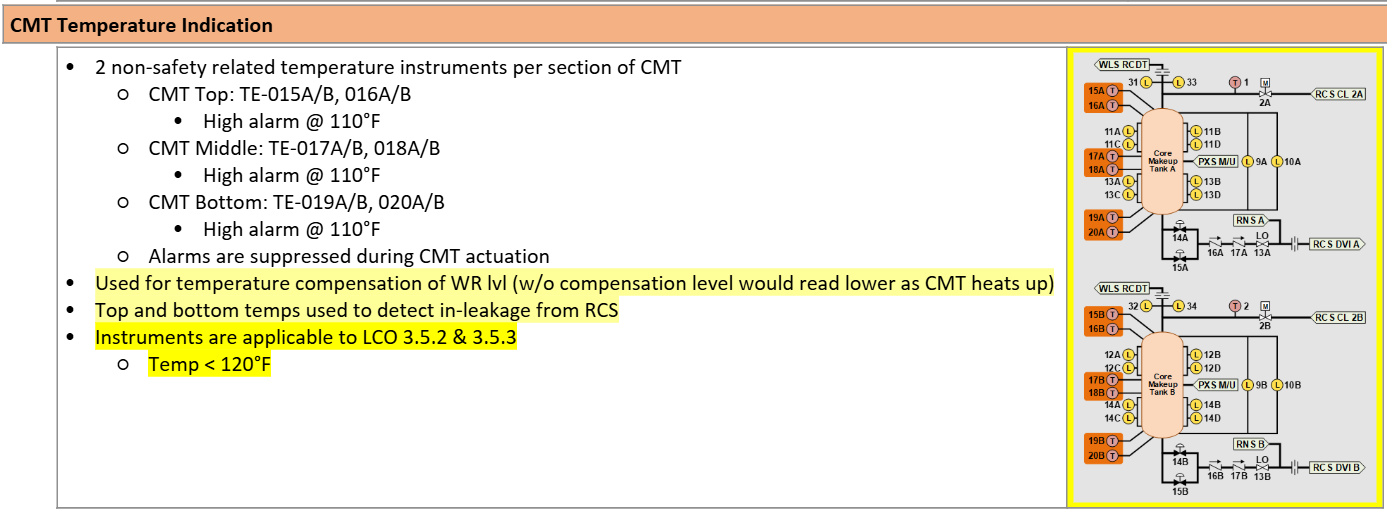

CMT Temperature

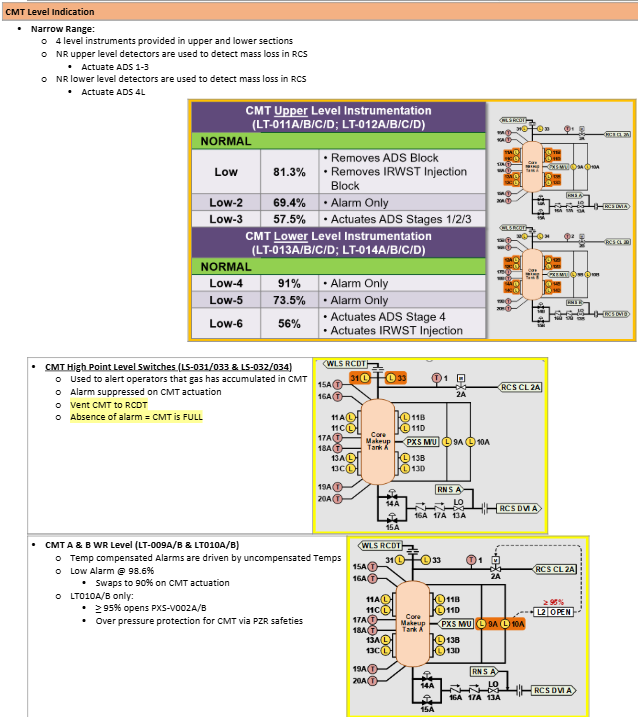

CMT Levels
CMT
Inlets
Makeup Lines

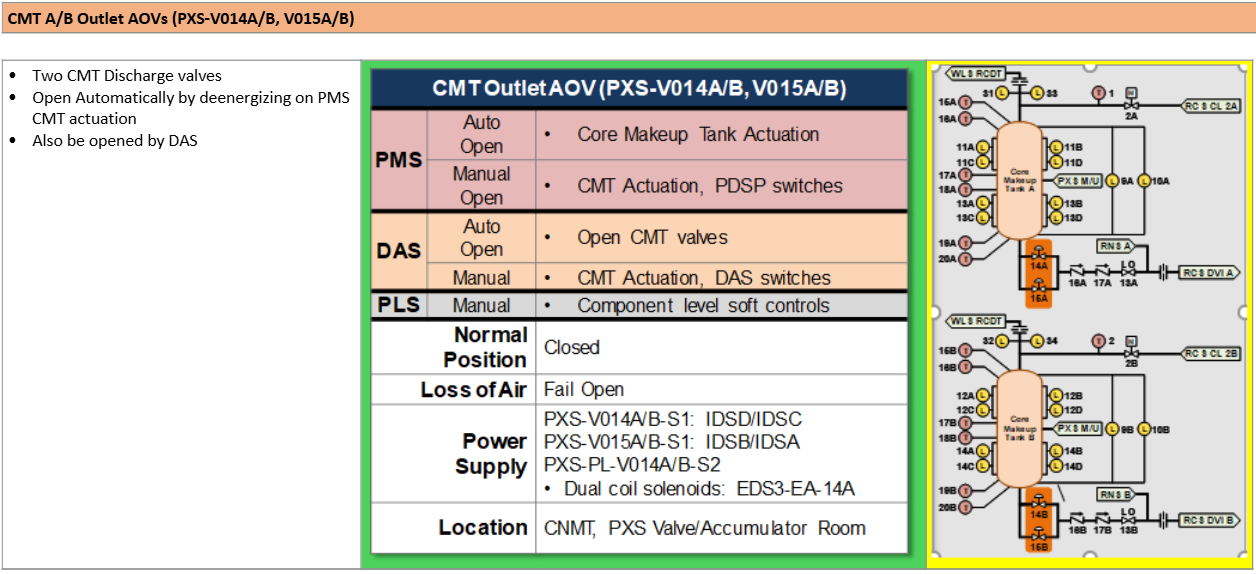

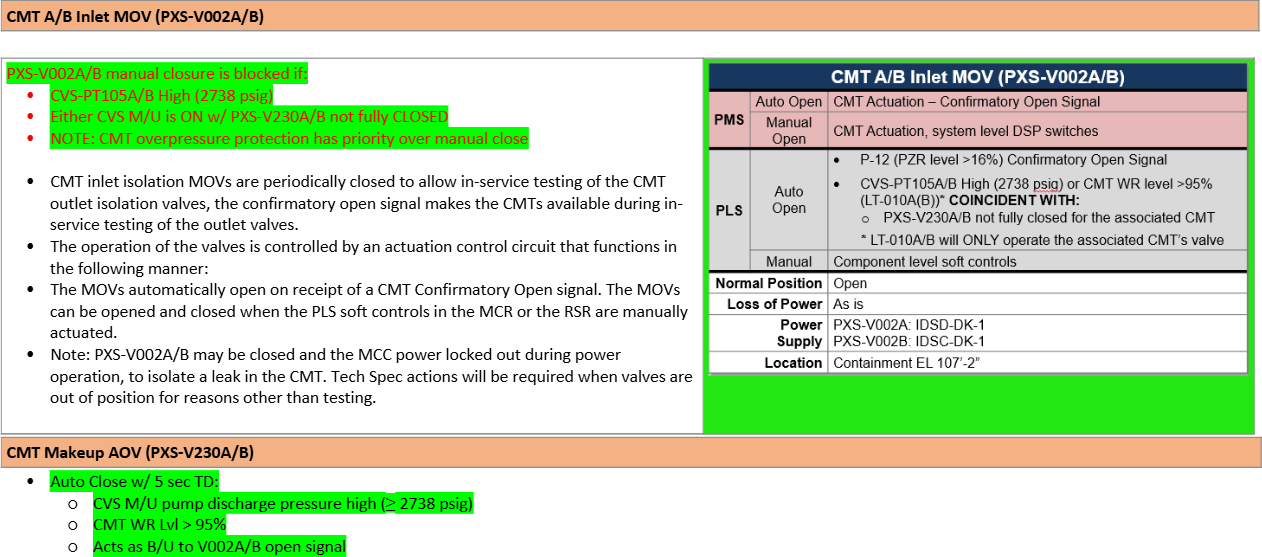

CMT Outlet AOVs
(PXS-V014A/B & PXS-V015A/B)

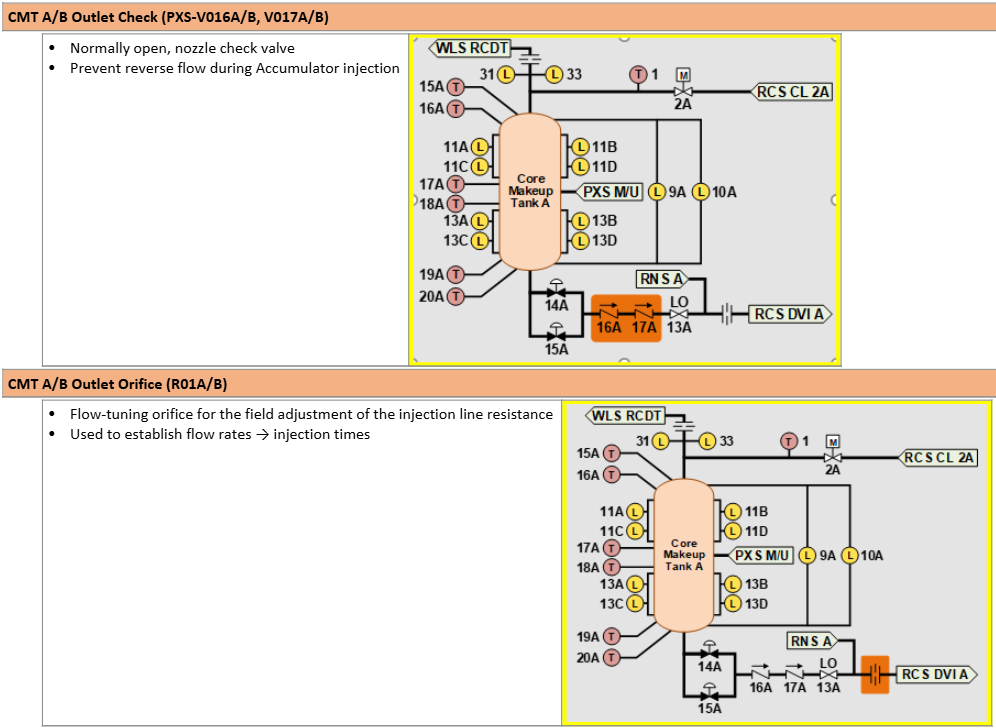

CMT Outlet Lines
Check Valves
Orifice

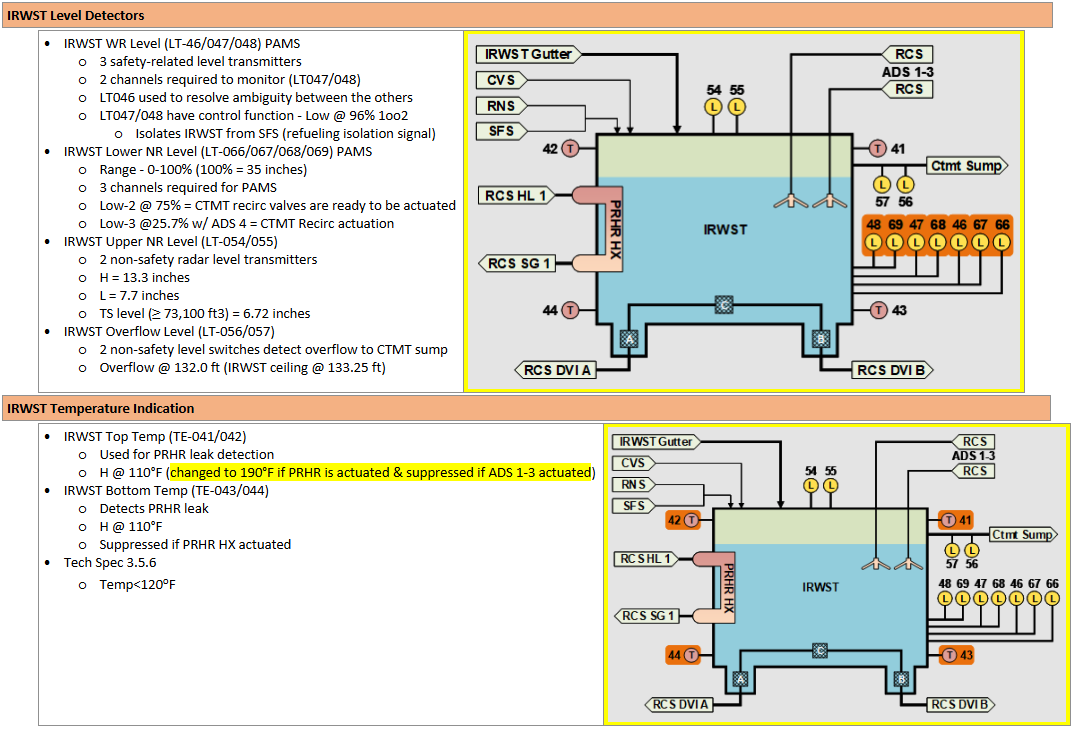

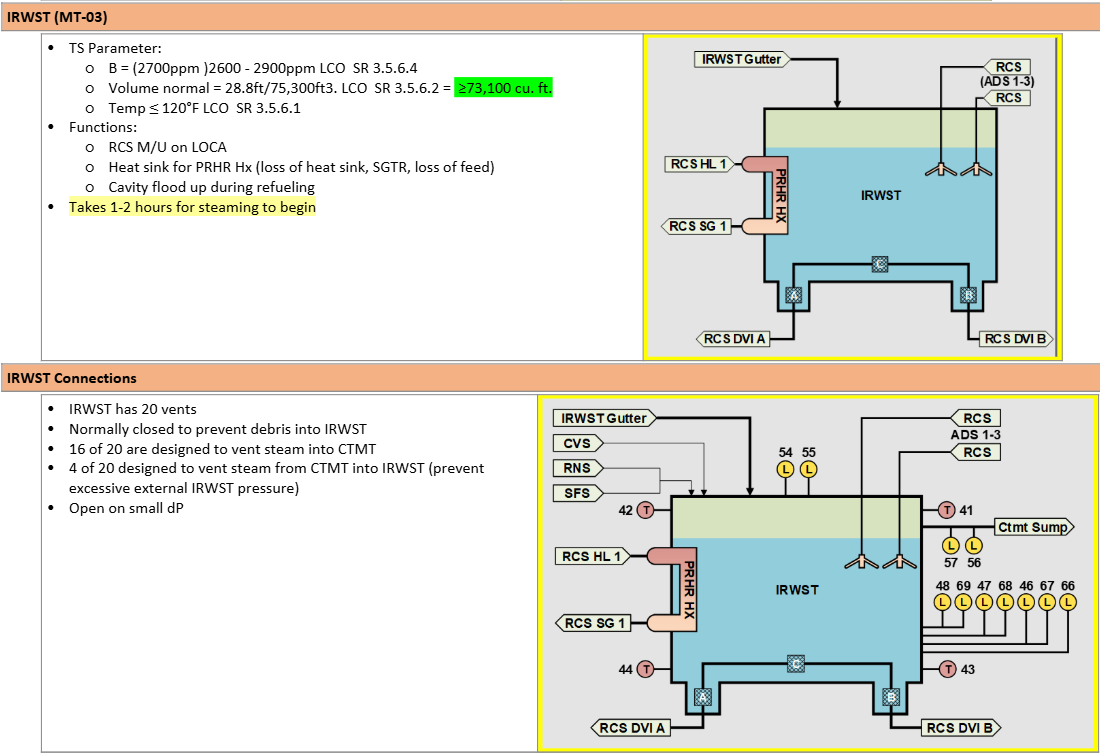

IRWST
IRWST
Temperature
Level
IRWST

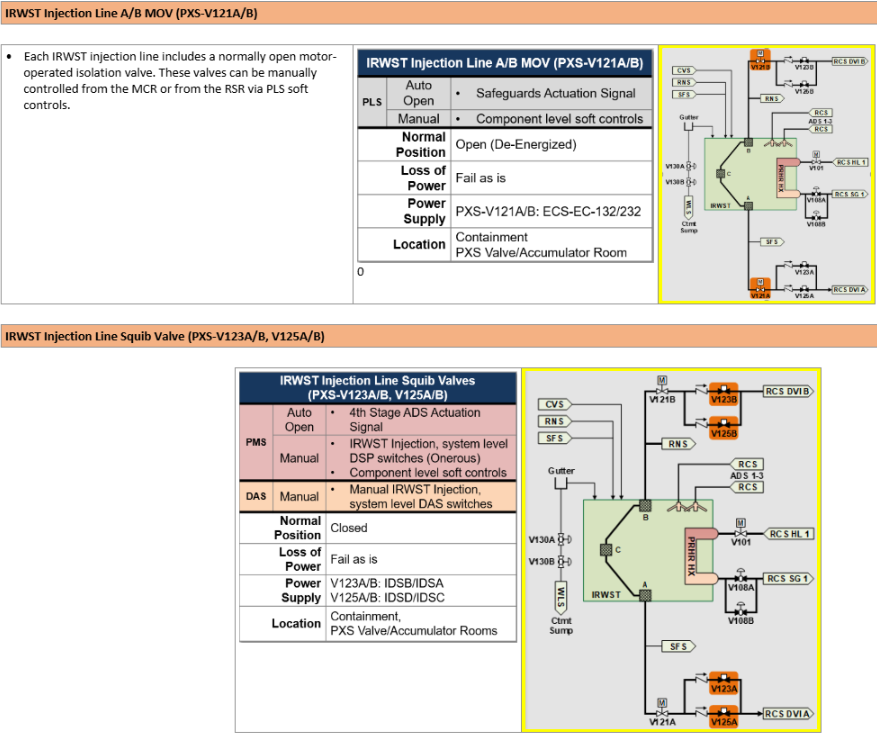

Injection Lines
Notice:
Filter A to SFS
Filter B to RNS
Containment Recirculation

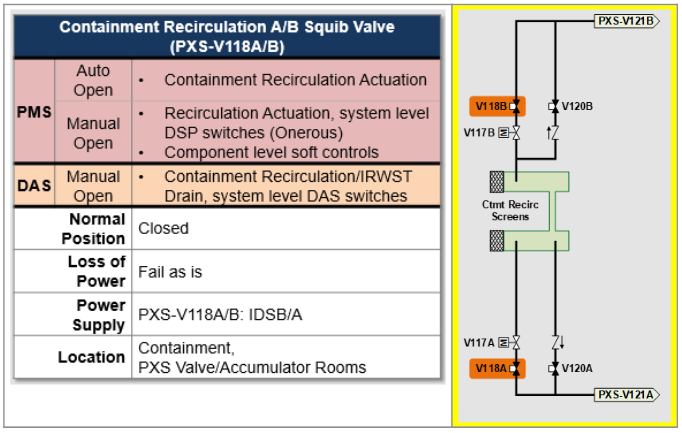

Squib Valves
(PXS-118A/B)
Containment Recirculation

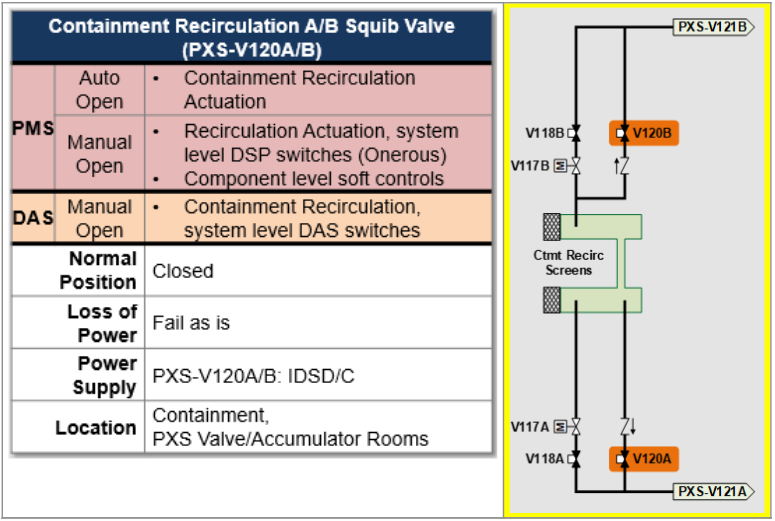

Squib Valves
(PXS-120A/B)

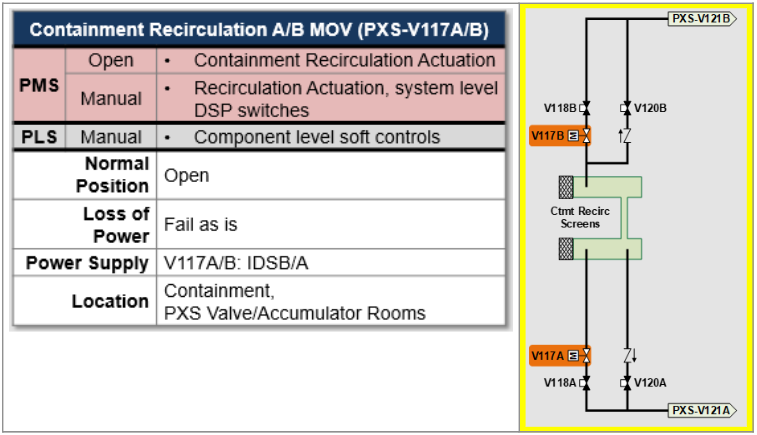

Containment Recirculation
MOVs
(PXS-117A/B)

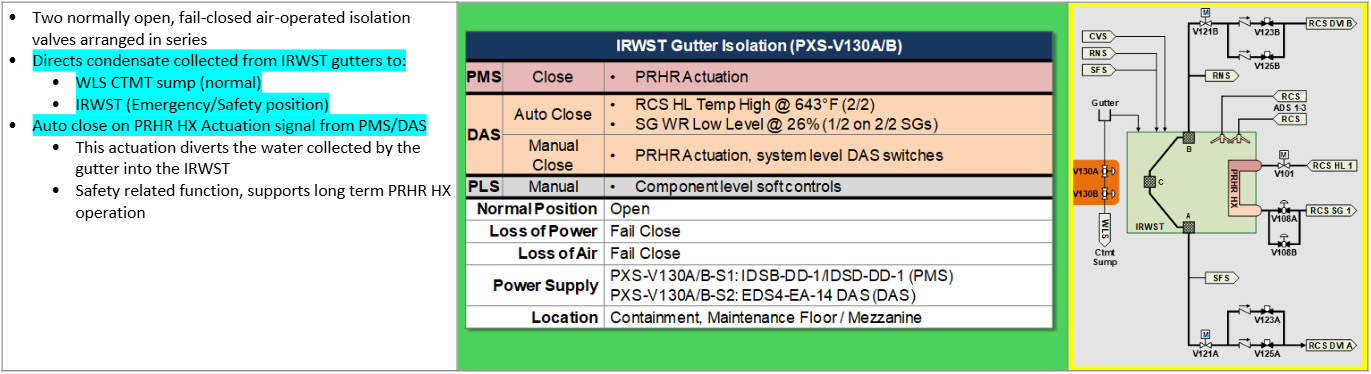

IRWST Gutter Isolation Valves
(PXS-130A/B)

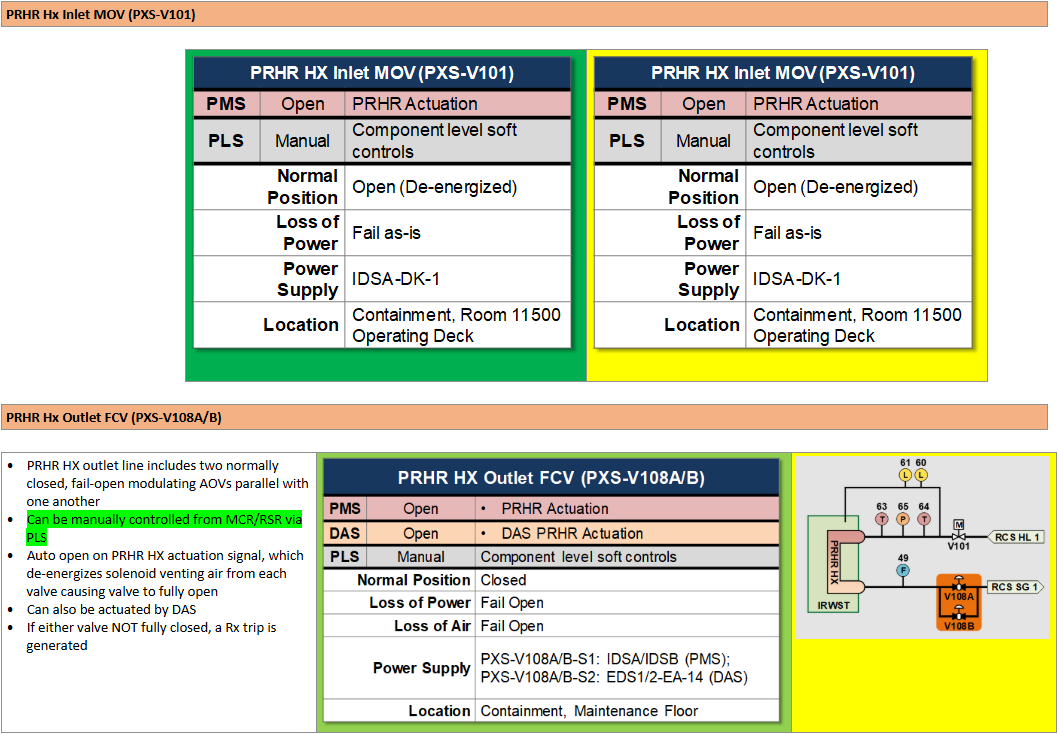

PRHR
Inlet MOV
Outlet AOVs
PXS

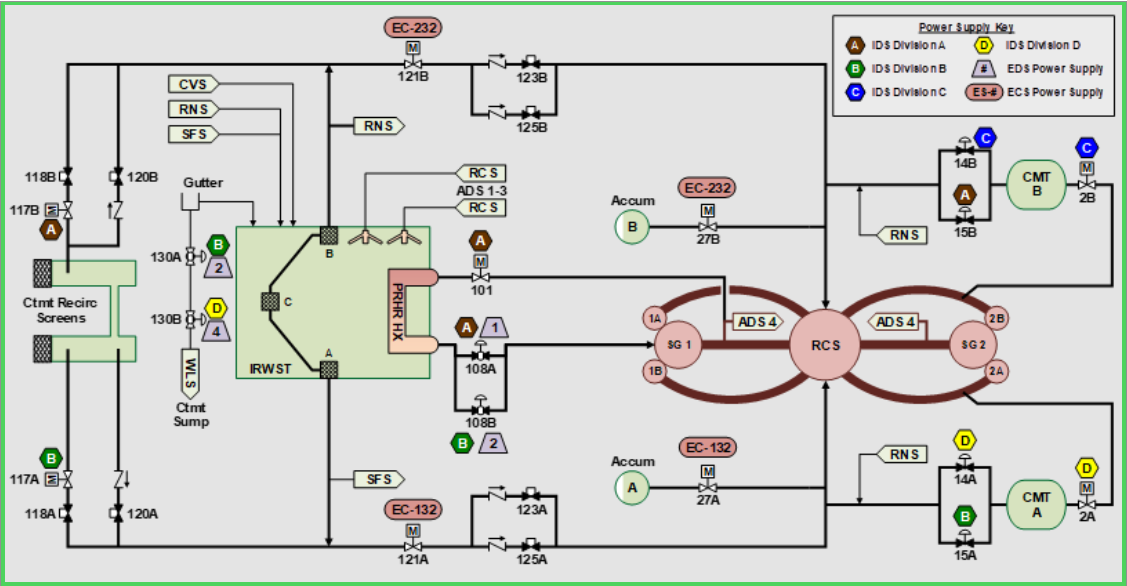

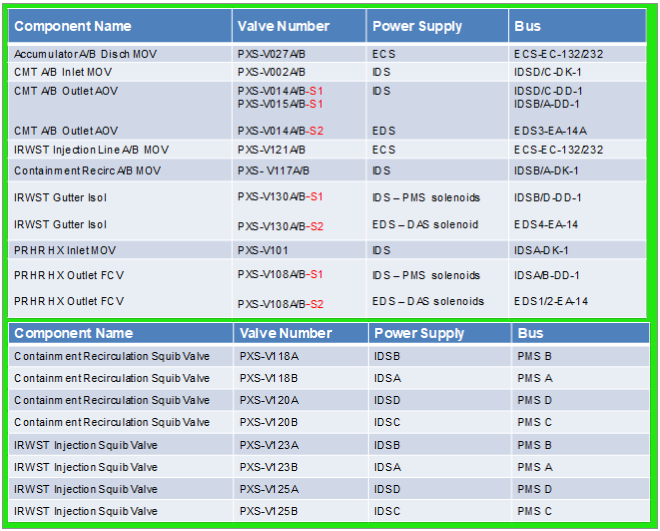

Power Supply Overview
CMTs 2A - 15B
“Don’t Care, Don’t Care, Bout Anything”
Recirc and Injections 118A - 125B
“BADC, BADC”

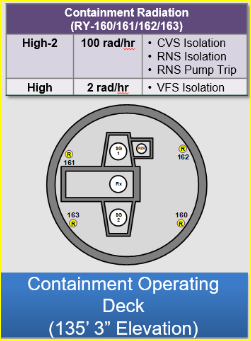

Containment Radiation Signals
VFS Isolation?
CVS Isolation?
RNS Isolation?

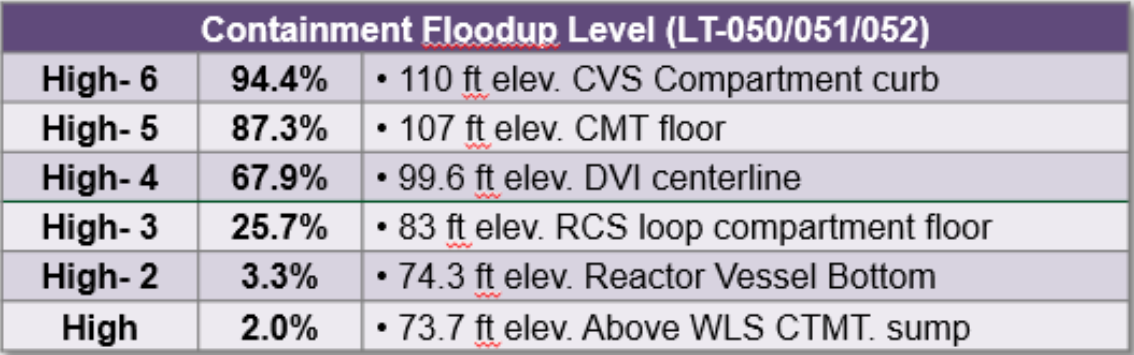

Containment Flood Up Credited Sources?
RCS
BOTH Accumulators
BOTH CMTs
IRWST
CLP (Cask Loading Pit)
BAST (Boric Acid Storage Tank)
