AREA 1 - Mockboards

c. 45,000

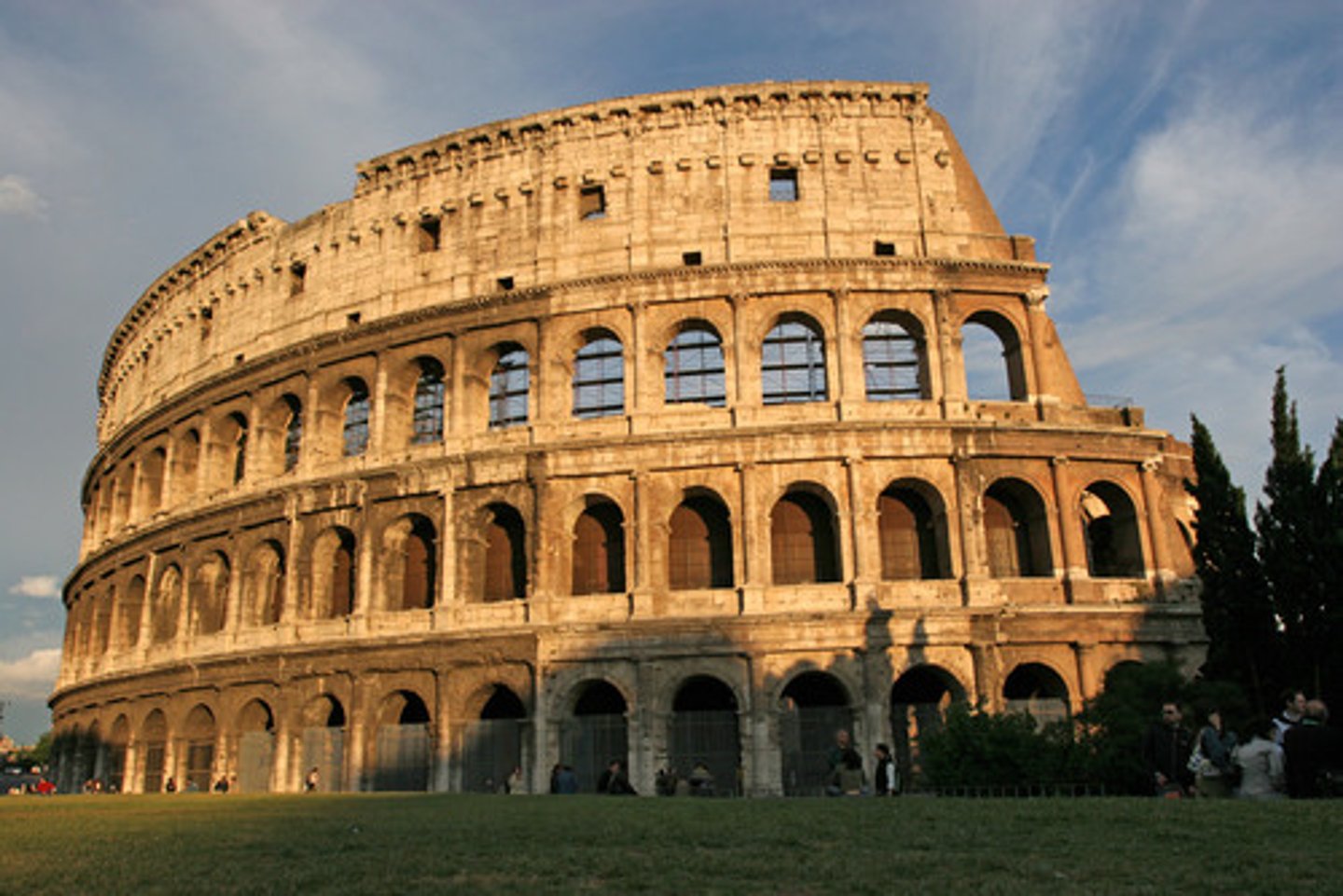

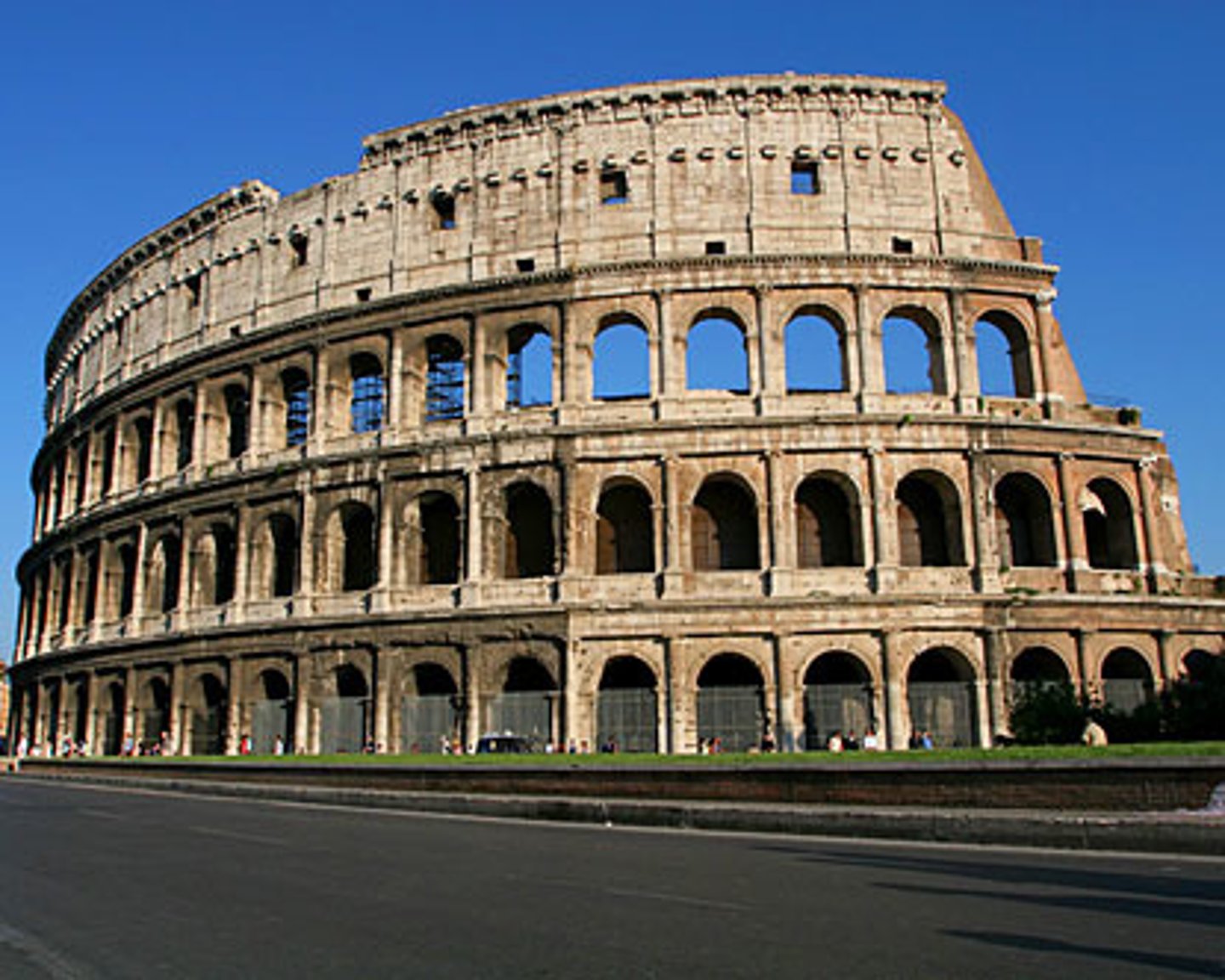

The Colosseum of Rome was designed for about how many

spectators?

a. 1,000

b. 500

c. 45,000

d. 500,000

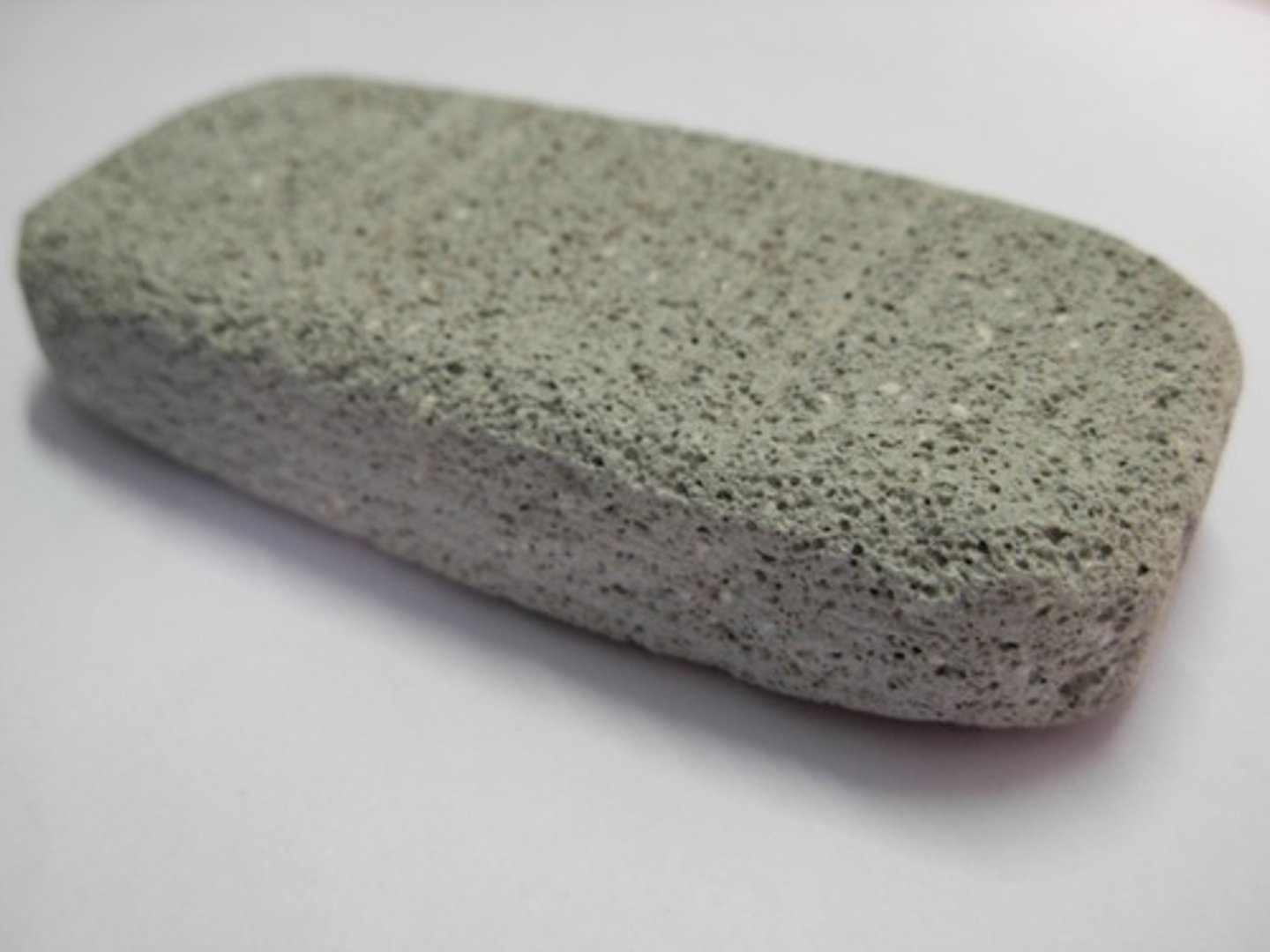

a. Pumice-stone

The Colosseum of Rome’s vaults were built with what

material?

a. Pumice-stone

b. Travertine blocks

c. Lava

d. Brick & Tufa

d. Brick and Tufa

The Colosseum of Rome’s walls were built with what

material?

a. Pumice-stone

b. Travertine blocks

c. Lava

d. Brick & Tufa

b. Travertine Blocks

The Colosseum of Rome's facade was built out of what

material?

a. Pumice-stone

b. Travertine blocks

c. Lava

d. Brick & Tufa

c. Lava

The Colosseum of Rome’s foundations were built out of what

material?

a. Pumice-stone

b. Travertine blocks

c. Lava

d. Brick & Tufa

c. Category 3

Under Rule 3 of BP 344, What category is Educational and

Industrial part of?

a. Category 1

b. Category 2

c. Category 3

d. Category 4

a. 2 seats

How many designated seats should be allotted for disabled

persons in a passenger airplane?

a. 2 seats

b. 4 seats

c. 5 seats

d. 6 seats

b. 6.5 mm

For walkways, maximum grating openings is 13 mm x 13 mm.

What is the maximum height above or below the walkway level

allowed?

a. 3.5 mm

b. 6.5 mm

c. 10 mm

d. 15 mm

c. 0.90 m

What is the maximum height of handrails that should be

installed above steps or ramps?

a. 0.70 m

b. 0.80 m

c. 0.90 m

d. 1.00 m

c. 1.20 m

For signages for roadworks in the carriageway, what is

the minimum footway width to be maintained?

a. 0.90 m

b. 1.00 m

c. 1.20 m

d. 1.50 m

a. 100 sqm

What is the minimum area allocated for parks and

playgrounds?

a. 100 sqm

b. 120 sqm

c. 220 sqm

d. 800 sqm

c. Minor road

This is the road which main function is to provide

direct access to lots and other activity centers

a. Service road

b. Alley

c. Minor road

d. Collector road

d. 150 mm

All roads for both open market and medium cost housing

projects shall be paved with either concrete or asphalt.

What is the minimum thickness required if it were to be

paved with concrete?

a. 25 mm

b. 50 mm

c. 100 mm

d. 150 mm

a. 20 m

For road intersections, what is the minimum corner-to-corner

distances between offset intersections?

a. 20 m

b. 40 m

c. 60 m

d. 80 m

d. 60 sqm

What is the minimum open market lot area for a

rowhouse?

a. 120 sqm

b. 100 sqm

c. 96 sqm

d. 60 sqm

c. 10

What is the minimum lot frontage of a single-detached

regular lot?

a. 3

b. 6

c. 10

d. 12

b. 20

What is the maximum number of row houses per block /

cluster?

a. 10

b. 20

c. 30

d. 40

b. 150 L per capita per day

What is the ADD for both open market and medium cost

housing projects?

a. 100 L per capita per day

b. 150 L per capita per day

c. 200 L per capita per week

d. 250 L per capita per week

d. 50 m

What is the minimum street lighting distance between

each pole?

a. 10 m

b. 25 m

c. 30 m

d. 50 m

d. Common Areas

This means the entire project excepting all units

separately granted, held or reserved.

a. Condominium

b. Block

c. Community Facilities

d. Common Areas

b. Minoru Yamasaki

He is best known for designing the original World

Trade Center towers, which were destroyed on 11 September

2001 in a terrorist attack.

a. David Childs

b. Minoru Yamasaki

c. Kenzo Tange

d. Kazuyo Sejima

d. Gobleki tepe

It is located in Upper Mesopotamia, a region which saw

the emergence of the most ancient farming communities in

the world and is considered to be the oldest religious

structure in the world.

a. Tarxien temple

b. Nuraghe temple

c. Callanish stones

d. Gobleki tepe

c. David Childs

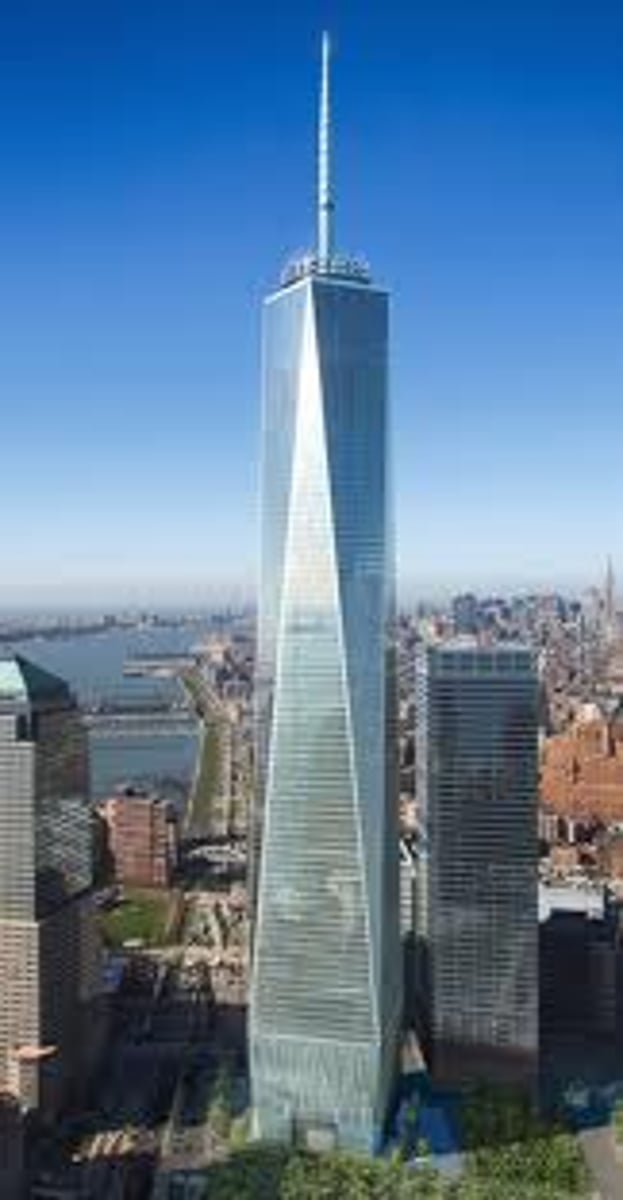

Architect of the new One World Trade Center

a. Minoru Yamasaki

b. Kazuyo Sejima

c. David Childs

d. Kenzo Tange

a. Cortel

The Open court of an italian palazzo

a. Cortel

b. Gynaikon

c. Andron

d. Naos

a. Treasury of Atreus

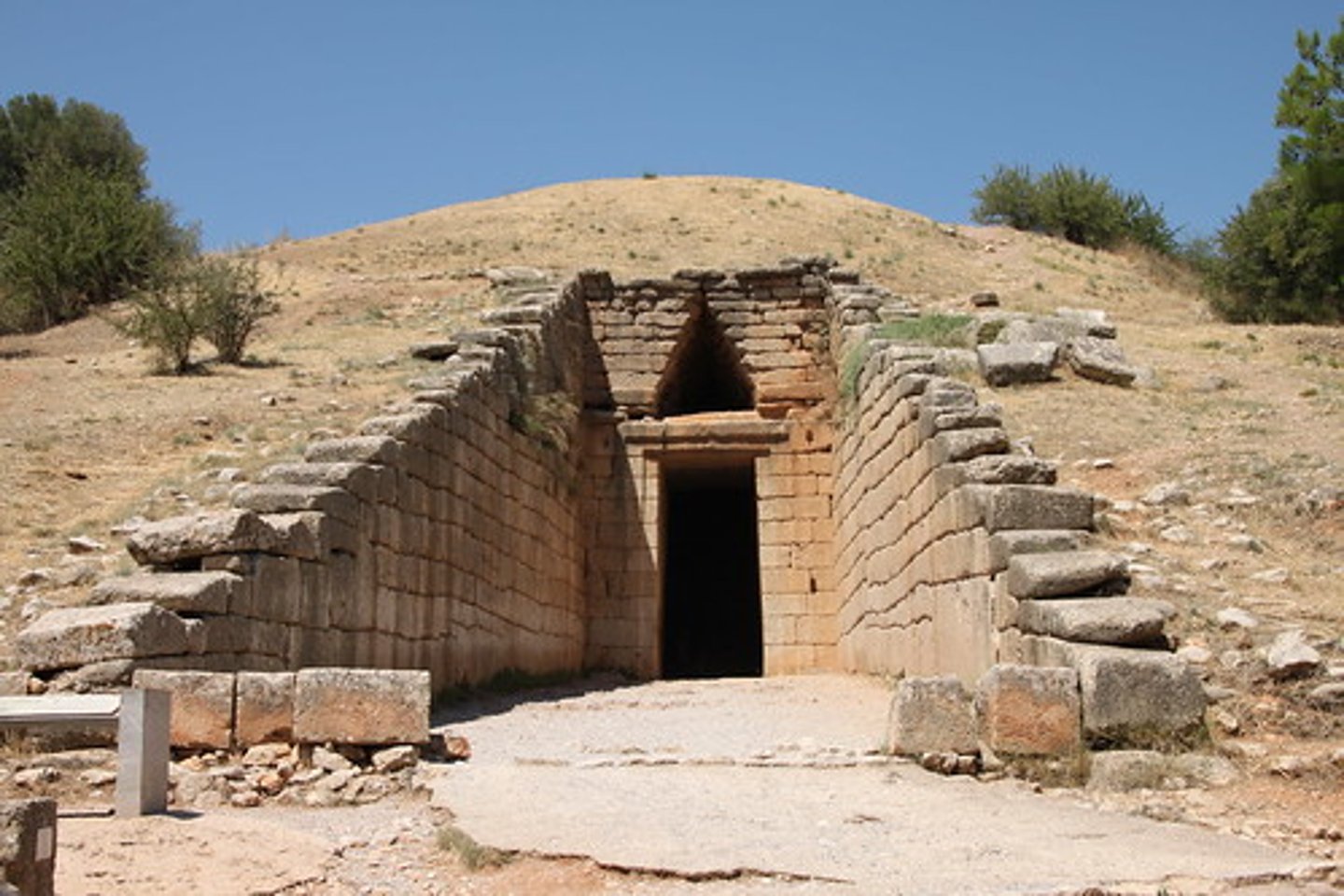

Also called Tomb of Agamemnon, a beehive, or tholos,

tomb built about 1350 to 1250 BC at Mycenae, Greece. This

surviving architectural structure of the Mycenaean

civilization is a pointed dome built up of overhanging

(i.e., corbeled) blocks of conglomerate masonry cut and

polished to give the impression of a true vault.

a. Treasury of Atreus

b. house of Tsountas

c. Citadel

d. Tumulus of Bougon

b. Eliel Saarinen

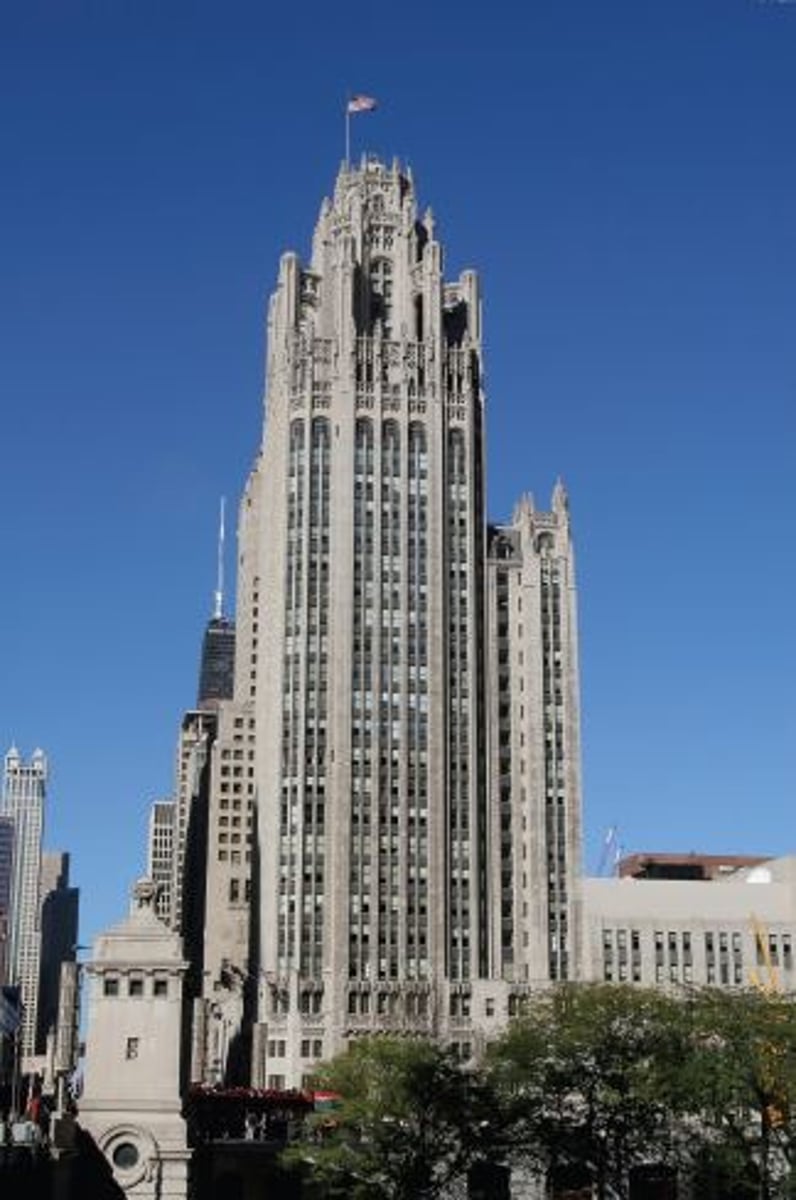

Architect of Chicago Tribune tower?

a. Eero Saarinen

b. Eliel Saarinen

c. Philip Johnson

d. Thom Mayne

d. Guillermo Tolentino

The Andrés Bonifacio Monument, commonly known simply

as Bonifacio Monument or Monumento, is a memorial monument

in Caloocan, Philippines which was designed by this

National Artist

a. Leandro Locsin

b. Pablo Antonio

c. Juan Nakpil

d. Guillermo Tolentino

d. Antonio Sidiong

Architect of China Bank located in Paseo de Roxas

a. Andres Luna

b. Rufino Antonio

c. Pablo Antonio

d. Antonio Sidiong

b. AAAF

It is the first organization formed by the maestros de

obras in the Philippines

a. AIA

b. AAAF

c. AIAAF

d. APGA

c. Carlo Maderno

Who designed the current facade of the Peters

Basilica?

a. Gian Bernini

b. Donato Bramante

c. Carlo Maderno

d. Baldassare Peruzzi

c. 64

As per RA 9514, the size of the wet standpipes shall

not be less than ___ mm in diameter?

a. 54

b. 56

c. 64

d. 65

c. 1.12 m

As per RA 9514, what is the minimum door width for

hospital nursing units?

a. 0.91 m

b. 1.02 m

c. 1.12 m

d. 1.22 m

b. 12 cu.m

As per NBC, minimum airspace for workshop, factories

and offices in cubic meters per person

a. 3 cu.m

b. 12 cu.m

c. 14 cu.m

d. 16 cu.m

b. 0.85

As per BP 344, if water fountain is wall-mounted, the

maximum height of the water fountain shall be ___m from the

floor to the rim

a. 0.80

b. 0.85

c. 0.90

d. 0.95

d. 122

As per RA 9514, no single door in a doorway shall

exceed ___cm in width

a. 71.5

b. 91.5

c. 112

d. 122

b. 8m

As per BP 220, it is the minimum lot frontage in

single detached corner lots

a. 6m

b. 8m

c. 10m

d. 12m

d. 36 sqm

As per BP 220, it is the minimum lot area for an

economic rowhouse

a. 28 sqm

b. 32 sqm

c. 34 sqm

d. 36 sqm

a. 25 %

The floor area authorized for non-residential use in

multi-family dwellings, whether in the principal dwelling

structure or in any accessory building, shall not exceed

how much percentage of the total residential area?

a. 25 %

b. 30 %

c. 40 %

d. 50 %

b. 4.50

What is the inside curb radius for cul-de-sac?

a. 3.50

b. 4.50

c. 5.50

d. 6.50

a. 0.30

Firewall shall extend vertically from the lowest

portion of the wall adjoining the living units up to a

minimum height of ___ m above the highest point of the roof

attached to it.

a. 0.30

b. 0.40

c. 0.50

d. 0.60

b. Ayuntamiento

The chief administrative building which offices for

both the Gobernador- Heneral and the alcalde with their

Regidores. It means "City Hall".

a. Parian

b. Ayuntamiento

c. Beaterio

d. Adwana

a. Obar-Obar

A flower-like motif of the Torogan House

a. Obar-Obar

b. Birdo

c. Tiali-Tali

d. Orsod

c. Buckminister Fuller

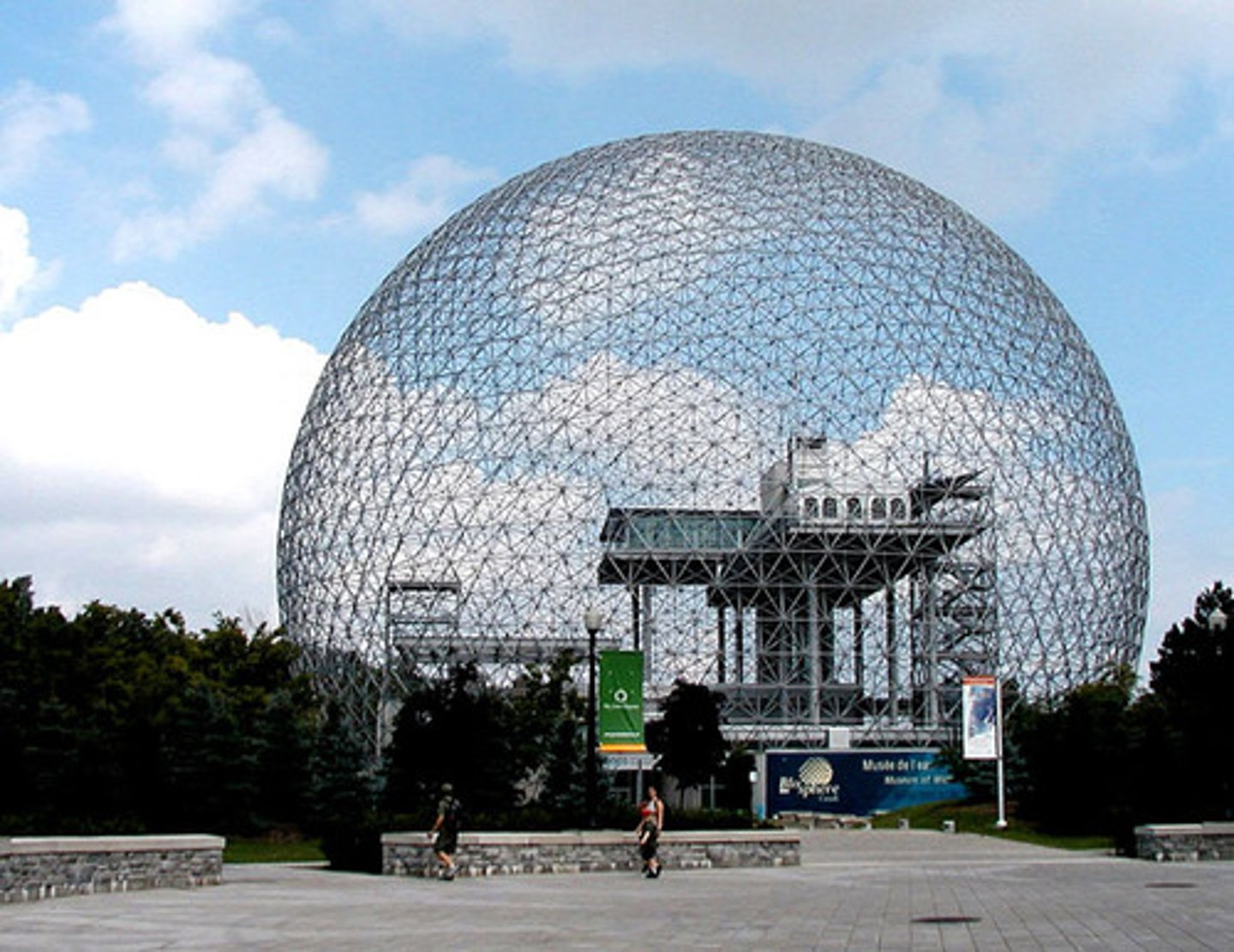

Who is the architect of the US Pavilion in the 1967

Montreal Exposition?

a. Pier Luigi Nervi

b. Eugene Freysinnet

c. Buckminister Fuller

d. Moshe Safdie

c. Buckminister Fuller

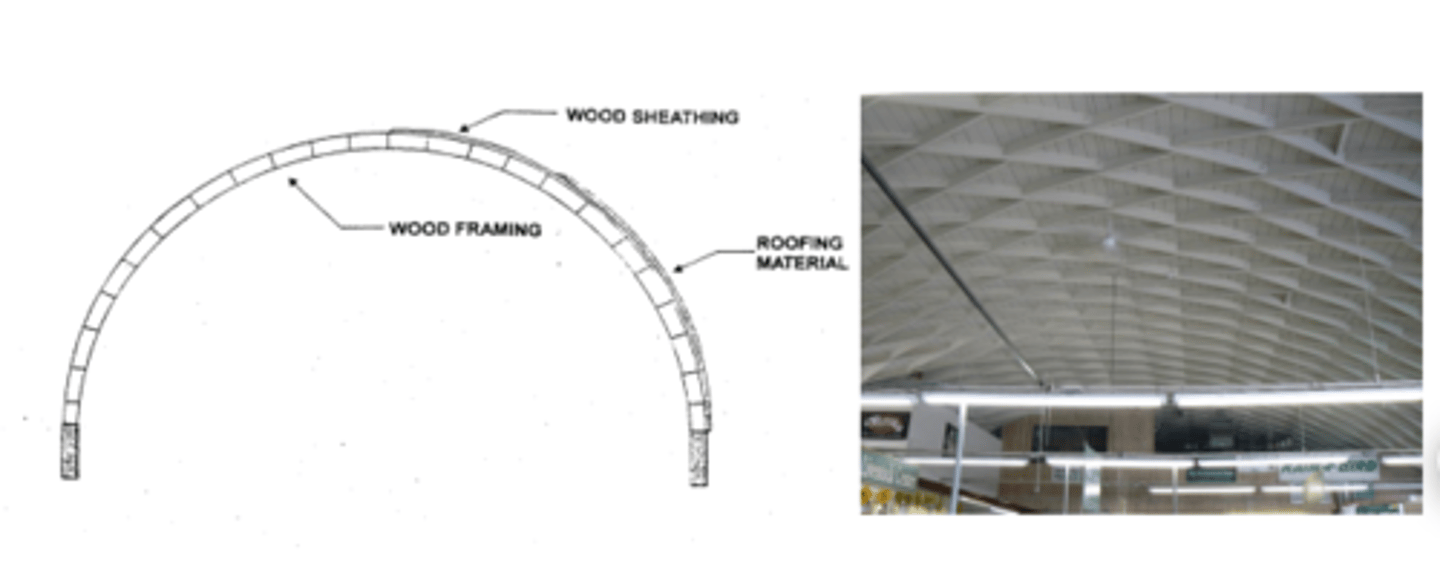

Space frame systems and Lamella Construction

a. Pier Luigi Nervi

b. Eugene Freysinnet

c. Buckminister Fuller

d. Moshe Safdie

d. Impost

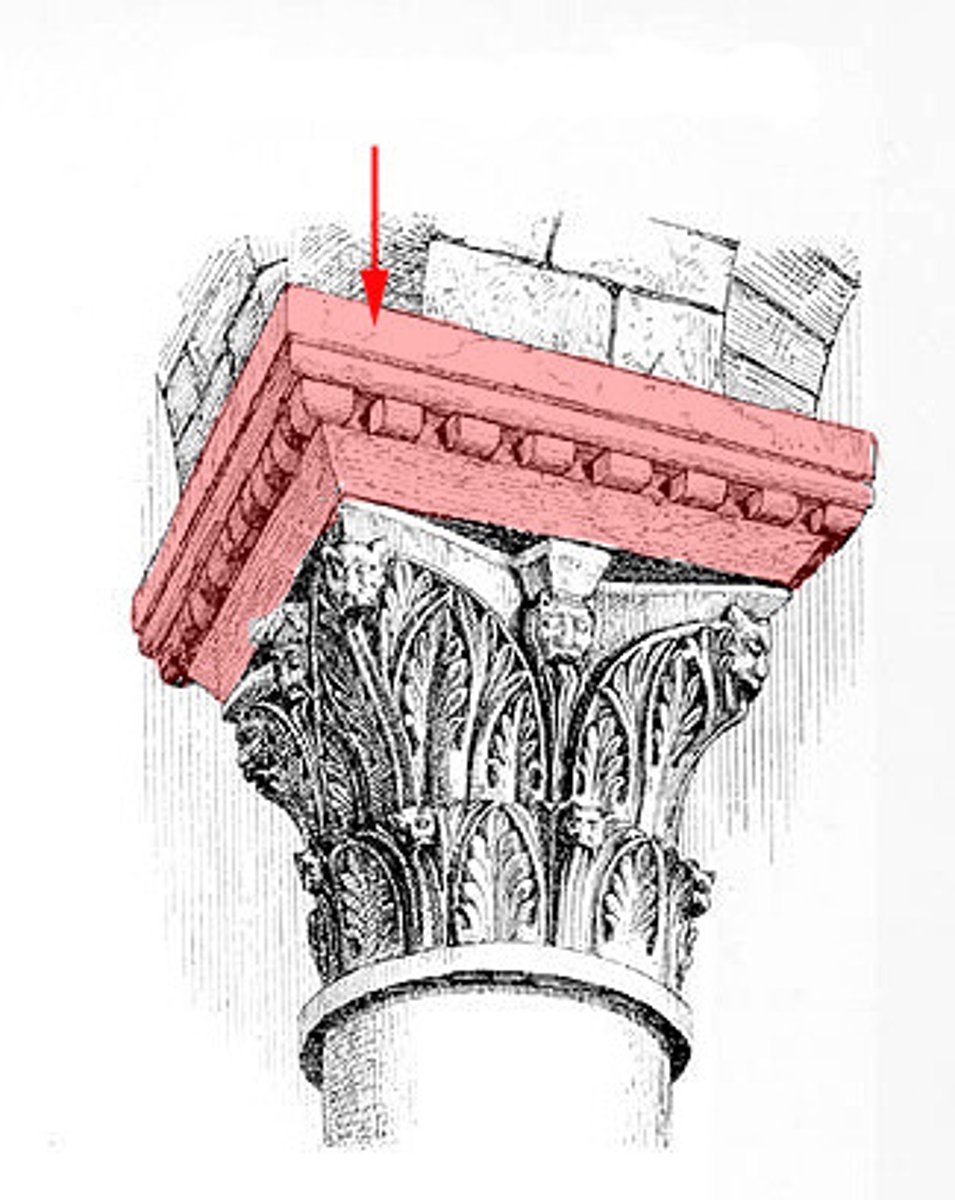

Springing line of an arch

a. Haunch

b. Archivolt

c. Spandrel

d. Impost

c. Soria Y Mata

Developed the "Linear City"

a. Tony Garnier

b. Lucio Costa

c. Soria Y Mata

d. Le Corbusier

c. Edges

Linear elements not used or considered as paths

a. Districts

b. Nodes

c. Edges

d. Landmarks

a. General land use map

It is a map that shows the agricultural, industrial,

idle lands and other uses

a. General land use map

b. Topographic map

c. Commercial map

d. Urban Land Use map

a. Fertile Crescent

Urbanization began around 4,000 BC in the area known

as what?

a. Fertile Crescent

b. Babylon

c. Eridu

d. Asia Minor

a. Chauncy Harris

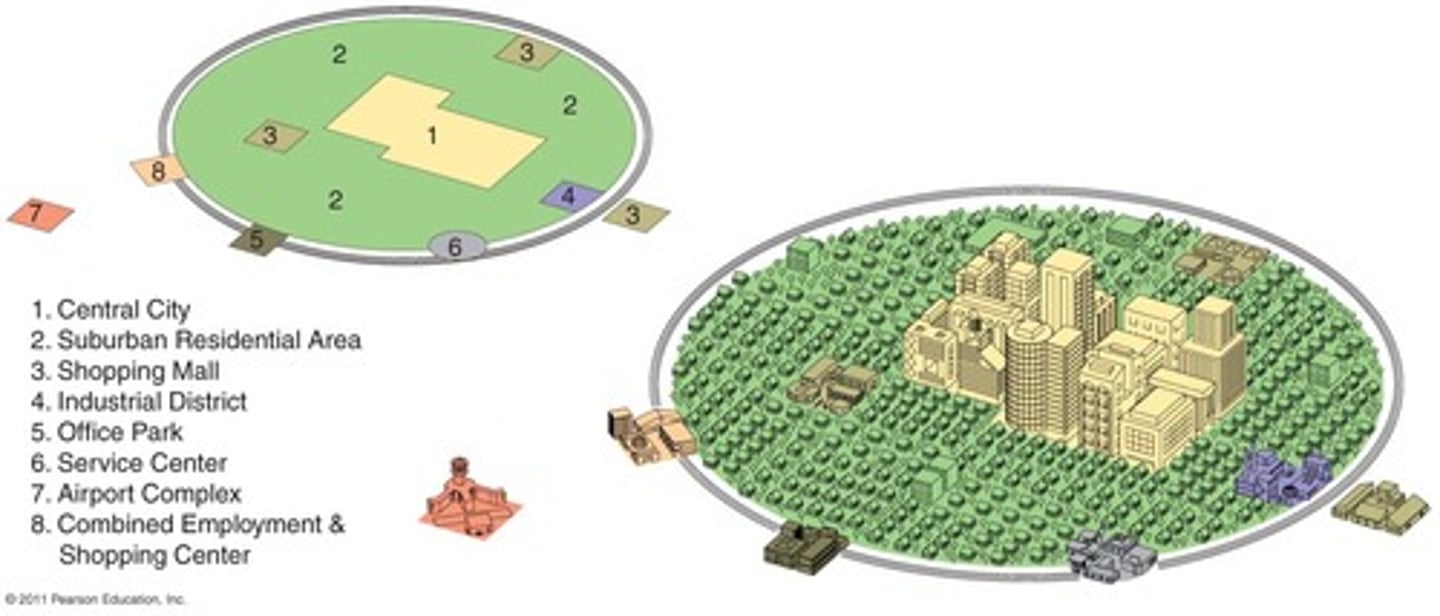

The main proponent of the Urban Realm Model of Urban

Development

a. Chauncy Harris

c. E.W. Burgess

d. Homer Hoyt

b. Makati

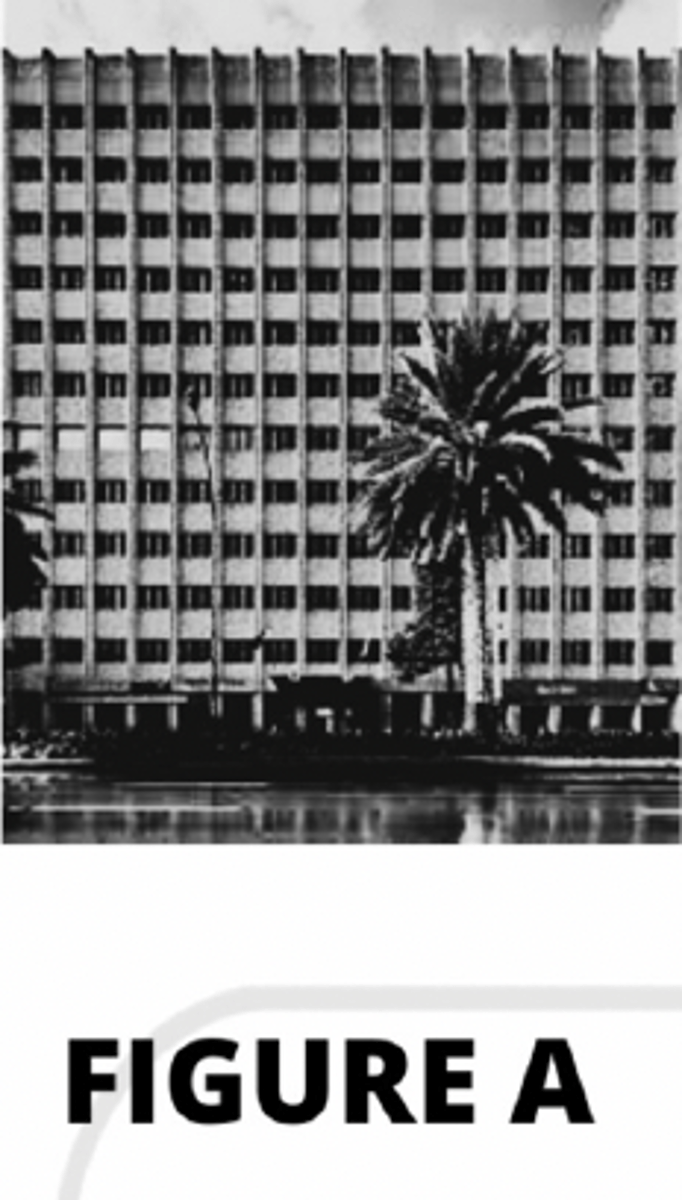

Figure A - Where is this building located?

a. Ortigas

b. Makati

c. Quezon CIty

d. Manila

d. Pampanga

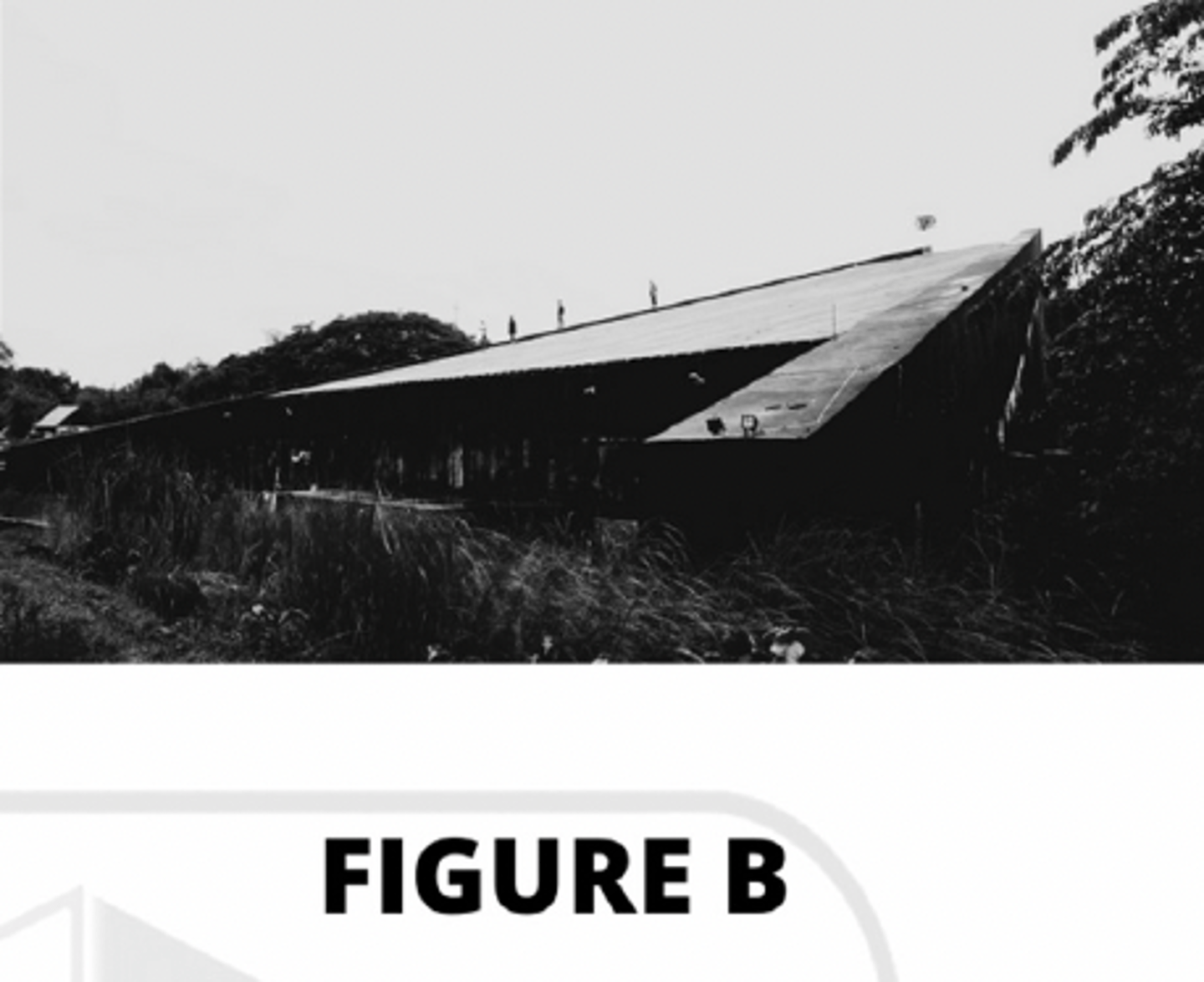

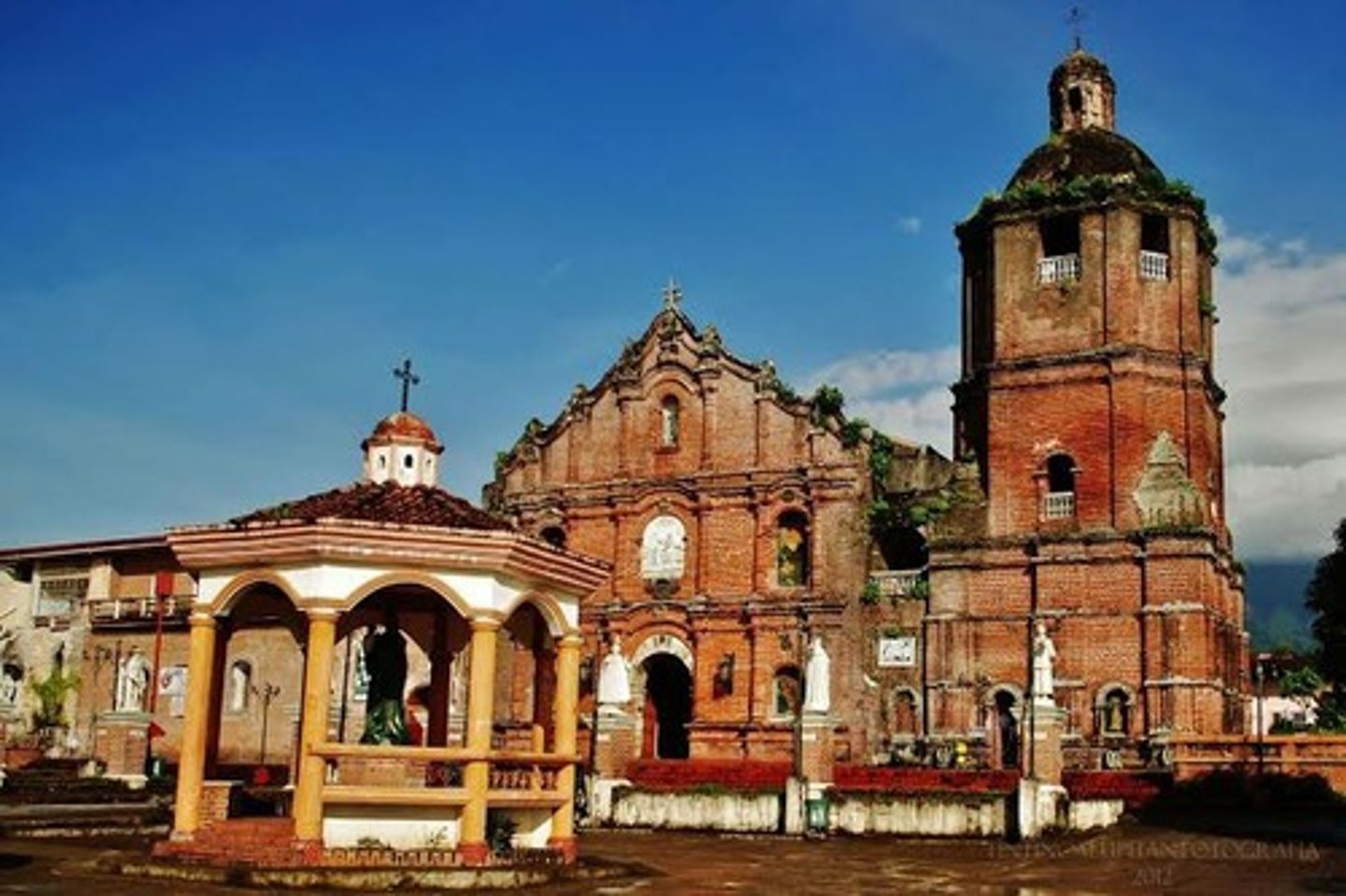

Figure B - Where is this located?

a. Cebu

b. Iloilo

c. Bohol

d. Pampanga

a. Ortigas

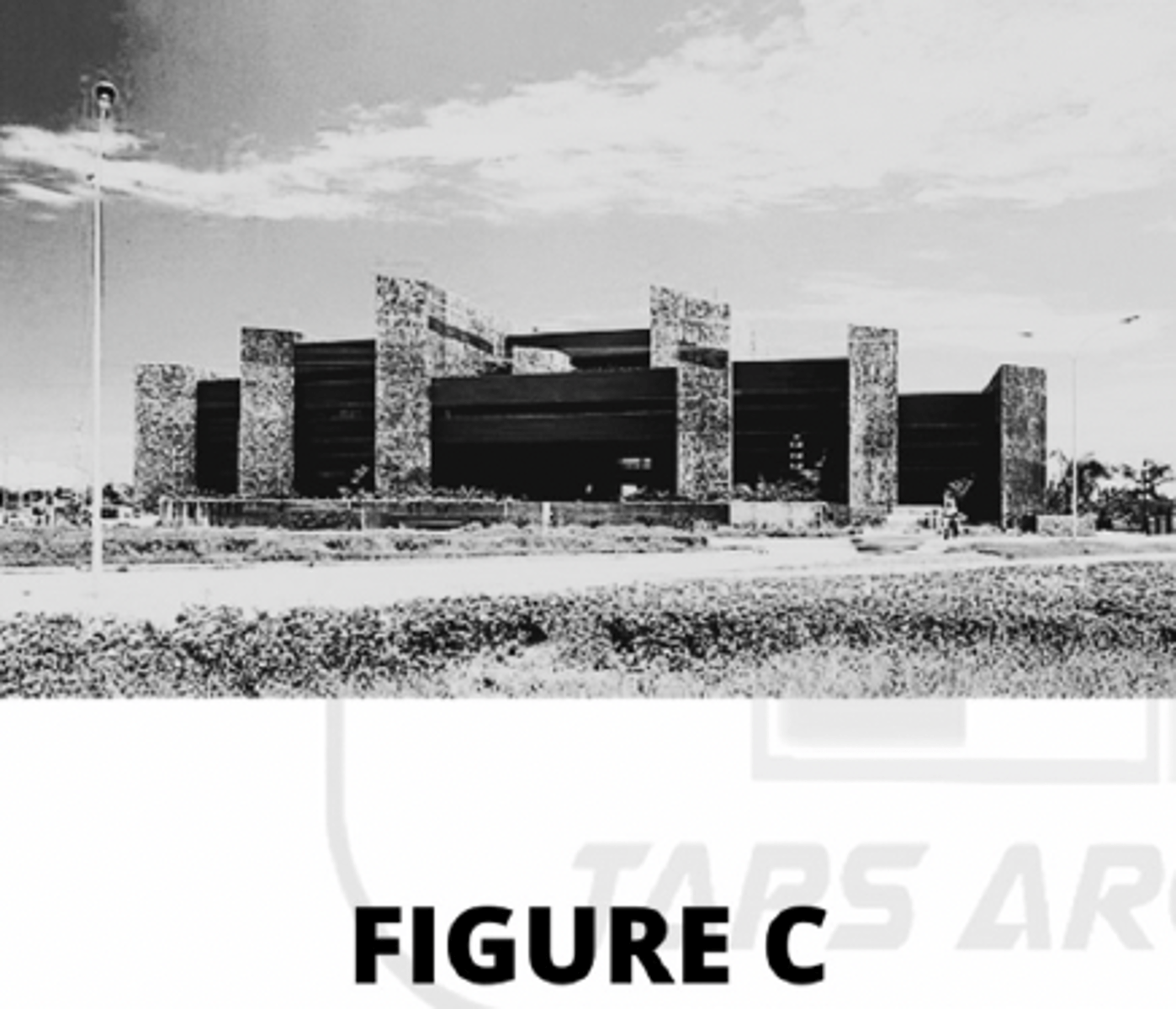

Figure C - This building was ultimately put on sale

which soon caught the attention of retail magnate Henry Sy.

Where was this building located?

a. Ortigas

b. Makati

c. Quezon CIty

d. Manila

d. Leandro Locsin

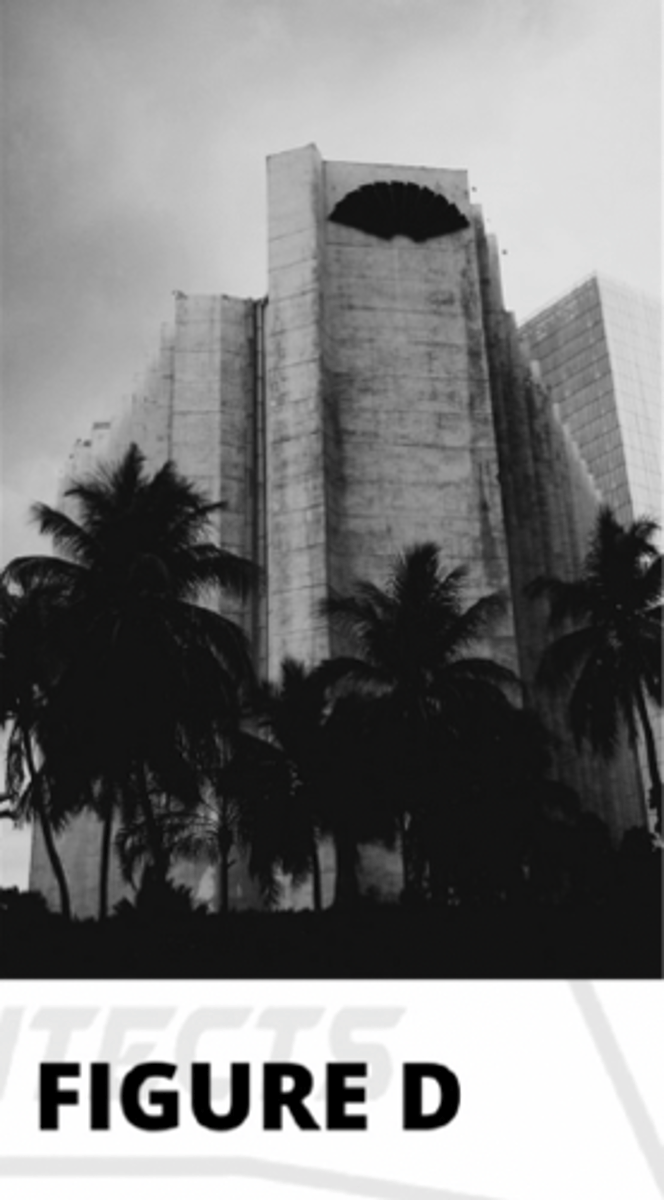

Figure D - Who is the architect of this building

located in Makati Ave?

a. Juan Nakpil

b. Andres Luna

c. Antonio Toledo

d. Leandro Locsin

d. Manila

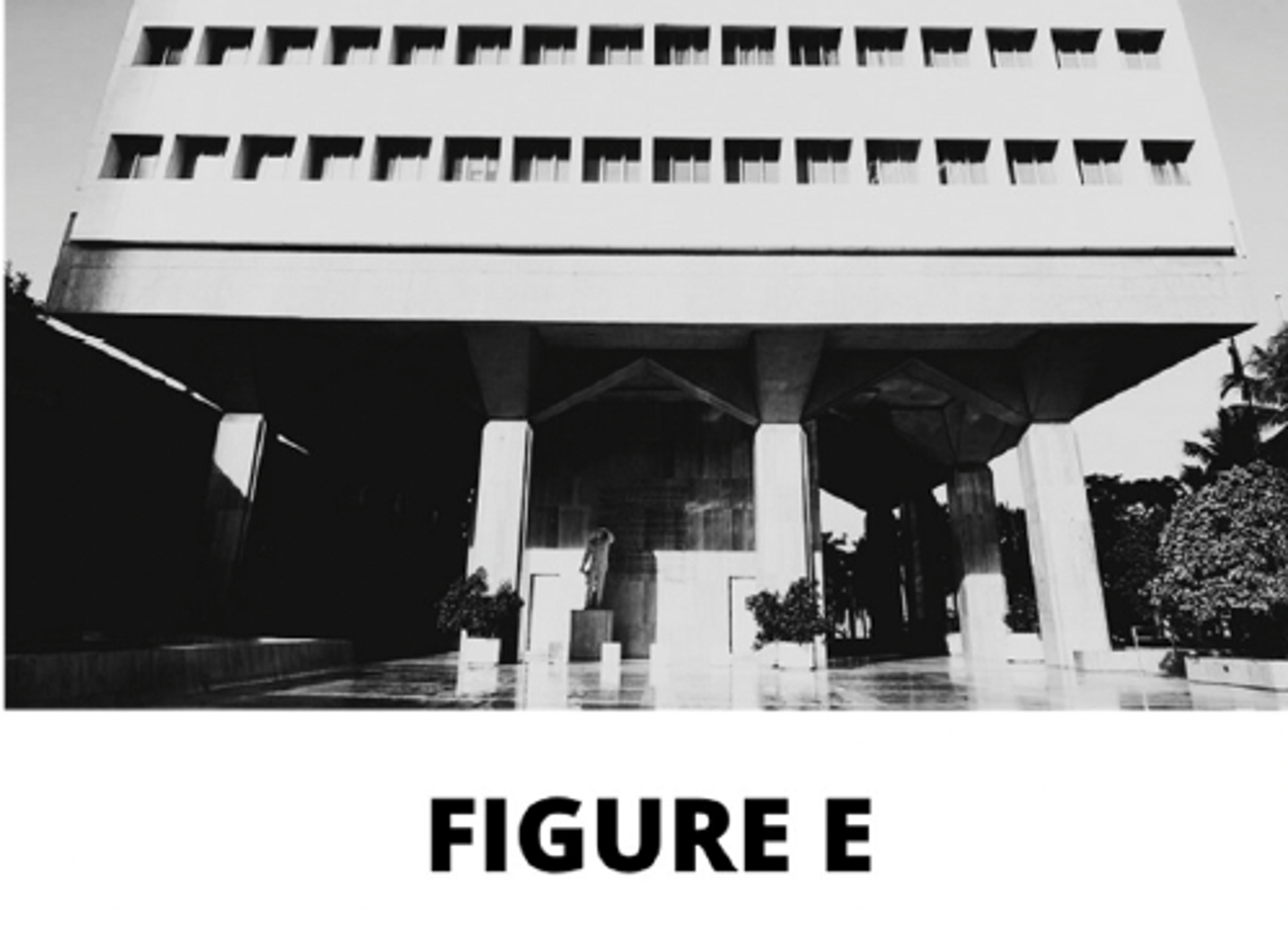

Figure E - Where is this building located?

a. Ortigas

b. Makati

c. Quezon CIty

d. Manila

c. Zaha Hadid

"I don't think you can teach architecture, you can

only inspire people"

a. Jean Nouvel

b. Moshe Safdie

c. Zaha Hadid

d. FLW

a. Jean Nouvel

"Each new situation requires a new architecture"

a. Jean Nouvel

b. Moshe Safdie

c. Zaha Hadid

d. FLW

b. Moshe Safdie

"Architecture should be rooted in the past, and yet be

part of our own time and forward looking"

a. Jean Nouvel

b. Moshe Safdie

c. Zaha Hadid

d. FLW

d. FLW

"A doctor can bury his mistakes but an architect can

only advise his clients to plant vines"

a. Jean Nouvel

b. Moshe Safdie

c. Norman Foster

d. FLW

c. Norman Foster

"It takes a lot of effort to make a building look

effortless"

a. Jean Nouvel

b. Moshe Safdie

c. Norman Foster

d. FLW

a. Castrum

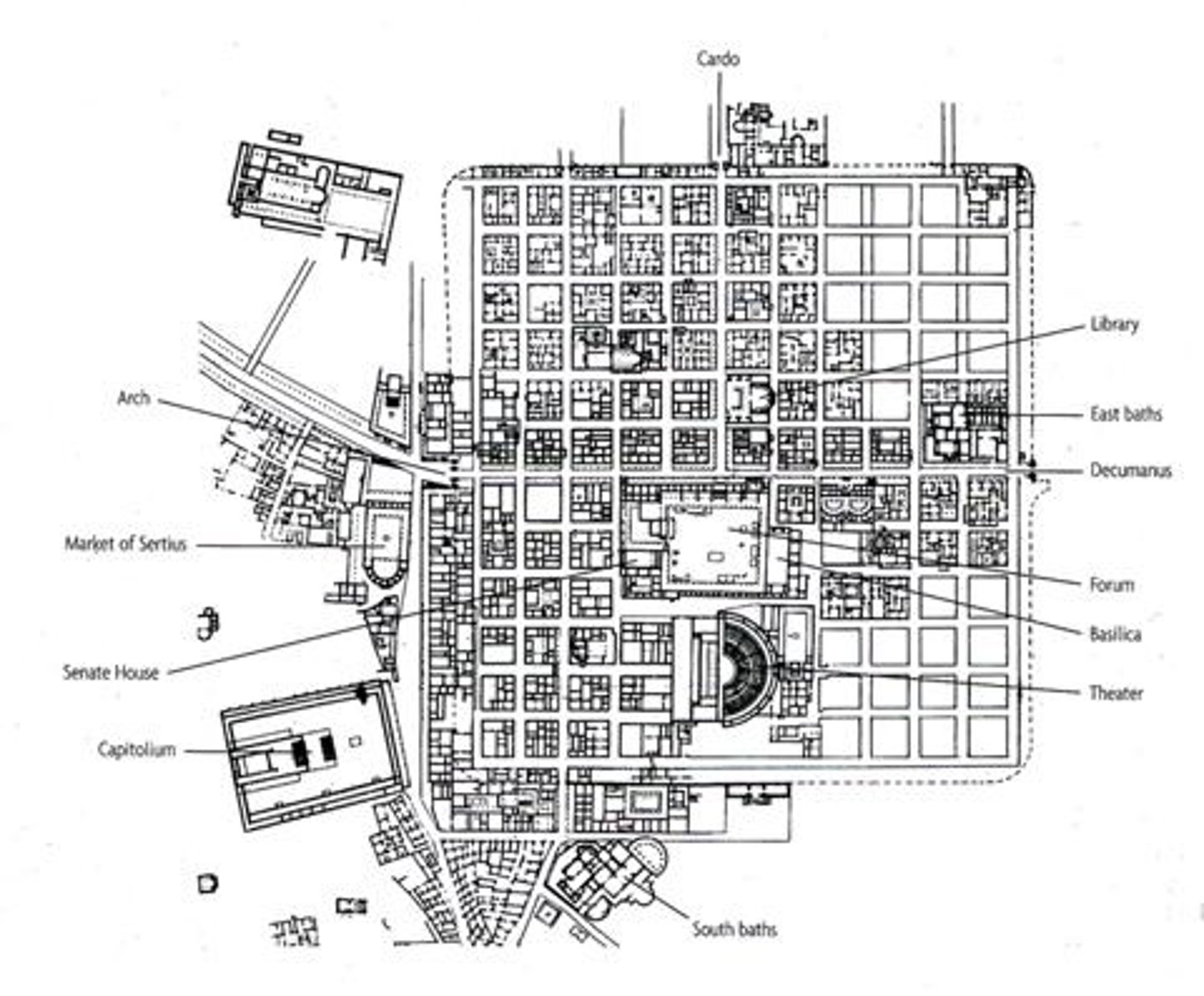

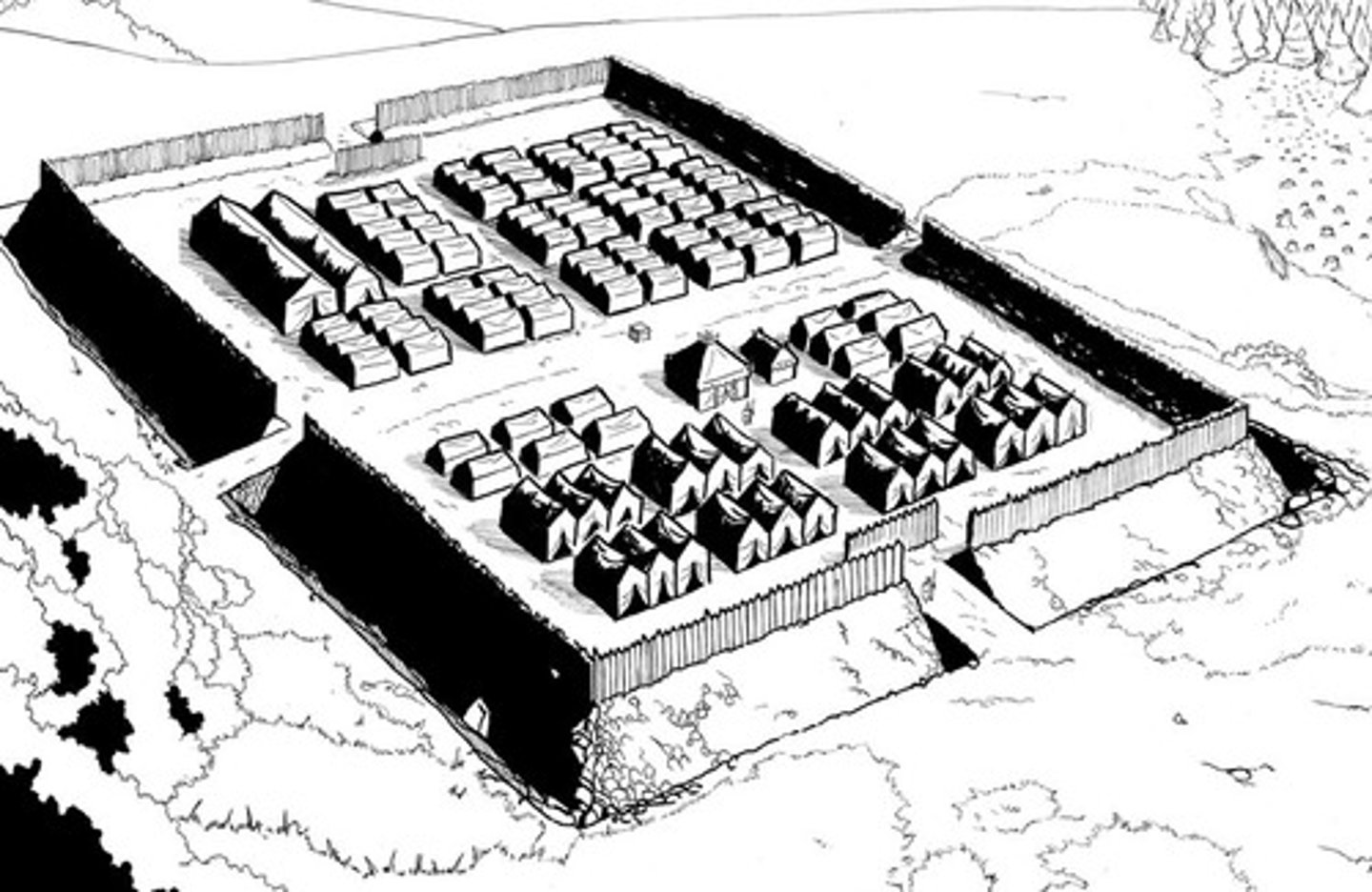

In Roman town planning, there were two types of Roman

towns; What is called the military town?

a. Castrum

b. Oppidum

c. Citadel

d. Garrison

a. Quezon city

What city in the Philippines used Daniel Burnham's

plans as reference?

a. Quezon city

b. Manila

c. Cebu

d. Baguio

d. Radiant city

Le Corbusier's city of the future would not only

provide residents with a better lifestyle but would

contribute to creating a better society

a. Linear city

b. Broadacre city

c. City Beautiful Movement

d. Radiant city

b. Ermita

During the American period, this was the red light

district

a. Malate

b. Ermita

c. Paco

d. San Nicolas

a. Multiple nuclei model

An urban model proposed by CHauncy Harris and Edward

Pullman which recognizes that different activities have

varying accessibility requirements

a. Multiple nuclei model

b. Sector model

c. Concentric zone theory

d. Garden city

c. Garden City

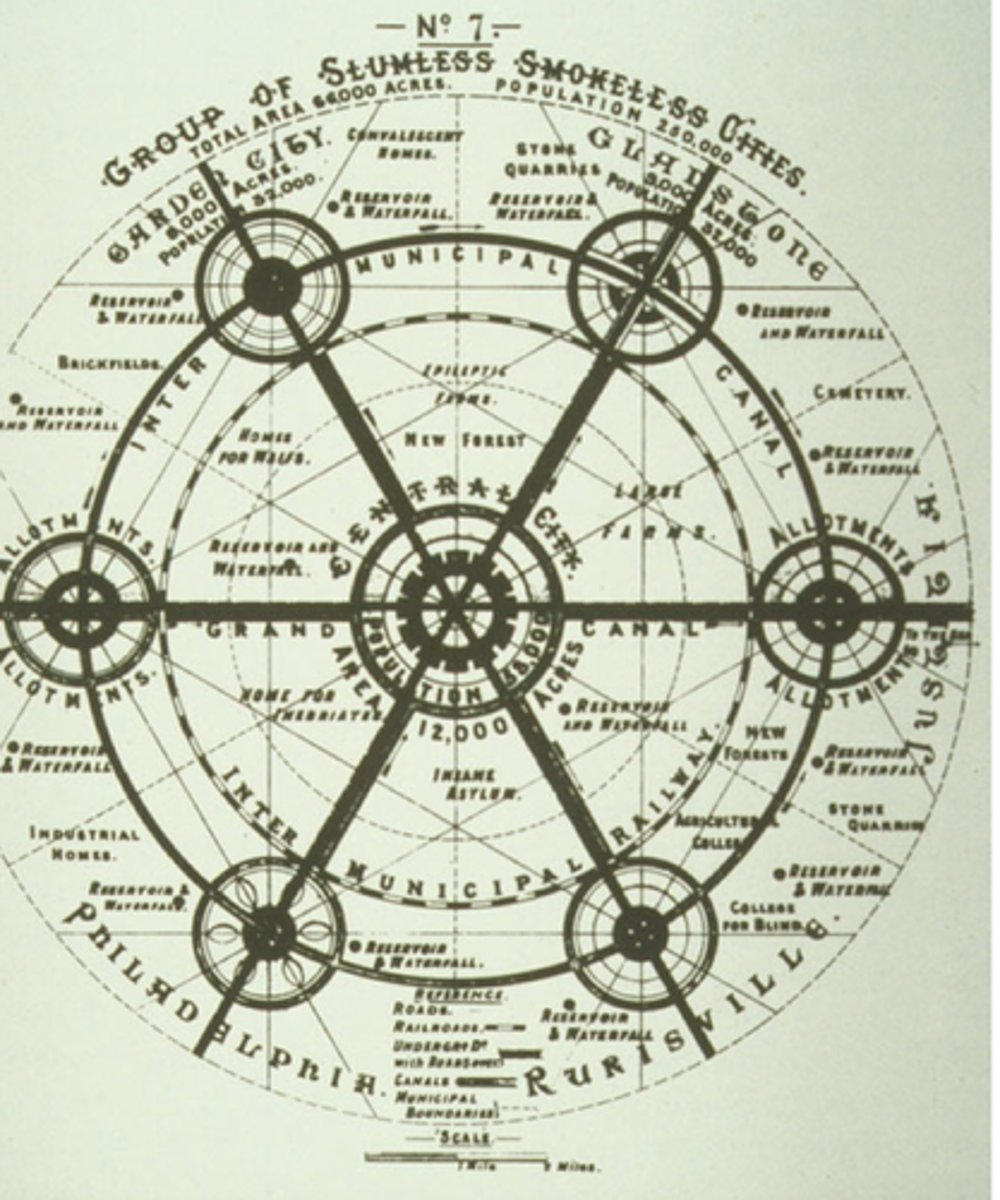

Figure F - Identify the image

a. Radiant city

b. Gridiron

c. Garden City

d. Broadacre City

d. Broadacre City

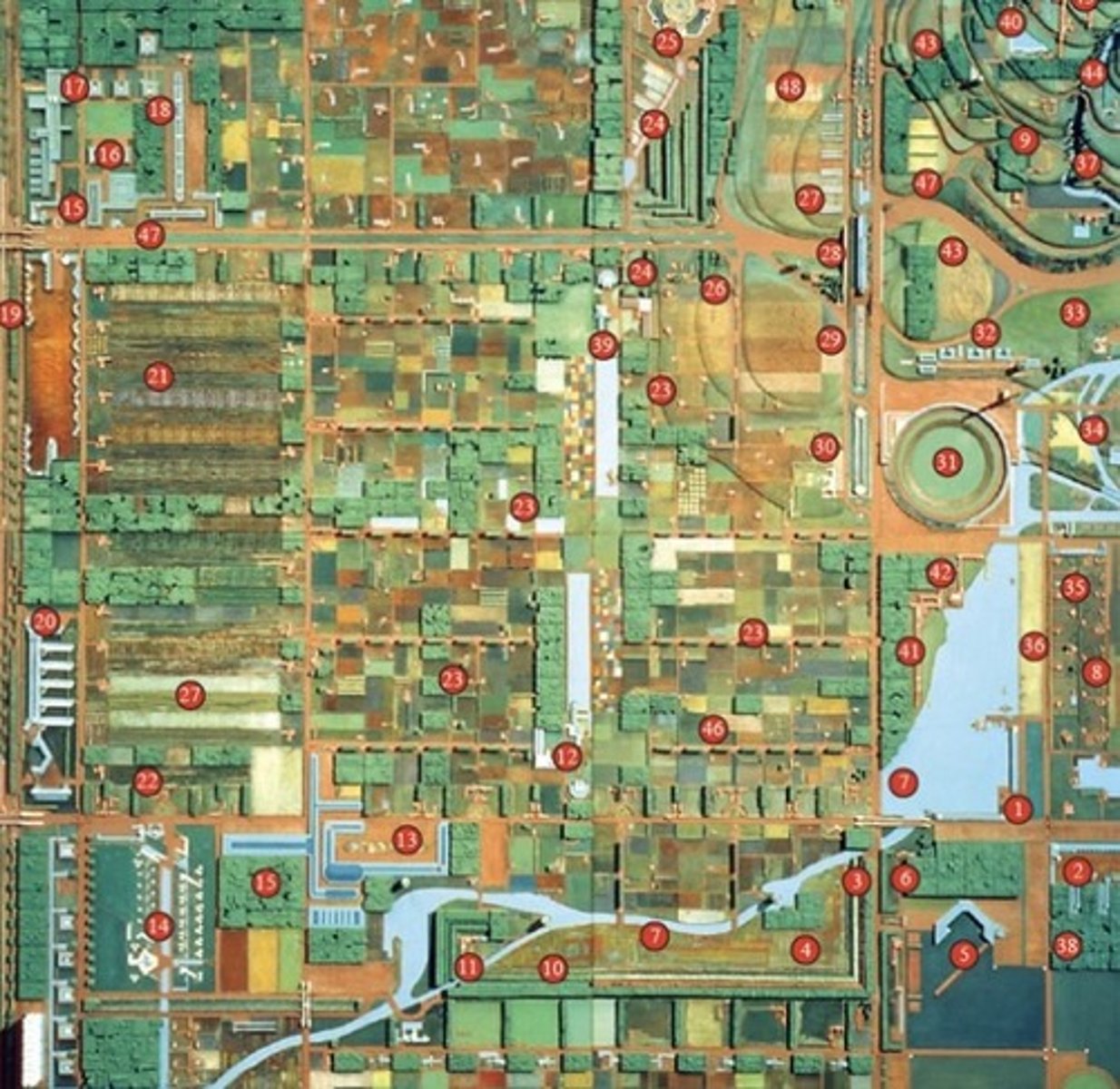

Figure G - Identify the image

a. Radiant city

b. Gridiron

c. Garden City

d. Broadacre City

a. Radiant city

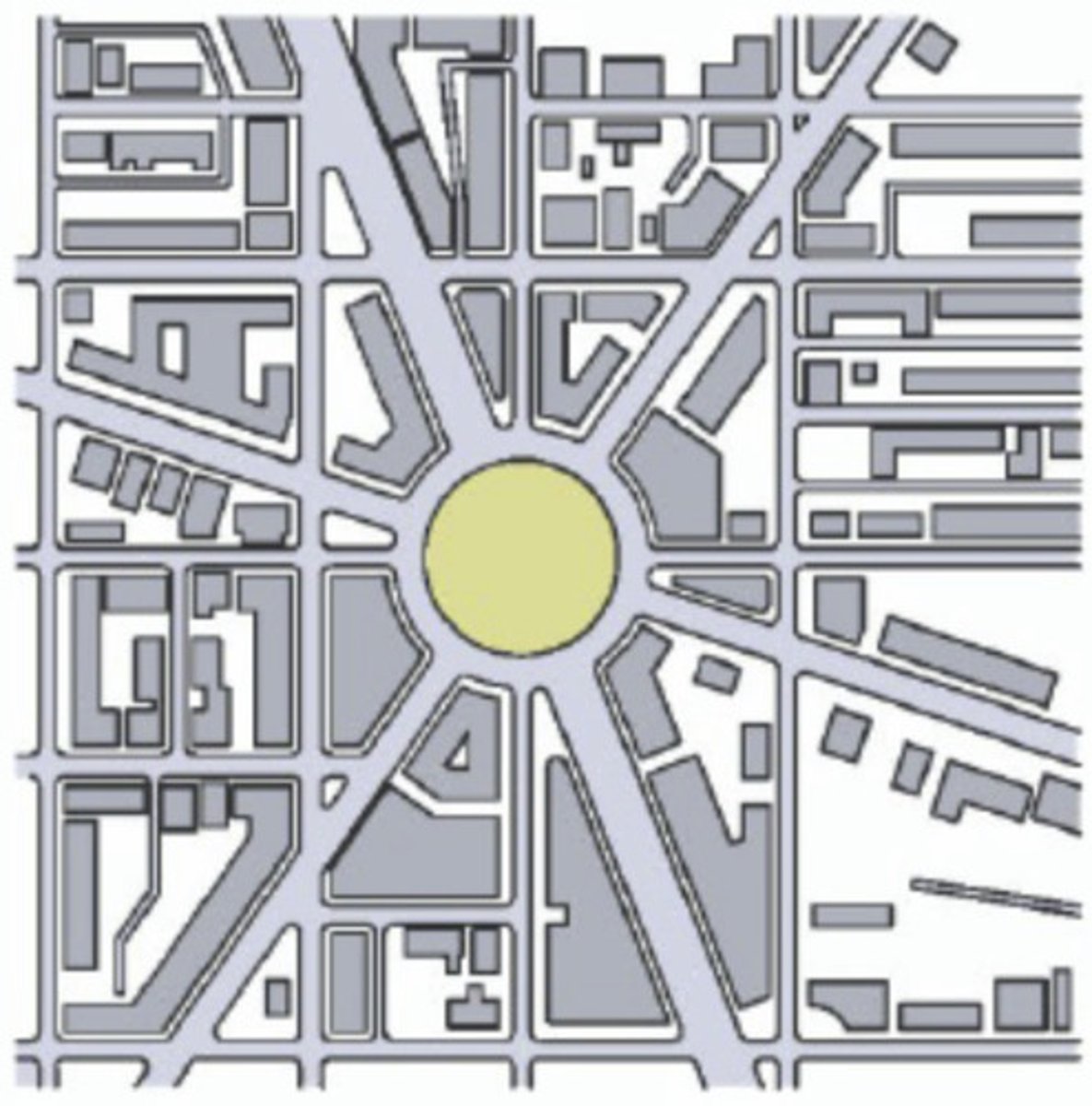

Figure H - Identify the image

a. Radiant city

b. Gridiron

c. Garden City

d. Broadacre City

b. Gridiron

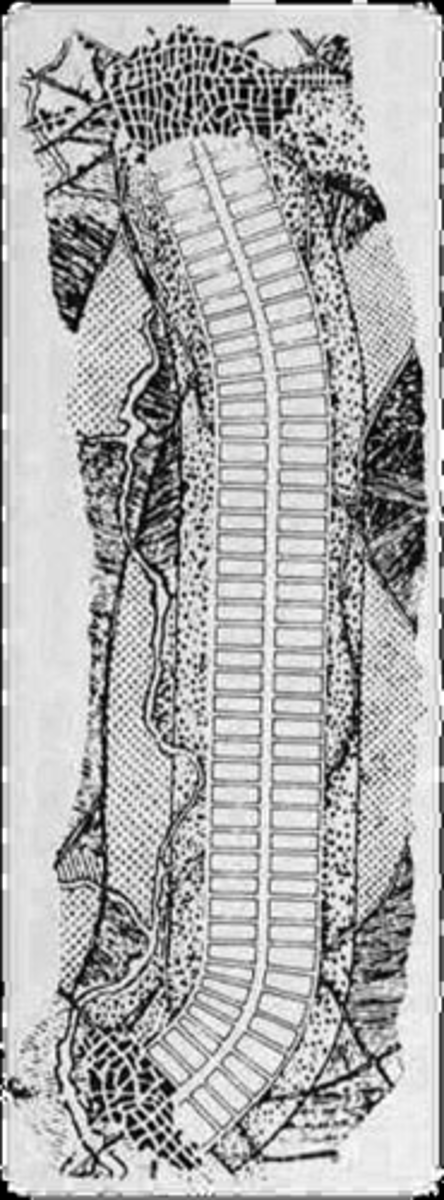

Figure I - Identify the image

a. Radiant city

b. Gridiron

c. Garden City

d. Broadacre City

b. Gridiron

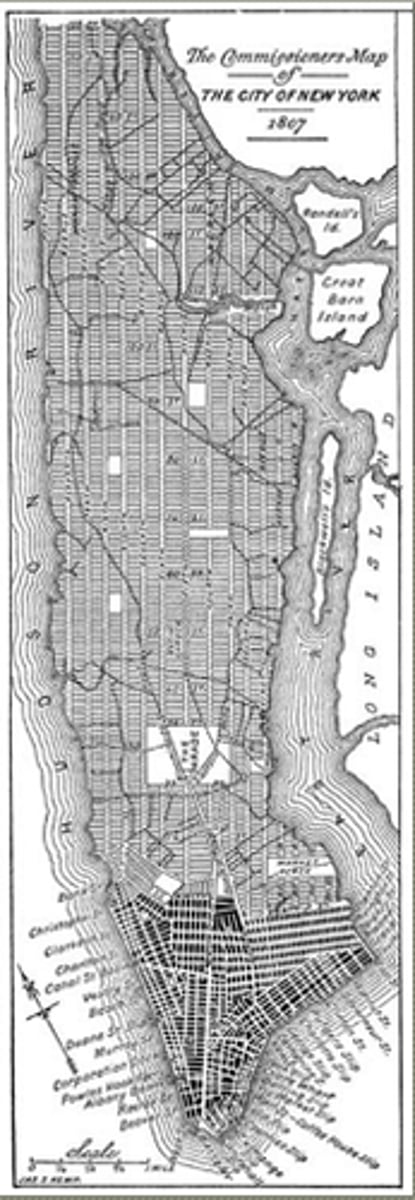

Figure J - Year 1811 Commissioners plan for manhattan.

Tilting NE at 29 degrees. Identify the image.

a. Radiant city

b. Gridiron

c. Garden City

d. Broadacre City

c. latest tax income

Which is not a requirement in applying for a building

permit?

a. Current real property tax receipt

b. tax declaration

c. latest tax income

d. plans and specifications

a. Lot area

Which is not considered a basis of assessment for a

building permit?

a. Lot area

b. cost of construction

c. floor area

d. building volume

b. 70% / 30%

As per PD 957, what is the prescribed ratio for

saleable and non-saleable lots?

a. None

b. 70% / 30%

c. 60% / 40%

d. 80% / 20%

d. Parapet wall

That part of any wall entirely above the roof line

a. Retaining wall

b. Curtain wall

c. Firewall

d. Parapet wall

a. Curtain wall

The enclosing wall of an iron or steel or the nonbearing

portion of an enclosed wall between piers

a. Curtain wall

b. Firewall

c. Exterior wall

d. Firewall

d. Architect's CREDO

What is the difference between Code of Ethical Conduct

2006 to Code of Conduct 2018?

a. Responsibility to client

b. Responsibility to the public

c. Responsibility to contractors

d. Architect's CREDO

a. God

As per Architect's CREDO, whom shall the architect has

supreme accountability to?

a. God

b. Mother Earth

c. Country

d. Public

b. Political stand

As per code of ethics 2006, traits of architects are

the following except

a. Business acumen

b. Political stand

c. Sensibility

d. Technical ability

b. C & D

What is the role of an architect to his client?

a. Full time supervisor

b. C & D

c. Mediator

d. Conciliation

d. Public

In which architect's responsibility does promoting

his/her professional organization belong?

a. Client

b. Contractor

c. Subordinates and colleagues

d. Public

b. 7 years

PRC Chairperson and commissioners, what is the term of

office without reappointment to start from the time they

assume office?

a. 5 years

b. 7 years

c. 10 years

d. 3 years

d. Public

In which architect's responsibility does promotion of

UAP slogan " Sa Arkitekto Sigurado; For your plans and

design get an architect" belong?

a. Client

b. Contractor

c. Subordinates and colleagues

d. Public

b. No

Posting of UAP Chapter's sponsor's brands and

materials on Facebook: Is it a violation of Code of Ethical

Conduct?

a. Yes

b. No

c. Maybe

d. It is a violation only when not endorsed by PCAB

b. 100,000

Architect ABC has a lighting material business and he

does not inform the client and gets the project. WHat would

be the minimum fine if he will be apprehended as a

violation to Code of Ethical Conduct?

a. 200,000

b. 100,000

c. 5,000,000

d. None

c. Colleagues and Subordinates

The archbishop of metro manila asks you as an

architect to design a new cathedral that would be located

within the city of Manila. The project is free of charge to

you. Whom will you be responsible to>

a. Public

b. Client

c. Colleagues and Subordinates

d. Contractor

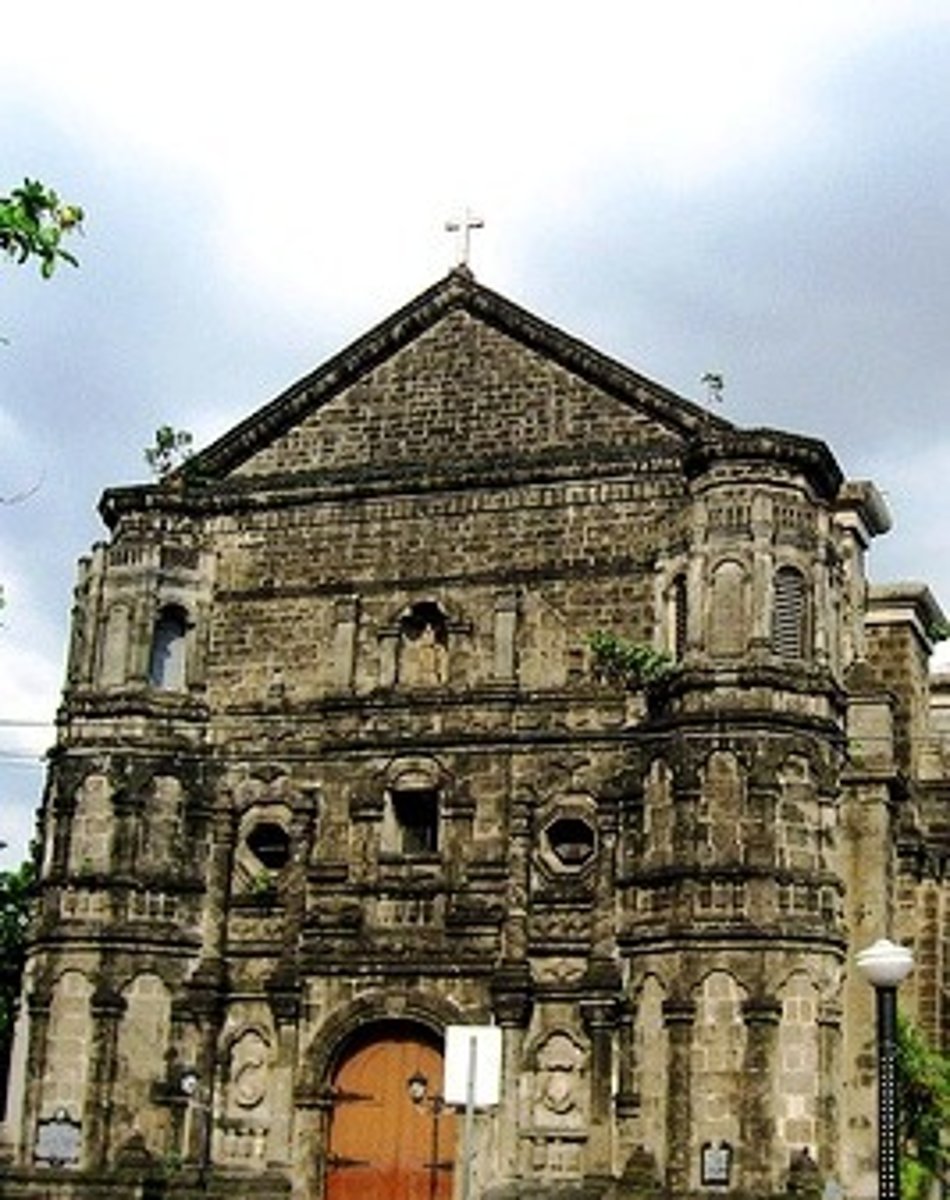

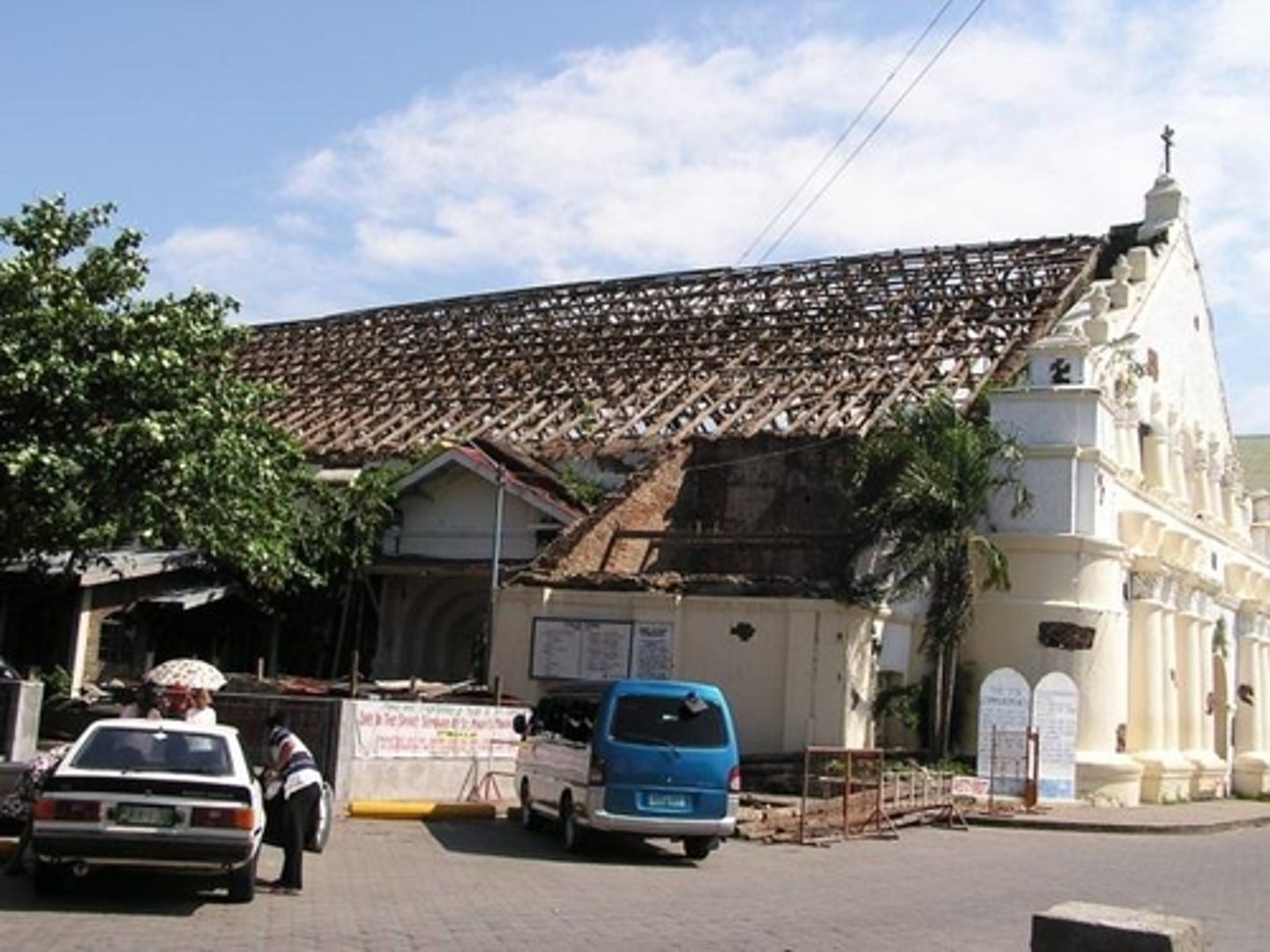

The Our Lady of Remedies Church

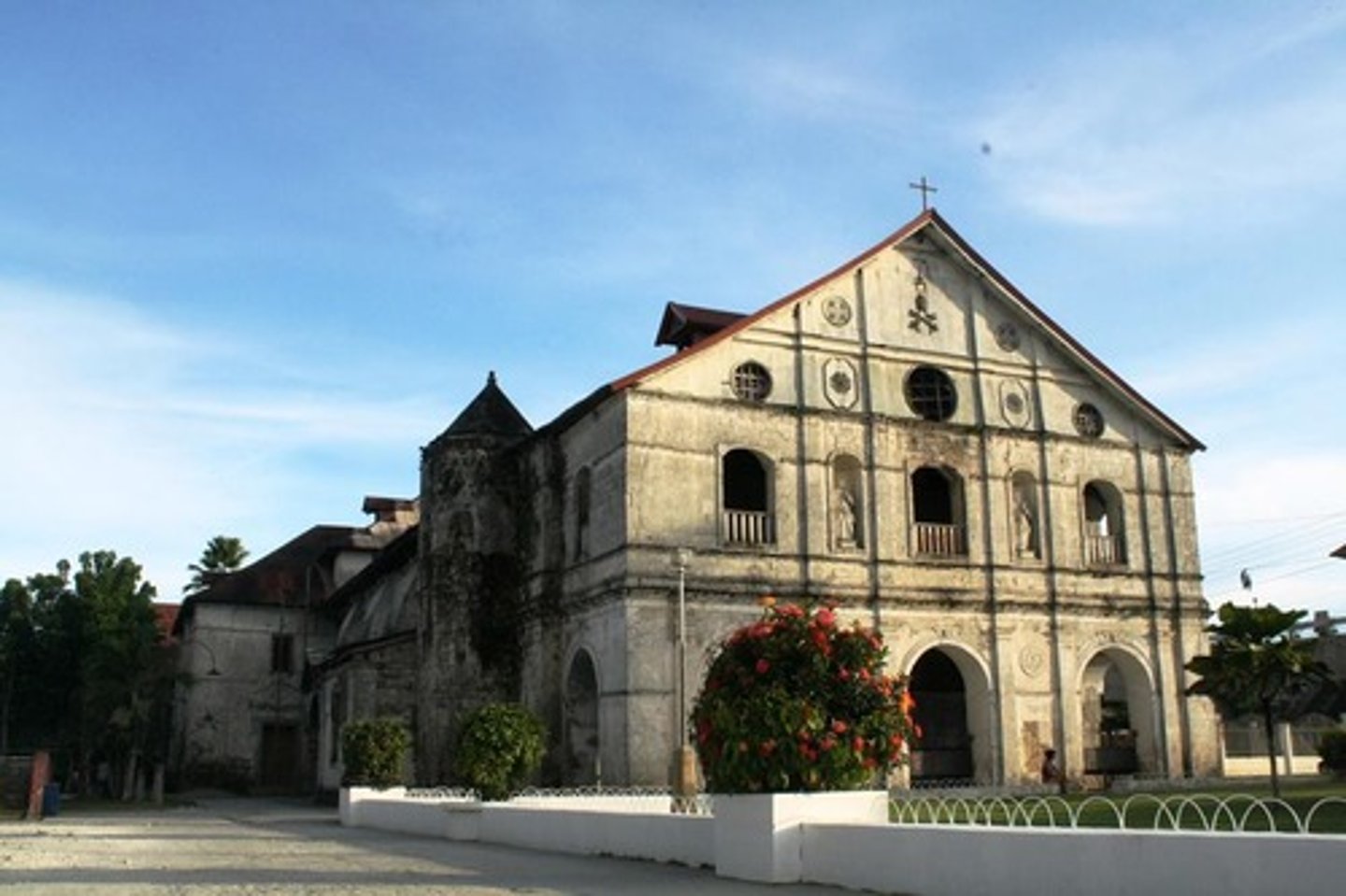

Loboc Church

second oldest church in Bohol

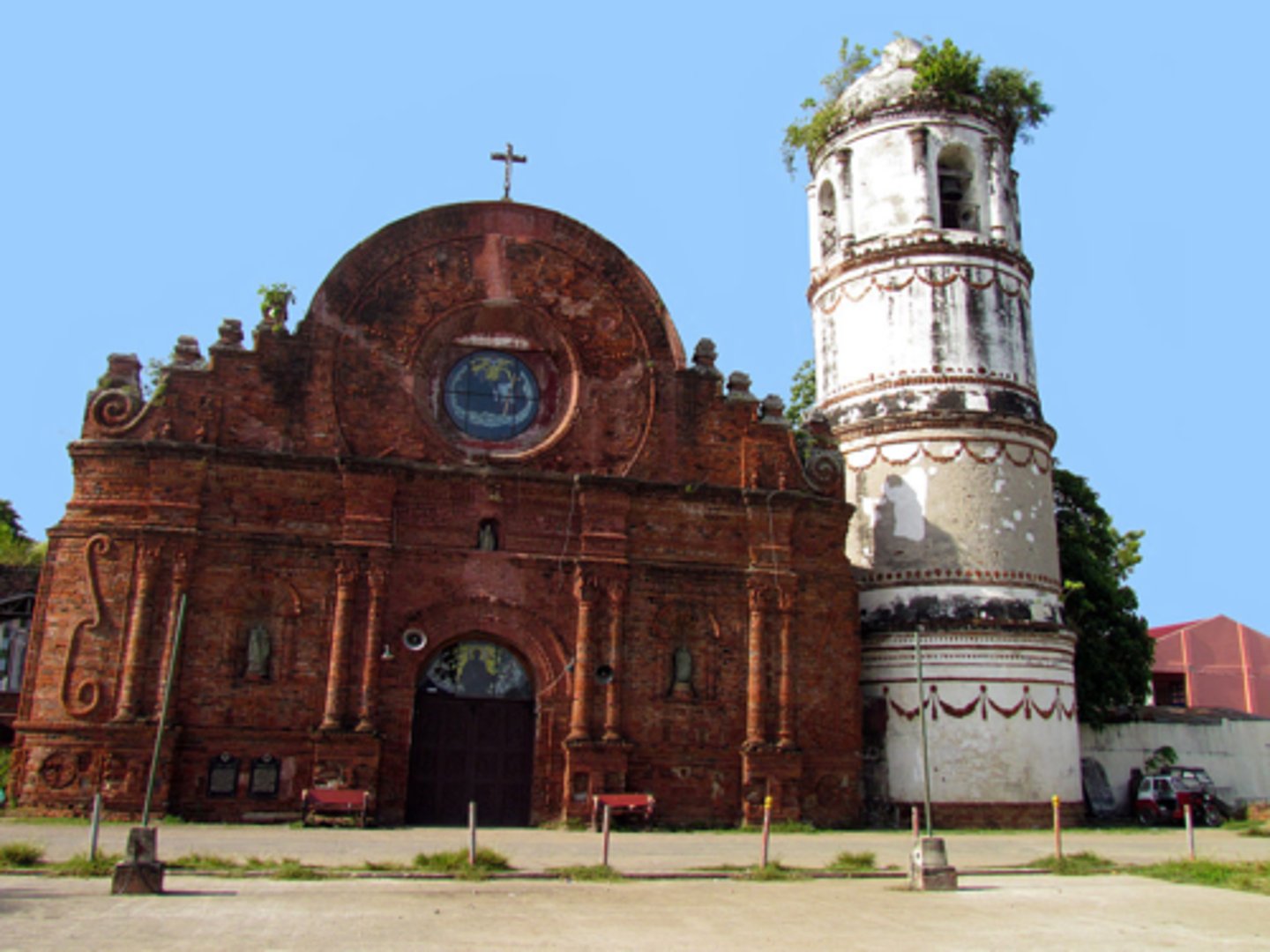

Tumauini Church

by Fr. Domingo Forto

St. Williams Cathedral

Liliw Church

c. Washington Pattern

This street pattern is known to have hierarchy with

diagonals for through traffics, has even dispersal of

traffic through the grid and diagonals that focus on

terrain feature

a. Riverside pattern

b. Savannah Pattern

15

c. Washington Pattern

d. Mariemont Pattern

a. Urban planning

Focuses on the management of private development

through established planning methods and programs

a. Urban planning

b. Urban Design

c. Urban Development

d. Both A and C

c. 54 x 68 in

Size of a regular bed

a. 32 x 75 in

b. 39 x 75 in

c. 54 x 68 in

d. 60 x 68 in

a. Limited means of transportation

What is the probable cause of heavy traffic in Metro

Manila?

a. Limited means of transportation

b. Limited transportation routes

c. Vehicular accidents

d. Outdated means of transportation

d. 57

Which is not a Fibonacci series number from 1-89?

a. 13

b. 21

c. 34

d. 57

a. Oscar Niemeyer

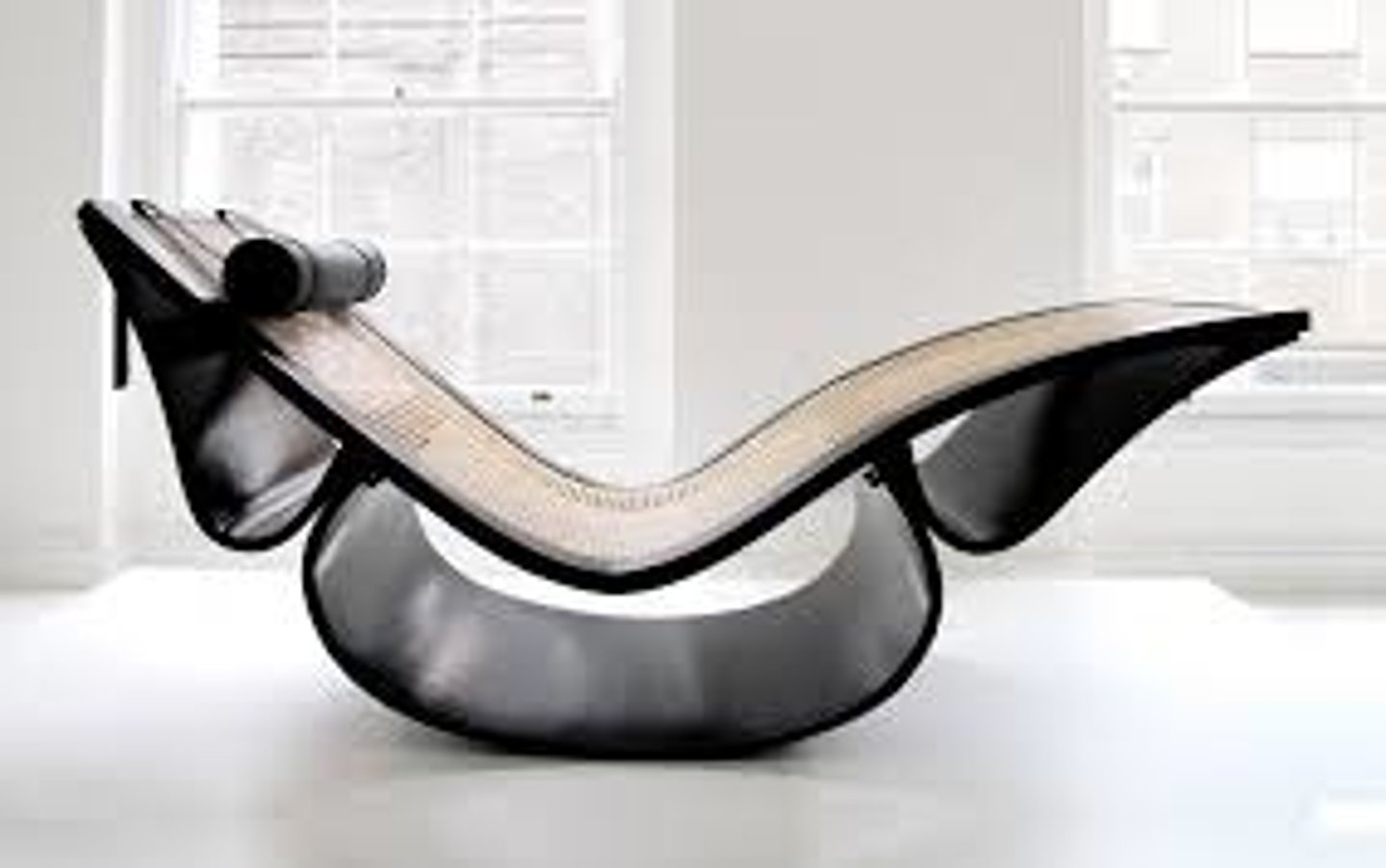

Who is the architect who designed the Rio

Chair?

a. Oscar Niemeyer

b. Alvar Aalto

c. Zaha Hadid

d. Robert Venturi

d. Robert Venturi

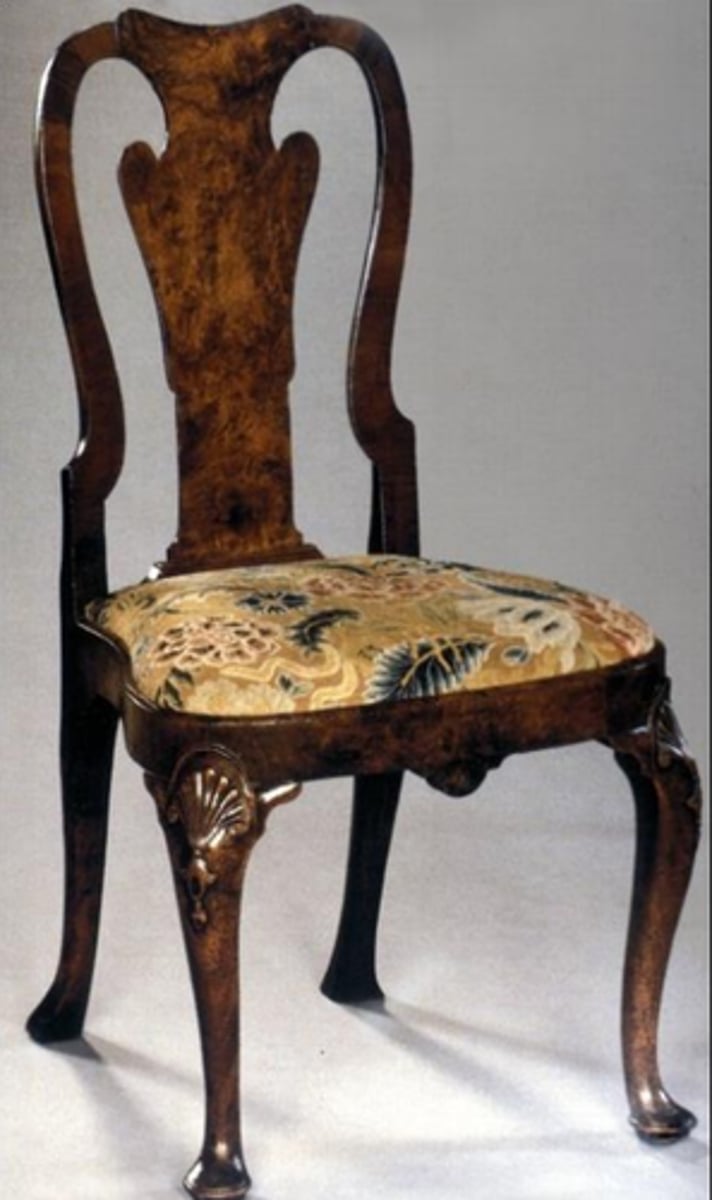

Who worked with Deniss Scott Brown in

designing the Queen Anne side chair?

a. Oscar Niemeyer

b. Kazuyo Sejima

c. Zaha Hadid

d. Robert Venturi

b. Kazuyo Sejima

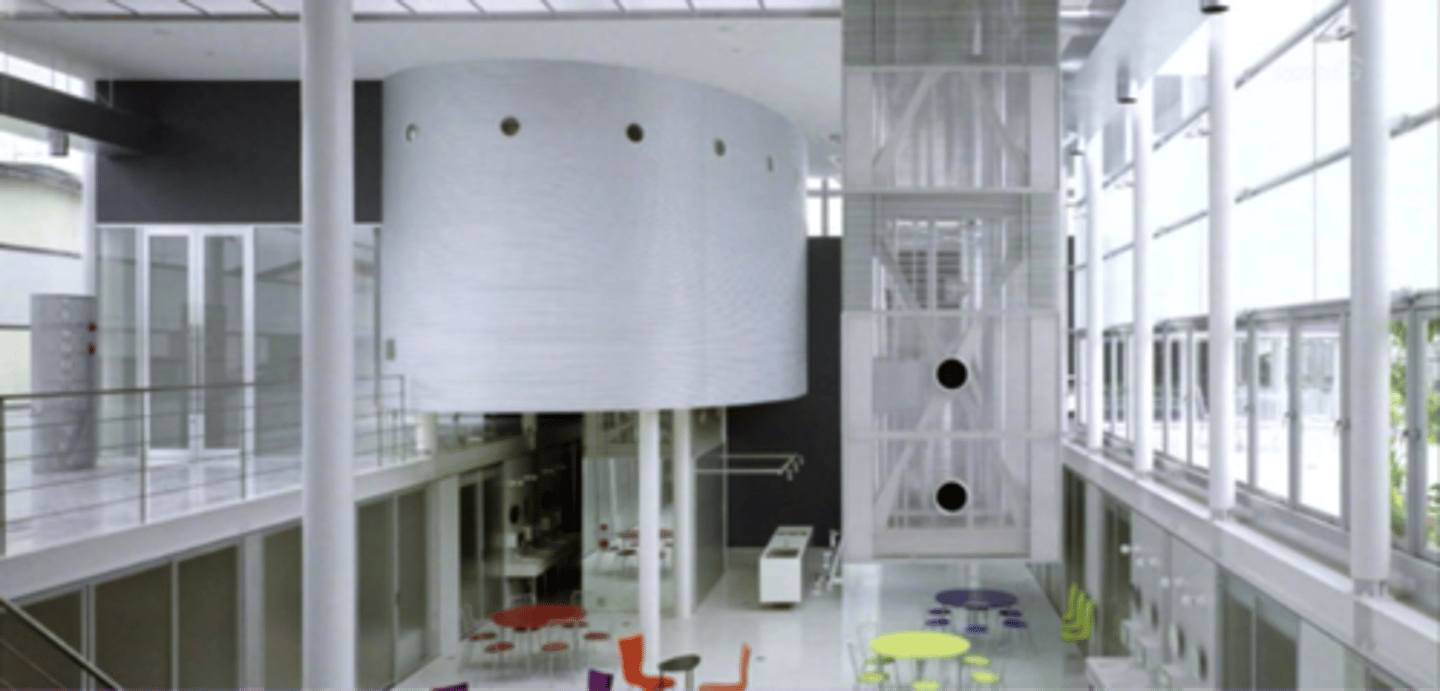

Who is the world-renowned modernist architect who

designed the Museum in Figure R?

a. Oscar Niemeyer

b. Kazuyo Sejima

c. Zaha Hadid

d. Robert Venturi

a. Lina Bo Bardi

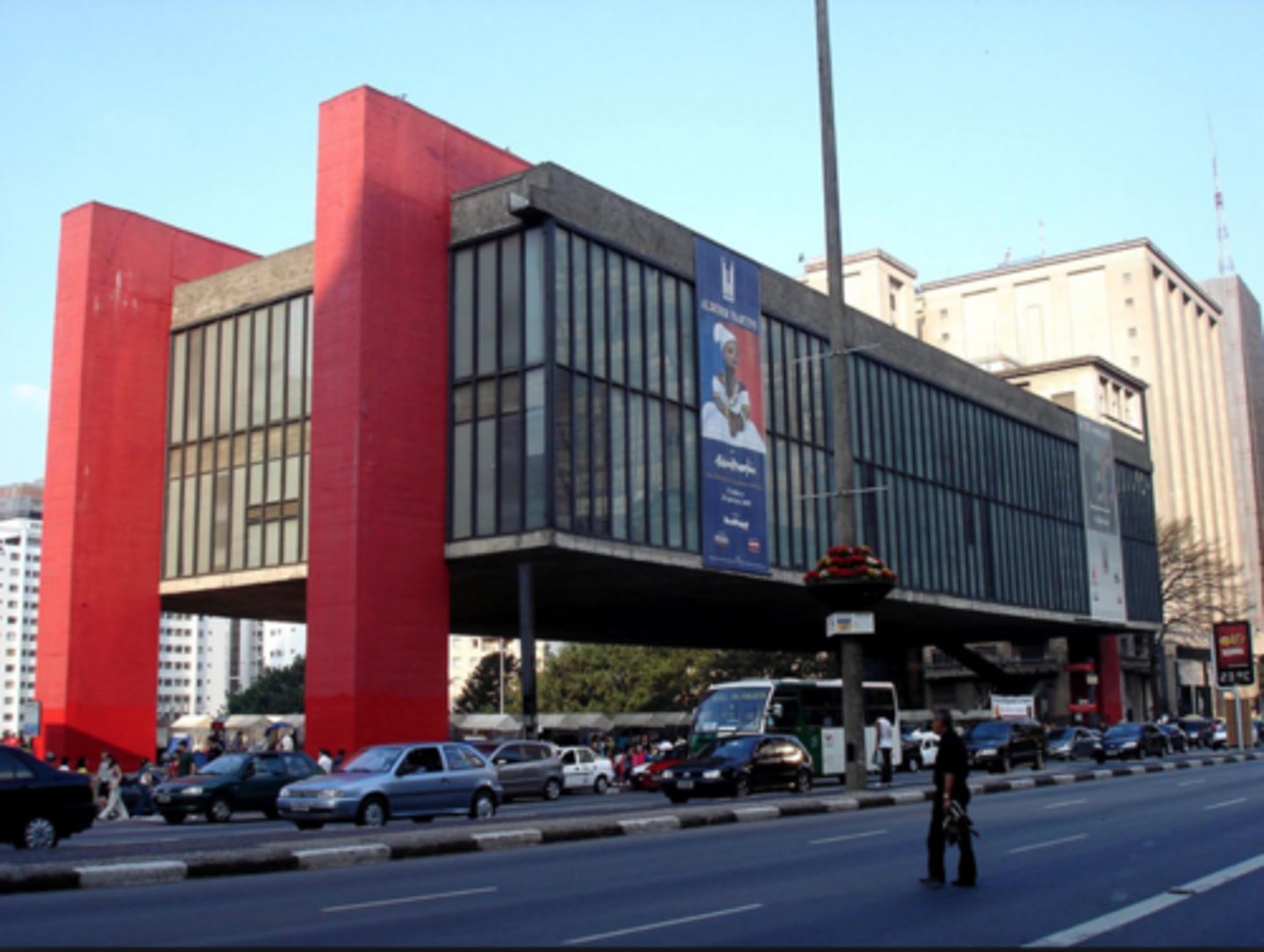

Who is the Brazilian modernist architect famous for

her public architecture projects, namely the Art Museum of

São Paulo? The architect is also known in designing the

chair in Figure S

a. Lina Bo Bardi

b. Oscar Niemeyer

c. Lucio Costa

d. Alvar Aalto

b. Paimo Chair

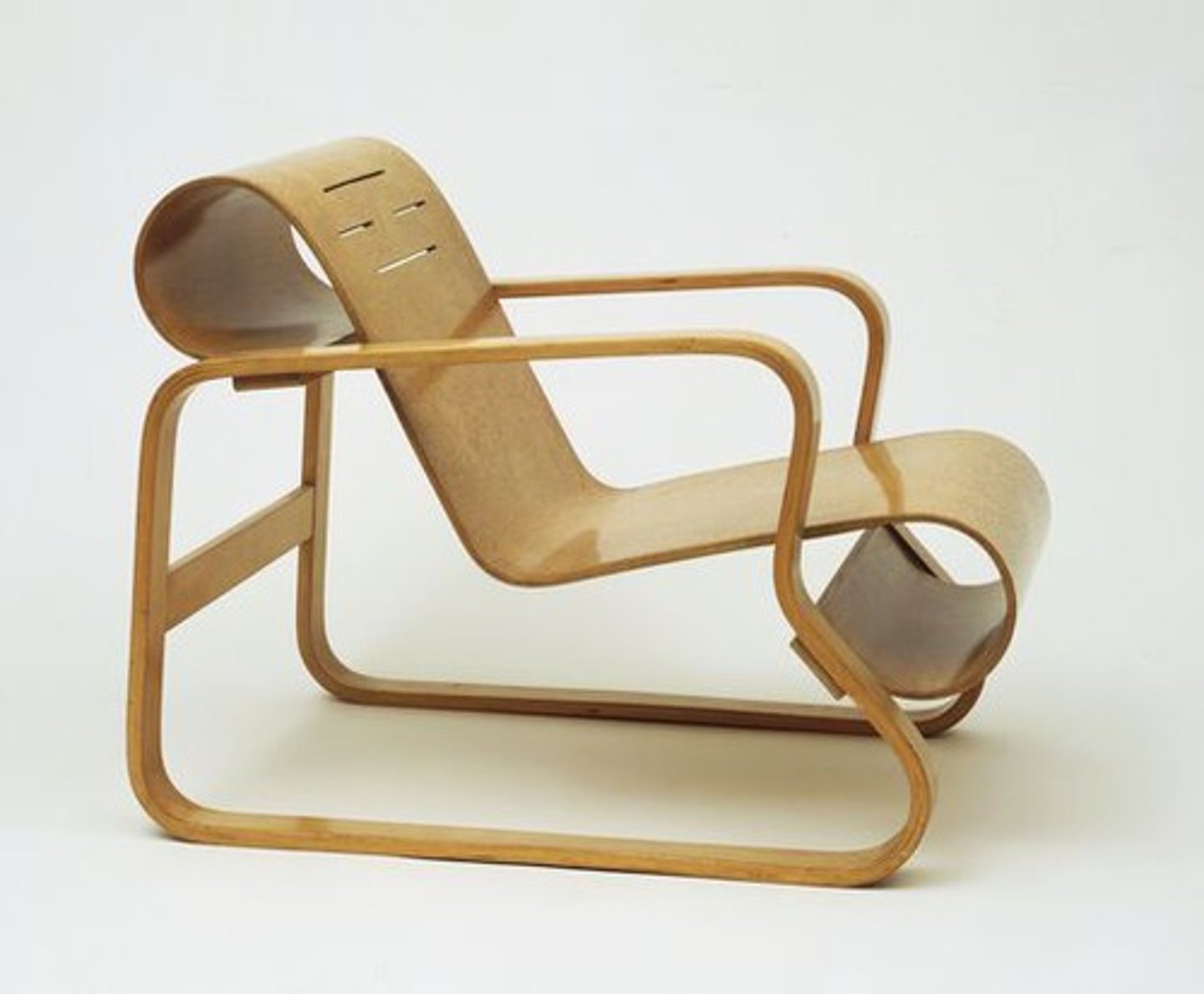

This chair, also known as Chair 41 is the result of

his sculptural experience and thus uses minimal plywood

structure for an elegantly curved chair designed to help

users breathe easier. What is this chair in Figure T mostly

known as?

a. Eames Chair

b. Paimo Chair

c. Washington Skeleton

d. Robie 1
