16 Terms

1
New cards

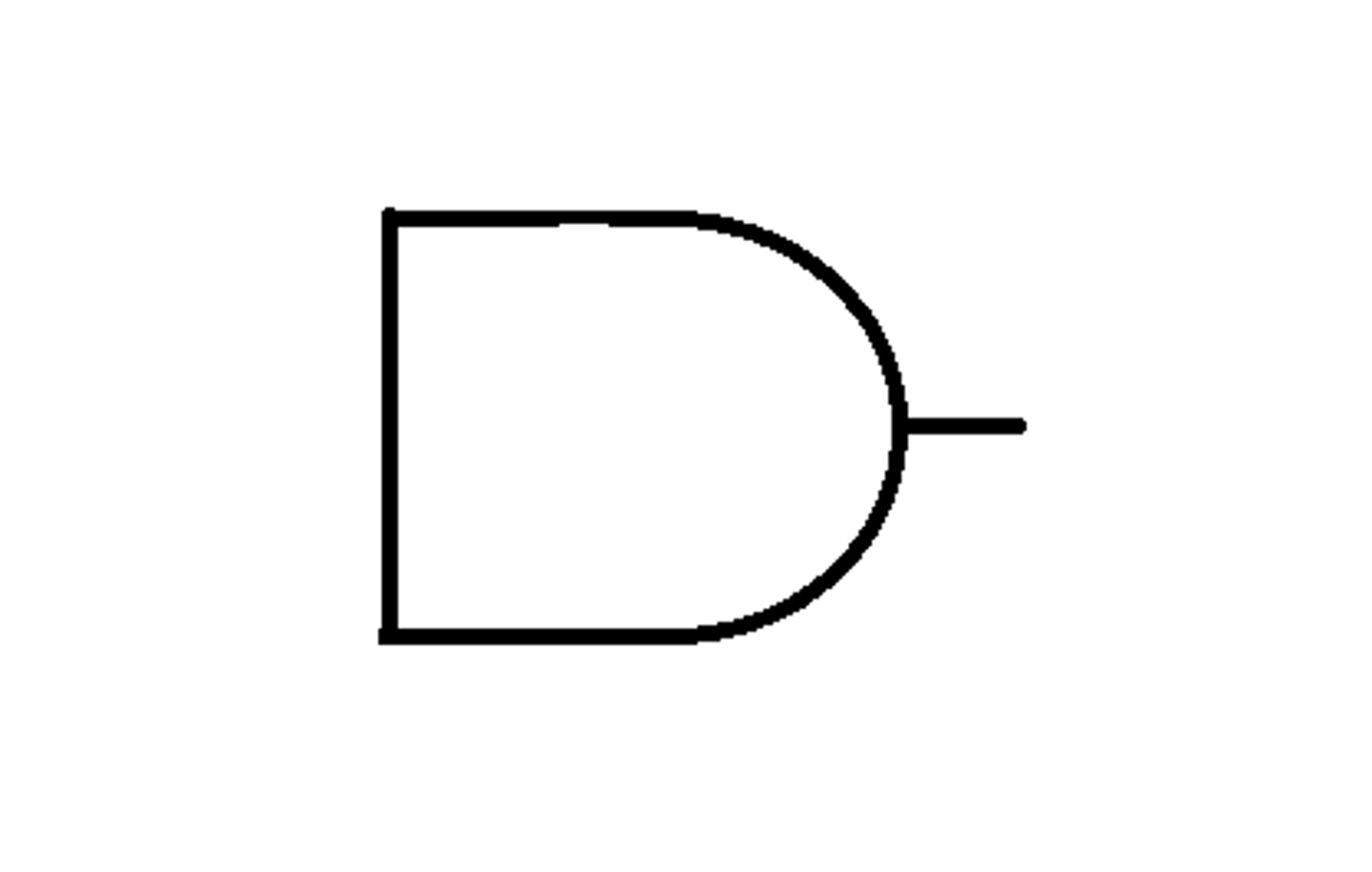

AND

knowt flashcard image
2
New cards

OR

knowt flashcard image
3
New cards

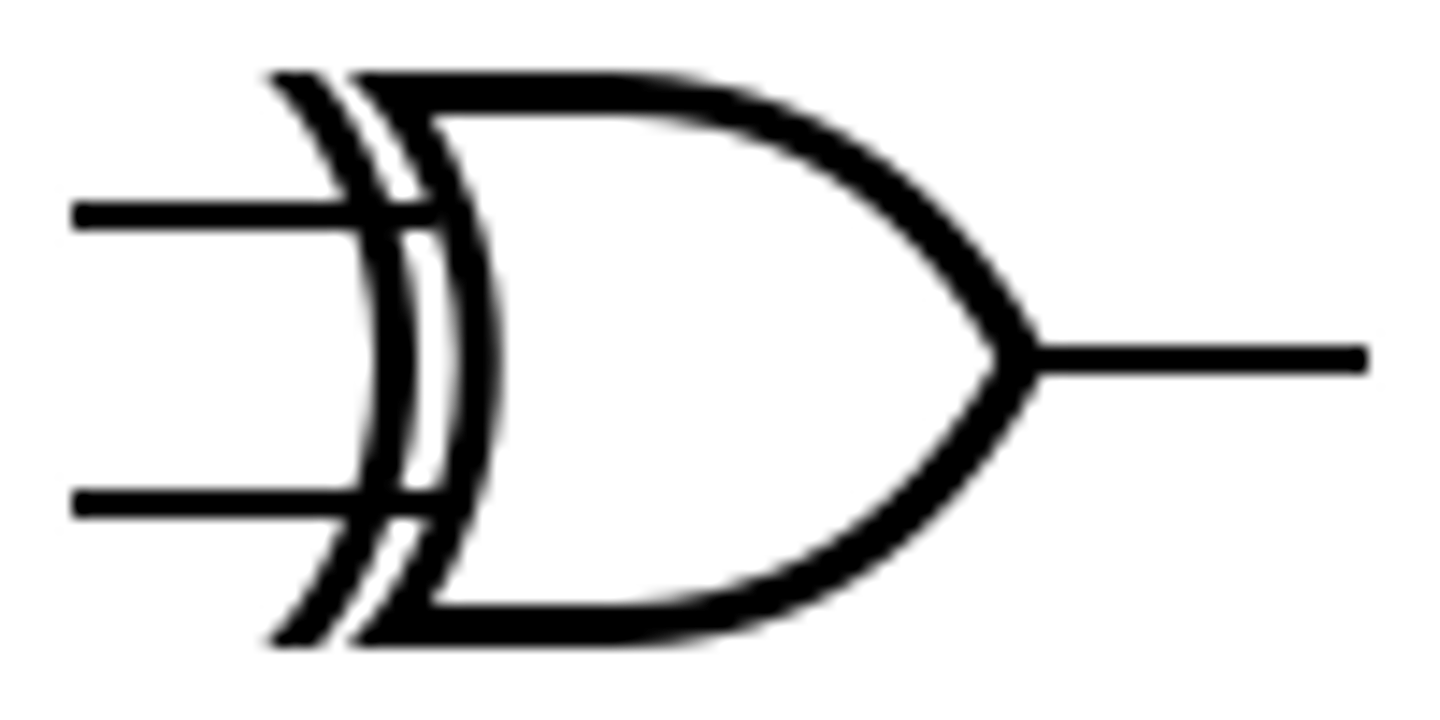

XOR

knowt flashcard image
4
New cards

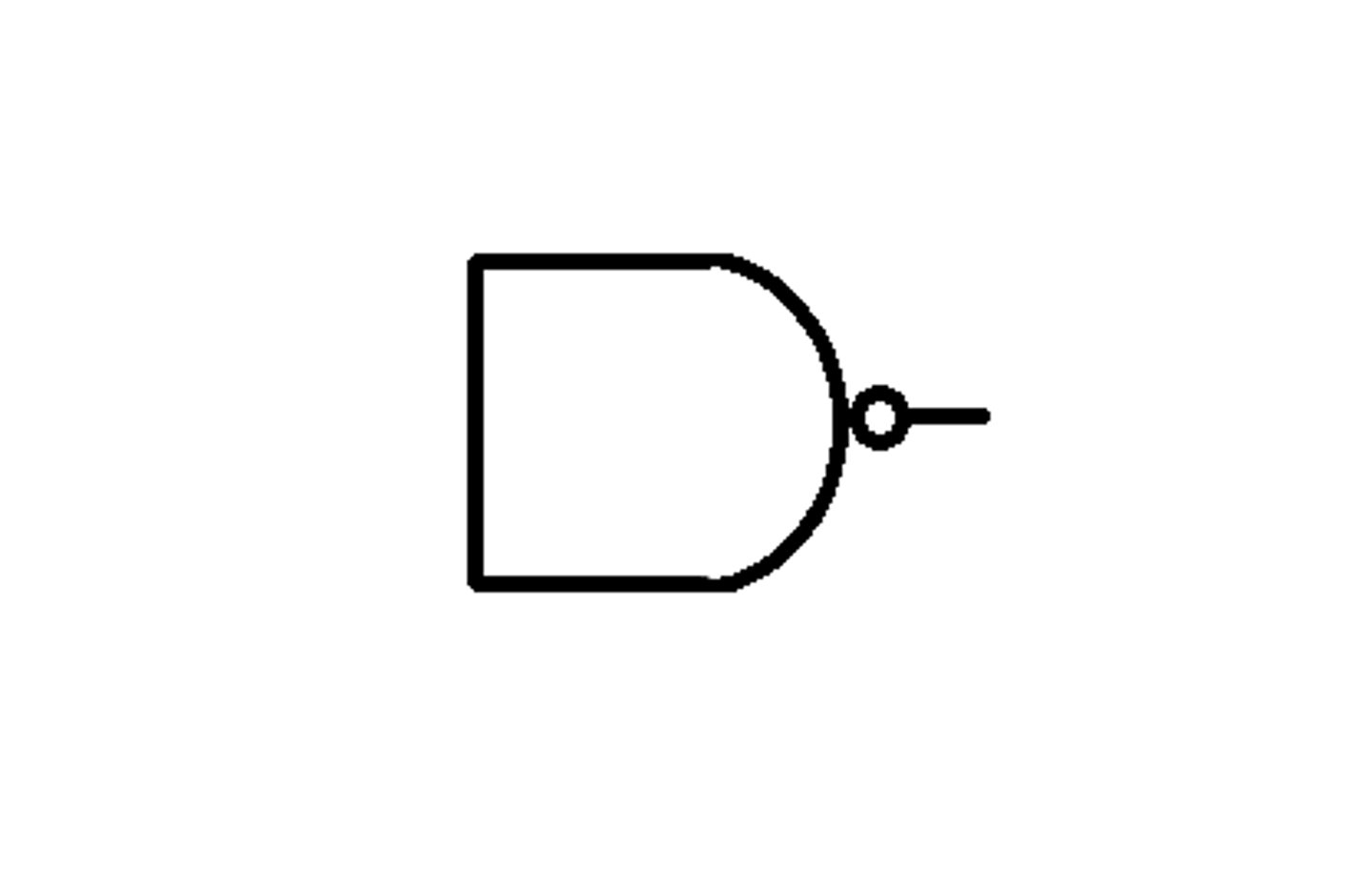

NAND

knowt flashcard image
5
New cards

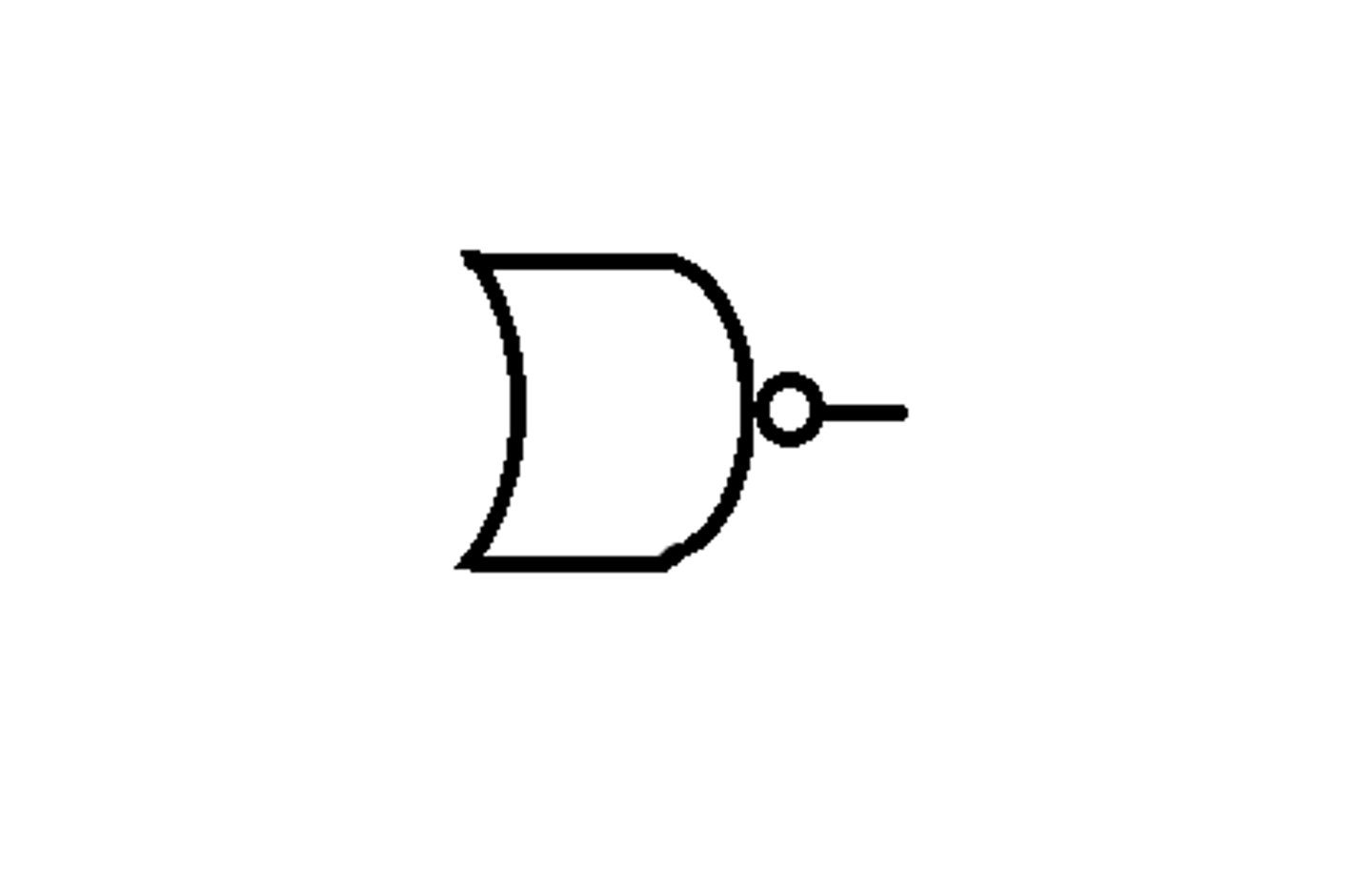

NOR

knowt flashcard image
6
New cards

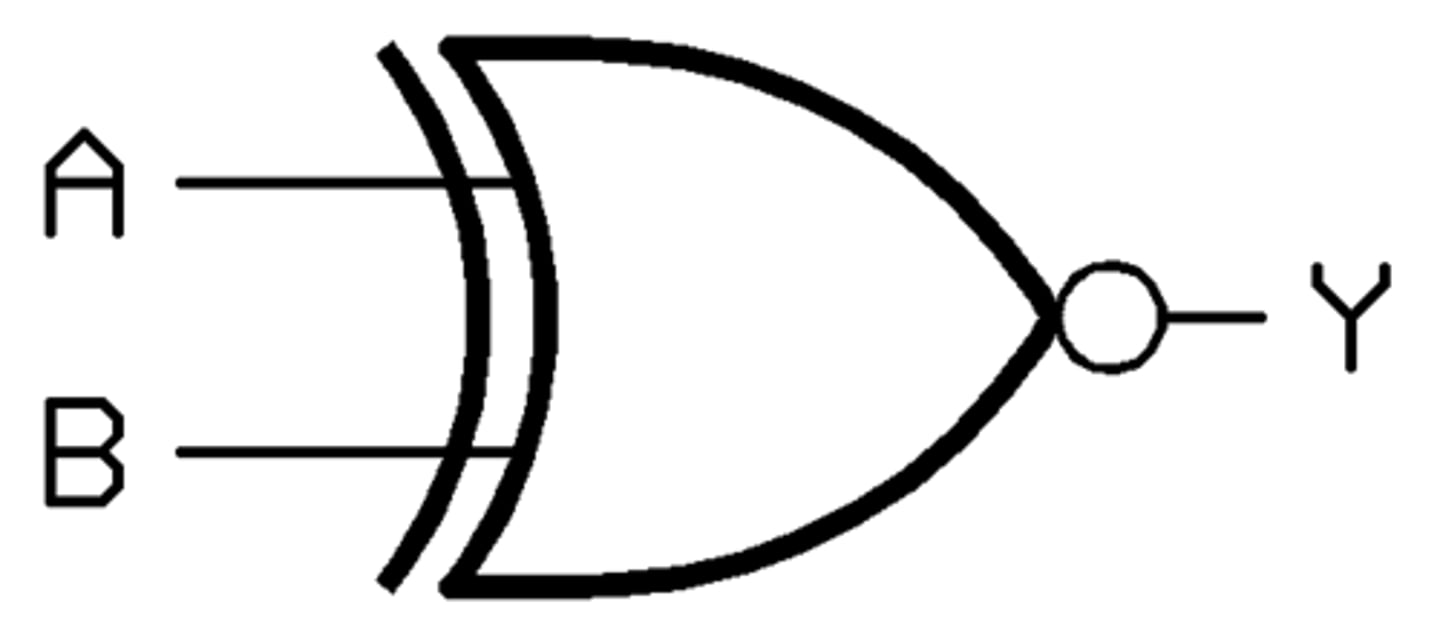

XNOR

knowt flashcard image
7
New cards

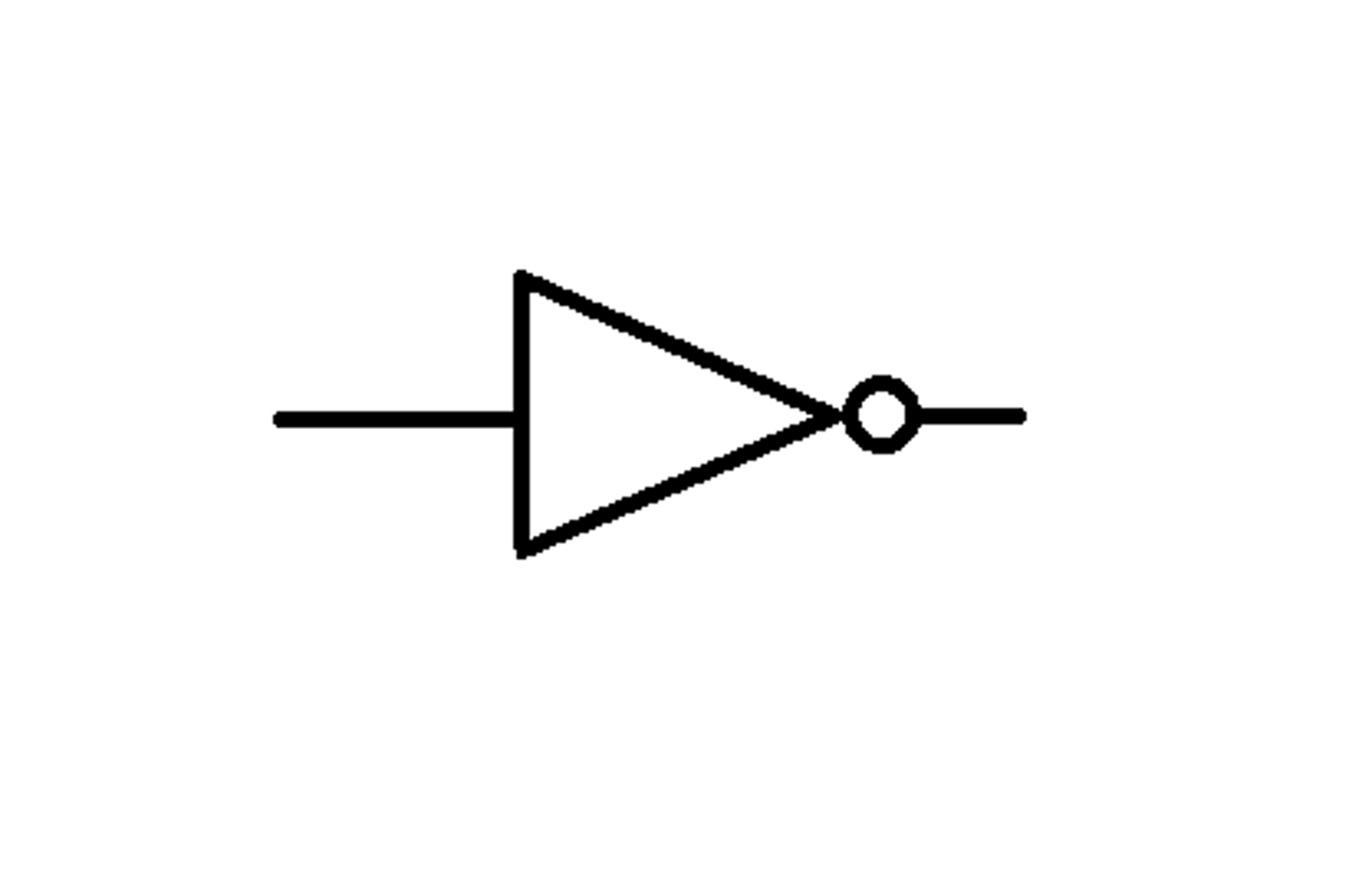

NOT / Inverter

knowt flashcard image
8
New cards

NAND, NOR, XNOR

Outputs are inverted.

9
New cards

NOT gate / Inverter

Output is always the complement (opposite) of the input.

10
New cards

AND gate

Output is HIGH only when all inputs are HIGH.

11
New cards

OR gate

Output is LOW only when all inputs are LOW.

12
New cards

XOR gate (exclusive-or gate)

Output is LOW only when the two inputs are the same.

13
New cards

NAND gate

Output is LOW only when all inputs are HIGH.

14
New cards

NOR gate

Output is HIGH only when all inputs are LOW.

15
New cards

1

HIGH

16
New cards

0

LOW
