EEG for non cranial/ARTERIAL procedures (CEA, AAA, CABG)

What is a carotid endarerectomy or CEA

a surgery performed to restore normal blood flow to the brain - specifically by removing plaque buildup in the carotid artery in a patient’s neck and removing constriction to blood flow in this vessel. A CEA is performed to prevent future strokes.

The right common carotid artery originates from the _____ artery. The left common carotid artery originates from the ____ arch.

brachiocephalic, aortic

What are the vessels involved in a CEA?

• common carotid

• internal carotid (which feeds into the Circle of Willis), which then bifurcates into the MCA and ACA (although the MCA is what is involved for the CEA)

• external carotid

_____ areas of the brain are the border zone regions where blood supply is (increased/decreased). These areas do NOT generate their own blood supply due to distance from feeder vessels, and can be at greater risk of infarct or stroke during CEA procedures.

Watershed, decreased

What are the cranial nerves at risk due to proximity to the surgical incision site?

IX - glossophyaryngeal (which innervates the stylopharyngeus muscle or the soft palate)

X - vagus (which is the recurrent laryngeal nerve or RLN that innervates the vocalis muscle)

XII - hypoglossal which innervates the intrinsic tongue muscles

What is carotid stenosis or carotid artery disease?

Narrowing of the vessel (that’s what stenosis is defined as!) as the result of plaque in the carotid arteries

What is a transient ischemic attack (TIA) or mini-stroke?

When a cerebral artery is partially or temporarily blocked

What is a stroke?

When a cerebral artery is COMPLETELY blocked, cutting off blood flow to the brain.

• the blood clots that result from carotid stenosis can travel up from the carotid and to the cerebral artery in the brain, and when it lodges there, this can result in stroke.

What is a shunt?

A small plastic tube that diverts blood flow around the section of the carotid artery where the surgeon is removing the plaque

What is our primary modality for CEA - SSEPs or EEG?

EEG

For CEA EEG, a minimum of ___ channels is needed with a vascular montage

8

Signal changes are more likely to be noted in the (contralateral/ipsilateral) to the side of the surgery, but can also be noted bilaterally.

ipsilateral

What is the criteria for alert, significant change in our EEG?

greater than 50% decrease in amplitude of 8-15 Hz activity

• all EEG progressively diminished in amplitude, approaching isoelectric pattern

What is our secondary modality for CEA - EEG or SSEPs?

SSEPs

• monitor median and posterior nerve

For SSEPs in CEA, how many cortical channels do we have?

2-3

For CEA SSEPs, signal changes are more likely to be noted in the side that is (ipsilateral/contralateral) to the side of surgery.

contralateral

What is the SSEP alert criteria (refresher)?

50% decrease in amplitude, 10% increase in latency

Signal changes for most patients with CEA SSEPs occur in the first (20/30) seconds, 80% in (1/2) minutes or less

20, 1

For most surgeries, TIVA is the (preferred/standard) anesthetic regimen, and this is (consistent/not consistent) with what we need for monitorable CEA EEG.

not consistent - in higher dosages, propofol and additional sedatives will have a profound effect on the EEG. If possible for the anesthesia team to avoid using propofol altogether, this will allow for reliable EEG to be maintained and avoid burst suppression.

What are the surgical steps for a CEA? Which is most likely to cause a stroke - putting on the clamp or taking it off? What is the sequence of clamping for the common, external, and internal carotid?

• neck incision

• exposing carotid

• heparin (4-5 min, an anticoagulant or blood thinner used to prevent blood clots), look at EEG and SSEPs

• placing vessel loops in preparation to clamp

• CLAMP ON: sequence of clamping goes from internal carotid, common carotid, and then external carotid

• open carotid

• possibly place a shunt

• remove plaque

• close carotid

• CLAMP OFF (stop timer): this is when a stroke becomes most likely

• doppler (ultrasound to measure blood flow in the blood vessels, works by bouncing high frequency waves off red blood cells)

• protamine administered

If you see (ipsilateral/contralateral) EEG and (ipsilateral/contralateral) SSEP changes, the surgeon will place a (clamp/shunt) so the brain receives proper perfusion.

ipsilateral, contralateral, shunt (helps keep blood flowing through alternative pathway - outside of the vessel - during procedure)

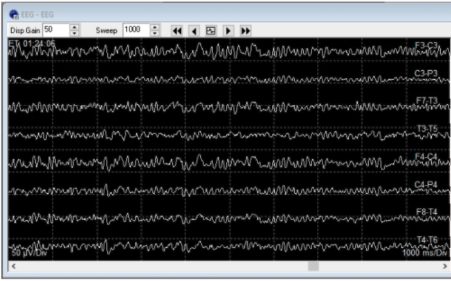

Baseline EEG should look like this image here. Once the clamp goes onto the carotid artery and the timer has started, if the brain has adequate ____ without the need of a shunt, then the EEG should continue appearing stable and (symmetric/asymmetric)

perfusion, symmetric

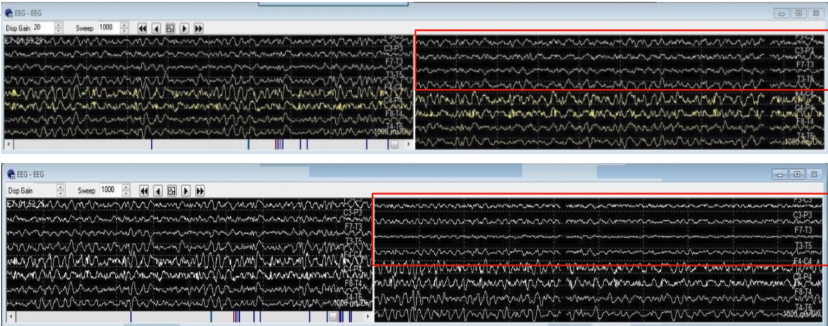

When the anticoagulant heparin is administered and we take our baseline, the EEG looks stable and symmetric (first picture). Is this true for when the clamp was added (second picture)? The surgery is taking place on the left CEA.

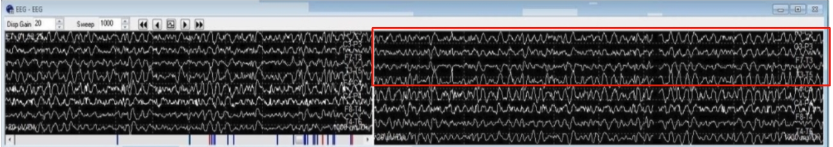

No - we can see a flatlining of response in the odd-numbered electrodes specifically (indicating the change is happening on the ipsilateral side, and constitutes a true EEG change). After the shunt is placed, we can see this reperfusion reflected on the EEG.

During a CEA, EEG is unreliable when it is in a ____ ____ pattern. If this pattern is noted during this procedure, it is important to relay this info to the surgical team and then request that anesthetic levels be adjusted for optimal EEG monitoring - especially if the surgeon has made the decision to add a (shunt/clamp) based on IONM signals.

burst suppression, shunt

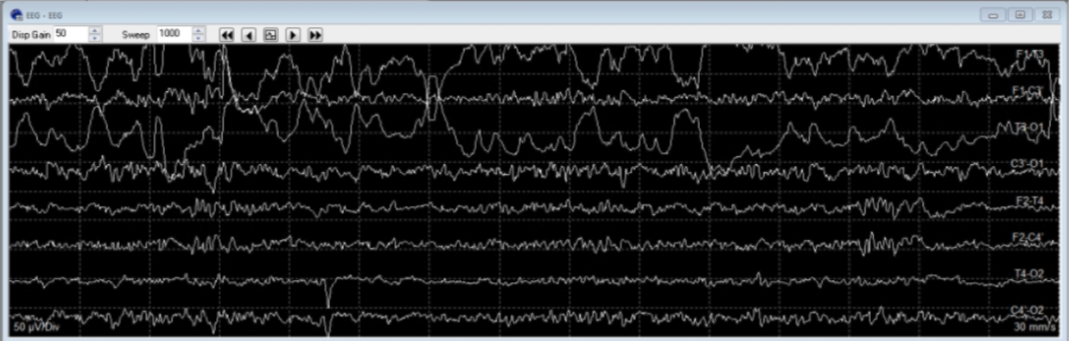

The common electrode showing artifact here is:

T3

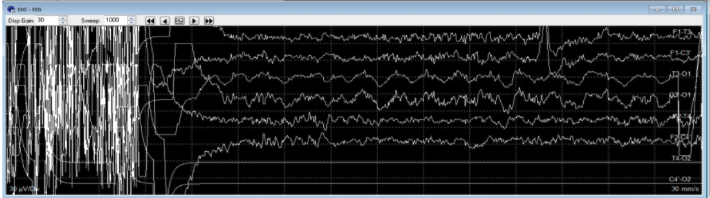

Amplifer saturation can be caused by:

Bovie (electrocautery)

For CEA SSEPs, we take our signals from which two nerves?

median nerve (left and right)

posterior tibial nerve (left and right)

Within the first minute of clamping for a right-sided CEA procedure, there was a change noted in EEG - namely, slower frequencies noted in the (left/right) sided EEG channels, followed by attenuation in (left/right) SSEP signals. Surgeon was informed and began placing (another clamp/shunt). Signals returned to normal limits of baselines after 4 mins of initial signal changes.

right (since changes are ipsilateral for EEG), contralateral or left side SSEP signals (median and posterior tibial nerve). shunt

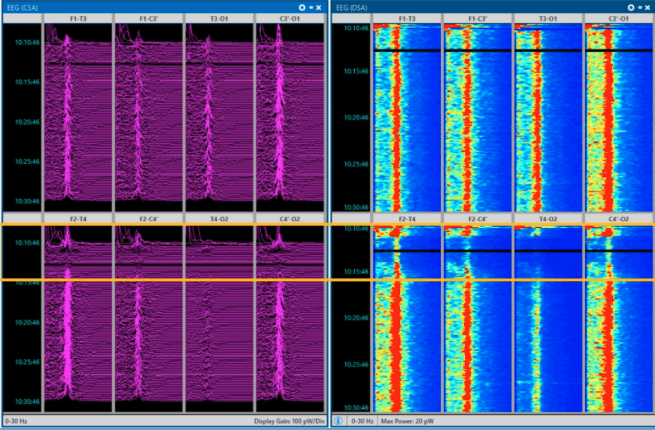

In CSA and DSA EEG, we can see (slowing/speeding up) during clamping that returns when the shunt is in place.

slowing

To detect changes, we use (raw/processed) EEG signals as primary source rather than rely on spectral edge frequency since you may miss an immediate critical change. The utility of looking at the (raw/processed) EEG is to reflect back on how long the EEG was in alert status.

raw, processed

prior to the CEA surgery, it’s a good idea to ask the surgeon if they are selectively shunting the patient - why? Immediate and timely updates on IONM signals are also critical following vessel clamping and (unclamping/shunting). IP should be made aware of surgical stages so they can focus on interpretations during critical periods that require prompt communication. Be ready for immediate changes during critical stages.

to avoid risk of continuous brain ischemia while also preventing mechanical complications like dislodging debris which can lead to stroke (if a clot travels to the brain), scraping artery wall, or getting into the surgical field). unclamping.

Though we focus on ipsilateral EEG and contralateral SSEP signals during CEAs, it is possible to see ____ changes with extreme blockage in collateral blood flow.

global

What is a transcarotid artery revascularization or TCAR - name steps?

• minimally invasive procedure involving a soft, flexible sheath placed directly into the carotid artery and connected to a system that will reverse the flow of blood away from the brain

• blood flow in the carotid is temporarily reversed to prevent emboli or debris/clot from traveling to the brain and causing a stroke during procedure. The patient’s blood then flows through a filter outside the body, and the filtered blood is then returned through a tube in the patient’s upper leg.

• A stent is placed in the artery to reduce the risk of stroke due to narrowing of the artery (stenosis). After the stent is successfully placed, the blood flow reversal is turned off and blood flows in its normal direction. The incision is sewn up with minimal to no visible scarring.

What is a transcarotid artery revascularization or TCAR - what does it treat, and what two things does it combine? What does it reduce the risk of?

carotid artery disease, combines endarterectomy and stenting. reduces stroke risk.

What are the vessels involved in a TCAR?

• common carotid

• internal carotid (which feeds into circle of Willis and then bifurcates to become MCA and ACA, though ACA is what is involved in this procedure)

• external carotid

We do also have watershed zones.

What is the primary modality for TCAR - SSEPs, or EEG?

EEG is the primary modality with a minimum of 8 channels, we use a vascular EEG montage.

Signal changes are more likely to be noted in the side that is ipsilateral to the side of the surgery, but can also be indicated bilaterally.

Do we monitor UN for SSEPs?

No - median nerve. Same idea as for CEA (two or three cortical channels, changes in contralateral side to surgery)

What are the steps of a TCAR?

• small incision at base of neck or clavicle

• carotid artery exposure

• sheath placed in carotid

• flow reversal initiated

• stent deployed

• flow restored, sheath removed, incision closed

We don’t want to use too much of a (sedative/narcotic) with EEG since that could impair our signals, but so could too much _____ agent.

sedative (propofol), inhalational

When monitoring EEG to look for any possible surgical change, we should make particular note of EEG ____ and (symmetry/asymmetry)

suppression, asymmetry

On a right-sided TCAR, we would expect to see any attenuations in SSEPs that we could attribute to surgical cause be on the (left/right) side.

left (contralateral) - let surgeon know so that unclamping can be performed if needed

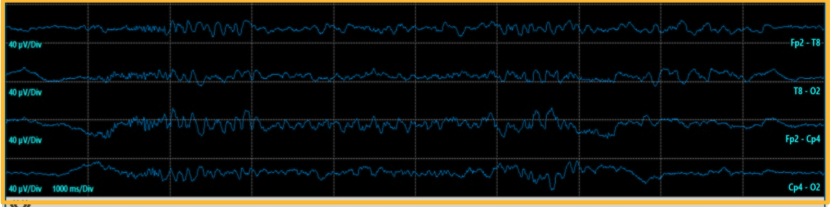

What is this pattern referred to as?

asymmetry on EEG between periods of suppression

What are the 3 types of aortic aneurysms?

• ascending thoracic

• descending thoracic

• abdominal

What is an abdominal aortic aneurysm repair?

surgery performed to repair an abnormal widening of the abdominal aorta (also known as an aneurysm)

• if the size of the aneurysm exceeds 55 mm, the risk of rupture becomes greater than the risk of surgery, and an AAA is performed to prevent rupture

• if the aneurysm WERE to rupture, blood would fill the abdominal cavity and cause death within minutes

What is Marfan syndrome?

genetic disorder that affects the body’s connective tissue, or blood vessels. Patients with this syndrome are at greater risk of developing aneurysms.

With the temporary interruption of aortic perfusion during a repair, there is the risk of spinal cord ischemia and paraplegia. Which artery provides a major portion of blood supply to the spinal cord

Artery of Adamkiewiez (perfuses lower 2/3 of the spinal cord)

Besides the AoA, additional feeder vessels, including the intercostal arteries that branch off the aorta, play a crucial role in perfusing the ____ regions of the thoracic cord (hint: thoracic!)

watershed

Post-op risk of paraplegia has been reported to be as high as 50% when the ischemic time is greater than 45 mins. true or false?

true

What are the surgical steps for an AAA or abdominal aneurysm repair?

• general anesthesia is used

• incision down the center of abdomen (below breastbone to below the navel) and across thw abdomen as the second incision - underneath the left arm across to the center of the abdomen and down to below the navel

• administer heparin

• sigmental feeder vessels clamped

• body cooling 32 degrees C or 17 degrees C (neuroprotective hypothermia that slows down metabolism and reduces oxygen demand)

• clamps are placed on the aorta above and below the site of the aneurysm to stop blood flow

• aortic incision

• placing graft inside aorta

• close aorta around graft

• possible viable intercostal arteries or ICAs re-implanted

• remove clamps

• patient warming

• close abdomen

For an AAA, which is the primary modality - SSEPs or MEPs?

MEPs (when clamping sigmental feeder vessels especially)

What are the steps of an EVAR or endovascular aortic repair?

• use general or regional anesthesia

• two incisions are made in the groin to access bilateral femoral arteries

• fluoroscopy is used to insert needle into femoral arteries

• guide wire is threaded to aneurysm site

• sheath is placed over the guide wire

• contrast dye is injected to see the position of the aneurysm + surrounding blood vessels

• stent-graft is then inserted through the femoral artery and up to the side of the aneurysm.

• stent graft is expanded and attached to the wall of the aorta

• dye is injected again to check for any blood leaking out into the aneurysm area

• if NO blood is leaking, instruments are removed, bilateral incision sites are closed

What are the different modalities for an AAA, and what are their alert criteria (talk about MEPs only)

• MEP utilized during clamping of sigmental or intercostal arteries to predict potential ischemia of spinal cord

• MEP signal changes can help provide info to the surgeon on whether patient would benefit from reimplantation of the intercostal arteries after aortic repair to provide collateral blood flow to thoracic watershed region of spinal cord (abdominal aortic repair)

Talk about SSEPs with regards to AAA

attenuation is expected during patient cooling and can assist with identifying the optimal temperature for circulatory arrest (corticals > subcorticals > erbs)

time of signal reappearance can provide more info on the post-operative outcome

Talk about EEG with regards to AAA

• EEG should be monitored during profound body cooling in preparation for circulatory arrest, since some patients may still have a small amount of residual EEG activity even at 14 C

• complete electrical silence identified with an isoelectric EEG pattern helps the surgical team decide when the patient is sufficiently cooled (neuroprotective state)

• return of EEG is noted after patient warming - time of reappearance of signals provides more info on post-op outcome

• assist with determining optimal amount of time patient can tolerate circulatory arrest

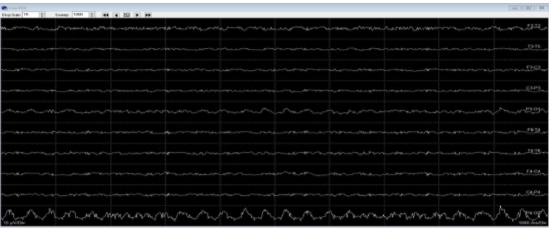

What is this EEG known as?

isoelectric

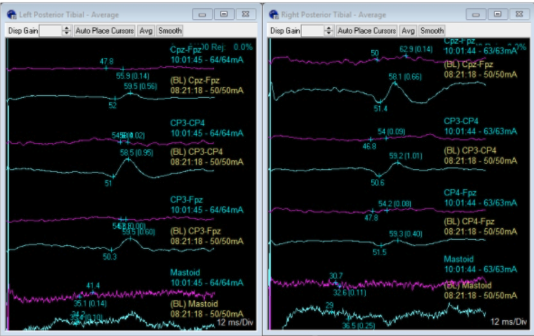

Since blue is baseline trace and purple is the current trace, we can say that we are seeing (bilateral/unilateral) SSEP decrease in PTN.

bilateral - purple trace for cortical, subcortical, and peripheral is much flatter

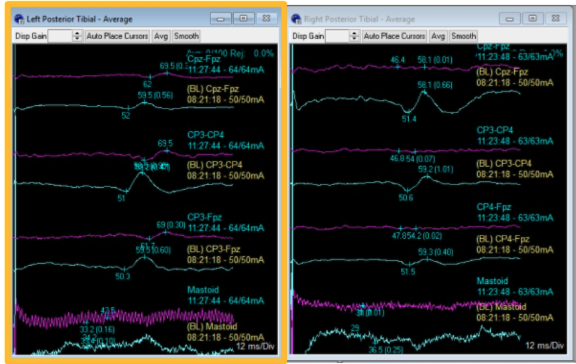

This picture not only reflects a decrease in amplitude of the signals (purple is current trace, and blue is baseline), but also an increased ____.

latency

What is the primary objective of monitoring AAAs?

• provide timely warning of new physiologic imbalance and assess patient response to corrective action

• monitor arteries that branch from the aorta and provide vital blood flow to thoracic (watershed) region of the spinal cord

• postop neurological function is presumed to be intact if signals return to baseline at the end of the procedure

• surgeries with IOM decreased overall cost of care for patients

What is a coronary artery bypass graft?

Surgery to restore normal blood flow to obstructed coronary artery by way of bypass graft placement

To treat the blocked or narrowed artery, a piece of healthy blood vessel from elsewhere in the patient’s body is used to bypass the blockage. The bypass graft connects to an area above and below blockage, so blood flow can be restored to heart muscle.

What is the difference between vein and artery graft?

• vein graft: vein is harvested from the leg or wrist, and then stitched from the aorta to the right coronary artery

• artery graft: artery is harvested from the chest and stitched from the subclavian artery to the left coronary artery

normal heart has less fat and plaque build-up within the vessels

What are the steps of surgery for a CABG?

• make incision on either leg or wrist to harvest blood vessels for grafts

• close leg/wrist incision

• place electrodes after the harvest

• chest incision from just below Adam’s apple to just above the navel

• sternum will be cut in half and separated with a retractor

• we can either use a bypass machine, or not

• close sternum with small wires

• drains placed to prevent fluid buildup around heart

• skin closure

What are the steps of CABG with bypass machine (from this section only?)

• surgeon will temporarily stop the heart to sew grafts into place

• heart is hooked up to bypass machine

• once bypass machine is running the heart will be stopped by an injection of cold solution

• graft is placed

• bypass machine is turned off

• bypass machine will be removed, and heart should restart on its own

• if heart does not restart, small shock will be administered

• temporary pacemaker may be placed, if needed, for recovery

What are the steps of CABG without bypass machine?

• heart continues to function and pump blood through procedure

• bypass machine kept on standby just in case

• graft placed

• examine grafts to make sure they function properly

Shifts in latency for MN and PTN can occur during ____ and constitute a ____/alert criteria.

cooling, change.

Isoelectric pattern from EEG is considered (normal/alert) criteria.

alert

For CABG, our signals are utilized to assess effective body warming and the amount of time it takes for signals to reemerge when body temperature is normalized. true or false?

false - body COOLING

Since we use a limited 2 channel EEG montage to assess the depth of anesthesia for spinal procedures, it is difficult to identify symmetry of the hemispheres - so it is best to describe them as _____ and (continuous/discontinuous)

limited and continuous

Increased sedation can cause ____ suppression or isoelectric patterns on an EEG.

burst
