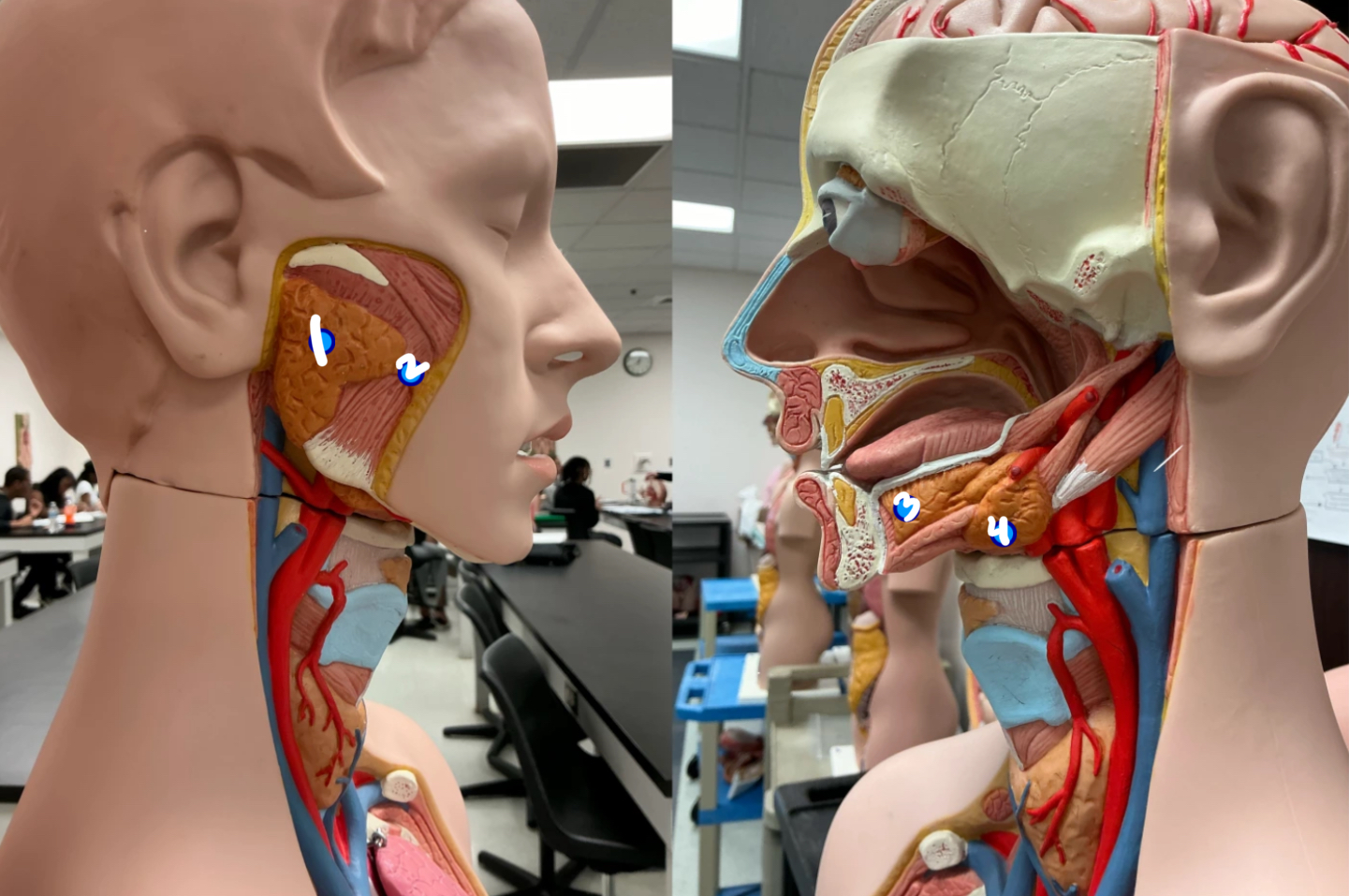

ID the structure # 1
Parotid salivary gland
ID the structure # 2
Duct of parotid salivary gland
ID the structure #3
Sublingual salivary gland
ID the structure # 4
Submandibular gland

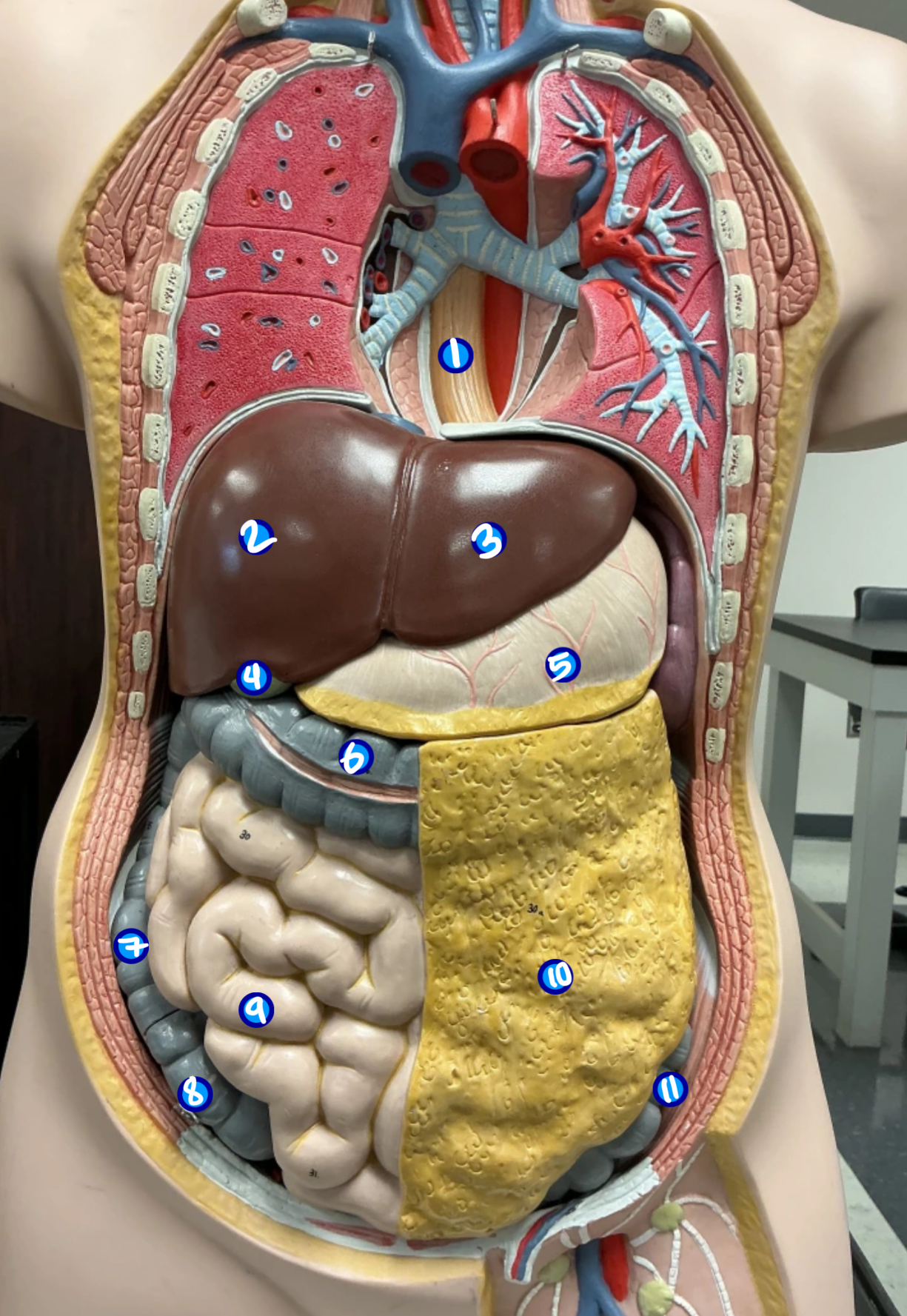

ID the structure # 1
Esophagus
ID the model # 2
Right lobe of liver
ID the model # 3
Left lobe of liver
ID the model # 4
Gallbladder
ID the model # 5
Stomach
ID the model # 6
Transverse colon
ID the model # 7
Ascending colon
ID the model # 8
Cecum
ID the model # 9
Small intestine

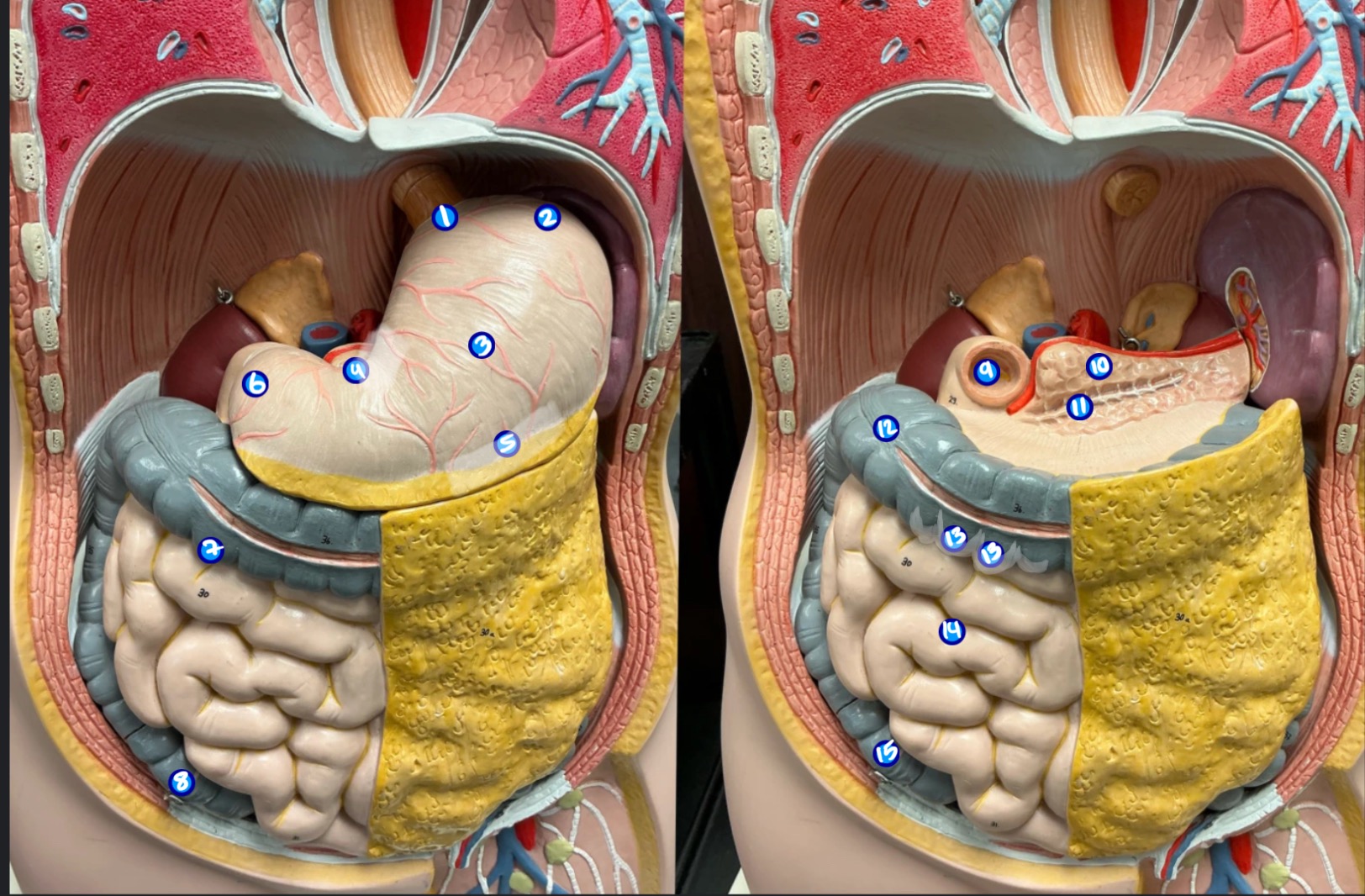

ID the model # 10
Greater omentum
ID the model # 11
Descending colon
ID the model # 1
Cardiac region of stomach
ID the model # 2
Fundus
ID the model # 3
Body of stomach
ID the model # 4
Lesser curvature
ID the model # 5
Greater curvature
ID the model # 6
Pylorus region of stomach
ID the model # 7
Transverse colon
ID the model # 8
Cecum
ID the model # 9
Duodenum
ID the model # 10
Pancreas
ID the model # 11
Pancreatic duct
ID the model # 12
Teniae coli
ID the model # 13
Haustra
ID the model # 14
Lleum
ID the model # 15
Lleocecal valve (inside)
ID the model # 1
Duodenum
ID the model # 2
Ascending colon
ID the model # 3
Vermiform appendix
ID the model # 4
Depending colon

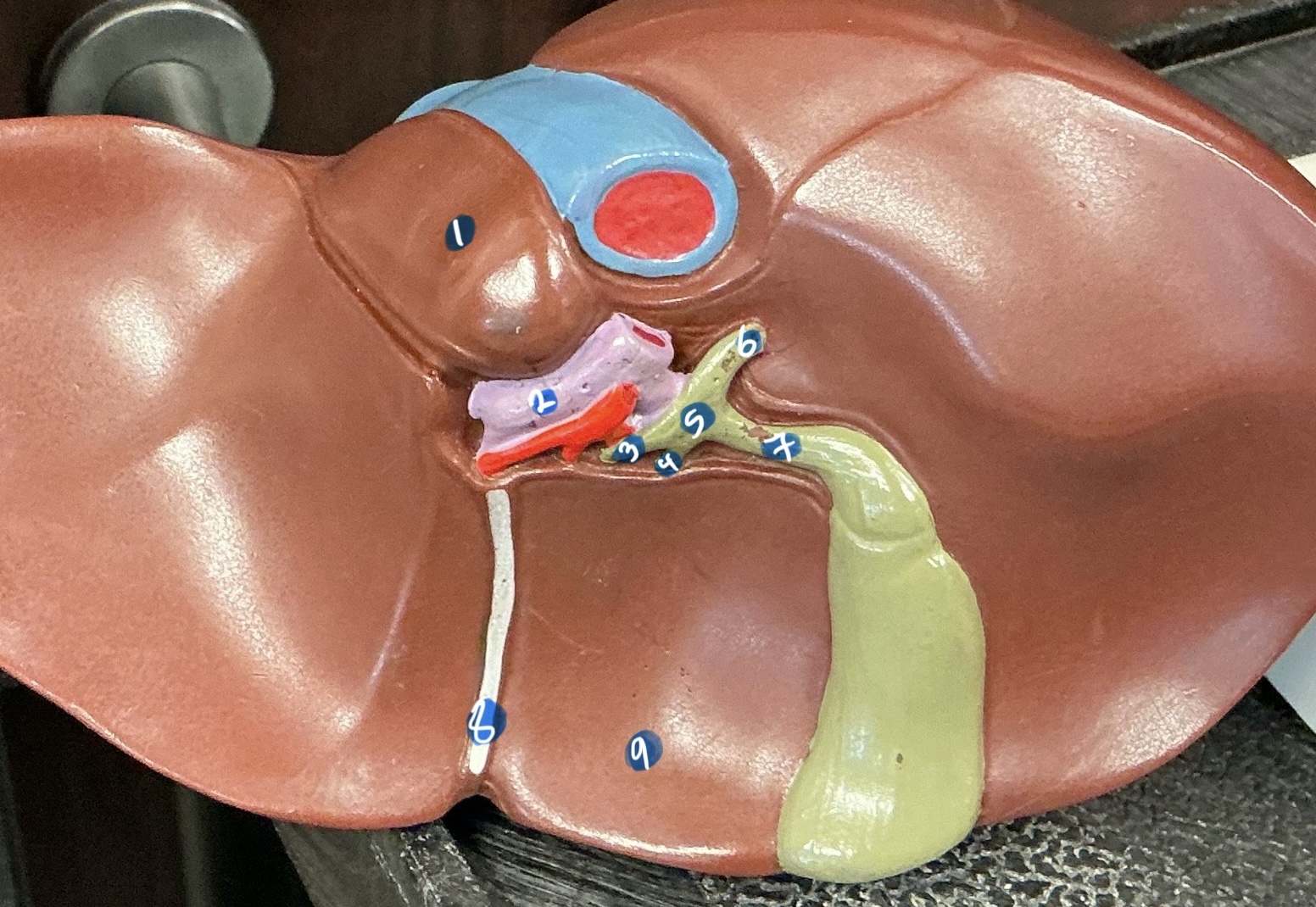

ID the model # 1
Caudate lobe of liver
ID the model # 2
Hepatic portal vein
ID the model # 3
Left hepatic duct
ID the model # 4
Right hepatic duct
ID the model # 5
Common hepatic duct
ID the model # 6
Common bile duct
ID the model # 7
Cystic duct
ID the model # 8
Falciform ligament
ID the model # 9
Quadrate lobe of liver
ID the model # 10
Gallbladder

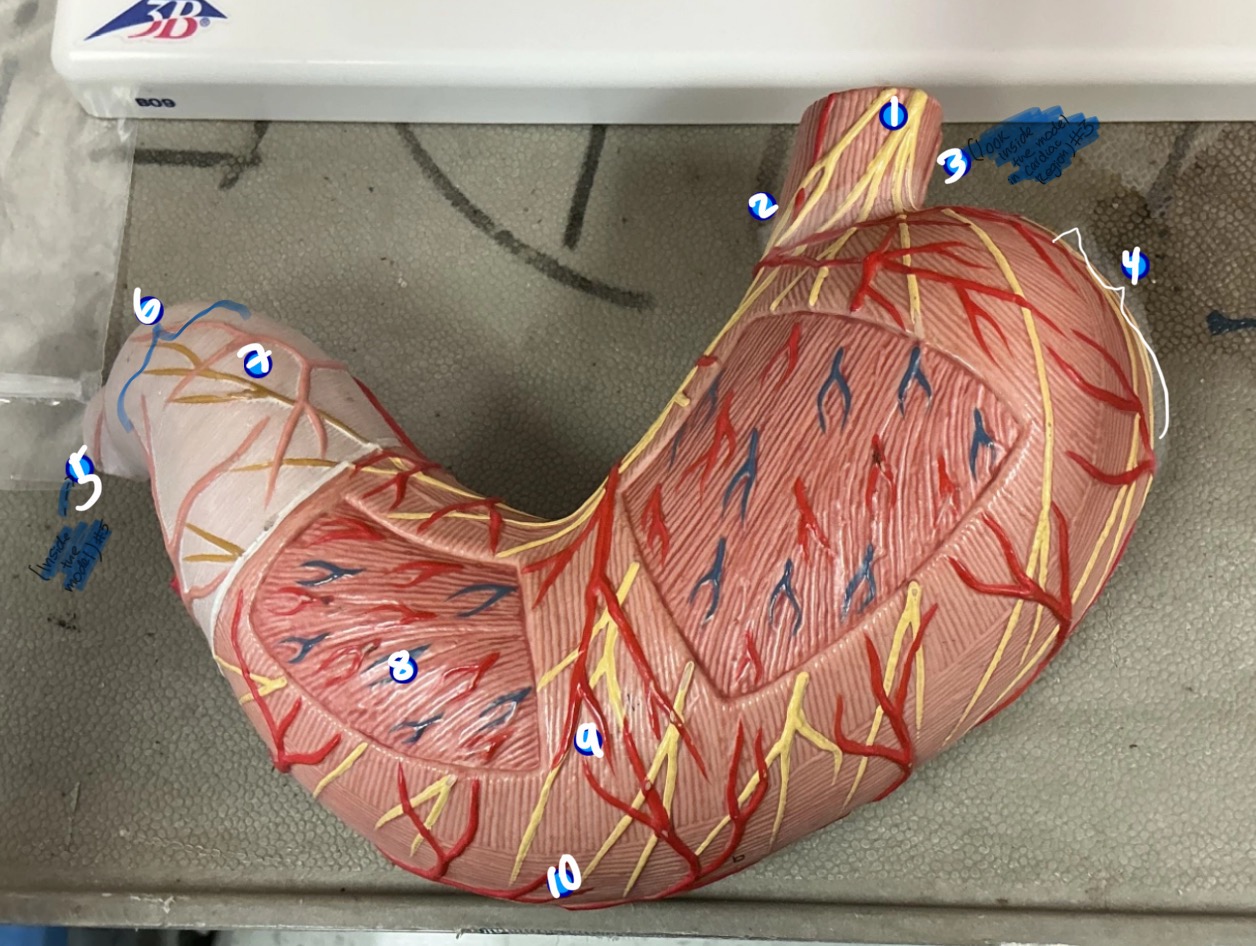

ID the model # 1
Esophagus
ID the model/region #2
Cardiac region
ID the model #3
Cardiac sphincter
ID the model #4
Fundus
ID the model #5
Pyloric valve
ID the model #6
Pyloric region
ID the model #7
Serosal covering
ID the model #8
Oblique layer of muscularis
ID the model #9
Circular layer of muscularis
ID the model #10
Longitudinal layer of muscularis

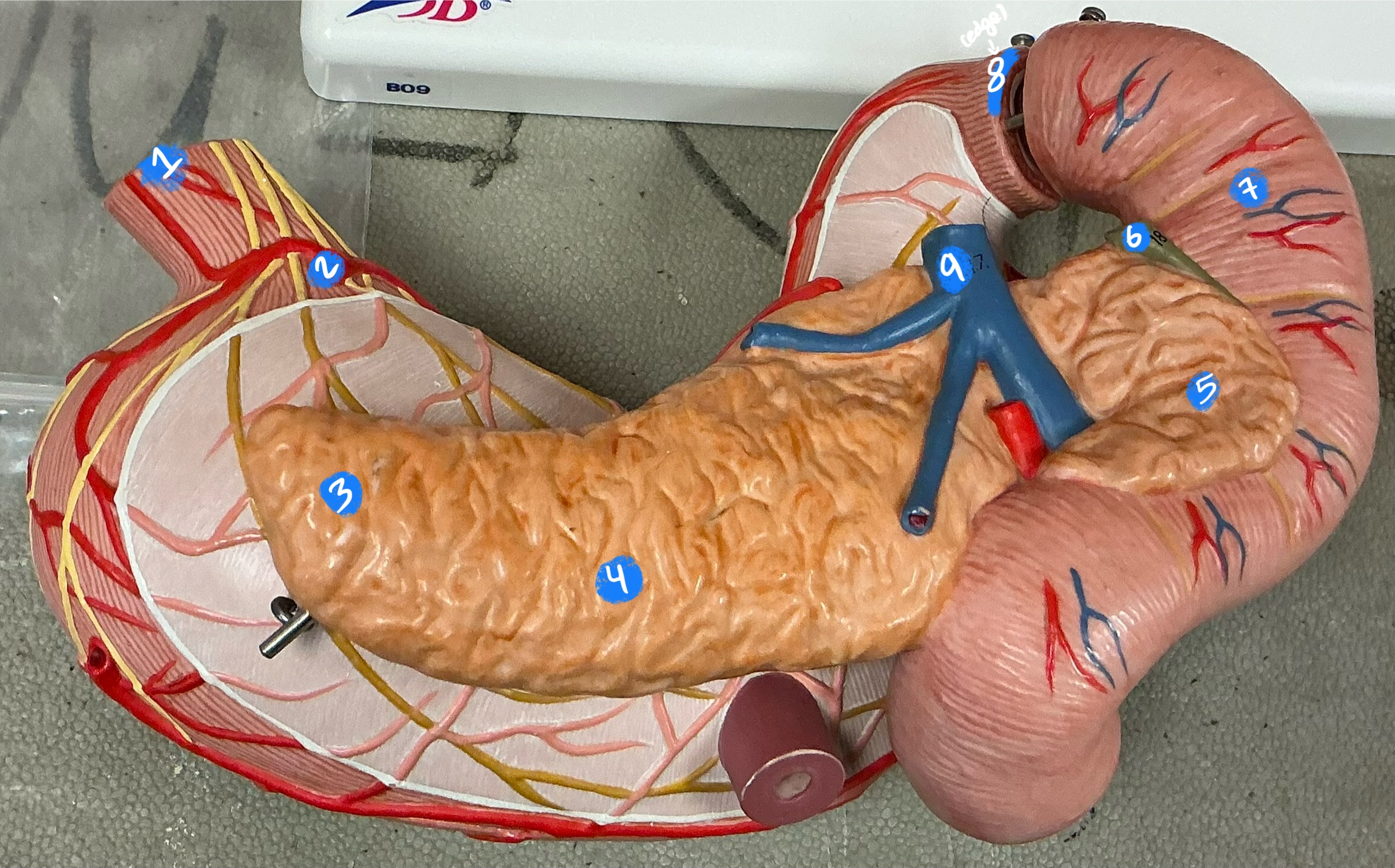

ID the model # 1
Esophagus
ID the model # 2
Gastric artery
ID the model # 3
Tail of pancreas
ID the model # 4
Pancreas
ID the model # 5
Head of pancreas
ID the model # 6
Common bile duct
ID the model # 7
Duodenum
ID the model # 8 (edge)
Pyloric valve
ID the model # 9
Hepatic portal vein

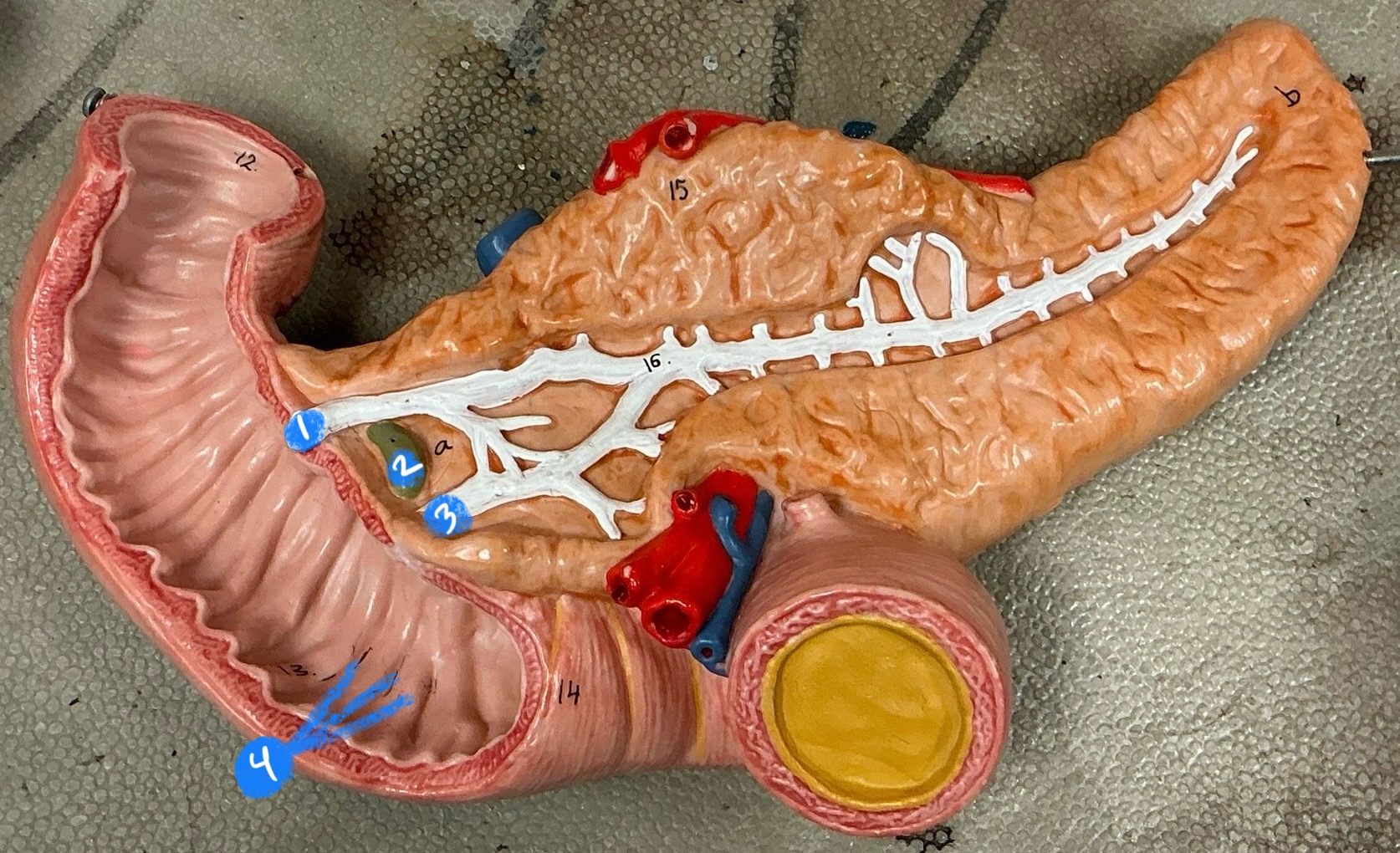

ID the model # 1
Accessory pancreatic duct
ID the model # 2
Common bile duct
ID the model # 3
Main pancreatic duct
ID the model # 4 (duodenum)
Circular folds

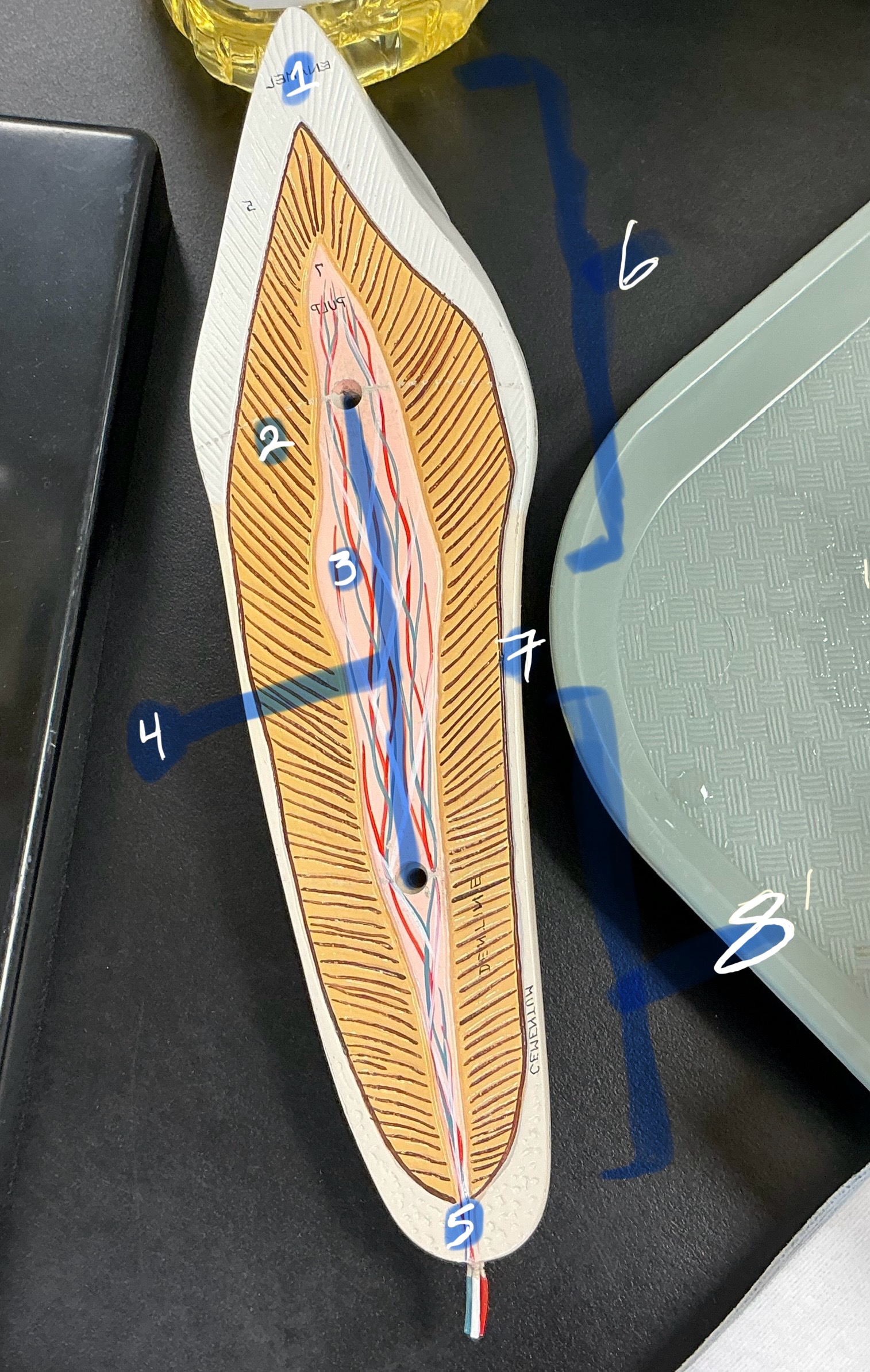

ID the model # 1
Enamel
ID the model # 2
Dentin
ID the model # 3
Pulp cavity
ID the model # 4
Root canal
ID the model # 5
Apical foramen
ID the model # 6
Crown
ID the model # 7
Cervical line
ID the model # 8
Root
ID the structure #1
Molar

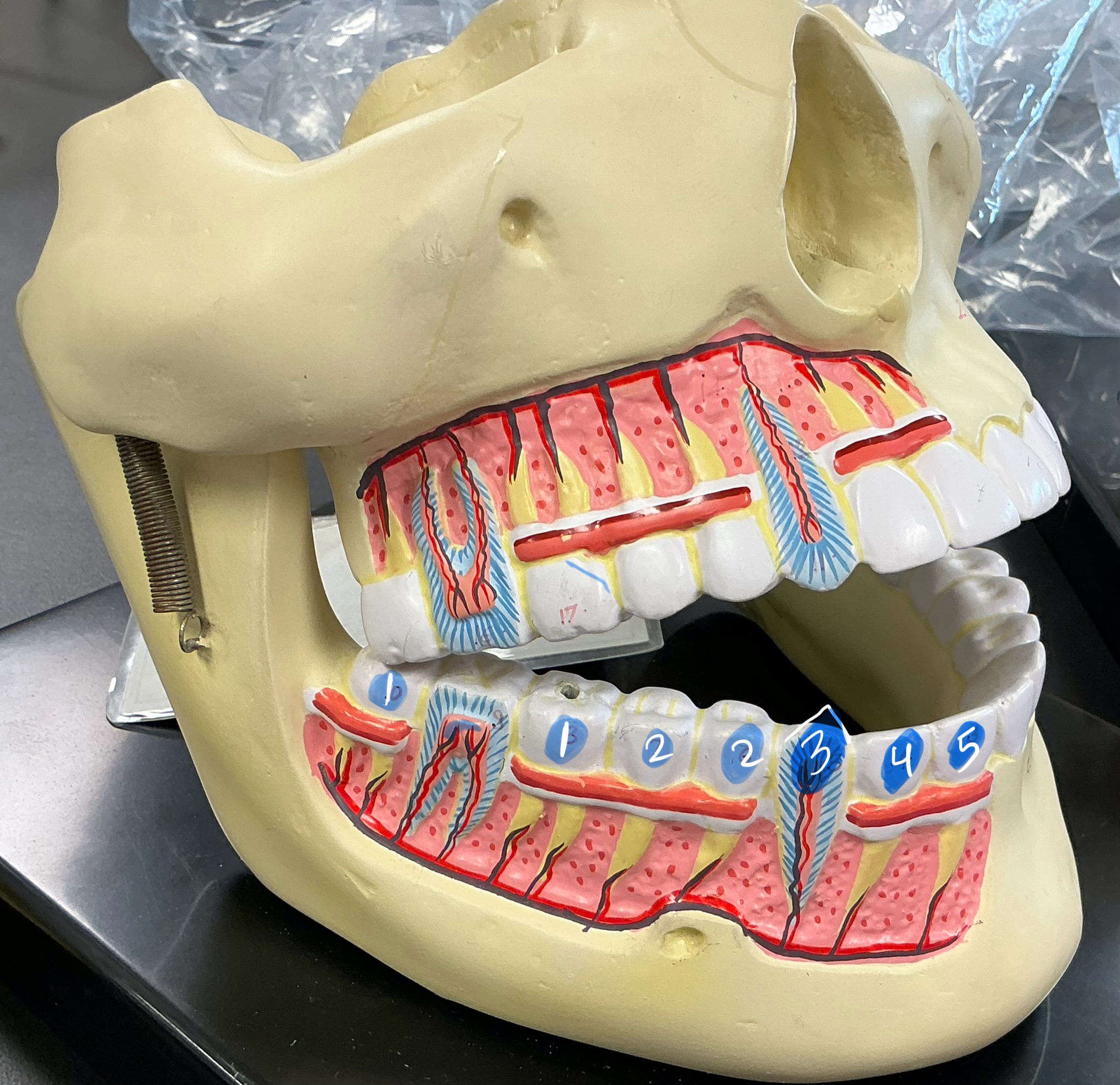

ID the structure #2
Premolar
ID the structure #3
Canine
ID the structure #4
Lateral incisor
ID the structure #5
Central incisor
FUGURE 8-1

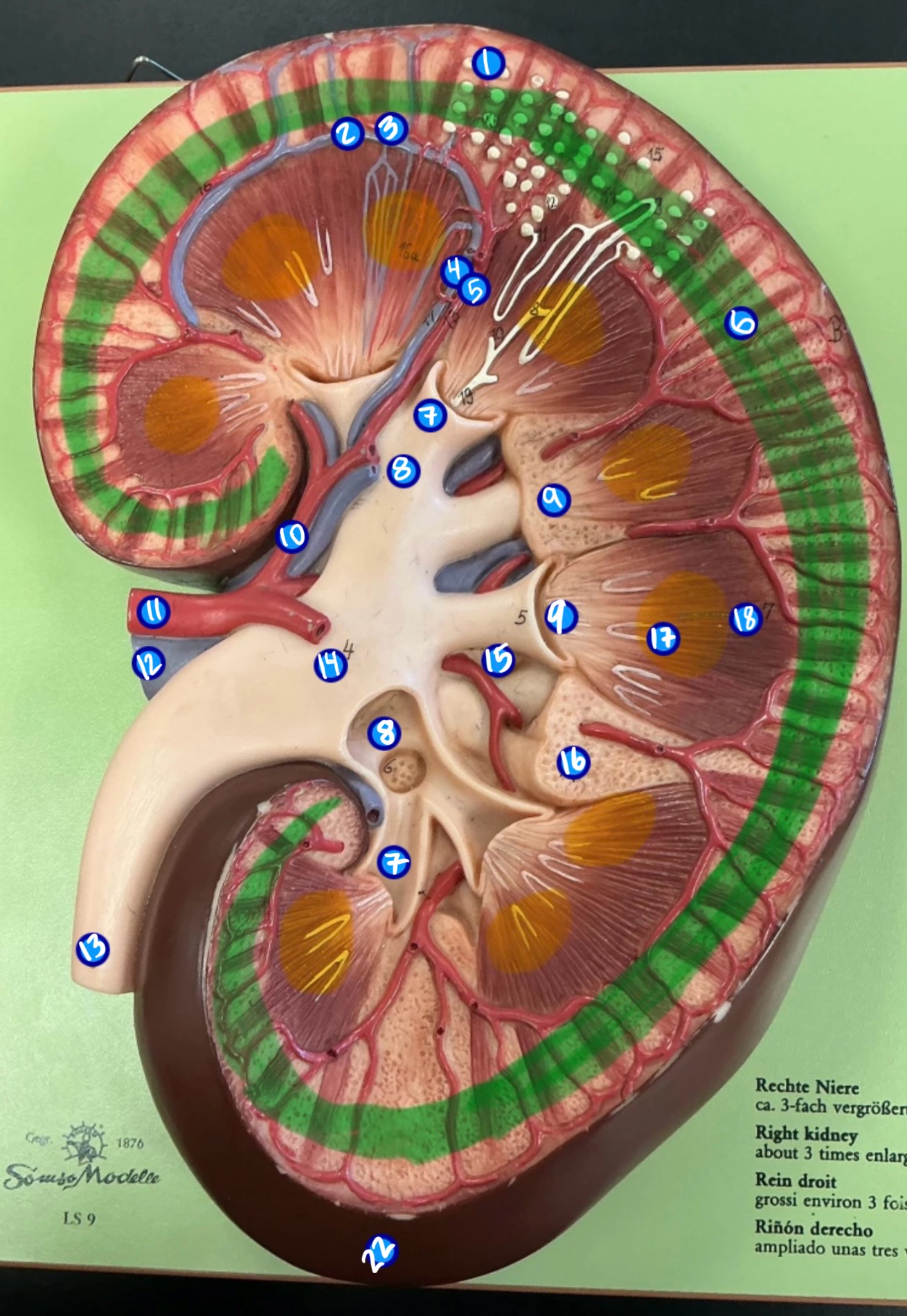

ID the structure #1
Cortical radiate artery
ID the structure #2 (blue)
Arcuate vein
ID the structure #3 (red)
Arcuate artery
ID the structure #4 (blue)
Interlobar vein
ID the structure #5 (red)
Interlobar artery
ID the structure #6 (all green)
Cortical region
ID the structure #7
Minor calyx
ID the structure #8
Major calyx
ID the structure #9
Papilla of pyramid
ID the structure #10
Segmental artery
ID the structure #11
Renal artery
ID the structure #12
Renal vein
ID the structure #13
Ureter
ID the structure #14
Renal pelvis
ID the structure #15
Renal sinus
ID the structure #16
Renal column
ID the structure #17 (all yellow)
Medullary region
ID the structure #18
Medullary pyramid
ID the structure #
