L18 X-ray Diffraction from Solids

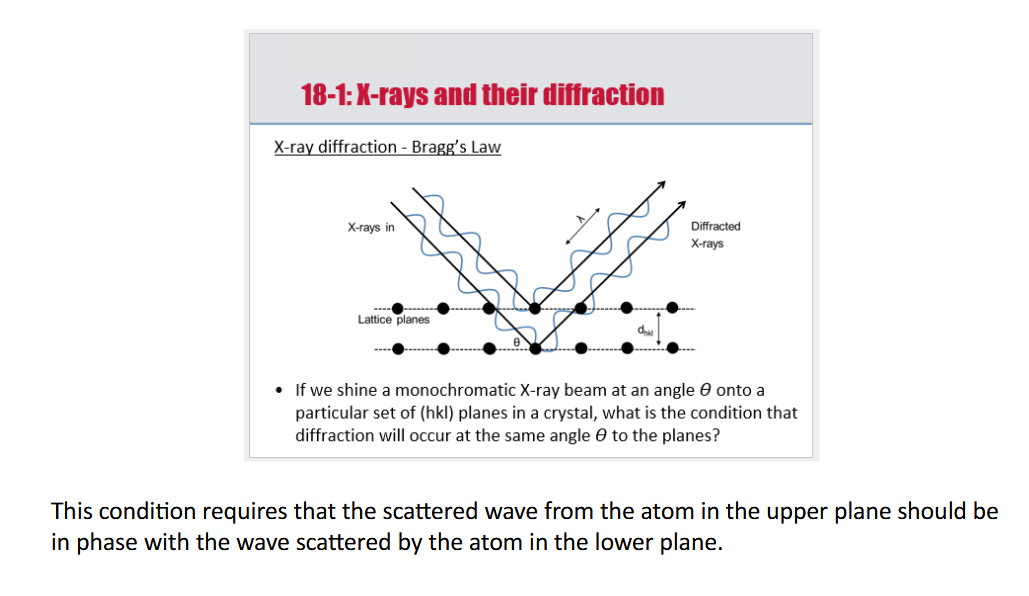

X-ray diffraction - what is required for diffraction to occur at the same angle in both waves

They need to be in phase

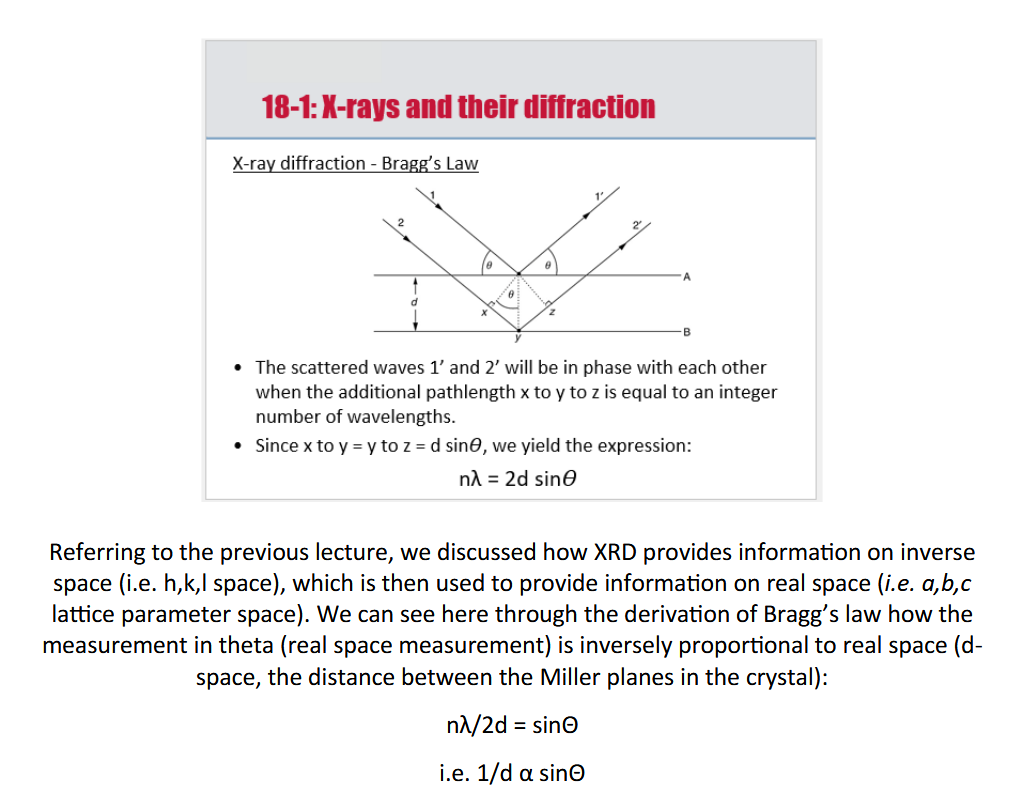

Bragg’s Law to find lattice cell paramaters using angle of diffraction

The important parameter we are looking for is d - the spacing between Miller planes in the crystal

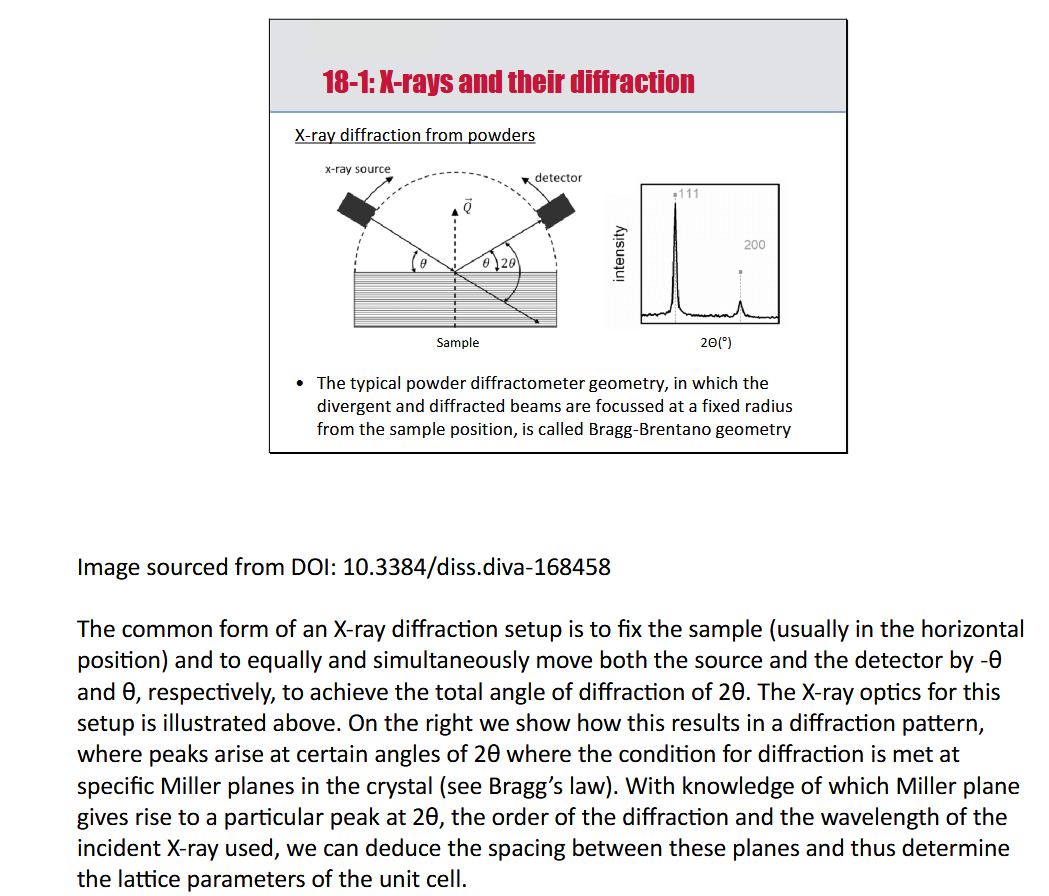

How can data on the diffraction angle let you determine lattice parameters

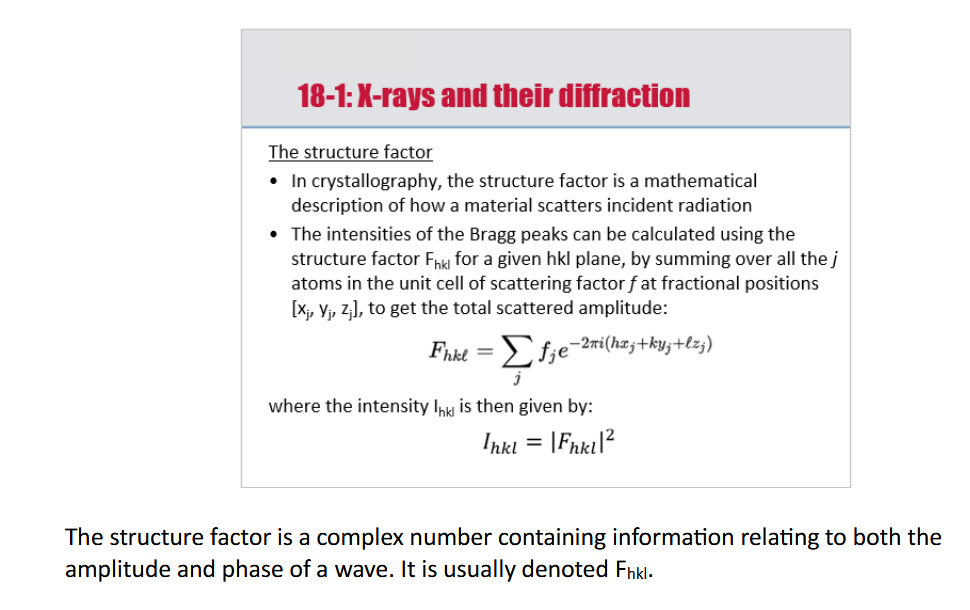

The structure factor - a mathematical description of x-ray scattering

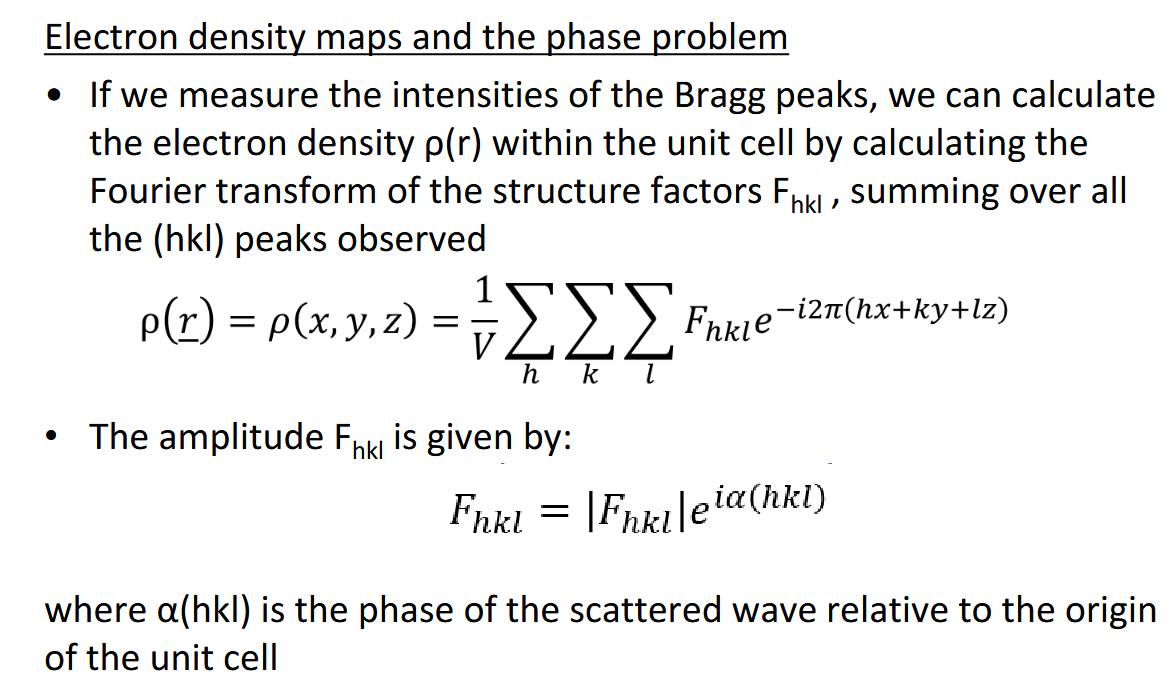

Calculating electron density

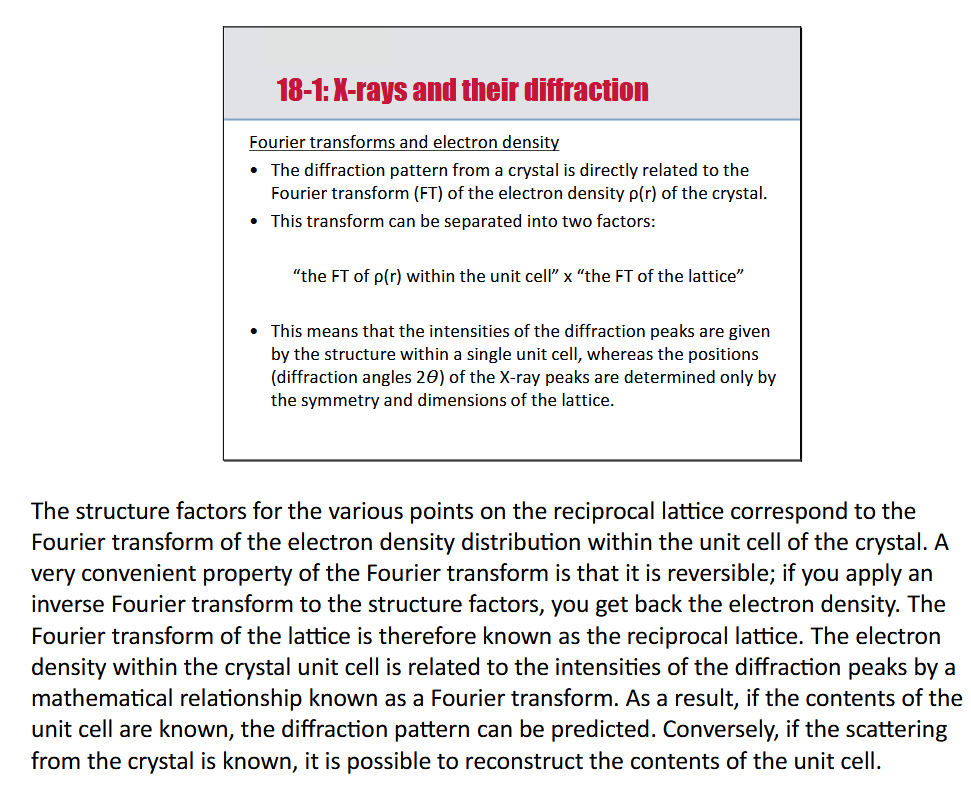

Two factors in the Fourier Transform relating to the unit cell and lattice

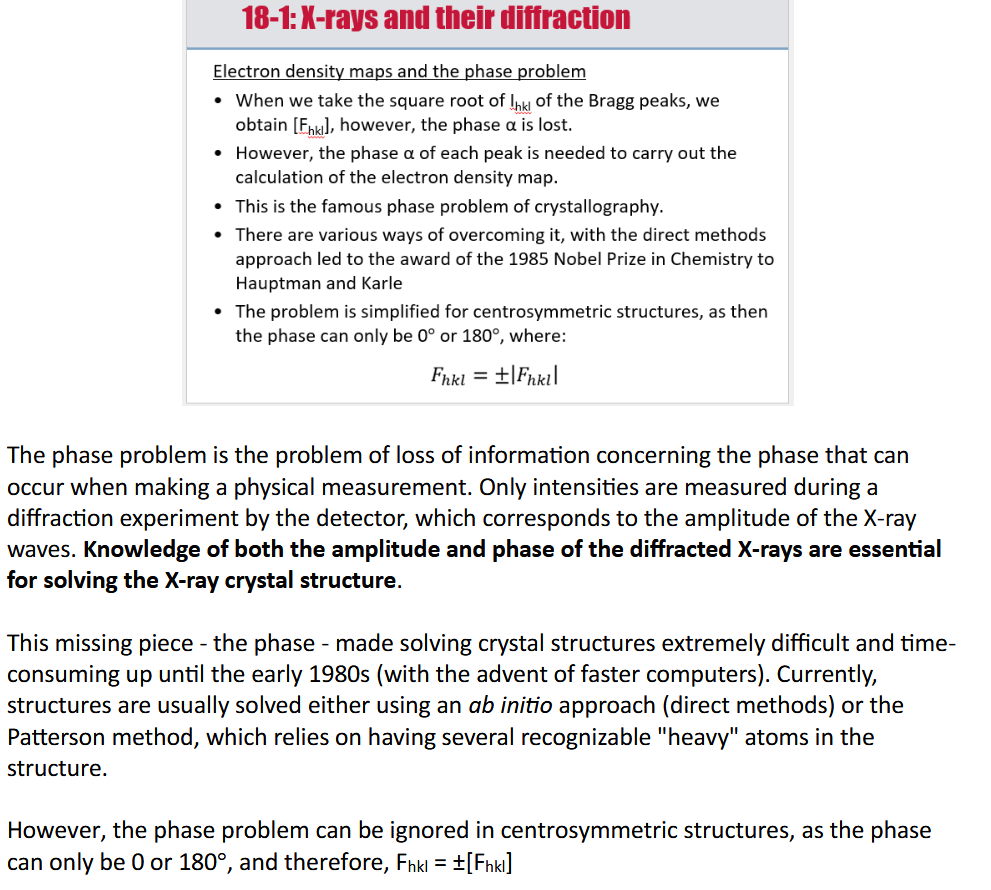

What is the phase problem

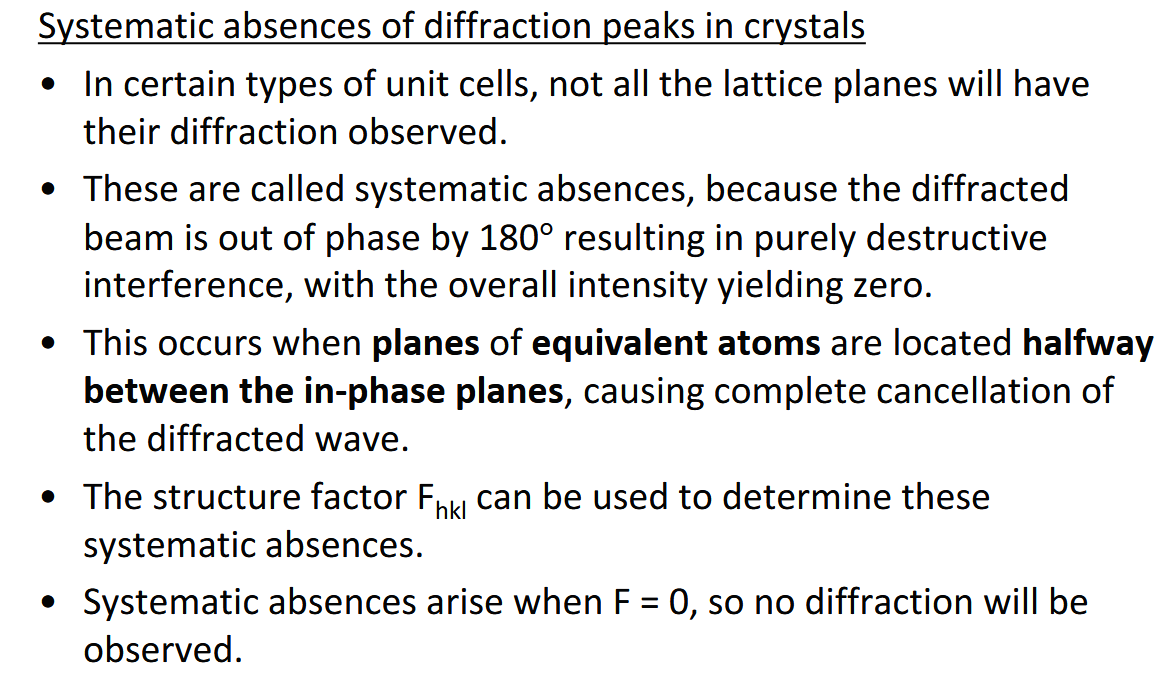

Systematic absences of diffraction peaks in crystals

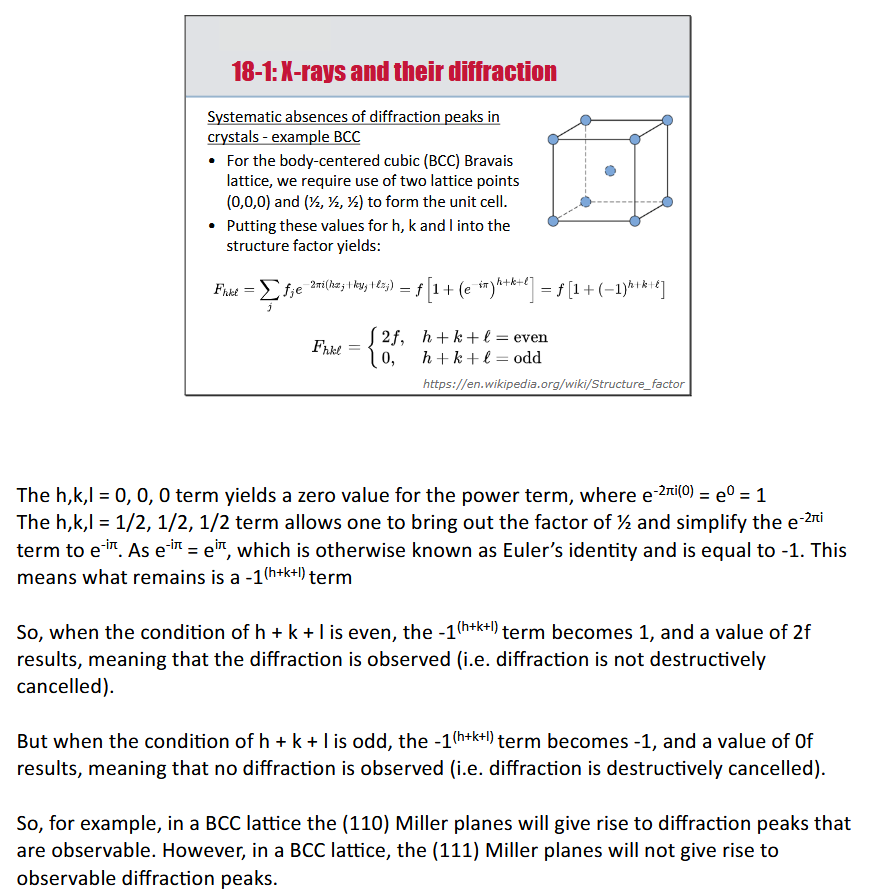

Example calculation to determine systematic absences in BCC

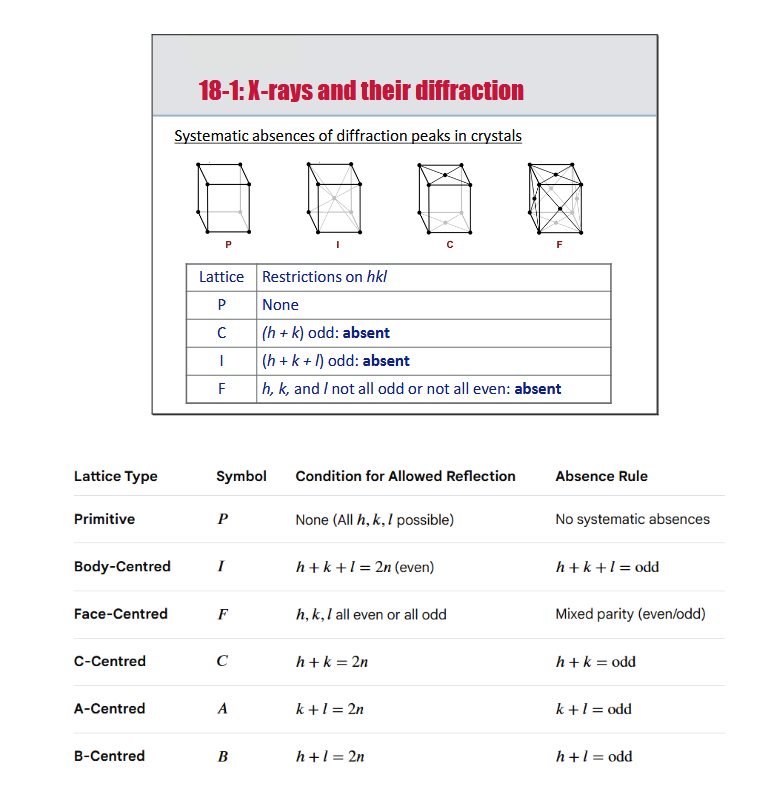

Restrictions on hkl to see systematic absence

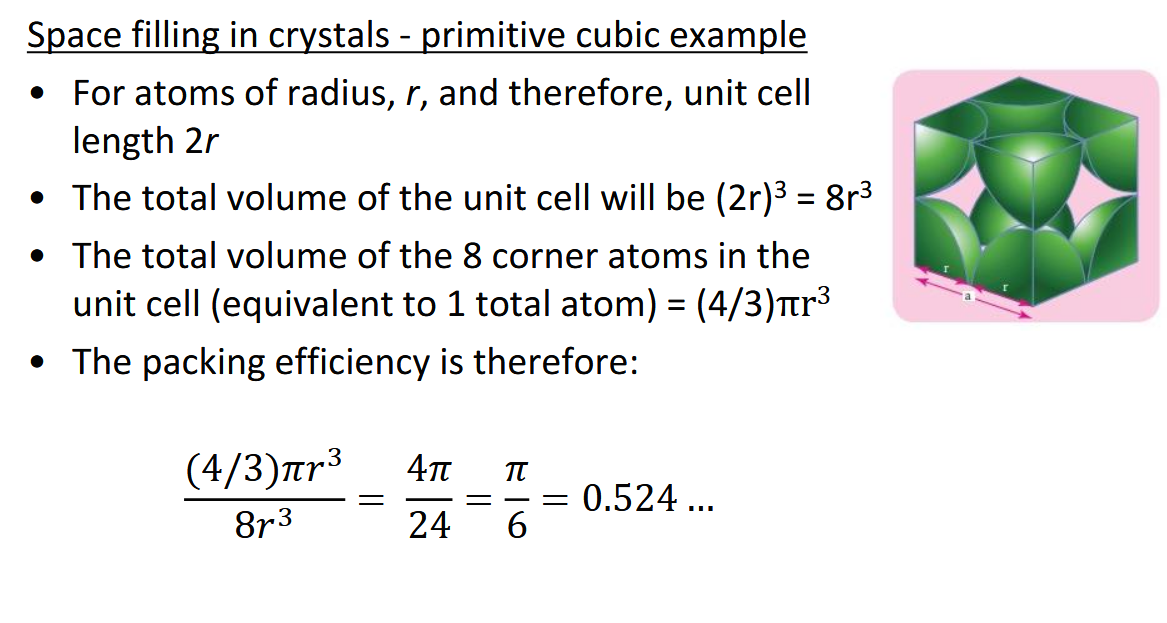

Packing efficiency calculation

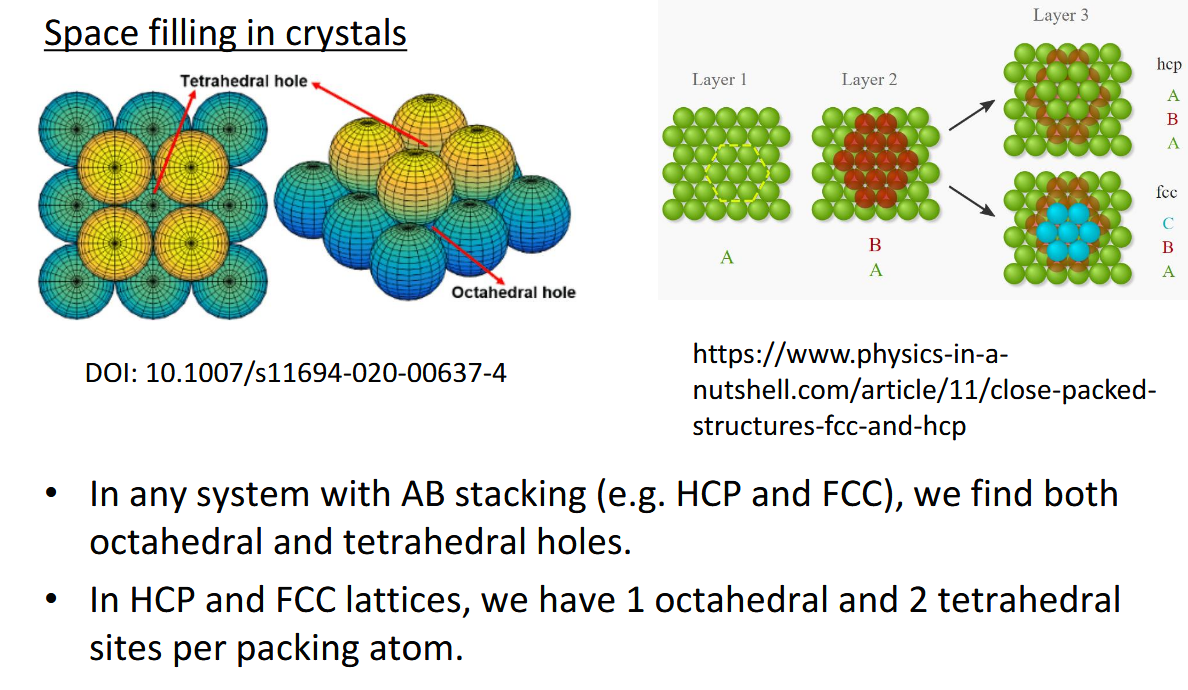

Space filling - which stacking layouts lead to which types of holes

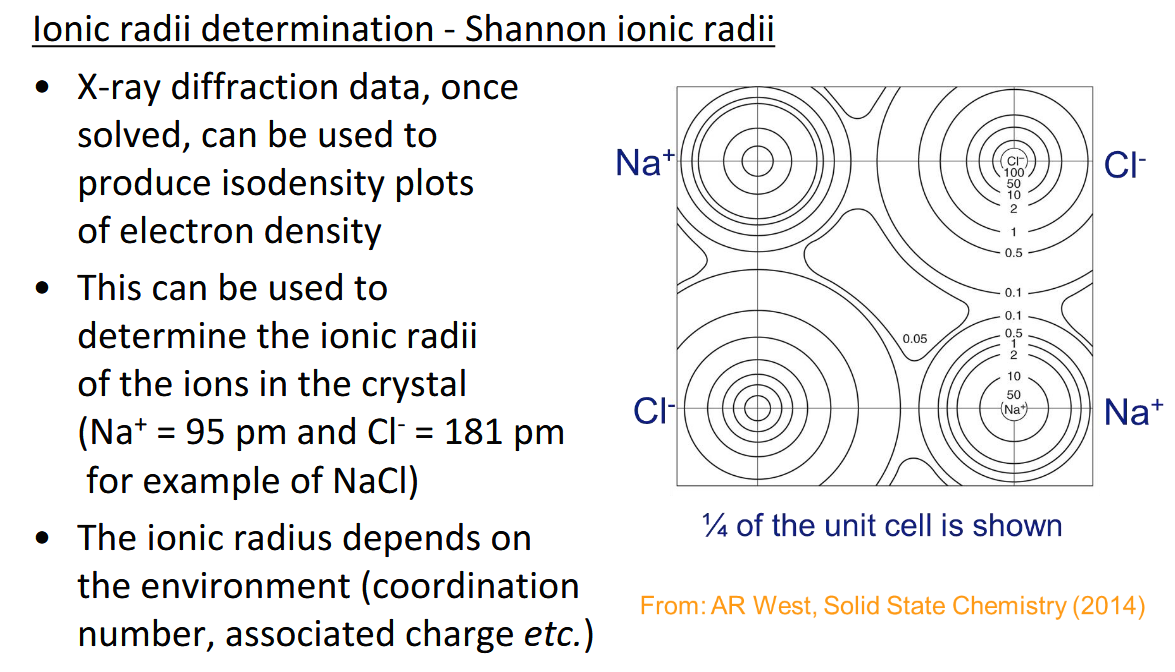

What is Shannon ionic radii and how is it found

Using electron density maps

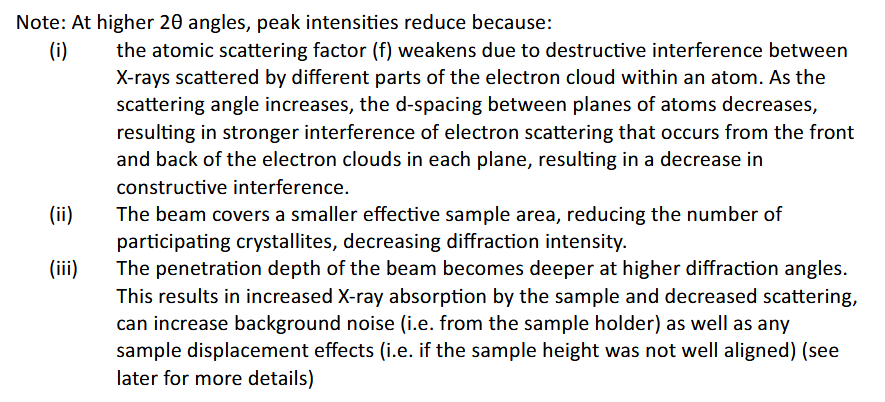

What affects the peak intensities in x ray diffraction and why

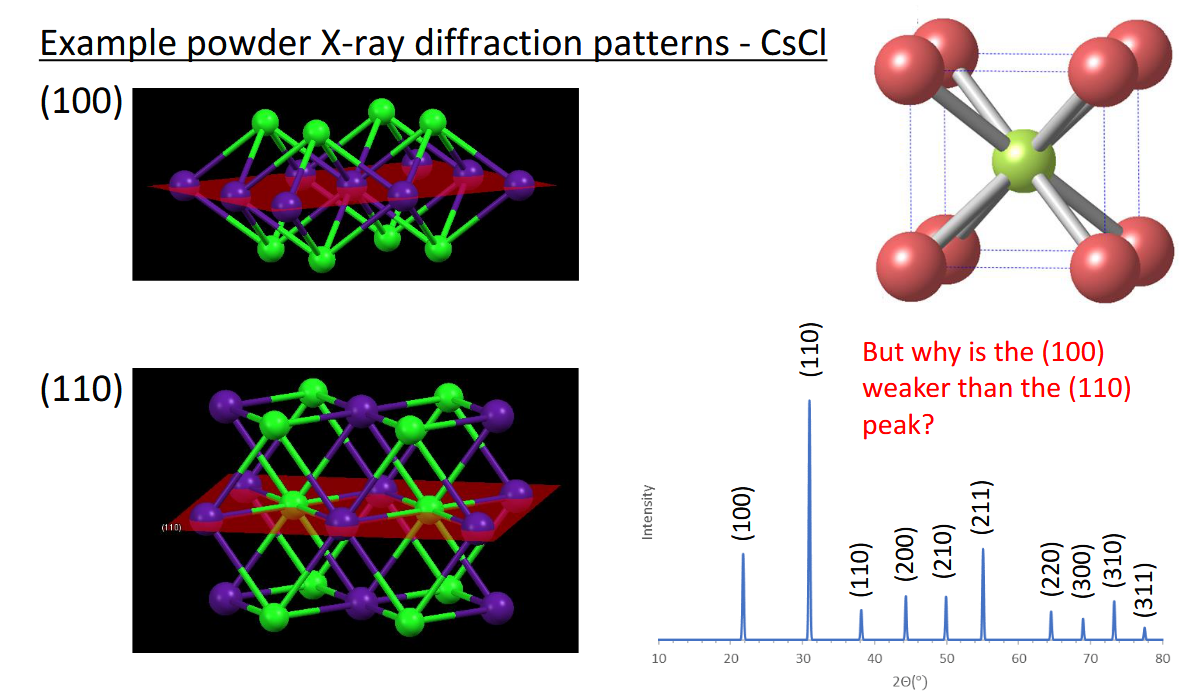

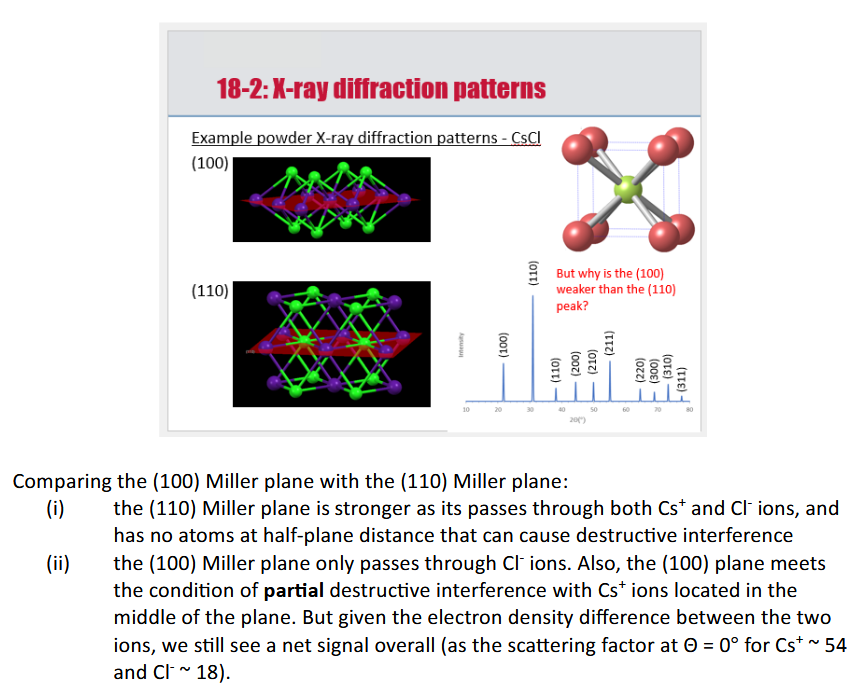

Why do different mirror planes have different intensities

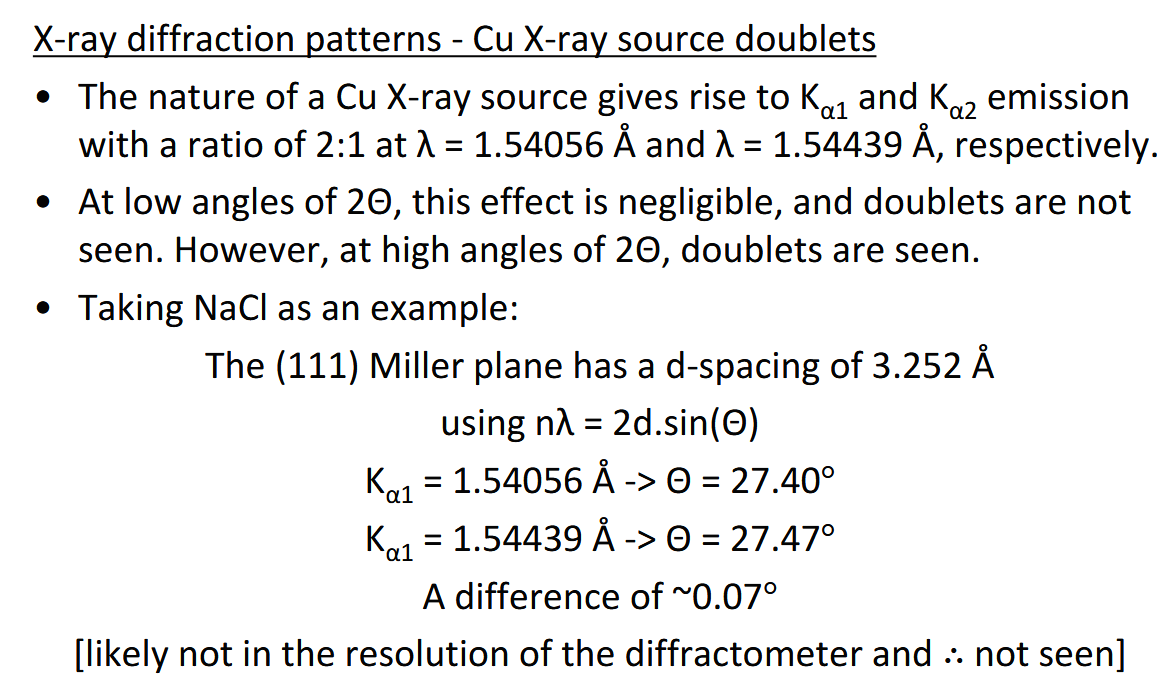

What are Cu X-ray source doublets

Generally not going to be seen

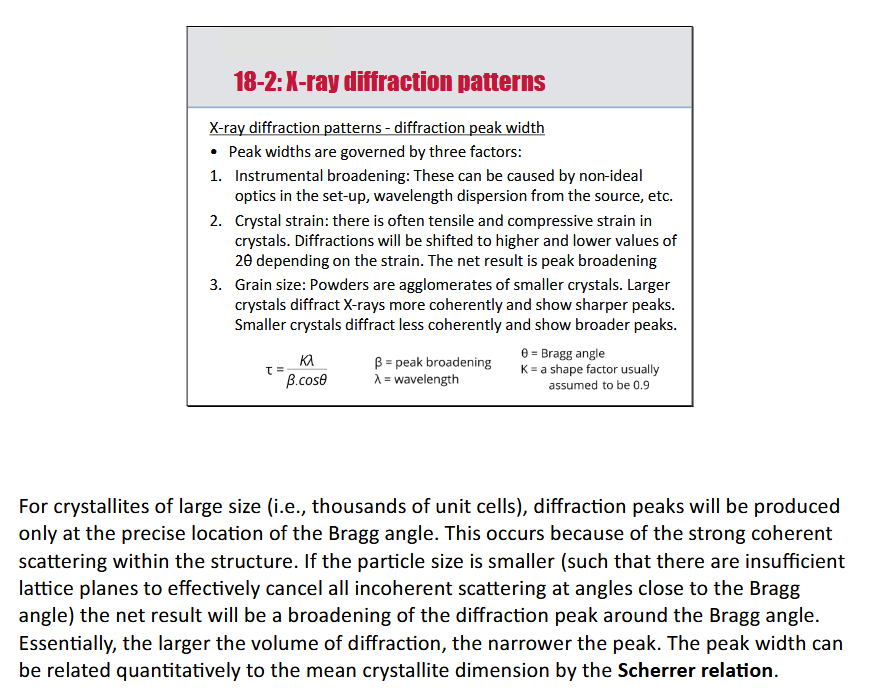

What governs x-ray diffraction peak width
