58 Terms

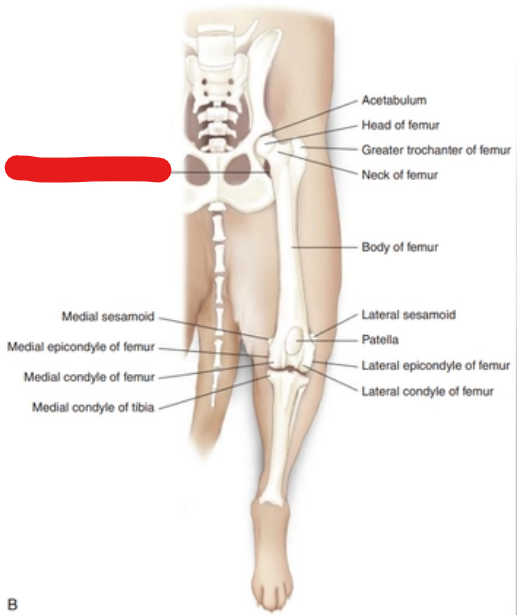

what is it
lesser trochanter of femur

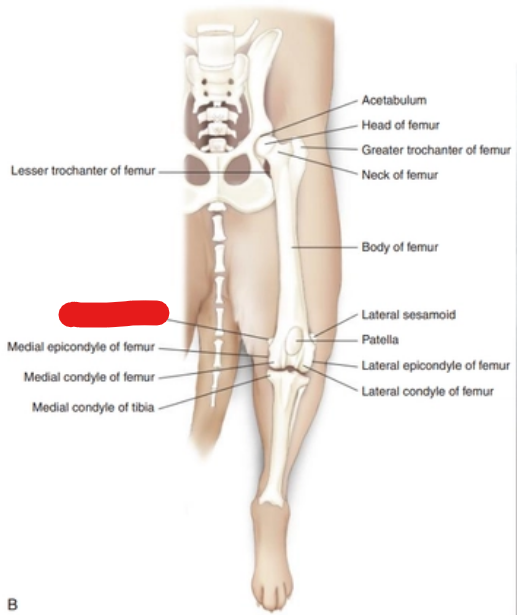

what is it
medial sesamoid

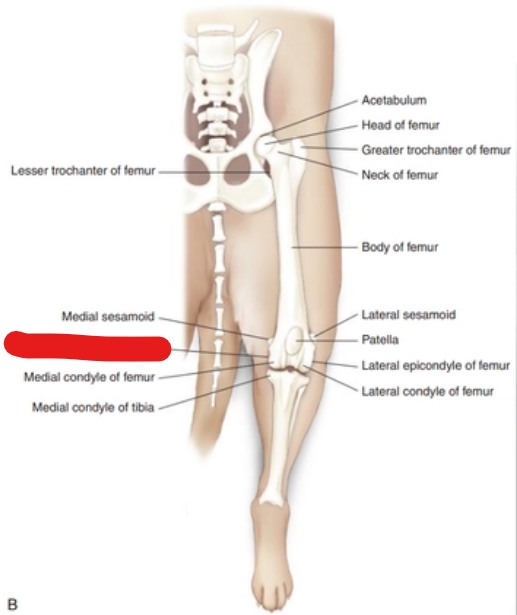

what is it
medial epicondyle of femur

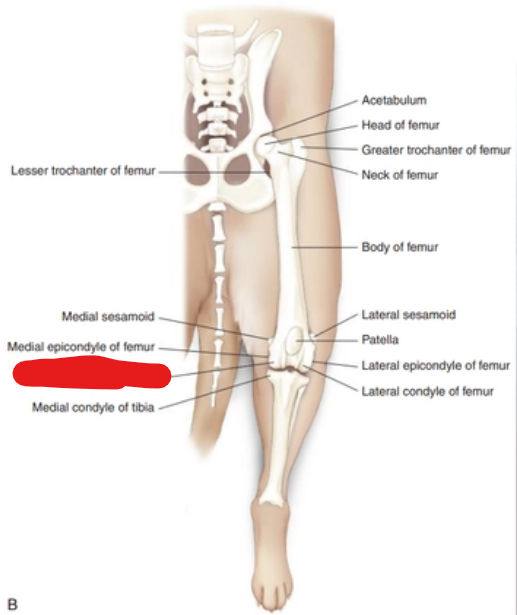

what is it
medial condyle of femur

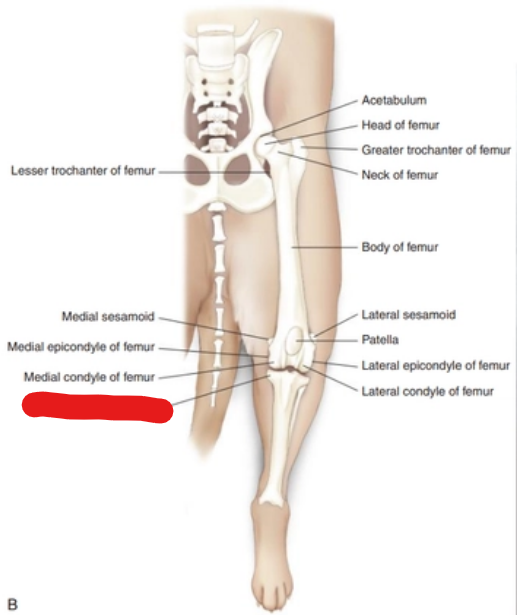

what is it
medial condyle of tibia

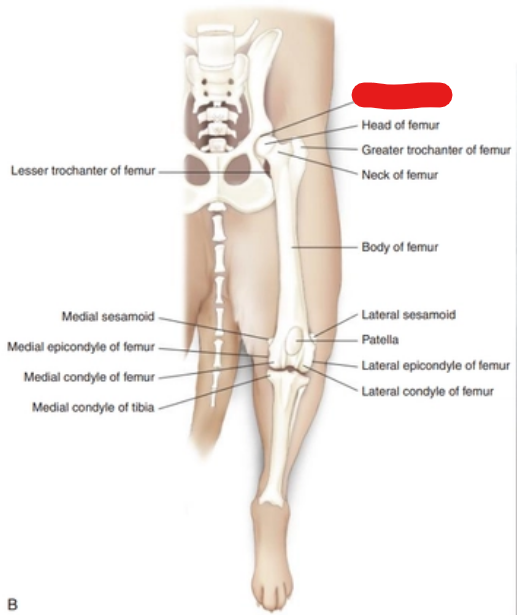

what is it
acetabulum

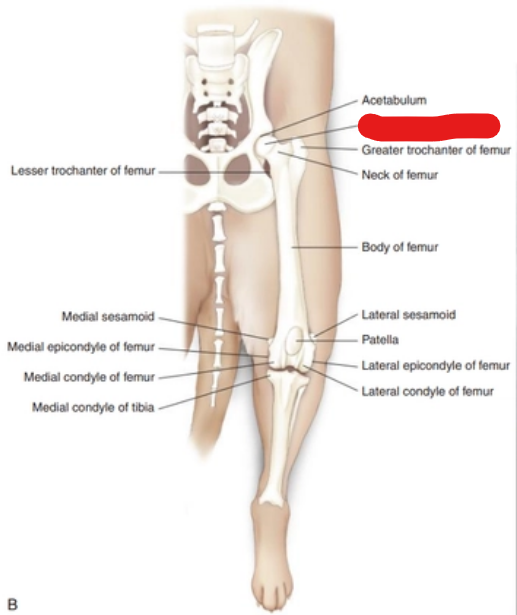

what is it
head of femur

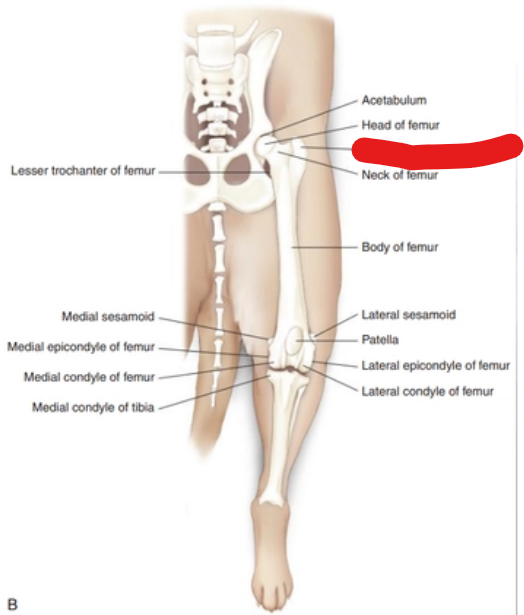

what is it
greater trochanter of femur

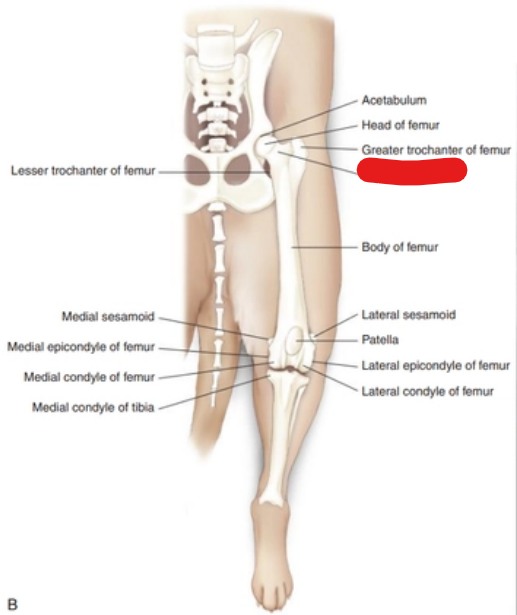

what is it
neck of femur

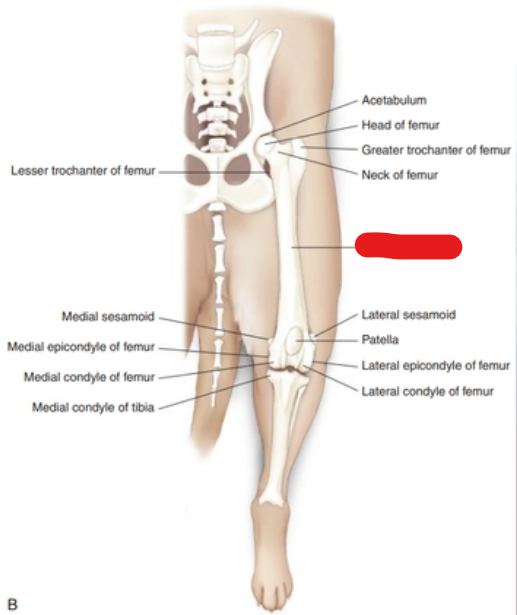

what is it
body of femur

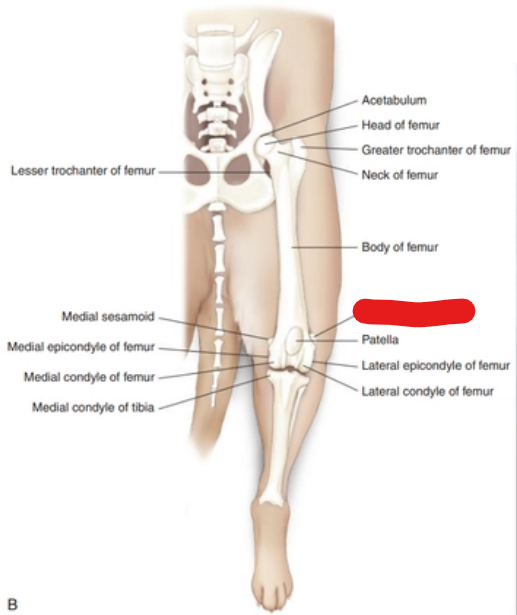

what is it
lateral sesamoid
what is it
patella

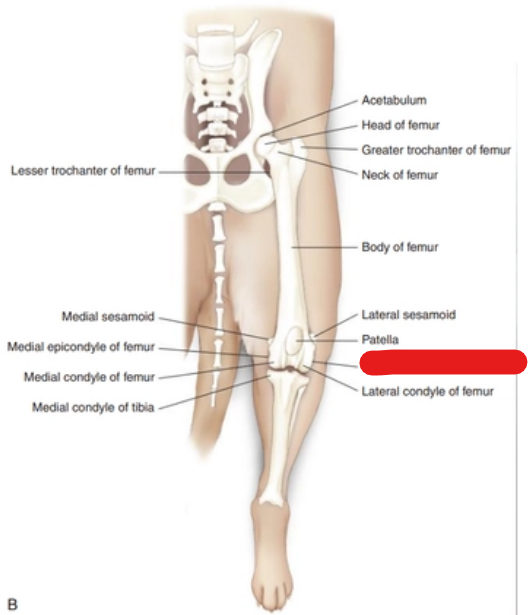

what is it
lateral epicondyle of femur

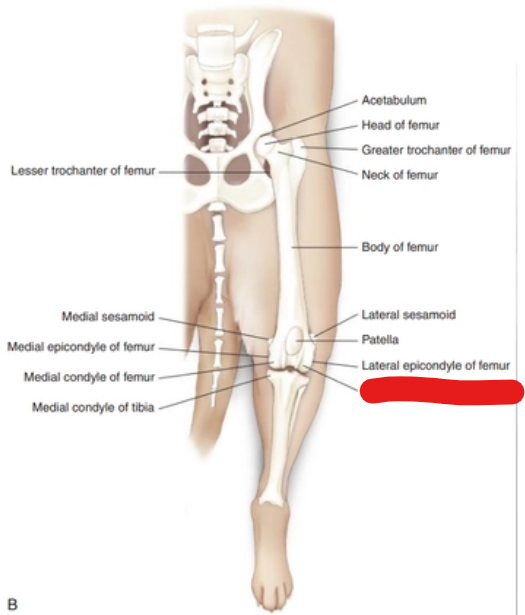

what is it
lateral condyle of femur
where is collimation for Craniocaudal View of the Femur
Centre beam at level of femoral condyle
Collimate out to include distal femur and proximal tibia/fibula
where to measure for Craniocaudal View of the Femur
Midshaft of the affected femur.
where is the central ray for Craniocaudal View of the Femur
Midshaft of the affected femur.
where is the border for Craniocaudal View of the Femur
The coxofemoral joint to the stifle.

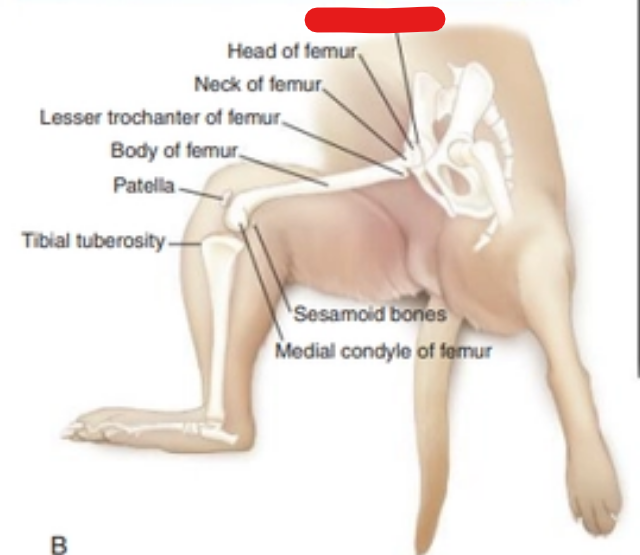

what is it
acetabulum

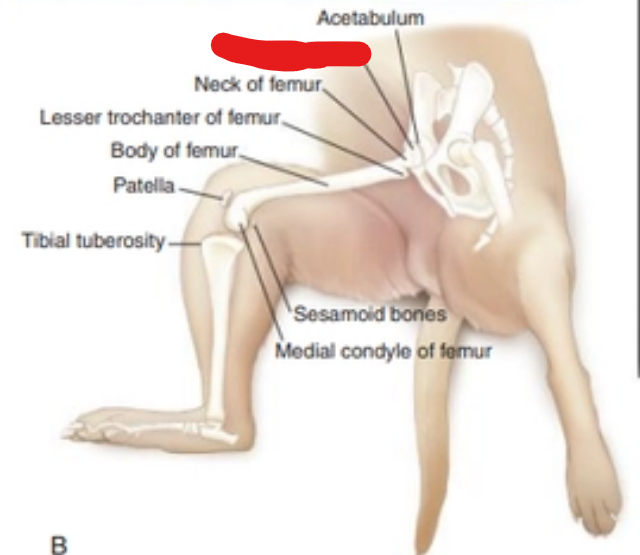

what is it
head of femur

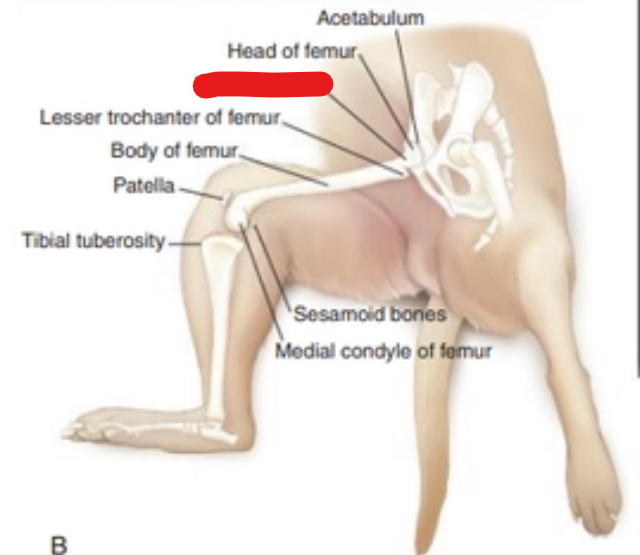

what is it
neck of femur

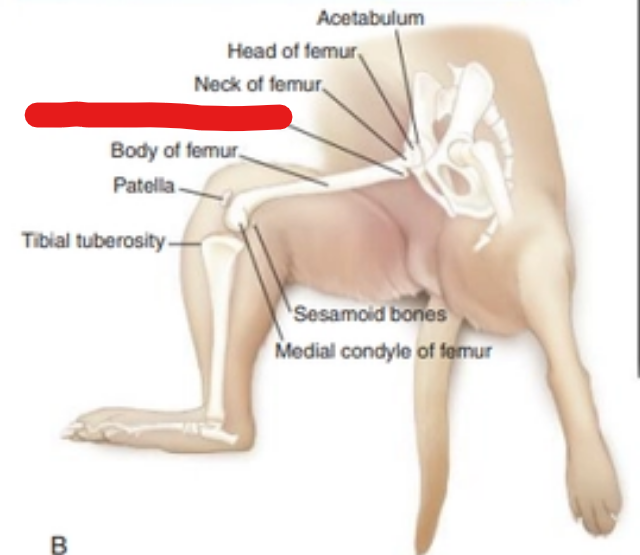

what is it
lesser trochanter of femur

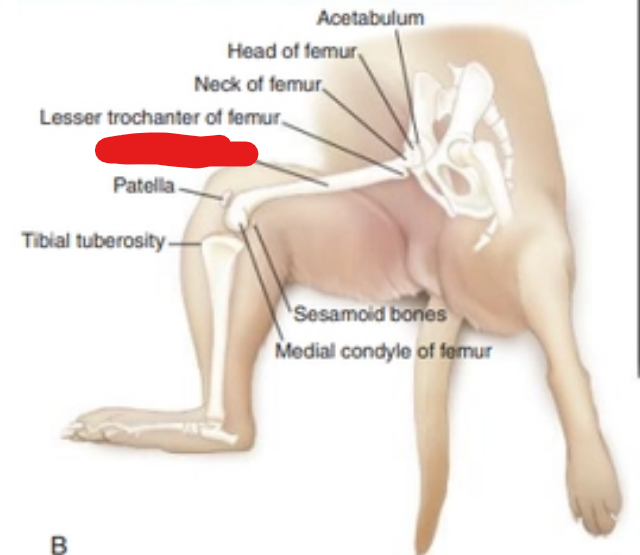

what is it
body of femur

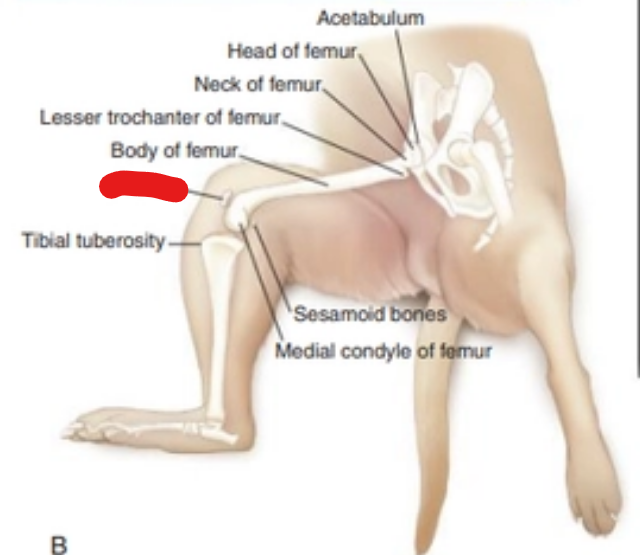

what is it
patella

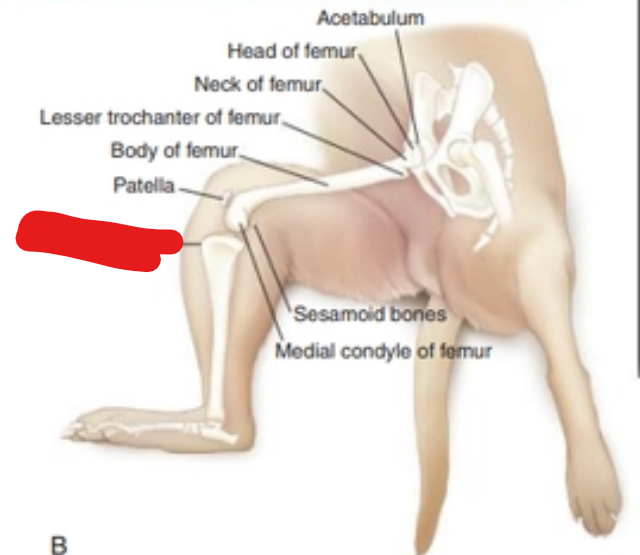

what is it
tibial tuberosity
what is it
sesamoid bones

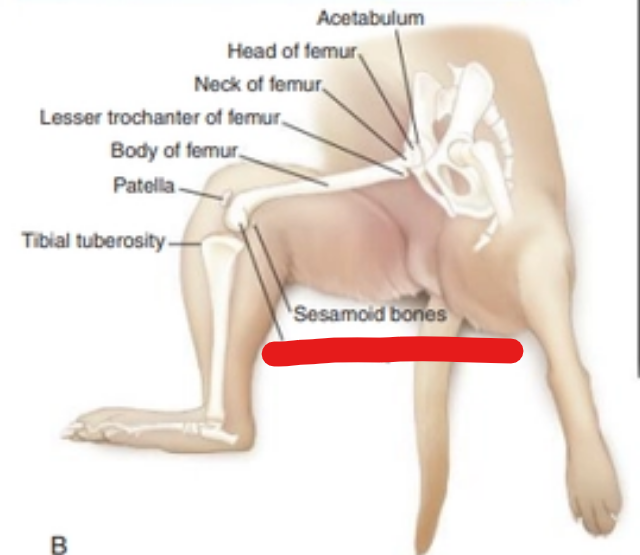

what is it
medial condyle
where to measure for Lateral (Mediolateral) View of the Femur
Midshaft of the femur (to compensate for the difference in tissue thickness at either end of the femur).
where is the central ray for Lateral (Mediolateral) View of the Femur
Midshaft of the femur.
where is the border for Lateral (Mediolateral) View of the Femur
The coxofemoral joint to the stifle.
what should you not use to align hind limb
calcaneus
where to measure Caudocranial View (Horizontal Beam) of the Femur
Midshaft of the femur.
where is the central ray for Caudocranial View (Horizontal Beam) of the Femur
Midshaft of the femur.
where is the border for Caudocranial View (Horizontal Beam) of the Femur
The coxofemoral joint to the stifle.
what are the routine shots of the tibia (2)
Caudocranial View of the Tibia/Fibula
Lateral (Mediolateral) View of the Tibia/Fibula

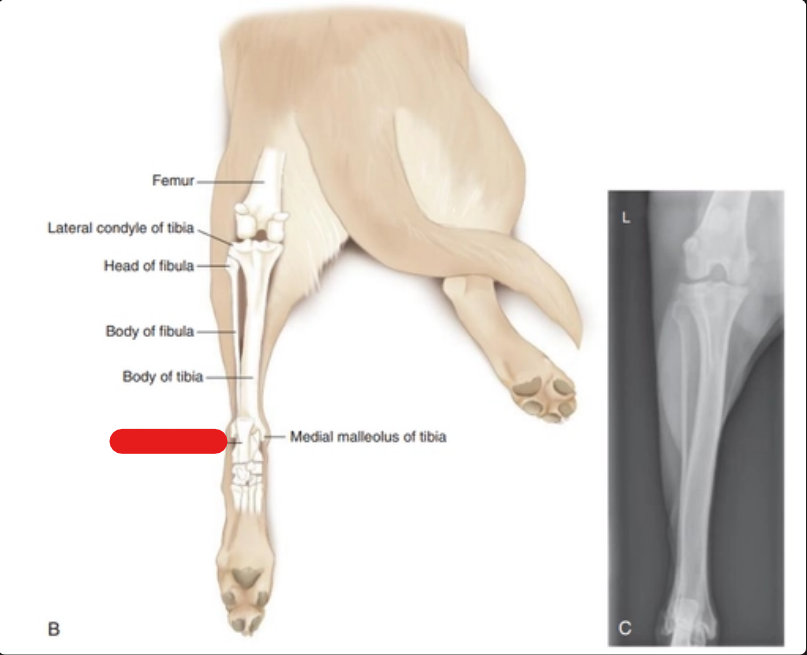

what is it
tuber calcanel
what is it
medial malleolus of tibia
where to measure Caudocranial View of the Tibia/Fibula
Midshaft of the tibia and fibula (to compensate for the difference in tissue thickness at either end).
where is central ray Caudocranial View of the Tibia/Fibula
Midshaft of the tibia and fibula.
where is border for Caudocranial View of the Tibia/Fibula
The tarsus and the stifle.

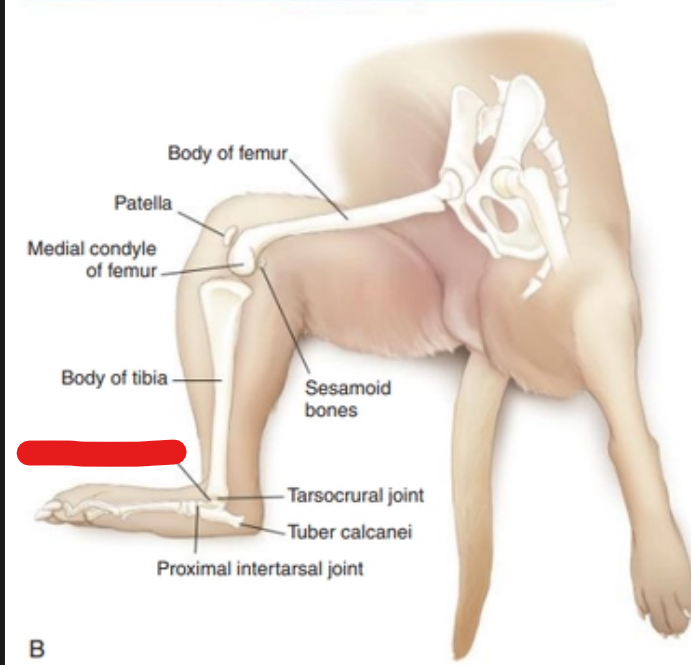

what is it
trochlea of talus

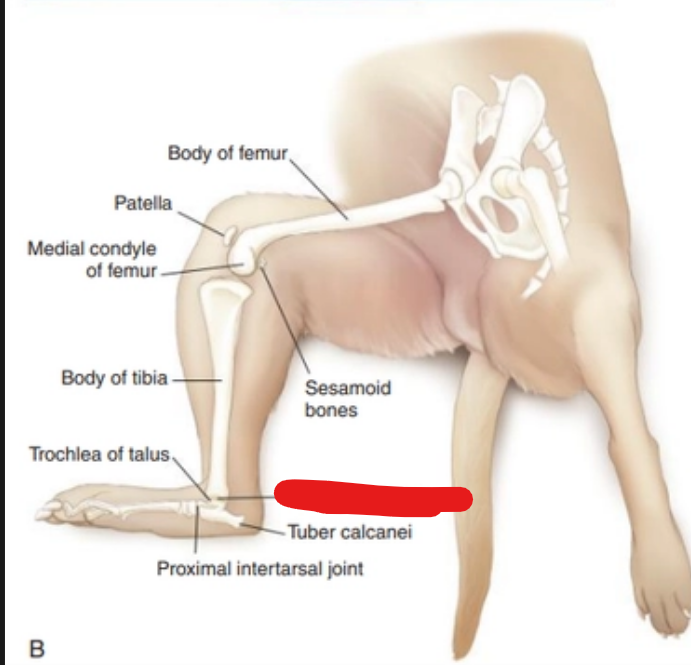

what is it
tarsocruarl joint

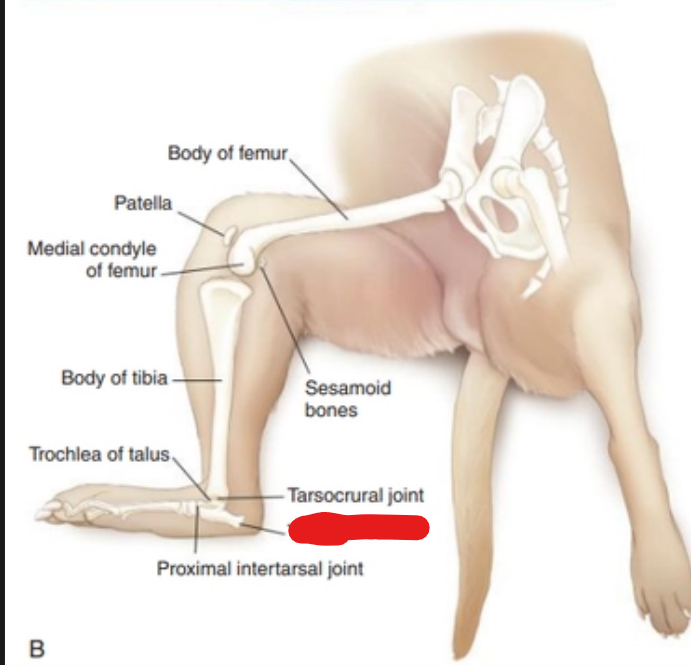

what is it
tuber calcanei
what is it
proximal intertarsal joint
where to measure for Lateral (Mediolateral) View of the Tibia/Fibula
Midshaft of the tibia and fibula (to compensate for the difference in tissue thickness at either end).
where is central ray for Lateral (Mediolateral) View of the Tibia/Fibula
Midshaft of the fibula and tibia.
where are the borders for Lateral (Mediolateral) View of the Tibia/Fibula
The tarsus and the stifle.
what are the routine x-rays for stifle
Lateral (Mediolateral) View of the Stifle
Caudocranial View of the Stifle
where to measure for Lateral (Mediolateral) View of the Stifle
At the distal end of the femur.
where is the central ray for Lateral (Mediolateral) View of the Stifle
Palpate and center on the indentation of the stifle joint (intercondylar fossa of the femur).
where are the borders for Lateral (Mediolateral) View of the Stifle
Proximal third of the tibia and distal third of the femur.
where to measure for Caudocranial View of the Stifle
At the distal end of the femur.
where is central ray for Caudocranial View of the Stifle
On the stifle joint. Angle the beam 5 to 10 degrees cranially.
where is the borders for Caudocranial View of the Stifle
Distal third of the femur and proximal thirds of the tibia/fibula
what are the anillary views of the stifle
Craniocaudal Stifle Joint
Skyline View of the Stifle
where to measure for Craniocaudal Stifle Joint
At the distal end of the femur.
where is the central ray for Craniocaudal Stifle Joint
On the stifle joint.
where are the borders for Craniocaudal Stifle Joint
Distal third of the femur and proximal third of the tibia/fibula.
