L13 Equilibrium electrochemistry - The Nernst equation

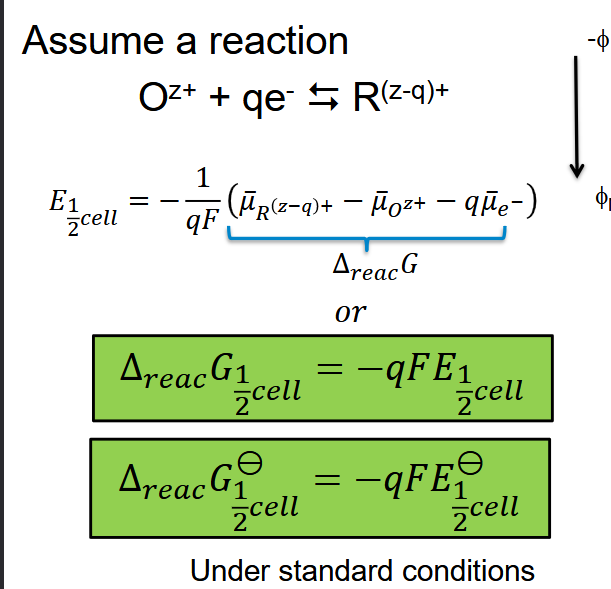

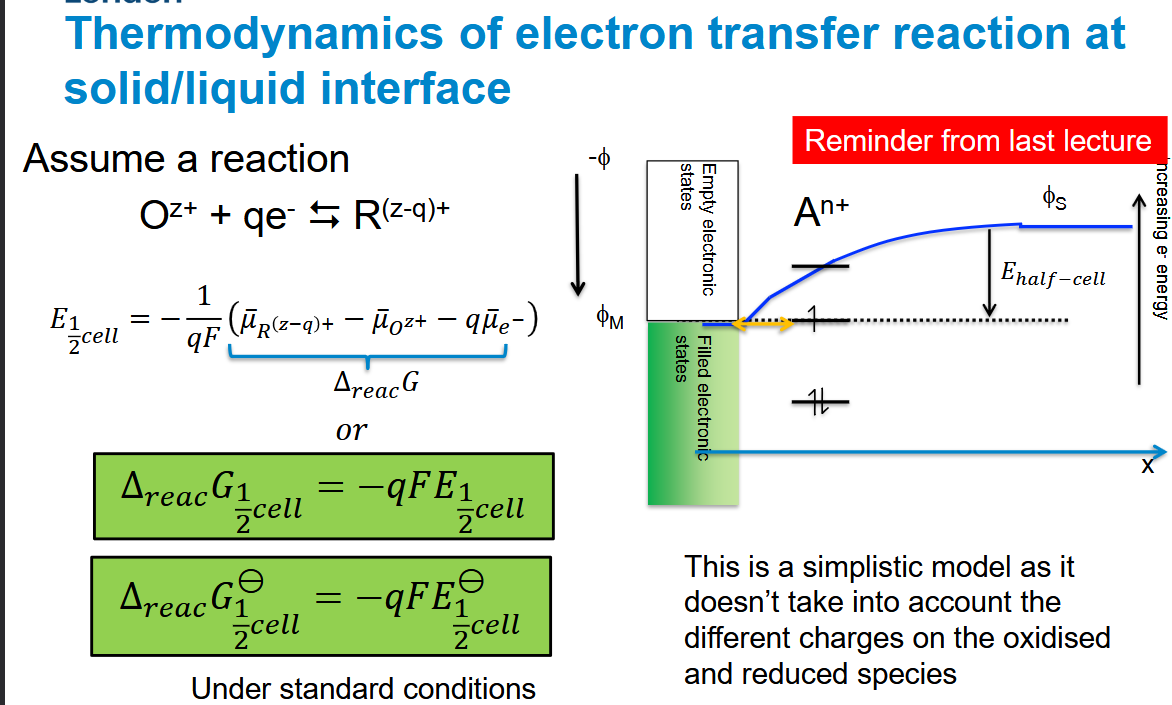

Why is this model simplistic

It doesn’t take into account he different charges on the reduced/oxidised species

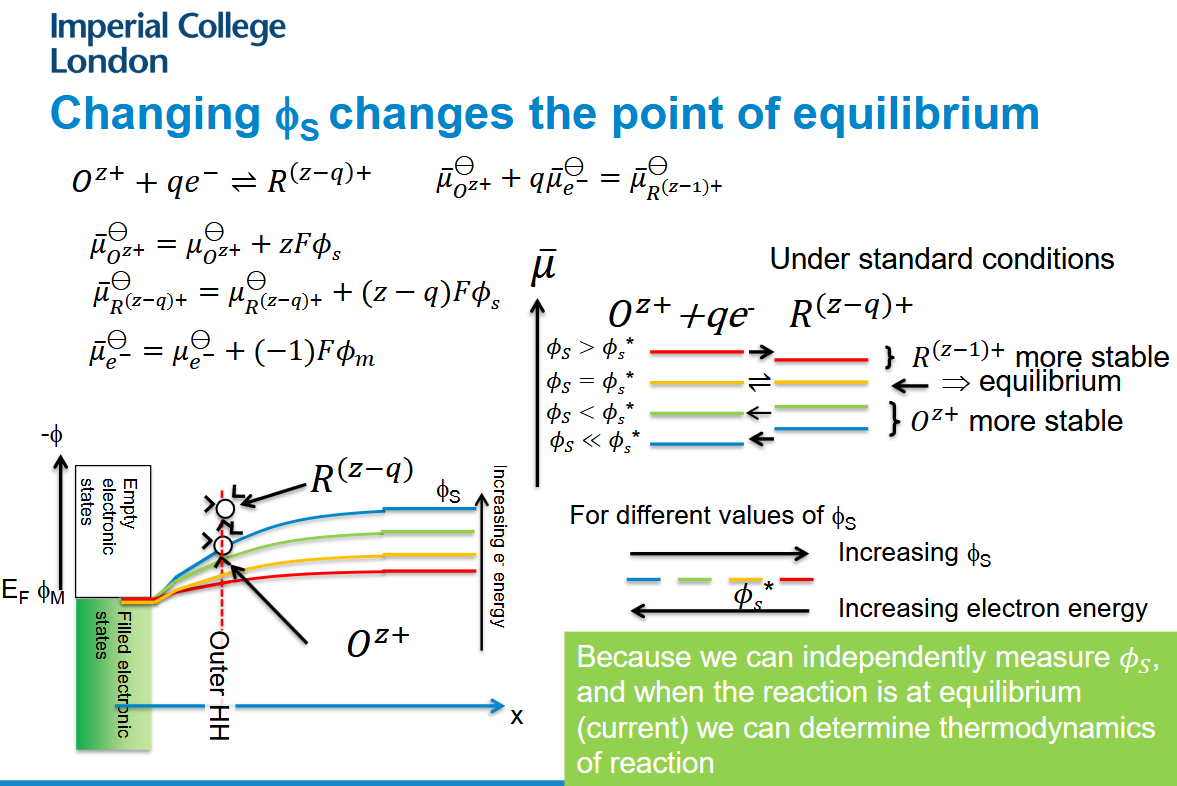

Changing the point of equilibrium by varying electric potential

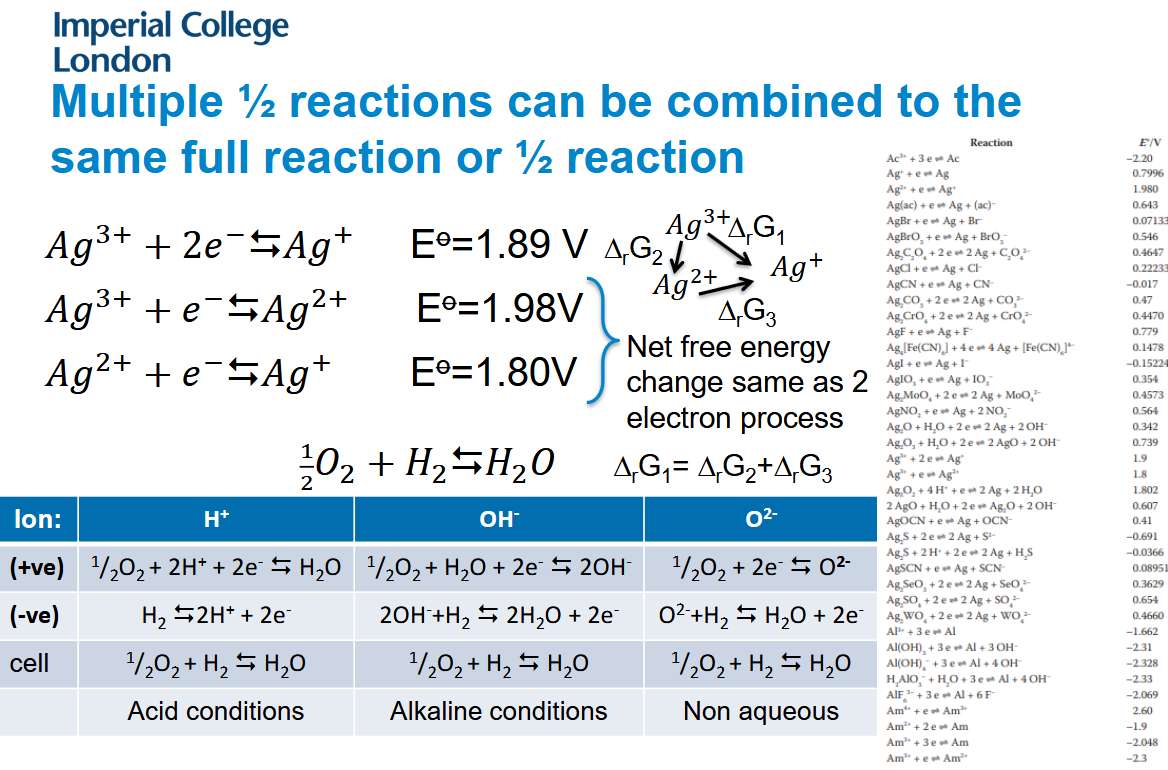

Combining half-equations to form a chemical equation

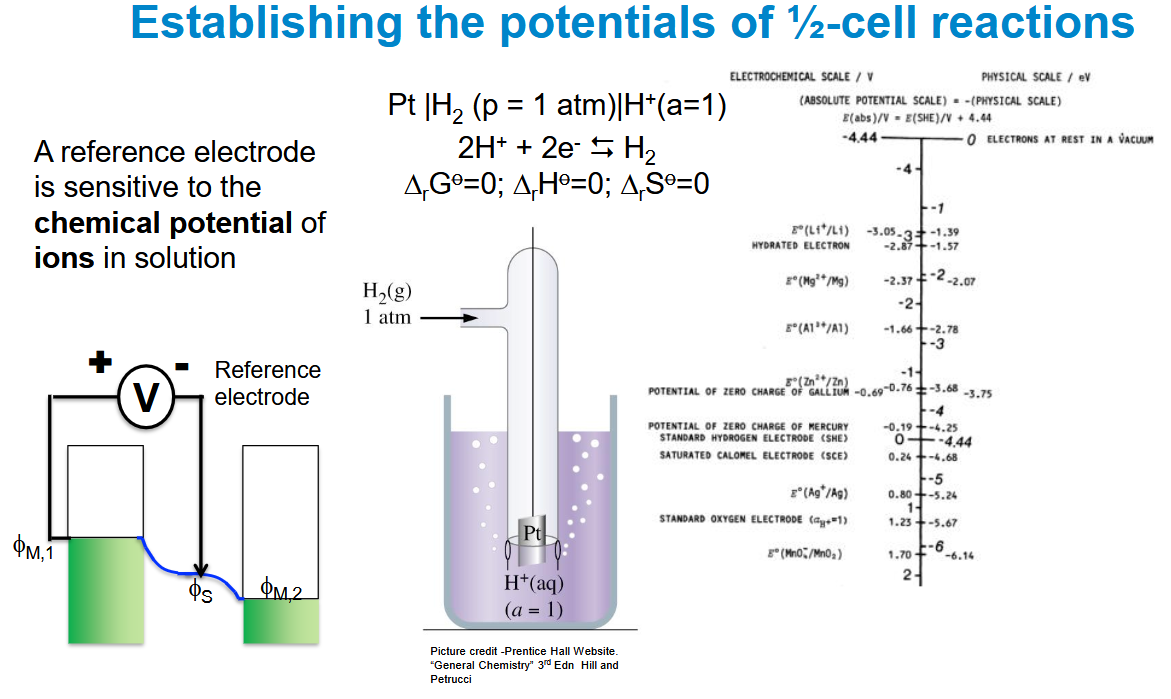

Half cell potentials and the standard hydrogen electrode

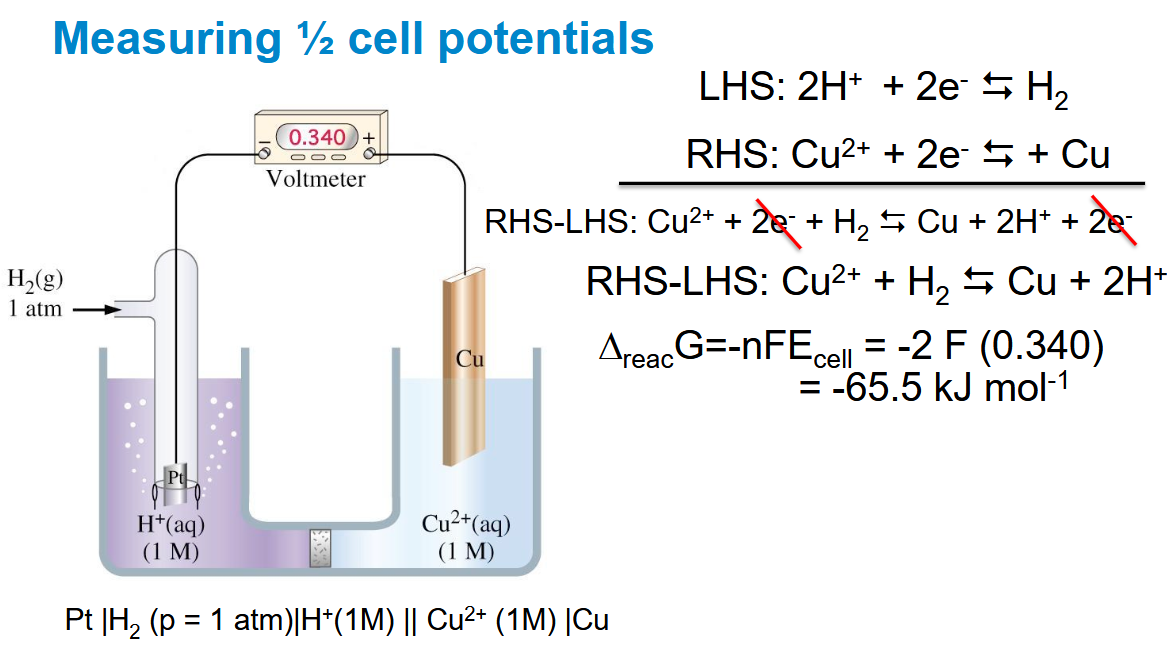

Measuring half cell potentials and writing equations and descriptions of the cell

Highest potential goes on RHS

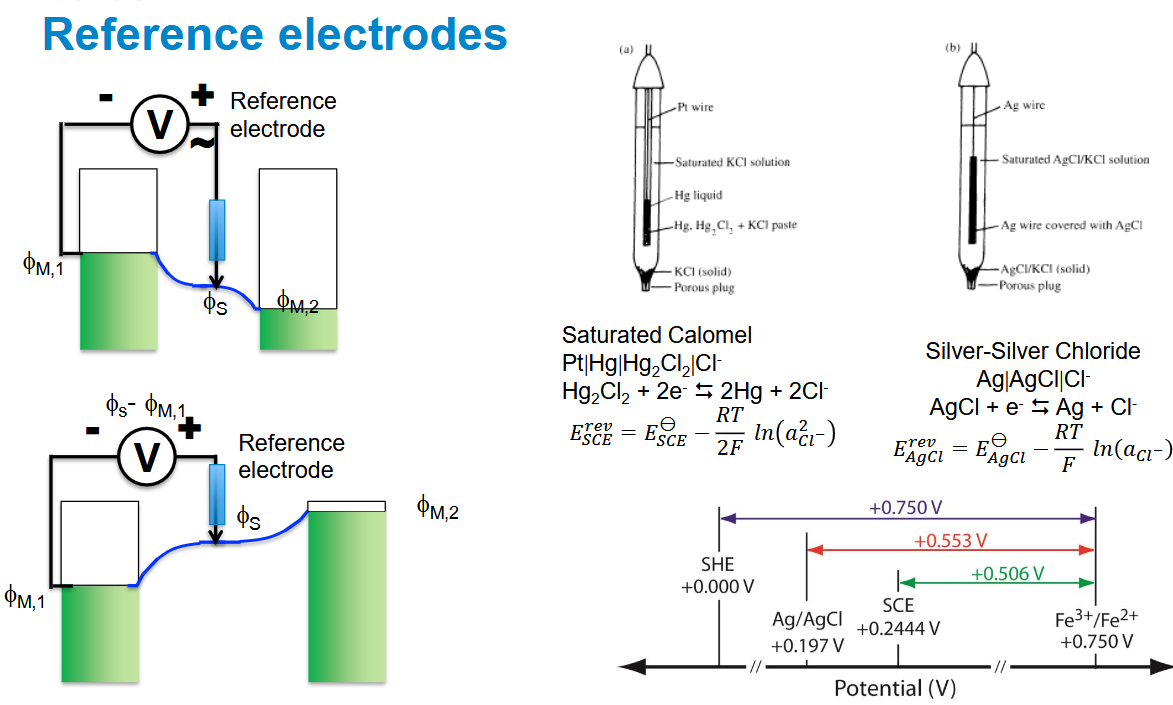

Other reference electrodes

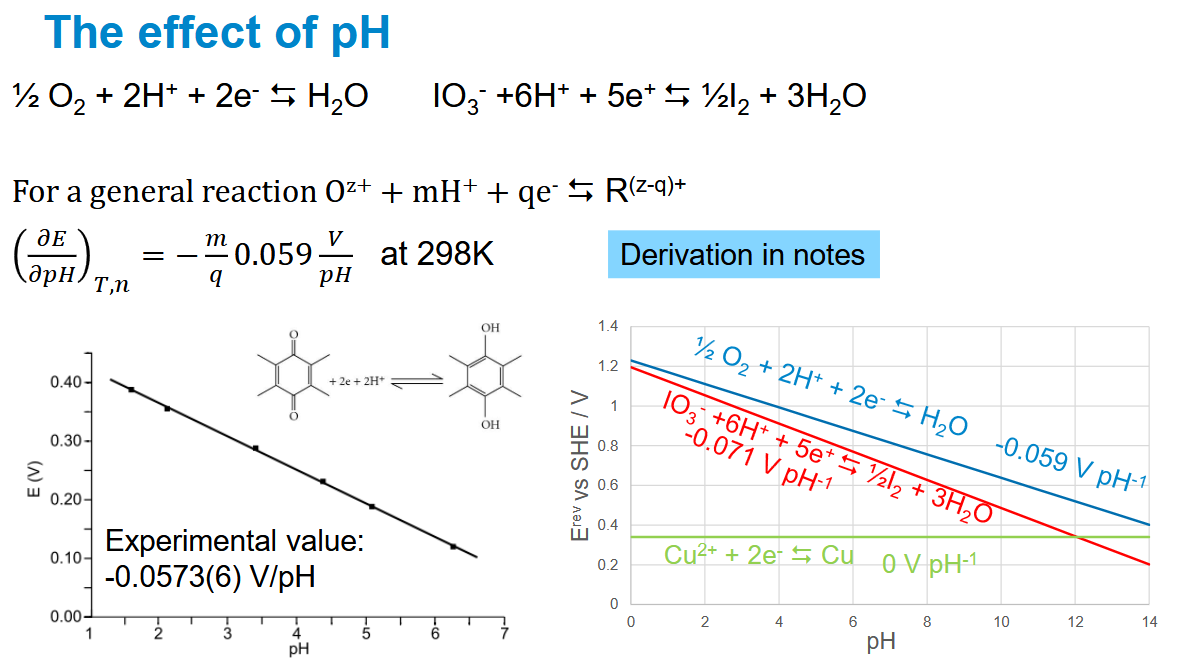

Effect of pH on potential

Using protons in the equation means that pH is going to be involved in some way

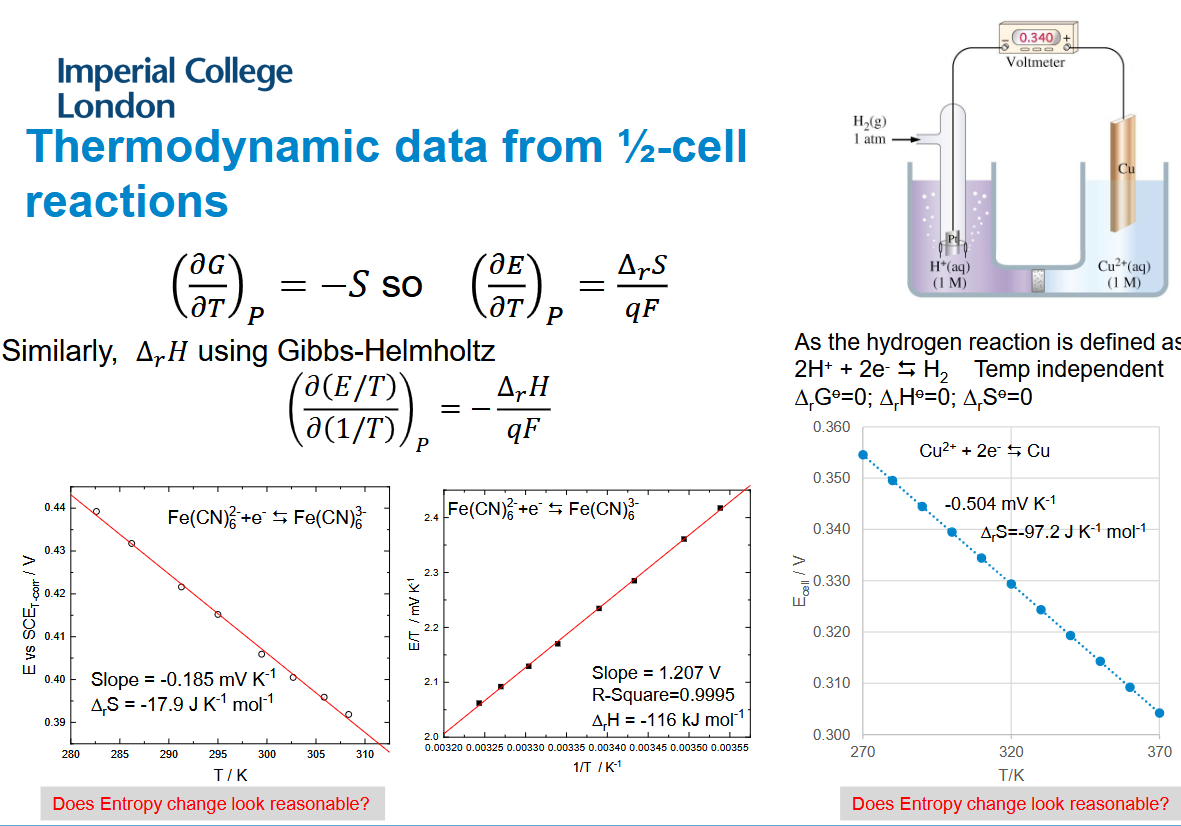

Thermodynamics of half-cell reactions

In this case the entropy change involving the copper is much larger as we are producing a solid.

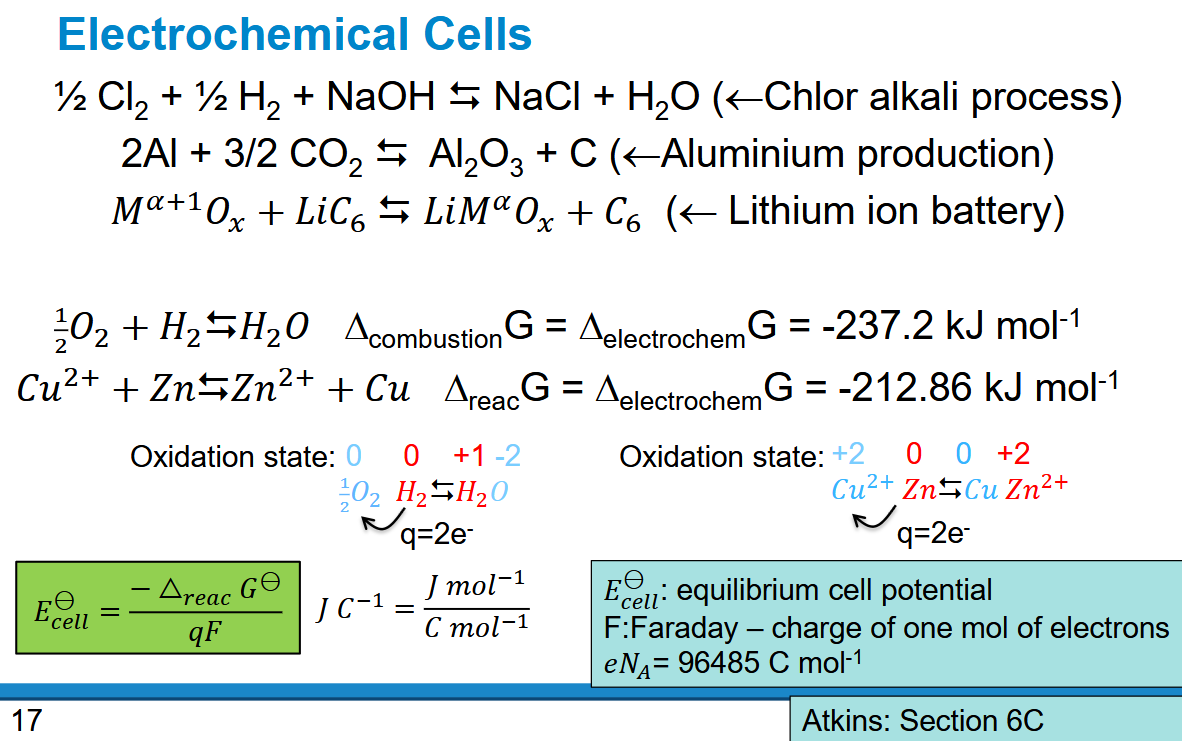

Electrochemical cells

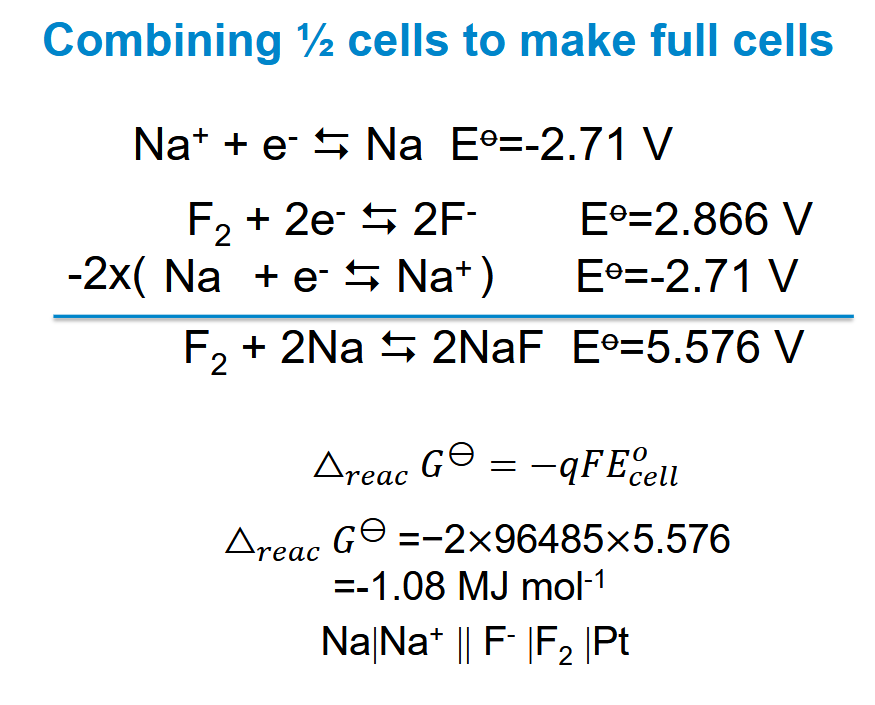

Combining half cells to make full cells

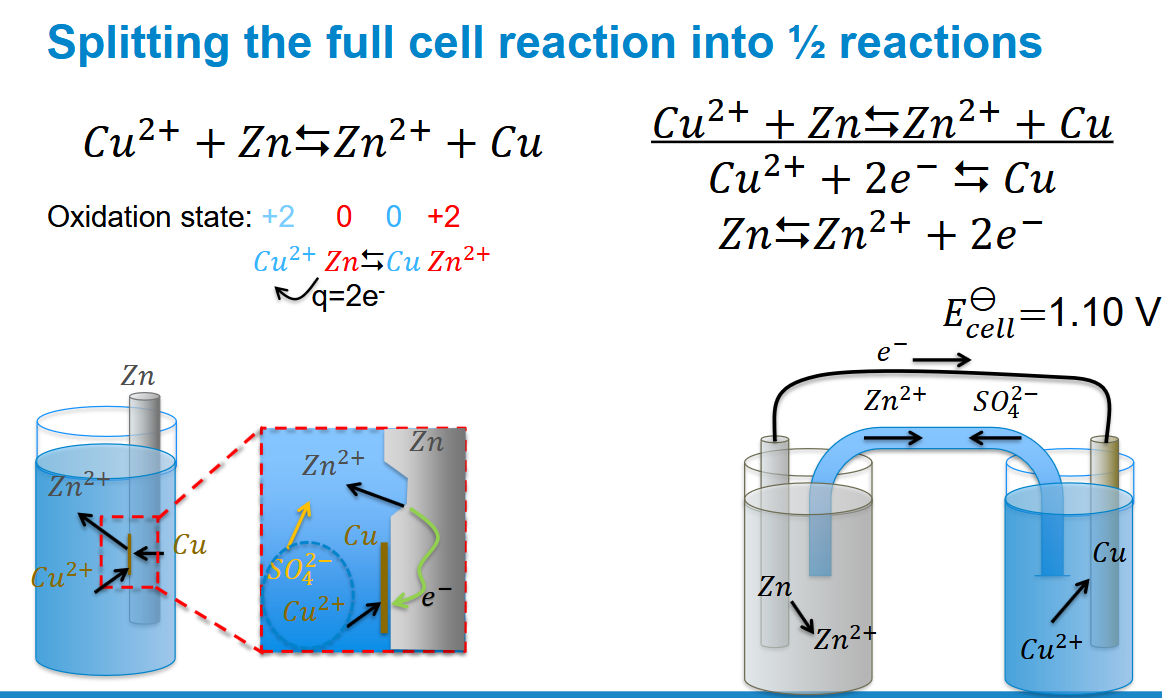

Splitting the full cell reaction into half reactions

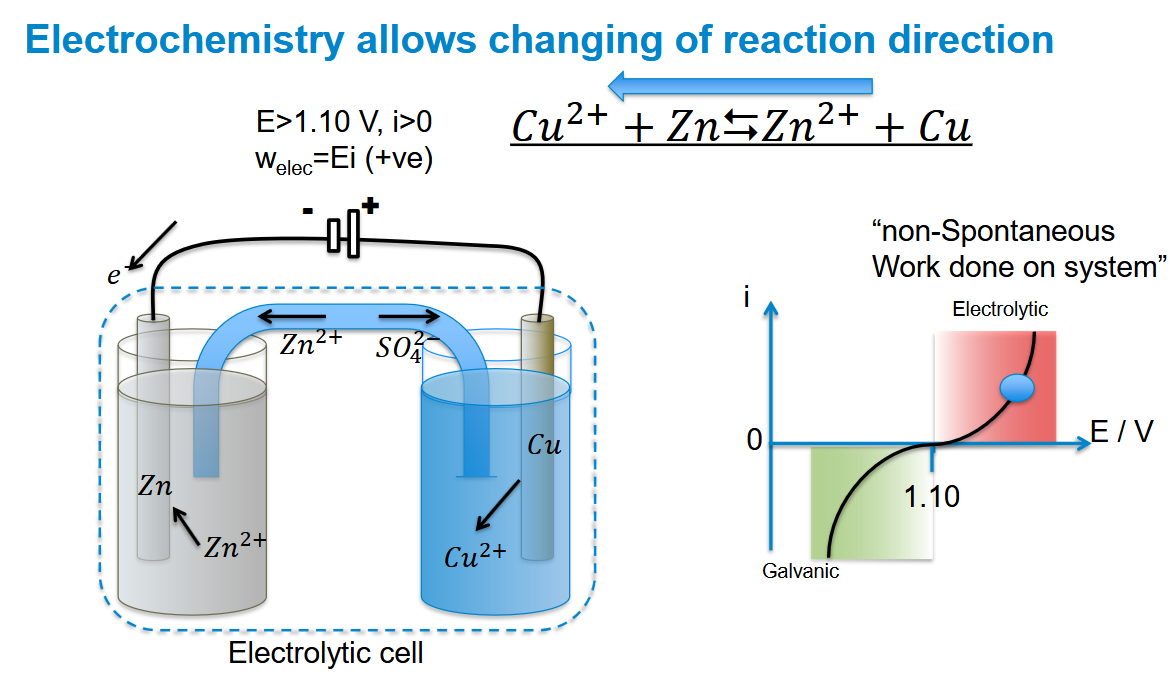

how do you reverse the direction of a reaction using electrochemistry

Adding a power supply allows reversal of the current compared to the direction it would go with a simple resistor

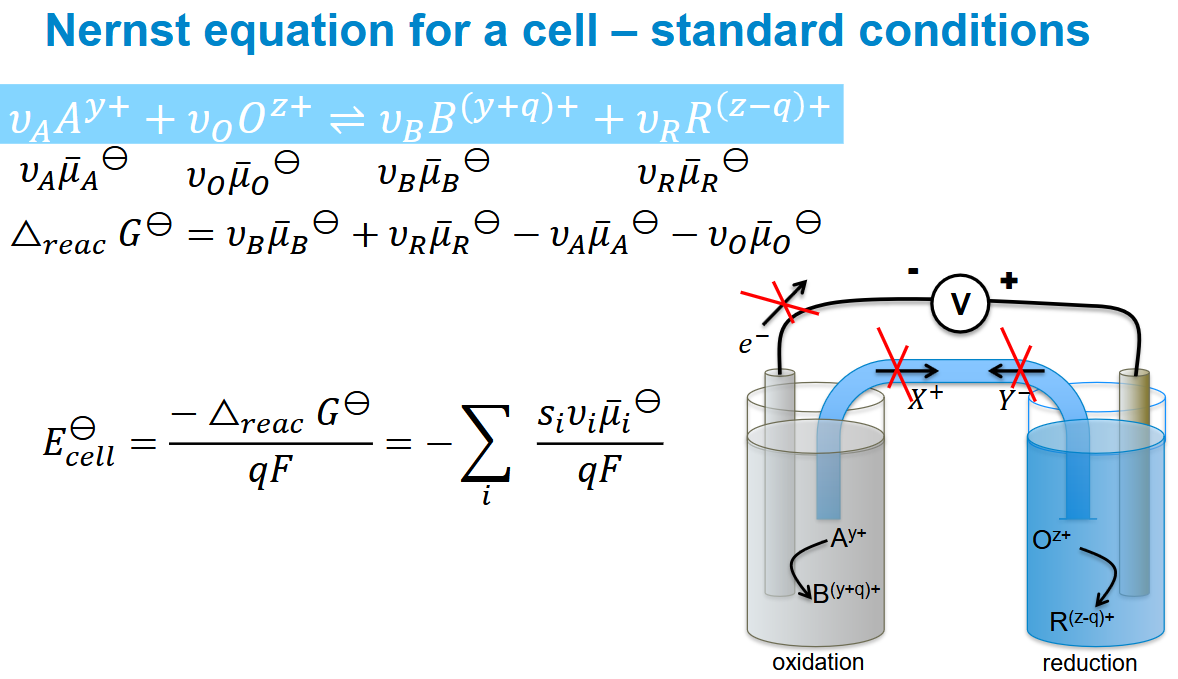

Nernst equation for a cell at standard conditions

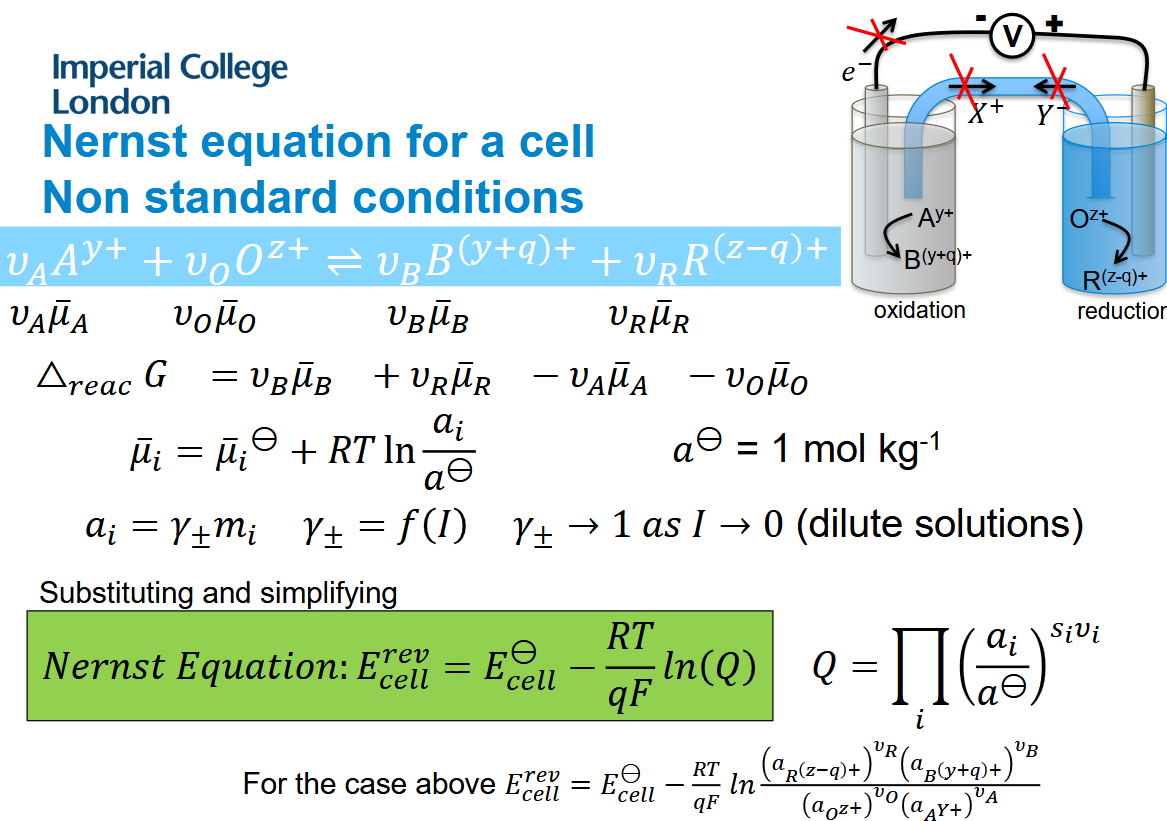

Nernst equation for a full cell at non-standard conditions

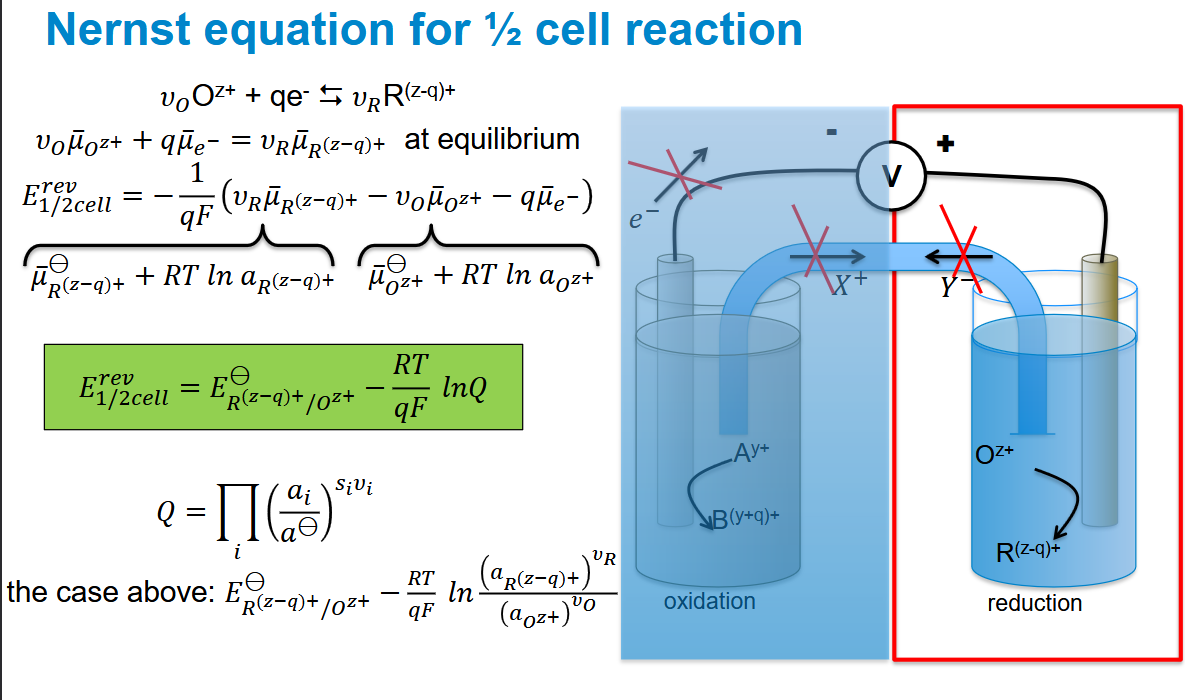

Nernst equation for a half cell reaction

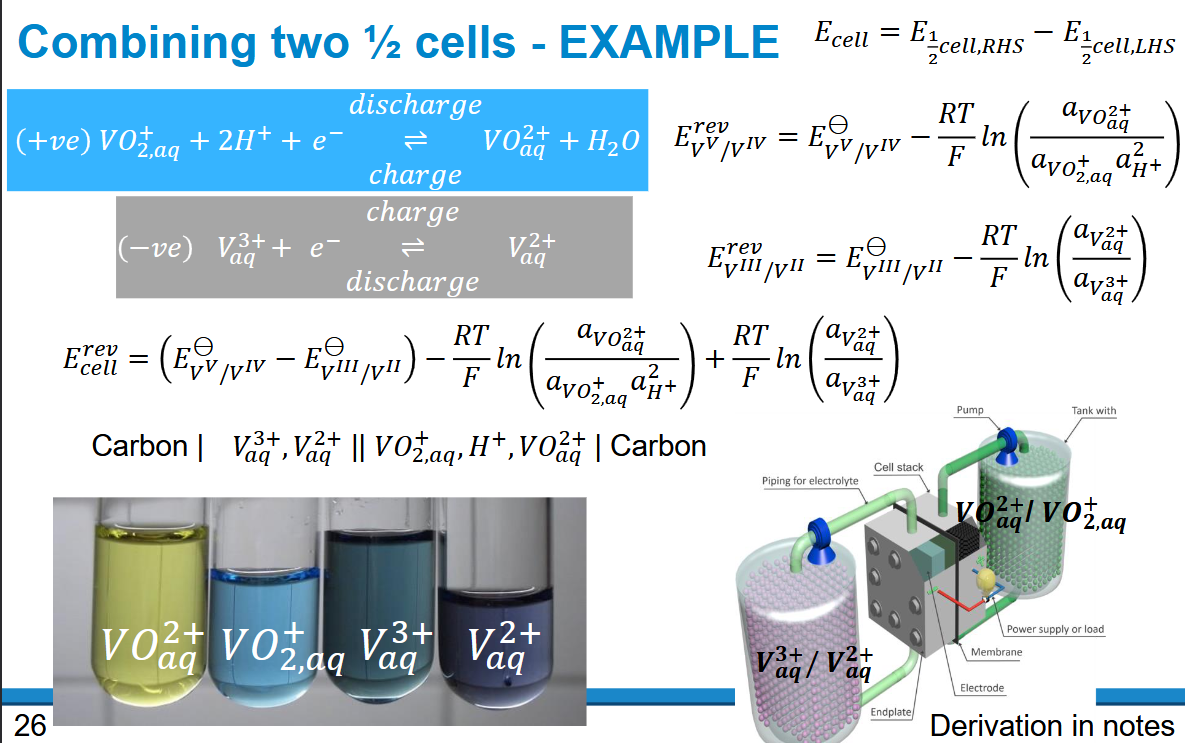

Nernst equation combining 2 half cells example

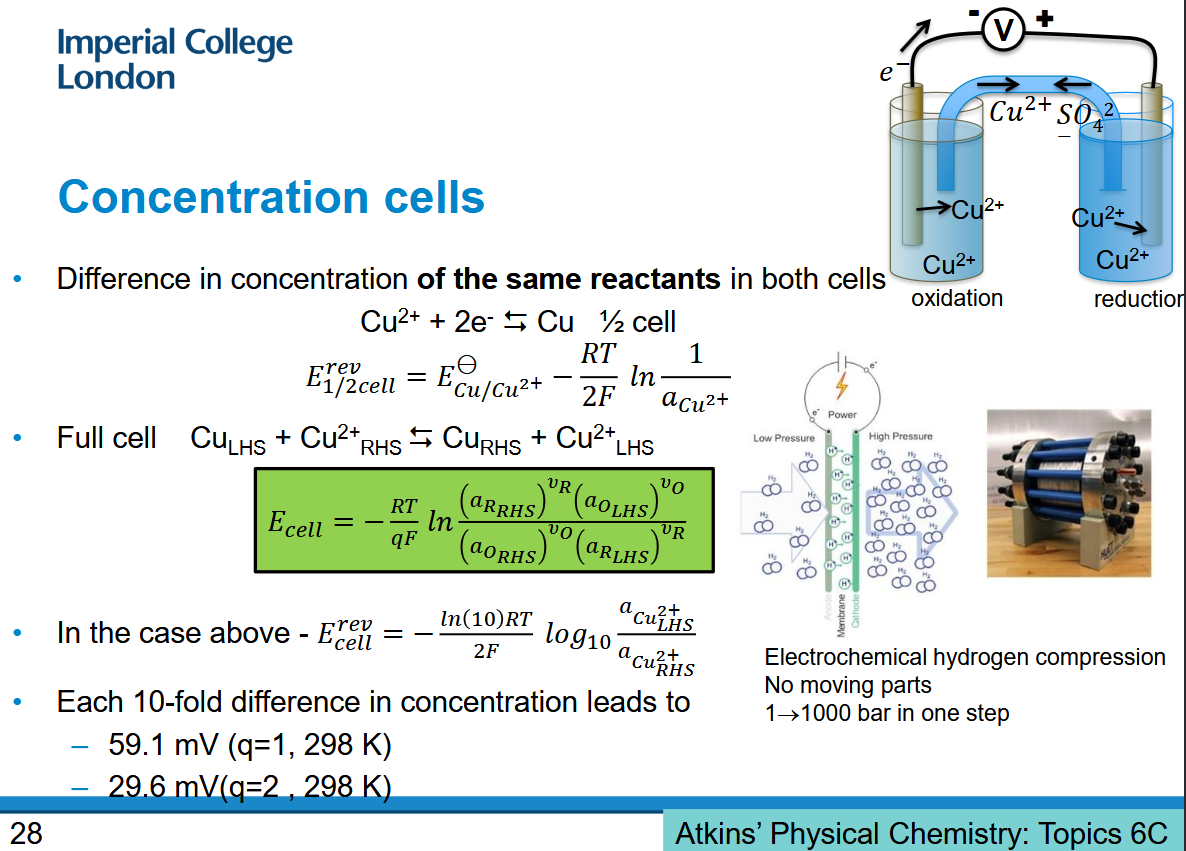

Concentration cells

Same reactants, different concentrations
