Blood Typing + Heart Anatomy

What is the person's blood type?

B+

What blood type is the universal donor?

O-

Identify the antigens on red blood cells for blood type: AB-

A B

What blood type is the universal recipient?

AB+

Identify the antibodies in the plasma of blood type: A+

B

Identify the antigens present on the red blood cells for blood type: O+

Rh

What is the person's blood type?

O-

Identify the antigens present on red blood cells for blood type: B+

B Rh

Identify the antibodies in the plasma of blood type: AB-

none

What is the person's blood type?

A+

Identify the antibodies in the plasma of blood type: O-

A B

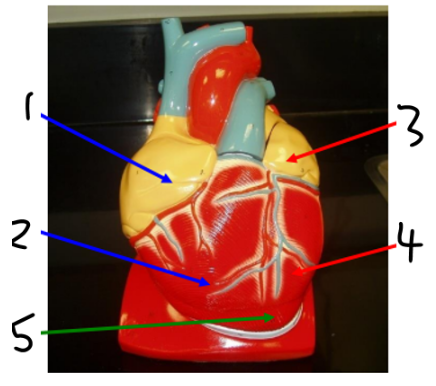

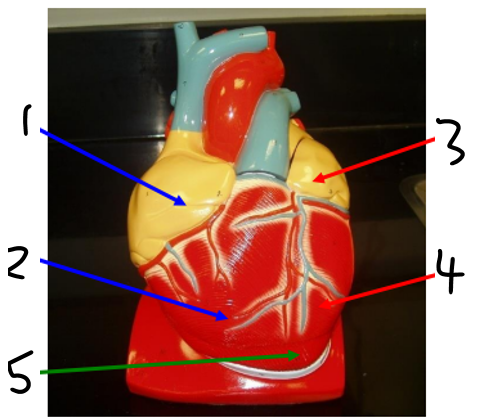

Name structure 1 (chamber)

Right Atrium

Name structure 2 (chamber)

Right Ventricle

Name structure 3 (chamber)

Left Atrium

Name structure 4 (chamber)

Left Ventricle

Name structure 5

Apex

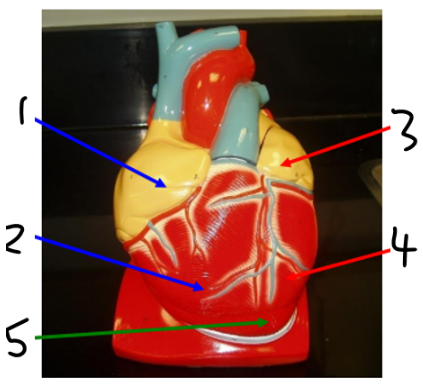

Does chamber 1 contain oxygenated or deoxygenated blood?

deoxygenated

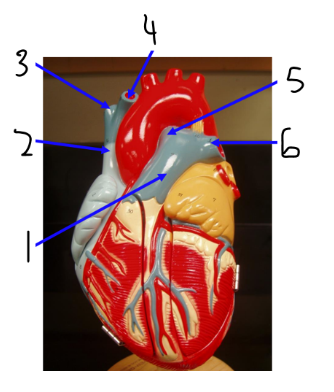

Name blood vessel 1

Pulmonary Trunk

Name blood vessel 2

Superior Vena Cava

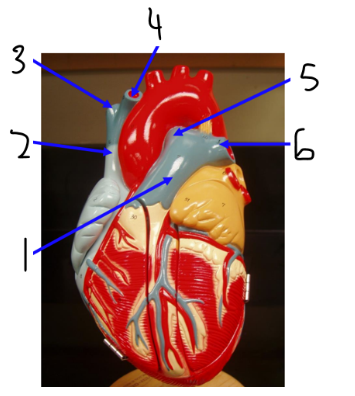

Name blood vessel 3

Right Brachiocephalic Vein

Name blood vessel 4

Left Brachiocephalic Vein

Name blood vessel 5

Right Pulmonary Artery

Name blood vessel 6

Left Pulmonary Artery

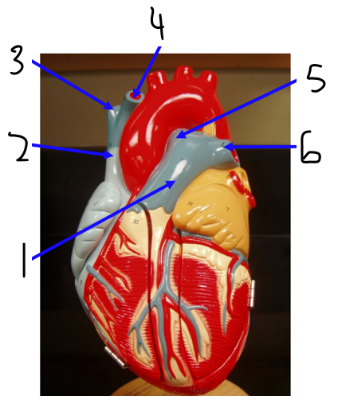

Do blood vessels 5/6 carry oxygenated or deoxygenated blood?

deoxygenated

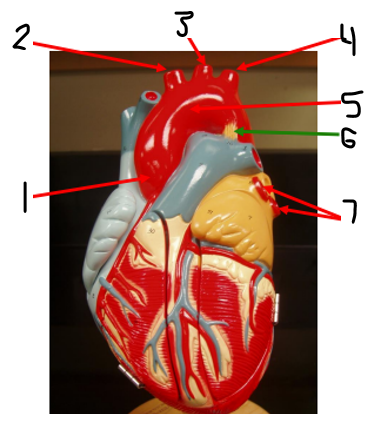

Name structure 1

Ascending Aorta

Name structure 2

Brachiocephalic trunk

Name structure 3

Left common carotid artery

Name structure 4

subclavian artery

Name structure 5

Aortic Arch

Name structure 6

ligamentum arteriosum

Name structure 7

Left Pulmonary Veins

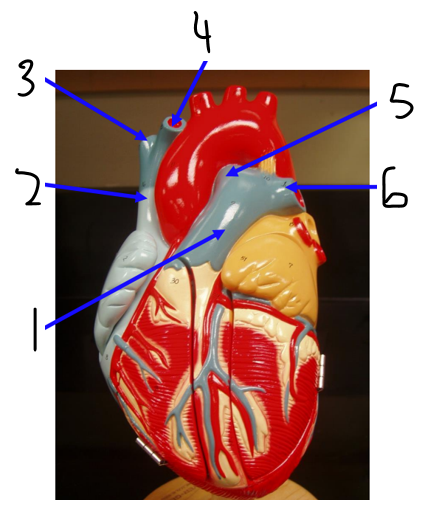

Where do blood vessels 5/6 carry blood?

lungs

Does chamber 3 contain oxygenated or deoxygenated blood?

oxygenated

Does blood vessel 1 carry oxygenated or deoxygenated blood?

deoxygenated

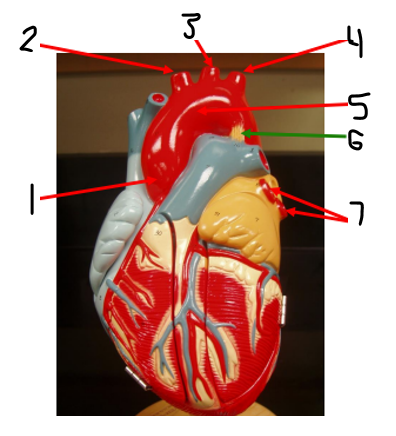

Do blood vessels 7 carry oxygenated or deoxygenated blood?

oxygenated

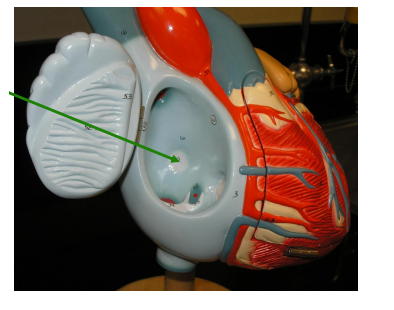

Name the structure at the end of the arrow.  The small indentation.

fossa ovalis

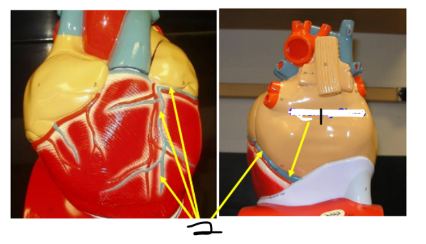

Name blood vessel 1

Coronary Sinus

Name blood vessel 2

great cardiac vein

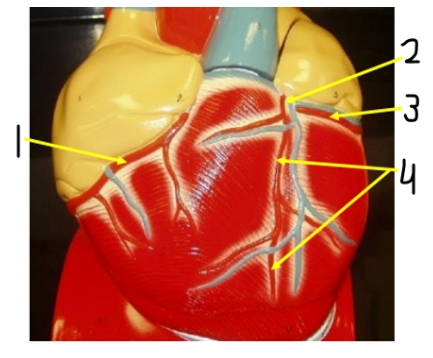

Name coronary artery 1

Right Coronary Artery

Name coronary artery 2

Left Coronary Artery

Name coronary artery 3

Circumflex Artery

Name coronary artery 4

Anterior Interventricular Artery

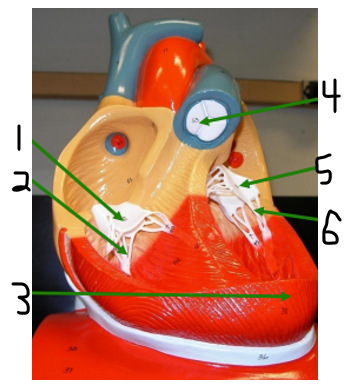

Name structure 1 (specific name)

tricuspid valve

Name structure 2

Chordae tendineae

Name structure 3

Apex

Name structure 4

Pulmonary Valve

Name structure 5 (specific name)

Bicuspid Valve

Name structure 6

Chordae Tendineae

Name structure 1

Trabeculae Carneae

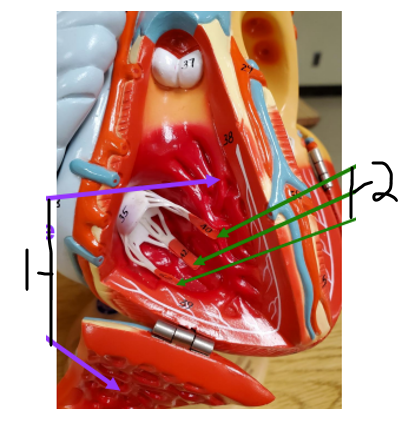

Name structure 2

papillary muscle

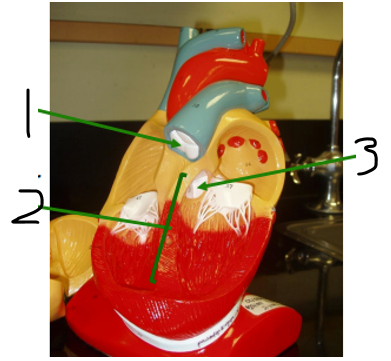

Name structure 1

Pulmonary Valve

Name structure 2

Interventricular Septum

Name structure 3

aortic valve

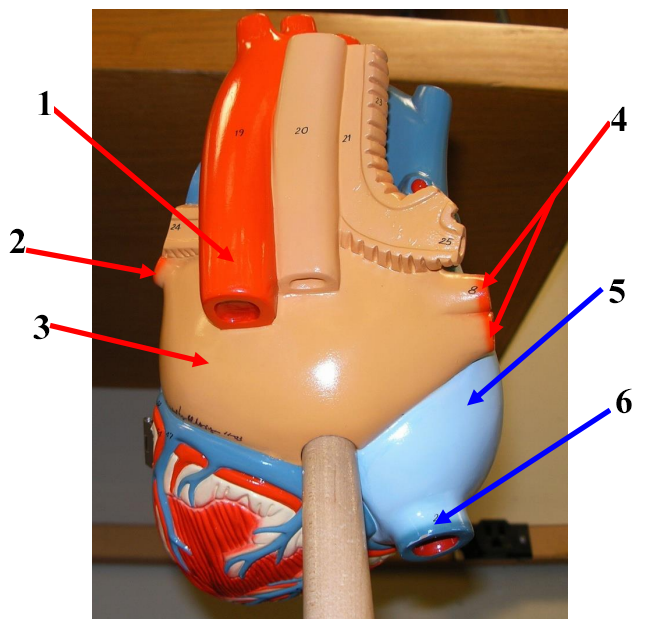

Name structure 1

Descending Aorta

Name structure 2

Left Pulmonary Veins

Name structure 3

Left Atrium

Name structure 4

Right Pulmonary Veins

Name structure 5

Right Atrium

Name structure 6

Inferior Vena Cava

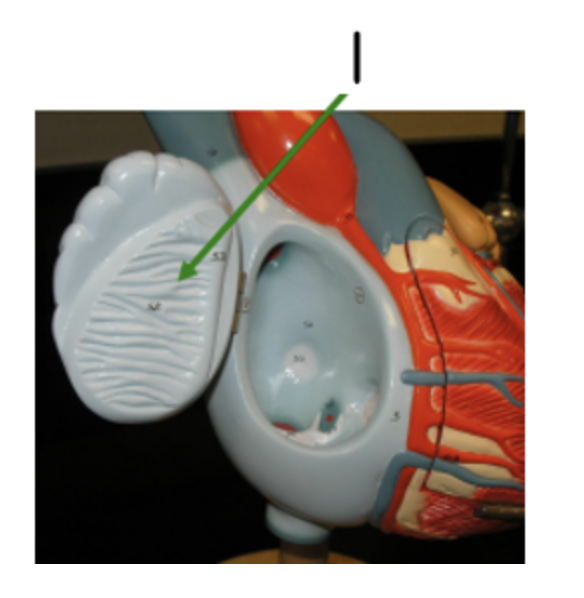

Name structure 1 (right atria)

pectinate muscle
