11 Terms

1
New cards

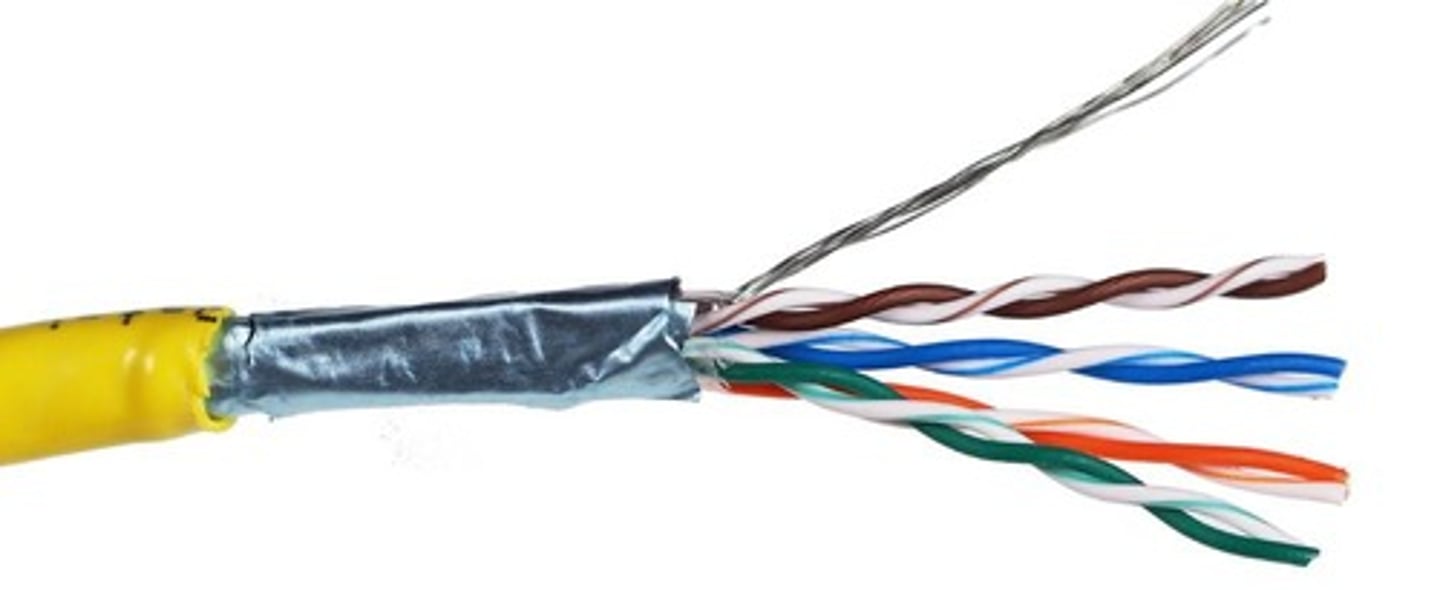

Twisted Pair Copper Cabling

- A balanced pair operation that has two wires with equal and opposite signals

- Transmit+, Transmit- / Receive+, Receive-

<p>- A balanced pair operation that has two wires with equal and opposite signals</p><p>- Transmit+, Transmit- / Receive+, Receive-</p>
2
New cards

Category 5/5e

What cable category supports 1000BASE-T with a maximum supported distance of 100 meters

3
New cards

Category 6

What cable category supports 10GBASE-T with a maximum supported distance of 55 meters when unshielded and 100 meters when shielded

4
New cards

Category 6A

What cable category supports 10GBASE-T with a maximum supported distance of 100 meters

5
New cards

UTP (Unshielded Twisted Pair)

- No additional shielding

- The most common twisted pair cabling

6
New cards

STP (Shielded Twisted Pair)

- Additional shielding protects against interference

- Requires the cable to be grounded

7
New cards

S/FTP

Braided shielding around the entire cable

8
New cards

F/UTP

Foil around the cable and no shielding around the pairs is F/UTP

9
New cards

Direct Burial STP

- Provides protection from the elements

- Often filled with gel to repel water

- Protects against signal interference

10
New cards

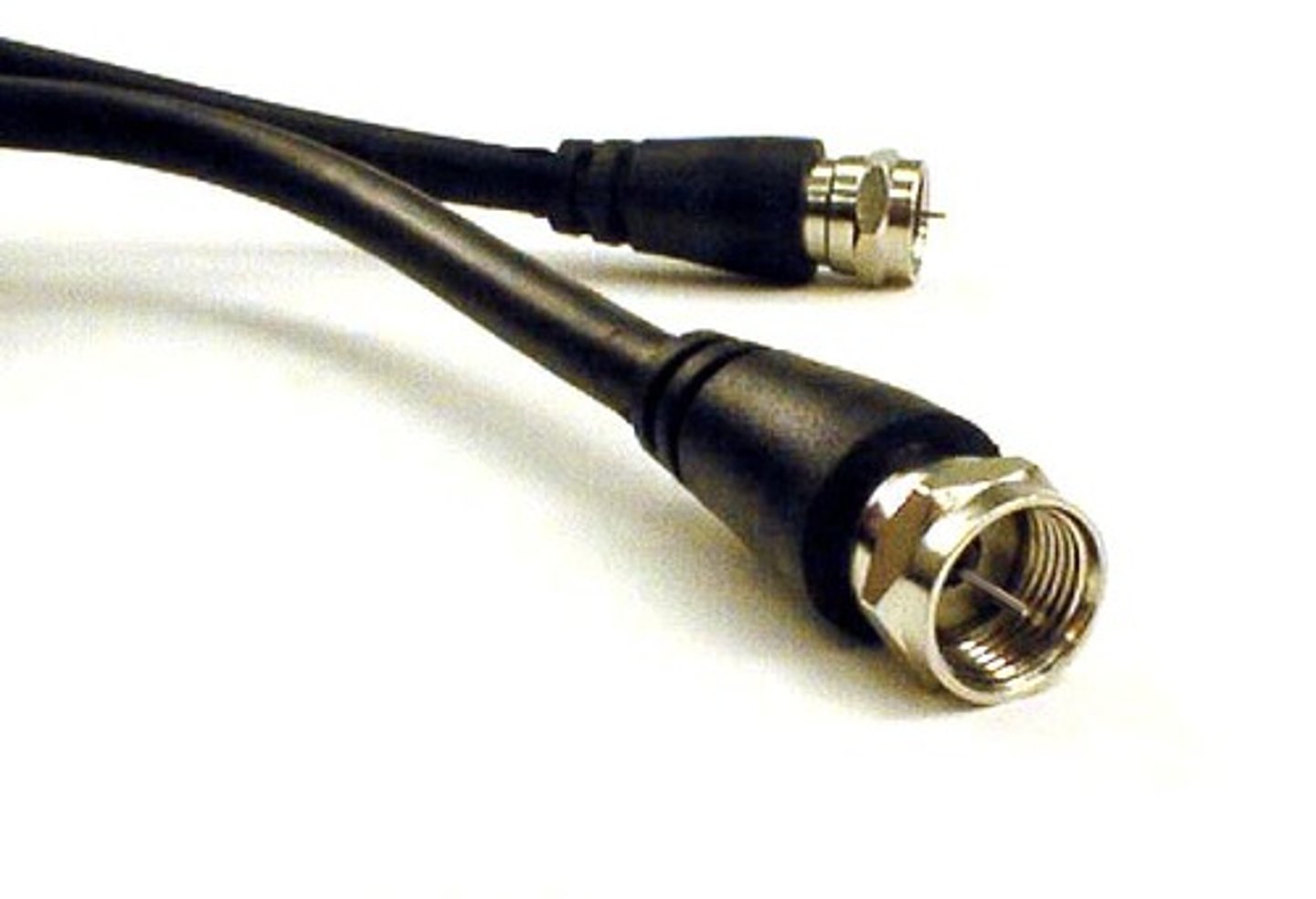

Coaxial Cable

- Two or more forms share a common axis

- RG-6 used in television/digital cable

<p>- Two or more forms share a common axis</p><p>- RG-6 used in television/digital cable</p>
11
New cards

Plenum-rated cable

- Traditional cable jacket

- Fire-rated cable jacket

- May not be as flexible
