Factory Information

Pieces of information about the factory.

What kind of a reactor is RF-1? What utilities does it have? What capacity does it have?

RF-1 is a receiver for RF-2 and RF-3.
Stirrer: full anchor.
Capacity: 500 L.
Motor: 1 HP.
Utilities: Steam heating and water cooling.
MOC: SS316L.

What kind of a reactor is RF-2? What utilities does it have? What capacity does it have?

RF-2 is a standard batch reactor.
Stirrer: half-anchor.
Capacity: 2.5 kL.
Motor: 7.5 HP.
Utilities: Steam heating and water cooling.
Condenser: 15 sq m.
MOC: SS304.

What kind of a reactor is RF-3? What utilities and what capacity does it have?

RF-3 is a standard batch reactor.
Stirrer: half-anchor.
Size: 2.5 kL.
Utilities: Steam heating and cooling water connection.
Motor: 7.5 HP.
Condenser: 15 sq m.
MOC: SS304.

What kind of a reactor is RF-4? What utilities does it have? What capacities does it have?

RF-4 is a batch reactor.
Stirrer: half-anchor.
Capacity: 3 kL.
Utilities: Thermic line.
Motor: 30 HP.
Condenser: 20 sq m.
Vacuum pump: 7.5 HP.
Other apps: mechanical seal to trap vapours, special receiver 1 kL.

What kind of a reactor is RF-5? What utilities does it have? What capacity does it have?

RF-5 is a blender.
Stirrer: anchor.
Capacity: 3 kL.
Motor: 5 HP.
MOC: SS304.
Utilities: No provision for heating or cooling.

What kind of a reactor is RF-16? What utilities does it have? What capacity does it have?

RF-16 is standard batch reactor.
Stirrer: hydrofoil.
Capacity: 5 kL.
Motor: 7.5 HP.
Condenser: 25 m2.
Utilities: Thermic line to boiler.

What kind of a reactor is RF-7? What utilities does it have? What capacity does it have?

RF-7 is a pressure reactor.
Stirrer: anchor.
Capacity: 3 kL.
Motor: 5 HP.
Utilities: Steam heater and water cooler.
Applications: No column or condenser.
Pressure capacity: 6 bar.

What kind of a reactor is RF-11? What utilities does it have? What capacity does it have?

RF-11 is a high-speed batch reactor.
Stirrer: cowl, 1400 RPM.
Capacity: 1 kL.
Motor: 10 HP.
Utilities: Thermic heater.
Applications: Column, condenser, receiver.

What kind of a reactor is RF-9? What utilities does it have? What capacity does it have?

RF-9 is a high-speed batch reactor.
Stirrer: Cowl, 150 RPM.
Capacity: 0.75 kL.
Motor: 5 HP.
Utilities: Steam heating and water cooling.
Applications: Column, condenser, receiver.

What kind of a reactor is RF-12? What utilities does it have? What capacity does it have?

RF-12 is a batch reactor.
Stirrer: hydrofoil.
Capacity: 5 kL.
Motor: 7.5 HP.
Utilities: Steam heating and water cooling.
Condenser: 30 sq meter.
Applications: Column, condenser.
MOC: SS316L.

What kind of a reactor is RF-14? What utilities does it have? What capacity does it have?

RF-14 is a standard batch reactor.
Stirrer: hydrofoil.
Capacity: 5 kL.
Motor: 7.5 HP.
Utilities: Steam heating and water cooling.
Applications: Column, condenser of 30 sq meter, receiver.

What kind of a reactor is RF-15? What utilities does it have? What capacity does it have?

RF-15 is a blending tank of size 10 kL.
Stirrer: half-anchor.
Utilities: Water cooling.
Application: Neutralization, blending.
Motor: 10 HP.
MOC: SS304.

How many microreactors do we have?

We have two microreactors. The bigger one is 1 kL, the smaller one is 0.5 kL.

What are the capacities of the smaller microreactor?

Stirrer: Homogenizer, 2700 RPM.
Motor: 5 HP.
Utilities: No heating or cooling.
Capacity: 500 kL.

What are the capacities of the bigger microreactor?

The bigger reactor of 1 kL has a 10 HP motor, 1440 RPM, and cowl stirrer.

What are the capacities of RP-01 and RP-02 and accessories associated with it?

Standard batch reactors.
Capacity: 3 kL.
MOC: SS316L.
Motor: 10 HP, 60 RPM (RP-01); 15 HP, 900 RPM (RP-02).
Pump for packing: 3-5 HP.
RP-01: has heating.
RP-02: has cooling.

What is RP-03 used for?

RP-03 is used to add emulsifiers in simethicone emulsion dedicated to RP-02.
Stirrer: anchor.
Capacity: 0.3kL reactor.
Utilities: Thermic heating.

What is the capacity of the thermic boiler?

Heating capacity: 4 lakh kcal.
It is non-IBR.

What is the capacity of the steam boiler?

Capacity: 600 kg.
It is non-IBR.

What is the capacity of cooling tower in performance plant? What is the capacity of cooling tower in pharmaceutical plant?

⁠Performance: 100 TR Capacity.
Pharmaceutical: 25 TR capacity.

What is the capacity of DG?

DG has a capacity of 60 kVA.

What is the capacity of ETP?

It has a capacity of 5.5 cubic meters.

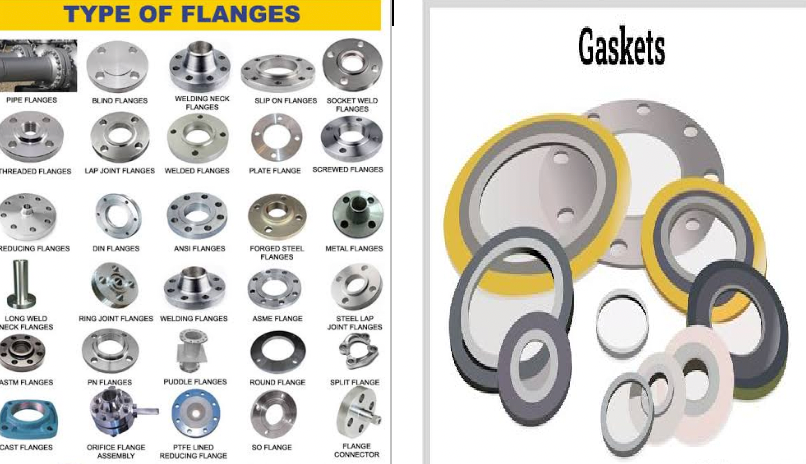

What is the difference between a flange and a gasket?

A flange is a protruding rim, lip, or ring on an object—such as a pipe, beam, or wheel—used to add strength, guide movement, or securely bolt components together.

A gasket is a mechanical seal that fills the space between two or more touching surfaces. Its main job is to stop leaks of liquids or gases from or into the joined objects when the parts are pressed tightly together.
