What is the search criteria for an image

  1. For each organ: location,size, morphology (grayness)

  2. For each organ: has contrast been used. Is the appearance in each phase normal

2
New cards

What are all thew CT scan types

  • Non contrast

  • CT arterial

  • CT portal venous

  • CT venous

  • CT delayed

  • CT nephrogram

  • CT AVMs

3
New cards

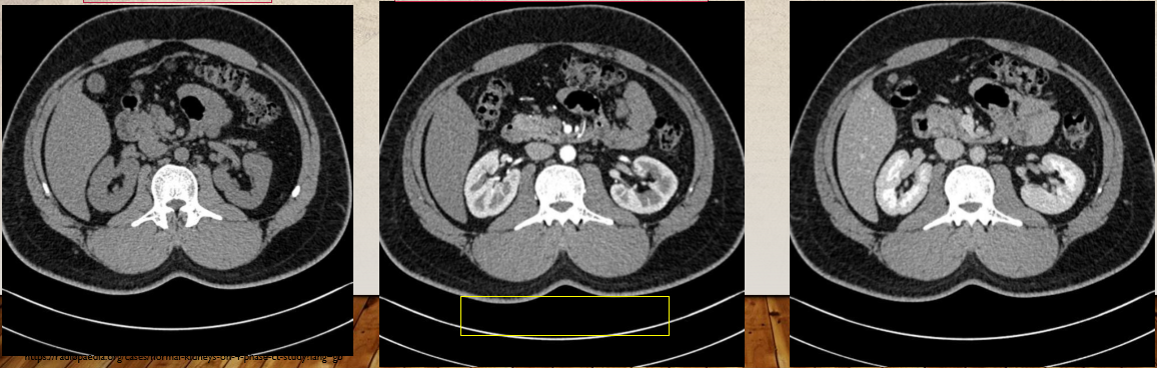

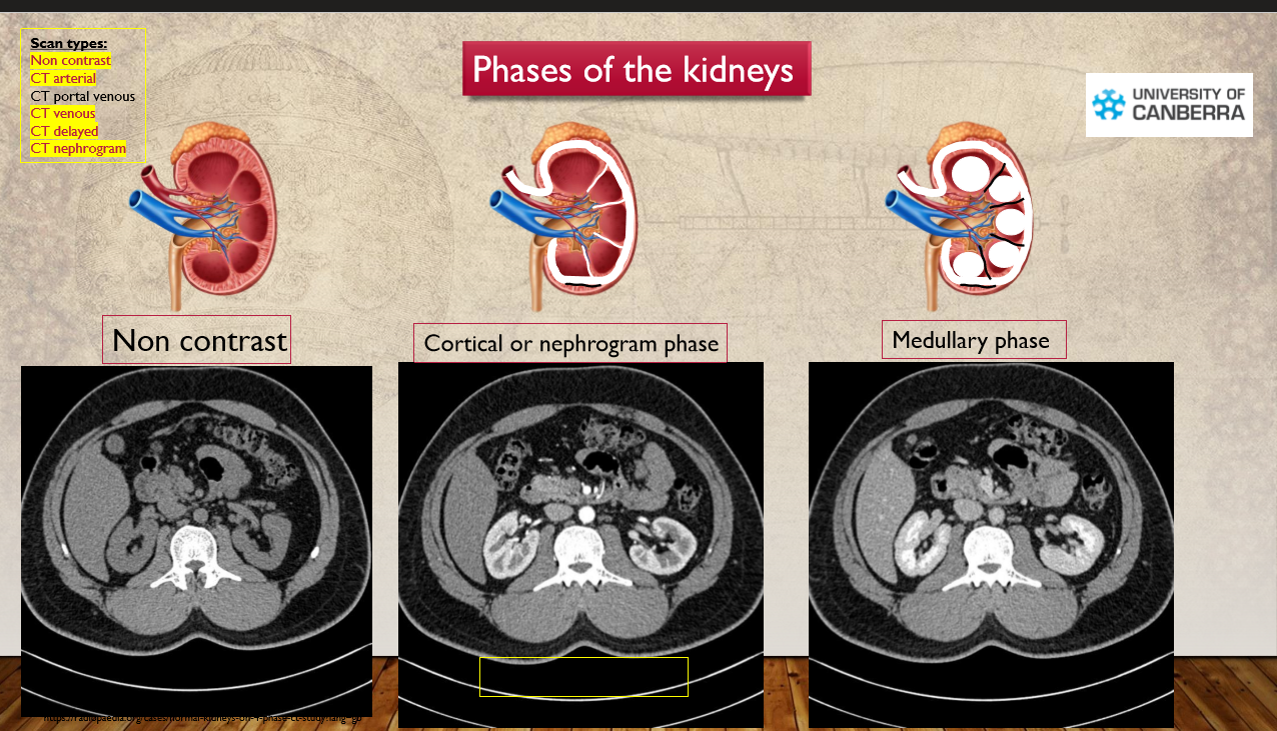

<p>What phases are these kidneys in </p>

What phases are these kidneys in

  1. Non contrast

  2. Cortical or nephrogram phase

  3. Medullary phase

<ol><li><p>Non contrast </p></li><li><p>Cortical or nephrogram phase</p></li><li><p>Medullary phase</p></li></ol><p></p>
4
New cards

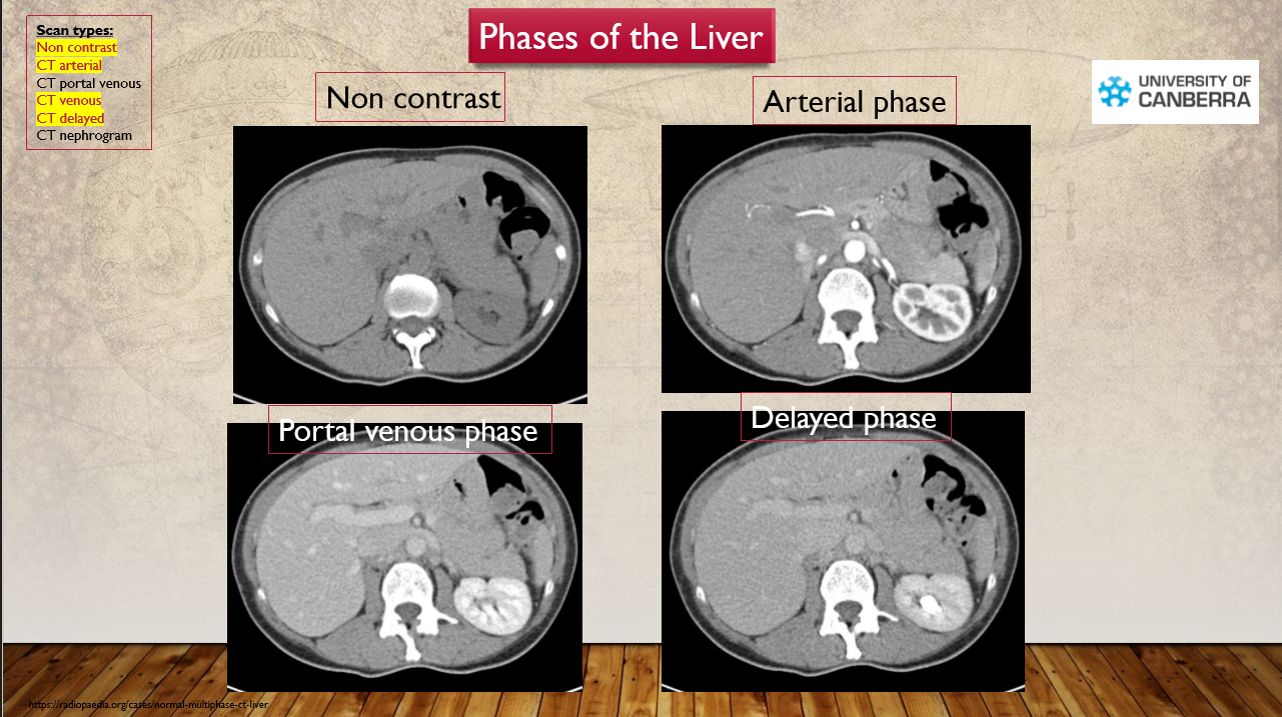

<p>What phases are these liver in</p>

What phases are these liver in

knowt flashcard image
5
New cards

What is the HU of the following things in CT:

  • Air

  • Lung

  • Fat

  • Water

  • Muscle

  • soft tissue

  • Cortical bone

  • Air: -1000

  • Lung: -500

  • Fat: -100 to -50

  • Water: 0

  • Muscle: +10 to +40

  • soft tissue: +100 to +300

  • Cortical bone: +2000 to +3000
