SLR06 - software development

Stages of software development lifecycles (6)

• Feasibility: Is the problem solvable

• Requirements: Working out what solution need to do

• Implementation: Code of solution

• Testing: Check code works

• Deployment: Installing in target environment

• Evaluate: Check with user if solution complete

Different software development methodologies

• Waterfall lifecycle

• Rapid application development (RAD)

• Spiral model

• Agile methodology

• Extreme programming

Waterfall lifecycle

• Each phase defined start & end point

• One phase after another

• Evolution allow move back & forward

• Easy management = better for large scale development projects assuming they are well-understood & carry little risk

Waterfall positives (4)

• Simplicity = easy to manage

• Everyone is clear on their responsibilities at each stage

• Clear deliverables

• Easy to see if project is running to schedule

Waterfall negatives (4)

• Carries a lot of risk

• User doesn’t get to see product until project near end

• Misunderstanding requirements can lead to errors that are not easy to fix

• Requirements must be very well understood so not suitable for complex projects

Rapid application development (RAD)

• Produces successive prototypes of software until final version produced & approved

• Feasibility —> (Requirements, Design, Testing) —> Deployment —> Maintenance

RAD positives (3)

• Requirements don’t need to be entirely clear from start

• Focus group involving user used to gather requirements without full formal requirements document upfront

• Continuous feedback from client = solution has excellent usability

RAD negatives (2)

• Focus on usability rather than how products works - not suited for projects where code efficiency is very important

• Regular contact with clients must be maintained at all times Scale poorly for large projects with big team

Spiral model

• Risk driven development process

• Any project has unique risks associated

• 4 quadrants:

  1. Determine objectives

  2. Develop & test = concept of requirement

  3. Develop & test = concept of operation

  4. Plan next iteration = concept of operation

Spiral positives (3)

• Risk management is at the heart of this model

• Excellent for projects that contain high level risk

• Suitable for large scale problems and those that involve high degree of risk especially where users doesn’t fully understand their requirements upfront

Spiral negatives (2)

• Complex nature of risk analysis = increase cost as it requires specialised skill

• If risk analysis done poorly, could impact project

Agile methodology

• Refers to group of methodologies

• Focus on idea requirements will change during development = producing software in iterative way

• Iterations known as sprints - short, time-boxed periods when a team has to compete set amount of work

• Each sprint ideally small, no longer than 4 weeks

• Emphasis of project is on quality of finished code

Extreme programming

• Agile paradigm

• Focus is on good quality code

• Iterative process

• Designed to allow development to respond to changing user requirements

• Involves paired programming

Extreme programming core practices

• Collective code ownership

• continuous integration

• Code standards

• Refracturing

• Paired programming

Agile & extreme programming positives (2)

• Emphasises programming, so quality of end code high

• Core principles = productive dev team

Agile & extreme programming negatives (3)

• Require team of programmers working in close collaboration - unlikely to work well if team widely distributes geographically

• client must be able to commit to have full-time representative working with dev team

• Some of the processes involved in extreme programming such as programming con be quite costly

Flowcharts

One way or representing sequence of steps of algorithm

Pseudocode

Alternative, text based method of representing sequence of steps in algorithm, allow lay out logic without worrying about syntax

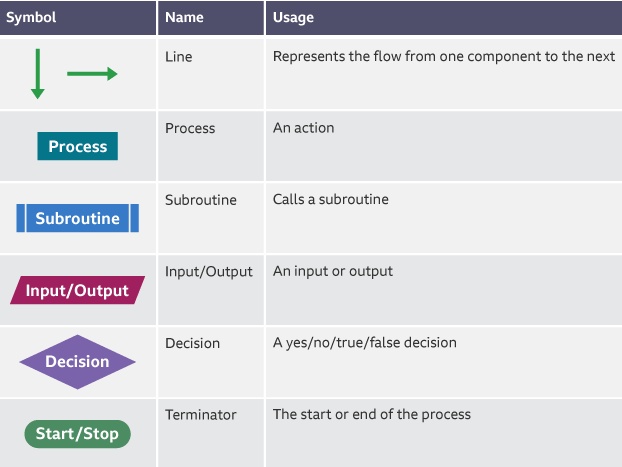

Flow diagram symbols

Black-box testing

• Checks whether input produces expected output

• Code efficiency is not important as long as desired output is returned

White-box testing

• Involves testing algorithms in code and making sure all parts of these algorithms function as intended

• Focus on identifying and testing all possible paths of execution through program

Alpha testing

• Typically occur first & limited to employees and friends

• Often early version of software and allows to check for bugs

Beta testing

• Usually opened up to wider community through public beta

• Almost finished state of software

• Testing for load balance & multiple hardware compatibility

Suitable test data

• No data - Should always check special case of no data being entered

• Erroneous/invalid - Data that should be rejected by program

• Normal/valid - Data that should be accepted

• Boundary - Data of correct type that is one either edge oof accepted validations limits

Importance of user feedback

• Keeps project focused

• Makes sure develop actual system needed

• Provides opportunities for discussion

• Makes user feel part of finished solution
