CSE13s Lecture 10 & 11

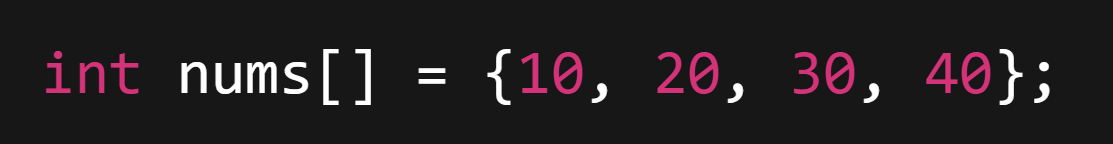

The size may be omitted if?

The array is initialized at the time of declaration.

Strings in C are?

Character arrays that end with a ‘\0’ (NULL) character.

\0’ is an “end-of-string” marker?

Used to determine the end of a string.

In (C) if you make a string the null terminator count as an item.

"Power" then you could do char type[6] = "Power"

Initialization cannot be separated from the declaration!

char str[5]; str = “good”; is not permitted

Strings can be read using scanf()

Format specifier: %s

scanf() terminates its input?

On the first white space it finds!

Use multiple char arrays: char adr1[5], adr2[5]; scanf(“%s %s”, adr1, adr2);

Syntax: scanf(“%[...]”, variable);

Example: scanf(“%[abc]”, str) accepts strings containing only a, b, and c

○ Example: scanf(“%[^xyz]”, str) accepts strings that exclude x, y and z

○ Example: scanf(“%[^\n]”, str) accepts a string (including spaces) until a new-line

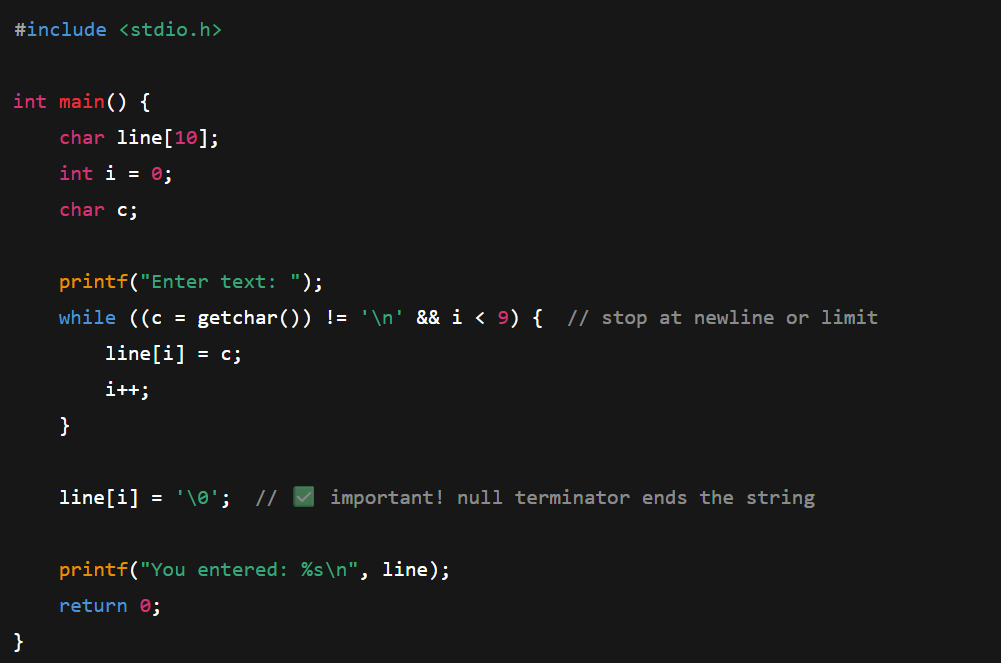

char line[10];

line[0] = getchar();

You’re reading one character from input (the terminal).
If you want to read an entire line (a string), you must:

1. Loop to read characters one at a time until a newline '\n' is entered,

2. Store each character in the array, and

3. Manually add a null terminator ('\0') at the end.

gets()?

gets() reads chars into a string until new-line is encountered and then appends a null

character to the string

○ char line[10]; gets(line); but it wont stop if you pass your array size

putchar()?

Prints one character at a time:

char ch = ‘A’; putchar(ch);

Can Not do a whole string at a time unless you implement a for loop.

puts()?

Prints an entire string and moves the cursor to the next line:

char line[10]; puts(line);

C does not allow direct assignment of strings?

char str[5]; str = “good”; is not permitted

char s1[4] = “abc” ; char s2[4]; s2 = s1; is not permitted

Copy one string into another?

1. Char-by-char.

2. As a whole using the strcpy function.

Does C allow joining two strings together by simple arithmetic addition?

No

Does C permit the comparison of two strings directly?

No

1. Compare the strings character by character.

2. Use the strcmp() function.

strcpy(s2, s1)

Purpose:

Copy all characters from s1 (including '\0') into s2

What happens if destination is too small:

❌ Buffer overflow — will overwrite memory past s2

What happens if source is too small:

✅ Works fine (copies full string + null)

Notes:

Must ensure s2 ≥ strlen(s1) + 1

strncpy(s2, s1, n)

Purpose:

Copy up to n characters from s1 to s2

What happens if destination is too small:

⚠ If n > s2 size → overflow possible

What happens if source is too small:

✅ If strlen(s1) < n, fills rest of s2 with '\0'

Notes:

Does not add '\0' if s1 length ≥ n

strcat(s1, s2)

Purpose:

Append s2 to end of s1

What happens if destination is too small:

❌ Overwrites memory if s1 is too small to hold result

What happens if source is too small:

✅ Works fine

Notes:

Make sure s1 has enough space for both strings + '\0'

strncat(s1, s2, n)

Purpose:

Append up to n chars from s2 to s1

What happens if destination is too small:

⚠ Overflow if s1 can’t hold strlen(s1) + n + 1

What happens if source is too small:

✅ Works fine

Notes:

Always adds '\0' at end

strcmp(s1, s2)

Purpose:

Compare full strings (Alphabetically)

What happens if destination is too small:

✅ Safe (no writing)

What happens if source is too small:

✅ Safe

Notes:

Returns 0 if equal, <0 or >0 otherwise

strncmp(s1, s2, n)

Purpose:

Compare first n characters

What happens if destination is too small:

✅ Safe

What happens if source is too small:

✅ Safe

Notes:

Same return logic as strcmp

str1 == str2	Both strings are identical	0	"apple" vs "apple" → 0
str1 < str2	str1 comes before str2 alphabetically	Negative	"apple" vs "banana" → < 0
str1 > str2	str1 comes after str2 alphabetically	Positive	"pear" vs "orange" → > 0

strlen(s)

Purpose:

Count characters until '\0'

What happens if destination is too small:

⚠ If string lacks '\0', runs past valid memory

What happens if source is too small:

✅ Safe if string is valid

Notes:

Doesn’t include null terminator in count

strstr(src, sub)

Purpose:

Find substring inside another

What happens if destination is too small:

✅ Safe (read-only)

What happens if source is too small:

✅ Safe

Notes:

Returns pointer to first match or NULL

gets(str) ⚠️ Unsafe, deprecated

Purpose:

Reads input line until newline

What happens if destination is too small:

❌ May overflow if input > array size

What happens if source is too small:

✅ Works fine if space allows

Notes:

Use fgets() instead

scanf("%s", str)

Purpose:

Reads word until space

What happens if destination is too small:

❌ May overflow if input > array size

What happens if source is too small:

✅ Works fine

Notes:

Use width limit: scanf("%9s", str) for a 10-char buffer

User-defined data types?

1. typedef

2. enum

3. struct

4. union

5. bitfield

Typedef?

1. Allows users to create new data type names for existing data types

2. Can create meaningful data type names to increase readability of the program

3. typedef unsigned int uint; uint val = 25;

Enum?

Unique types with values ranging over a set of named constants starting at 0 by default

Structures

Collection of one or more related variables, possibly of different types, grouped

together under a single name for convenient handling

Example: typedef struct book_bank {

char title[20];

int pages;

float price[3];

struct {char first_name[20], char last_name[20]} author;

} book_bank;

Arrays of structures

Example: book_bank books[3] contains 3 instances of book_bank structure

○ Accessing each book: books[0], books[1] and books[2]

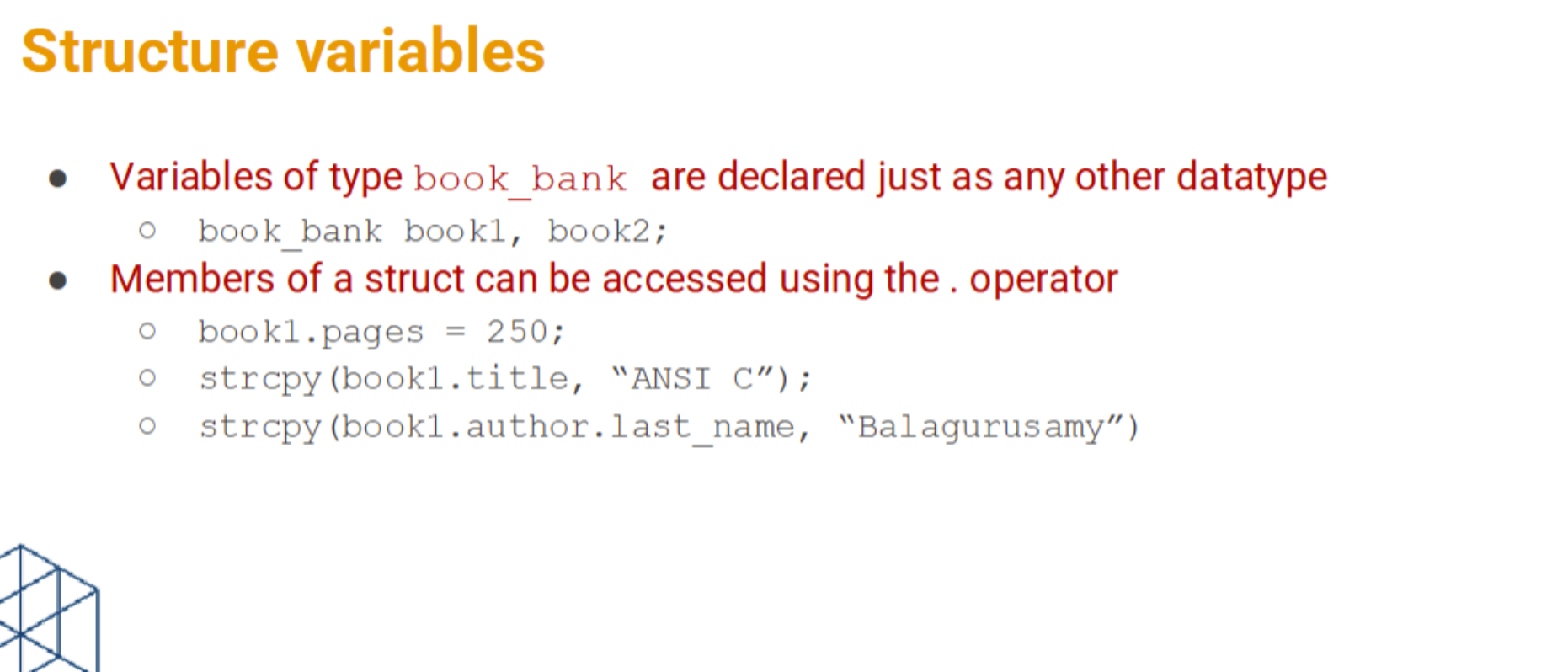

Copying and comparing structure variables

Two variables of the same structure type can be copied the same way as primitive vars

○ Example: book1 = book2;

However, logical operations are not permitted on structure variables

○ Example: book1 == book2 is not permitted;

To compare two variables, we compare the individual members

○ book1.pages == book2.pages;

○ strcmp(book1.title, book2.title)

Difference Between Struct and Union

A struct stores all its members separately, each with its own memory space.

A union stores all its members in the same memory location.
Only one member is valid at a time — changing one affects the others.

Bit fields

struct Status {

unsigned int power_on : 1; // 1 bit (0 or 1)

unsigned int error_code : 3; // 3 bits (0–7)

unsigned int mode : 2; // 2 bits (0–3)

};

Pointers are extremely useful as they allow us to

return multiple values from a function

 manage dynamic memory (heap) and, thereby, dynamic data structures like linked lists

 refer to functions and thereby facilitate passing of functions as arguments to other functions

Declaring pointers

datatype *pt_name;

○ * tells the compiler that pt_name is a pointer variable

○ Upon initialization or assignment, pt_name contains a memory address

○ pt_name points to a variable of type data_type

Different declaration styles

The following 3 styles are equivalent

○ int* p //clear

○ int * p

○ int *p

Pointer operations

○ Get the address of a variable using & operator and store in a pointer variable

○ Dereference a pointer variable to get to something using * operator

○ Compute the address of something (since a pointer is an integer)

We can increment or decrement pointers

p1 = p1 + 1, where p1 is a pointer

Pointer to a pointer

int x, p1, *p2 ;

// p1 is a pointer to an int; int*

// p2 is a pointer to an int*; int**

x = 10; p1 = &x; p2 = &p1;

the value at index i

*(p + i) == x[i]

(*(p+1) + j)

points to the jth row in the second row

Accessing elements with the pointer:

int (*p)[4];

int a[3][4] = {

{10, 20, 30, 40},

{50, 60, 70, 80},

{90, 100, 110, 120}

};

*p	first row (a[0])

*(p+1)

second row (a[1])

*(p+2)

third row (a[2])

*(*(p+1) + 2)

element in row 1, column 2 (a[1][2])

p

Row 0

p + 1

Row 1

*(p + 1)

First element of row 1

*(p + 1) + j

j-th element of row 1

*(*(p + 1) + j)

Value at a[1][j]

int (*p)[4]

Pointer to a row of 4 ints

int *p[4]

Array of 4 int pointers

Pointers and strings

char *str = “good”;

Pointers to structures and unions

Consider the struct: typedef struct {

int x;

int y;

} vector;

● If we declare, vector v, *ptr; ptr = &v;

○ Here, ptr is a pointer pointing to the vector v.

○ We can access its elements using the . or -> operators

■ Using indirection: (*ptr).x

■ Using arrow operator: ptr->x

type (*fptr) ();

• ✅ int (*fptr)(int, int); → pointer to a function that takes two ints and returns int.

• ❌ int *fptr(int, int); → function that takes two ints and returns a pointer to int.

Common errors using pointers

p = m;

assigning value, not address

p = &m;

printf("%d", p);

prints address, not value

printf("%d", *p);

*p = m;

p not initialized

p = &var; *p = m;

p = &m; (uninit m)

may read garbage

initialize m first

if(p > q)

comparing unrelated pointers

only compare within same array
