Special Projections of the Elbow

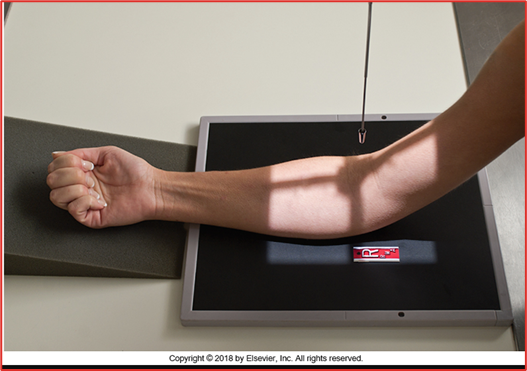

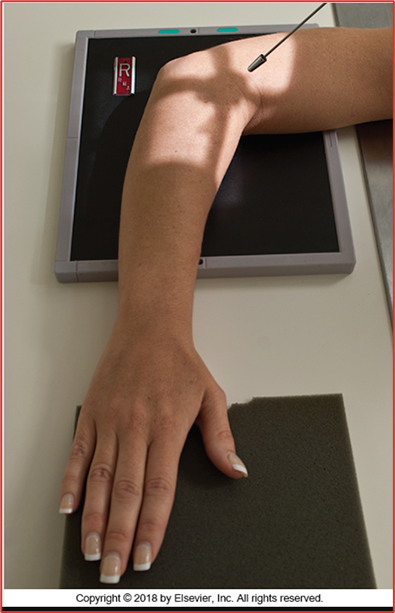

AP Partial Flexion

these 2 elbow images are in what position (2 for 1!!)

Humerus

in this AP Partial Flexion is the humerus or forearm parallel

Forearm

in this AP Partial Flexion is the humerus or forearm parallel

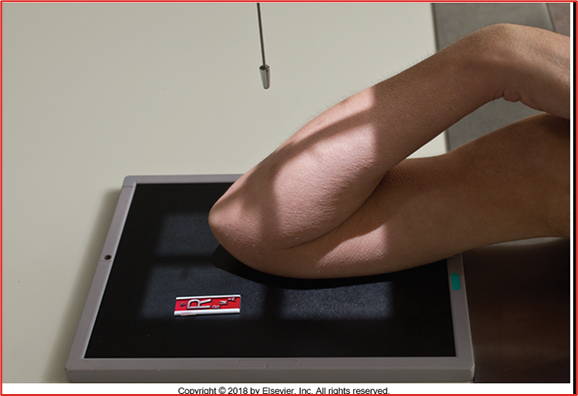

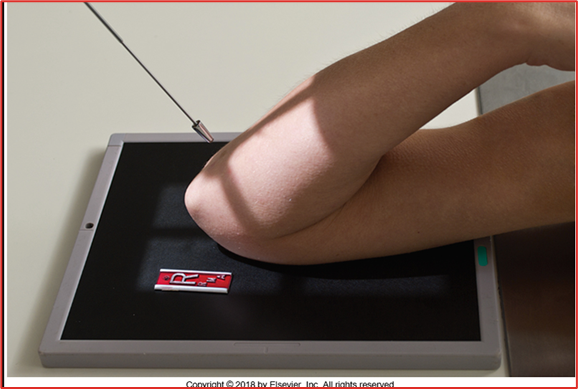

acute flexion

these 2 images of the elbow are in what position (2 for 1!) CR perpendicular to humerus and then CR perpendicular to forearm

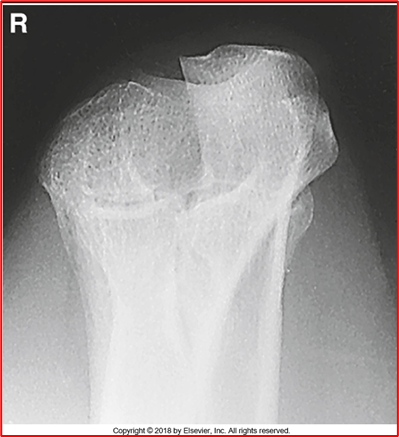

distal humerus

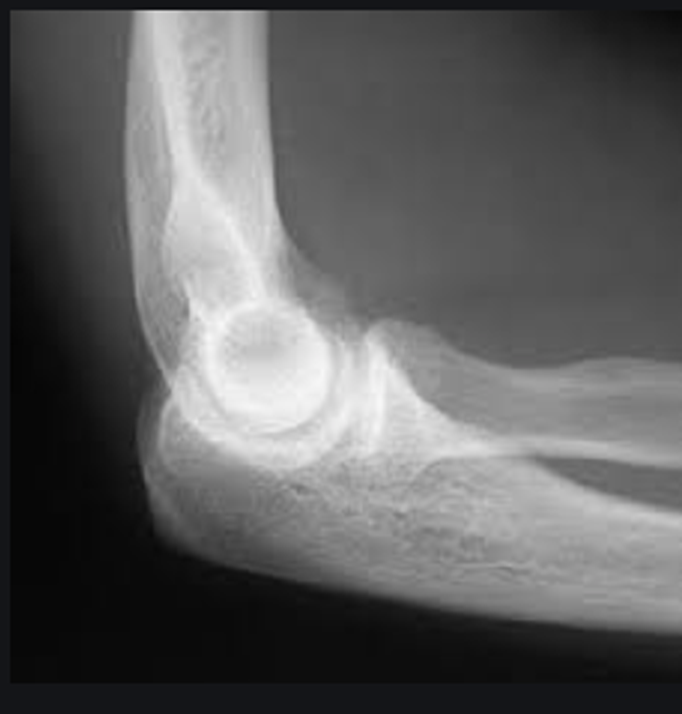

this acute flexion of the elbow image is showing the __ __

proximal forearm

this acute flexion of the elbow image is showing the __ __

AP Partial Flexion, Acute Flexion

what 2 position (2 images each) compromises for an AP elbow radiograph

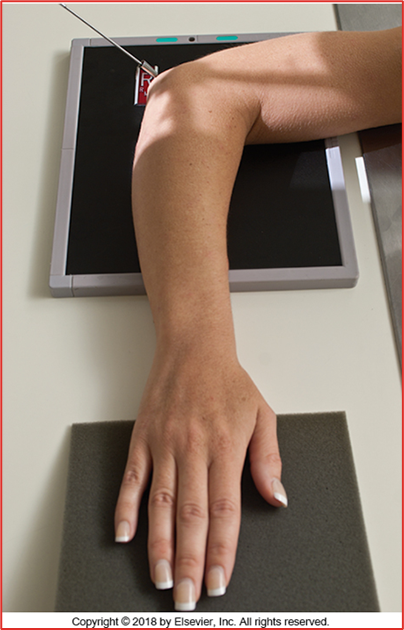

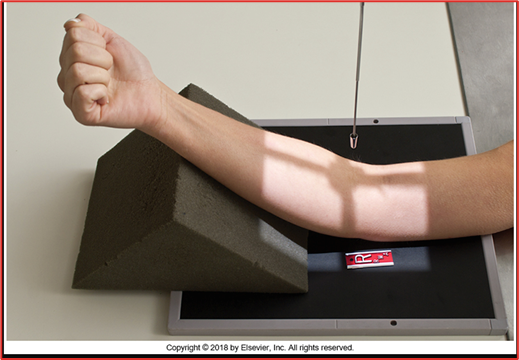

Coyle Method

what position compromises for medial or lateral oblique images of the elbow

radial head

which coyle method is this image showing (toward shoulder)

coronoid process

which coyle method is this image showing (away from shoulder)

90

for the radial head coyle method the elbow needs to be flexed at __ degrees

80

for the coronoid process coyle method the elbow needs to be flexed at __ degrees

45

for any coyle method the CR needs to be angles at __ degrees (either away from or towards the shoulder)

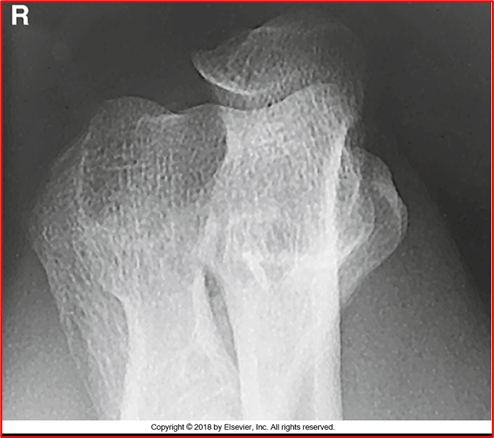

radial head

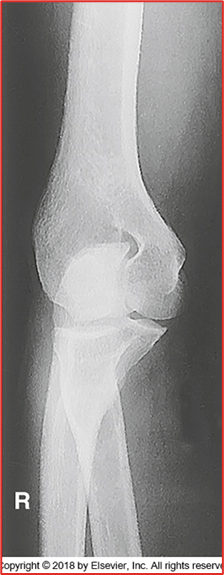

this is an image of what coyle method projection

coronoid process

this is an image of what coyle method projection

lateral oblique

this image is what projection of the elbow

medial oblique

this image is what projection of the elbow

radial head

which coyle method projection compromises for a lateral oblique

coronoid process

which coyle method projection compromises for a medial oblique

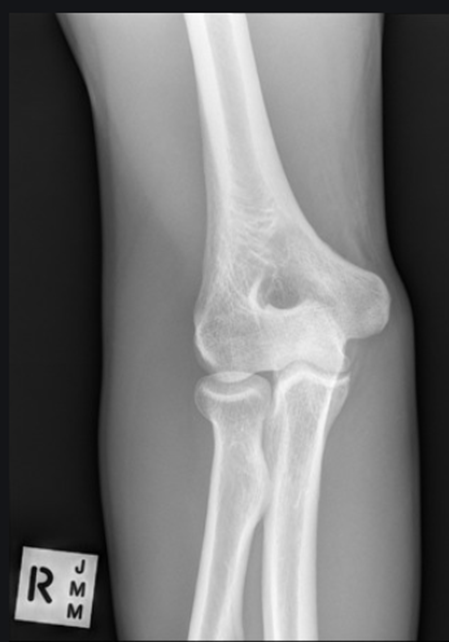

-All anatomy present (humerus, radius, and ulna)

-Only should be partial superimposition of the radius and ulna (this image they are fully separated)

-They are laterally rotated (fix by medially rotating them and feeling the epicondyles)

-Epicondyles not perfectly in profile (due to rotation)

-Olecranon in olecranon fossa

-Open Joint Space = pretty good

-No crowning of radial head (good)

• REPEAT

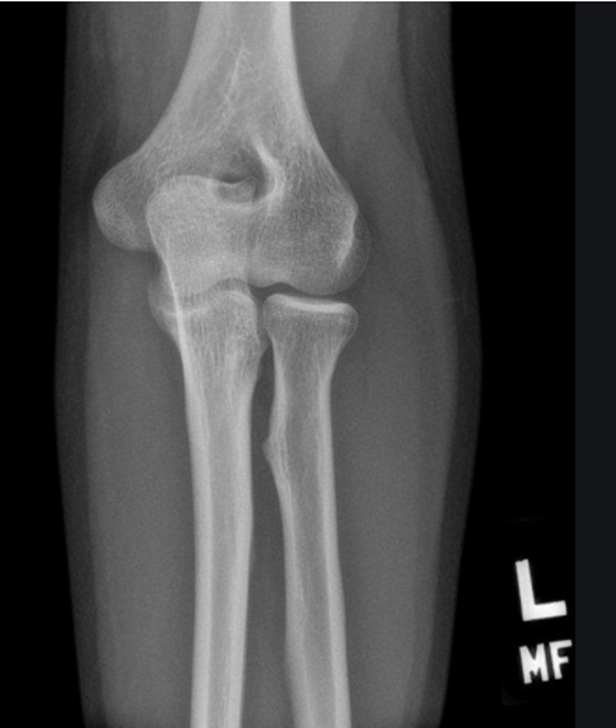

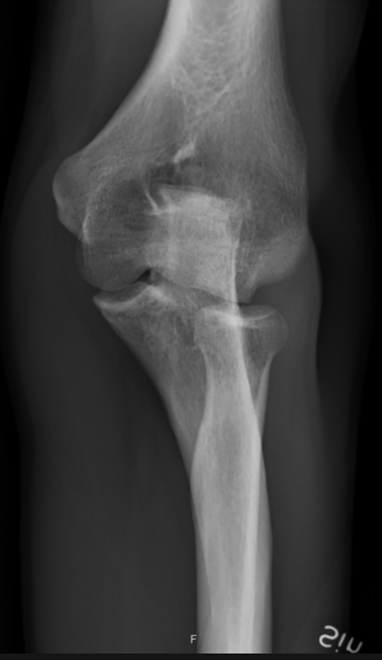

Critique this AP Elbow Image

-All anatomy present

-Collimation is tight, want to open up some more

-Totally body positioning was not utilized because you cannot see the 3 concentric arches (trochlear notch, trochlear sulcus, ridges of the capitulum and trochlea)

-Not fully bent 90 degrees but close

-Coronoid process and radial head should be half superimposed (this image is a little more than half)

-Olecranon is in profile

-No marker

-REPEAT cause not in a true lateral position

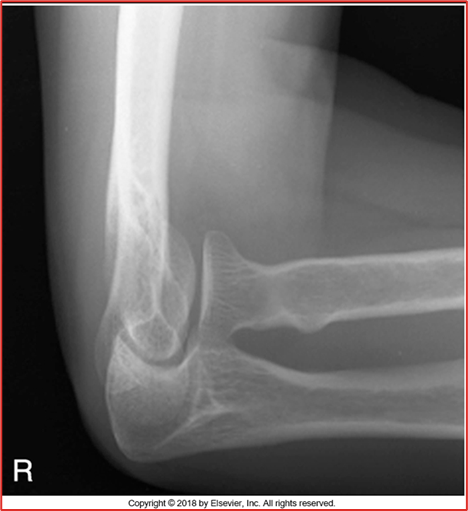

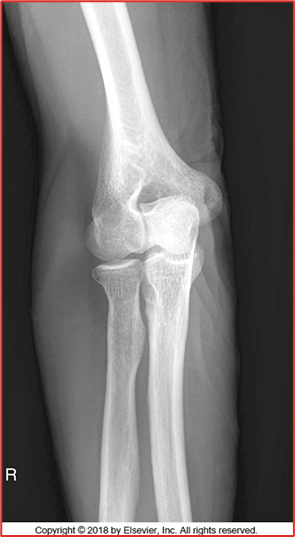

Critique this lateral elbow image

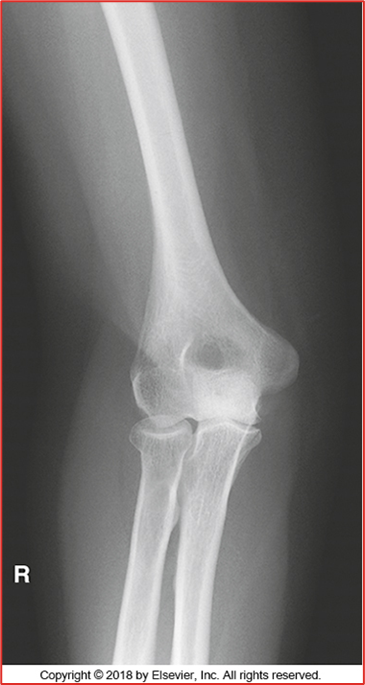

-Not complete superimposition of radial head and ulna (NOT enough rotation) need more medial rotation

-Should see the coronoid process and trochlea in profile

-Olecranon should be in olecranon fossa

-NO Marker

-REPEAT

critique this medial oblique elbow image

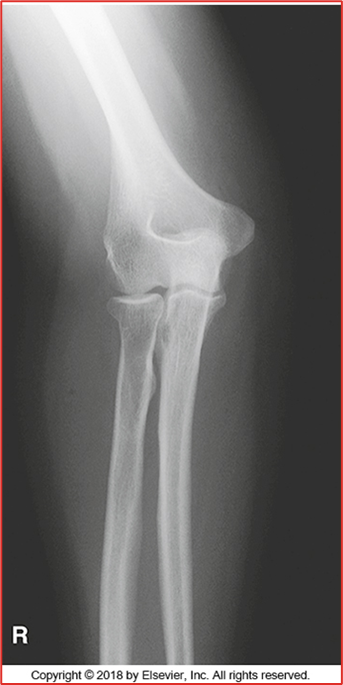

-Radius and ulna should be completely separated (almost there but not fully)

-There is crowning of the radial head (should NOT be present, should be flat) meaning they are not fully extended

-Capitulum and radial head present

-REPEAT because of crowning

critique this lateral oblique elbow image
