EOP-FR-Z.1 Response to High Containment Pressure

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/6

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

7 Terms

1
New cards

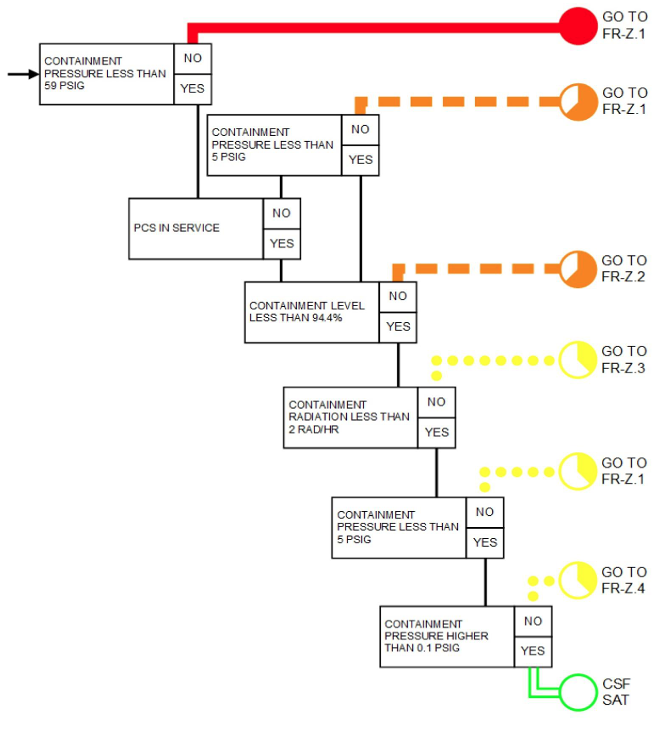

Entry Path

knowt flashcard image
2
New cards

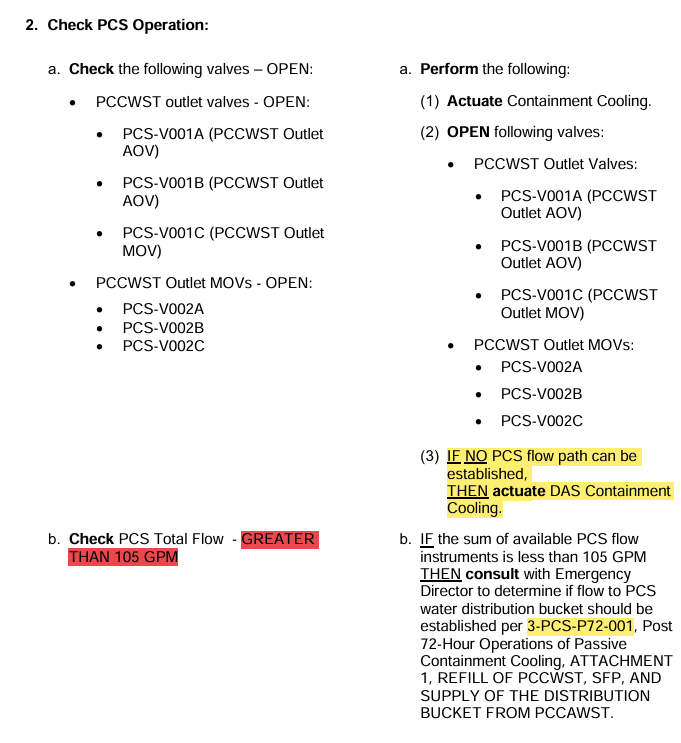

Ensure PCS Conditions

(Step 1 & 2)

Step 1 is checking 5psig and/or 176.5°F

<p>Step 1 is checking 5psig and/or 176.5°F</p>
3
New cards

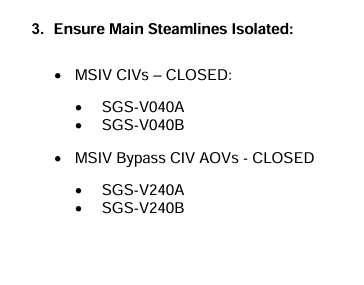

Status of Secondary Plant?

(Step 3 & 4)

Notice:

Not all MSL Isolation paths, just MSIVs and Bypasses

Step 4:

Check for Faulted, RNO: Isolate Faulted

<p>Notice:</p><p>Not all MSL Isolation paths, just MSIVs and Bypasses</p><p></p><p>Step 4:</p><p>Check for Faulted, RNO: Isolate Faulted</p>
4
New cards

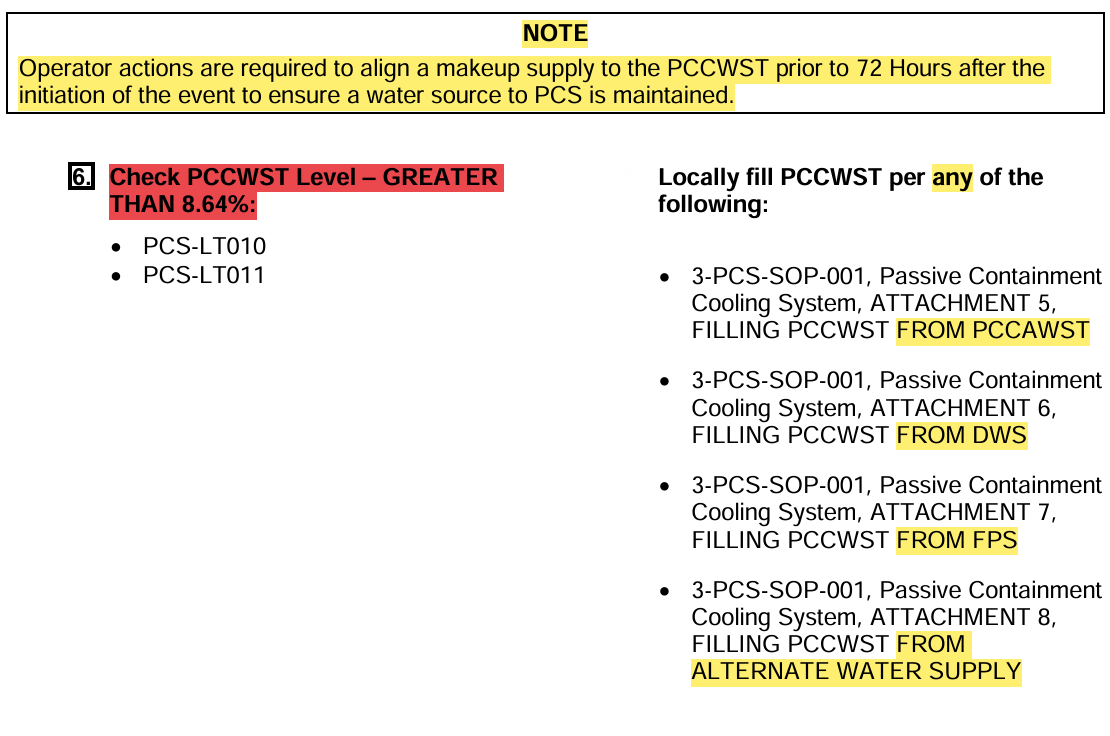

When/How to fill PCCWST

(Step 6)

knowt flashcard image
5
New cards

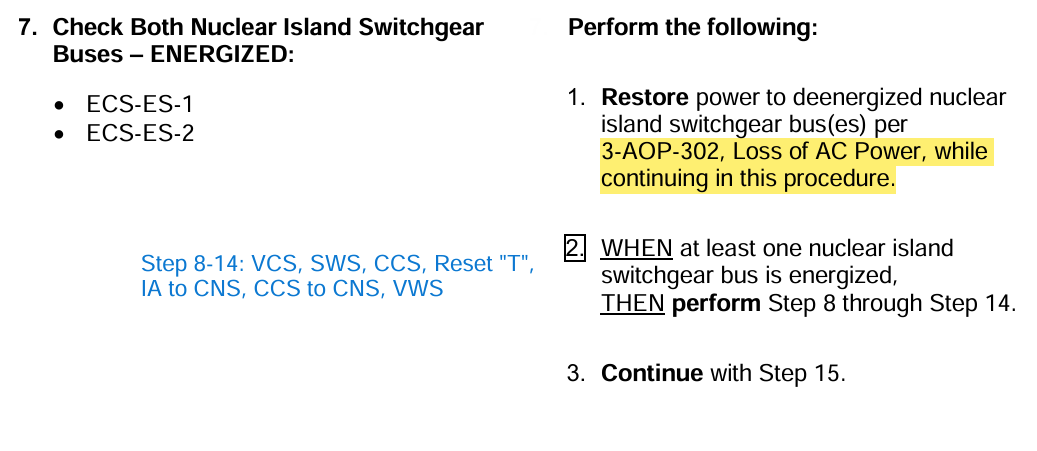

Loss of Critical Switchgear power effect on Z.1

(Step 7)

Step 15: Jump to H2 Igniters

<p>Step 15: Jump to H<sub>2</sub> Igniters</p>
6
New cards

Restoring Containment with ES-1/2 available

(Step 8-14)

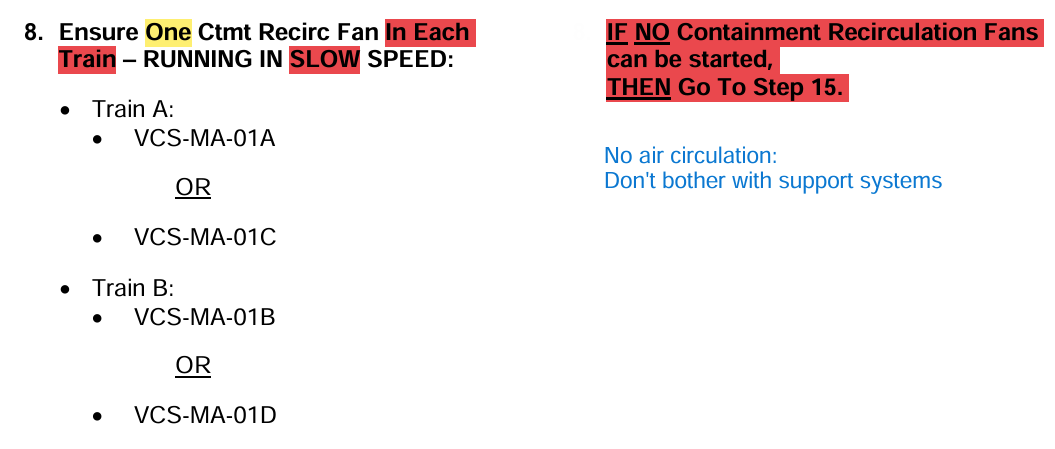

Step 8: Start one fan per train in SLOW

Notice: Without VCS, jump to Igniters

Step 9: SWS: <71psig, >7500gpm, <95°F

Step 10: CCS: <110°F

Step 11: Reset “T”

Step 12: IA to CNS

Step 13&14: VWS: PRHR off, Chiller, VCS, <203°F

Notice: All support system degradation direct utilizing AOP while continuing EXCEPT VCS fans

<p>Step 8: Start one fan per train in SLOW</p><p>Notice: Without VCS, jump to Igniters</p><p>Step 9: SWS: &lt;71psig, &gt;7500gpm, &lt;95°F</p><p>Step 10: CCS: &lt;110°F</p><p>Step 11: Reset “T”</p><p>Step 12: IA to CNS</p><p>Step 13&amp;14: VWS: PRHR off, Chiller, VCS, &lt;203°F</p><p></p><p>Notice: All support system degradation direct utilizing AOP while continuing EXCEPT VCS fans</p>
7
New cards

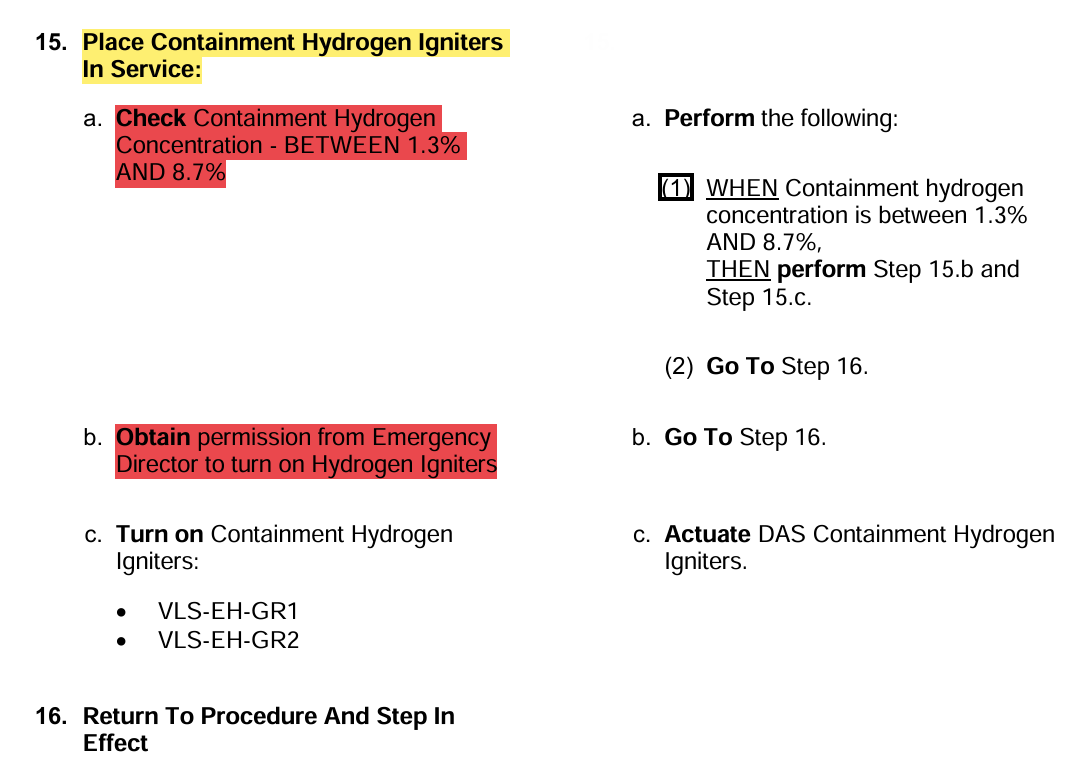

Requirements to actuate H2 Igniters

(Step 15)

knowt flashcard image
