lab images models

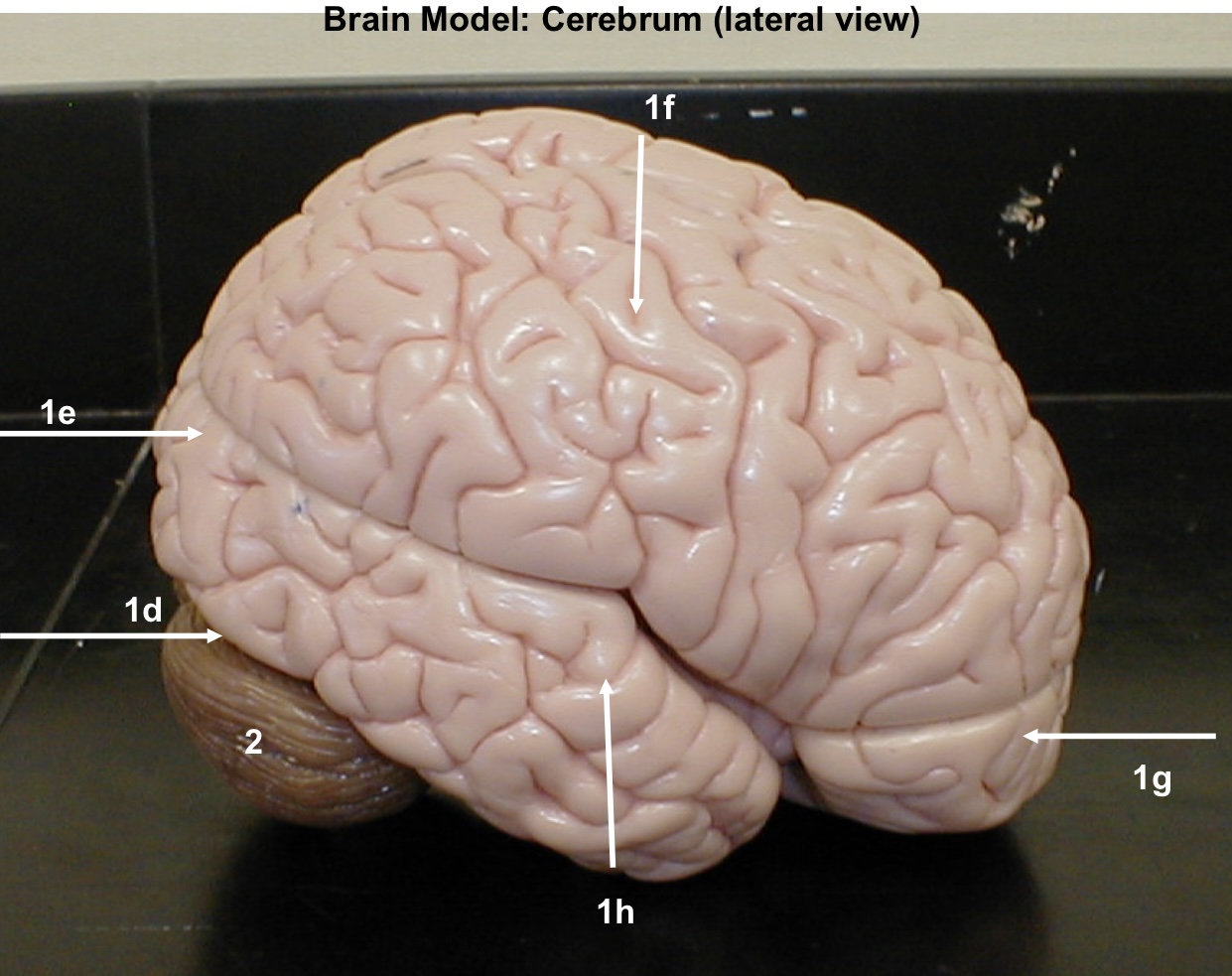

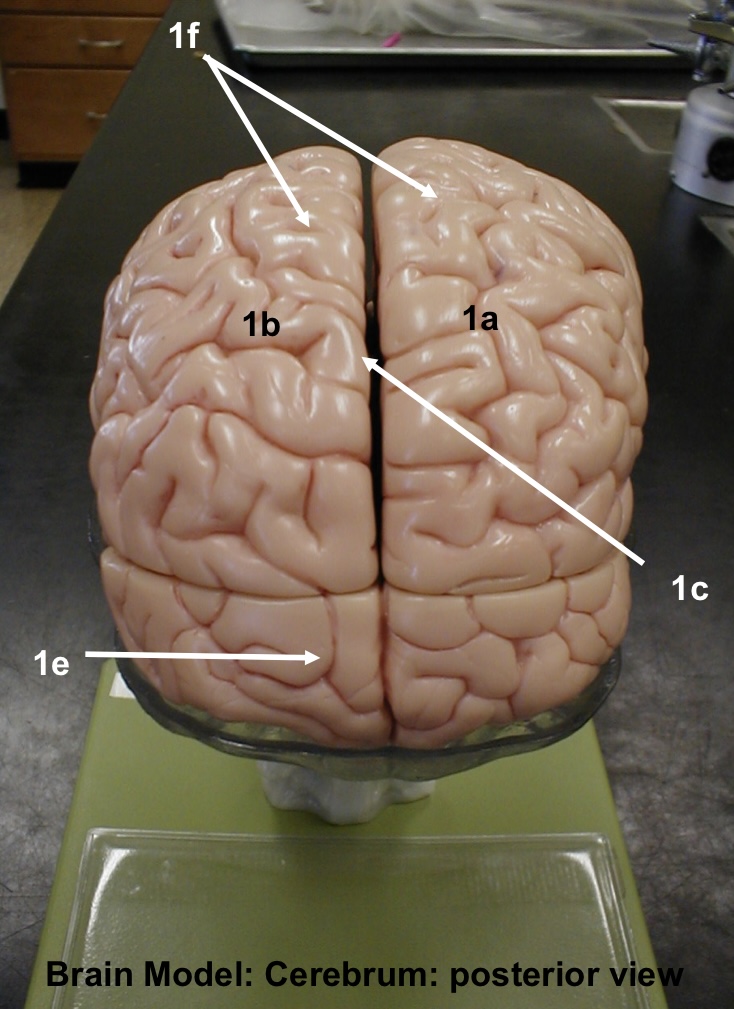

1f

Parietal lobe

1a

Left cerebral hemisphere

1b

Right cerebral hemisphere

1g

Occipital lobe

1c

Longitudinal fissure

1f

Parietal lobe

1e

Occipital lobe

1d

Transverse fissure

2

Cerebellum

1h

Temporal lobe

1g

Frontal lobe

1i

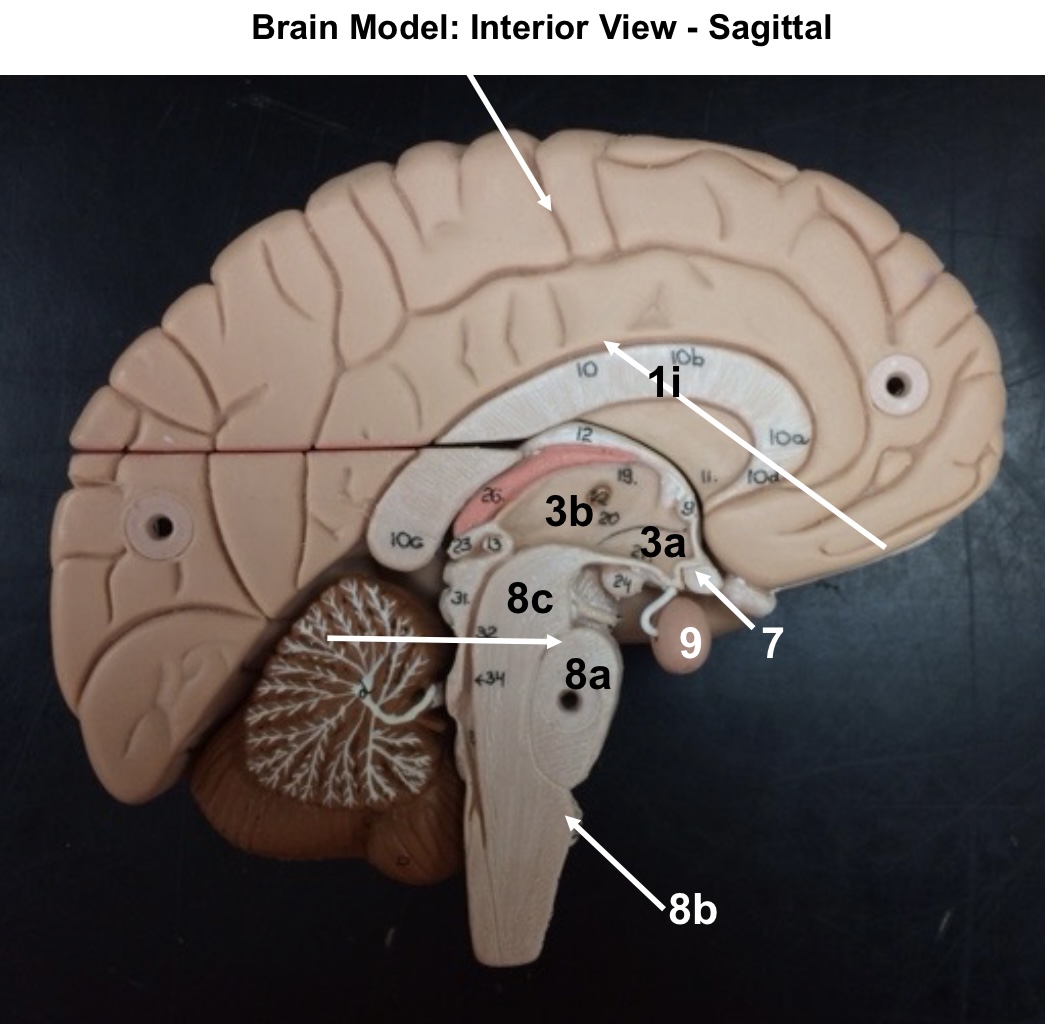

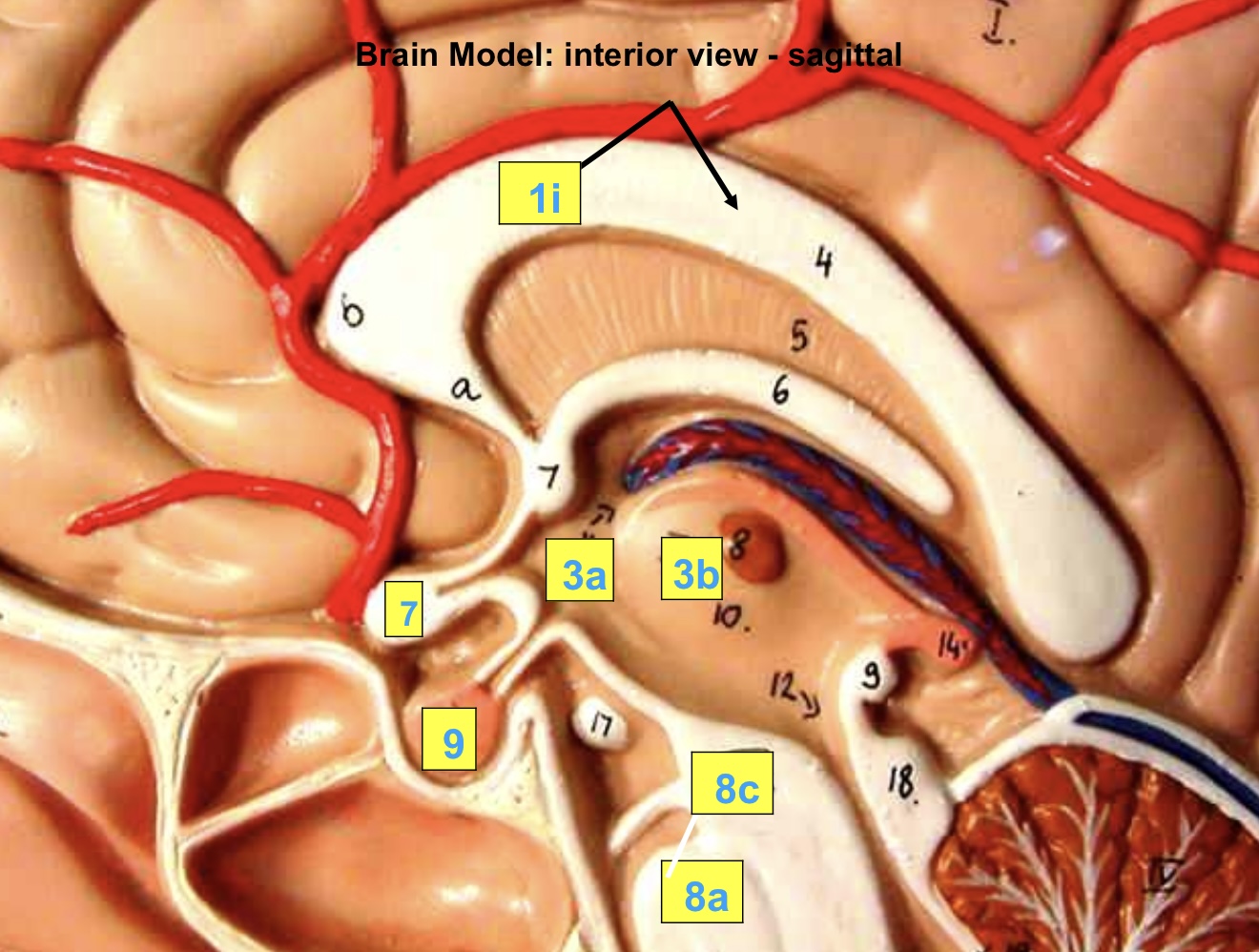

Corpus callosum

3a

Hypothalamus

3b

Thalamus

7

Optic chiasma

9

Pituitary gland

8a

Pons

8b

Medulla oblongata

8c

Midbrain

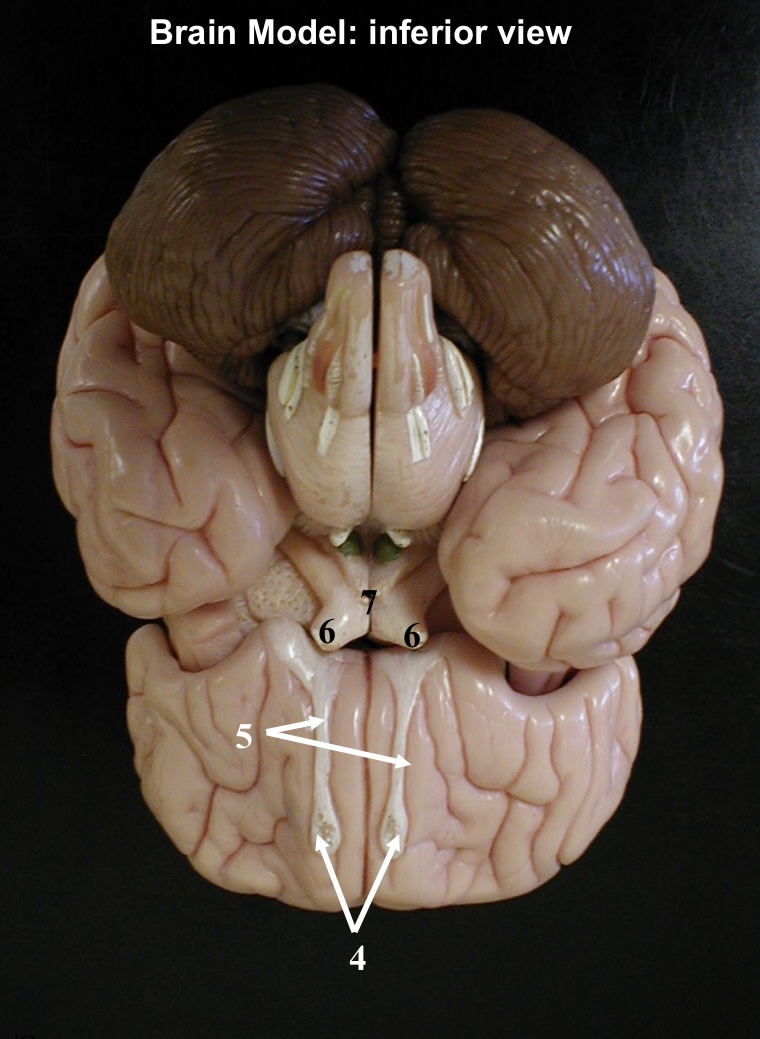

6

Optic nerves

7

Optic chiasma

5

Olfactory tracts

4

Olfactory bulbs

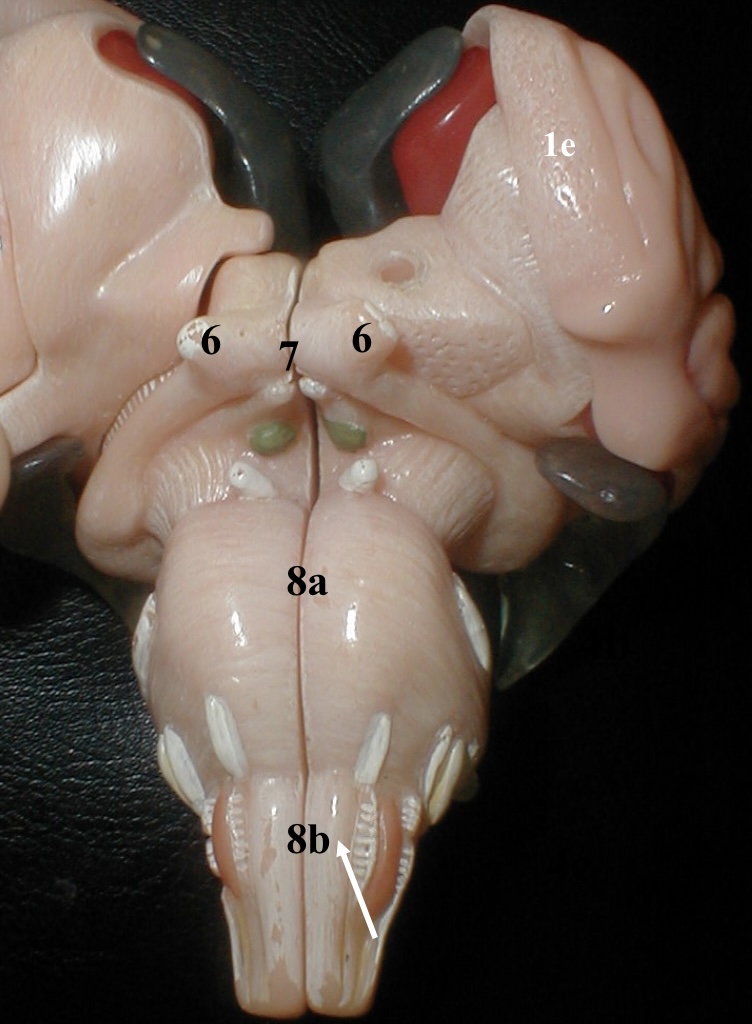

1e

Occipital lobe

6

Optic nerves

7

Optic chiasma

8a

Pons

8b

Medulla oblongata

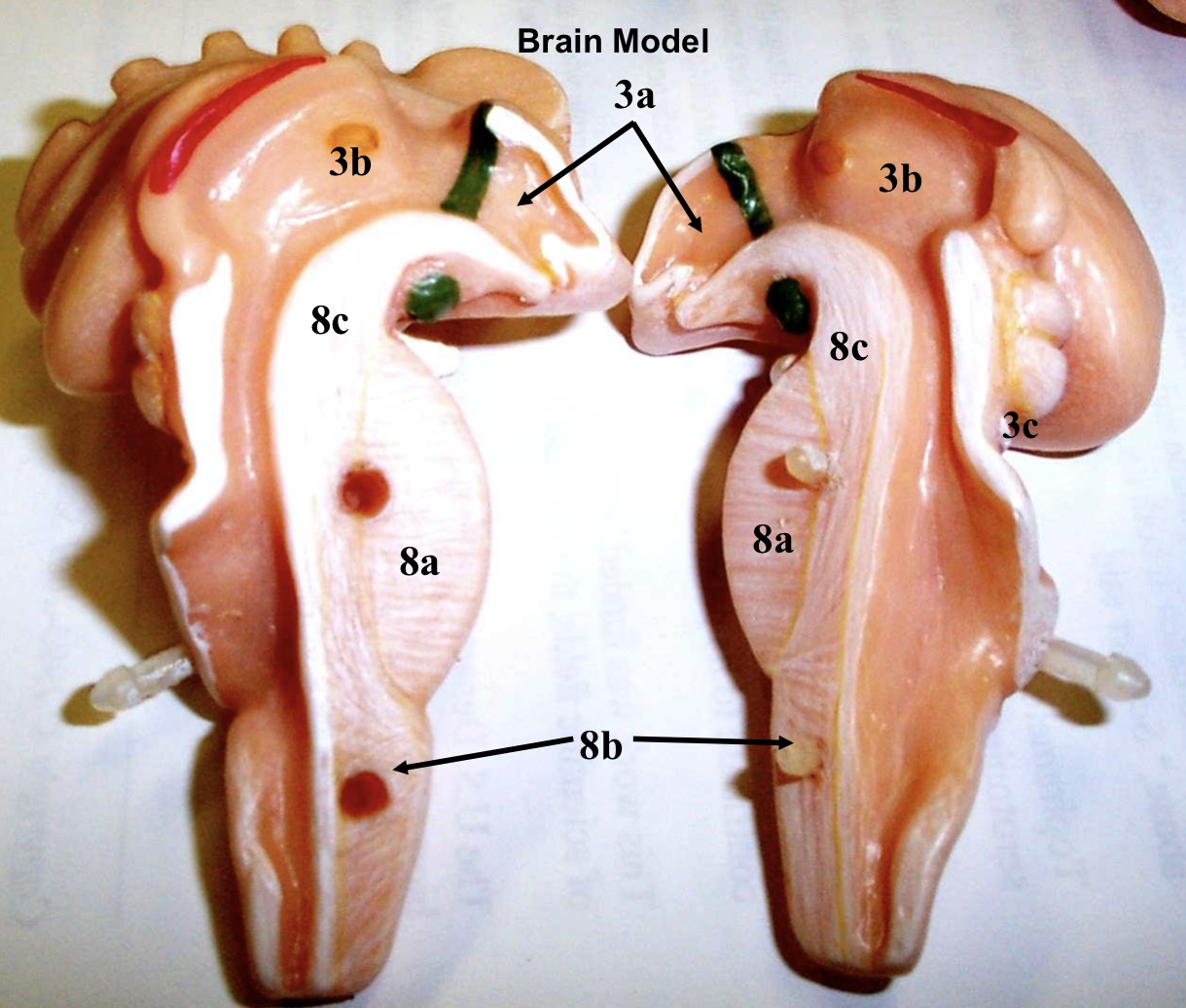

3a

Hypothalamus

3b

Thalamus

8c

Midbrain

8a

Pons

8b

Medulla oblongata

3c

Epithalamus (pineal gland)

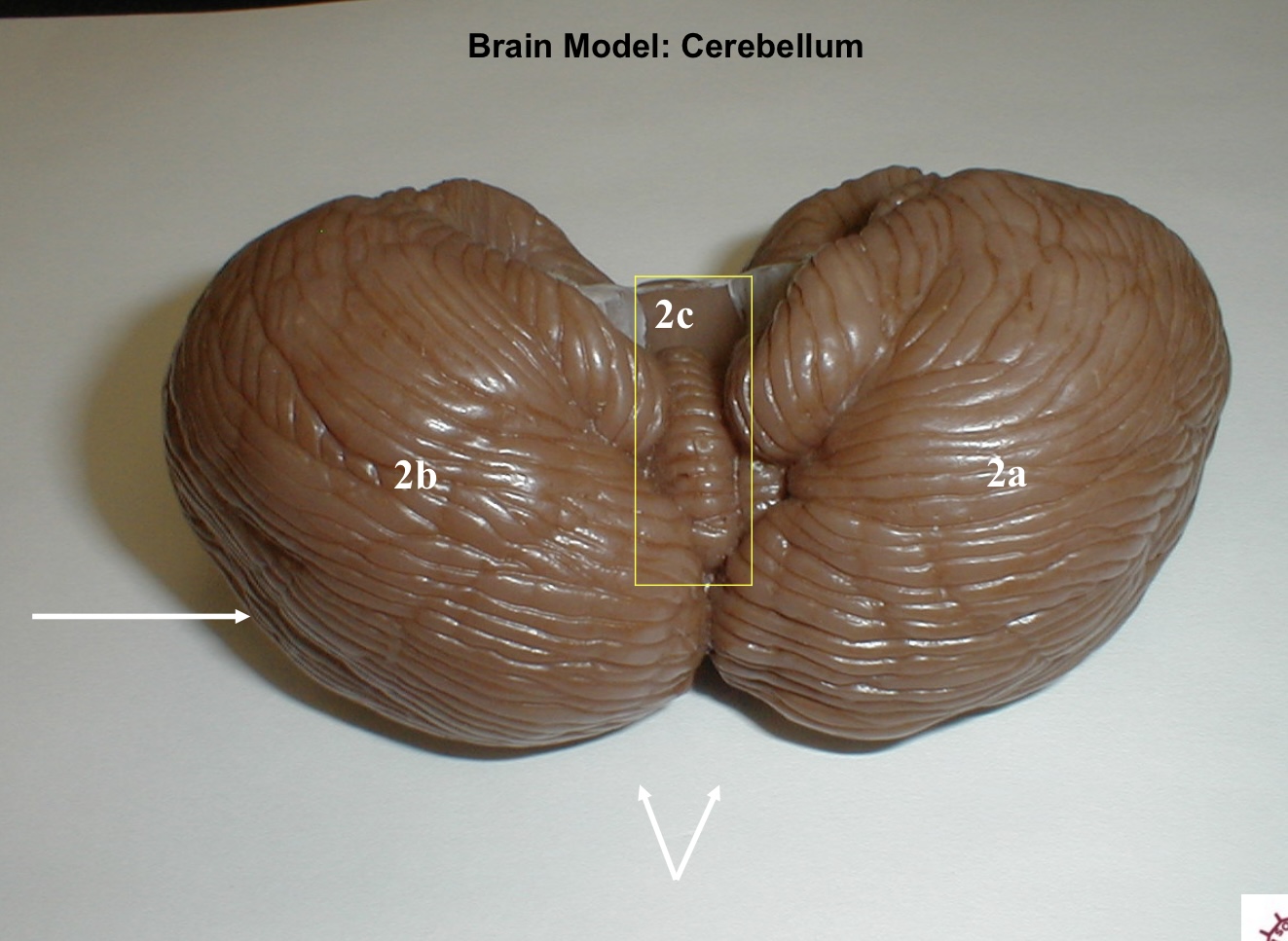

2a

Right cerebellar hemisphere

2b

Left cerebellar hemisphere

2c

Vermis

1i

Corpus callosum

3a

Hypothalamus

3b

Thalamus

7

Optic chiasma

9

Pituitary gland

8a

Pons

8C

Midbrain

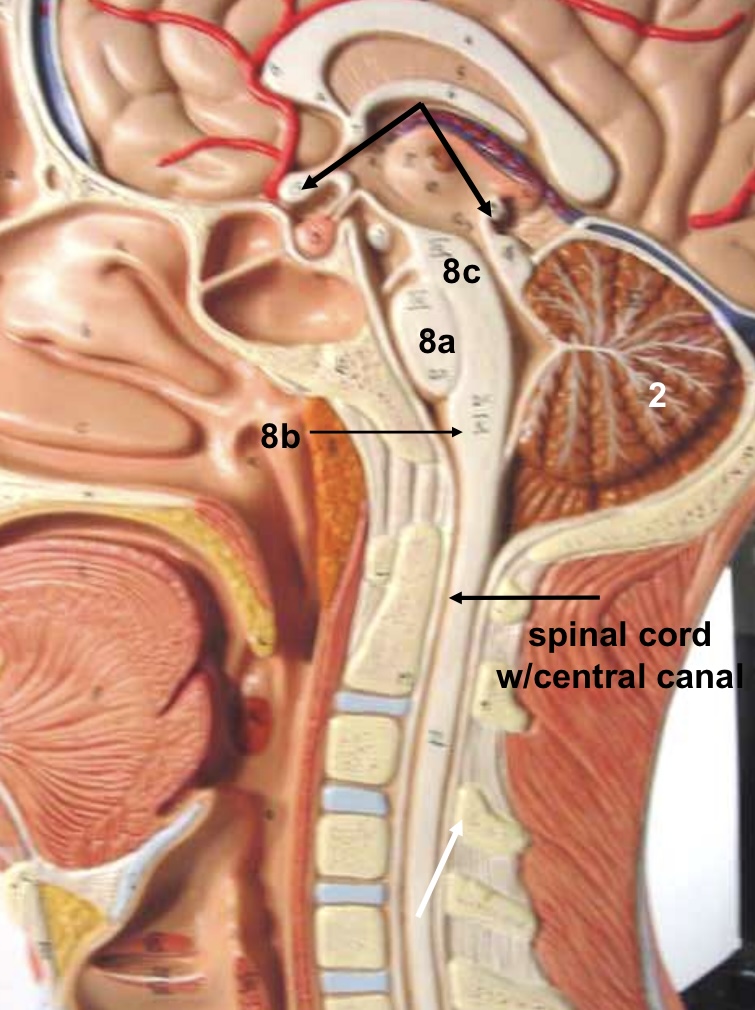

2

Cerebellum

8c

Midbrain

8a

Pons

8b

Medulla oblongata

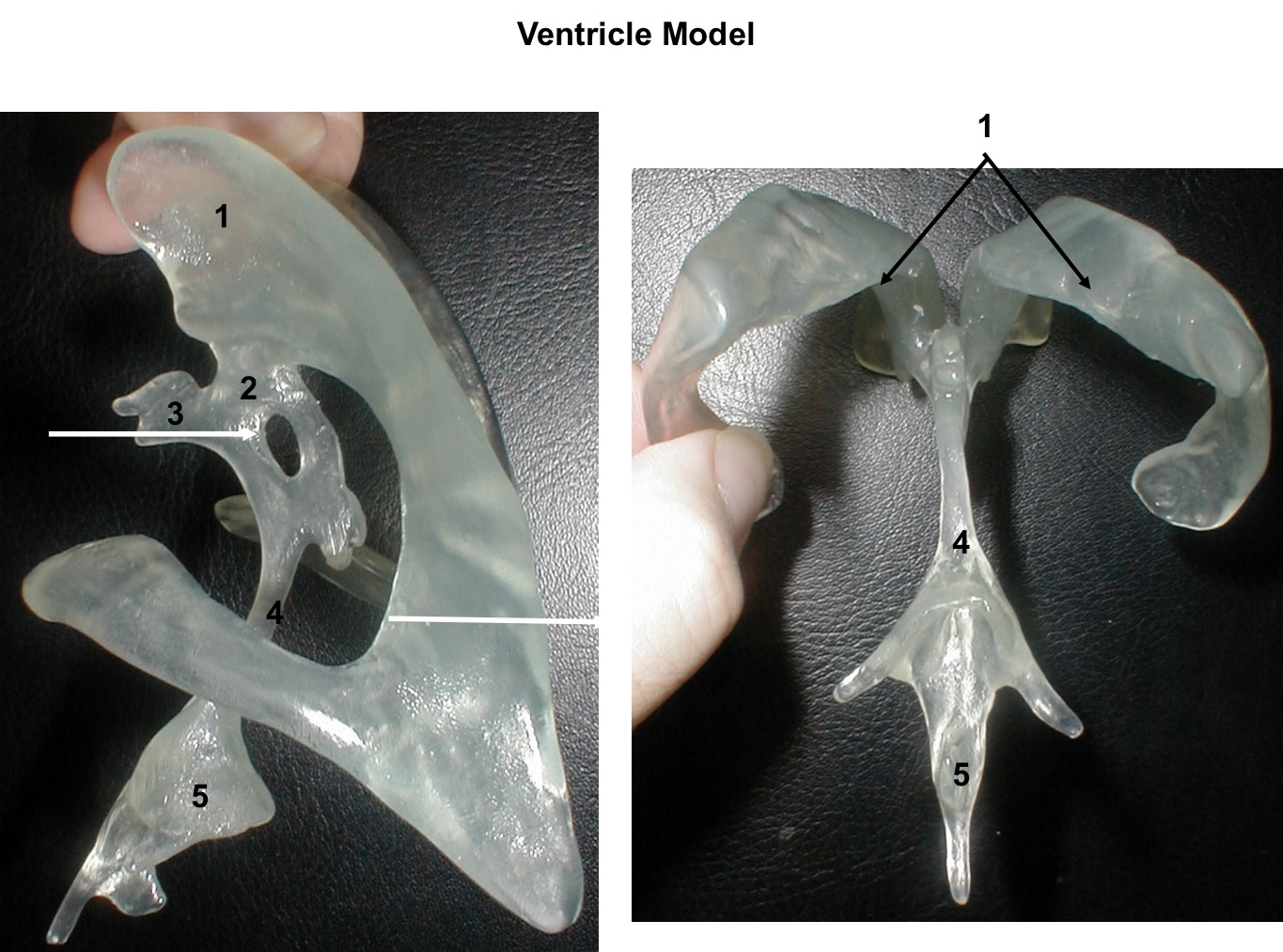

1

Lateral ventricles

2

Interventricular foramen

3

Third ventricle

4

Cerebral aqueduct

5

fourth ventricle

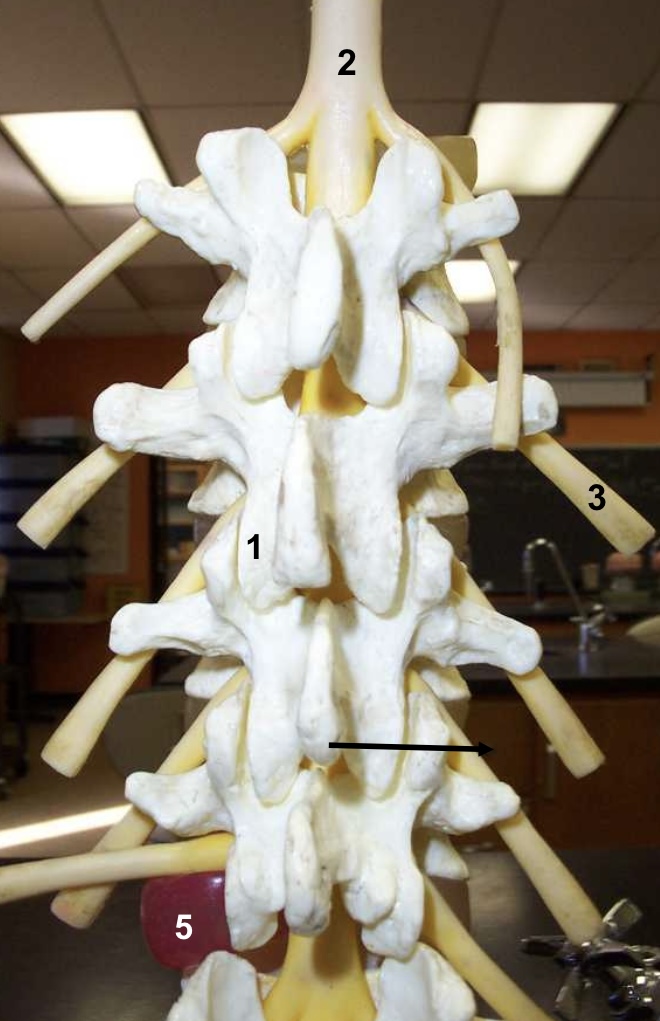

1

Lumbar vertebra

2

Spinal cord

3

Spinal nerve

5

Herniated disc

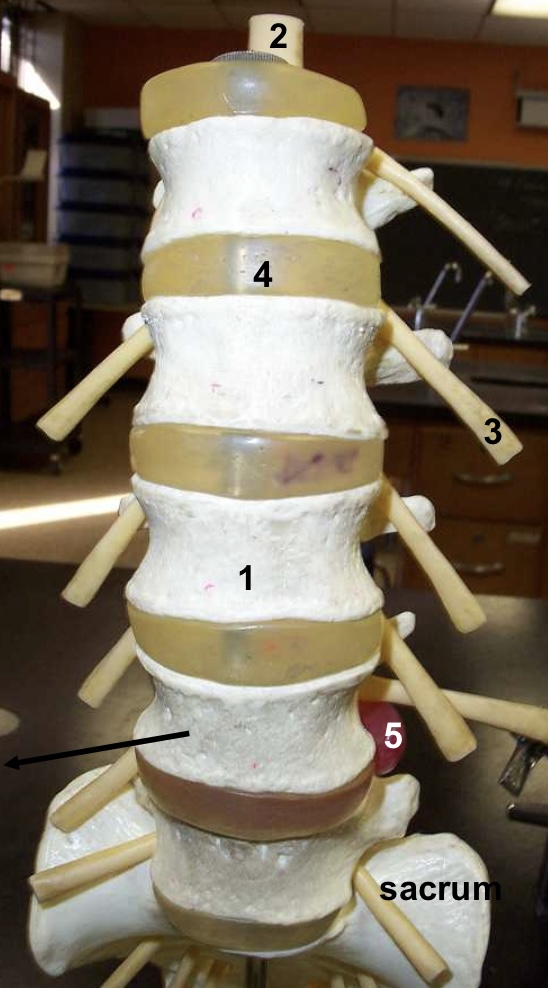

1

Lumbar vertebra

2

Spinal cord

3

Spinal nerve

4

Intervertebral discs

5

Herniated disc

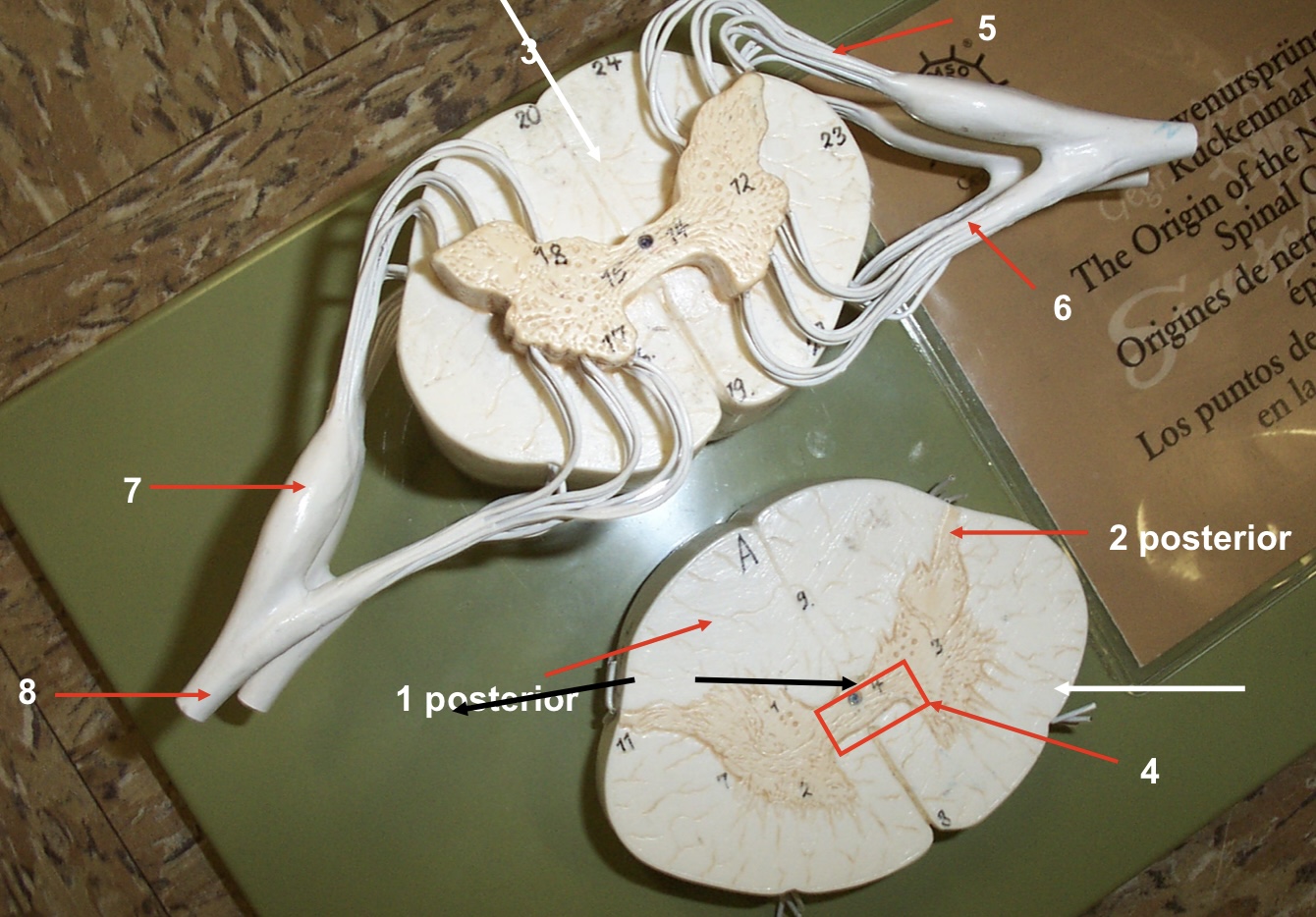

3

Central canal

7

Dorsal root ganglion

8

Spinal nerve

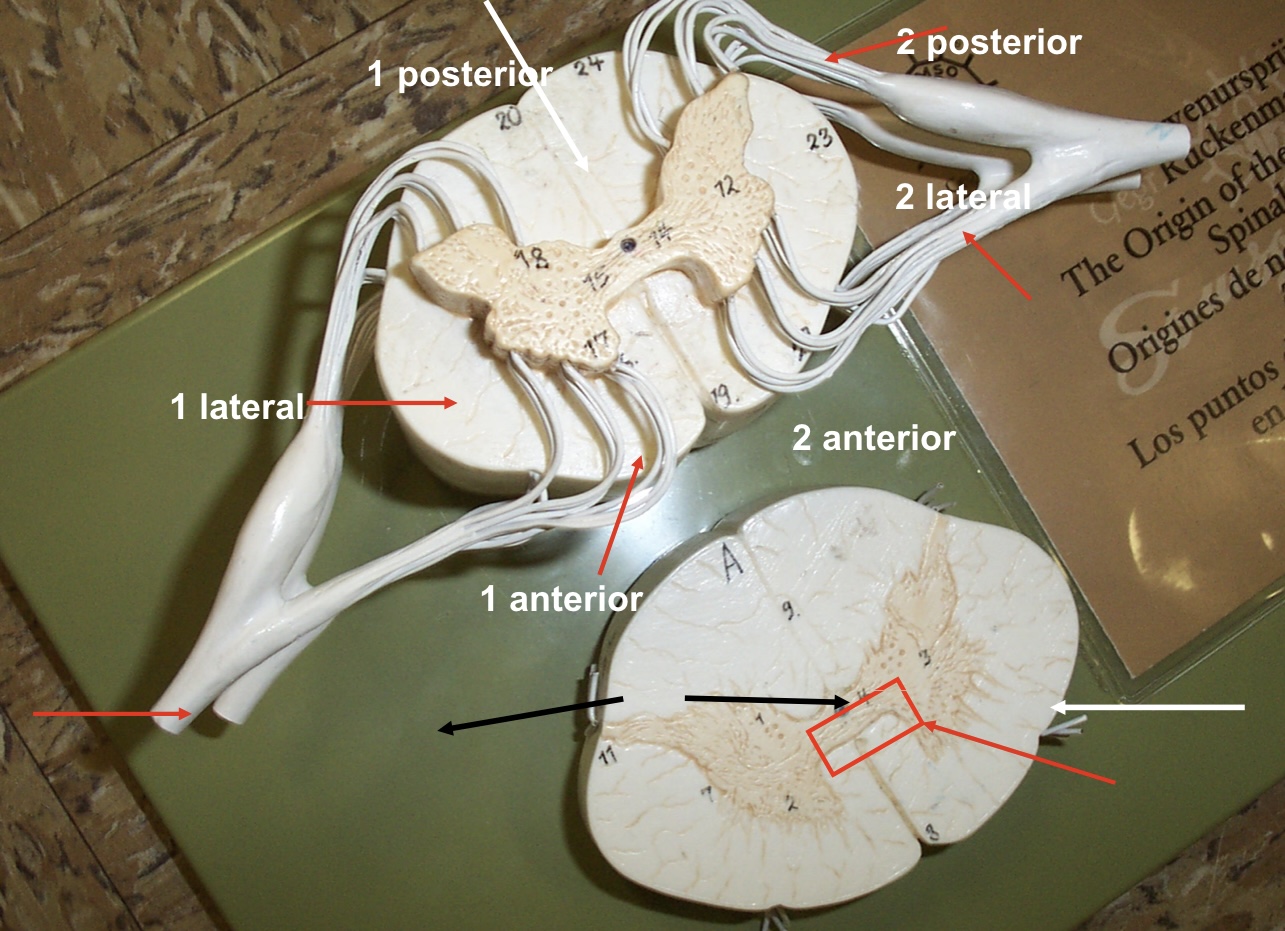

1 posterior

White matter/columns

4

Gray commissure

2 posterior

Gray matter horns

6

Ventral/motor root of spinal cord

5

Dorsal (sensory) root of spinal cord

1 posterior

White matter/columns

1 lateral

White matter/columns

1 anterior

White matter/columns

2 anterior

Gray matter/horns

2 lateral

Gray matter/horns

2 posterior

Gray matter/horns

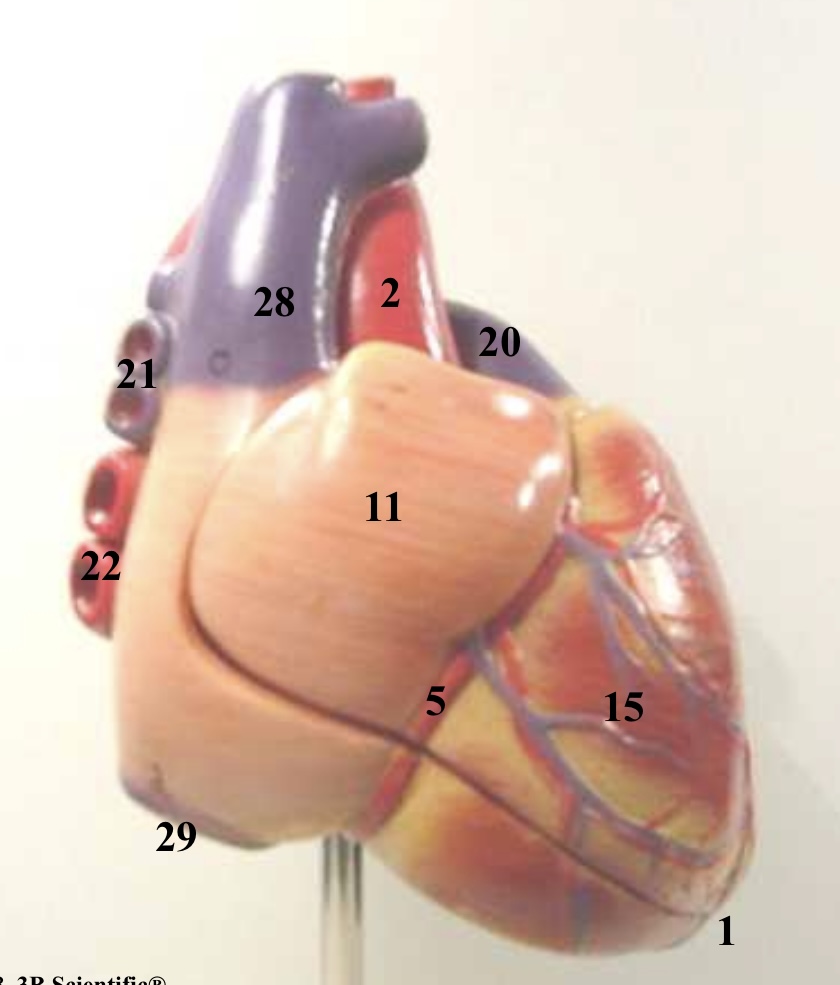

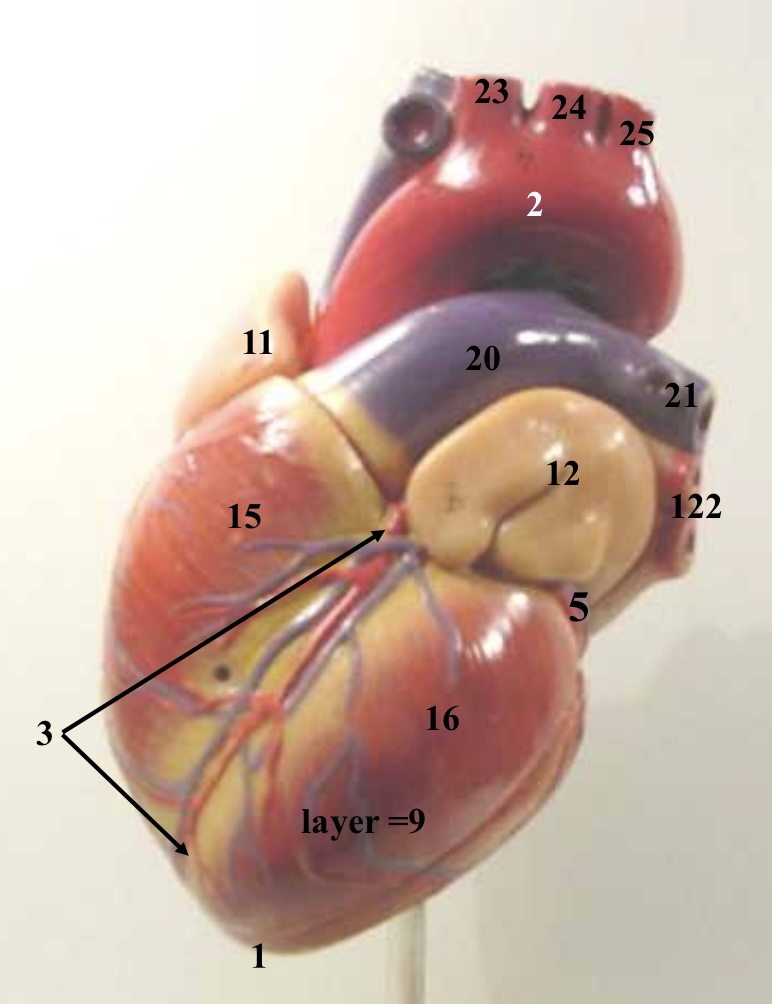

2

Aorta

28

Superior vena cava

21

Pulmonary arteries

22

Pulmonary veins

29

Inferior vena cava

5

Atrioventricular groove

1

Apex

15

Right ventricle

11

Right atrium

20

Pulmonary tract
