CCE Anatomy

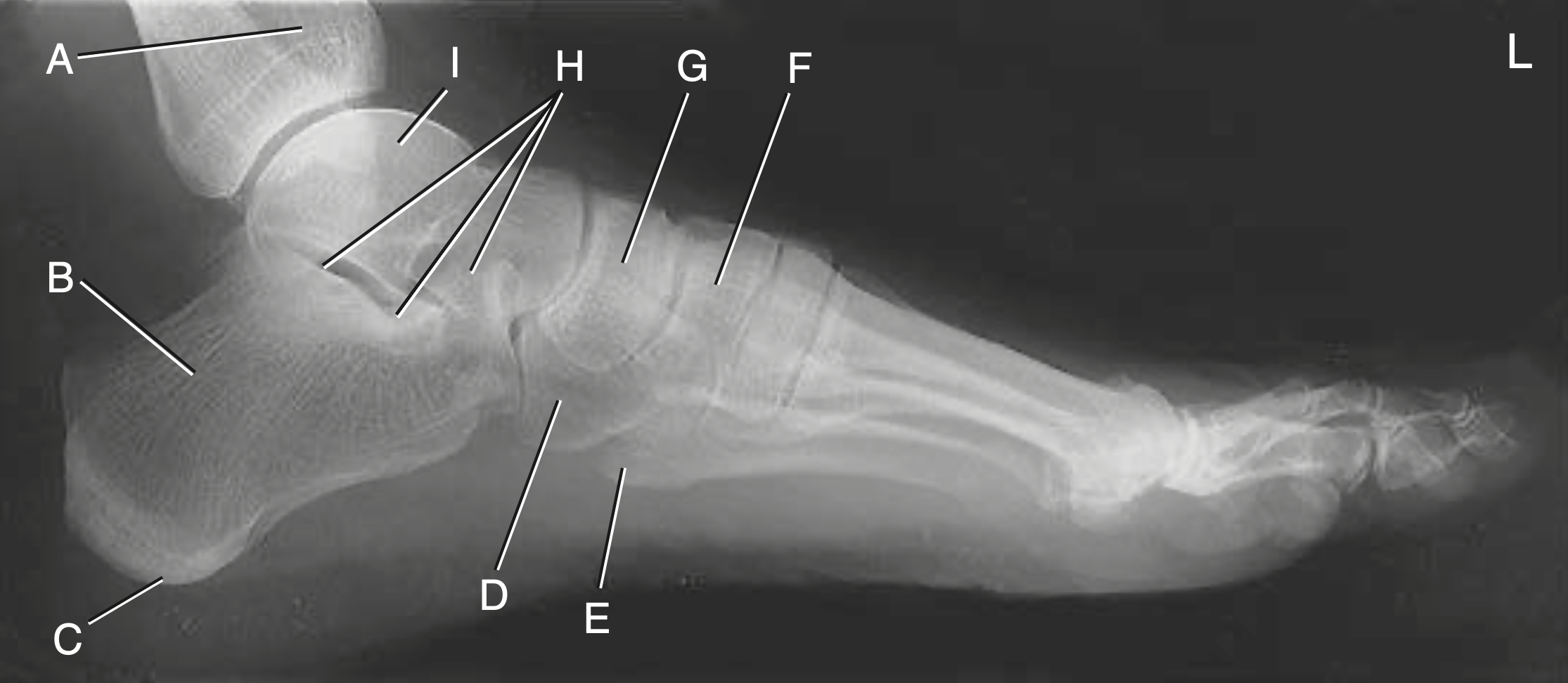

A

tibia

B

calcaneus

C

tuberosity of calcaneus

D

cuboid

E

fifth metatarsal tuberosity

F

superimposed cuneiforms

G

NAVICULAR

H

subtalar joint

I

talus

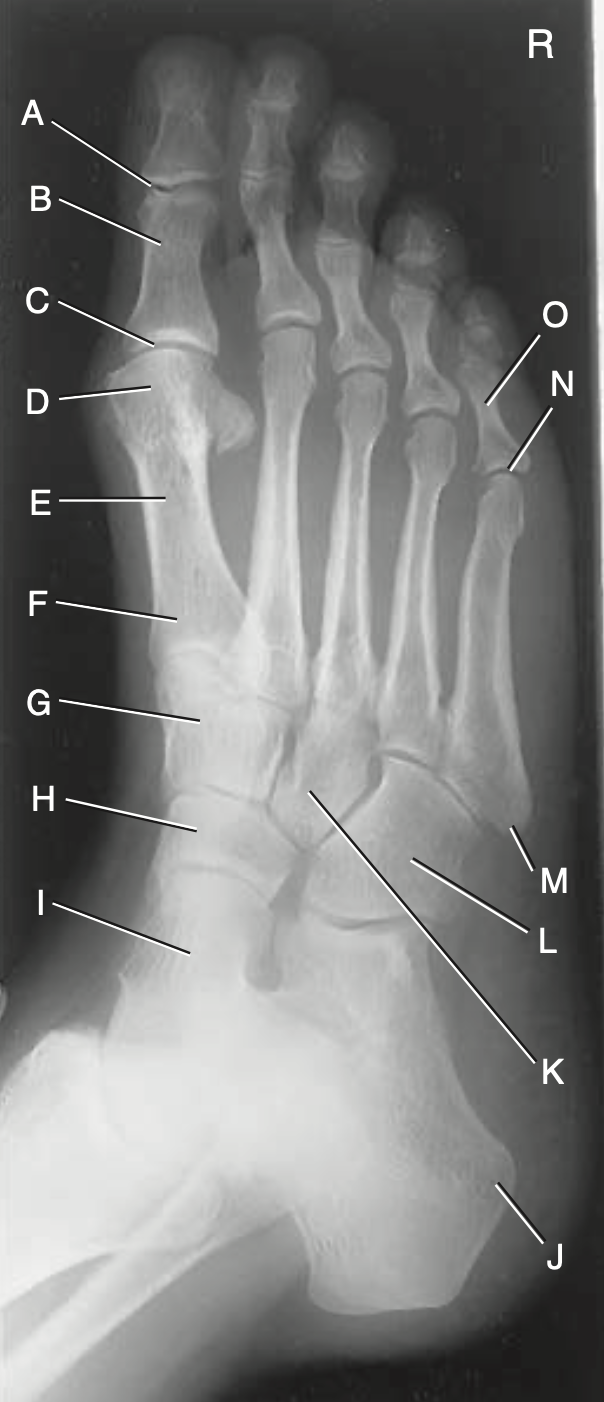

A

interphalangeal joint of first digit

B

proximal phalanx of first digit

C

metatarsophalangeal joint of first digit

D

head of first metatarsal

E

body of first metatarsal

F

base of first metatarsal

G

second or intermediate cuneiform

H

navicular

I

talus

J

tuberosity of calcaneus

K

third or lateral cuneiform

L

cuboid

M

tuberosity of base of fifth metatarsal

N

fifth metatarsophalangeal joint

O

proximal phalanx of fifth digit

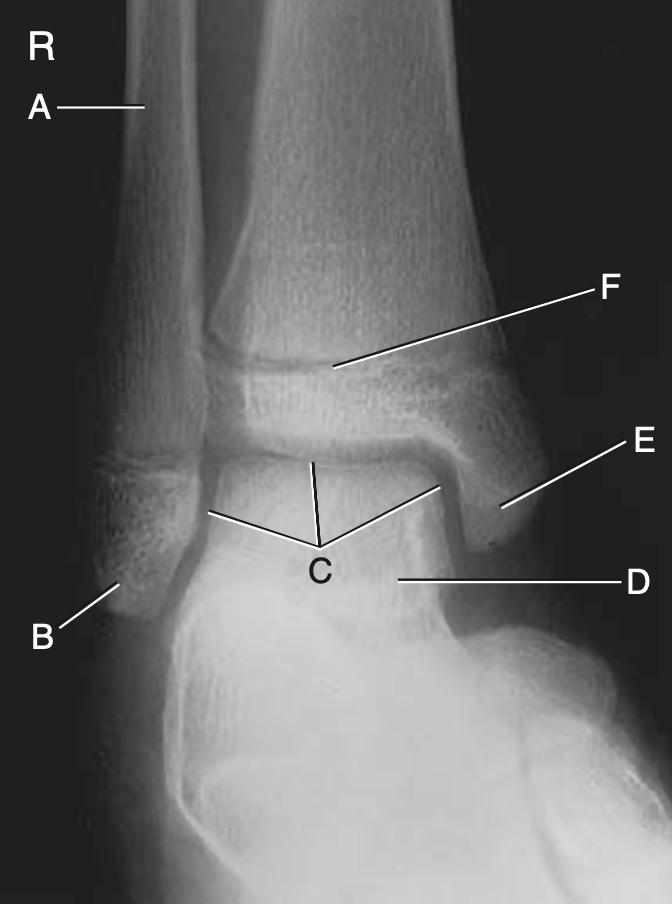

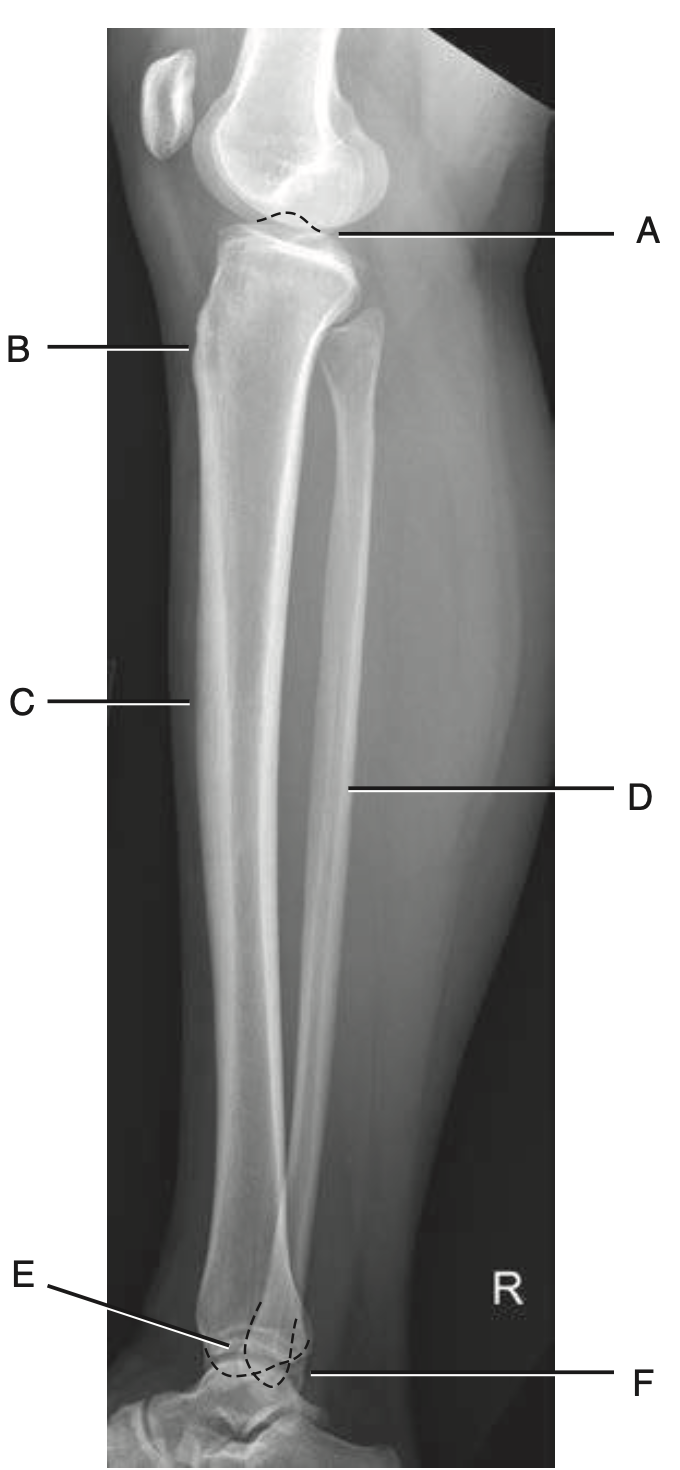

A

fibula

B

lateral malleolus

C

open mortise joint of ankle

D

talus

E

medial malleolus

F

tibial epiphyseal plate (epiphyseal fusion site)

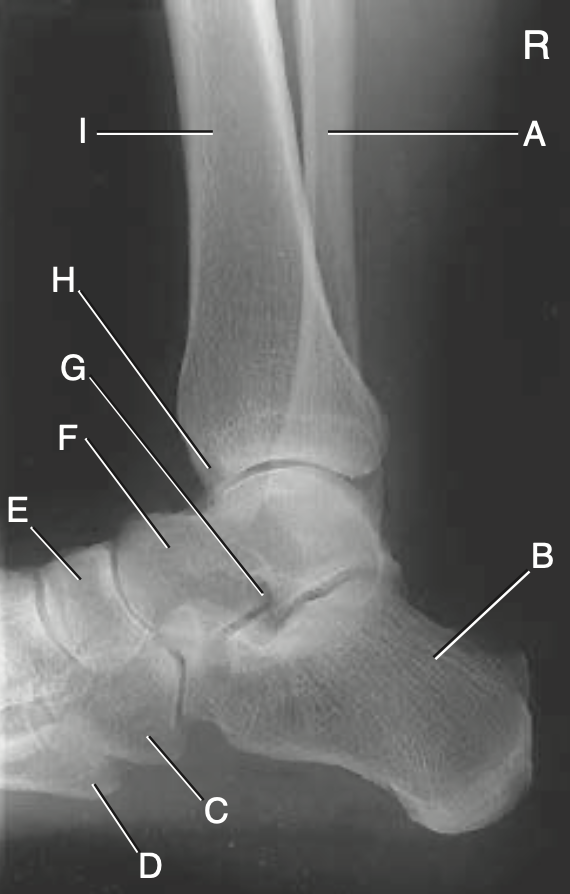

A

fibula

B

calcaneus

C

cuboid

D

tuberosity at base of fifth metatarsal

E

navicular

F

talus

G

sinus tarsi

H

anterior tubercle

I

tibia

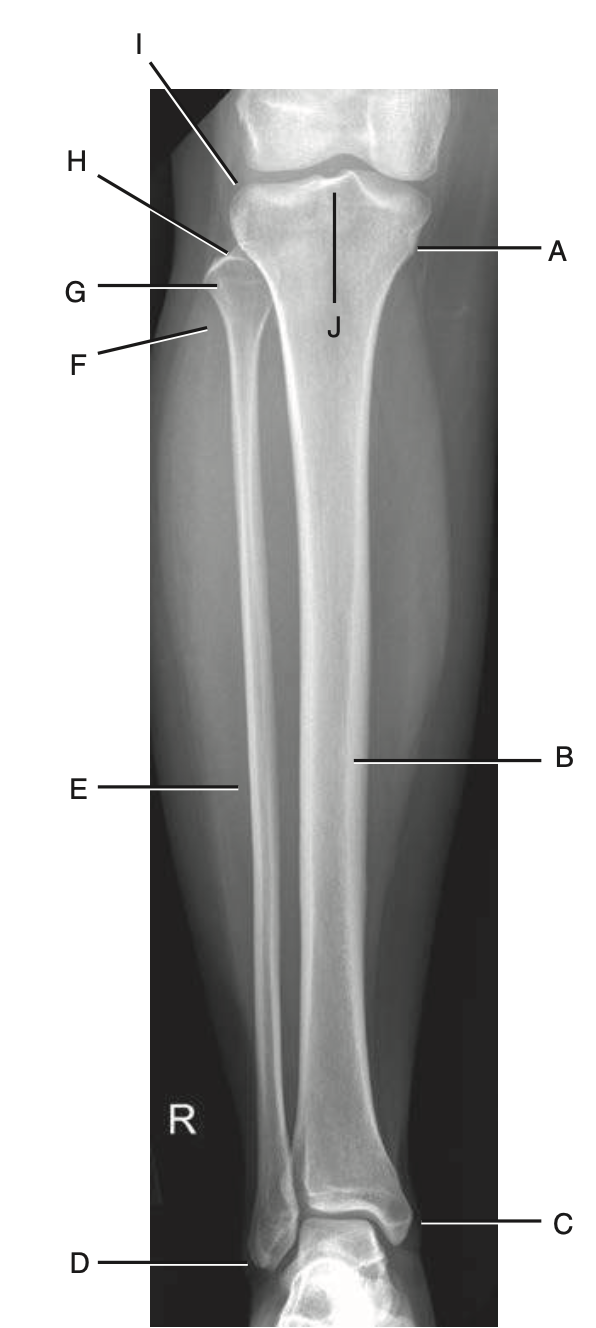

A

medial condyle of tibia

B

body/shaft of tibia

C

medial malleolus

D

lateral malleolus

E

body/shaft of fibula

F

neck of fibula

G

head of fibula

H

apex (styloid process) of head of fibula

I

lateral condyle of tibia

J

intercondylar eminence (tibial spine)

A

intercondylar eminence (tibial spine)

B

tibial tuberosity

C

body/shaft of tibia

D

body/shaft of tibula

E

medial malleolus

F

lateral malleolus

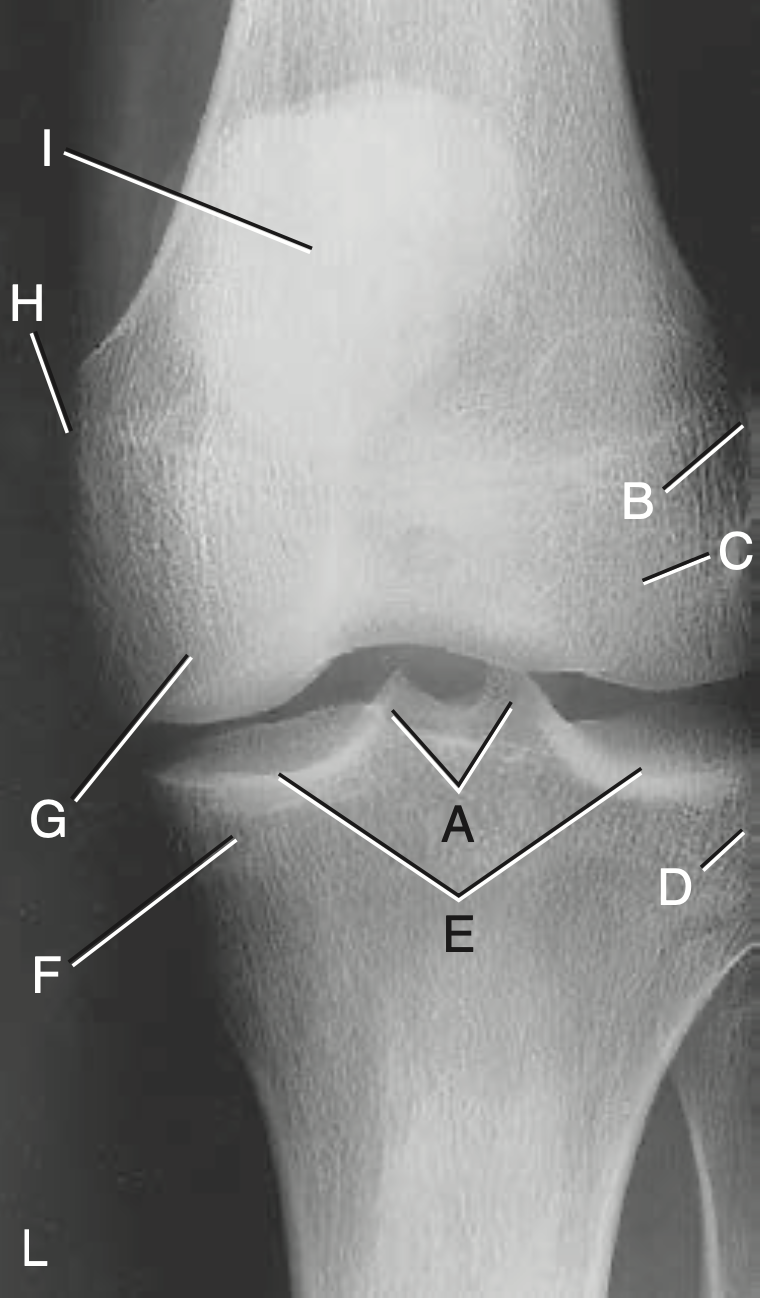

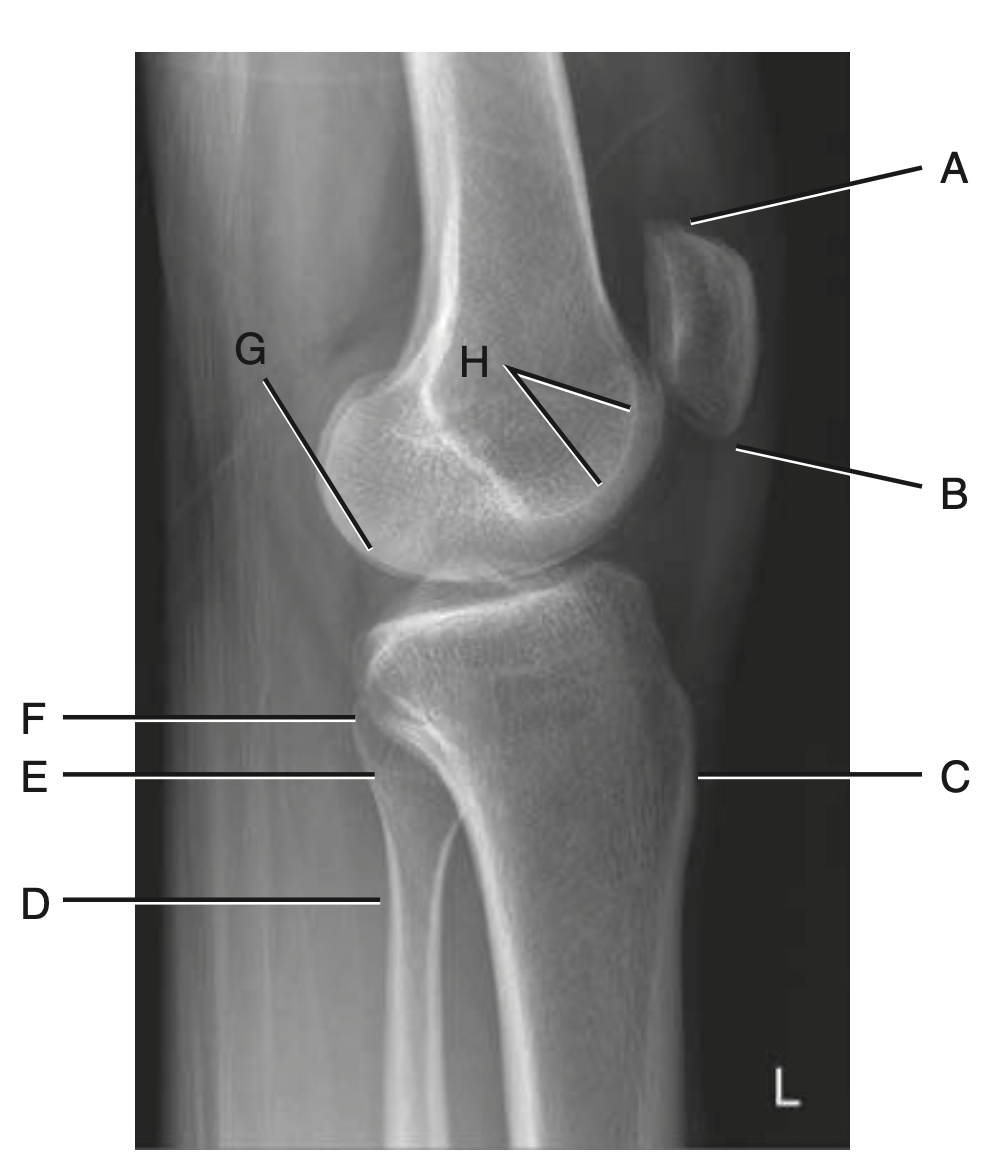

A

medial and lateral intercondylar tubercles; extensions of intercondylar eminence (tibial spine)

B

lateral epicondyle of femur

C

lateral condyle of femur

D

lateral condyle of tibia

E

articular facets of tibia (tibial plateau)

F

medial condyle of tibia

G

medial condyle of femur

H

medial epicondyle of femur

I

patella

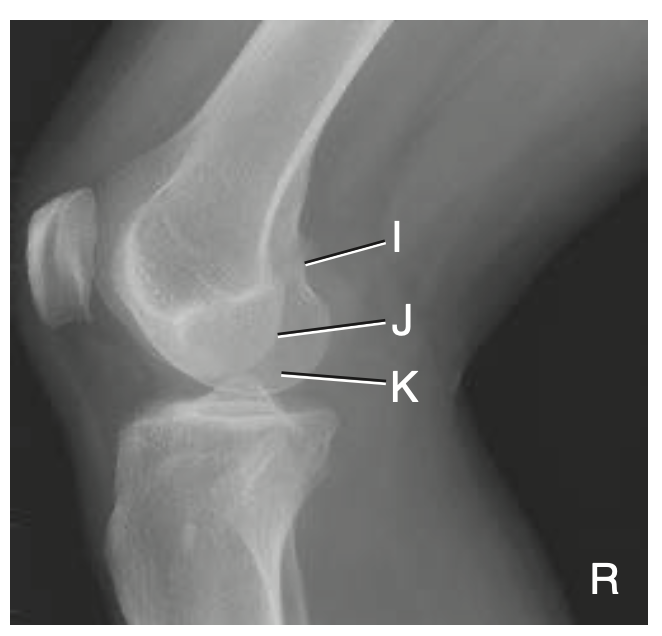

A

base of patella

B

apex of patella

C

tibial tuberosity

D

neck of fibula

E

head of fibula

F

apex (styloid process) of head of fibula

G

superimposed medial and lateral condyles

H

patellar surface (intercondylar sulcus or trochlear groove)

knee over or under rotated?

under

I

adductor tubercle

J

lateral condyle

K

medial condyle

view?

tangential; sunrise

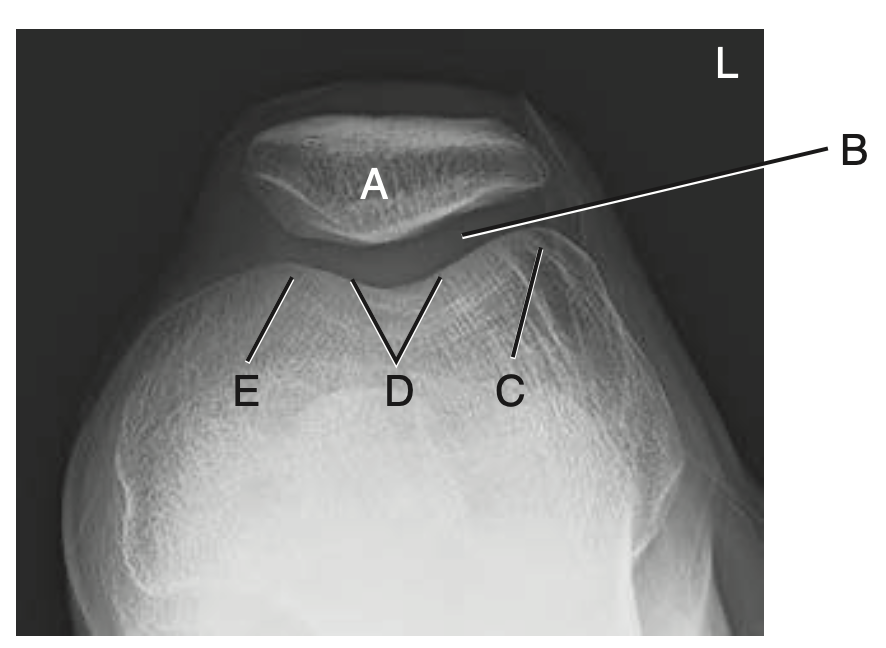

A

patella

B

patellolfemoral joint

C

lateral condyle

D

patellar surface (intercondylar sulcus, trochlear groove,

E

medial condyle

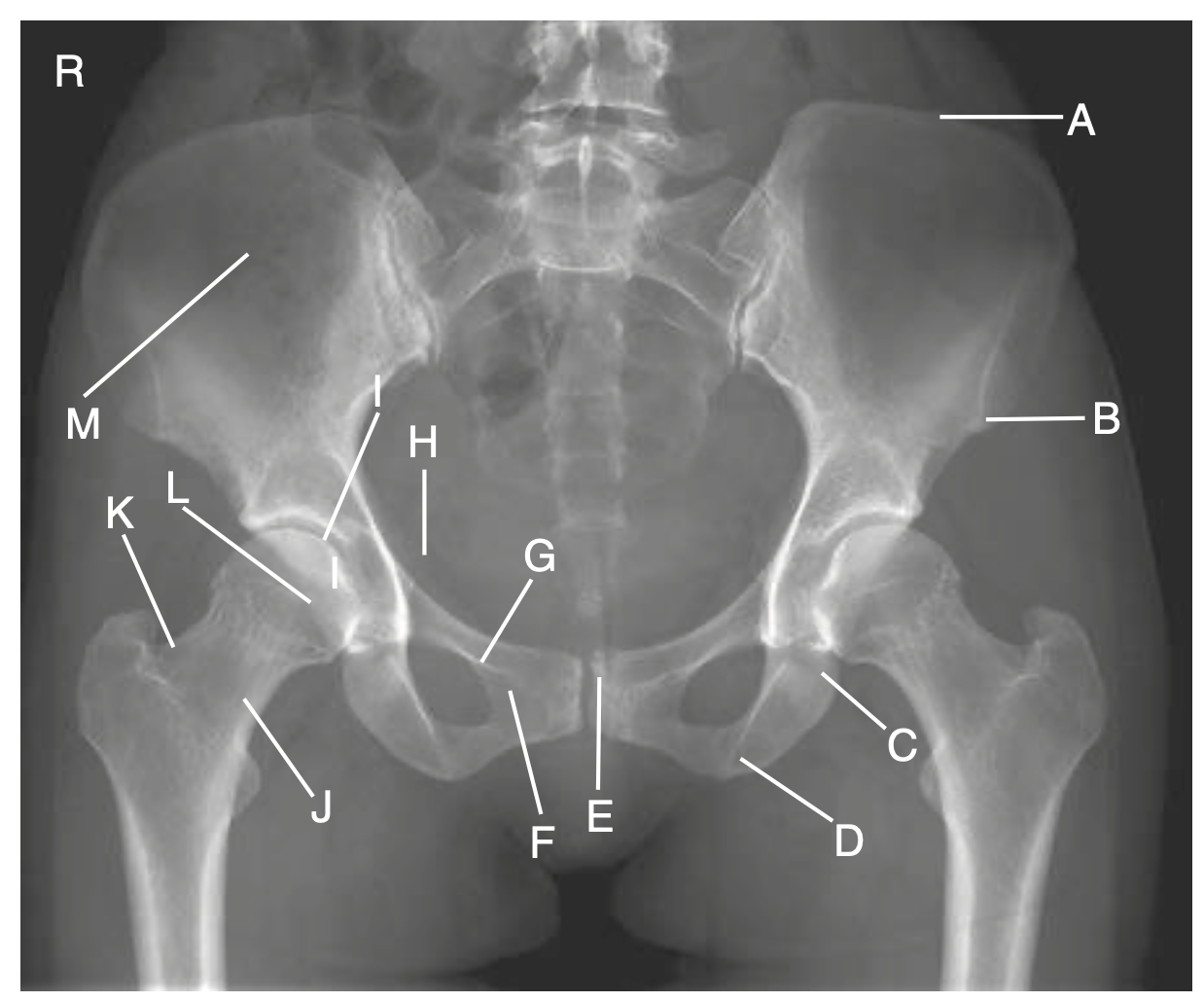

A

iliac crest

B

ASIS

C

body of left ischium

D

ischial tuberosity

E

pubic symphysis

G

superior ramus of right pubis

H

ischial spine

I

acetabulum

J

neck of femur

K

greater trochante

L

head of femur

M

ala, or wing of ilium

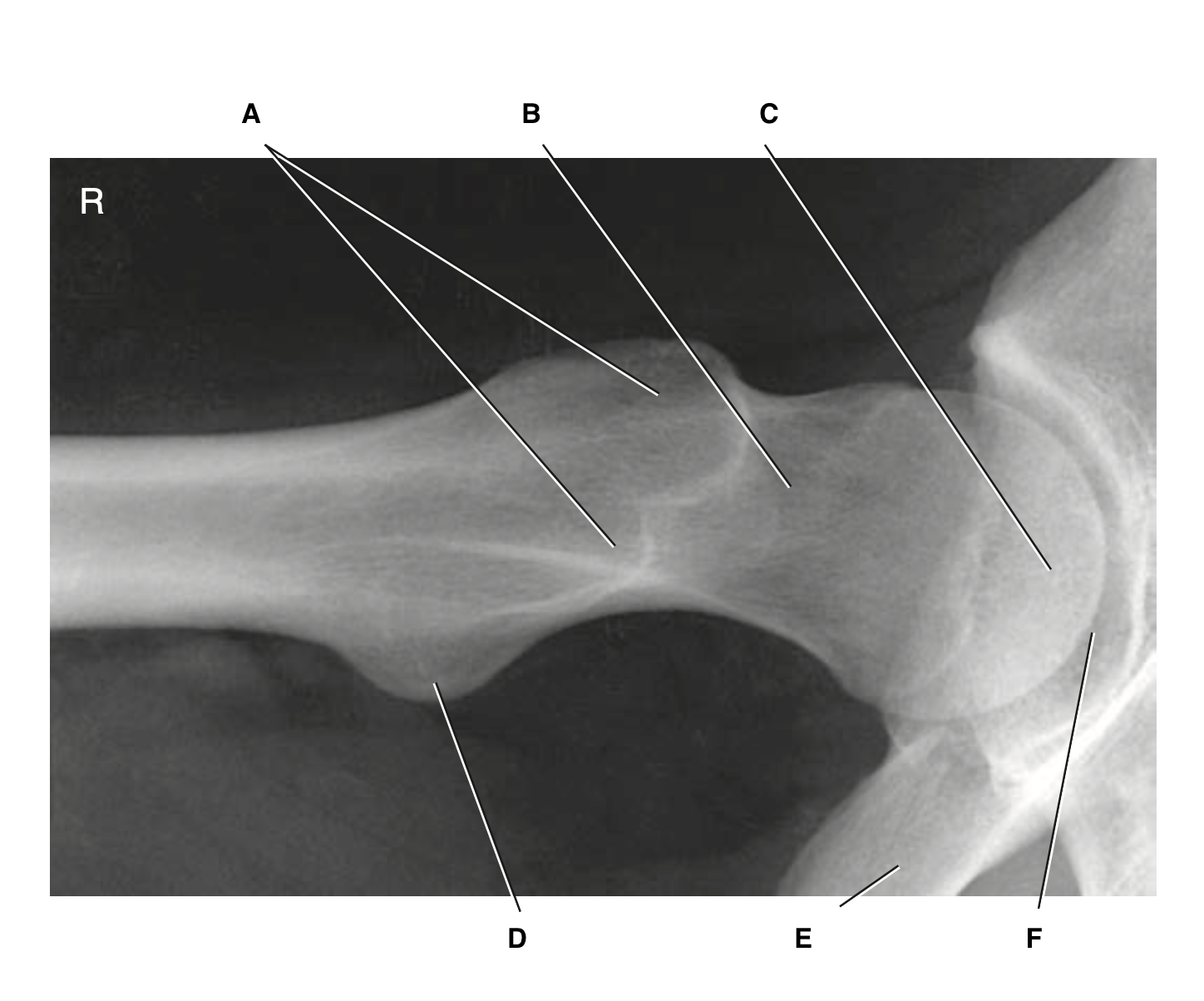

A

greater trochanter

B

femoral neck

C

femoral head

D

lesser trochanter

E

ischial tuberosity

F

acetabulum
