36 Terms

1
New cards

0 degrees

flow in the direction of sound travel

2
New cards

Detected flow is always

< actual flow (Cos corrects for angle in the velocity calculation)

3
New cards

Greater angle

Smaller component parallel to the beam

4
New cards

Pulsed Wave Doppler uses

1 element that alternates between transmit and receive (1 aperture for arrays)

5
New cards

PW Doppler system

sampling system

6
New cards

Range gate (user operated)

can set a depth of interest based on time

7
New cards

PW Doppler signal is sampled at

discrete times (sample rate = PRF)

8
New cards

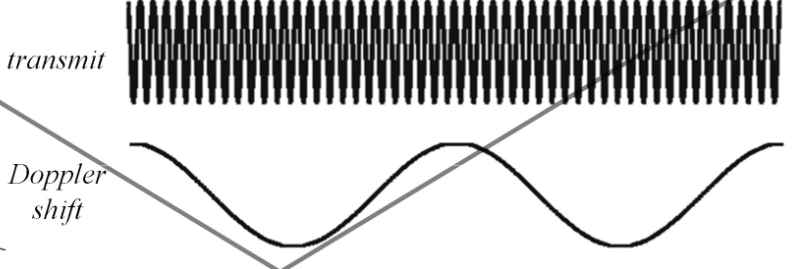

term image

cw

9
New cards

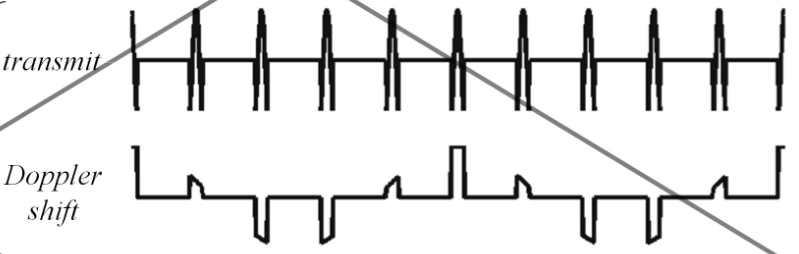

term image

pw

10
New cards

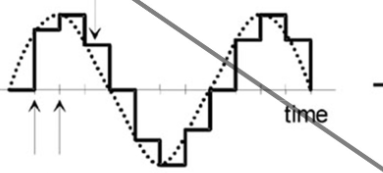

term image

pw hold period using individual samples

11
New cards

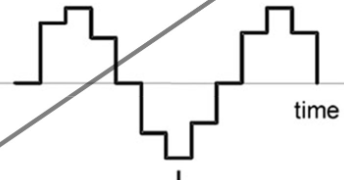

term image

pw output from the sample and hold

12
New cards

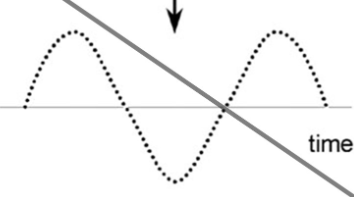

term image

pw after low pass filter

13
New cards

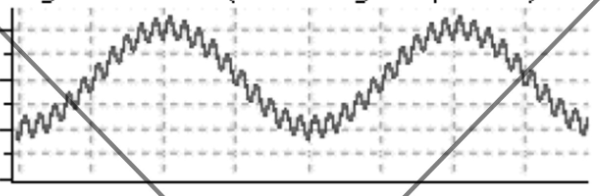

term image

original waveform (low and high freq)

14
New cards

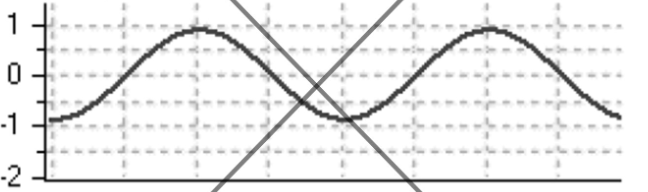

term image

low pass filter waveform

15
New cards

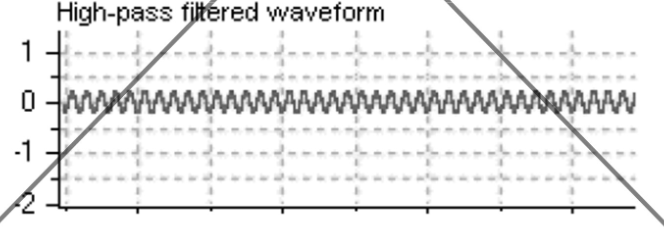

term image

high pass filter waveform

16
New cards

Sampling Rate of a Pulsed Doppler System is the

PRF

17
New cards

Max Frequency that can be Accurately Measured

sampling rate (PRF) / 2

18
New cards

PRF is controlled by

scale (user controlled)

19
New cards

Nyquist Limit

highest freq that can be measured without aliasing

20
New cards

Aliasing

freq greater than the Nyquist limit are misinterpreted as lower freq (signal wraps up and around)

21
New cards

above the nyquist limit at the true freq

no motion detected

22
New cards

minimum sample rate to avoid aliasing

2 samples / cycle

23
New cards

Nyquist Limit vs Nyquist Rate

limit is the max freq that can be represented and rate is the sampling rate required to
accurately represent the signal (2 x freq)

24
New cards

to dec aliasing

inc prf, inc doppler angle (dec Fd), dec freq (dec Fd), dec depth (allows you to inc the prf more) or adjust the baseline

25
New cards

inc prf

inc sample rate which will inc the Nyquist Limit

26
New cards

High PRF Mode allows the

PRF to exceed the limit by transmitting a pulse while echoes are still returning

27
New cards

High PRF Mode is used to

measure high velocities

28
New cards

High PRF Mode downside

Doppler Range Ambiguity (artifact)

29
New cards

Doppler Range Ambiguity (artifact)

Multiple range gates operate at different depths and the machine cant distinguish early echoes from the most recent pulse

30
New cards

cw vs pw

cw has 2 elements, no range resolution and unlimited freq response (no aliasing) while PW has 1 element, range resolution and limited freq response

31
New cards

pulsing can miss things is it doesnt

sample fast enough

32
New cards

quadrature detector

demodulator specific for direction of flow by comparing the transmitted and received signals

33
New cards

reconstruction of sampled signals

connects the spaces between samples to reconstruct the signal

34
New cards

low pass filter

smooths things out by removing big steps

35
New cards

the quadrature detector

shifts the waveform by 90deg (1/4 cycle) and the time difference tells whether the signal is towards or away (+/-)

36
New cards

the quadrature detector has

2 channels (standard demodulator has 1)
