15 Terms

1
New cards

Electrical source

anything that supplies current (ex. Electrical socket or battery)

2
New cards

Load

any device that uses current (ex. Light bulb or computer)

3
New cards

Switch

opens and closes a circuit.

4
New cards

Closed Circuit

a complete path for the flow of electric current.

5
New cards

Open Circuit

an incomplete path for the flow of electric current

6
New cards

Conductors

A material that lets electric current pass through it.

7
New cards

Insulators

A material that blocks the flow of electric current.

8
New cards

Electrical energy

the energy of moving electric charges.

9
New cards

Metal Wire

Conductor

10
New cards

Wood

Insulator

11
New cards

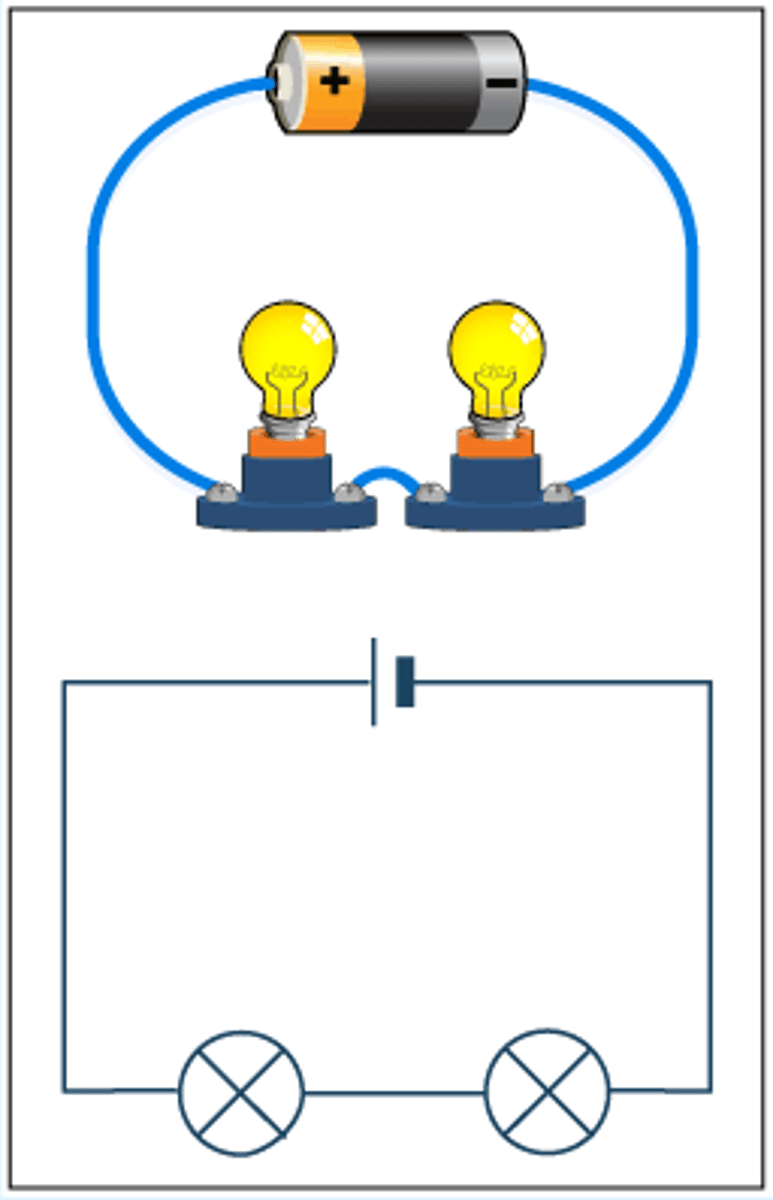

Series Circuit

knowt flashcard image
12
New cards

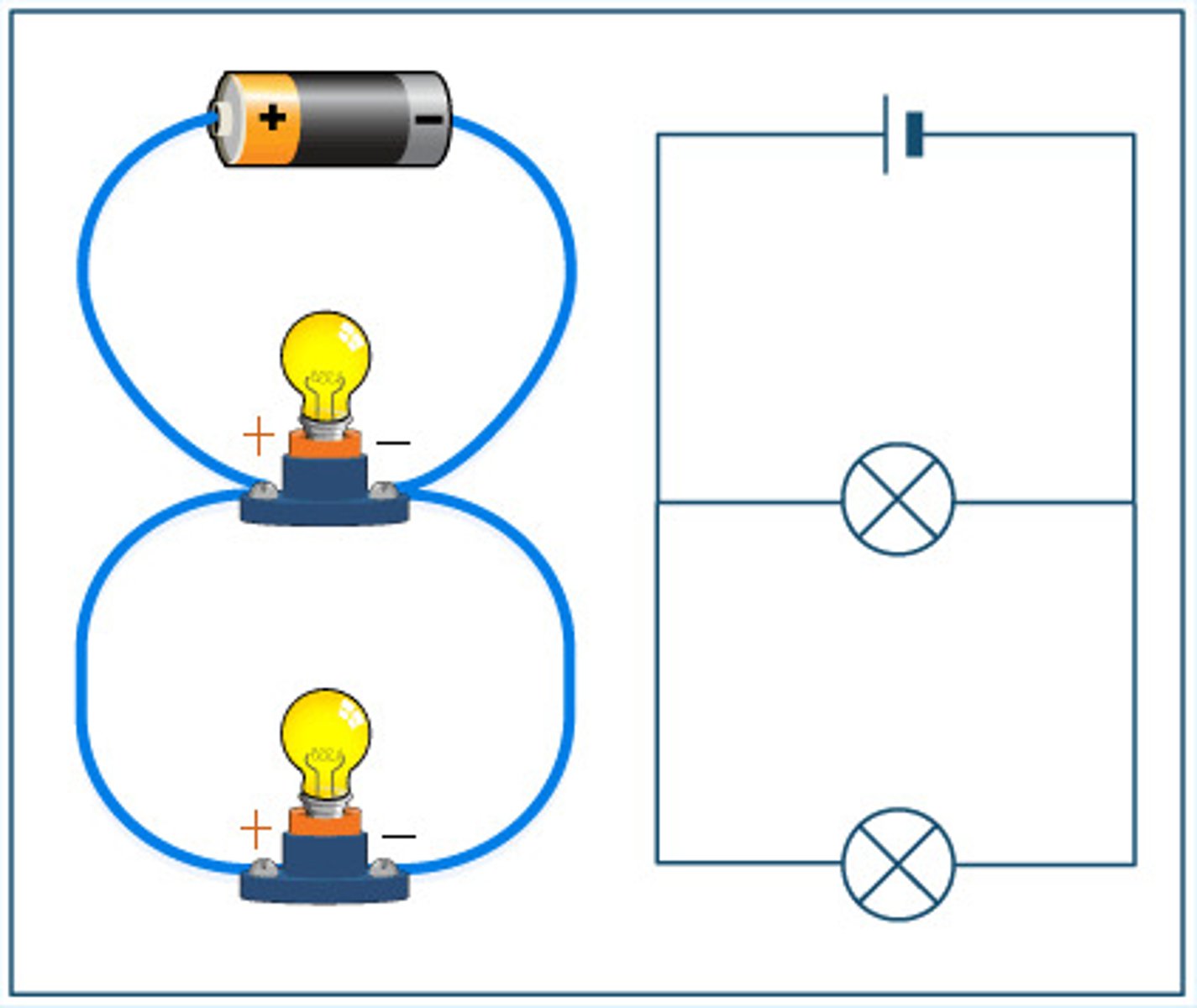

Parallel Circuits

knowt flashcard image
13
New cards

If a component is disconnected, the circuit is broken and stops working.

Series Circuit

14
New cards

Lamp bulbs don't dim when more are connected.

Parallel Curcuit

15
New cards

A magnet made by using electric current. It is a temporary magnet that can be turned on and off.

Electromagnet
