MOCK EXAM 2 PHILS – ACRM

What is the purpose of sizing in fabric production?

To condition the yarns for easier weaving.

What does the term "count" represent in fabric terminology?

The number of threads per inch in warp or filling.

What does the term "ply" indicate in fabric terminology?

The number of yarns making up a thread.

What is the difference between an airworthiness directive and a service bulletin?

An airworthiness directive is a mandatory requirement, while a service bulletin is a voluntary recommendation.

What are the different types of airworthiness directives?

All of the above.

What is the subject under Advisory Circular 39-7D?

Airworthiness Directives

An AD applies to each product identified in the applicability statement, regardless of whether it has been modified, altered, or repaired in the area subject to the requirements of the AD.

All of the above.

The process of joining sheet metals by upsetting the end of a headed cylindrical fastener thru hammering or squeezing.

Riveting

The process of joining metals by application of a high- temperature flame or electric arc in combination with a filler rod which is usually of the same composition as the base metal.

Welding

The process which is general conditioned to sheet metal stock and employs such standard practice machines as drop hammers, hydraulic presses, power brakes, and punch presses. Chips are produced during this process.

Forging

The drilled head steel bolts is used as a means for

for safetying

Standard aircraft bolts are marked for identification. The steel bolt is marked on the head with

an asterisk

The weight of the structure, powerplant, furnishing, and other equipment that are considered an integral part of the aircraft is called

empty weight

What is the primary purpose of laminating in plastic manufacturing?

To reinforce materials with a synthetic-resin binder

Which process is used to manufacture laminated sheet?

High-pressure molding

How is laminated tubing made?

By rolling impregnated reinforcing material on a mandrel

What is the main difference between high-pressure laminating and low pressure laminating?

High-pressure laminating requires higher temperatures than low pressure laminating.

What is the function of solid-state GPU?

To convert power from AC to DC

A specialized type of towing vehicle designed to push aircraft away from the gate.

Pushback Tugs

What is the primary function of a belt loader in aircraft operations?

Unloading and loading cargo and baggage

What type of vehicles are used as de-icing vehicles?

Cherry-picker-like devices

Which of the following methods is commonly used for deicing aircraft to remove ice and frost accumulation?

All of the above

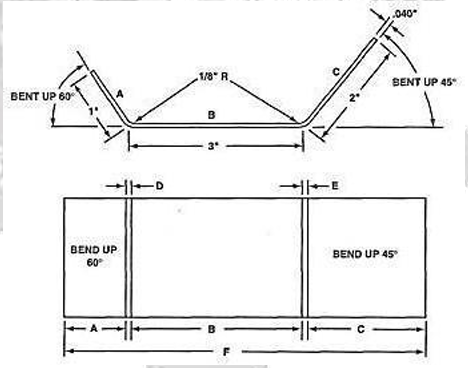

(Refer to the figure below) What is the dimension of F? Setback at D= 0.090 Setback at E= 0.072 Bend allowance at D= 0.150 Bend allowance at E= 0.125

5.951

Flammable liquids are under what classification of fire?

Class B

A chemical oxygen generator normally contains?

mixture of sodium chlorate and iron powder

The standard minimum edge distance for countersunk rivets is?

2 ½ D of the rivet shank

ASTM stands for?

American Society for Testing and Materials

The color of aluminum’s corrosion is?

White

What is generally used in the construction of aircraft engine firewalls?

stainless steel

The aluminum code number 1100 identifies what type of aluminum?

99 percent commercially pure aluminum

In the four-digit aluminum index system number 2024, the first digit indicates

the major alloying element

How is the Aluminum Association system arranged to divide the common alloy types?

Into eight main groups

What is the main alloying element in the 6xxx aluminum alloy group?

Magnesium

What does the temper designation "F" indicate in aluminum alloys?

As-fabricated condition

Why is Copper-Silicon-Bronze tubing preferred over pure copper tubing for certain applications?

All of the above

What is the tensile strength of copper wire used in aircraft construction?

40,000psi

How is brass different from copper?

Brass contains a solid solution of zinc in copper.

How is the strength of Muntz Metal increased?

By heat treatment

How are changes in direction of a control cable accomplished?

pulleys

Identify the cable that is used in primary control systems and in other places where operation over pulleys is frequent.

7-19

When inspecting a composite panel using the ring test/tap-ping method, a dull thud may indicate

separation of the laminates.

The classification for high tensile strength fiberglass used in aircraft structures is

S

The vast majority of aircraft control cables are terminated with swaged terminals that must be

checked with a go-no-go gauge before and after, to show compliance with the manufacturers requirements after the swaging operation.

Which statement best describes magnesium welding?

Filler rod should be the same composition as base metal.

Welding over brazed or soldered joints is

not permitted

Why are winglets often added to aircraft wings?

To reduce drag and improve fuel efficiency

What is the primary purpose of a fairing on an aircraft?

To reduce drag and improve aerodynamics

Which type of landing gear configuration is commonly found on commercial airliners?

Tricycle gear

What is the primary purpose of an aircraft's fuselage?

To house the cockpit and passengers

Where are the ailerons located on an aircraft?

On the trailing edge of the wings
