19 Terms

1

New cards

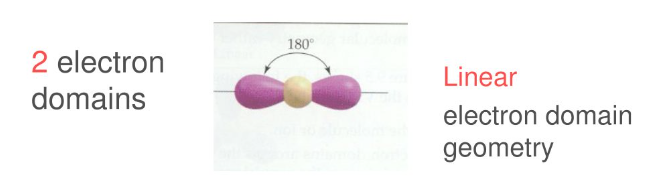

(E.G) 2 electron group

linear

<p>linear </p>

2

New cards

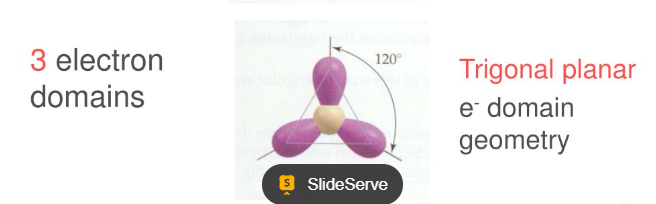

(E.G) 3 electron groups

trigonal planar

<p>trigonal planar</p>

3

New cards

(E.G) 4 electron groups

tetrahedral

<p>tetrahedral </p>

4

New cards

(E.G) 5 electron groups

Trigonal Bipyramid

<p>Trigonal Bipyramid</p>

5

New cards

(E.G) 6 electron groups

octahedral

<p>octahedral</p>

6

New cards

Linear - 0 lone pairs - what is the MG & Angle?

linear & 180

-symmetrical

<p>linear & 180</p><p></p><p>-symmetrical</p>

7

New cards

Trigonal Planar - 0 lone pairs - what is MG & Angles?

Trigonal Planar & 120

-symmetrical

<p>Trigonal Planar & 120</p><p></p><p>-symmetrical</p>

8

New cards

Trigonal Planar - 1 lone pair - what is MG & Angles?

Bent & <120

<p>Bent & <120</p>

9

New cards

Tetrahedral - 0 lone pairs -what is MG & Angles?

Tetrahedral & 109.5

-symmetrical

<p>Tetrahedral & 109.5</p><p></p><p>-symmetrical</p>

10

New cards

tetrahedral - 1 lone pair - what is MG & Angles?

Trigonal Pyramidal & <109.5

<p>Trigonal Pyramidal & <109.5 </p>

11

New cards

tetrahedral - 2 lone pairs - what is MG & Angles?

Bent & <109.5

<p>Bent & <109.5</p>

12

New cards

Trigonal Bipyramidal - 0 lone pairs - what is MG & Angles?

Trigonal Bipyramidal - 120 & 90

-symmetrical

<p>Trigonal Bipyramidal - 120 & 90</p><p></p><p>-symmetrical</p>

13

New cards

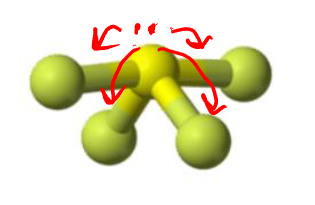

Trigonal Bipyramidal - 1 lone pair - what is MG & Angles?

seesaw - <120 & <90

<p>seesaw - <120 & <90</p>

14

New cards

Trigonal Bipyramidal - 2 lone pairs - what is MG & Angles?

T-shaped - >180 & <90

<p>T-shaped - >180 & <90</p>

15

New cards

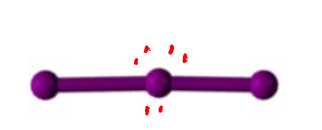

Trigonal Bipyramidal - 3 lone pairs - what is MG & Angles?

Linear - 180

<p>Linear - 180 </p>

16

New cards

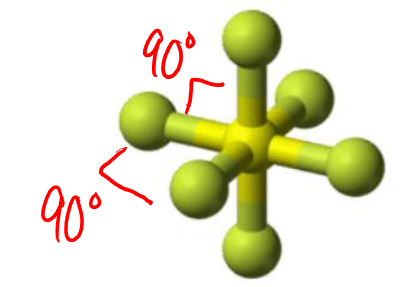

Octahedral - 0 lone pairs - what is MG & Angles?

Octahedral & 90

-symmetrical

<p>Octahedral & 90</p><p></p><p>-symmetrical</p>

17

New cards

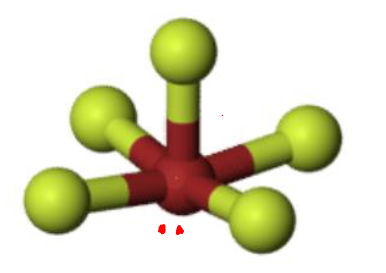

Octahedral - 1 lone pair - what is MG & Angles?

Square Pyramidal & <90

<p>Square Pyramidal & <90</p>

18

New cards

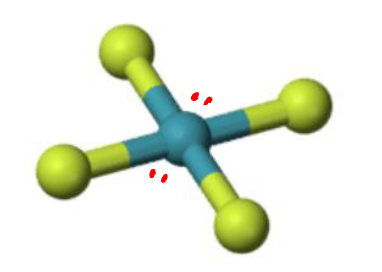

Octahedral - 2 lone pair - what is MG & Angles?

Square planar - 90

-symmetrical

<p>Square planar - 90</p><p>-symmetrical</p>

19

New cards

symmetrical MG?

linear
trigonal planar
tetrahedral
trigonal bipyramidal
octahedral
square planar
