Physical Science Test 3

If the charge on one of the particles is doubled, the force is

doubled

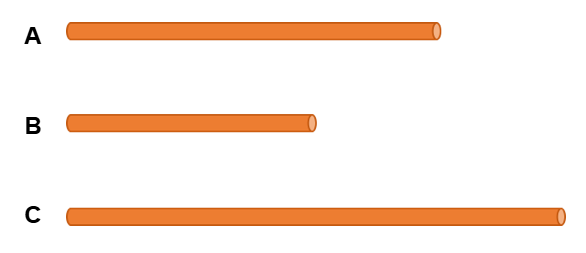

Which has the least resistance?

Rod B

Which resistor will have the greater current?

10 ohms

Indicate which bulb(s) will light, if any:

Bulb 2

A positively-charged balloon is brought near a neutral, conducting sphere (mounted on an insulating stand). The sphere is touched by a person and the balloon is moved away. Once the process is over, what is the charge on the metal sphere?

Negative

A positively-charged balloon is brought near a neutral, conducting sphere (mounted on an insulating stand). The sphere is touched by a person and the balloon is moved away. What is the charge on the balloon

Positive

Which has the smallest resistance

Path 1

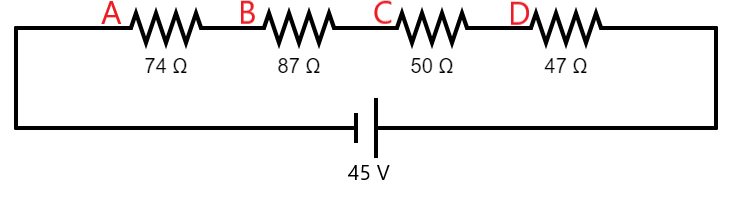

In the circuit pictured below, four resistors are wired in series. If these resistors were actually incandescent light bulbs which is brightest

Bulb B

In the circuit pictured below, four resistors are wired in series. If these resistors were actually incandescent light bulbs which is dimmest

Bulb D

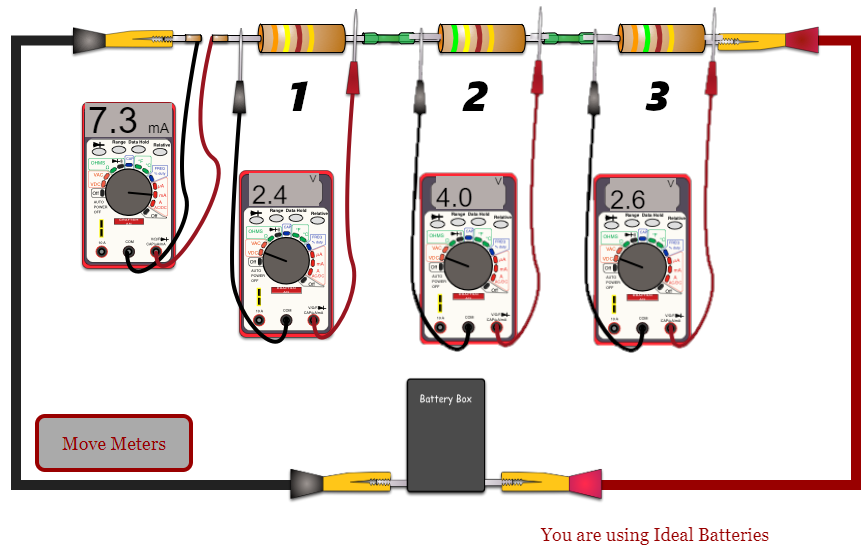

What is the voltage of the battery box?

9

A small, permanent magnet is suspended by a spring balance above the center of a circular coil of wire that is sitting on a balance. A large current is now introduced into the coil, causing the magnet to be attracted to the coil.

Will the reading on the upper spring balance increase, decrease, or stay the same?

increase

Roughly where is the magnet when the light bulb is the brightest?

The light bulb is brightest when either end of the magnet is entering or exiting the coil.

Which color on the electromagnetic spectrum has the lowest energy?

Red

Which color in the electromagnetic spectrum has the highest frequency

Violet

Which color in the electromagnetic spectrum has shortest wavelength

Violet

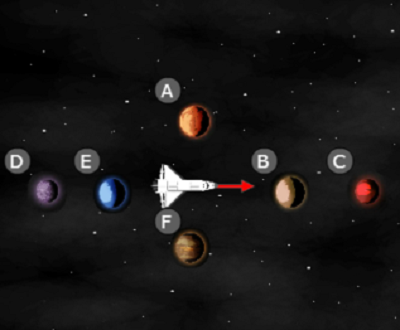

The space shuttle's velocity is shown by the red arrow. It emits a distress signal with a frequency of 500 MHz (megahertz) that is received at six planets. What planets would hear a frequency equal to 500 MHz

A and F

The space shuttle's velocity is shown by the red arrow. It emits a distress signal with a frequency of 500 MHz (megahertz) that is received at six planets. What planets would hear a frequency greater than 500 MHz

B and C

The space shuttle's velocity is shown by the red arrow. It emits a distress signal with a frequency of 500 MHz (megahertz) that is received at six planets. What planets would hear a frequency less than 500 MHz

D and E

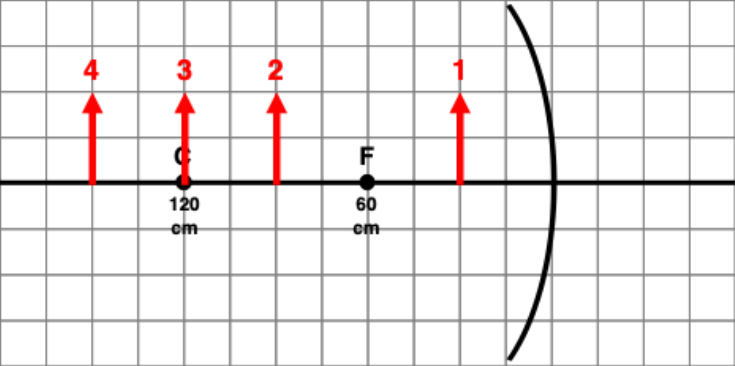

Shown below is a concave mirror, with focal length (F) and center of curvature (C) labeled. Consider the four numbered locations. What type of image forms at point 1

Virtual

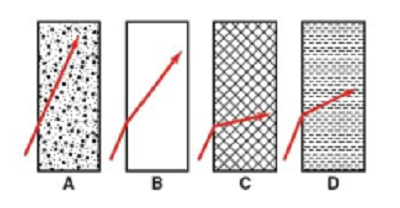

The figure below depicts a ray of light traveling from air into several mediums. Which has the smallest angle of refraction?

C

Green light wavelength is than blue wavelength

greater than

Blue light frequency is than red frequency

greater than

Red light energy is than blue light

less than
