CompSystems 245 - Week 5 - Lecture 14 - Clock Signals

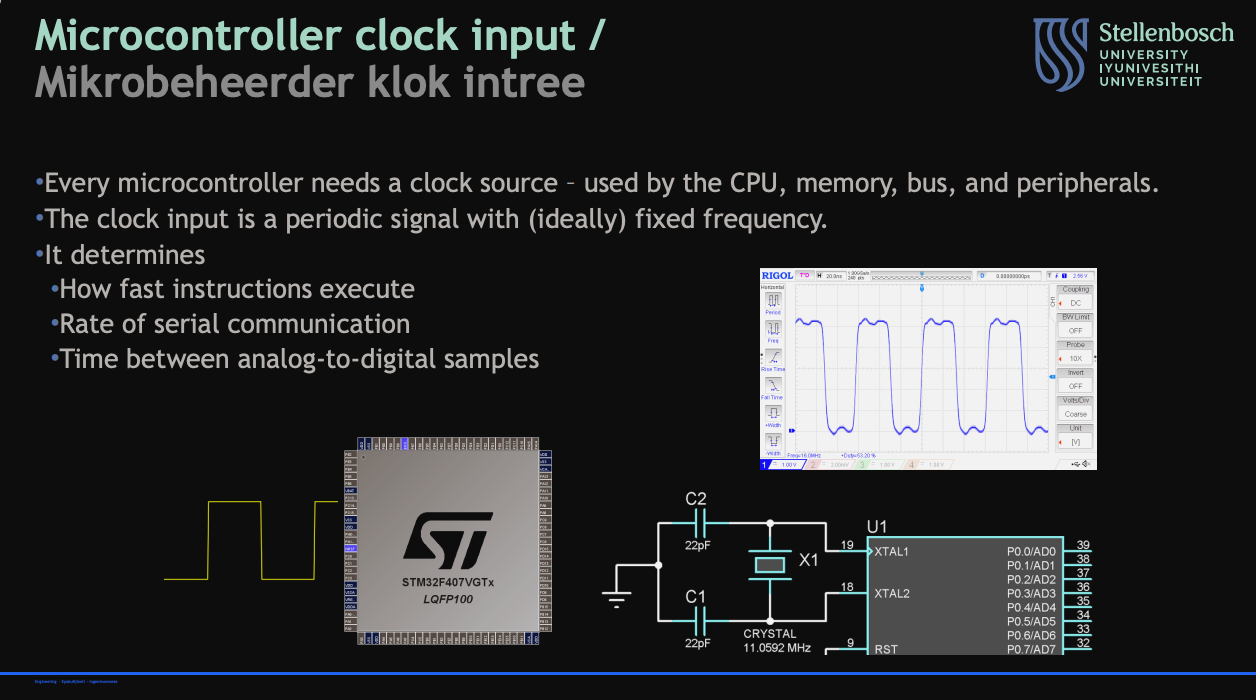

Describe the microcontroller clock input:

• its need on microcontrollers

• what kind of signal

• what it does

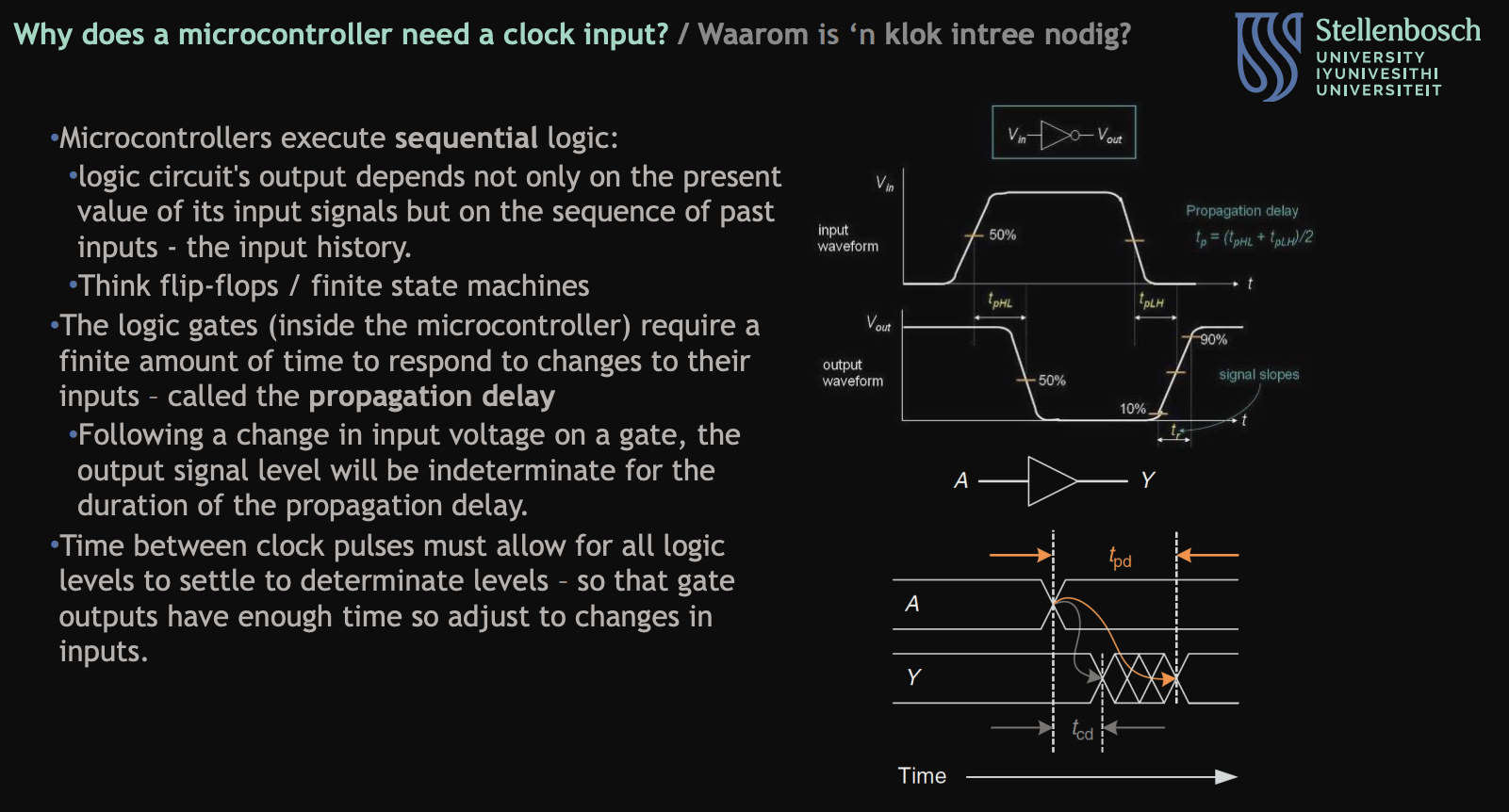

Describe why microcontrollers need clock inputs:

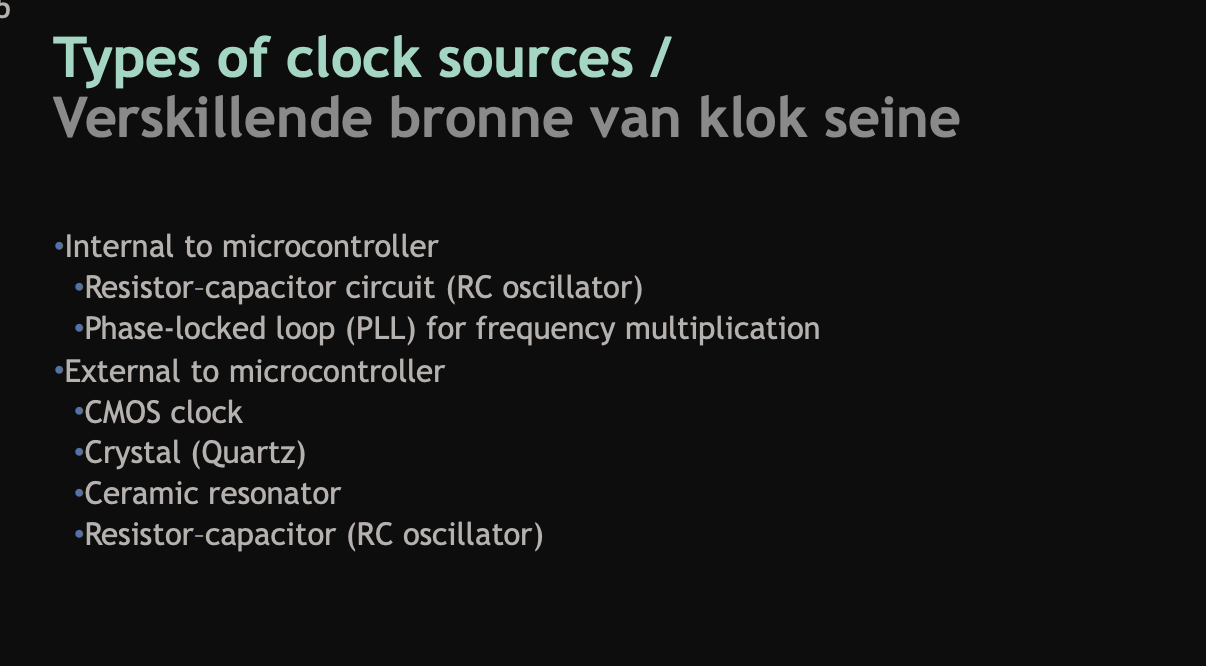

State the types of clock sources:

• types

  • what the types consist of

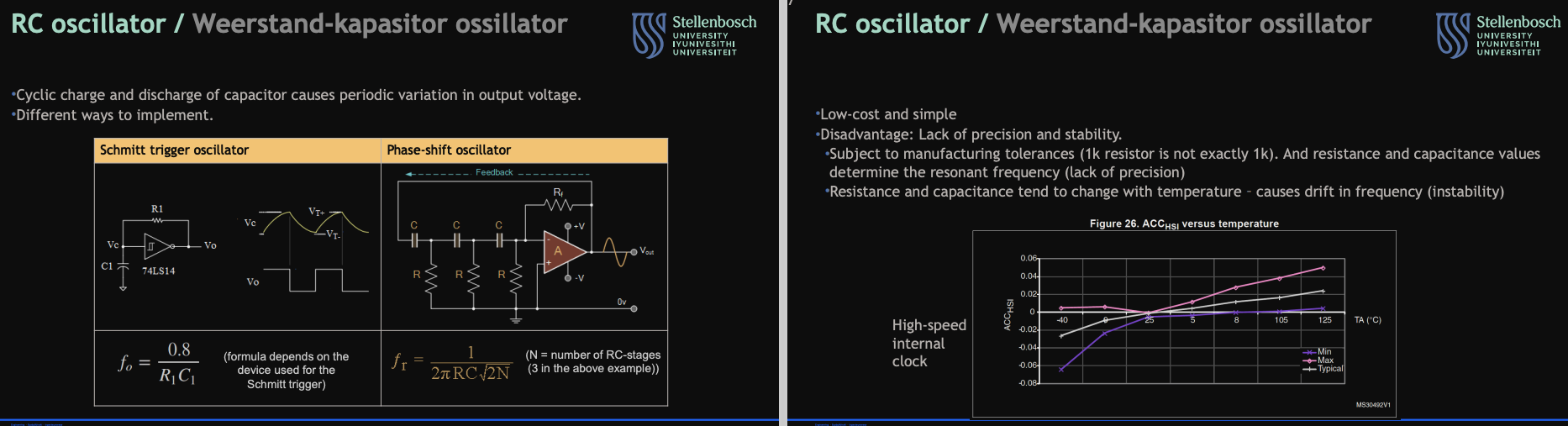

Describe the RC oscillator:

• what it is

• what it does

• benefits and drawbacks

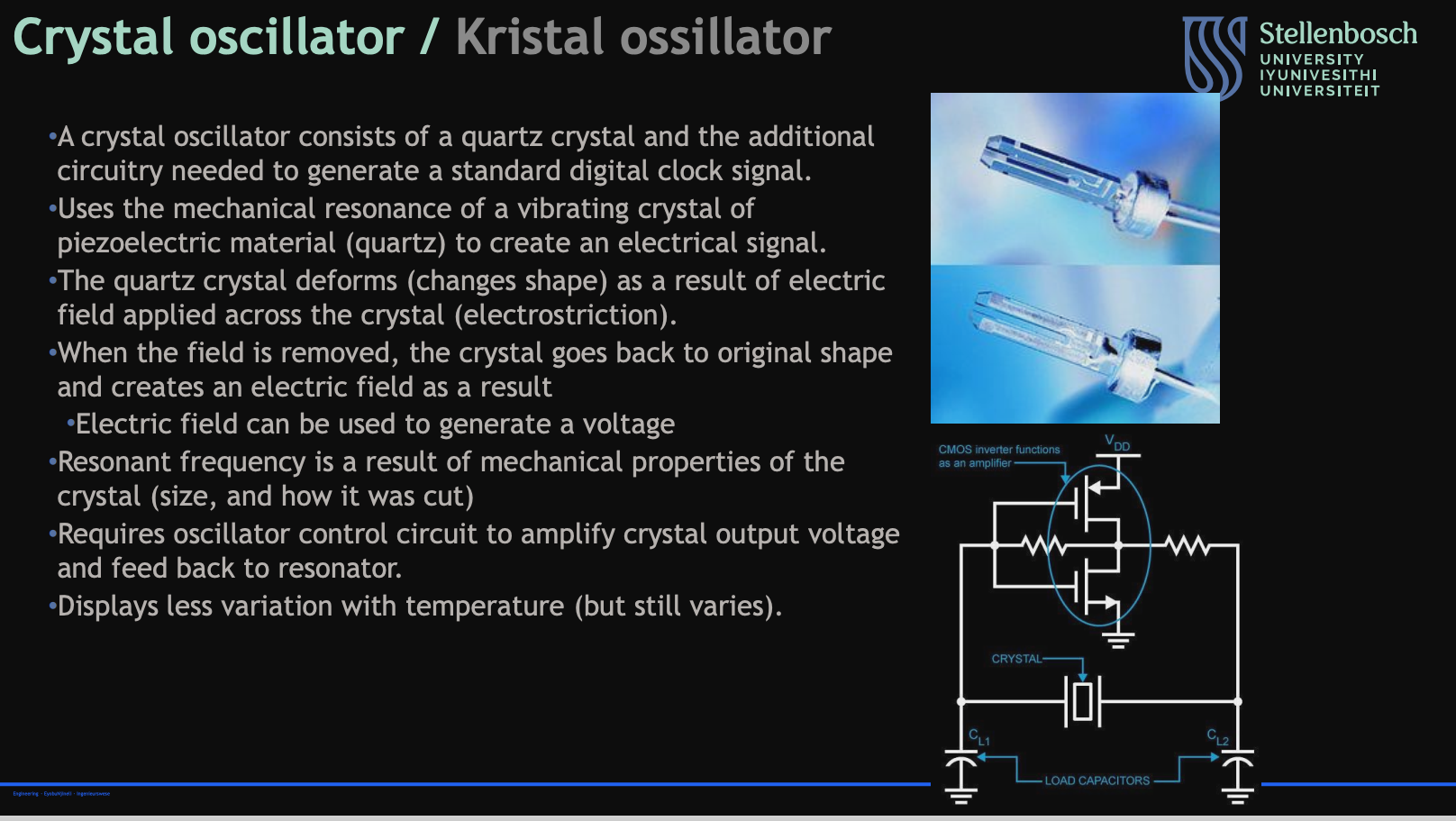

Describe the crystal oscillator:

• its makeup

• what it does

•

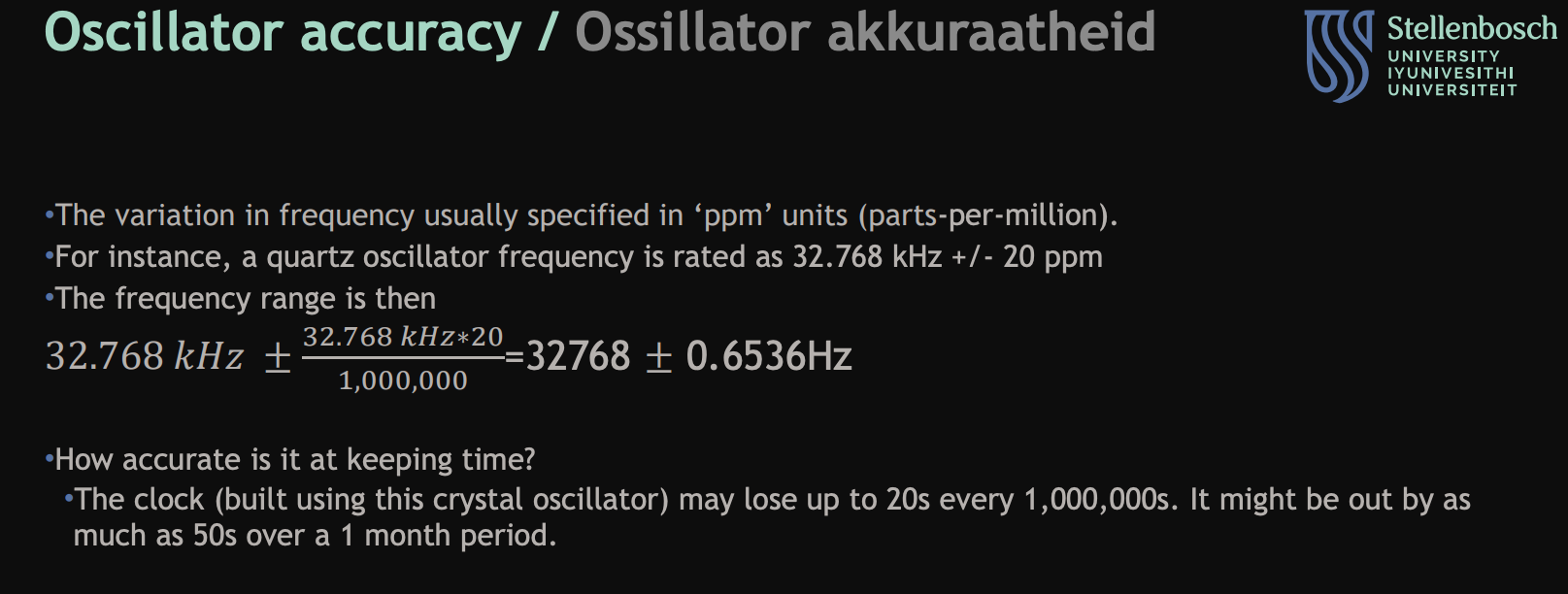

Describe the oscillator accuracy:

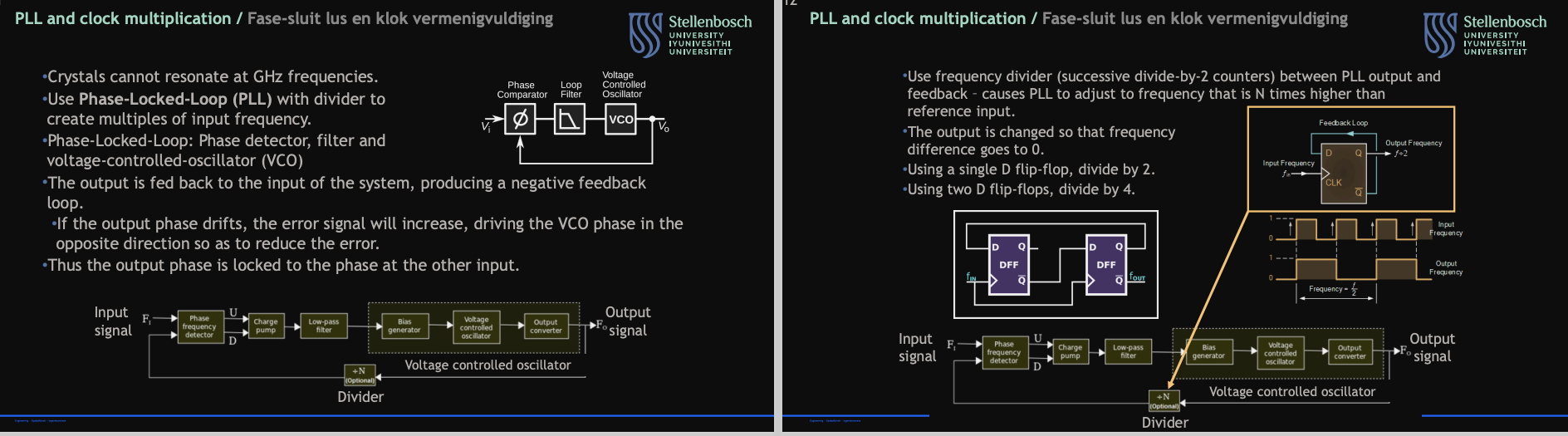

Describe the PLL and multiplication

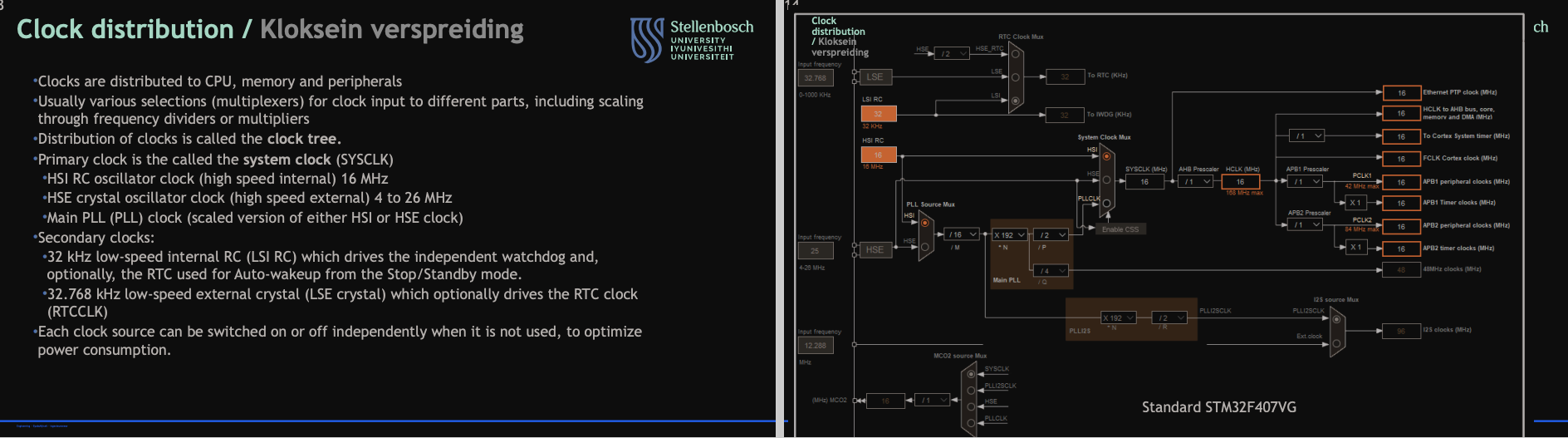

Describe clock distribution:

•

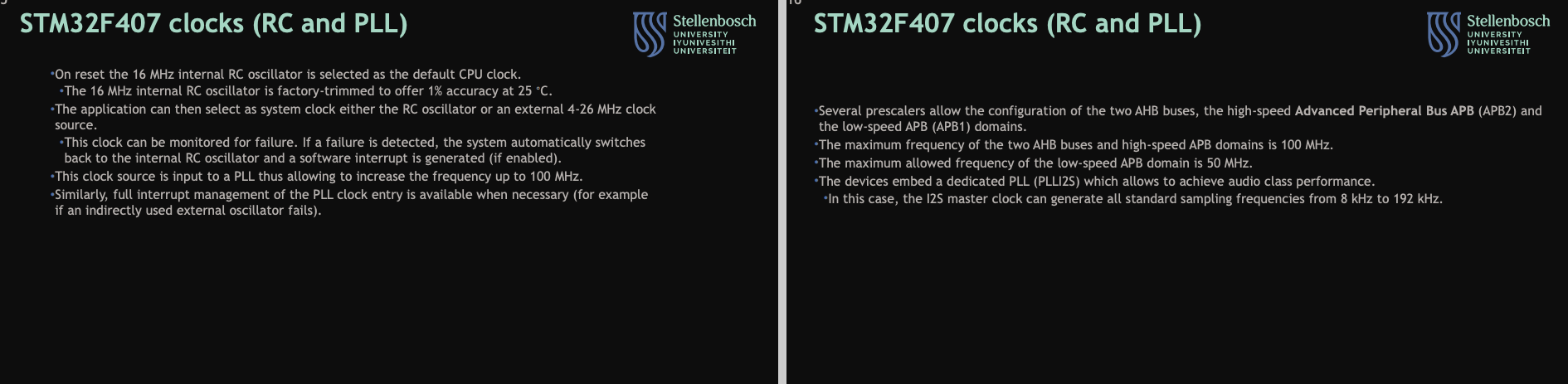

Describe STM32F407 clocks

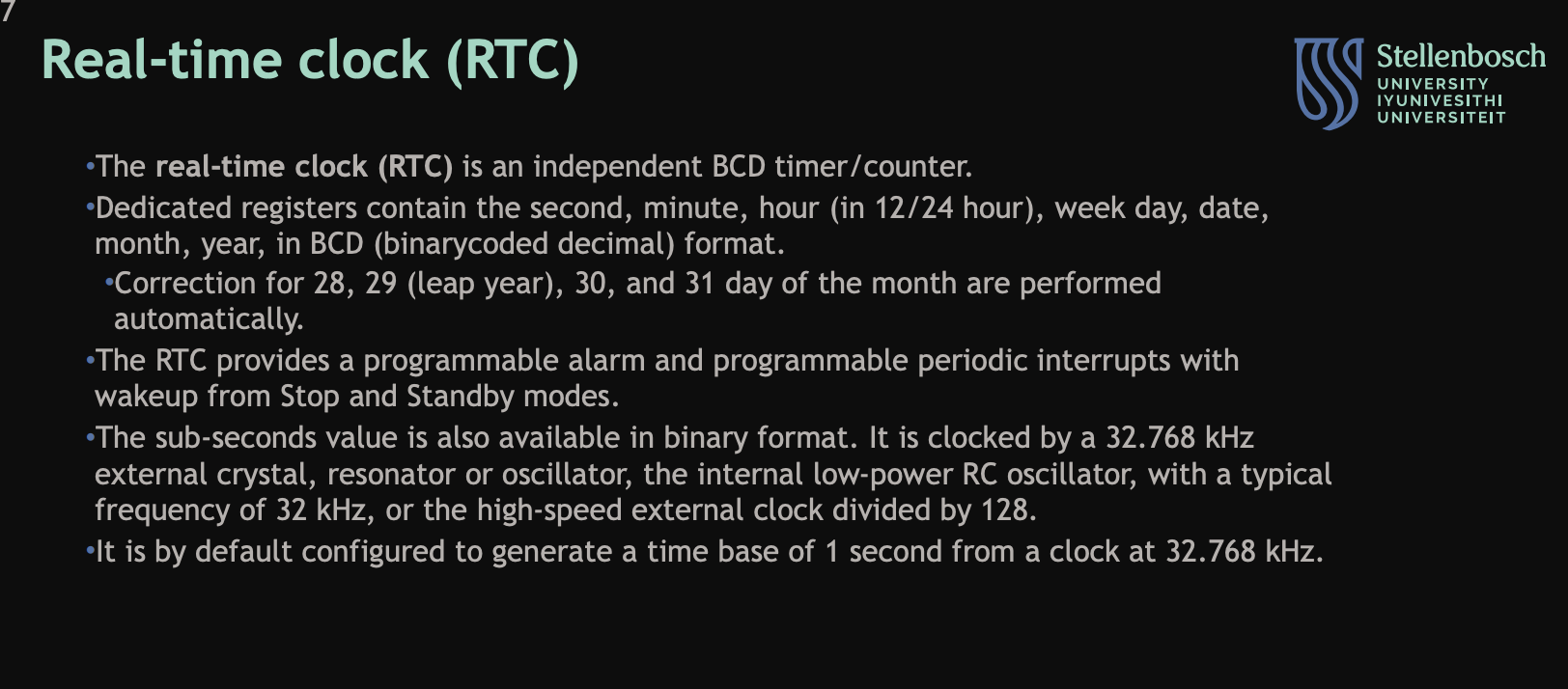

Describe the real-time clock in relation to the clocks

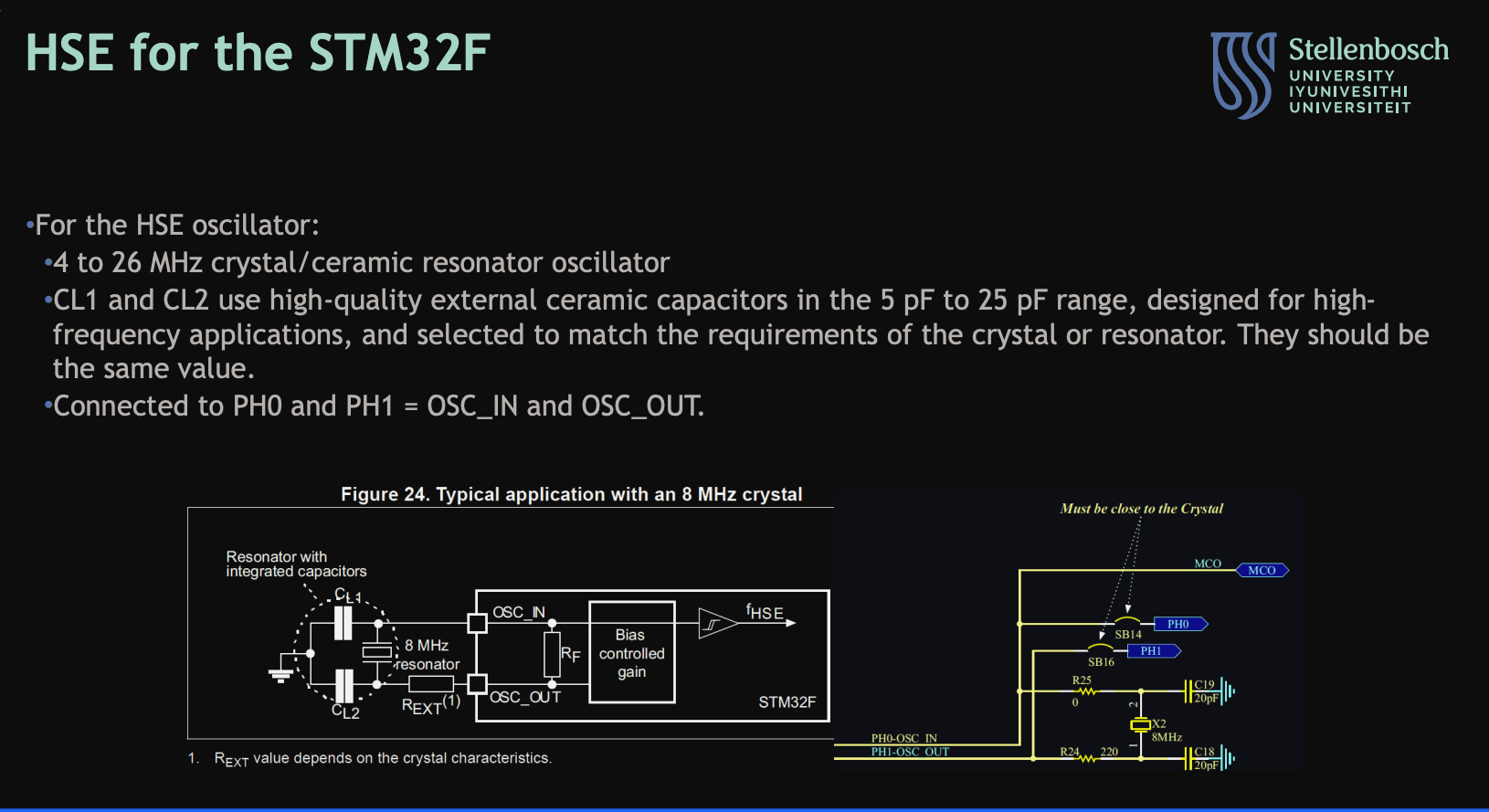

Describe the HSE oscillator STM32F

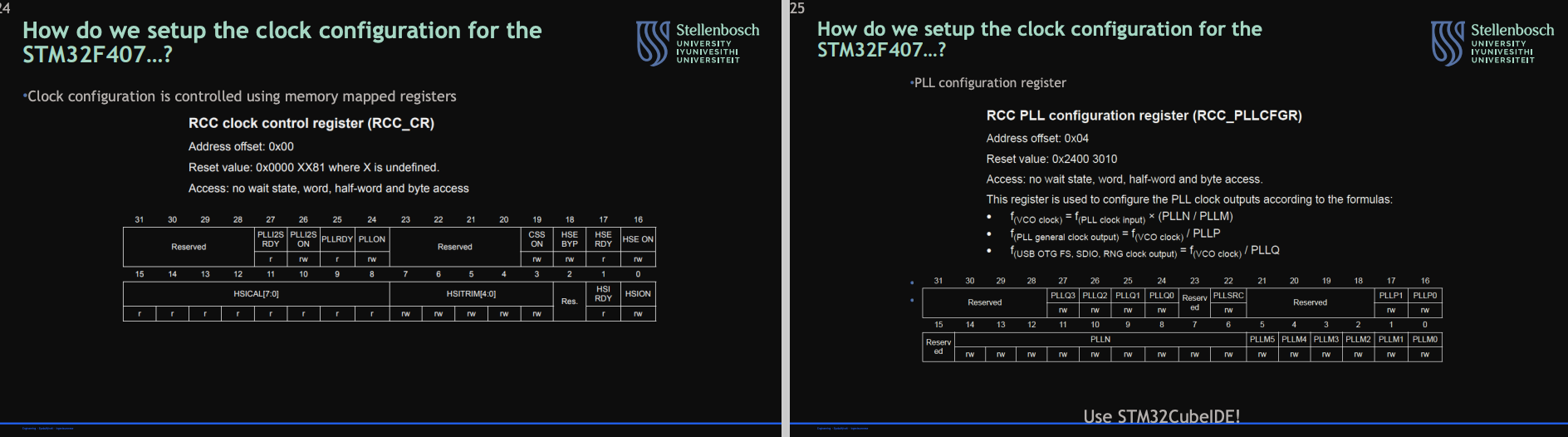

Describe how to setup the clock configuration for the STM32F407

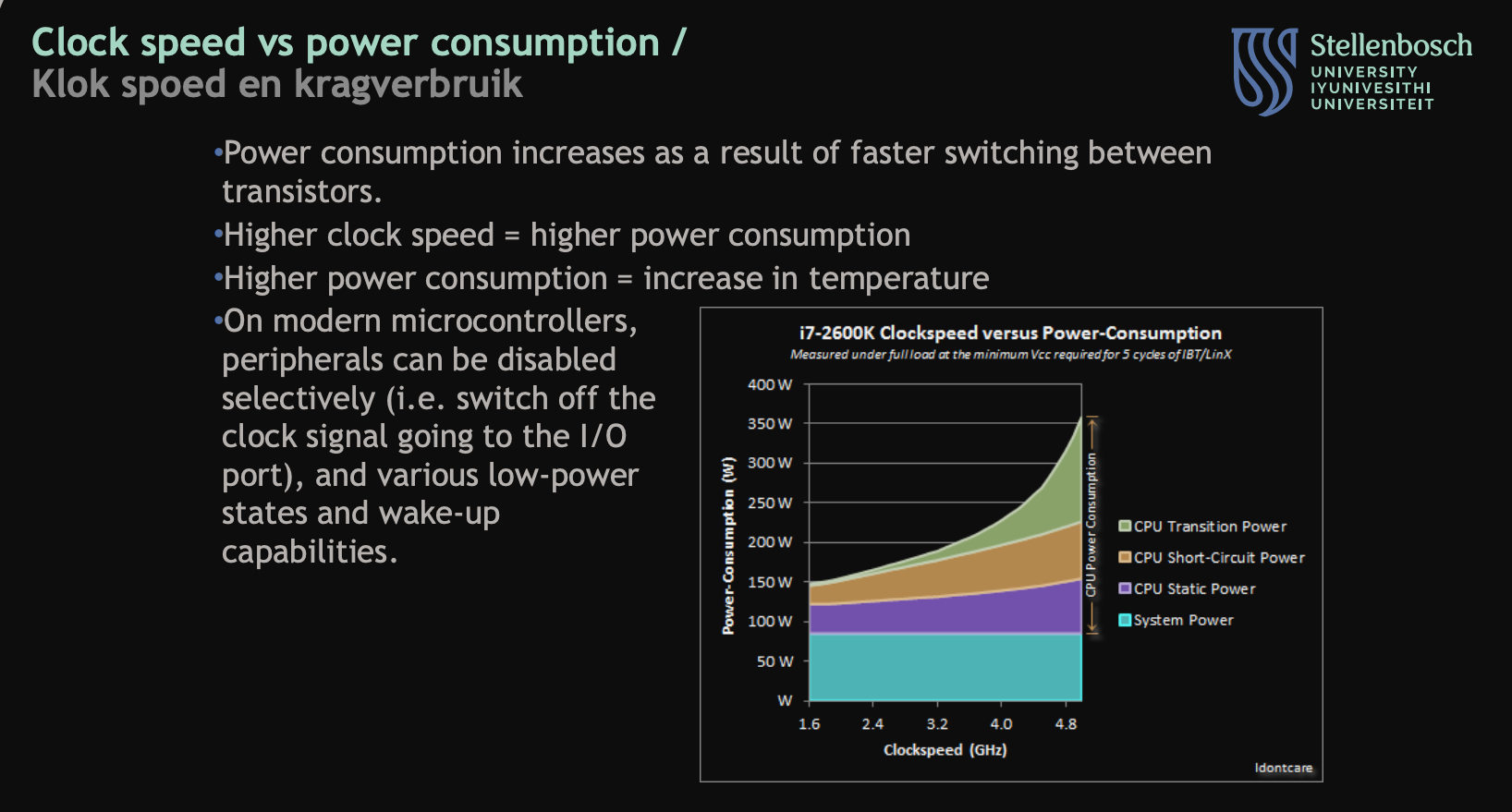

Describe clock speed vs power consumption
