FORMULAS

Charge (Q)

Voltage (V/E)

Current

Energy (E)

Capacitance

Elastane

Conductance

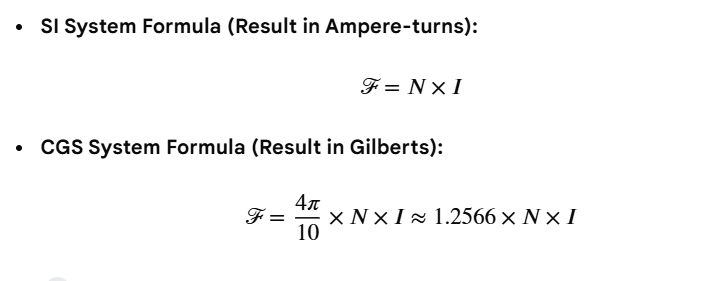

Magnetomotive Force (mmf)

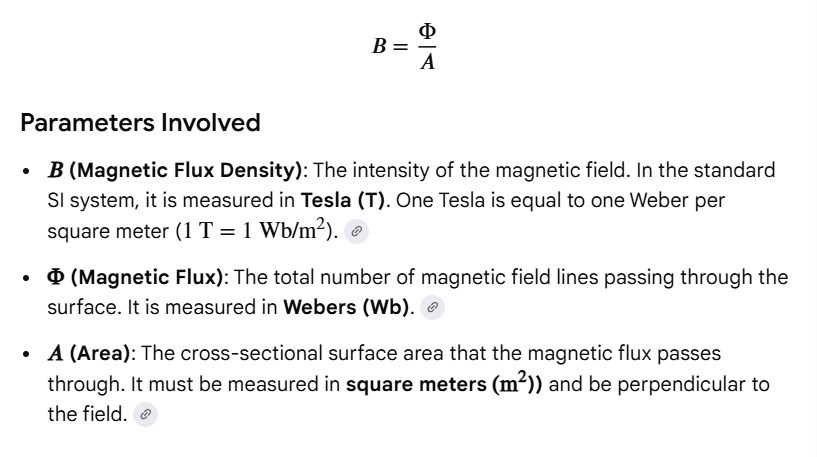

Magnetic Flux Density

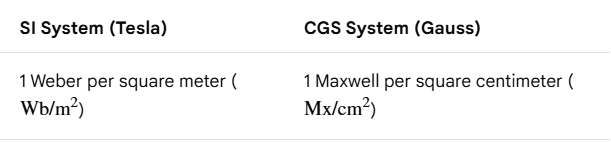

Units for Magnetic Flux Density

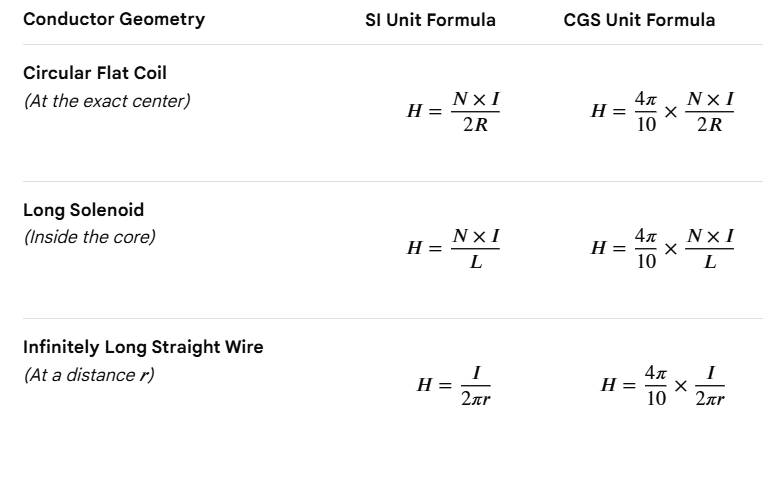

Magnetic Field Intensity

Energy Stored in an Inductor (W)

Voltage to Capacitance

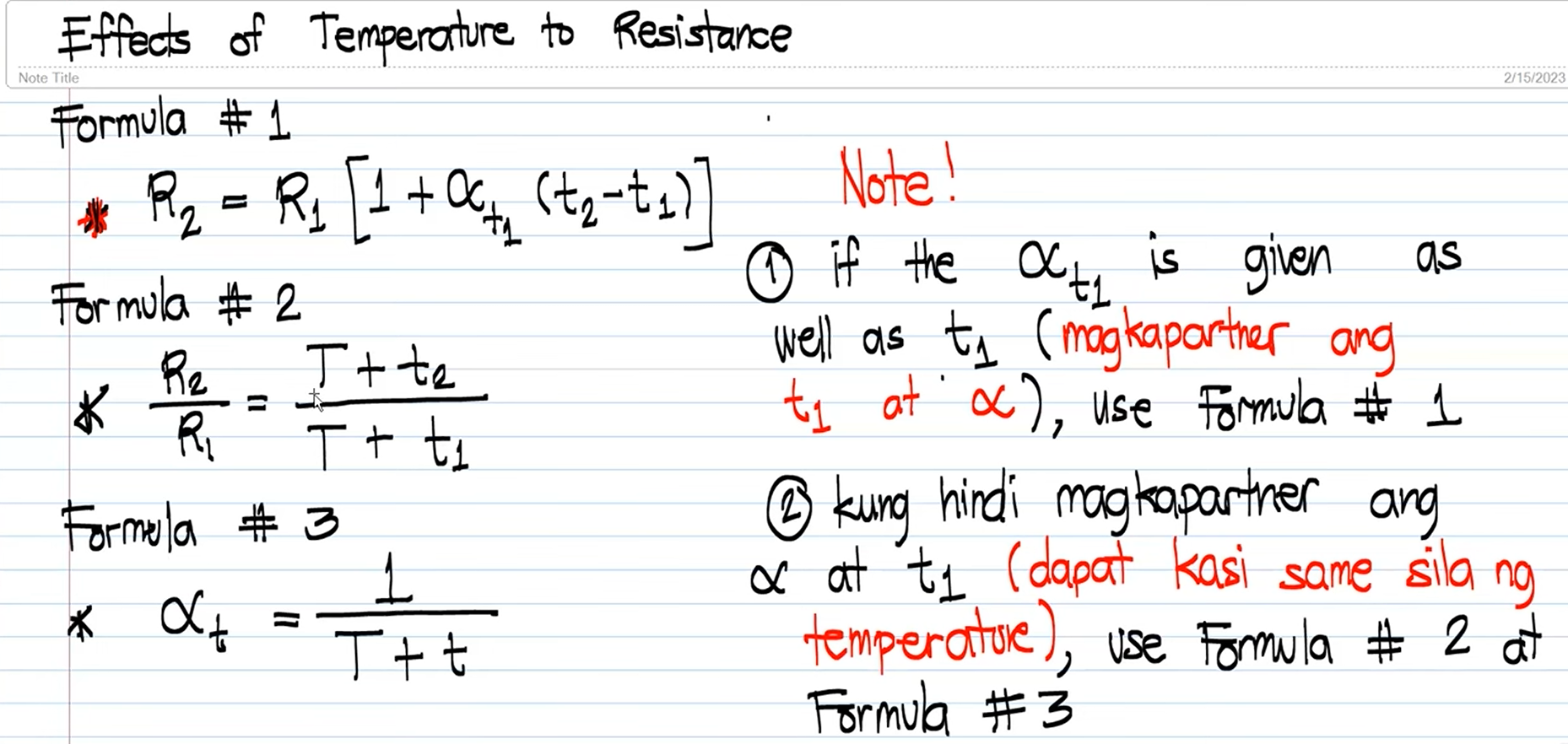

Effects of Temperature to Resistance

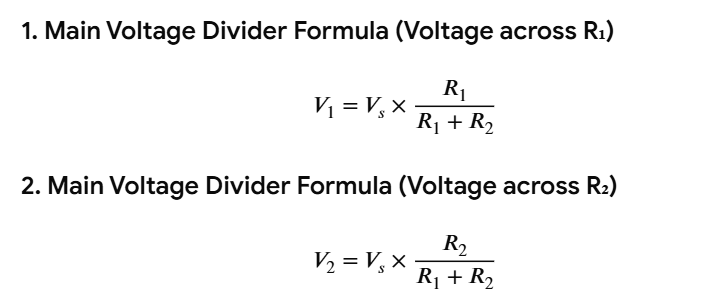

Voltage Divider Formula

Current Divider Formula

1 Coulomb is equivalent to how many electrons

Circular Mill Conversion

1 Joule is equivalent to how many N-m

1 N-m

1 Farad is equivalent to how many Coulomb/Volt

Power Efficiency Formula

Cost of Electrical Work (K)

Alternation, Sine Wave Phase, and Electrical Degrees Conversion

Electrical and Mechanical Degrees Conversion

Frequency Formula

Period (T)

Average Value

Peak-to-Peak Formula

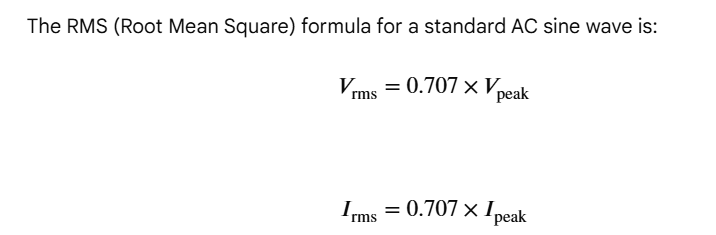

Root Mean Square / Effective Value

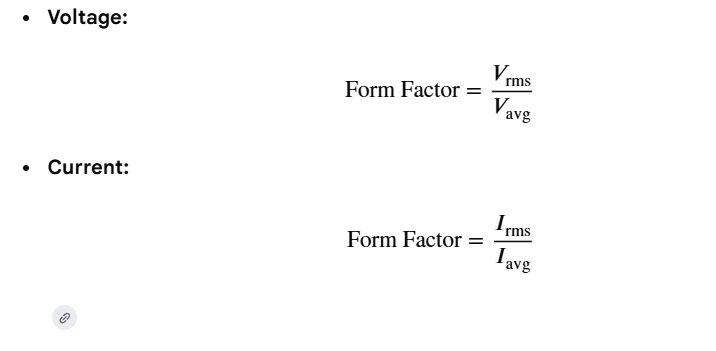

Form Factor - RMS/Ave

Crest Factor Formula

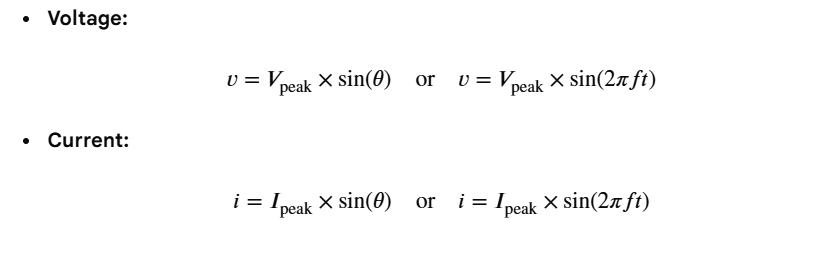

Instantaneous Value Formula

Impedance

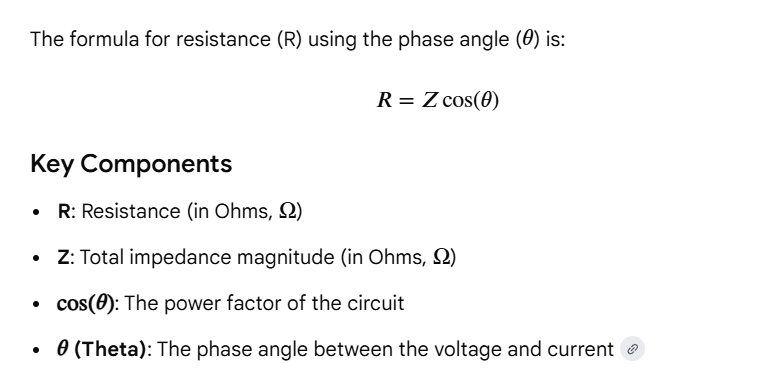

Resistance from Phase Angle

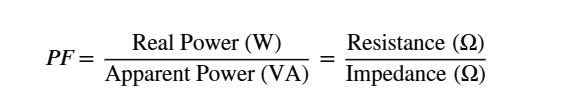

Power Factor

A

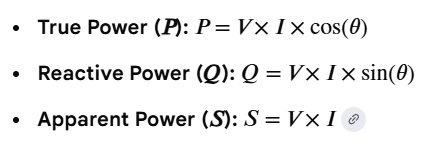

Power Formulas:

Apparent Power formula using Power factor Triangle

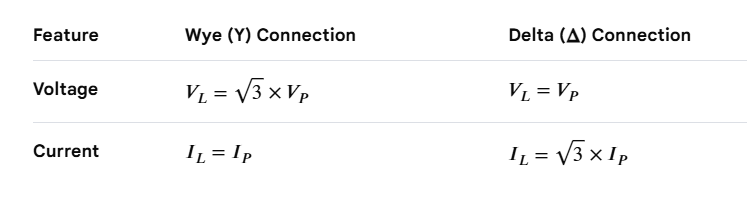

Voltage and Current in 3 Phase

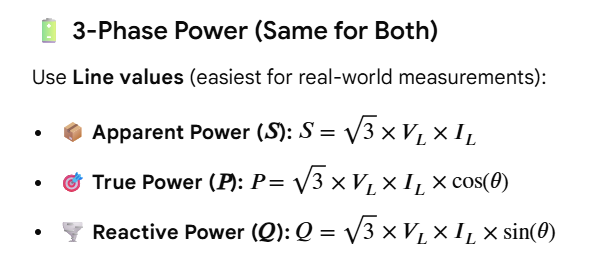

Power in 3 Phase

Resonant Frequency

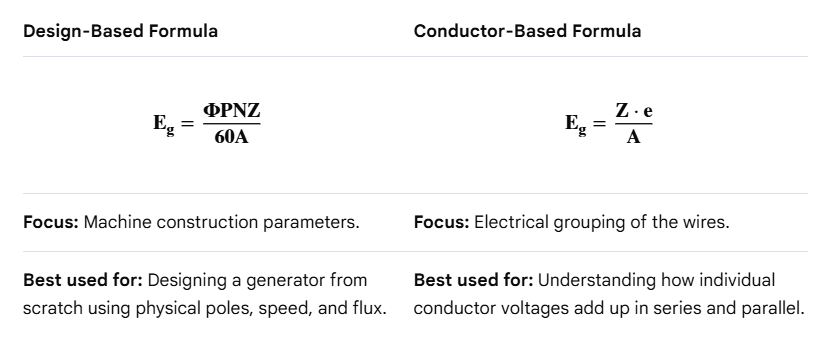

Generated Voltage (Eg)

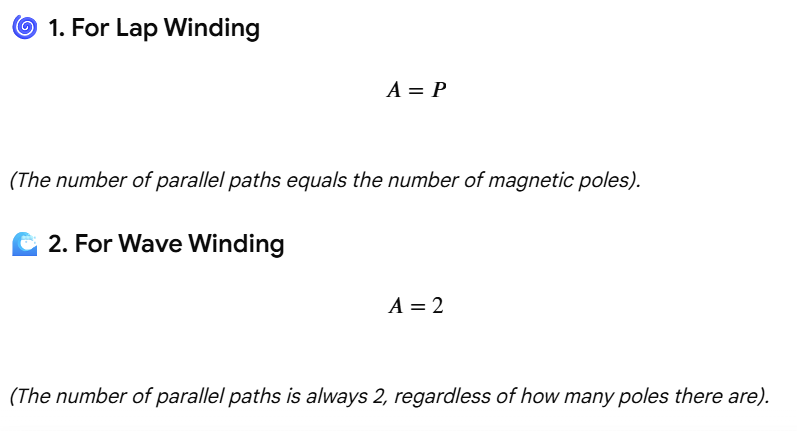

Lap and Wave Winding

Back EMF (Eb)

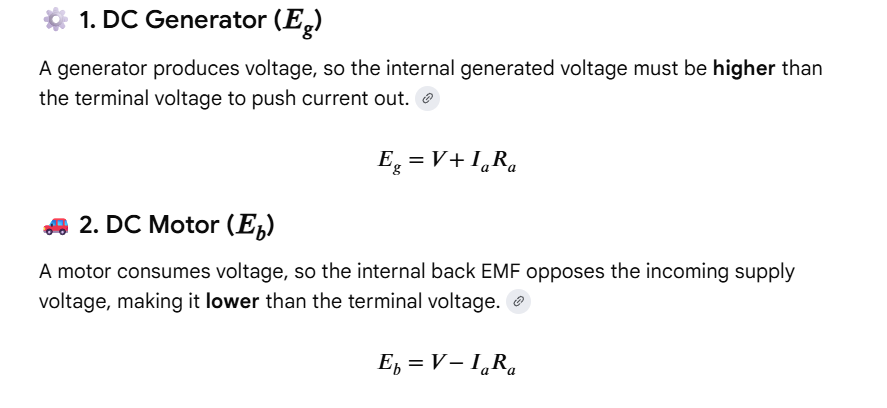

DC Generator and Motor

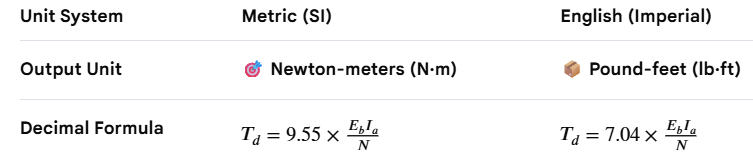

Developed torque (Td)

Percentage Slip (%s)

Percent Speed Regulation (%SR)

EMF Equation for AC Machine

Relationship between peak and RMS voltage

Turns Ratio

Slip Speed

Rotor Frequency

Percent Voltage Regulation (%VR)

Pole Pitch (Yp)

Max HP

Torque-Voltage Relationship Formula

Full Load Torque

Hydraulic HP

Motor HP (Brake HP) Formula

Wye and Delta Conversion if resistors are identical

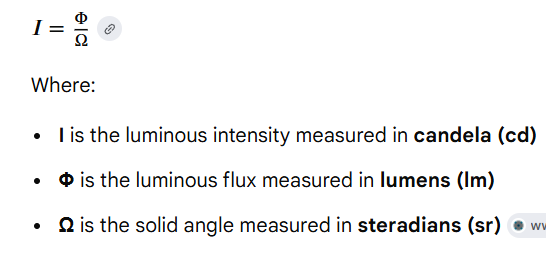

Luminous Intensity (I)

Illumination

UNIT CONVERSIONS in ILLUMINATION

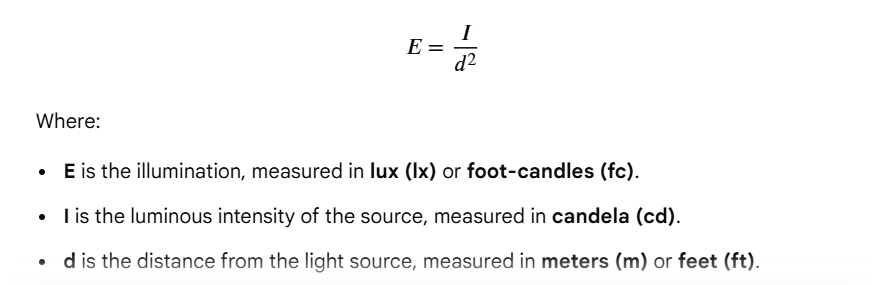

Inverse Square Law

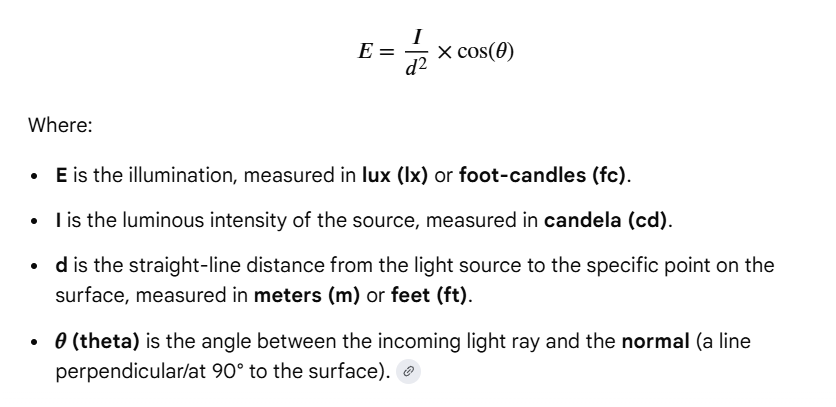

Cosine law of Illuminance (Lambert’s Cosine Law)

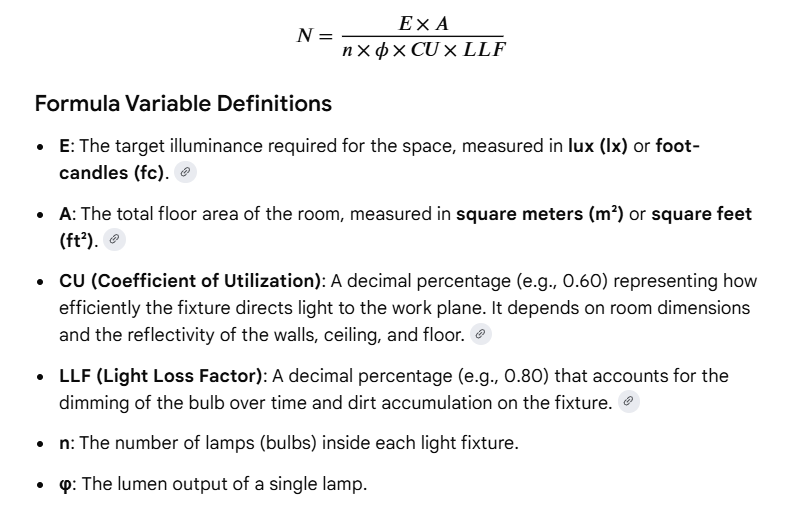

Lumen Method

Lamp Efficacy
