O&P Practical

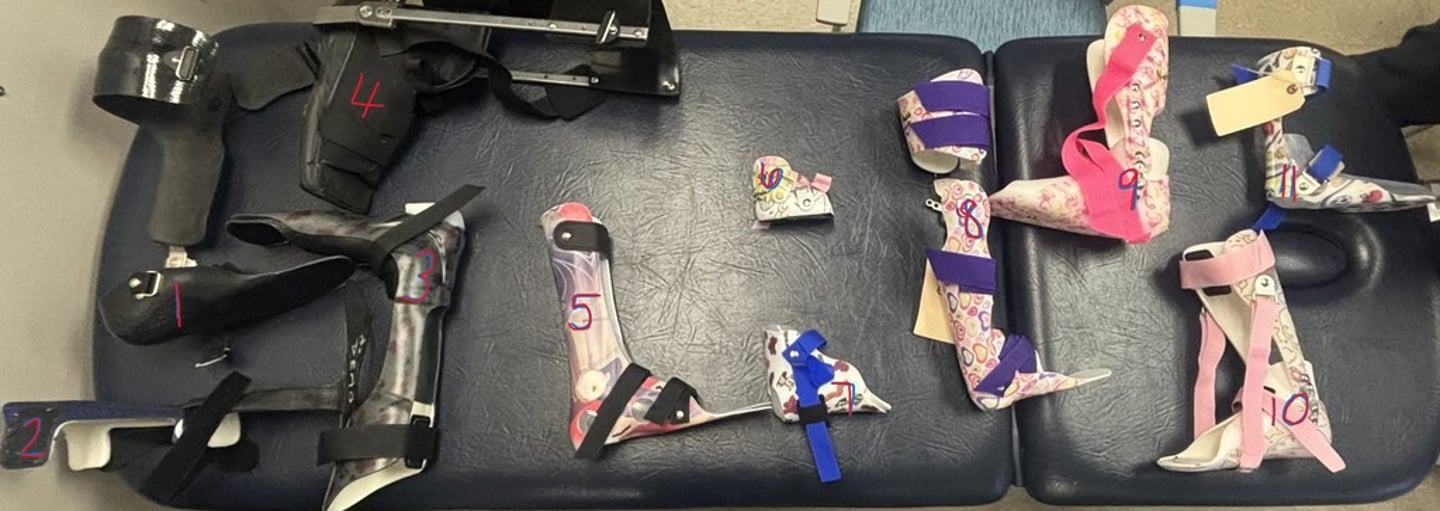

Articulating AFO

4

Free motion articulating AFO

1

carbon fiber ground reaction force

2

ground reaction with molded inner boot

3

Solid AFO

5

SMO

6

Toe-walking SMO

7

KAFO with SMO

8

Night time stretching brace

9 and 10

PLSO with inner boot

11

Carbon fiber PLSO

12

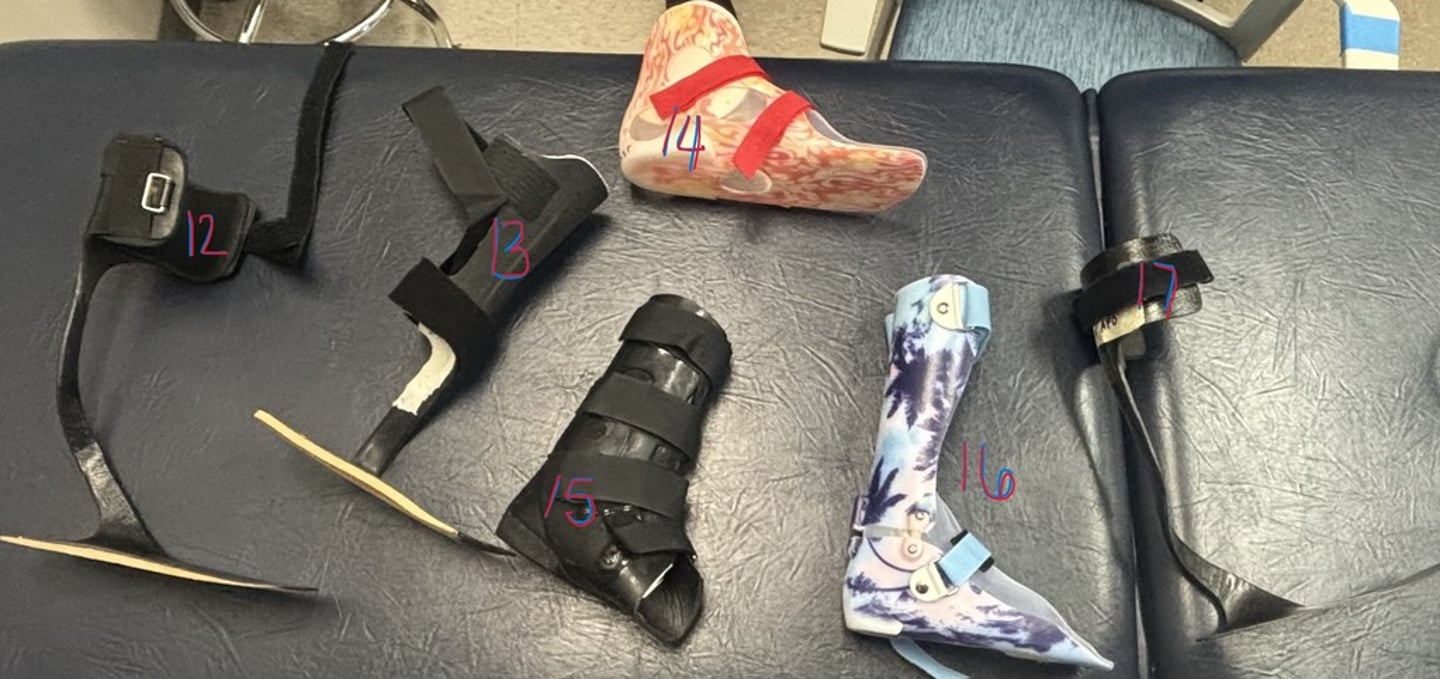

Carbon fiber ground reaction AFO

13

Gauntlet

15

Adult SMO with molded inner boot

14

Articulating AFO with PF stop

16

Carbon fiber PLSO

17

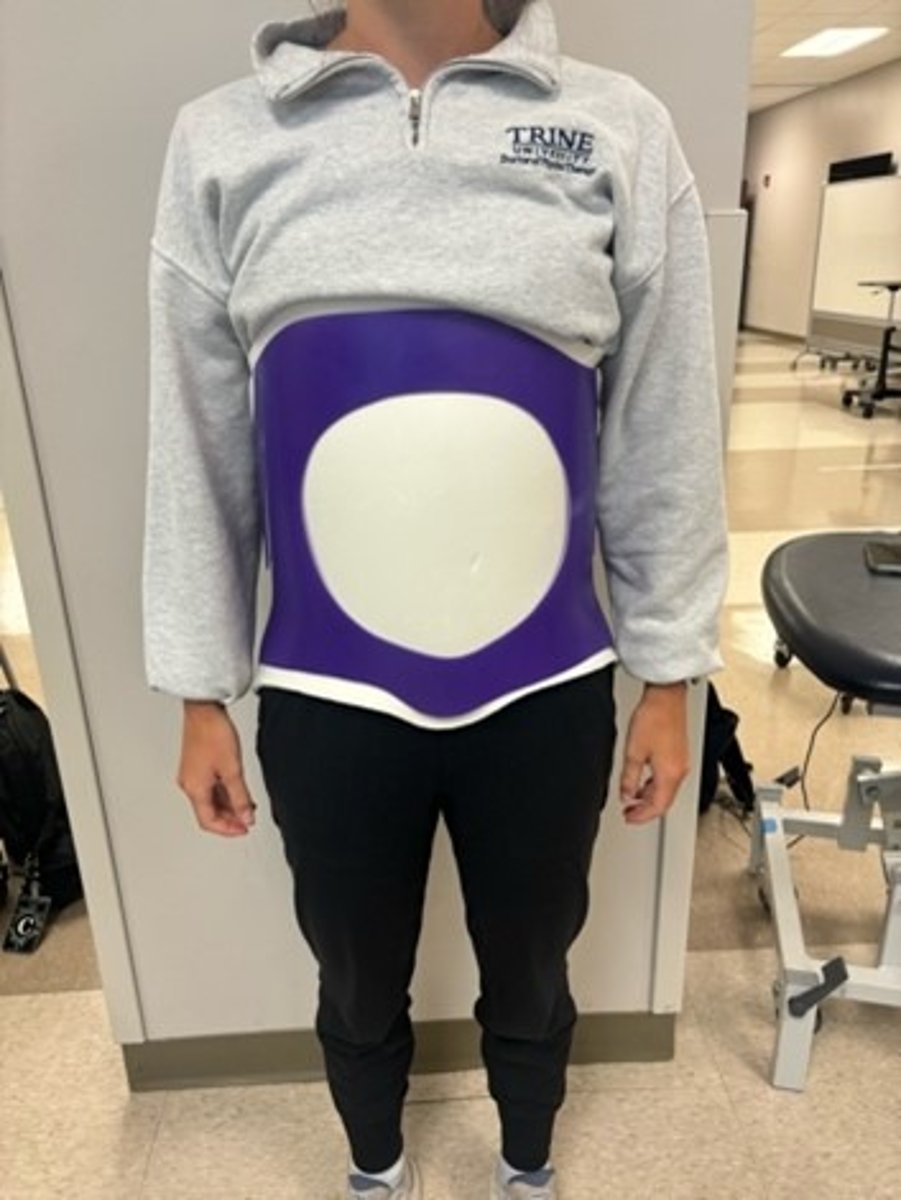

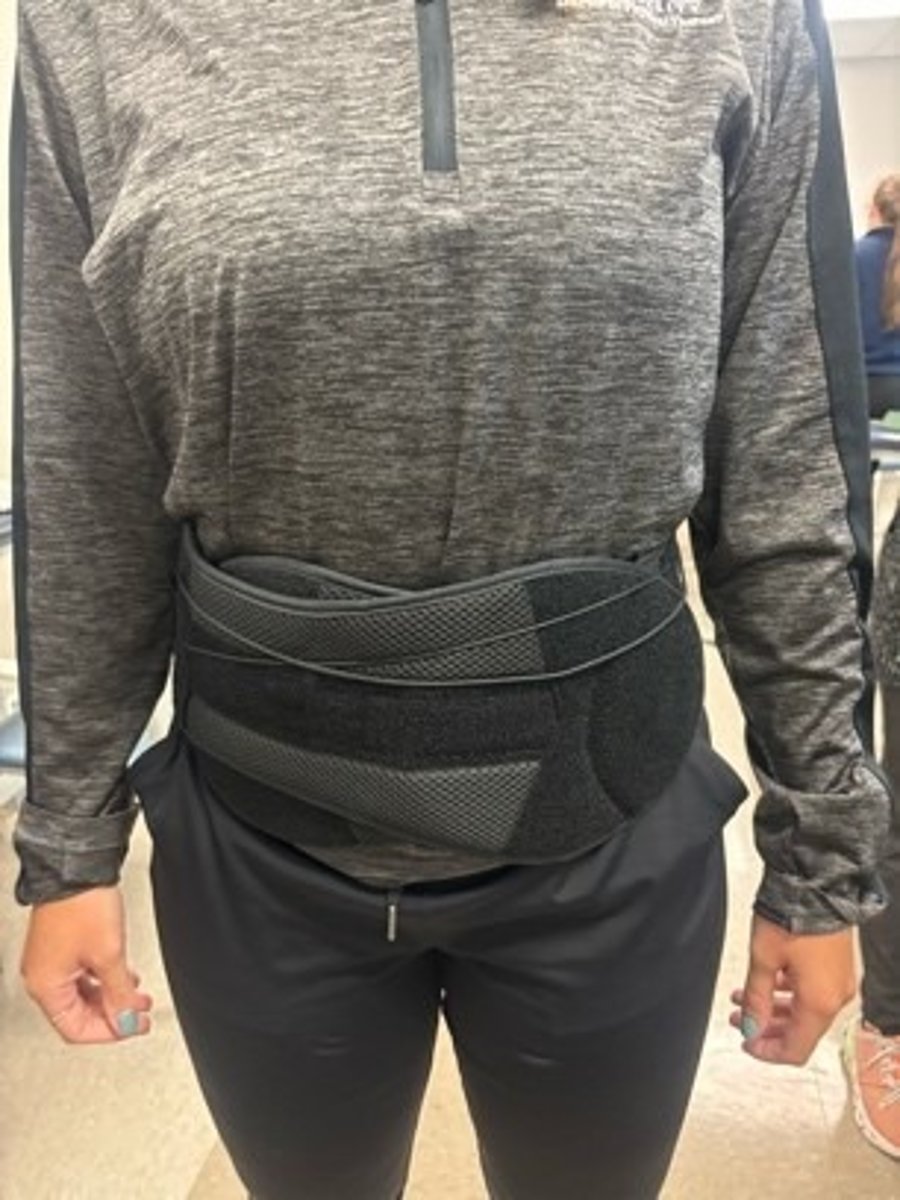

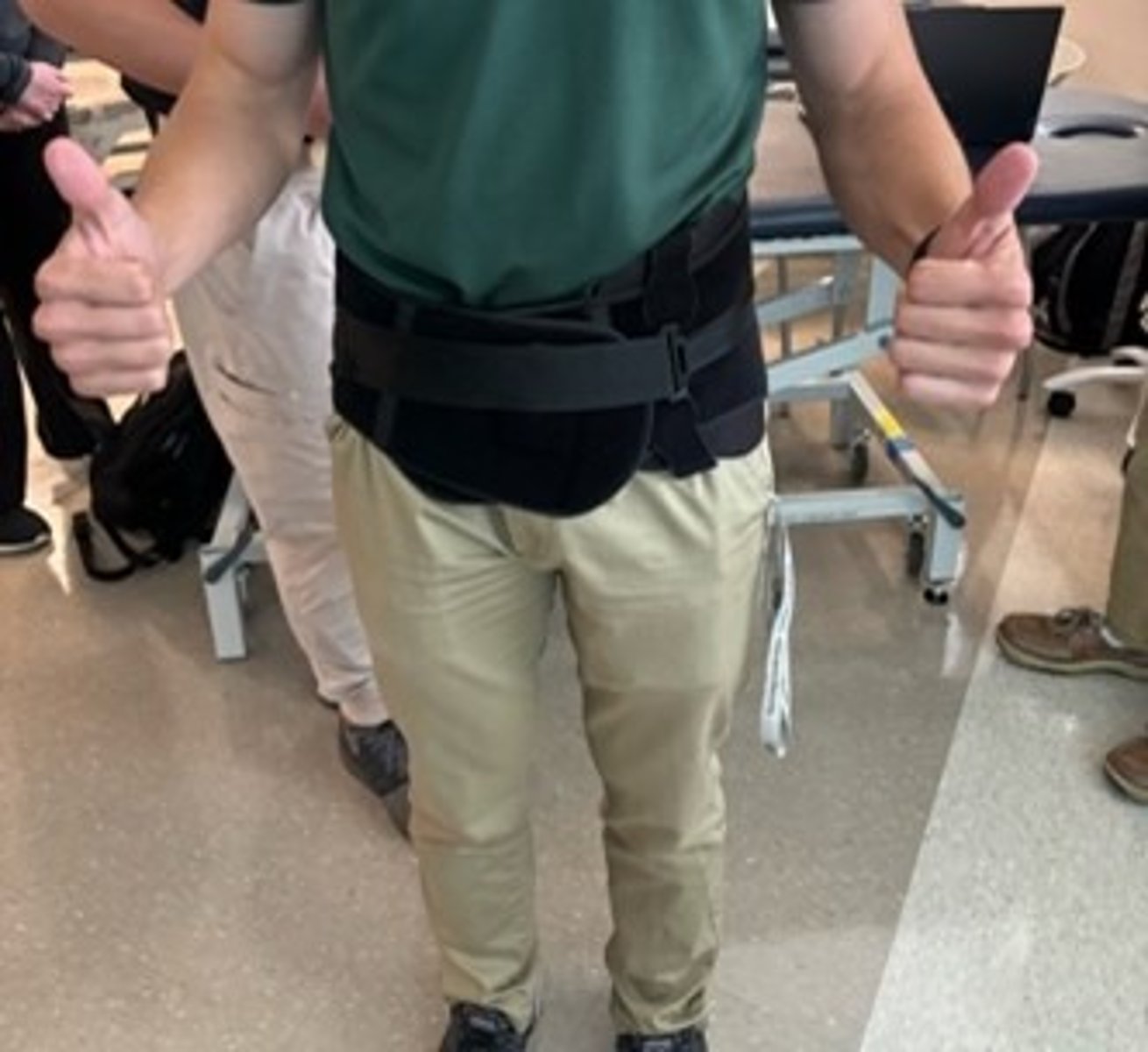

LSO

What is this?

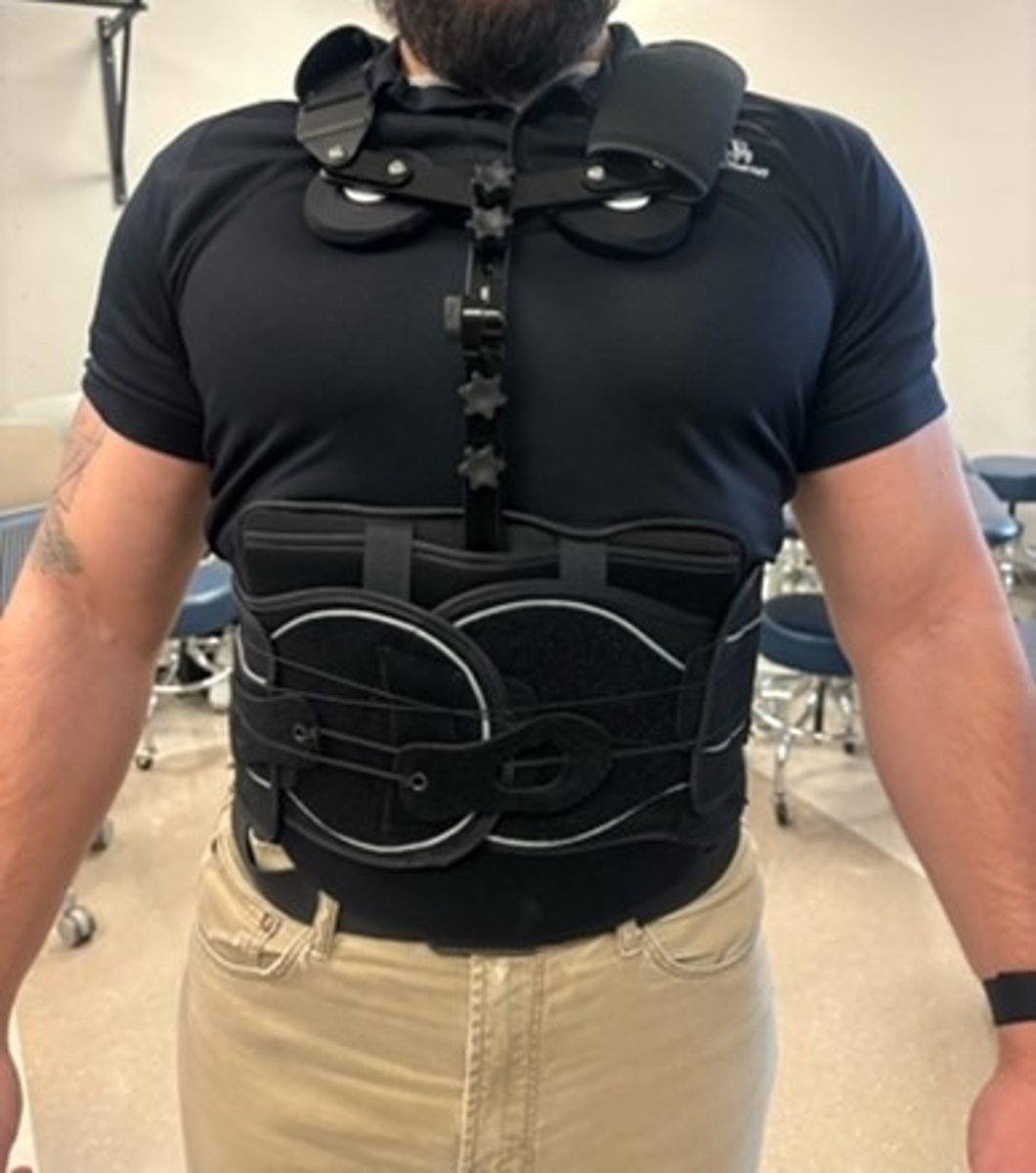

TLSO

What is this?

LSO

What is this?

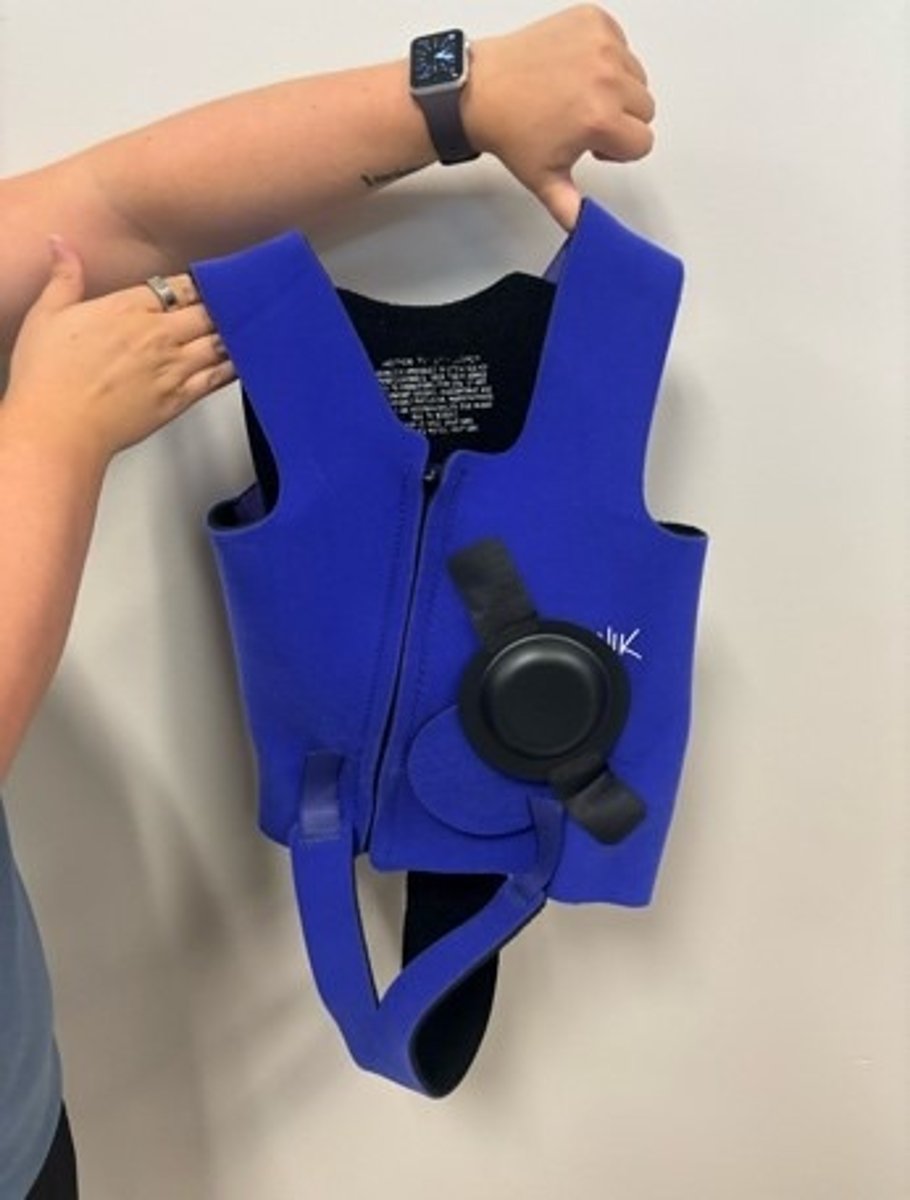

Benik compression vest

What is this?

TLSO

What is this?

scoliosis brace

What is this?

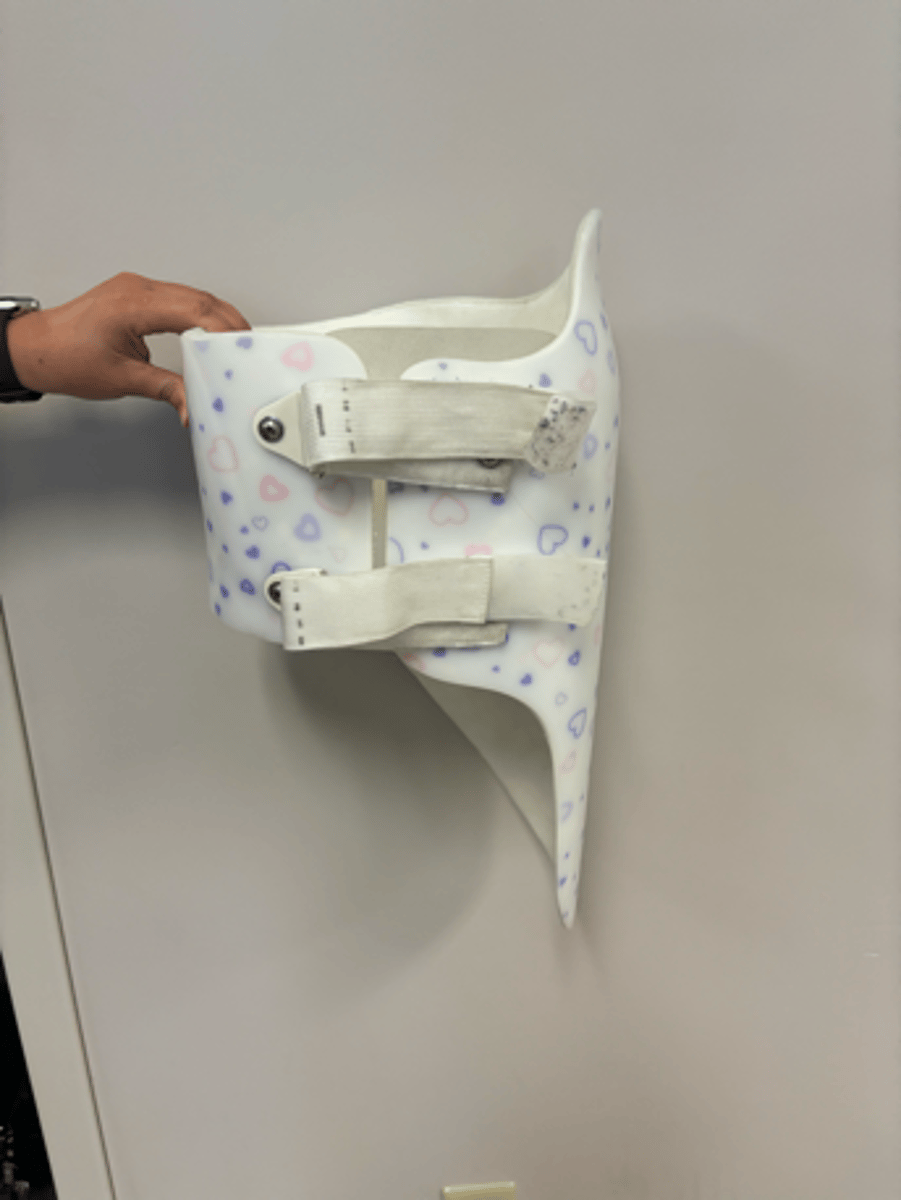

Providence nocturnal brace

What is this?

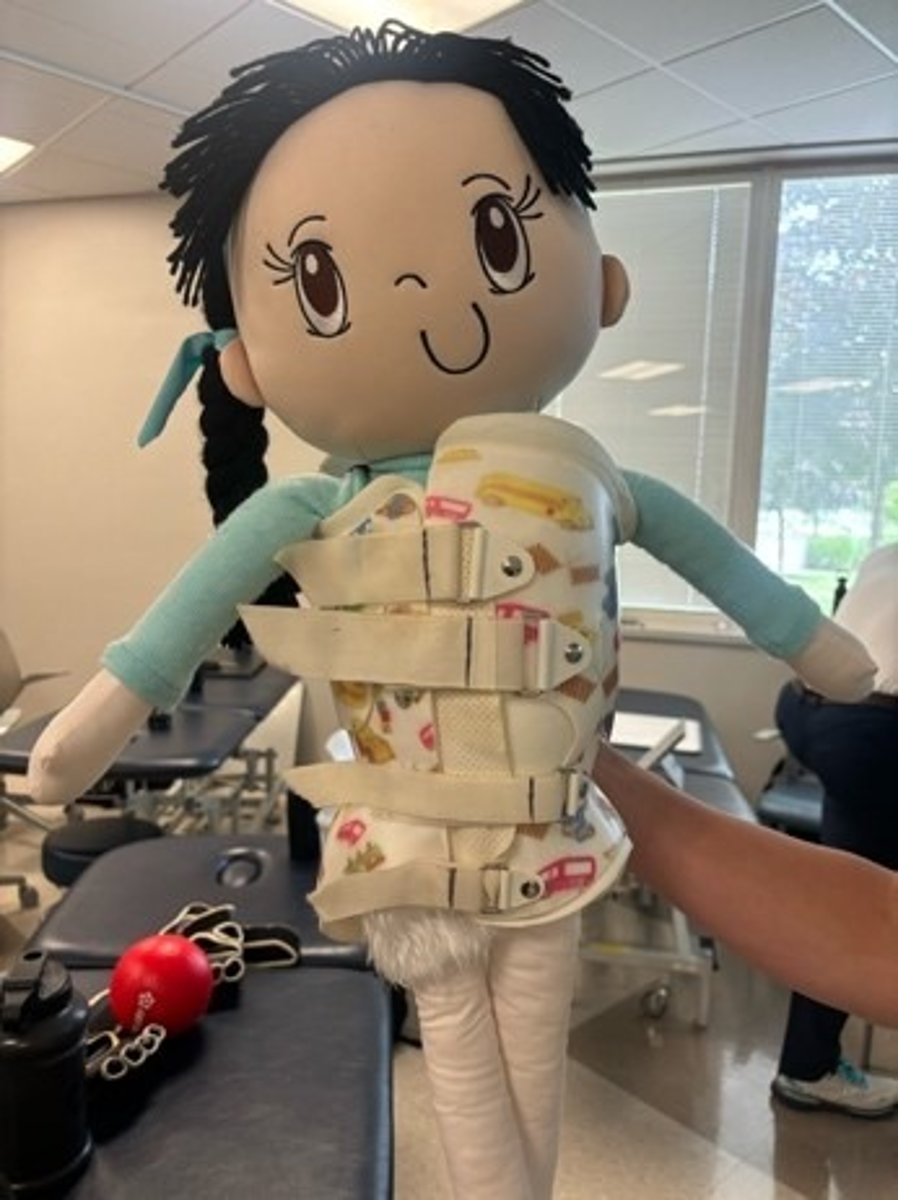

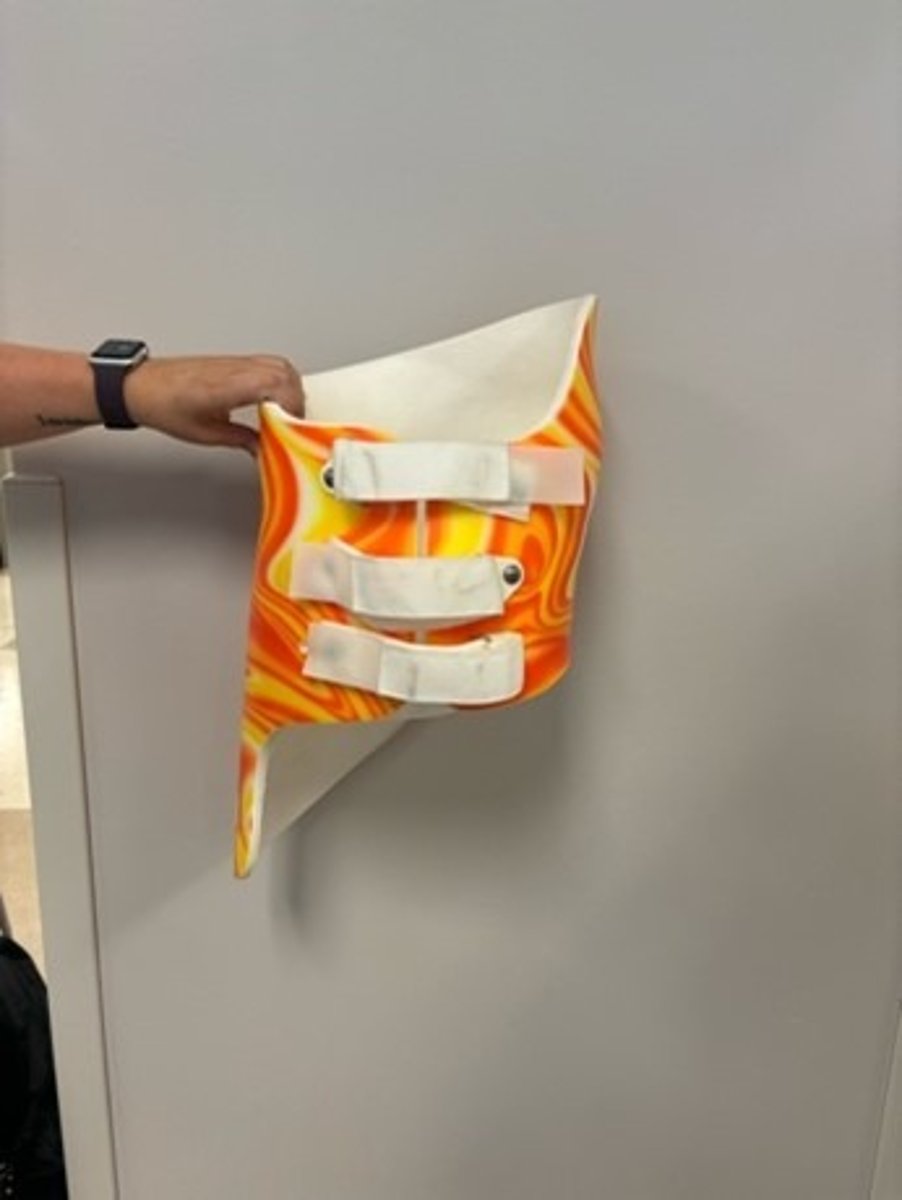

Pediatric TLSO

What is this?

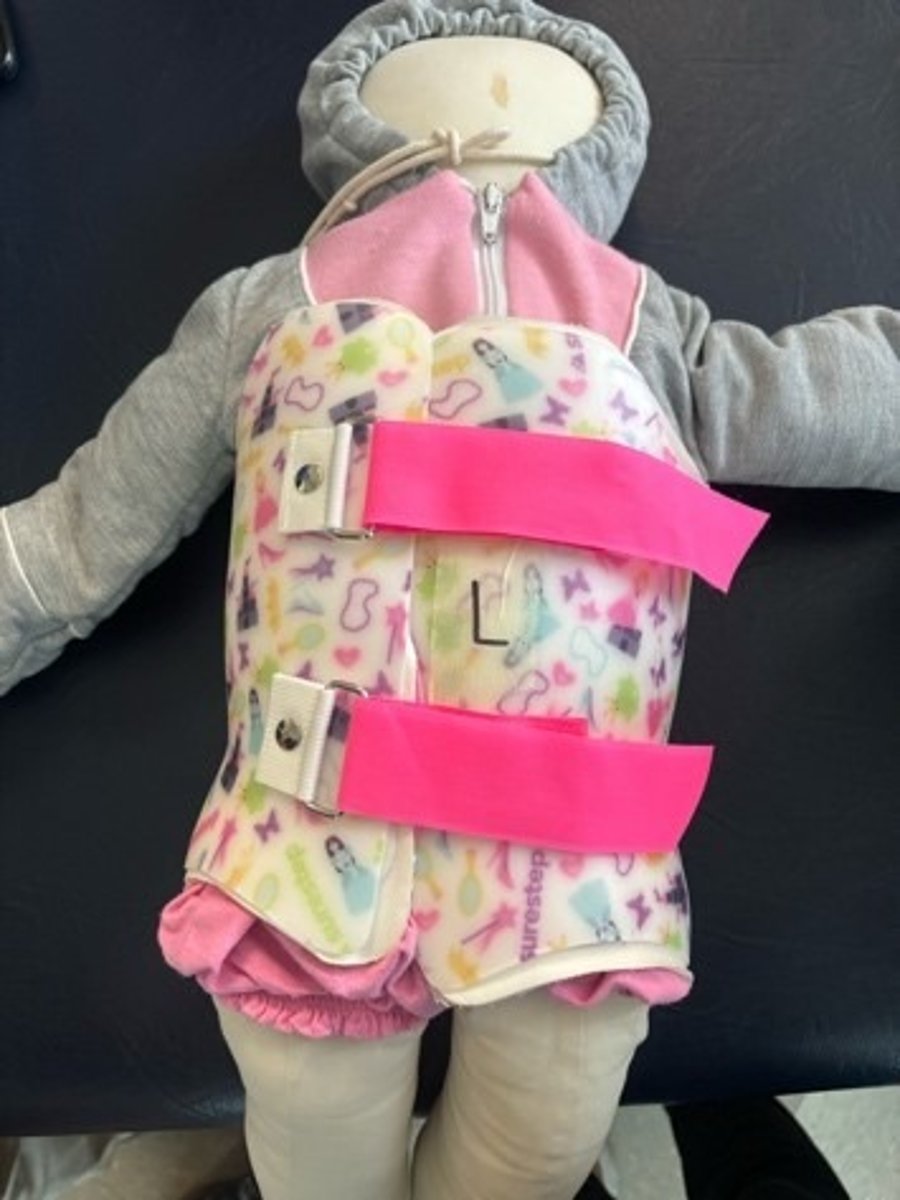

Pediatric TLSO

What is this?

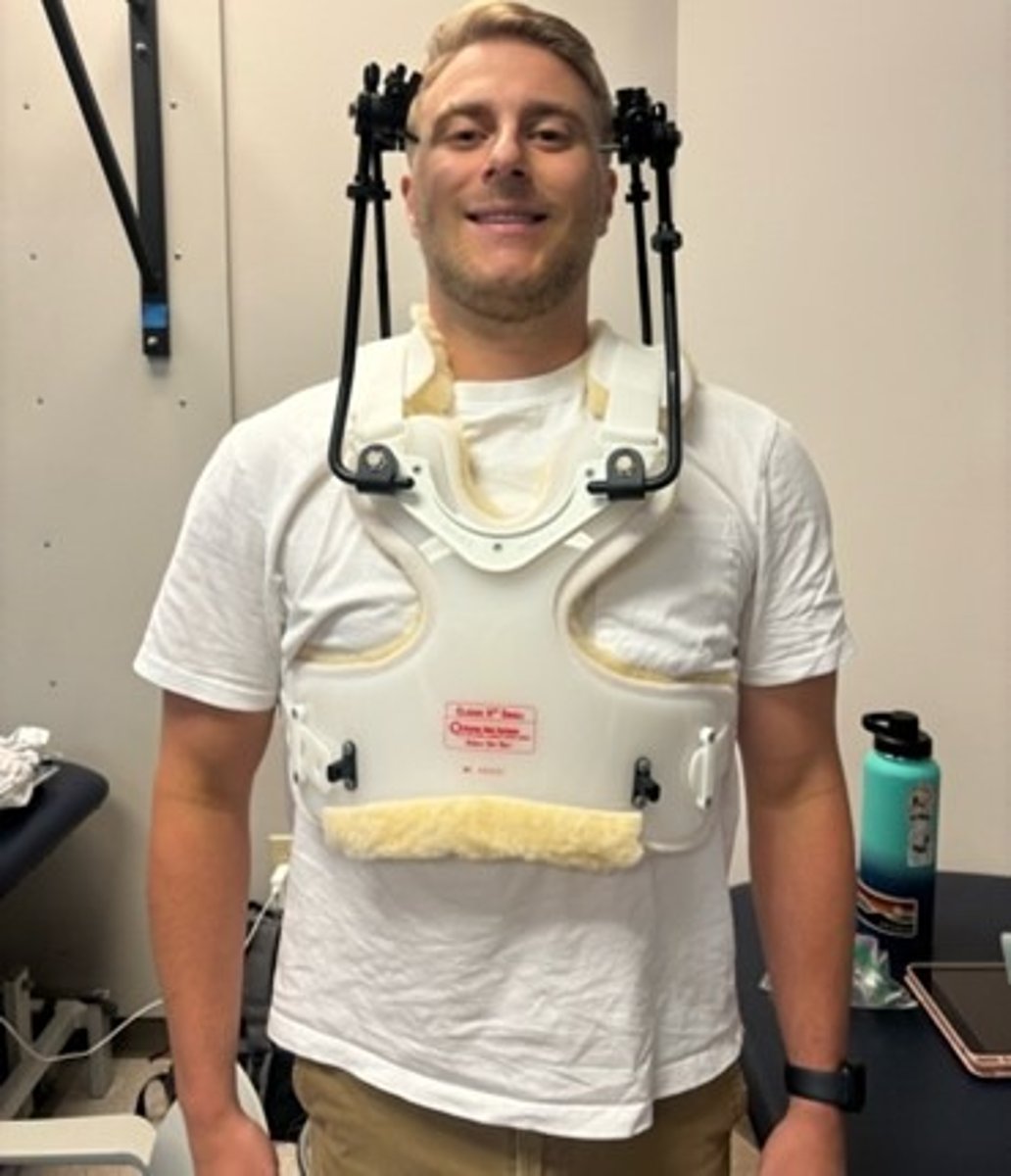

HALO

What is this?

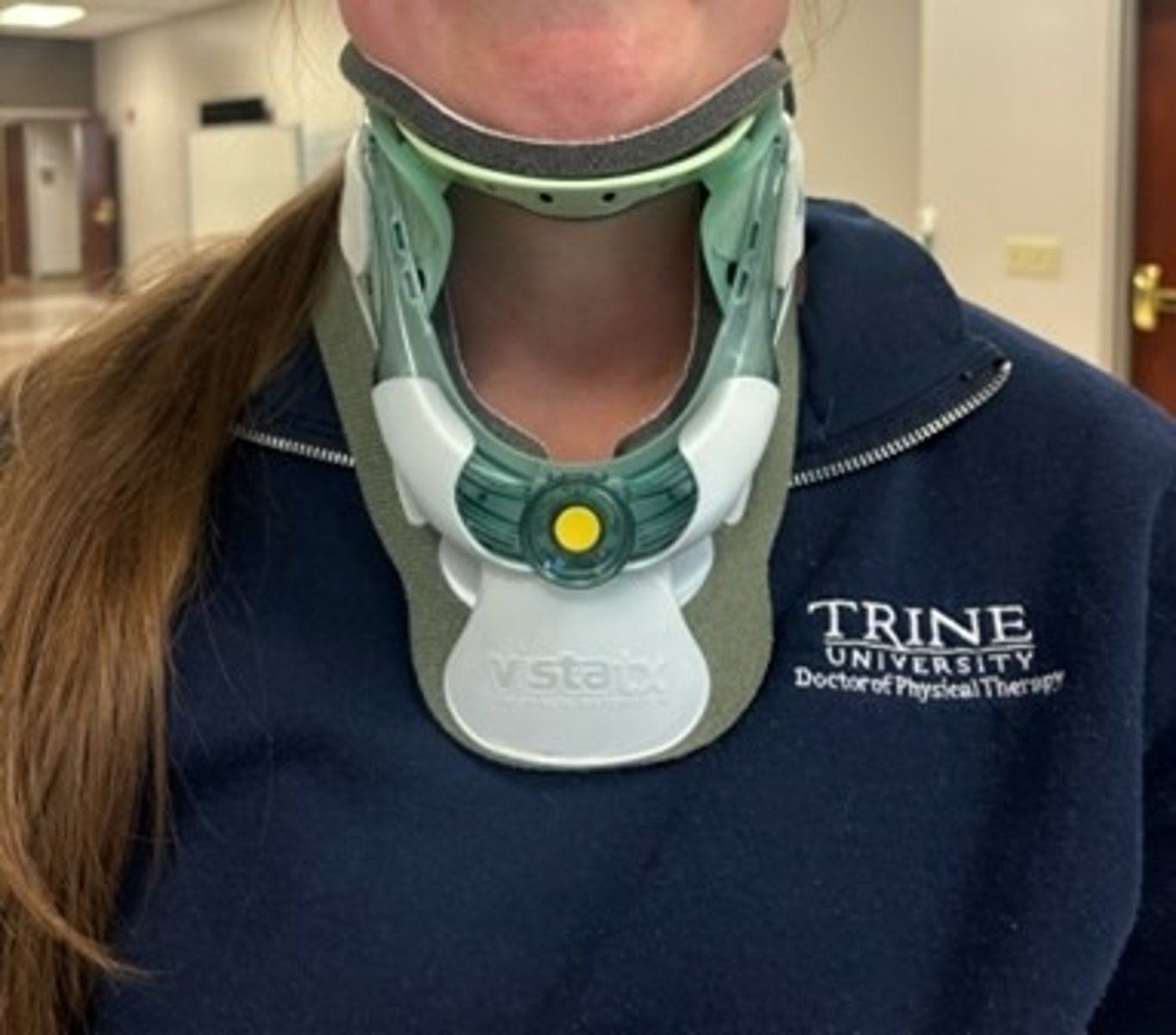

CO

What is this?

Low back pain, provides compression through an increase in hydrostatic pressure and limits motion

What is this used for/what does it restrict?

Prevents further kyphosis and prevents pain

What is this used for/what does it restrict?

Low back pain, provides compression

What is this used for/what does it restrict?

For low tone kids, provides general compression for trunk support

What is this used for/what does it restrict?

Puts pt in hyperextension, prevents flexion

What is this used for/what does it restrict?

Scoliosis

What is this used for/what does it restrict?

What is this used for/what does it restrict?

What is this used for/what does it restrict?

Immobilizes C1-2 for fxs and other spinal conditions

What is this used for/what does it restrict?

Prevents flexion, extension, and side bending

What is this used for/what does it restrict?

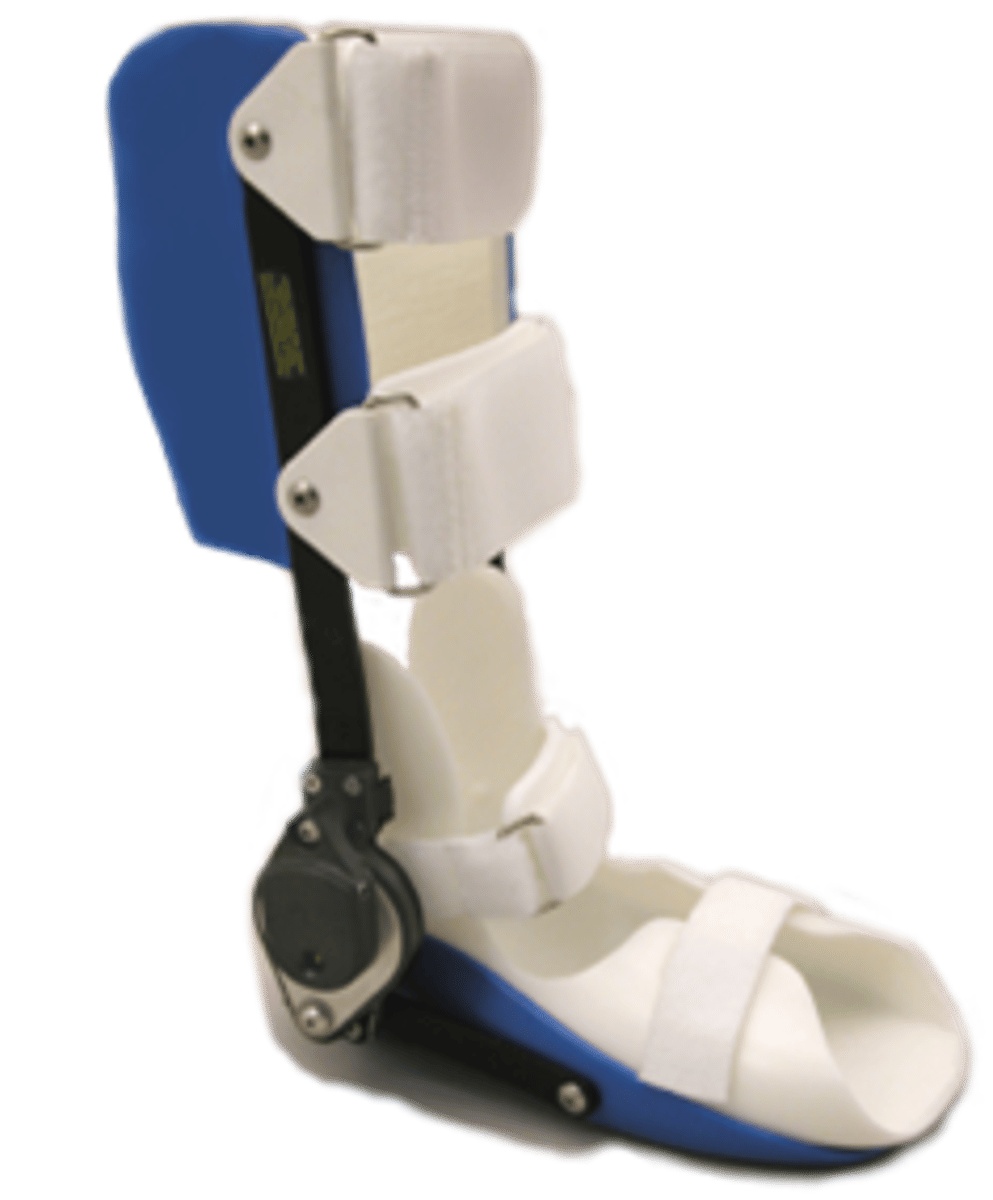

Dynamic NWB AFO

What is this?

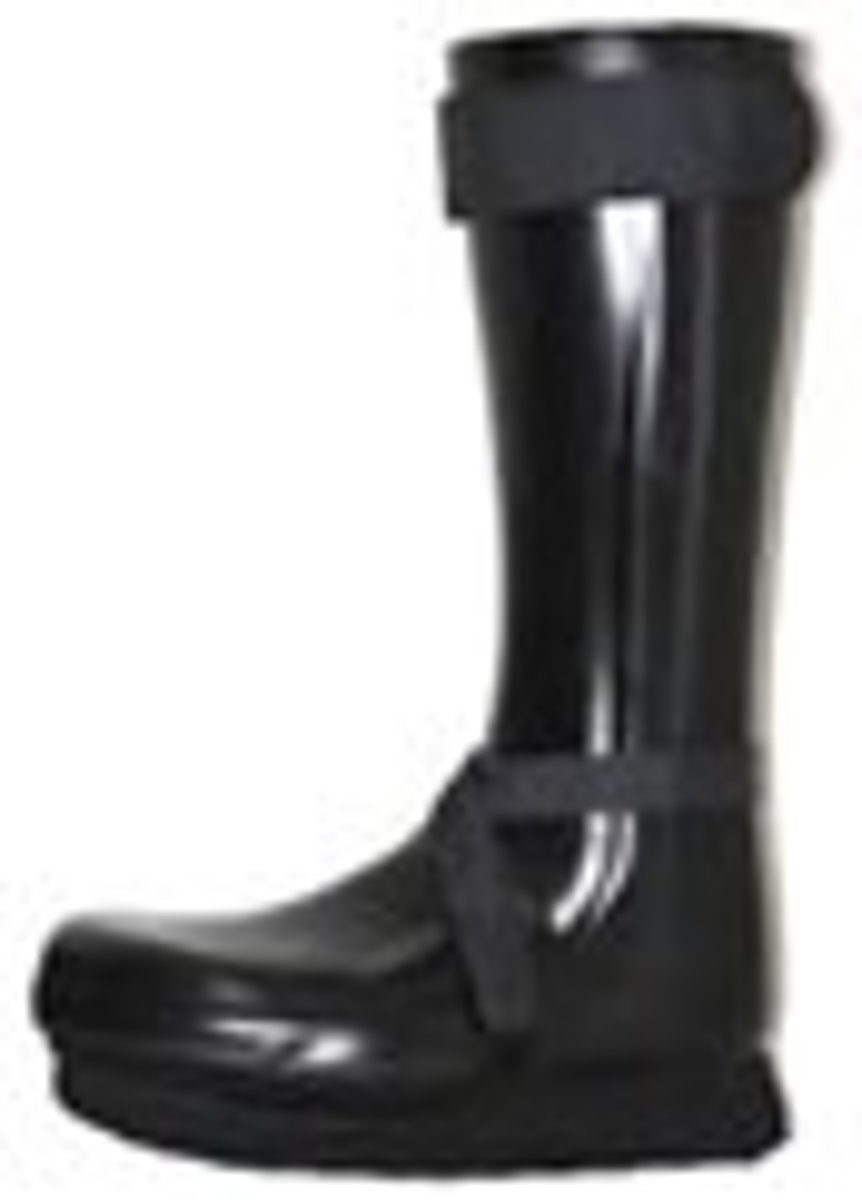

Charcot Restraint Orthotic Walker (CROW)

What is this?

Worn at night to treat scoliosis through use of long lever arms

What is this used for/what does it restrict?

control subtalar joint by aligning to neutral and assists in controlling medial/lateral ankle instability (most often used to correct pronation)

What are SMOs used for?

low tone kids, excessive pronation, flexible pes planus, down syndrome, developmental delay, and benign hypotonia

What diagnoses commonly use SMOs?

Provides max stability and used in absence of ROM when there is a lack of medial/lateral control at the ankle

What are solid AFOs used for?

spastic CP

What diagnoses commonly use solid AFOs?

aids in DF during swing phase for toe clearance and controls PF at heel strike

What are PLS AFOs used for?

CVA, CMT, MS, peroneal palsy, and LE weakness

What diagnoses commonly use PLS AFOs?

provides moderate stability and is used in absence of full AROM, especially when there is a lack of medial/lateral control or ankle stability

What are semi-solid AFOs used for?

Spastic CP

What diagnoses commonly use semi-solid AFOs?

used when there is available DF/PF but limited eversion/inversion and encourages neutral foot

What are hinged/free motion articulated AFOs used for?

for patients whose crouched position is due to weakness and lack of voluntary PF

What is a ground reaction force AFO used for?

provides long-term stretch and positioning to decrease risk of contractures

What is a non-weight bearing AFO used for?

CP, MS, SB, CVA, and TBI

What diagnoses commonly use non-weight bearing AFOs?

provides immobilization of foot/ankle for healing and to maintain safe and appropriate posture

What is a charcot restraint orthotic walker (CROW) used for?

Charcot ankle with diabetic plantar neuropathy

What diagnoses commonly use CROWs?

improves LE stability directly at the knee and indirectly at above/below the knee

What is a KAFO used for?

>/= 20 degrees of genuvarum/valgum and grade 3 or below quad MMT

What must patients have to use KAFO?

provides foot/ankle/knee/hip stability and discourages excessive hip rotation during gait

What are HKAFOs used for?

spina bifida, MS, muscular dystrophy, paraplegics, etc

What diagnoses commonly use HKAFOs?

creates reciprocal movements of the legs and regulates gait

What are RGOs used for?

spina bifida, SCIs, children with unilateral hip dislocations, lower limb paralysis, and LLD

What diagnoses commonly use RGOs?

correct toe in or toe out

What are twister cable/derotation straps used for?

increases or maintains hip abduction

What are hip abduction orthoses used for?

hip dysplasia, CP, and leg calve perthes disease

What diagnoses commonly use hip abduction orthoses?

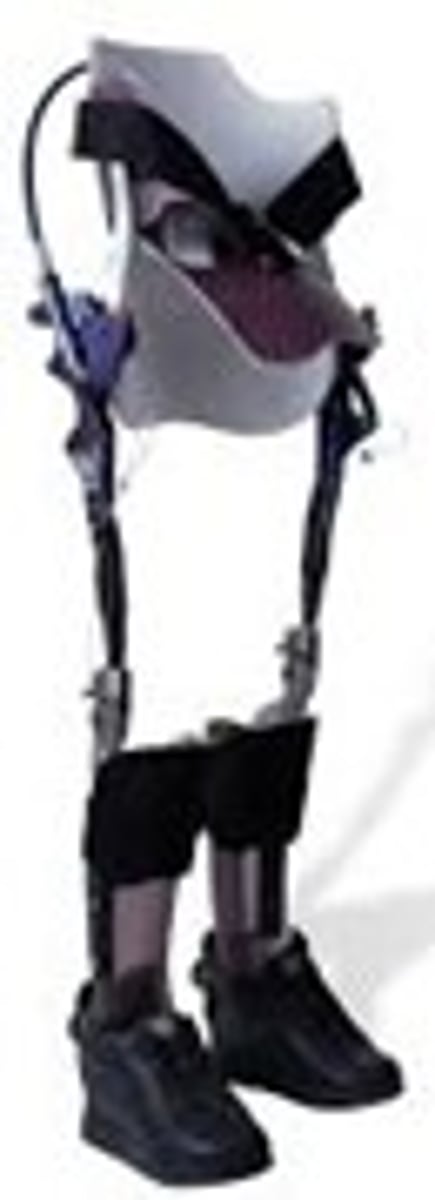

Reciprocating gait orthosis (RGO)

What is this?

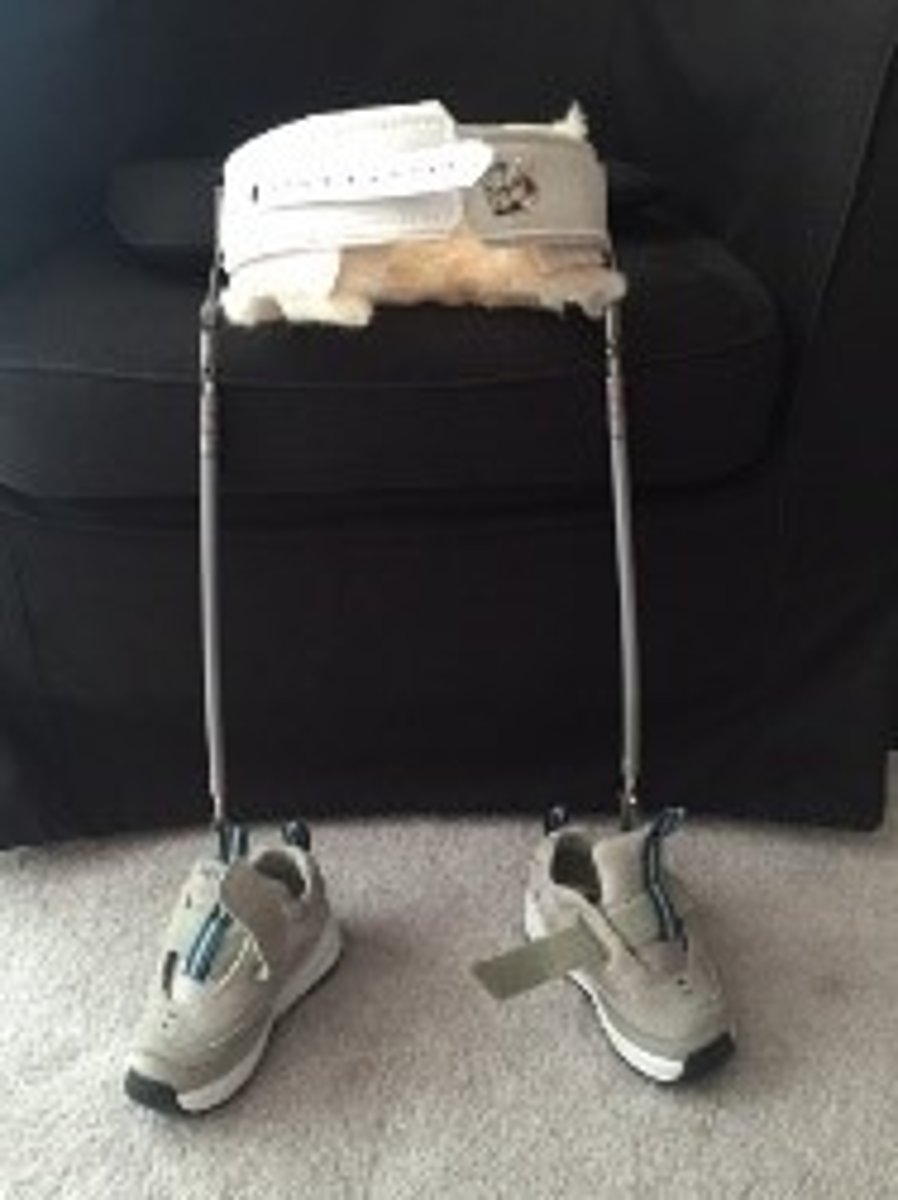

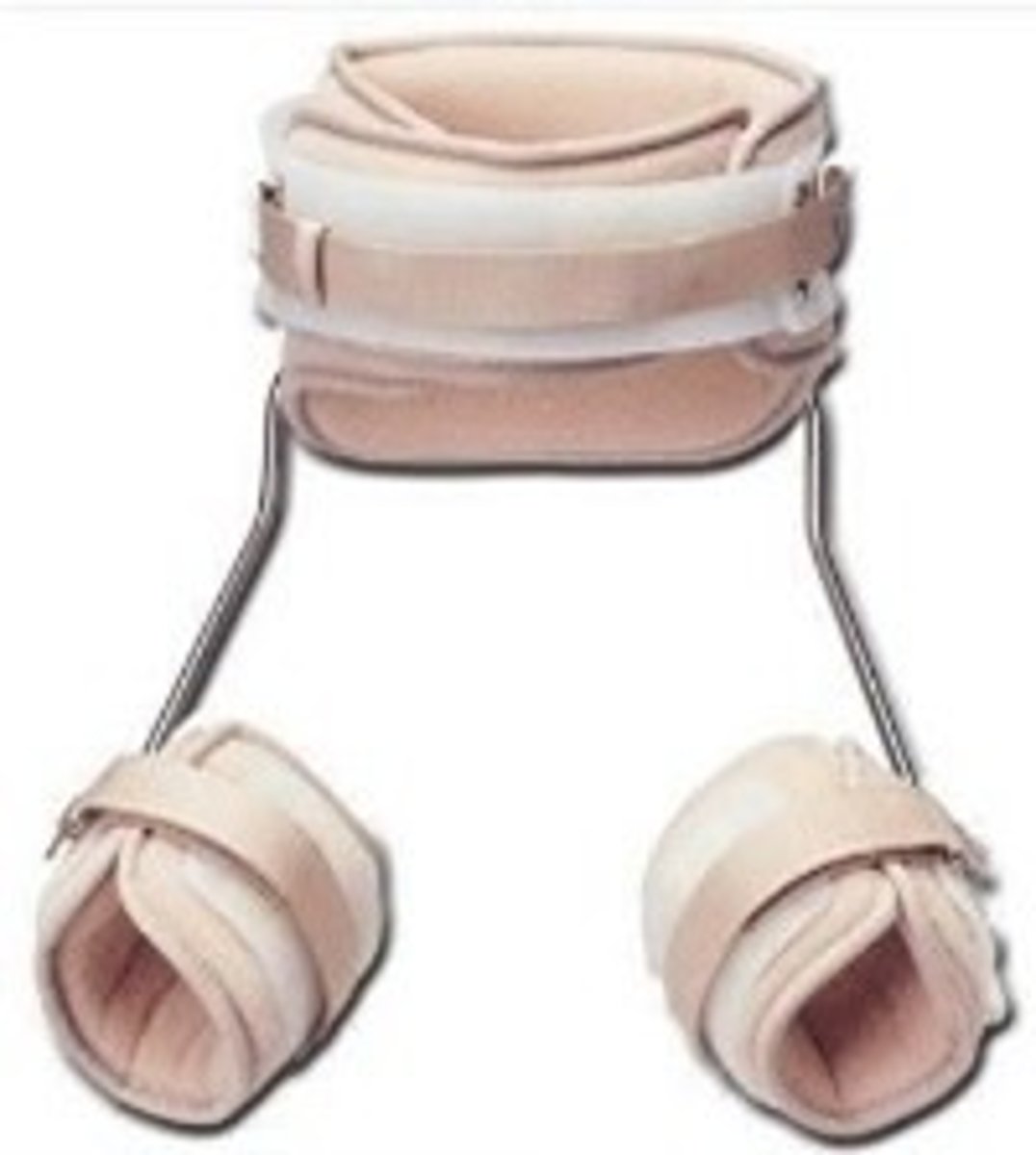

Twister cable/derotation straps

What is this?

Hip abduction orthosis

What is this?

Spasticity, severe toe walking, tight heel chords, and tight peroneals

What are contraindications for SMOs?

pt would benefit from more motion

What are contraindications for solid AFOs?

significant ML or AP ankle instability during swing or stance

What are contraindications for a PLSO?

Pt would benefit from more motion

What are contraindications for semi-solid AFOs?

Severe spasticity, severe ML instability or deformity of the ankle/foot

What are contraindications for hinged/free motion articulated AFOs?

Knee hyperextension

What are contraindications for GFOs?

rigid contractures

What are contraindications for non-weight bearing AFOs (night splints)?

Pt would benefit from more movement

What are contraindications for KAFOs?

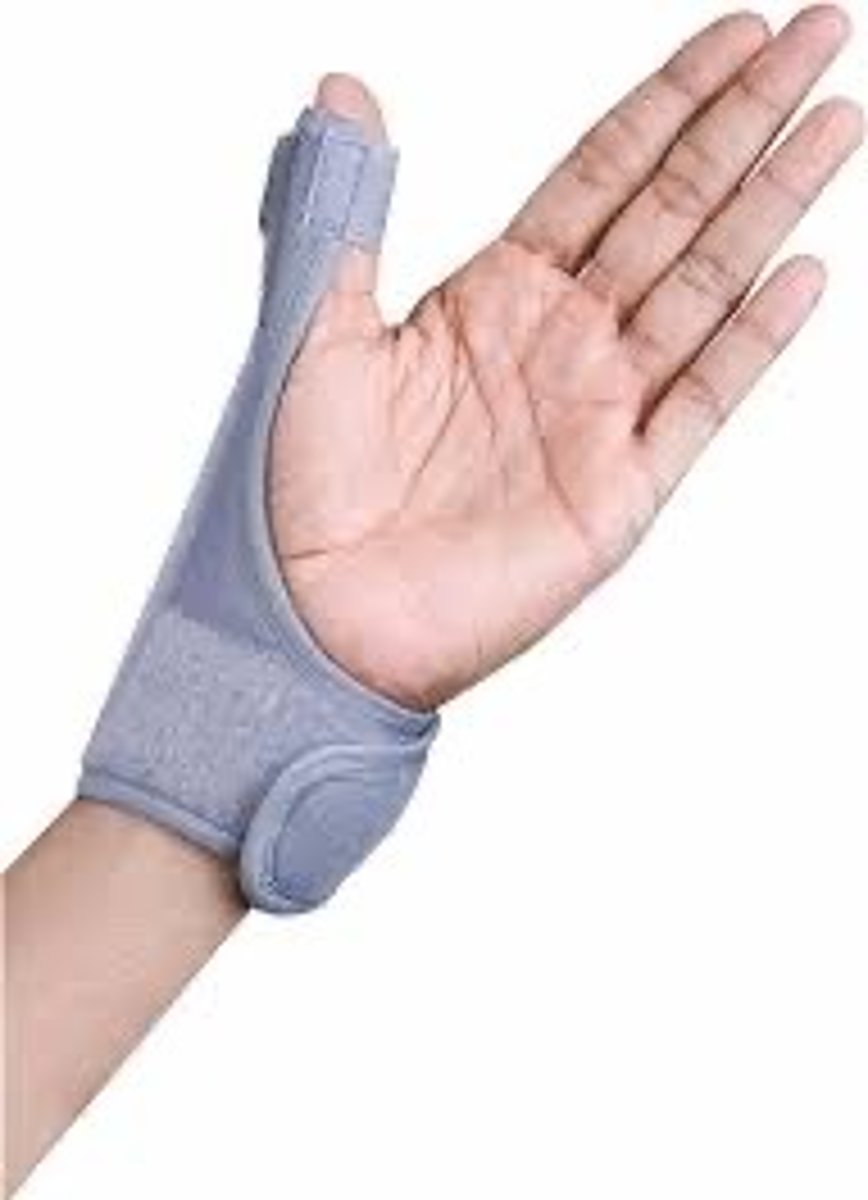

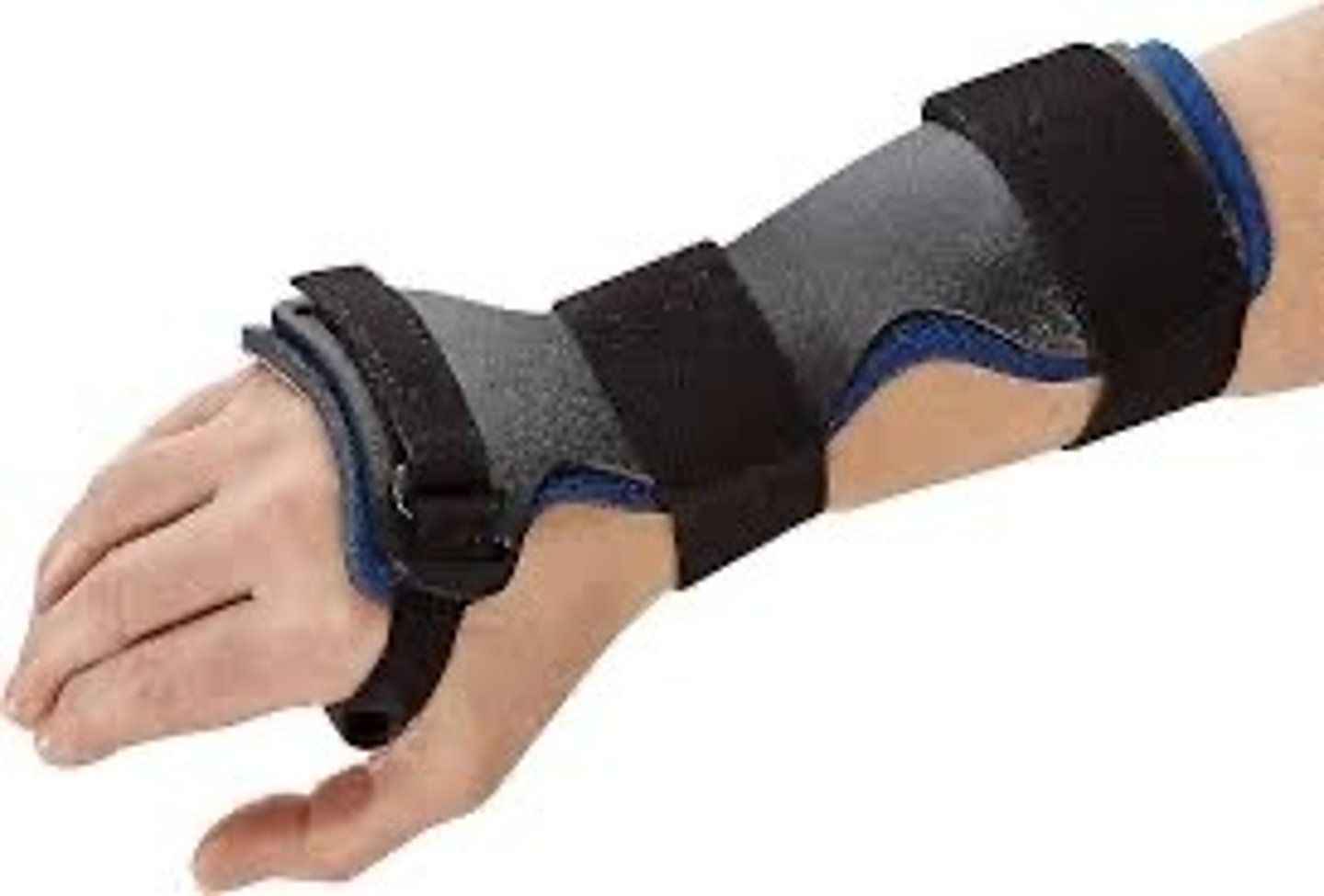

Thumb spica

What is this?

static splint that prevents motion, provides protection/support, and corrects/prevents deformity

What is a thumb spica used for?

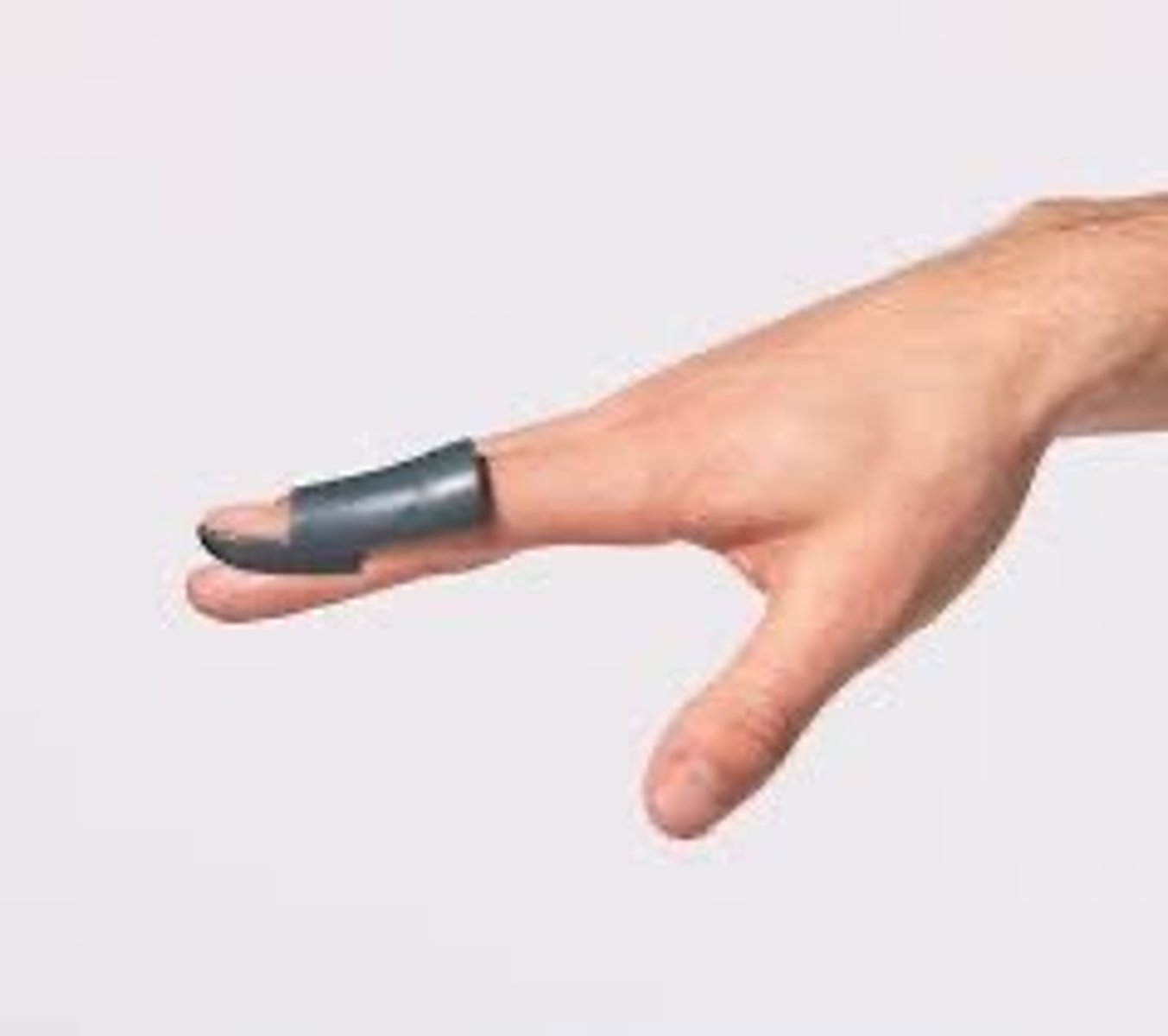

general finger splint

What is this?

static splint that prevents abduction/adduction/opposition, provides protection/support, and corrects/prevents deformity

What is a general finger splint used for?

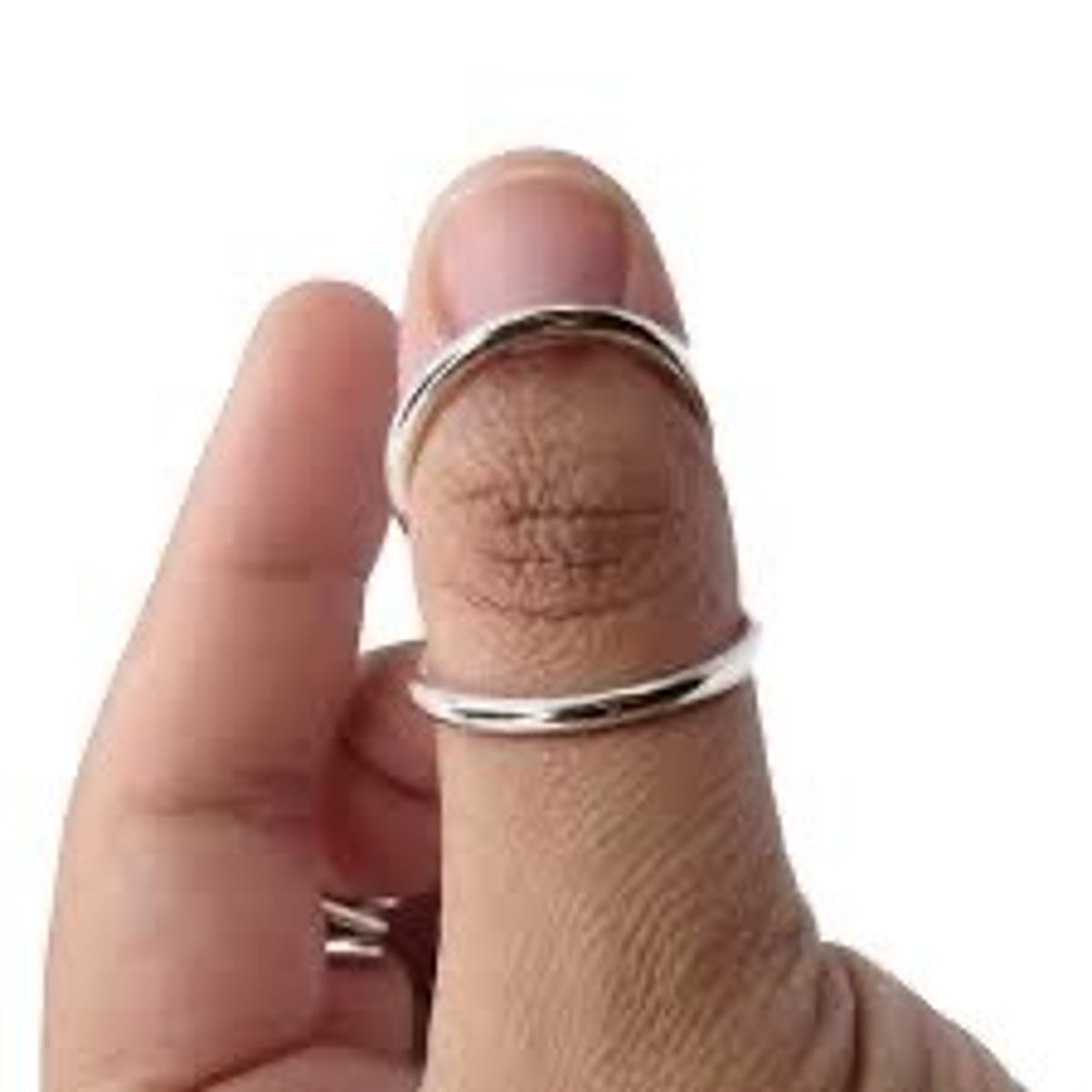

ring splint

What is this?

3 point pressure system that prevents flexion/extension, provides protection/support, and corrects or prevents deformity

What is a ring splint used for?

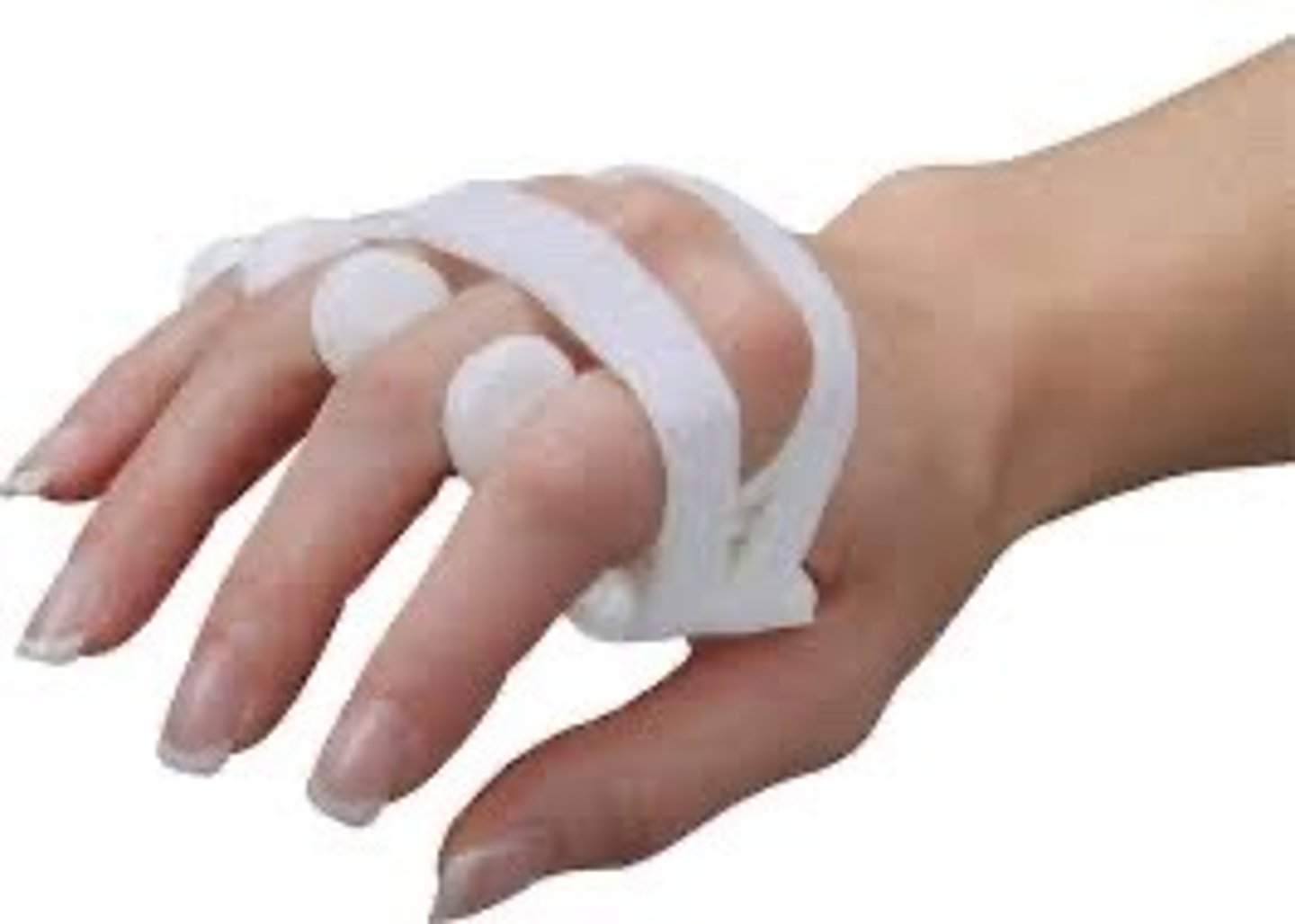

hand splint

What is this?

prevents ulnar deviation related to RA or clawing related to ulnar nerve damage

What are hand splints used for?

Static wrist hand finger orthosis (dorsal specifically)

What is this?

immobilization, protection/support, correction/prevention of deformity, substitute for weak or absent UE function, or serves as a base of attachment for ADL equipment

What is a static wrist hand finger orthosis used for?

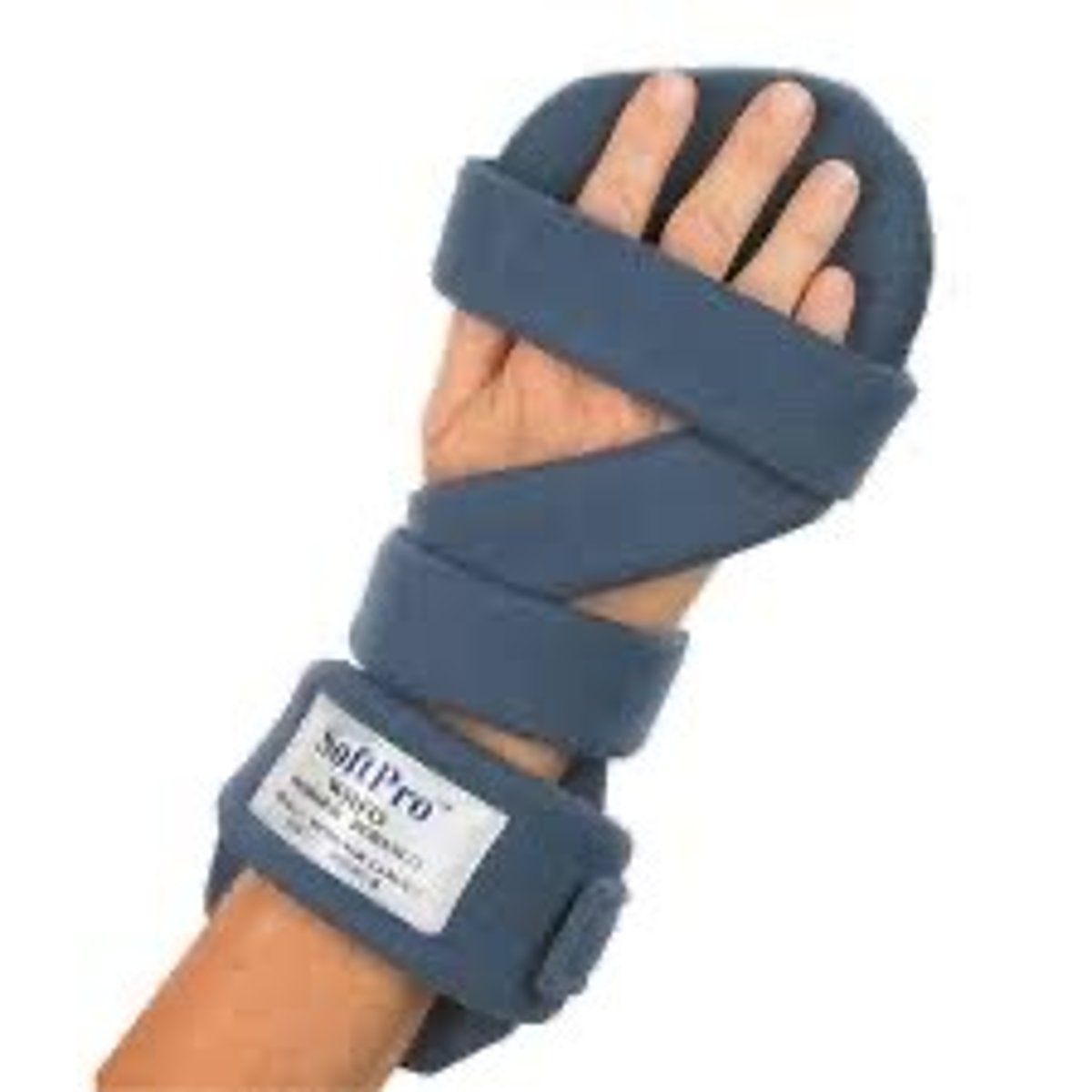

Resting hand splint

What is this?

Spasticity management

What is a resting hand splint used for?

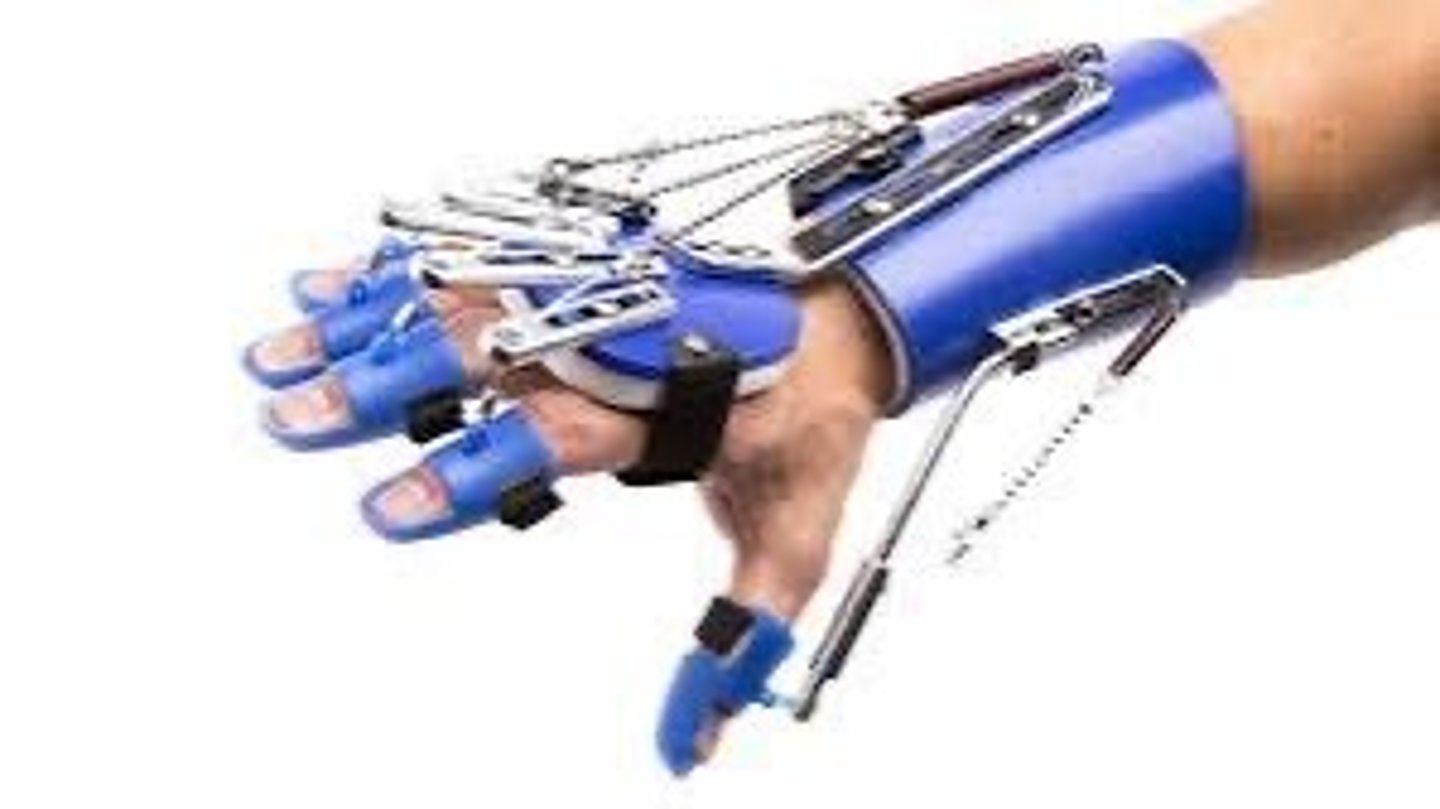

Dynamic wrist hand finger orthosis

What is this?

substitute for weak or absent UE function

What are dynamic WHFOs used for?

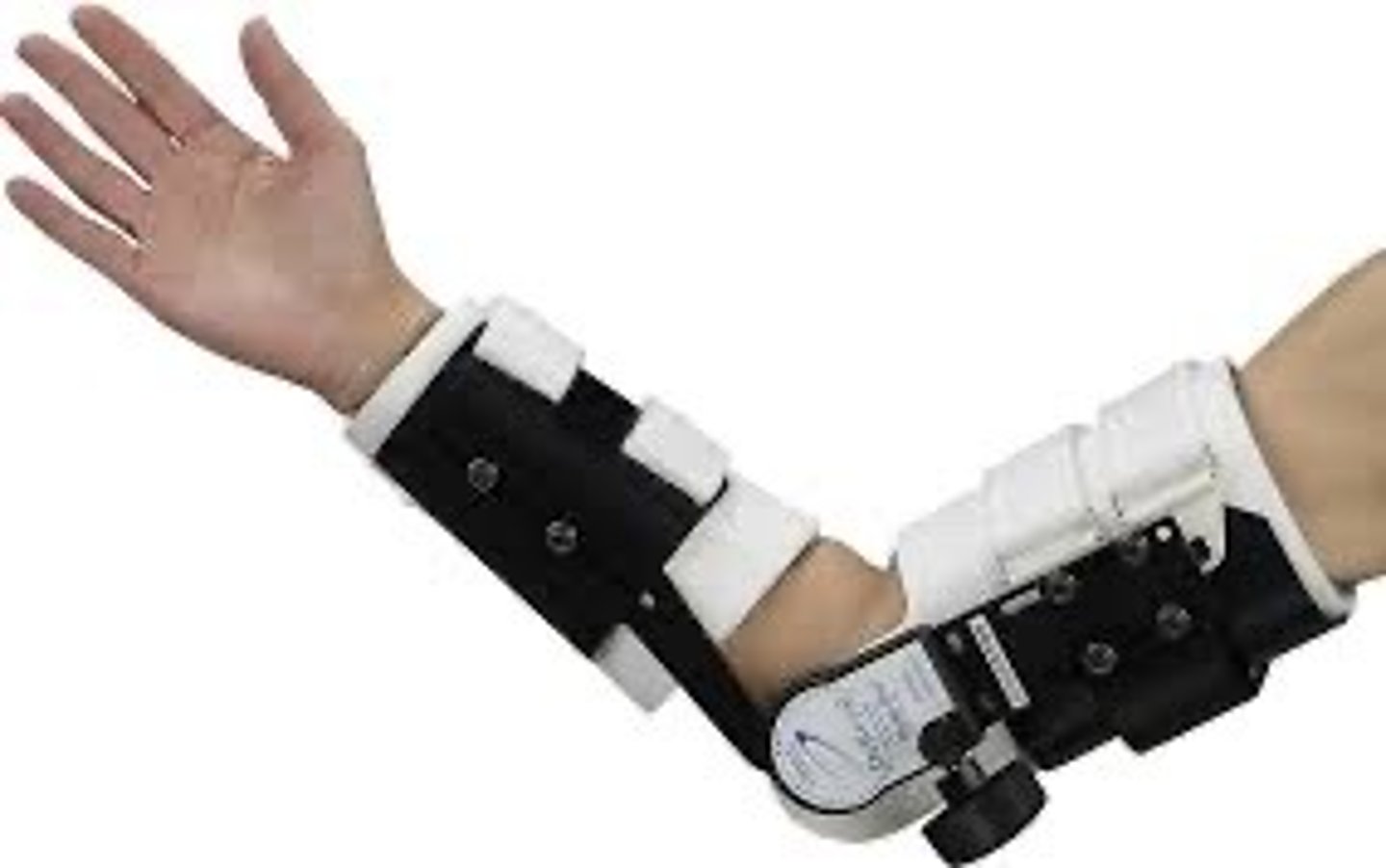

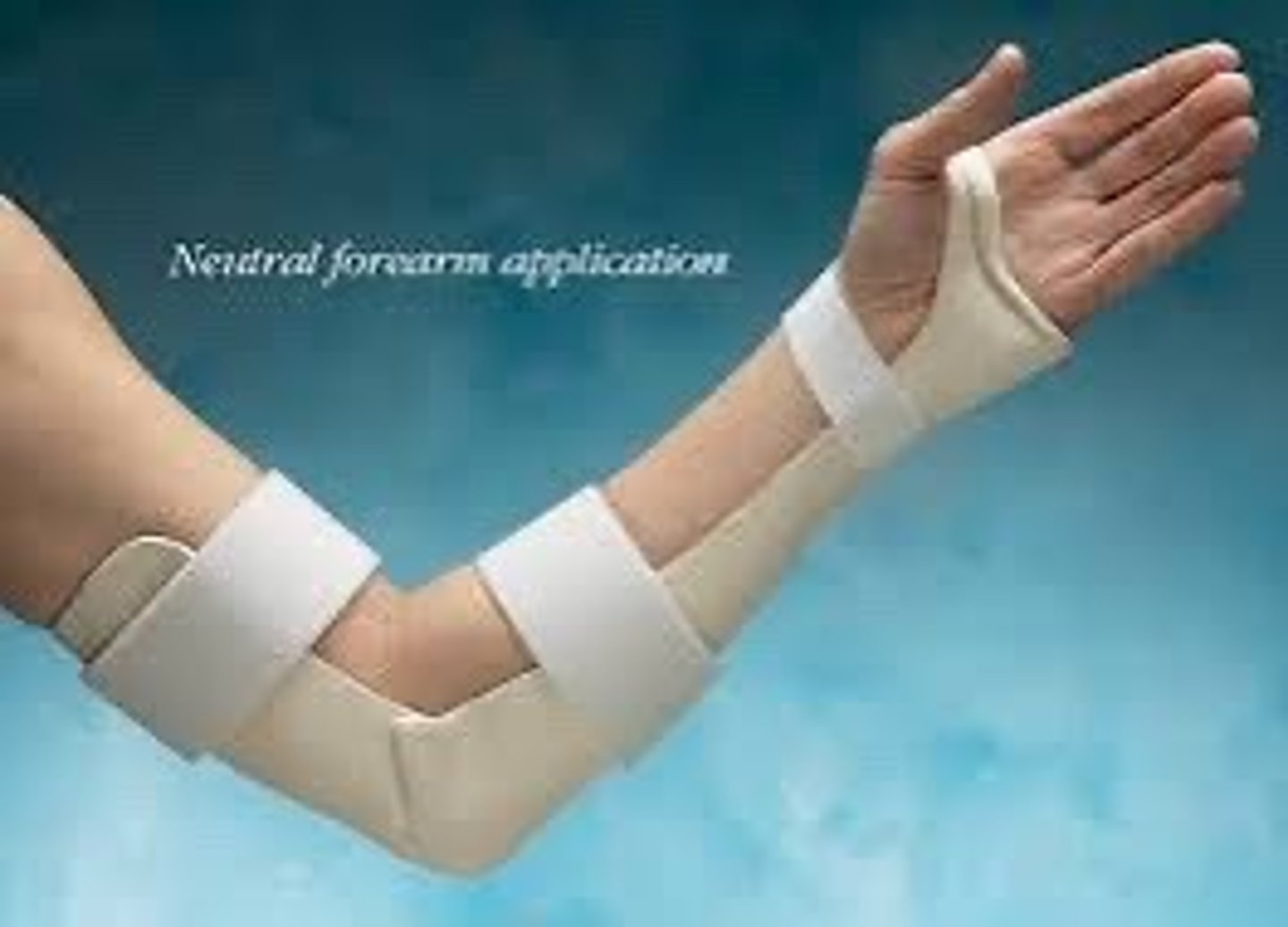

Static EWHFO

What is this?

Provides protection/immobilization, prevents contractures

What are static EWHFOs used for?

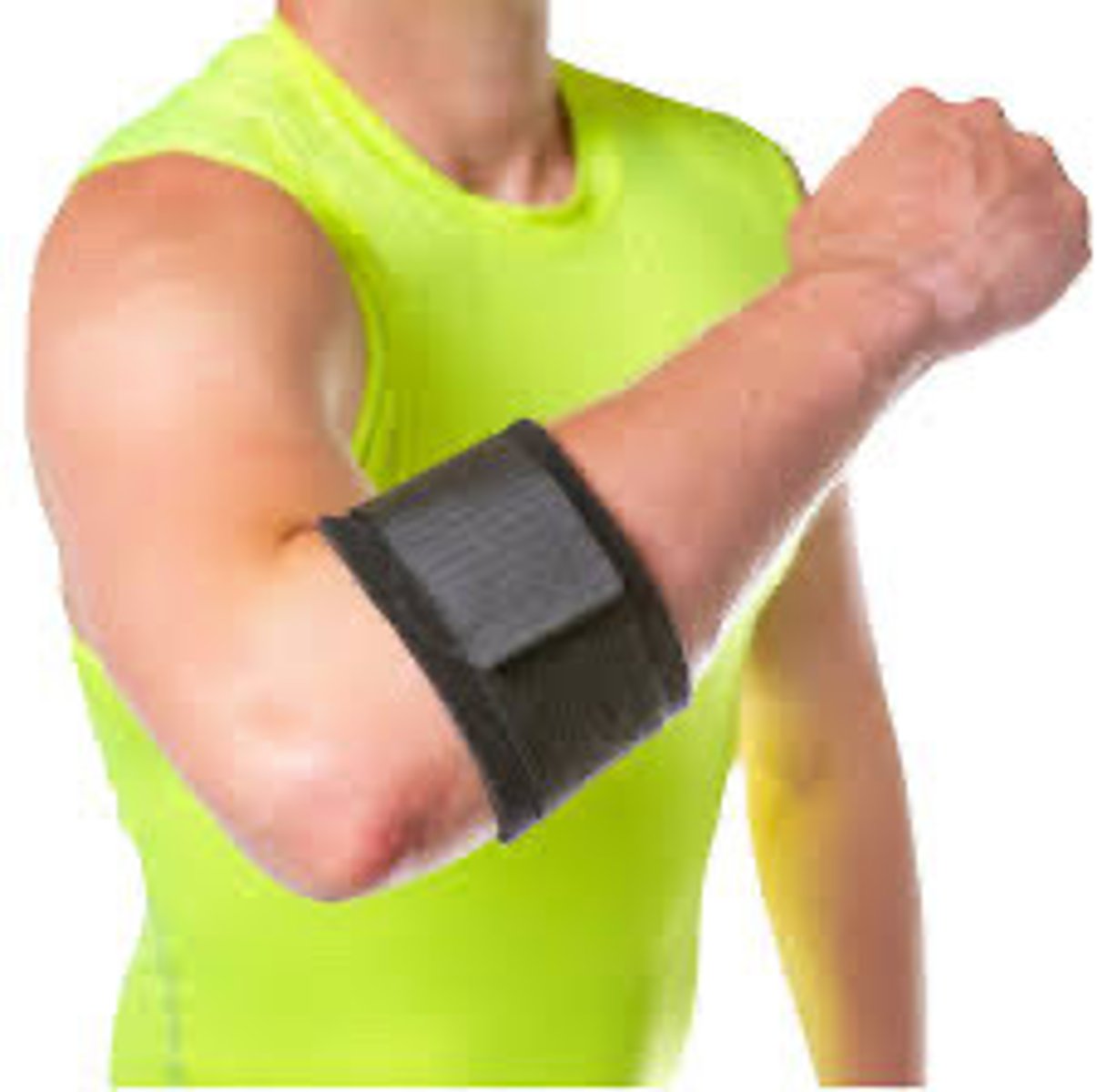

counterforce brace

What is this?

Pain

What are counterforce braces used for?

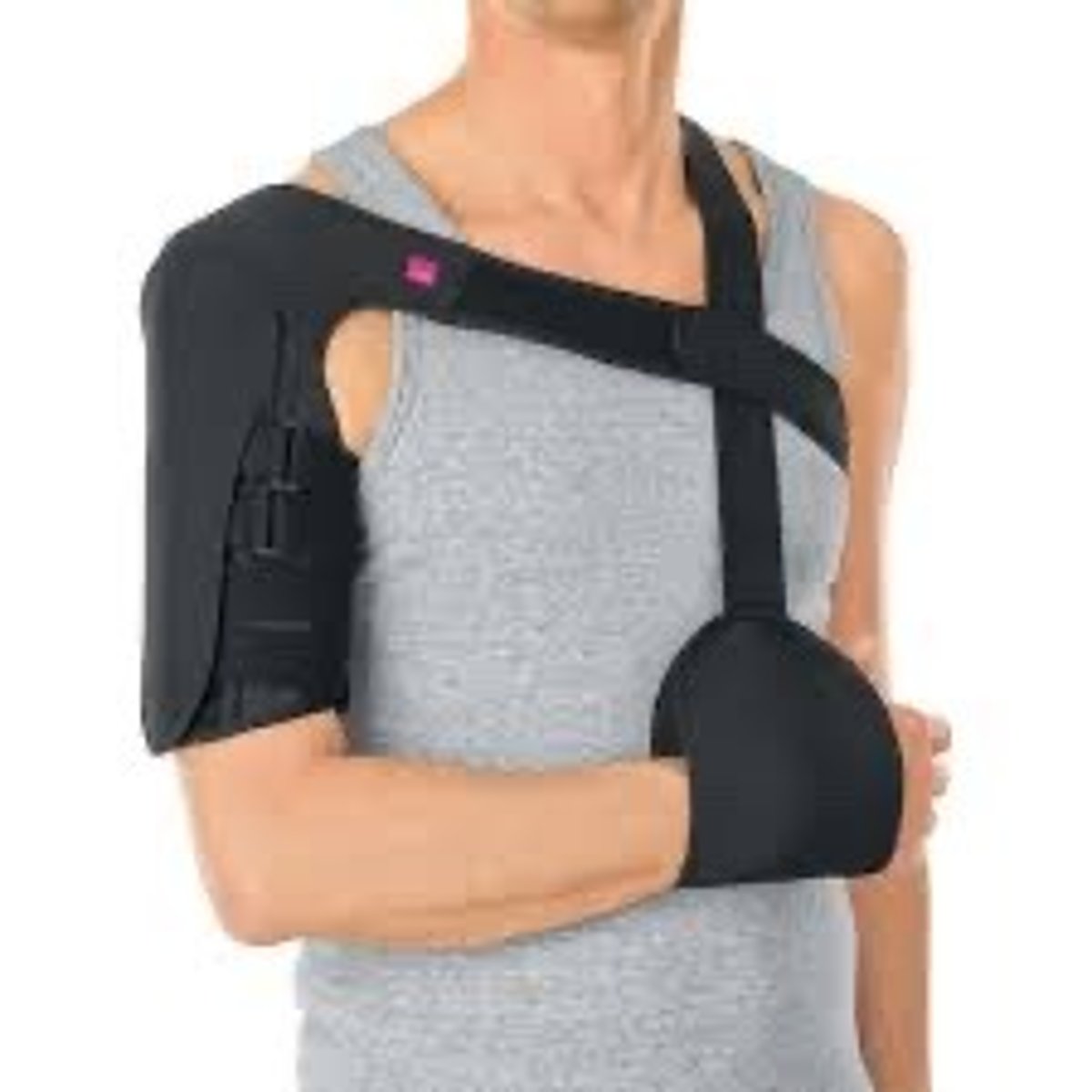

humeral fx brace

What is this?

SEWO

what is this?

Post-op in rotator cuff and AP capsular repairs to relieve tension on deltoid and rotator cuff

What are SEWOs used for?

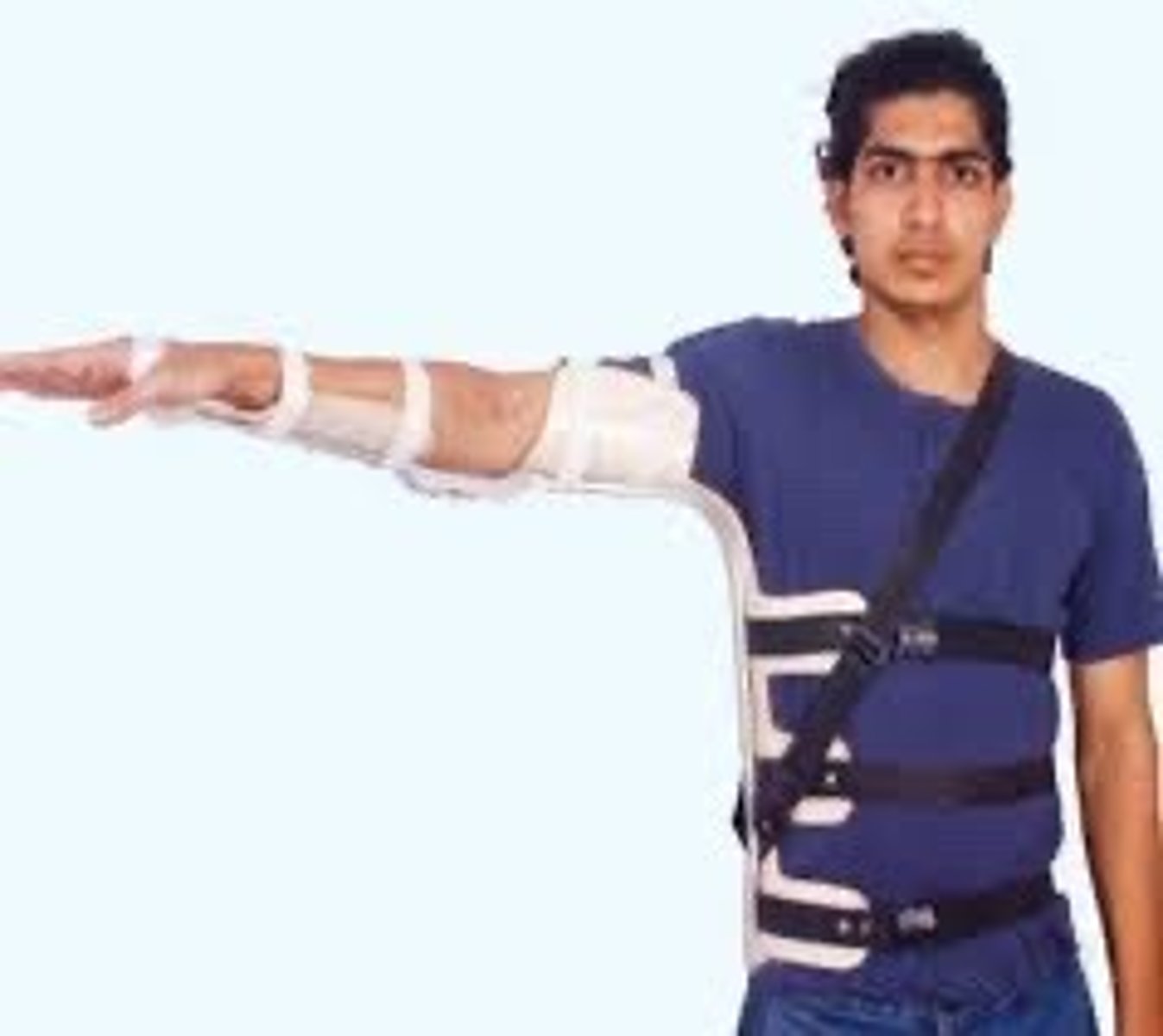

Airplane splint

What is this?

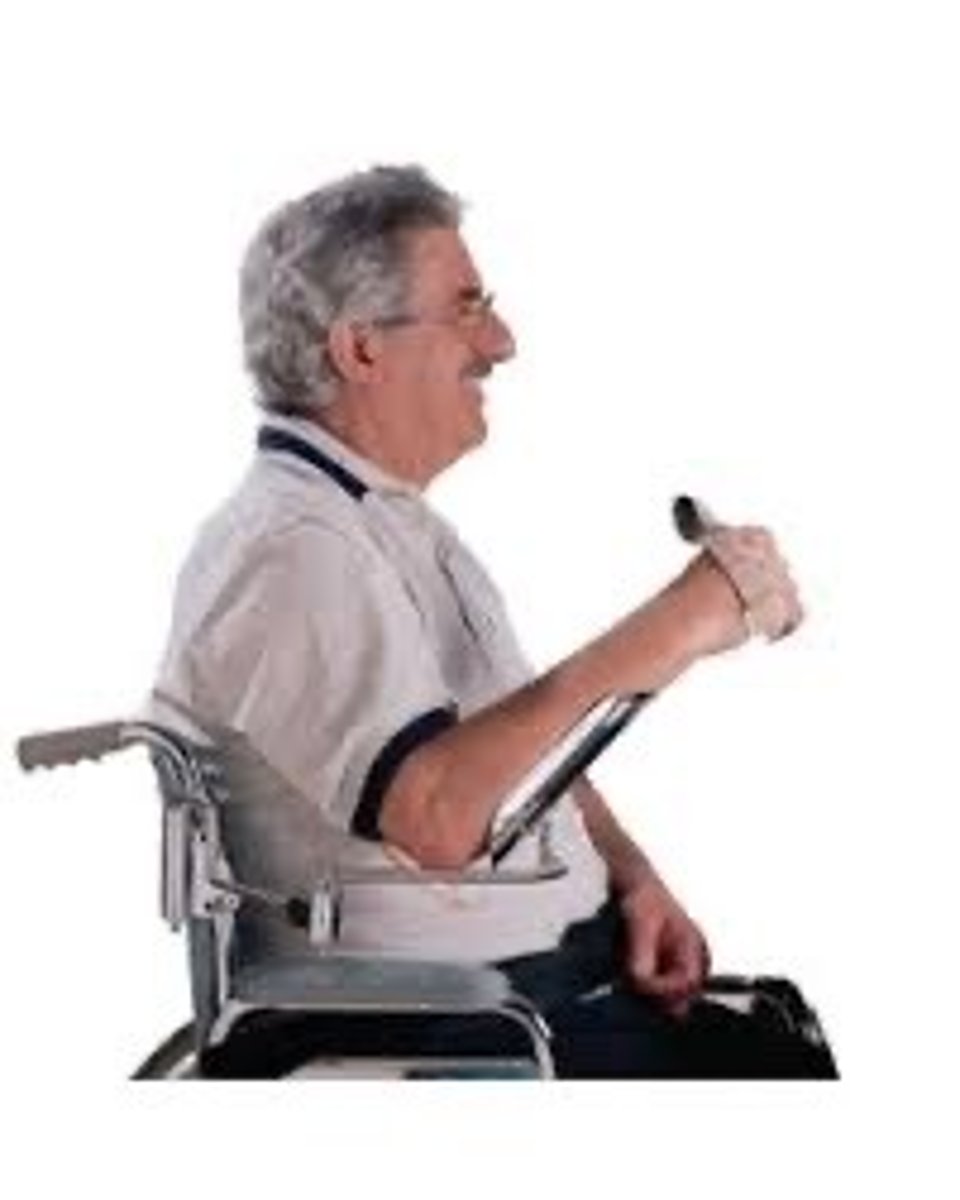

mobile arm support

What is this?

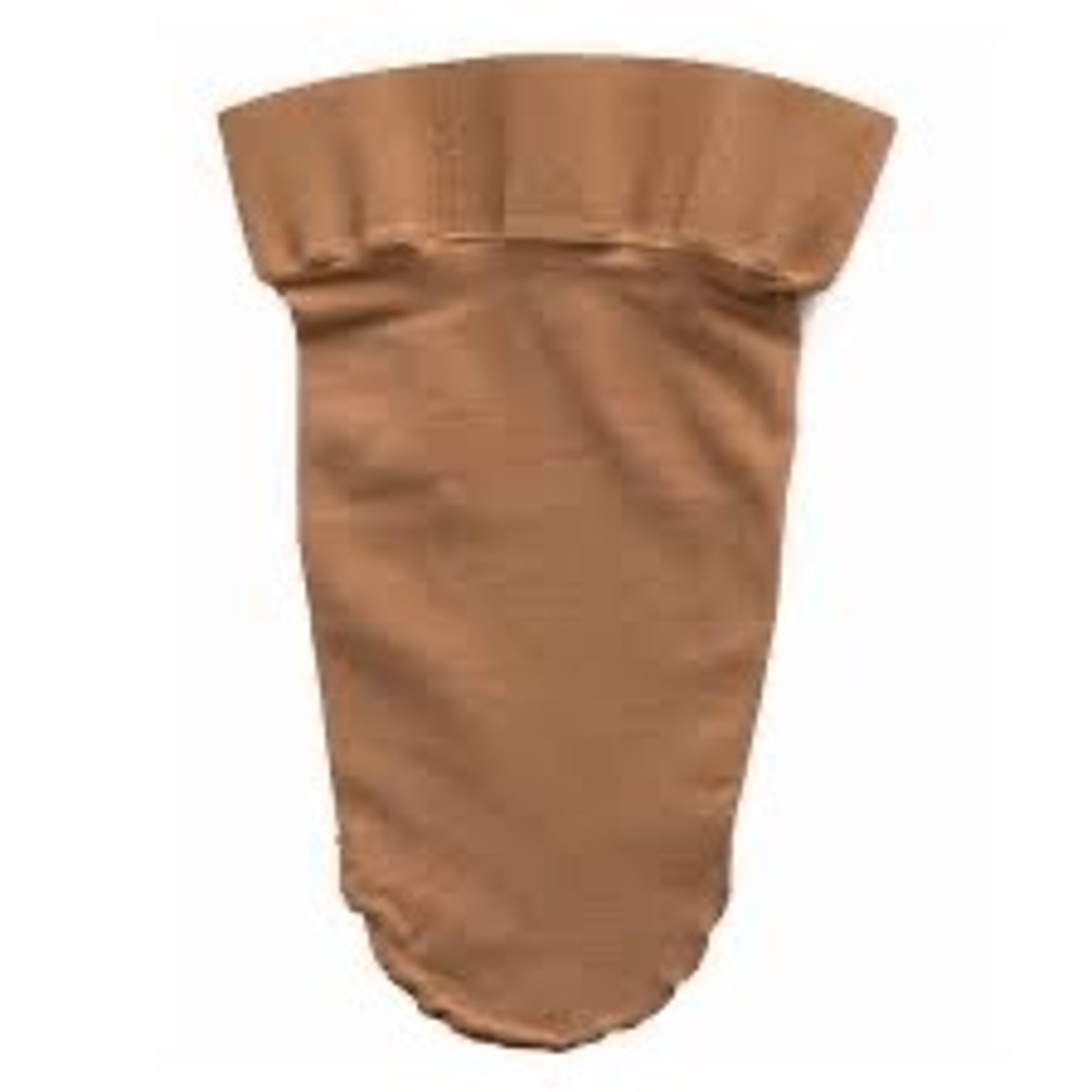

Shrinker

What is this?

Erb's palsy, supraspinatus tendon rupture, avulsion of greater tuberosity of humerus, paralysis of deltoid, burn scar management

What dx usually have airplane splints?W

Edema and cylindrical limb shaping

What are shrinkers used for?
