Acoustic Phonetics and Speech Production: Formants, Spectrograms, and Vowel Space

What is acoustic phonetics?

The branch of phonetics that deals with the acoustics of speech.

What role does the vocal tract play in speech?

The vocal tract acts as a resonator, selectively reinforcing certain aspects of sound.

What are formants?

Resonant frequencies of the vocal tract that correspond to specific vowel configurations.

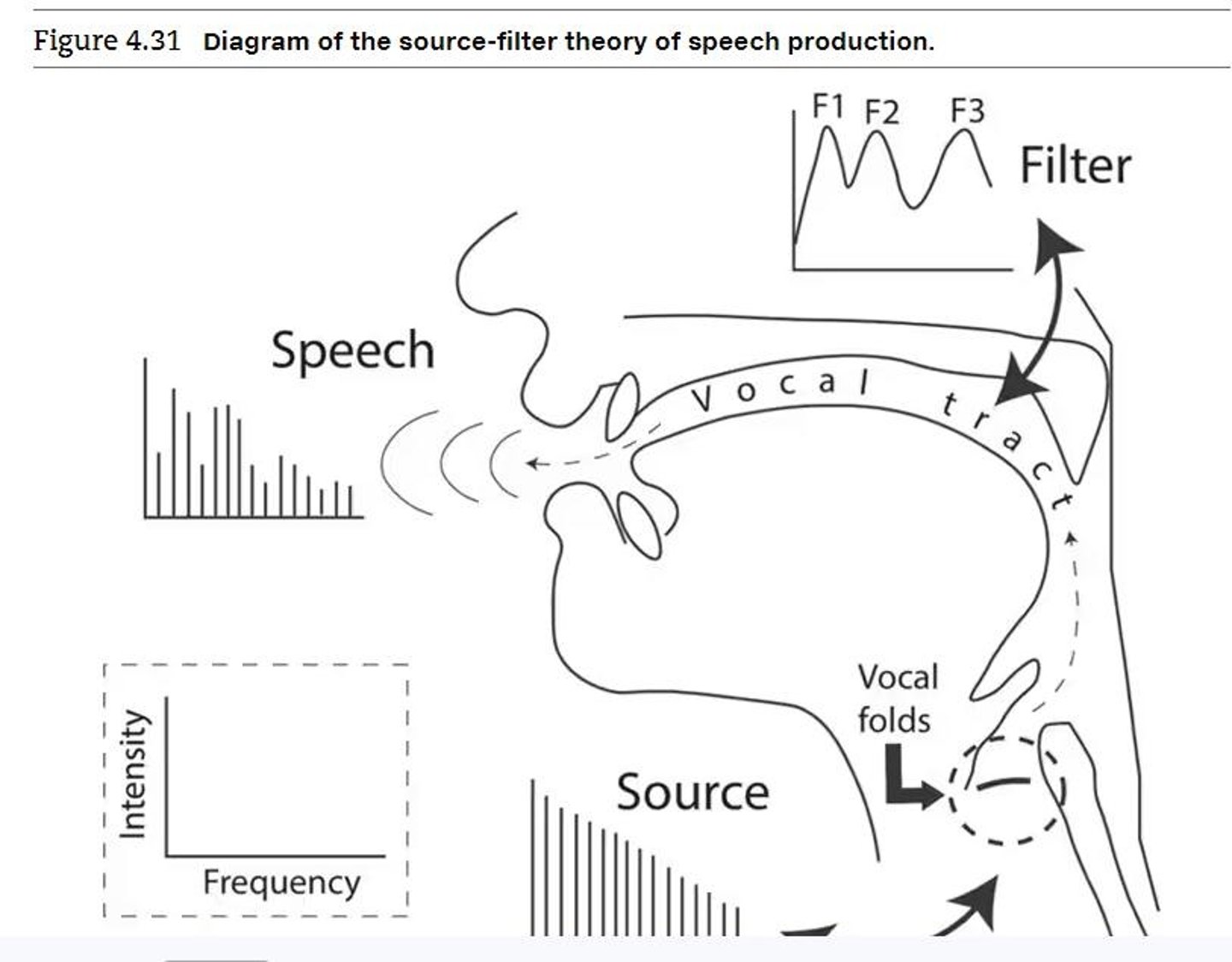

What does the source-filter theory describe?

It describes how energy from the vibrating vocal folds is filtered by the resonances of the vocal tract to produce speech sounds.

What is the first step in the source-filter theory?

The source energy is a buzzing sound produced by the vibrating vocal folds.

What happens to the source energy as it passes through the vocal tract?

It is shaped by the formants to produce a specific vowel sound.

What is radiated acoustic energy?

The sound that escapes into the atmosphere and can be identified as a particular vowel.

What is a spectrogram?

A three-dimensional visual display of sound that shows how energy is distributed across different frequencies over time.

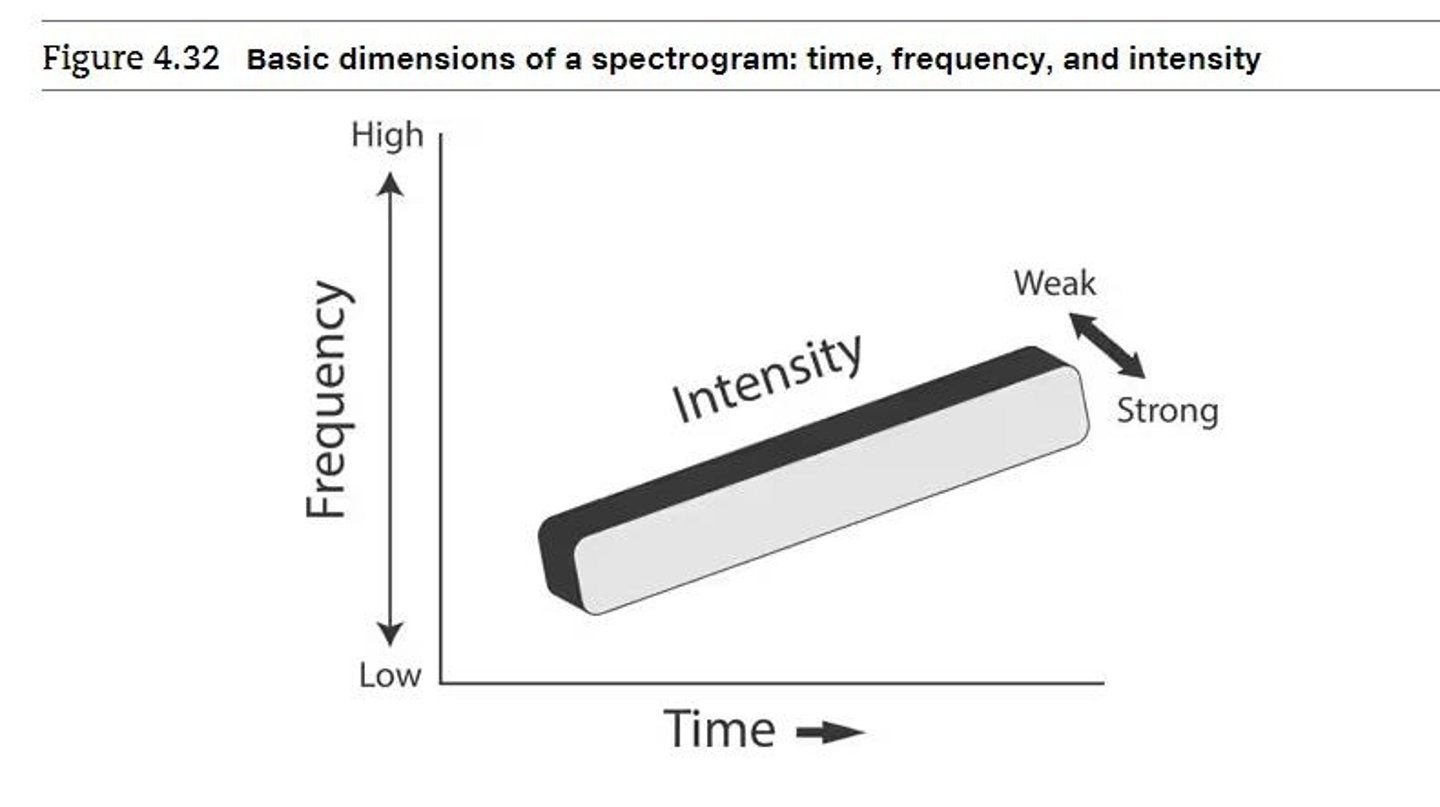

What do the dimensions of a spectrogram represent?

The horizontal dimension represents time, the vertical dimension represents frequency, and the third dimension represents energy or intensity of sound.

What are the first three formants important for?

They are sufficient to describe the vowel inventory in almost all languages.

What is the significance of F1 and F2 in vowel production?

They are the most important formants in determining differences in vowel quality.

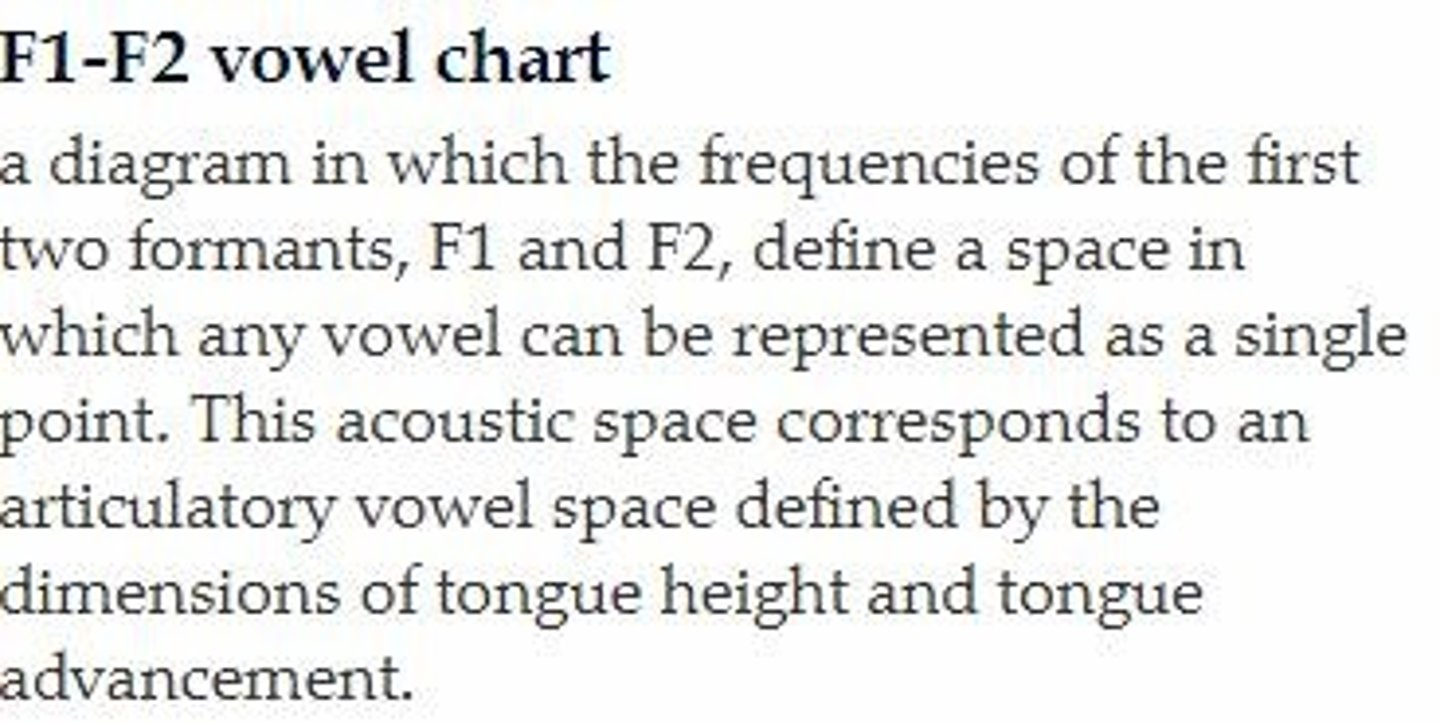

What does the F1-F2 vowel chart depict?

It shows the combinations of F1 and F2 for different vowels, reflecting the articulatory vowel quadrilateral.

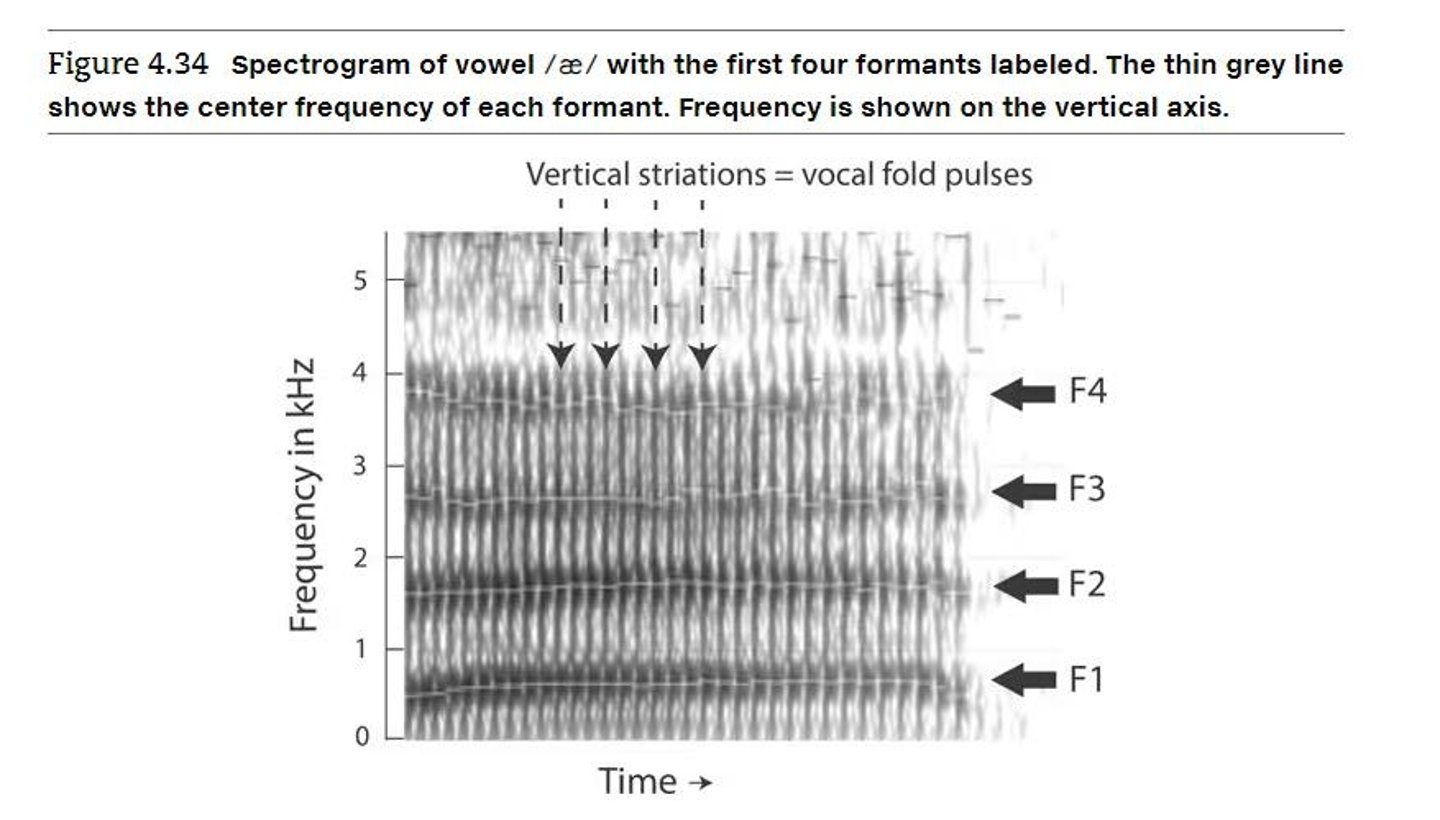

How many formants typically appear in a spectrogram of a vowel?

Four distinct bands of energy are typically observed, corresponding to F1, F2, F3, and F4.

Why are higher formants less significant in speech perception?

They receive very little energy from the source and have a negligible impact on our perception of speech.

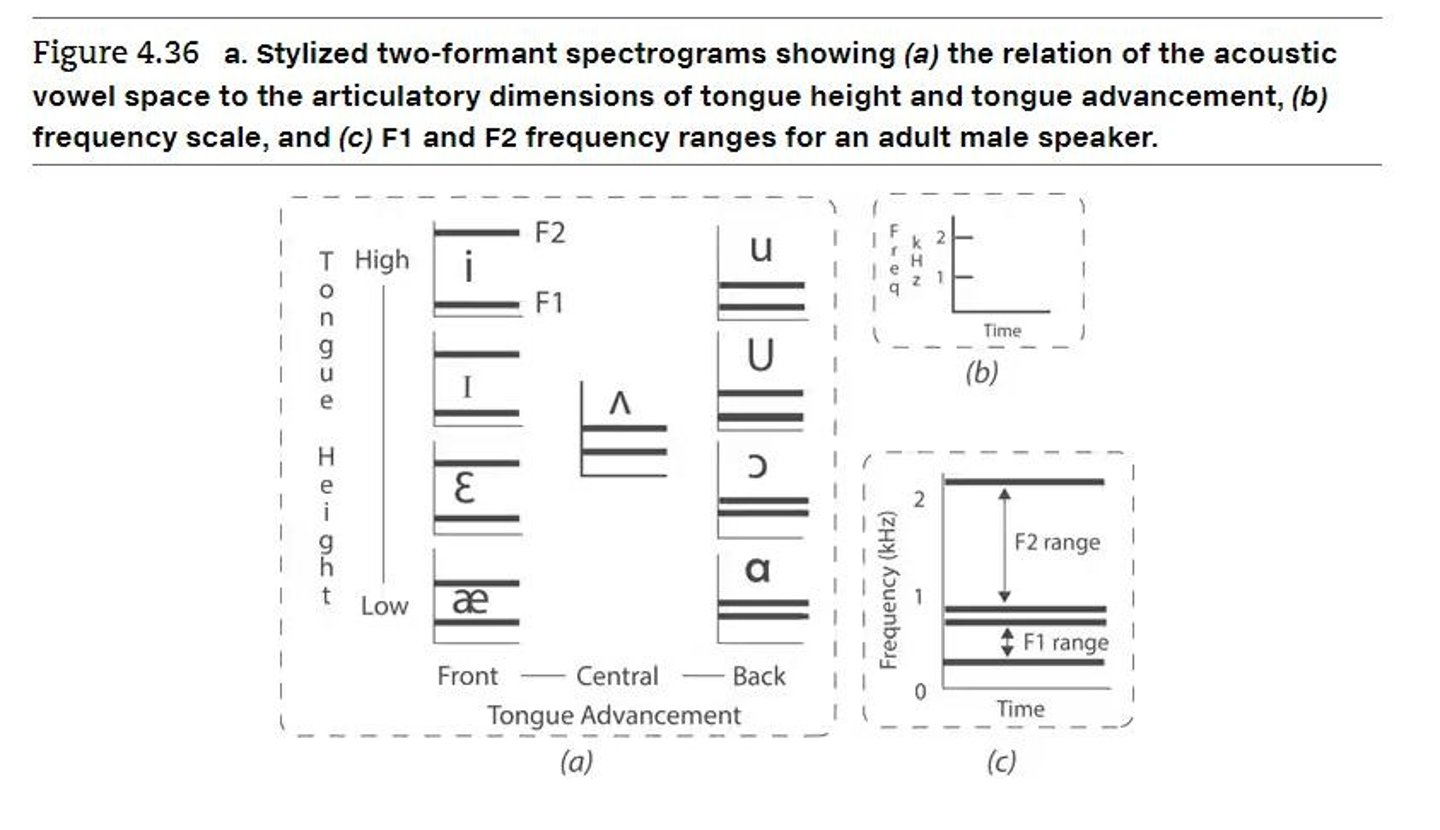

What is the relationship between acoustic vowel space and articulatory vowel space?

The acoustic vowel space can be represented using F1 and F2, corresponding to the articulatory vowel quadrilateral.

What is the purpose of using visual displays like spectrograms in speech science?

They help analyze and visualize the characteristics of speech sounds.

What is the significance of the source-filter theory in speech production?

It explains how speech sounds are produced by filtering the sound generated by the vocal folds through the vocal tract.

What does the term 'resonator' refer to in the context of the vocal tract?

It refers to the vocal tract's ability to reinforce certain frequencies of sound.

What is the role of the larynx in speech production?

The larynx houses the vocal folds, which vibrate to produce the initial sound source for speech.

What does the thickness of bars in a spectrogram represent?

It represents the energy or intensity of sound at different frequencies.

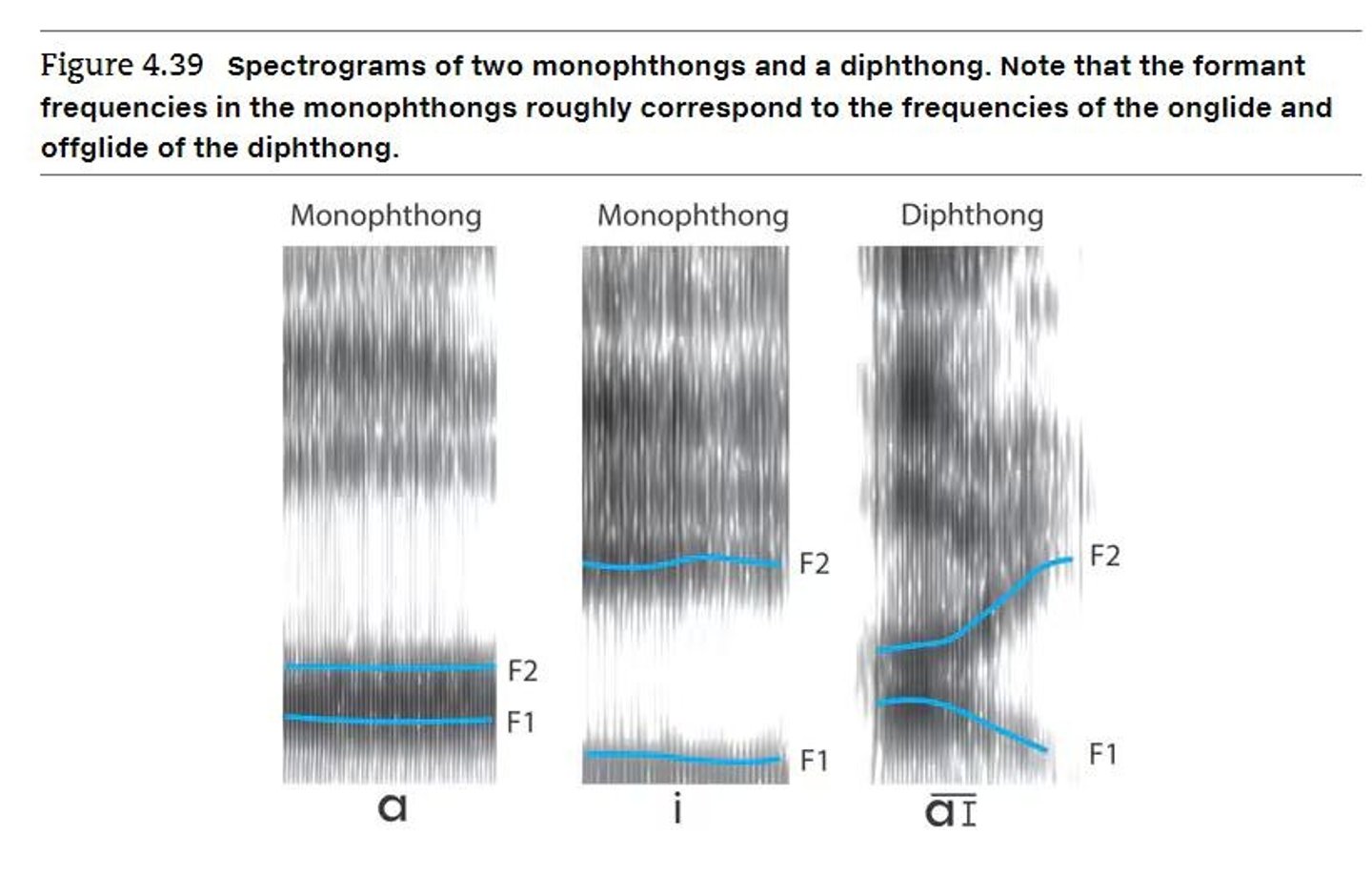

How can formants be observed in a spectrogram?

Formants appear as distinct bands of energy that modify the sound produced by the larynx.

What is the typical method for analyzing vowel formants?

Using software like Praat to conduct acoustic analyses.

A diagram in which the frequencies of the first two formants, F1 and F2, define a space in which any vowel can be represented as a single point. This acoustic space corresponds to an articulatory vowel space defined by the dimensions of tongue height and tongue advancement.

F1-F2 chart

The center frequency of the formant (resonant frequency of the vocal tract).

Formant frequency

A physical object (including air-filled tubes such as the vocal tract) that has certain natural frequencies of vibration known as the resonance frequencies (or formants in the case of the vocal tract).

Resonator

A graph showing the distribution of signal energy as a function of frequency.

Spectrum
