CompTIA A+ 220-1101 (YT-DeanCyber) 90 Practice Questions

You are working on an important project on your laptop, and suddenly you notice that the video on your laptop is not working. What should you first do to troubleshoot it?

• Toggle the video function key

• Remove the display unit and reattach it

• Replace the inverter

• Power the system off and back on

Toggle the video function key

The first step in troubleshooting a non-working laptop video is to toggle the video output function key, as this can often resolve display issues related to incorrect settings. (usually key combination Fn+F8)

The other options are not yet necessary

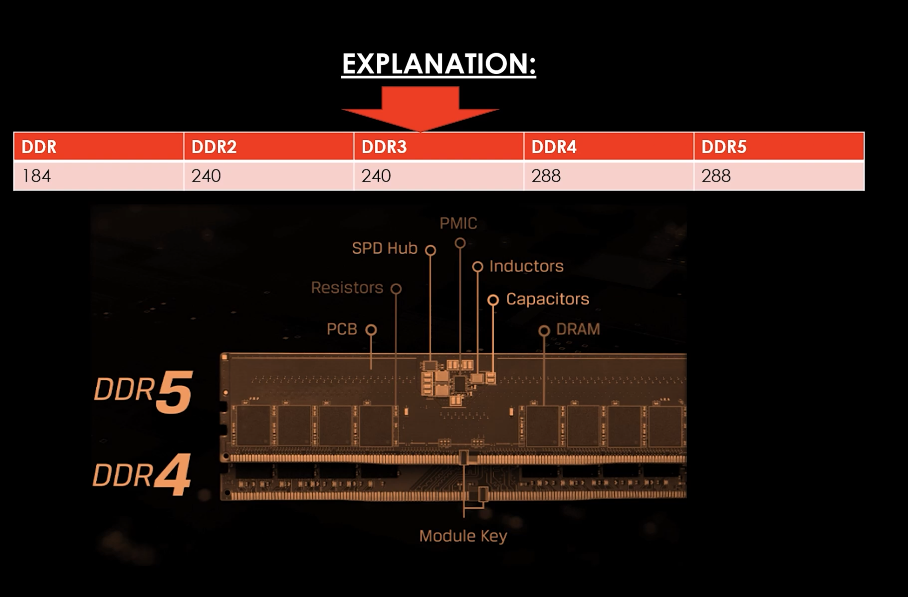

A technician has been assigned to upgrade the RAM in a desktop computer. Which type of RAM is the technician most likely to use to install the additional RAM?

• ECC

• SODIMM

• VRAM

• DDR5

DDR5

It is the most common type used in modern desktop computers, providing improved speed and efficiency. However, it’s important to note that the specific type of RAM used can vary depending on teh age and specifications of the computer in question.

SODIMM is a smaller form factor of memory module typically used in laptops or compact systems. ECC (Error Correcting Code) is a type of RAM that is commonly used in servers and workstations for data integrity, and VRAM (Video RAM) is a specialized type of RAM used for graphics processing units (GPUs).

You need to take inventory quickly and accurately to ensure that your stock levels are up to date. Which of the following peripherals would you most likely use?

• Barcode scanner

• NFC device

• KVM switch

• Thermal printer

Barcode Scanner

Quickly and accurately scan the barcodes on each product, which the connects to a software system that updates the inventory in real-time. This allows for accurate and efficient inventory management, reducing the time and effort required for manual inventory counting.

A technician powers on a PC and its monitor and sees the following error message: “No input signal detected” The display lights on the computer are on. Which of the following is a possible solution?

• Checking the power plug on the PC

• Unplug the GPU and plug in to a PCIe Gen 5 slot, if available

• Changing the BIOS settings

• Changing the connector setting on the monitor

• Checking the power plug on the monitor

Changing the connector setting on the monitor

The “No input signal detected” error message typically indicates that the monitor is not receiving a signal form the computer.

Checking the power plug on the monitor and the PC is also important to ensure that both devices are receiving power. However, if the display lights on the computer are on, it’s less likely that a power issue is causing the error message. Changing the BIOS settings is unlikely to resolve this issue, as this error message occurs before the BIOS is loaded.

Documents sent to a printer are printing with abnormally wide margins. You think the paper size is incorrectly selected. Where do you go to make this change?

• Paper selection switch on the printer

• Print queue

• Printing preferences

• Run the troubleshooter

• Manage sharing

Printer preferences

To change the paper sized setting for printer, you should go to the printing preferences, access through the Print dialog box or from the Devices and Printers section in the Control Panel, depending on the operating system being used. Once in the printing preferences, the paper size can be adjusted to match the size of the paper that is currently loaded in the printer.

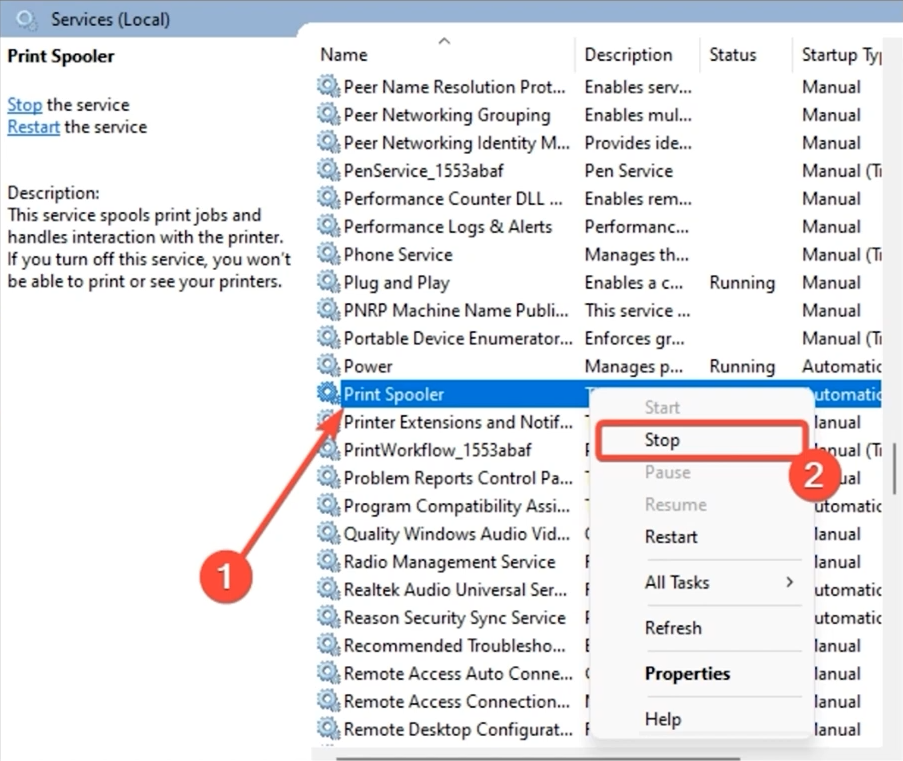

The print spooler is a service that manages print jobs and allows multiple users to share a printer. It does not provide options to change the paper size. The paper selection switch on the printer is used to physically adjust the paper guides for different paper sized, but it does not change the printer’s settings. The print queue is a list of print jobs waiting to be printed and does not provide options to change the printer’s settings.

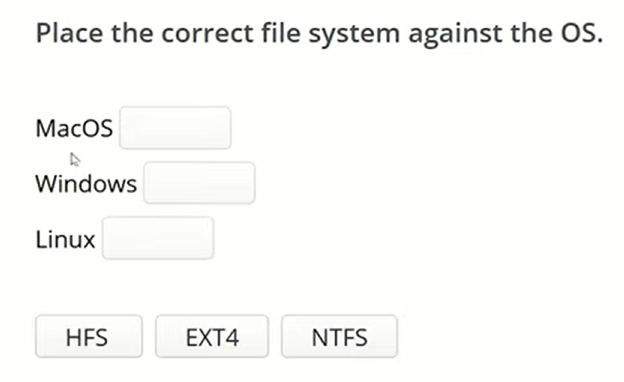

What the the correct file system for the following OS

• MacOS _______

• Windows _______

• Linux _______

HFS, EXT4, NTFS

MacOS = HFS
Windows = NTFS

Linux = EXT4

A user is no longer able to brows the Internet after returning from vacation. The user is able to log in and navigate to the local intranet, but not to any outside sites. A technician pings a well-known website by name but gets no reply. The technician then pings its IP address and gets a reply. Which of the following commands will MOST likely resolve the issue?

• ipconfig/registerdns

• ipconfig/flushdns

• ipconfig/release

• ipconfig/showclassid

• ipconfig/all

ipconfig/flushdns

Based on the information provided, the issue seems to be related to the DNS resolution. This command will flush the DNS resolver cache, which may contain outdated or incorrect information. By flushing the cache, the system will have to retrieve the latest DNS information from the DNS server, which should resolve the issue.

The fact that the technician was able to ping a website by its IP address but not by its name suggest that the DNS resolution is not working properly.This command clears the DNS cache, resolving name resolution issues.

A technician is tasked with setting up a new workstation for a client. The client requires that the workstation has mirrored storage, using two 4TB drives that can support one failure without data loss. Which of the following BEST meets these requirements?

• RAID -1

• RAID 1

• RAID 5

• RAID 0

• RAID 10

RAID 1

Provides disk mirroring by creating an exact copy of the data on one drive onto the second drive. If one drive fails, the other drive can still operate without data loss.

RAID 0 does not provide any redundancy or fault tolerance and only increases performance by striping (spreading) data across both drives, which would not meet the requirement for mirrored storage.

RAID 5 can provide redundancy with one drive failure, but it requires at least three drives, which is not inline with the requirement of using two 4TB drives.

RAID 10 provides both mirroring and striping, but it requires a minimum of four drives, which again is not in line with the requirement of using two 4TB drives.

A technician is troubleshooting a user’s computer that is not receiving a network connection. Upon inspection, the technician finds that the connection seems to be down and needs to locate the user’s port on the patch panel. However, the port and patch panel are not labeled. Which of the following network tools would be best to help the technician identify the correct port?

• Protocol Analyzer

• Toner Probe

• Cable Certifier

• Multimeter

• Crimper

Toner Probe

Also known as a tone generator and probe, is a network tool used to trace network cables and identify the correct port on a patch panel. The tool generates a tone that can be detected by a RECEIVER PROBE, allowing the technician to locate the correct port on the patch panel.

Which of the DNS database records listed below returns a 128-bit IP address?

• A

• PTR

• AAAA

• MX

• CNAME

AAAA record

Maps a domain name to the corresponding IPv6 address, which is a 128-bit address. For example, an AAA record for “techconfig.com” maps to an IPv6 address.

A (Address) record maps a domain name to the corresponding IPv4 address, which is a 32-bit address

MX (Mail Exchange) record specifies the mail server(s) responsible for accepting email messages on behalf of a domain

CNAME (Canonical Name) record maps an alias or nickname to the canonical name (i.e. the true name) of a domain.

PTR (Pointer) record maps an IP address corresponding to the hostname (reverse DNS lookup)

Which of the following memory types is primarily used in laptops?

• SDRAM

• SODIMM

• ECC

• DDR3

• DIMM

• VRAM

SODIMM

(Small Outline Dual In-line Memory Module) is a smaller form form factor of the DIMM (Dual In-line Memory Module) used in desktop computers. SODIMMs are designed for laptops, notebooks, and other small form factors. SODIMMs are available in various types, such as DDR, DDR2, DDR3, DDR4, and DDR5.

Which device retains data over the long term?

• CPU

• RAM

• SSD

• GPU

• RGB

SSD (Solid State Drive)

A non-volatile flash memory that retains data persistently, making them suitable for long-term data storage.

CPU (Central Processing Unit), RAM (Random Access Memory) and Video cards are all essential components of a computer system, they are all designed to store and process data temporarily (volatile types of memory). Once power is turned off, any data stored in these devices are lost.

You are a computer technician tasked with setting up a new desktop computer for a multi-national company that frequently participates in international conferences and trade shows. The computer specifications required that the maximum amount of RAM, typical CPU, GPU and storage for a business workstation. As the technician, you need to choose a power supply for this computer. Which system parameter would be the most important for you to consider when selecting the power supply?

• Input voltage

• Number of SATA connectors

• Efficiency Rating

• 12V rail amperage

• Output voltage

Input voltage

This is because the computer will be used at trade shows all over the world, and different countries have different input voltage standards. For example, the United States typically uses 120V AC power, while other countries use 220-240V AC power. The power supply must be able to accept the input voltage available in the country where it is being used, otherwise it will not function properly or could be damaged.This parameter ensures the power supply can operate within the varying voltage standards globally for optimal functionality. Which

Which of the following should a technician do NEXT after reporting an incident?

• Go back to work

• Document the incident

• Delete the content

• Inform his colleagues

• Confiscate the PC

Document the incident

Firstly, this helps to create a record of what happened, which can be used for future reference. This information can be used to identify patterns and trends in incidents, as well as to track the effectiveness of any actions taken in response to the incident.

Secondly, it helps to ensure that appropriate action is taken. This information can be shared with relevant parties such as management, security teams, or law enforcement agencies as appropriate, to help determine the appropriate course of action.

You are a technical support specialist for a large corporation, and you have been asked to set up a PC in a conference room for video representation during training sessions. The PC will need to be connected to a large-screen TV for displaying video content. As the technical support specialist, which of the following video connectors would be the most appropriate choice for this environment?

• HDMI

• Thunderbolt

• VGA

• DVI

HDMI

The digital interface that supports high-definition video and multi-channel audio, making it a popular choice for connecting devices such as PCs and laptops to TV and projectors. HDMI can transmit both video and audio signals, and is capable of supporting resolutions up to 4K.

Video Graphics Array (VGA and Digital Visual Interface) are also common video connectors, they are not as suitable for this environment because they are analog interfaces and do not support high-definition video or audio. Thunderbolt is a high-speed data transfer, but it does not transmit video signals directly and would require an adapter to connect to a TV.

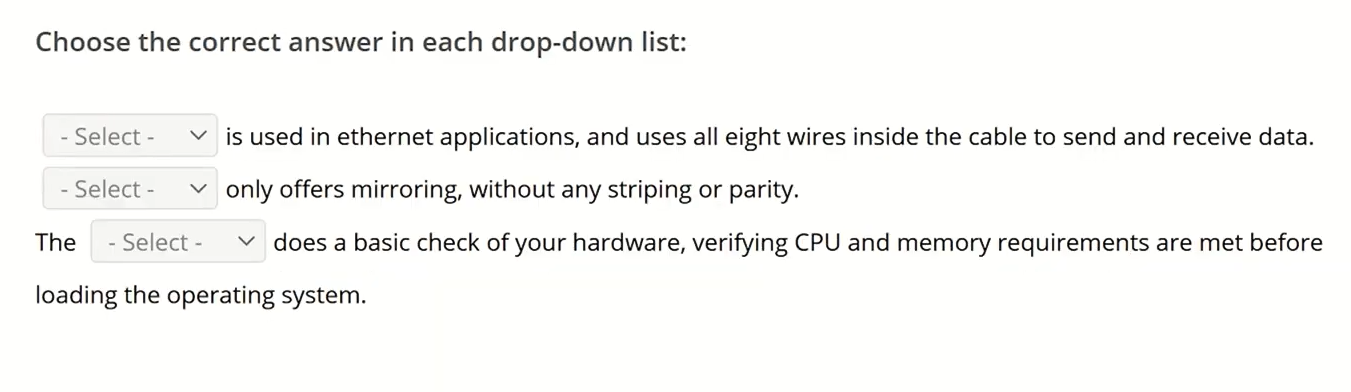

Choose the correct answer in each drop-down list

_______ is used in ethernet applications, and uses all eight wires inside the cable to spend and receive data.
_______ only offers mirroring, without striping or parity.

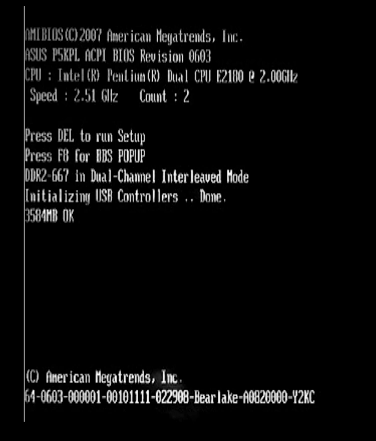

The _______ does a basic check of your hardware, verifying CPU and memory requirements are met before loading the operating system.

RG-6, RJ-45, RJ-11

RAID 1, RAID 10, RAID 5, RAID 0
VRAM, BIOS, UEFI, POST

RJ45

RAID 1

POST

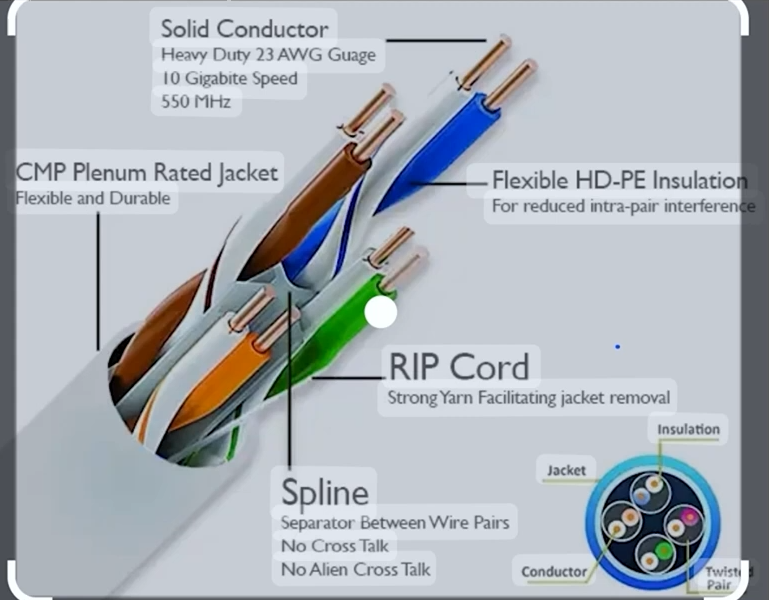

A customer claims that despite using a gigabit LAN card, their computer can never transmit data at a rate of more than 100 Mbps. The technician discovers that the network cable needs to be changed while troubleshooting. What type of category is restricting the transmission speed?

• CAT 6a

• CAT 7

• CAT 5

• CAT 5e

• CAT 6

CAT 5

CAT 5 cables are capable of supporting network speeds up to 100 Mbps. Even though the customer has a Gigabit LAN card, the CAT 5 would not be able to support the higher transfer speed of 1 Gbps. Replacing the CAT 5 with a higher capacity of cable would be necessary to achieve the higher transfer speed.

CAT 5e = up to 1 Gbps

CAT 6 = up to 1 Gbps @ 100m / 10 Gbps @ 37m

CAT 6a = up to 10 Gbps @ 100m

CAT 7 = up to 10 Gbps

CAT 8 = up to 40 Gbps

On a laptop, the screen is constantly flickering. Which of the following is most likely to be the root of this issue? (Choose two)

• A failing display

• A failing backlight

• A failing inverter

• Interference from a nearby fan

• A failing PSU

• A failing VGA cable

A failing backlight and a failing inverter

A failing backlight can cause flickering on a laptop display because the backlight provides the light that illuminates the display. A failing inverter can cause the display to flicker because the inverter converts teh direct current (DC) power from the laptop’s battery or power supply into the alternating current (AC) power that is needed to power the backlight. If the inverter is failing, it may not be providing a stable supply of power to the backlight, which can cause the display to flicker.

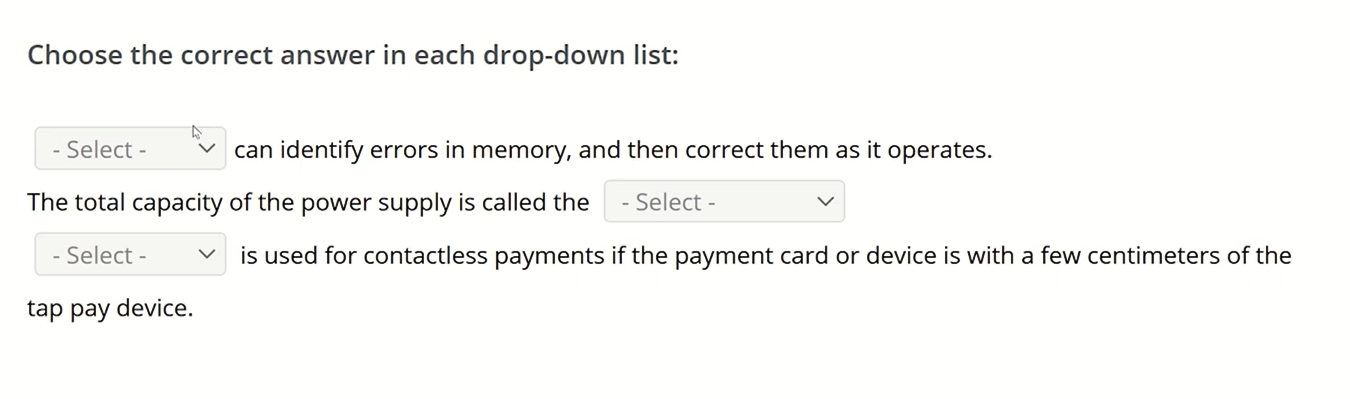

Choose the correct answer

_______ can identify errors in memory, and then correct them as it operates.
The total capacity of the power supply is called the _______.
_______ is used for contactless payments if the payment card or device is within a few centimeters of the tap pay device.

RAM, PAGE FILE, ECC, VRAM

Wattage Rating, Volt Rating, Input Rating, Output Rating
Wi-Fi, NFC, IR, Bluetooth

ECC, Wattage Rating, NFC

Error Correcting Code memory is an expensive type of memory, typically reserved for high-end systems

When a computer hibernates, the computer shuts down after saving everything in memory on the your hard disk

True / False

True

When a computer hibernates, the operating system saves the contents of the system’s memory (RAM) to the hard disk, and then shuts down the computer. When the computer is turned back on, it reads the saved information from the hard disk and restores the system to its previous state, allowing the user to resume working from where they left off.

This is different from sleep mode, which is a power-saving state where the computer goes into a low-power mode while still keeping everything in RAM, and wakes up much faster than hibernation.

A technician is replacing a laptop’s HDD with an SSD. Which of the following should the technician do FIRST?

• Create a backup of the HDD

• Upgrade the RAM on the laptop

• Enable SSD support at BIOS

• Install SSD drivers inside the OS

Create a backup of the HDD

Before replacing the HDD with an SSD, it is important to create a backup of the data on the HDD to avoid losing any important data. This can be done by using a backup software or by manually copying the data to an external hard rive or cloud storage.

A network engineer is looking for a provider that will allow him to move his organization’s servers, routers, firewalls, and switches to the cloud. This provider would essentially act as his organization’s virtual data center. What type of cloud provider does this network engineer need to find?

• DAAS

• PAAS

• SAAS

• NAAS

• IAAS

IAAS (Infrastructure as a Service)

providers offer virtualized computing resources such as servers, storage, networking, and security services that can be used to replace or augment traditional on-premises data center infrastructure. This allows organizations to move their servers, routers, firewalls, and switches to the cloud and have them managed by the IAAS provider. acting as a virtual data center.

SAAS (Software as a Service) providers offer web-based applications that are accessed through a browser or API, and are not suitable for this scenario.

PAAS (Platform as a Service) providers offer a platform for building, deploying, and managing applications, which is not relevant for the network engineer’s requirement.

NAAS (Network as a Service) providers offer network services over the internet, such as VPN, bandwidth, and security services, but do not offer the complete infrastructure required for this scenario.

You are working from home and have an important video conference call scheduled for later in the day. You check your video conferencing software and select your webcam, but the software is unable to open it. You remember that the webcam was working perfectly fine the previous day. Which of the following should be done FIRST to address this issue?

• Close other video software and retrying

• Unplug the webcam and re-plug it

• Reseat or replace the webcam

• Check the driver

• Switch the video from the webcam to conference mode

Close other video software and retrying

This is a good first step, as having other video software open could be interfering with the webcam’s functionality. Close any other video software that may be running and retry using the webcam.

You need to replace the motherboard on a desktop PC with an Inter Core i7-11700K processor. Which CPU socket should the replacement motherboard have?

• LGA 1150

• LGA 1200

• LGA 1700

• LGA 1366

LGA 1200

This socket type is used for the 10th and 11th generation Intel Core processors, including the Intel Core i7-1700K.

LGA 1150 socket type is used for older intel processors, such as the 4th generation Intel Core processors.
LGA 1366 socket is used for older Intel processors, such as the Intel Core i7-9xx processors. LGA 1700 socket type is not currently in use. It is expected to be used by Intel’s upcoming 12th generation Alder Lake processors.

A user is looking to build a computer for casual gaming and wants to know if they need to purchase a separate graphics card. They are considering a CPU with an Intel UHD Graphic s 630 built-in. Which built-in functionality allows the Intel UHD Graphics 630 to take over tasks normally executed by a dedicated graphics controller?

• Hyper-threading

• Integrated GPU

• VGA mode

• Multicore architecture

Integrated GPU (Graphics Processing Unit)

A graphics processing unit that is built into the CPU itself, rather than being a separate, dedicated graphics card. In this case, the Intel UHD Graphics 630 is an integrated GPU that is built into the CPU.

It is capable of taking over certain graphics processing tasks that are normally executed by a dedicated graphics controller. While they may not have the same level of performance as a dedicated graphics cart, they are often sufficient for casual gaming and other graphics-intensive tasks.

A CEO has requested that his IT department find a new accounting software. He would prefer that the accounting software doesn’t need to be installed locally on his machine, since he often switches between multiple devices. He would like the program to simply be accessible via Web browser on any device while he has an Internet connection. What type of software should this IT department be looking at?

• SAAS

• PAAS

• NAAS

• DAAS

• IAAS

SAAS (Software as a Service)

A cloud computing model where software applications are hosted on a cloud provider’s servers and accessed through the internet using a web browser. With SAAS, users can access the software from any device with an internet connection, without the need for local installation. Examples of SAAS: Microsoft 365, Google Workspace…

One feature of virtualization is the ability to quickly add and remove resources to servers depending on your needs at the time. What is the term used to describe this?

• rapid elasticity

• rapid availability

• resource pooling

• metered service

rapid elasticity

Elasticity in virtualization refers to the ability to dynamically adjust the computing resources, such as CPU, memory, storage, and network bandwidth, allocated to virtual machines (VMs) or containers based on the workload demands. This means that resources can be easily scaled up or down, depending on the current demand, without the need for physical changes.

Rapid elasticity is an important feature of virtualization because it allows organization to optimize their resources usage and reduce costs, as they only need to pay for the resources they actually use. Additionally, it enables IT departments to respond quickly to changes in demand and to avoid underutilized resources, which can be wasteful and expensive.

A technician troubleshoot a projector that occasionally power off. The technician recreates the issue and notices the projector will not power back on until approximately 10 minutes have passed. After 10 minutes of being powered on, the projector shuts off again. Which of the following should the technician perform NEXT to resolve the issue?

• Replace the bult

• Clean the filter

• Check the power cable connection

• Adjust the standby timeout

Clean the filter

The symptoms described in the scenario suggest that the projector may be overheating and automatically shutting off as a safety measure to prevent damage to the device. The fact that the projector will not power back on until approximately 15 minutes have passed, and then shuts off again after 15 minutes of being powered on, also supports this theory. Therefore, the next step the technician should perform is to clean the filter.

The filter in a projector is designed to prevent dust and debris from entering the device and blocking the airflow that cools the internal components. Over time, the filter can become clogged with dust and dirt, which can impede the airflow and cause the device to overheat.

Cleaning the filer is a simple and effective way to address this issue. The technician should consult the projector’s manual for instructions on how to access and remove the filter, and then clean it according to the manufacturer’s recommendations. After cleaning the filter, the technician should test the projector to see if the issue has been resolved.

You are a technician who has just replaced a faulty processor in a customer’s computer. Before you can complete the repair, you need to add a cooling mechanism to the new processor to prevent overheating. What should you use to attach the cooling system to the processor?

• Expansion bus

• Heat sink

• Superglue

• Thermal paste

  • Fan

Thermal paste

A substance that improves heat transfer between the processor and the cooling system. It fills microscopic gaps and imperfections between the processor and the cooling system, allowing for better thermal conductivity and more efficient heat dissipation.

It is important to apply the thermal paste properly to ensure good contact and effective heat transfer. A small amount of thermal paste should be placed on the center of the processor, and then spread evenly across the surface using a plastic card or other similar tools. It is important to use the appropriate amount of thermal paste, as too much or too little can affect the cooling performance.

Kate, an accountant reports that after turning on her new laptop, she received a message stating that her IP address is already in use on the system. She tried going back to her old desktop, which she now only uses for email, but received the same message. The technician checks the account and sees a comment that Ann requires a special network setup to connect the banking software. Which of the following should the technician do to resolve the issue?

• Remove the static IP configuration from the desktop

• Replace the network card in the laptop

• Set the laptop configuration to DHCP to prevent conflicts

• Bridge the LAN connection between the laptop and the desktop

Set the laptop configuration to DHCP to prevent conflicts

The error message “IP address already in use on the system” indicates that there is an IP address conflict on the network. This means that another device on the network is using the same IP address as Kate’s laptop and desktop.

Since Kate’s old desktop is only used for email, it is likely that it i still configured with a static IP address, which is causing the conflict. The technician should remove the static IP configuration from the desktop by setting it to obtain an IP address automatically via DHCP.

For the new laptop, the technician should configure the network adapter to use DHCP, which allow it to obtain a unique IP address automatically from the network. This will prevent conflicts with other devices on the network and resolve the issue.

You are in the market for a new smartphone and are comparing different models. Which type of processor is generally preferred for mobile devices?

• X64

• X32

• LGA

• ARM

• X86

ARM

Processors that are designed to be power-efficient, which means that they consume less power and generate less heat compared to other processors like x64 or x86. This is important for mobile devices because they have smaller batteries and need to last for a longer time between charges. In addition, ARM processors are smaller in size, which allows for more efficient use of space in a mobile device’s design.

Which of the answers listed below refer to the characteristic features of the signal that can be carried through the VGA cable?

• Audio

• Video and Audio

• Analog and Digital

• Video

• Analog

• Digital

Video, Analog

Video is carried an an analog format. Analog refers to the way the signal is transmitted. The VGA (Video Graphics Array) cable is primarily used to transmit video signals form a computer to a monitor. The video signal carried through the VGA cable is analog, meaning that it is a continuous signal that varies in voltage over time. While it is possible to transmit audio signals through a VGA cable, using a separate adapter or cable audio is not a characteristic feature of the VGA cable itself.

Which of the following should not be connected to a UPS?

• Speakers

• PCs

• Laser printer

• Monitors

Laser printers

UPS (Uninterruptible Power Supply) devices are designed to provide a backup power to connected devices during a power outage or brownout, helping to prevent data loss and other issues caused by sudden power loss. However, laser printers can consume a lot of power during operation and can overload a UPS, causing it shut down or fail.

PCs, monitors, and speakers can typically be safely connected to a UPS, as they consume less power than a laser printer and are less likely to over load the UPS. It’s important to check the capacity and specifications of the UPS and the devices you want to connect to ensure that they are compatible and won’t cause any issues.

A customer wants to purchase a new home desktop computer. The machine will mainly be used for Internet browsing and streaming video, except on weekends when the customer will use it to play games with friends. Which of the following should the technician focus on to meet these requirements? (Choose two)

• High quality microphone

• 16 GB DDR4 SODIMM memory

• Four core processor

• 90 mm case fans

• High capacity disk drive

• RAID 5

Four core processor, and High capacity disk drive

A four-core processor would be helpful for gaming as it can handle more demanding tasks, and a high-capacity hard drive is necessary for storing tames, videos, and other media files.

You are a technician at a company, and an employee has recently been terminated. However, the employee had set a boot password and a BIOS password on their company-issued computer, and you need to gain access to it. Which of the following motherboard components can you most likely use to return the computer to a state that will allow you to boot the system without knowing the password?

• Jumper

• Power reset connector

• Cable tester

• Toggle switch

Jumper

A jumper is a small plastic connector used on motherboards to sort a specific pair of pins and clear BIOS passwords or reset settings. By adjusting the jumper on the motherboard, it can restore the system to a state that bypasses the existing boot or BIOS passwords.

John is a new IT support specialist at a large company. A co-worker has asked him to install a printer on their work computer. What is the next step John should take after installing the printer to make sure it is functioning properly?

• Print a test page

• Setup the printer as the default printer

• Verify that the printer prints by using a web browser

• Enable duplex settings

• Restart the computer

Print a test page

Printing a test page ensures that the printer is properly installed, the drivers are installed correctly, and the printer is able to communicate with the computer. If there are any issues, such as missing drivers or connectivity problems, the test page will help to identify them.

Once the test page has been printed successfully, John can assist the co-worker with setting the printer as the default printer if needed.

Bob has just purchased a cable modem and a SOHO router for his home office. He needs to connect the cable modem to the SOHO router to setup his network. Which cable type should Bob use to connect the cable modem to the SOHO router?

• Ethernet

• USB

• Coaxial

• Thunderbolt

Ethernet

The standard cable type used for local area networks (LAN) and is the most common type of cable used for connecting a modem to a router. It provides high-speed connectivity and is widely available on most routers and cable modems.

Thunderbolt and USB cables are not typically used for connecting modems to routers, and coaxial cables are typically used for cable TV connections rather than for connecting modem to routers.

You are setting up a wireless network for a small business office. You need to choose the appropriate channel for the wireless network. Which channel should you select for the 802.11 wireless network in the small business office?

• 6

• 24

• 13

• 10

Channel 6

One of the three non-overlapping channels recommended for use in the 2.4GHz frequency band for 802.11 wireless network.

Channels 10 and 24 are also valid channels, but they may cause interference with other nearby networks.

Channel 13 may not be available in some countries or regions.

Which of the following standards support MIMO (Multiple Input Multiple Output) technology?

• 802.11a

• 802.11n

• 802.11g

• 801.11b

802.11n

The wireless networking standard that supports Multiple Input Multiple Output (MIMO) technology, allowing for multiple streams of data to be transmitted simultaneously. This enables faster wireless speeds and better signal strength in areas with interference.

The 802.11a, b, and g standards to not support MIMO technology

You are upgrading the graphics card in a gaming desktop computer. You need to determine the appropriate type of expansion slot to use for a high-performance graphics card. What type of expansion slot should you use for the new graphics card in the gaming desktop computer?

• PCI

• PCIe

• AGP

• ISA

PCIe (Peripheral Component Interconnect Express)

The newest and fastest expansion slot type designed for high-performance graphics cards, offering significantly higher bandwidth than PCI and AGP. PCIe slots come in various lane configurations (x1, x4, x8, x16), with x16 being the standard for graphics cards.

AGP (Accelerated Graphics Port) and PCI (Peripheral Component Interconnect) are older types of expansion slots that are not commonly used for high-performance graphics cards today. ISA (Industry Standard Architecture) is an even older type of expansion slot that is no longer used in modern computers.

You’ve decided to upgrade the storage capacity of your desktop computer by installing by a new hard drive. As you gather the necessary components and tools, you begin to wonder about the major components of a hard disk drive system. Which of the following is not one of the three major components of a hard disk drive system?

• Disk controller

• Hard disk

• Drive interface

• Host adapter

Host adapter is not one of the three major components of the hard disk drive system. It is known as a host bus adapter, and is a hardware component that connects a computer system to a storage device.

The three major components of a hard disk drive system are:
Hard disk - the physical storage device that sores and retrieves digital information

Drive interface - the connection between the hard disk and the rest of the computer system.

Disk controller - the component that manages the reading and writing of data to and from the hard disk

You are a technician working for a small IT services company, and a client has reported that their Windows CAD workstation is running slowly. The client reports that the same application runs faster on an identical workstation. You review the client’s hardware configuration and find that the workstation uses RAID 10 and has dual GPU cards. Which of the following should you perform to troubleshoot the problem?

• Clear the RAID configuration file and restart the PC

• Replace the RAID controller write cache module

• Check the even log for any cache issues

• Replace the write cache battery

Check the event log for any cache issues

The technician can identify any potential software or system issues that may be contributing to the slow performance of the CAD workstation. The event log may reveal if there are any cache issues that may be causing the slow performance. They can then take further steps to address the problem, such as updating drivers, running virus scans, or performing hardware replacements or reconfiguration as necessary.

As an IT technician, you have been tasked with running new network cables through the drop ceilings of an office building. You need to select the appropriate type of cable that will be used in these spaces. Which of the following types of cable is the most appropriate choice for running through drop ceilings?

• Plenum

• Category 5e

• Direct burial

• PVC

Plenum

These cables are specifically designed to be used in air handling spaces, such as drop ceilings, where there is a high risk of fire. The plenum-rated cables are made from flame-resistant materials that are able to prevent the spread of fire and smoke. It is a code requirement to use plenum-rated cables when running cables through plenum spaces.

PVC cables are not appropriate for drop ceilings or plenum spaces because they are not fire-resistant and could release toxic gases when burned. Category 5e cables are a type of twisted pair cable used for Ethernet networks, but the type of cable used for running through drop ceiling should be plenum-rated. Direct burial cables are used outdoors, where they are buried underground, and are not appropriate for indoor use or for use in drop ceilings.

The eSATA connector features a distinct L-shape (right-angled or left-angled) that prevents improper insertion of the connector plug into eSATA port.

True/False

True

The eSATA connector is designed with a distinct L-shape to ensure correct alignment and prevent improper insertion into the eSATA port.

As an IT professional, you are responsible for managing email services for a company that has been experiencing an increasing number of spam messages in their email system. You have decided to implement a spam filter to reduce the number of unwanted messages. Which of the following protocol and port number combinations are commonly used by spam filters? (Select 2 answers)

• SMTP

• 443

• TELNET

• SSH

• 22

• HTTPS

• FTP

• 20

• ST

SMTP (Simple Mail Transfer Protocol)

tcp/25

SMTP is the standard protocol for email transmissions over the internet and Port 25 is the default port used for SMTP.

HTTPS (Hypertext Transfer Protocol Secure) is the protocol used for secure web communications, typically using port 443

Telnet is a network protocol used or remote access to older computer systems, typically using port 23

As an IT consultant, you have been hired by a small business owner to provide a solution for their employees to securely use their laptops in the office environment. The business owner wants the employees to be able to charge their devices, access corporate LAN resources, and use a variety of removable hardware. Which of the following devices would BEST meet the owner’s needs?

• Docking station

• Port replicator

• Power over ethernet

• Thunderbolt

Docking station

A device that allows employees to securely charge their laptops, connect to a corporate LAN, and utilize various removable hardware, enhancing connectivity and convenience. They typically include a charging port for the laptop, making it easy to keep the laptop charged while it is in use.

As an IT technician, you have been tasked with setting up a server for a client who wants to ensure that their server does not lose power if their power supply fails. The client runs a critical application that cannot afford any downtime due to power outages. Which of the following best describes the type of power supply needed in this situation?

• A power supply that provides twice as much wattage than what is needed

• A modular power supply

• A power supply that provides a voltage output selector

• A redundant power supply

A redundant power supply aka UPS (Uninterruptible Power Supply)

Designed to provide backup power in the event that the primary power supply fails. They typically consist of two power supplies that work together to power the server, with one power supply acting as a backup in case the other one fails. This ensures that the server remains operational even if one of the power supplies fails.

A power supply that provides twice as much wattage as what is needed to power system components may be helpful for handling power spikes or surges, but it would not provide backup power in the event of a power supply failure.

A power supply that provides a voltage output selector would allow the user to adjust the voltage output of the power supply, but it would not provide backup power in the event of a power supply failure.

Which of the following IP addresses can be routed across the Internet?

• 127.0.0.1 (loopback address)

• 192.168.1.2 (private local IP address)

• 10.42.40.14 (private local IP address)

• 129.52.50.15 (public IP address)

129.52.50.15

Only public IP addresses can be routed across the Internet

The IP address 127.0.0.1 is a loopback address that is used to test network communication between the local machine itself and is not routable across the internet.

The IP address 192,.168.1.2 is a private IP address that is used on local networks and is not routable across the Internet.

The IP address 10.42.40.14 is also a private IP address that is used on local networks and is not routable across the Internet.

You’re setting up a website for your business that involves sensitive information like user credentials and payment details. You wan to ensure the traffic to and from your website is secure and encrypted. What is the name of a network protocol that secures web traffic via SSL/TLS encryption?

• SNMP

• FTPS

• HTTPS

• HTTP

HTTPS (Hypertext Transfer Protocol Secure)

A network protocol that encrypts and secures web traffic. It uses SSL/TLS encryption to protect sensitive information such as user credentials, payment details, and other data transmitted between a website and its users. When a user accesses an HTTPS website, their browser establishes secure connection with the website’s server, which ensures that any data transmitted between the two is encrypted and protected from unauthorized access.

You are replacing a broken screen on a new company laptop, but you do not have repair information from the vendor. Which of the following is the best way to proceed?

• Replace the screen with a non-OEM

• Document and label the cable and screw locations

• Update the firmware on the device before repairing it

• Wait for the vendor to provide more information

Documenting and labeling the cable and screw locations

This is the best way to proceed in this situation. This will help the technician keep track of which cables and screws go where, which is important for reassembly. By documenting the locations, the technician can avoid mistakes and ensure that the new screen is installed correctly.

Replacing the screen with a non-OEM (Original Equipment Manufacturer) part, is not recommended. Non-OEM parts may not be compatible with the laptop, which can cause further damage or even render the laptop unusable. Additionally, using non-OEM parts may void the manufacturer’s warranty.

As a technician, you have been asked to replace DDR5 SDRAM memory. What type of packaging is used for DDR5 SDRAM?

• 184 pins

• 240pins

• 288 pins

• 290 pins

• 298 pins

288 pins

DDR5 SDRAM uses 288-pin packaging, which is similar to DDR4 but has differences in signaling and power management.

DDR = 184 pins

DDR2 = 240 pins

DDR 3 = 240 pins

DDR 4/5 = 288 pins

also DDR5 Module Key is slightly located different from DDR4 Module Key

What type of cable would be the most cost-effective solution for resolving electromagnetic interference (EMI) issues without sacrificing network performance in an office setting?

• Shielded CAT6

• Unshielded CAT5

• Plenum

• MMF

• Coaxial

Shielded CAT

Has a higher level of shielding compared to Standard CAT5e, which helps reduce EMI and maintain signal integrity. It is also more cost-effective compared to using multi-mode fiber, which is typically more expensive.6 cable

A user claims that the projector has video but no audio as they try to utilize it to present in a conference room. Which if the following options will fix most likely fix the problem?

• Changing the output to VGA

• Changing the bulb

• Utilizing an HDMI connection

• Changing the input to DVI-A

• Increasing the volume from the PC settings

Utilizing an HDMI connection

This is likely to fix the problem, as HDMI carries both video and audio signals, ensuring that audio plays through the projector when connected properly. VGA and DVI-A do not carry audio signals.

Which computer operation runs a boot-up check on every component?

• BIOS

• CMOS

• POST

• UEFI

• TPM

POST (Power-On Self-Test)

A diagnostic process that happens during the boot-up sequence of a computer. It checks the hardware components to ensure everything is functioning properly before the operating system loads.

You need to install a new video card into a desktop computer. To which type of technology would you install a x16 card?

• USB

• PCIe

• DIMM

• DVI

• Thunderbolt

PCIe (Peripheral Component Interconnect Express)

A high-speed interface standard to connect hardware components, including video cards, to the motherboard of a computer.

PCIe expansion slots accept x1, x4, x8, and x16 cards. An x16 slot consists of 16 lanes for a total bi-directional throughput of 16 Gbps.

After security measures at the entry of the building were strengthened last week, a user was unable to enter. Users may now use their mobile devices for authentication thanks to the company’s implementation of the 13.56MHz frequency short band for the mobile device to authenticate, which of the following must be enabled?

• IR

• Bluetooth

• 5G

• NFC

• Biometrics

NFC (Near-field Communications)

A technology that enables wireless communication between devices over a short distance, typically used for contactless payments and mobile authentication.

Operates in a frequency range centered on 13.56MHz and offers a data transmission rate up to 424 kbits within approximately 10 centimeters.

Which of the following cloud concepts enables clients to receive scalable services?

• Rapid elasticity

• Resource pooling

• Measured services

• High availability

• On demand self services

Rapid elasticity

The ability of a cloud computing system to quickly adjust the amount of resources (such as computing power and storage) it provides in response to changes in demand, allowing for more efficient use of resources and cost savings.

A new BIOS/UEFI update is available, and you would like to do teh upgrade. What is most helpful when flashing the UEFI on a computer system using USB flash?

• Fast USB port

• UPS

• Ethernet

• RAID

• Uninterrupted internet

UPS (Uninterruptible Power Supply)

Losing power during this process can be anything from inconvenient to disastrous. It is a power supply that provides backup power to a computer during outages or fluctuations, ensuring that the system can complete essential tasks like flashing UEFI safely.

Which of the following standards supports MIMO technology?

• 802.11g

• 802.11a

• 802.11b

• 802.11n

• none of the above

802.11n

It is a wireless networking standard that supports Multiple Input Multiple Output (MIMO) technology, which allows for multiple data streams to increase throughput and improve network performance. It was published in 2009 and supports speeds up to 600 Mbit/s.

802.11 ax and ax (Wi-Fi 5 and 6) supports MU-MIMO

Which motherboard component can most likely be used to return a computer to a state that will allow booting the system without knowing the boot password or access the BIOS utility when the computer has been locked by a dissatisfied ex-employee?

• Jumper

• Toggle switch

• Southbridge

• CPU socket

• Random access memory

Jumper

A jumper is a small connector that can modify the configuration or settings of a motherboard, allowing for actions like resetting passwords or clearing BIOS settings by connecting/shorting two specific pins together to change the voltage or signal going to a particular component.

Some common uses of jumpers include setting the CPU clock speed, configuring the system for single or dual-channel memory. However, the use of jumpers vary among different motherboards and the user should consult the motherboard manual for specific instructions.

You have been tasked to replace a Dell’s laptop motherboard. What type of motherboard should you replace it with?

• ATX

• Micro ATX

• Mini ITX

• AT

• One for that specific model

One for that specific model

Laptop motherboards are often proprietary and designed specifically for individual models, ensuring compatibility with the laptop's components and layout.

What is the component that enables the touch screen on a mobile device to receive input?

• Inverter

• Backlight

• Digitizer

• Controller

Digitizer

A crucial component that converts the analog signals from a user's touch into digital signals that the mobile device can process, enabling touch screen functionality.

What term describes the ability to only pay for the resources used in a cloud computing service?

• Measured service

• High availability

• Resource pooling

• On demand self service

• Rapid elasticity

Measured service

A feature of cloud computing that allows for the monitoring, control, and reporting of the usage of resources. This enables the ability to pay for resources based on usage and optimize the costs. This features allows for metering and charging for the usage of cloud resources, such as storage, computing, and network bandwidth, on a pay-per-use basis.

This means that customers are only billed for the resources they consume, rather than having to invest in and maintain a dedicated infrastructure. This also helps customers to keep track of their usage and costs, allowing them to make better informed decisions about their resource usage.

Which of the following is a common type of failure in a laptop hard drive?

• DIMM failure

• S.M.A.R.T. failure

• RAID failure

• BIOS failure

S.M.A.R.T. failure

Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) failure is a common indication that a hard drive is experiencing issues, which can lead to data loss or drive failure. Built into most modern hard drives, allows the drive to monitor its own health and predict failures.

S.M.A.R.T. failure occurs when the hard drive’s SM.A.R.T. system detects problems, such as bad sectors, high temperature, or mechanical failure. The hard drive will typically display an error message or generate an alert to notify the user of the issue.

In some cases, the hard drive may continue to function normally, but it is at an increased risk of failure or data loss or an indication that the drive is nearing the end of its useful life and may fail soon. It is important to backup data and replace the hard drive as soon as S.MA.R.T. failure is detected to avoid data loss.

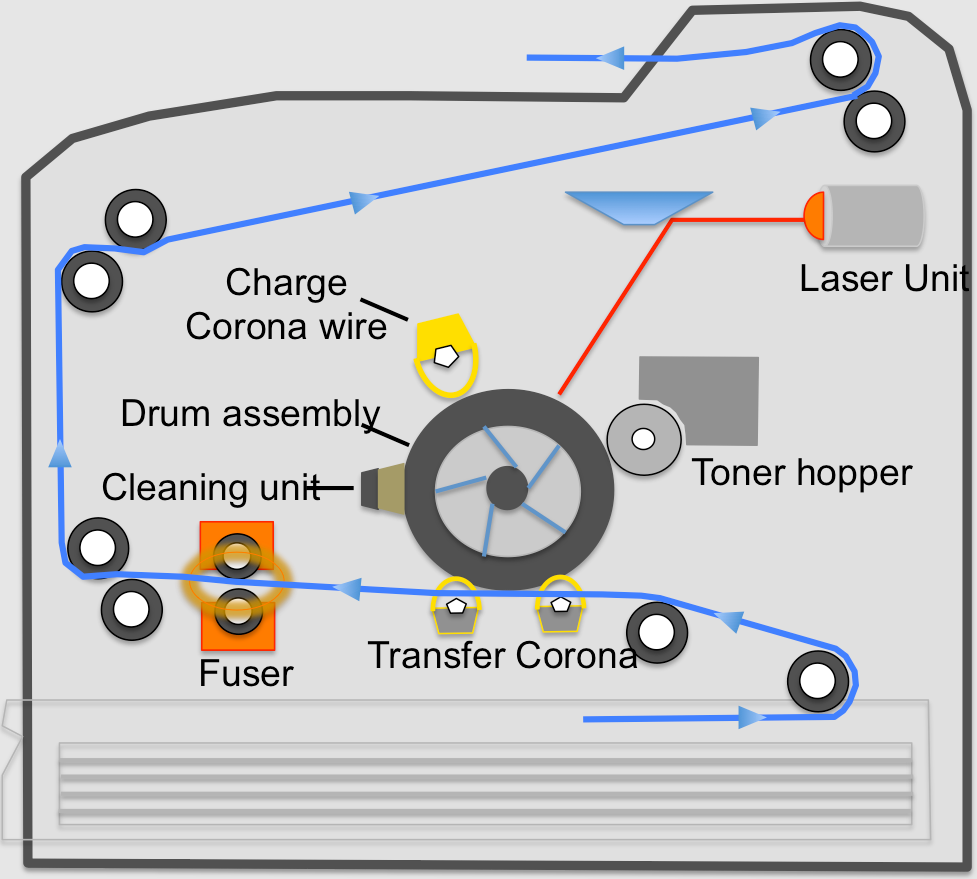

What is the part of a laser printer that holds and transfer toner or ink onto a paper?

• Print Head

• Fuser

• Drum

• Roller

Drum

A cylindrical component transfer the toner from the toner cartridge onto the paper to create the printed image. It is coated with a photoconductive material that is sensitive to light. The laser beam directed onto the drum creates a static charge on the photoconductive surface which attracts the toner particles and transfer them onto the paper.

The drum must be replaced periodically to ensure optimal print quality and maintain the integrity of the printed image.

In a office setting, you have been asked to set up a new laser printer to print on both sides of the paper. How you you accomplish this task?

• Install the most recent firmware upgrade available for that specific printer

• Manually flip the paper over and feed it back through the printer for the second side to be printed on

• Configure duplex settings or use a duplex printing accessory that automatically prints on both sides

• Print the first side and then use a copy machine to print on the other side

Configure duplex settings or use a duplex printing accessory that automatically prints on both sides.

In a professional setting, the most efficient and cost-effective way to set up a laser printer to print on both sides of the paper is by using a duplex printing accessory. This accessory is designed to automatically print on both sides of the paper, eliminating the need for manual flipping or using a separate machine. The duplex printing accessory can be purchased as an add-on to the printer or it can be built-in with the printer.

In a RAID 5 configuration, what is the minimum number of hard drives required to provide data redundancy and fault tolerance?

• 2

• 3

• 4

• 5

3

RAID 5 requires a minimum of 3 hard drives to provide data redundancy and faut tolerance. This configuration uses data striping (distributing data cross multiple drives) in combination with parity information, allowing for the recovery of data in case of a single drive failure. The remaining parity information from the other two drives can calculate the missing or lost data and rebuild them.

With only 2 hard drives, it’s not possible to have any redundancy or fault tolerance as there is no drive to store parity information.

What is the main purpose of a firmware update on mobile device?

• To improve battery life

• To increase storage capacity

• To fix bugs and security vulnerabilities

• To enhance performance

To fix bugs and security vulnerabilities

A firmware update on a mobile device is designed to fix bugs and security vulnerabilities that have been discovered in the current firmware version. These updates can also improve the overall performance of the device by addressing issues such as slow performance, connectivity problems, and other software related issues. Additionally, firmware updates often include new features, functionality, and improvements to the device’s operating system.

While a firmware update may also improve battery life, it is not the primary purpose of the update. Upgrades to storage capacity and performance enhancements are not typically one through firmware updates but rather through hardware upgrades or cloud services.

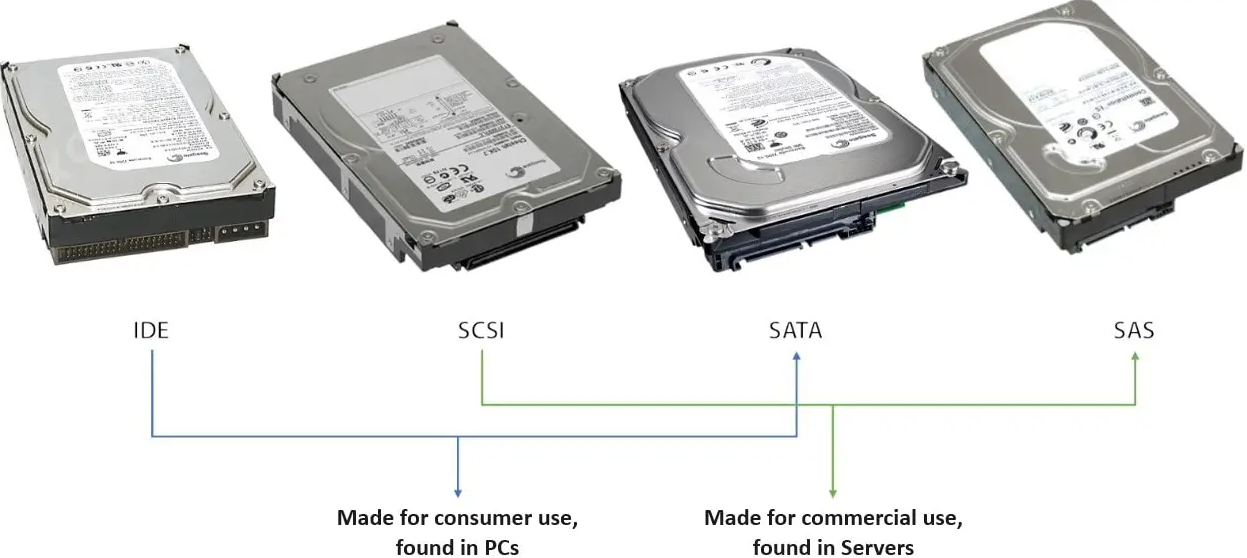

What type of connector is commonly used to connect a hard drive to the motherboard of a desktop computer?

• SATA

• PATA

• SCSI

• IDE

SATA (Serial Advanced Technology Attachment)

The most common type of connector used to connect a hard drive to the motherboard of a desktop computer. It uses a serial signaling technology and a smaller, more efficient connector.

PATA (Parallel ATA) is an older technology that was replaced by SATA.

SCSI (Small Computer System Interface) and IDE (Integrated Drive Electronics) are older technologies that were commonly used in the past.

What is the purpose of a BIOS (Basic Input/Output System) in a computer?

• To manage system resources and provide an interface for the operating system

• To manage the power management of the computer
  to provide a graphical user interface for the computer

• To perform diagnostic tests on the computer’s hardware

To manage system system resources and provide an interface for the operating system.

A firmware that resides on a chip on the motherboard of a computer. Its primary function is to manage system resources, such as the CPU, memory, and peripheral devices, and provide an interfaced for the operating system to communicate with the hard drive. The BIOS also controls the boot process, performing a power-on self-test (POST) to ensure that all hardware from the boot device.

Power management is a feature that can be configured in the BIOS but it is not the main purpose. The BIOS doesn’t provide a graphical user interface and it’s not a diagnostic tool.

A user reports that their computer is running slow and freezing frequently. As a technician, what would be your first step in troubleshooting the issue?

• Run a malware scan

• Check the available free space on the hard drive

• Check the computer’s event viewer logs

• Update the computer’s operating system

Check the available free space on the hard drive

Slow performance and freezing can be cause by a variety of issues, but one common cause is a lack of free space on the hard drive. When a hard drive is full, the computer has to work harder to access and store files, which can slow down overall performance. The first step in troubleshooting this issue should be to check the available free space on the hard drive and remove any unnecessary files or programs.

Other steps such as running a malware scan, checking the computer’s event system viewer logs, and updating the computer’s operating system can be taken after verifying that the hard drive space is not the main issue.

What should a user verify is present on their PC before purchasing a NVMe hard drive as an upgrade?

• SODIMM

• SATA

• JUMPER

• M.2

• SCSI

M.2 Interface

NVMe drives are designed to use the Non-Volatile Memory Express (NVMe) protocol, which is optimized for high-speed storage communication. They are typically installed in an M.2 interface on the motherboard.

What is the most probable cause of a hard drive error message on a laptop even after a successful file system check and all files being accessible?

• Virus infection

• SMART status failure

• RAID failure

• DIMM failure

SMART status failure

(Self-Monitoring, Analysis, and Reporting Technology) is a feature in hard drives that monitors the drive’s performance and predicts potential failures. When a hard drive is experiencing issues that may lead to a failure, it will usually report a SMART status failure, which can be viewed in the PC’s BIOS or through software utilities.

If a file system check shows that the files are accessible the file system is clean, but the PC still issues a hard drive error message, it’s most likely that the hard rive is reporting a SMART status failure.

A technician is troubleshooting what appears to be a RAM issue on a PC. Which of the following symptoms would indicate if this is a RAM issue?

• Wrong BIOS time

• Distended capacitors

• Post code beeps

• Continues reboots

Continuous reboots

One of the most common symptoms of a RAM issue. When a computer’s RAM is faulty or not functioning properly, the operating system may become unstable and the computer may crash or restart frequently, leading to continuous reboots. This can occur because the RAM stores data temporarily for the processor to access, the processor may not be able to access the necessary data to continue running. This can lead to crashes, or freezes, which in turn can cause the computer to restart.

Which of the following units is used to measure TDP?

• Amps

• Volts

• Watts

• Ohms

Watts

TDP, or Thermal Design Power, is measured in watts and indicates the maximum amount of heat generated by a computer component, such as a CPU or GPU, that the cooling system is designed to dissipate under normal operating conditions. It is a measure of the maximum power a computer’s cooling system needs to remove to keep the computer working properly and prevent overheating.

Which of the following storage devices loses its contents when you shut down the computer?

• HDD

• SSD

• RAM

• USB

RAM

(Random Access Memory) is a type of volatile memory that temporarily stores data and machine code currently being used by a computer. When the computer is powered off, all information stored in RAM is lost, making it essential for active processes but not for long-term data storage.

RAM is volatile memory, meaning it requires constant power source to maintain its contents. The purpose of RAM is to provide the CPU with quick access to frequently used data and applications, allowing the computer to run smoothly and efficiently.

Which of the following is a type of printer that uses heat to transfer ink onto paper?

• Dot Matrix

• Laser

• Thermal

• Inkjet

Thermal printer

A type of printer using heat to cause a chemical reaction within a special thermal paper, turning the ink into a solid form, which creates a printed image on the paper. This technology is commonly used in POS (Point-of-sale) receipt printers, barcode printing, label makers and other applications where speed and reliability are important.

Unlike inkjet or laser printers, thermal printers do not require ink cartridges, toner, or ribbons, making them a cost-effective and low-maintenance option for certain printing needs.

What part of a printer is most likely to cause smudged printing?

• Rollers

• Print head

• Ink cartridges

• Paper tray

Rollers

They transport paper through the printing process. These rollers are responsible for feeding the paper into the printer, aligning it correctly and holding it in place while the print head applies ink to the page. If the rollers become dirty or worn, they can cause the paper to misalign or hesitate, leading to smudges and incomplete prints.

Dirt and debris can accumulate on the rollers over time, leading to smears and smudges on the printed pages. Additionally, if the rollers are not properly lubricated, they can start to wear down and create friction, which can also cause smudging.

To prevent smudging, it is important to regularly clean and maintain the rollers in your printer to ensure that they are working properly and free of dirt and debris.

Which of the following is not a typical print configuration setting found in printers or multifunction devices?

• Number of copies

• Page orientation

• Paper size

• Collating

• Choosing a cover page

Choosing a cover page

This is typically a feature of the software application that is used to create and print the document. For example, when creating a document in Microsoft Word, you may have the option to add a cover page as the first page of your document. However, this is not a setting that is specific to the printer or multi-function device, and is instead determined by the software application being used to create the document.

Your computer has been experiencing frequent stop errors and is automatically rebooting each time. You want to change the configuration to stop this from happening. Where would you go to make this change?

• BIOS, Boot tab, Automatic Reboot

• System Properties, Advanced tab, Startup and Recovery

• Control Panel, Device Manager, System Configuration

System Properties, Advanced tab, Startup and Recovery

This section allows you to configure system failure and recovery options, including disabling automatic restarts on system failures, which can help diagnose frequent stop errors.

Computers on a network cannot establish an internet connection but they can connect to each other. You determine that on each computer, an APIPA address has been assigned. Where do you look next to resolve the problem?

• DNS server

• Proxy server

• DHCP server

• FTP server

DHCP (Dynamic Host Configuration Protocol) Server

Responsible for assigning IP addresses to devices on the network. If the DHCP sever is down is not functioning properly, the devices on the network will not receive valid IP addresses, and they will instead be assigned an APIPA (Automatic Private IP addressing Addresses). This can result in the devices being unable to connect to the Internet, because they do not have valid IP addresses, but able to connect only to each other.

What is an APIPA (Automatic Private IP Addressing)?

A local network addressing mechanism, meaning it allows devices on the same local network to communicate, but it's not designed for internet access or communication with devices on different networks. APIPA addresses are within the 169.254.0.0/16 range and are automatically assigned by a device when it can't obtain an IP address from a DHCP server. This is typically used for troubleshooting or temporary networks where a DHCP server is not readily available.

You have been tasked with setting up a specialized computer for video editing. Which of the following should you include with the computer?

• NIC

• NAS

• SSD

• HDD

SSD (Solid-State Drive)

They offer faster read and write speeds compared to the traditional Hard Disk Drives (HDDs). In a video editing setup, you need fast storage to handle the high speed transfer of large video files, as well as to improve overall system performance, and reduce lag and waiting times. SSDs are more reliable, durable and consume less power compared to HDDs, which makes them more suitable for video editing tasks.

An unexpected clicking noise occurs every time the video editing program is started. The case fans have been replaced, but the noise remains. Diagnostics have also been run on the video card, and it appears to be operating normally. What action should you take first?

• Perform a back up

• Replace the storage drive

• Update the drive

• Perform System Restore

Perform a backup

The unexpected clicking noise could indicate a problem with the hard drive, such as a failing disk or a disk that has bad sectors, which could cause performance issues and data loss. Before replacing the hard drive, it is recommended to perform a full data backup to ensure the data is safe.

Replace the storage drive. The clicking noise may indicate a failing hard drive or SSD, which can lead to data loss. Taking this step ensures data integrity before further diagnostics.

When running cable through drop ceilings, which type of cable is the best option?

• CAT5e

• CAT6a

• Plenum

• Fiber

Plenum

A type of cable designed for use in spaces used for air circulation, such as drop ceilings. Plenum-rated cables have a fire-resistant jacket to minimize the risk of fire spread and are ideal for wiring in commercial buildings.

You need to attach an RJ45 plug to the end of a twisted-pair cable. Which tool should you use?

• Cable tester

• Crimper

• Multimeter

• Tone and probe kit

Crimper

A tool used to attach connectors, such as RJ45 plugs, to the ends of twisted-pair cables by crimping the metal pins into the cable wire. This secure connection allows for reliable network communication.

The crimper is used to apply pressure to the connector and the wires within the cable, which creates a physical and electrical connection. This connection ensures that data transmitted over the cable is secure and free from interference.

A client approaches you with a problem. They have been noticing vertical streaks on every page they print from the Laser printer in their department. What could be the cause of this issue?

• Out of date print driver

• Clogged paper tray

• Overheated printer fuser unit

• Damaging to the imaging drum

Damaging to the imaging drum

The imaging drum is responsible for transferring the toner onto the paper. If the imaging drum is damaged, it can cause vertical streaks to appear on every page that is printed. The streaks are a result of the toner not being evenly distributed on the paper, which is usually caused by scratches, dents, or other types of damage to the surface drum including wear and tear. Regular maintenance or replacement of the imaging drum may resolve the printing issues.

Which of the following print tools is used to manage and maintain print jobs?

• Print head

• Print spooler

• Acrobat reader

• Paper feed rollers

Print spooler

A software component that acts as a buffer between the computer and the printer. The spooler holds the print job in memory until the printer is ready to process it, which helps to ensure that the print job is executed in the correct order and without any interruptions. It also keeps track of the status of each print job and provides feedback to the computer, such as when the print job is completed or if there are any errors. It can also be used to pause, resume, or cancel print jobs, allowing for greater control and management of the printing process.

What is the difference between the print spooler and the print queue?

The print spooler and print queue are closely related but distinct components of the printing process. The print spooler is a software program that manages and temporarily stores print jobs, allowing the computer to continue working while the printer handles the printing tasks. The print queue, on the other hand, is a list or interface that displays the print jobs waiting to be processed.

Print Spooler:

• Acts as a temporary storage area for print jobs.

• Manages the order in which print jobs are sent to the printer.

• Ensures efficient use of printer resources by handling multiple print jobs simultaneously.

• Allows users to continue working while print jobs are being processed

• Print Queue:

  • A visual representation of the print jobs waiting to be processed.

  • Allows users to see the status of their print jobs, pause, or delete them if needed.

  • Helps users understand the order in which print jobs will be printed.

  • Provides a way to manage and monitor the printing process.

In essence, the spooler is the "engine" that manages the queue, while the queue is the "interface" that allows users to see and interact with the pending print jobs.

Your system has begun shutting down suddenly and unexpectedly. Howe can you determine if the cause of your issue is due to CPU overheating?

• Check the CPU temperature in teh system BIOS/UEFI firmware

• Check the CPU documentation for normal temperatures

• Check the CPU temperature in Computer Management

• Check the CPU temperature in the Task

Check the CPU temperature in the system BIOS/UEFI firmware

BIOS/UEFI contains temperature monitoring tools that provide real-time data about the CPU's thermal state. By accessing this firmware, you can determine if the CPU is overheating by comparing the temperature reading to the manufacturer's specified normal operating range.

When the CPU temperature reaches a certain threshold, the BIOD/UEFI firmware can trigger a system shutdown to prevent damage to the CPU and other components. Appropriate actions include cleaning the interior of your computer, improving airflow, or replacing thermal paste.
