Pressure volume loops

0.0(0)
studied byStudied by 0 people
0.0(0)
full-widthCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/14

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

15 Terms

1
New cards

work of respiration

0AECD

2
New cards

work to overcome elastic resistance

0ABCD

3
New cards

work to overcome non-elastic resistance

AECF

4
New cards

work to overcome non-elastic resistance during inspiration

AECB

5
New cards

work to overcome non-elastic resistance during expiration

ABCF

6
New cards

restrictive lung disease

no change in airway resistance

lung compliance decreased, curve shifted right

7
New cards

obstructive lung disease

increased lung compliance

airway resistance has increased

8
New cards

obstructive lung disease - elastic resistance

similar work to overcome

9
New cards

obstructive lung disease - non-elastic resistance

more work to overcome non-elastic resistance - inspiration (ABCF)

more work to overcome non-elastic resistance - expiration (ABCF), a more positive expiratory pressure is required (DFO area increases, expiration becomes active process

10
New cards

obstructive lung disease - what is neesed

more negative intrapleural pressure (Pip) required to move the same amount of air (inspiratory flow rates, 0AECD area increases)

11
New cards

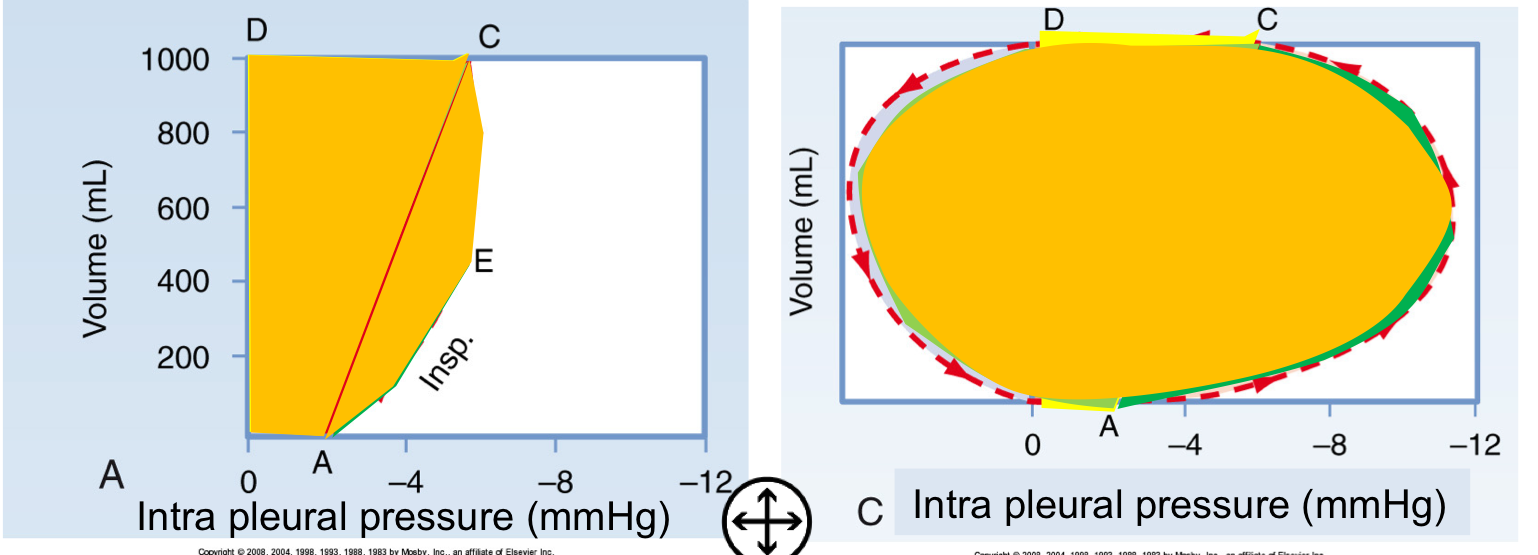

knowt flashcard image

obstructive lung disease

12
New cards

restrictive lung disease - elastic resistance

more work to overcome elastic resistance (0ABCD)

13
New cards

restrictive lung disease - non-elastic resistance

no change in work to overcome non-elastic resistance (inspiration, AECB and expiration ABCF)

14
New cards

restrictive lung disease - what is needed

a more negative Pip requred for same amount of air (inspiratory flow rates, increased 0AECD area), increases work of breathing

15
New cards

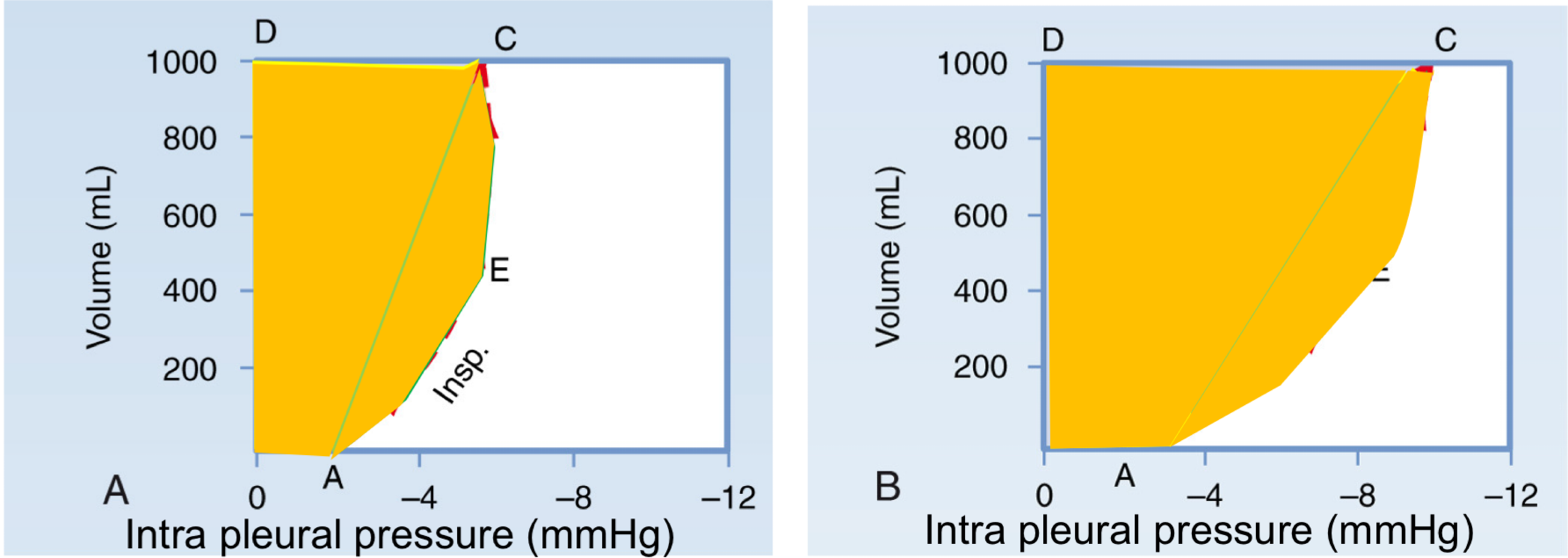

knowt flashcard image

restrictive lung disease
