Dental Radiography

Lecture 4

List indications for dental radiography.

diagnosis of periodontal disease

diagnosis of endodontic disease

“missing” teeth

extractions( prior to, sometimes during, and after)

resorptive tooth lesions

screening radiographs during routine dental cleaning

periorbital swelling, gingival swellings and oral neoplasia

developmental abnormalities of teeth

trauma

malocclusions

R/O dental cause of “nasal” disease

What are advantages to using a conventional radiograph unit for dental radiographs?

may be available in practices without dental radiograph unit

useful in imaging mandibular/maxillary fractures, trauma, masses, temporomandibular joint (TMJ)

What are disadvantages to using a conventional radiograph unit for dental radiographs?

inconvenient (usually not in location where dental procedures are performed)

can’t take intra-operative films without moving patient from dental treatment table

superimposition problems

difficult to isolate individual teeth

How do we set exposure on dental radiograph units?

kVp and mA are often fixed and only time is selected

most units have anatomic interface where operator sets the size and tooth, and the exposure is adjusted automatically

Dental X-Ray units are required to be registered and inspected by who?

the State Department of Health

In Virginia, dental X-Ray operators must stand how far from the tube when making the exposure?

at least 9 feet

What angle should you stand from the primary beam when shooting dental radiographs?

90-135 degrees

What can be used to help stabilize the sensor/film during dental radiographs to prevent exposure of staff by holding it?

positioning aides such as gauze sponge or play-doh

What should always be worn by personnel in areas where radiographs are taken to measure the extent of exposure?

dosimetry badge

What are the three options for obtaining an image during dental radiographs?

conventional intraoral film

sensor-based radiography (DR) - “digital radiography”

photostimulable phosphor plates (CR) - “computed radiography”

What are the advantages of using conventional intraoral film for obtaining an image?

least expensive ($500)

requires no automation

several sizes available

What are the disadvantages of using conventional intraoral film for obtaining an image?

takes more time during procedure

requires developing chemicals

must store and catalog films as part of the patient record

processing errors can be a problem

What are the advantages of using a hard wired sensor “DR” for obtaining an image?

immediate images available (5 seconds)

digital images - easy to store

more consistent quality images than film

less radiation required

What are the disadvantages of using a hard wired sensor “DR” for obtaining an image?

sensors can be expensive and somewhat fragile ($2000+)

only #1 and #2 size available

What are the advantages of using a Phosphor screen “CR” for obtaining an image?

digital images - easy to store

#4 plate allows images of larger teeth and multiple teeth

#1 plate works better in cats

quality images

What are the disadvantages of using a Phosphor screen “CR” for obtaining an image?

slower than hard-wired sensor (30 seconds to 1 minute)

Radiographic studies with conventional x-ray units typically use a ______ when possible to prevent distortion of the structure being imaged.

parallel technique

The parallel technique can be used in dental radiography only when imaging the _____ teeth.

distal mandibular (distal to 307/407)

When using parallel technique for dental radiographs, the film (sensor) can be placed ____ to the tooth and ____ to the primary beam.

parallel

perpendicular

The _____ is required to prevent distortion of the image and duplicate the size of the tooth on the film or sensor.

bisecting angle technique

Why is it not possible for the film to be aligned parallel with the long axis of the tooth and its roots in most cases in the oral cavity?

anatomical interference

• palate causes interference with all maxillary teeth

• mandibular symphysis and angle of roots, relative to the oral surfaces in the rostral mandibular teeth

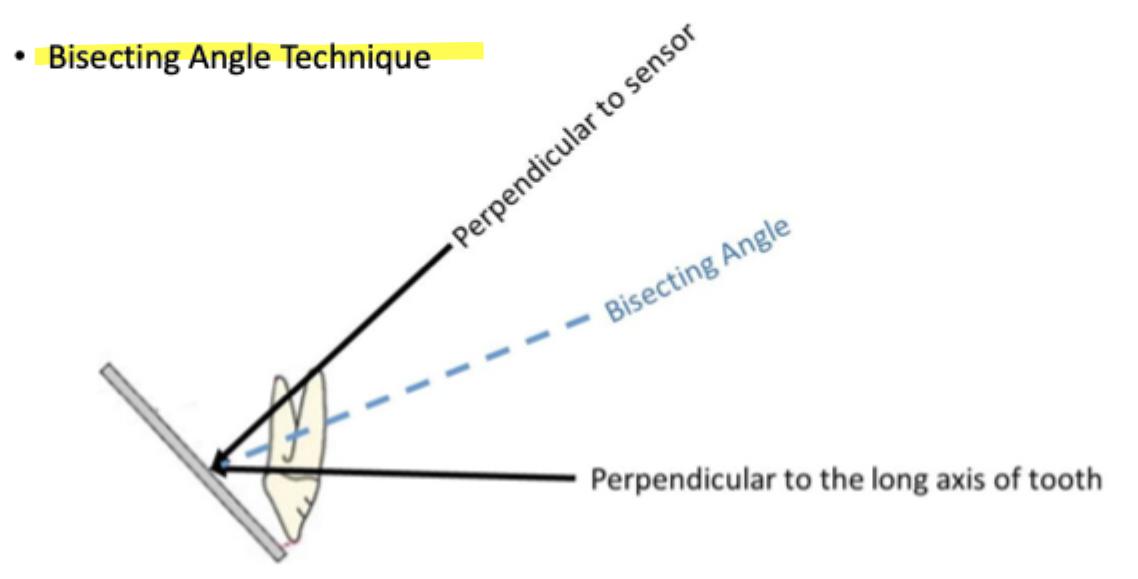

Describe how to obtain the bisecting angle when positioning for dental radiograph.

orient the beam half way between the two extremes

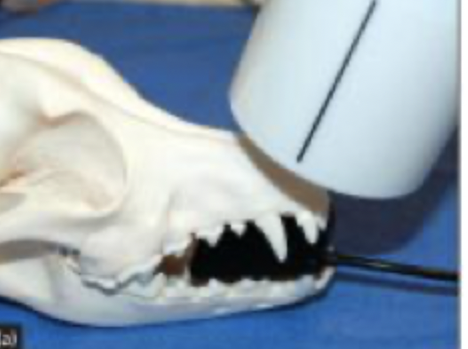

What view should be used for radiographs of the maxillary incisors in the dog?

70 degree rostral-caudal in sternal recumbency

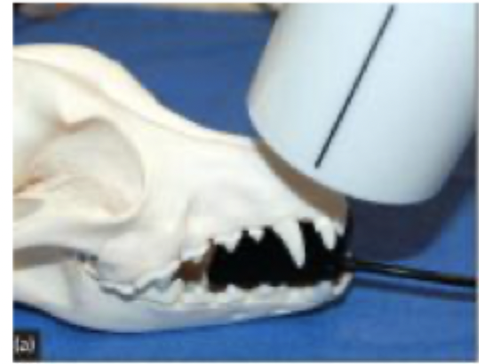

What view should be used for radiographs of the maxillary canines in the dog?

70 degree rostral-caudal oblique in sternal recumbency

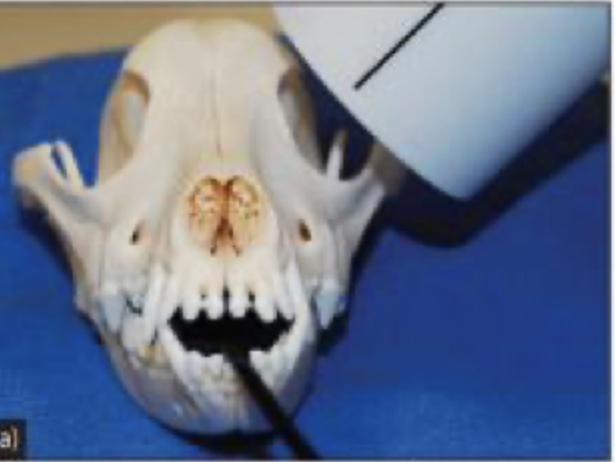

What view should be used for radiographs of the maxillary premolars in the dog?

45-55 degree lateral in sternal recumbency

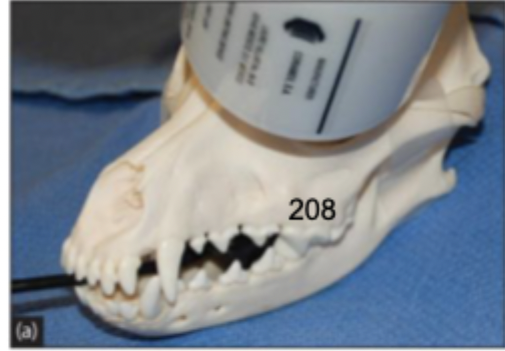

When the xray tube is positioned laterally, the mesio-buccal and mesio-palatal root of the 4th maxillary premolars are superimposed. How can you separate the mesiobuccal and mesiopalatal roots of the 4th maxillary premolar?

shift the tube head to a rostral to caudal oblique in sternal recumbency

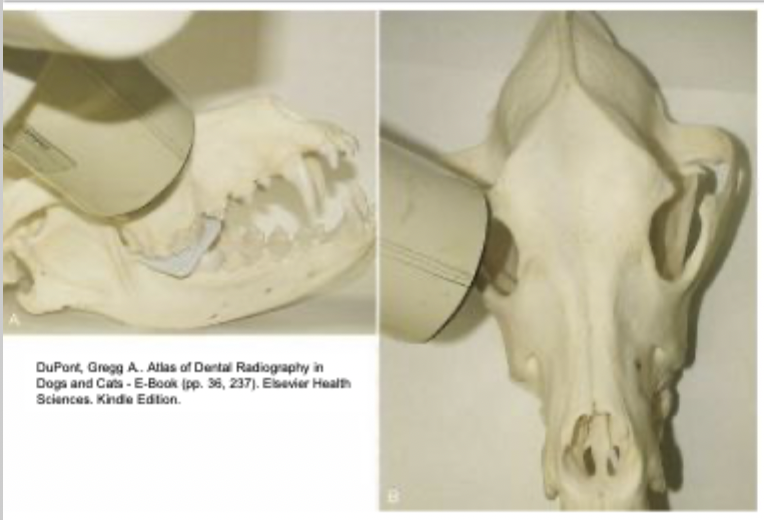

What view should be used for radiographs of the maxillary molars in the dog?

45-55 degree caudal rostral oblique in sternal recumbency

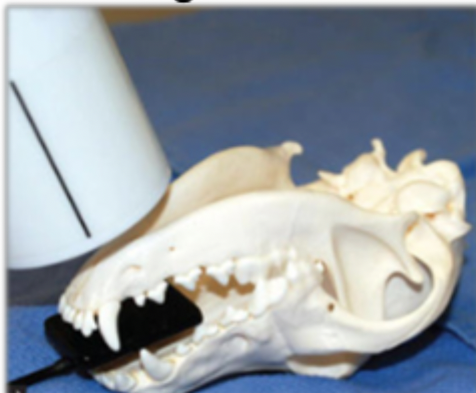

What view should be used for radiographs of the mandibular incisors in the dog?

70 degree rostral caudal in dorsal recumbency

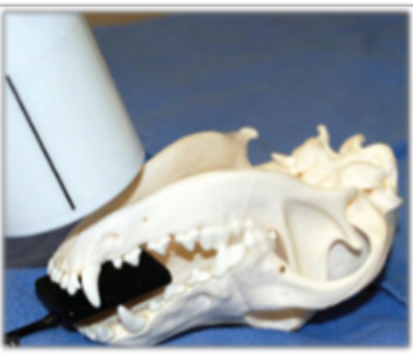

What view should be used for radiographs of the mandibular canines in the dog?

70 degree rostral caudal oblique in dorsal recumbency

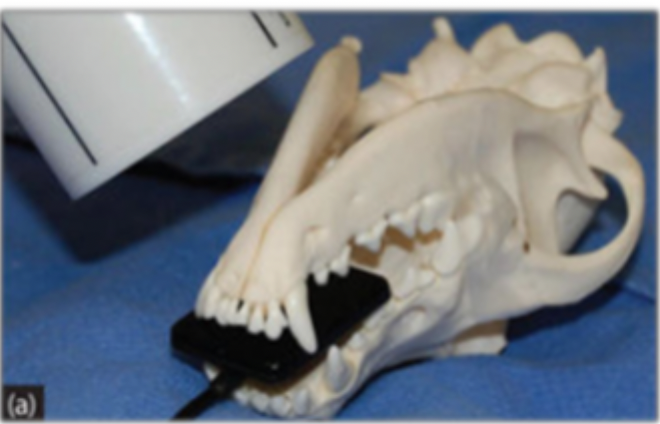

What view should be used for radiographs of the mandibular premolars in the dog?

45 degree lateral in dorsal recumbency

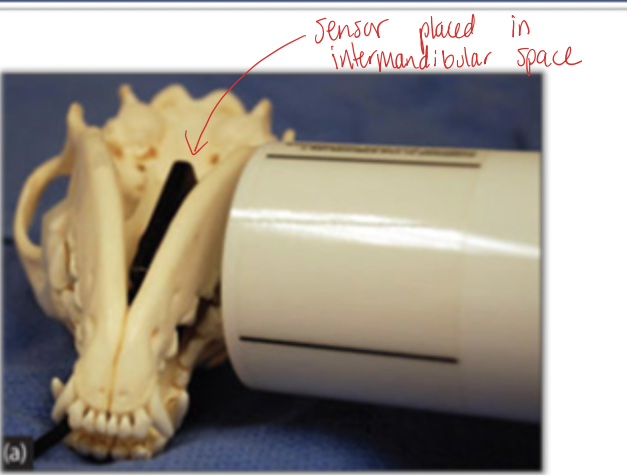

What view should be used for radiographs of the mandibular molars in the dog?

parallel technique, 90 degree lateral in dorsal recumbency

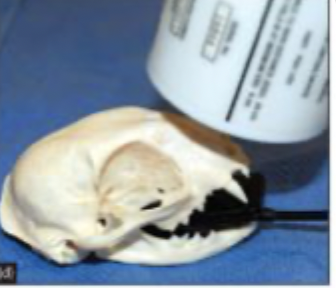

What view should be used for radiographs of the maxillary incisors in the cat?

70 degree rostral-caudal in sternal recumbency

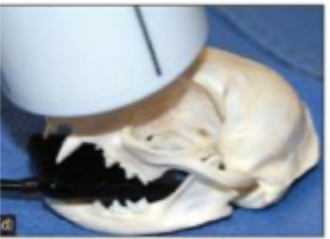

What view should be used for radiographs of the maxillary canines in the cat?

70 degree rostral-caudal oblique in sternal recumbency

Which technique results in the superimposition of the mesial roots of the 4th maxillary premolar and zygomatic arch interference?

standard bisecting angle technique

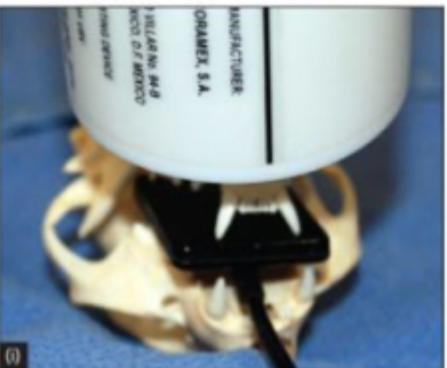

What view should be used for radiographs of the mandibular incisors and canines in the cat?

70 degree rostral caudal in dorsal recumbency

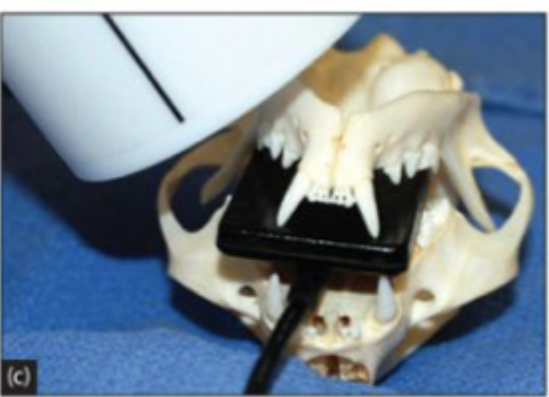

What view should be used for radiographs of the mandibular premolars in the cat?

45 degree lateral in dorsal recumbency

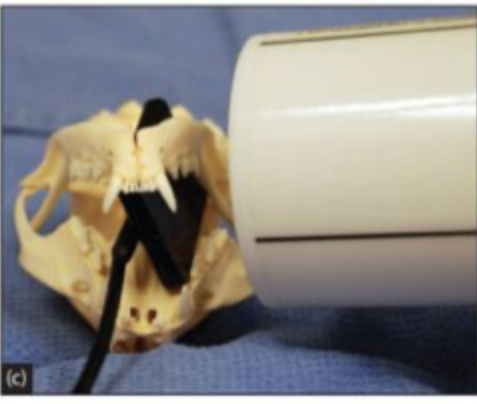

What view should be used for radiographs of the mandibular molar in the cat?

parallel technique, 90 degree lateral in dorsal recumbency

Which technique results in the superimposition of the mesial roots of the 4th maxillary premolar but avoids zygomatic arch interference?

extraoral technique

When the x-ray beam is too perpendicular to the sensor or film, it results in a _____ image.

foreshortened

How can you correct foreshortening?

drop angle to a more lateral position

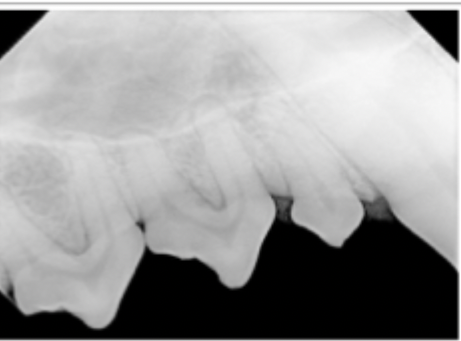

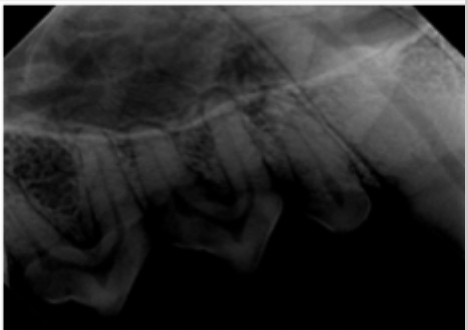

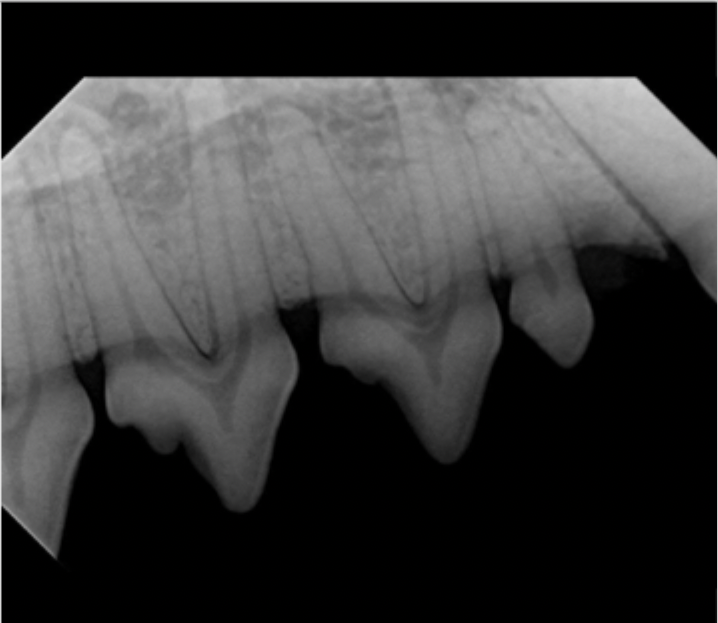

What error is shown in this image?

foreshortening

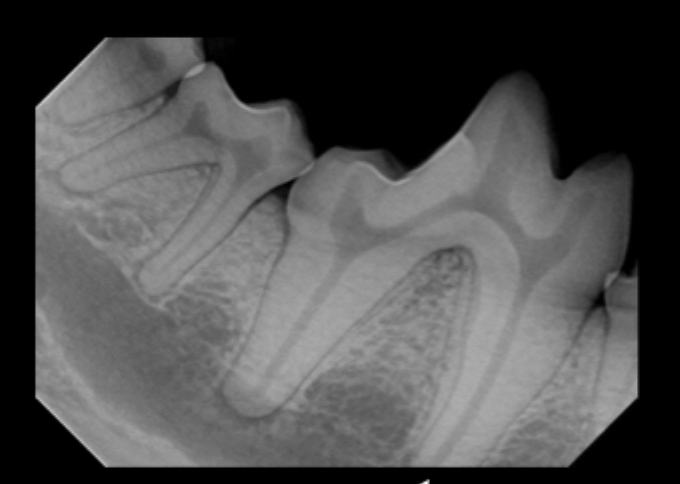

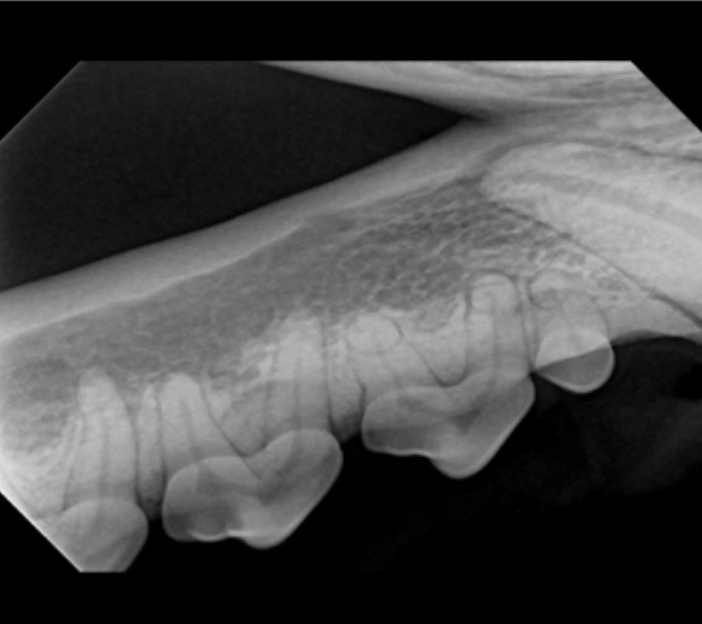

What error is shown in this image?

elongation

When the x-ray beam is too perpendicular to the tooth, it results in an ____ image.

elongated

How can you correct elongation?

increase the angle to a more vertical position

What error is caused by the tube not being aligned with sensor or sensor not aligned with the tooth?

area of interest not on image

How can you correct the area of interest not being on image?

change tube positioning or sensor position or both

If the sensor size is small when taking x-rays, what may be required?

multiple images of large teeth

What error is shown in this image?

underexposure

What error is shown in this image?

overexposure

How can you correct underexposure?

increase time

How can you correct overexposure?

decrease time

What error is shown in this image?

area of interest not on image (missing mesial root apex)
