Special airspace

What airspace is this? What are the regulations around entering it?

Restricted area. Cannot go into it without advance permission of the using/controlling agency

What airspace is this? What are the regulations around entering it?

Prohibited area- more serious than restricted area. Must have authorization from the using agency.

What airspace is this? What are the regulations around entering it?

Warning area-usually extends 3NM outward from the coast. You can enter without permission, but it is dangerous.

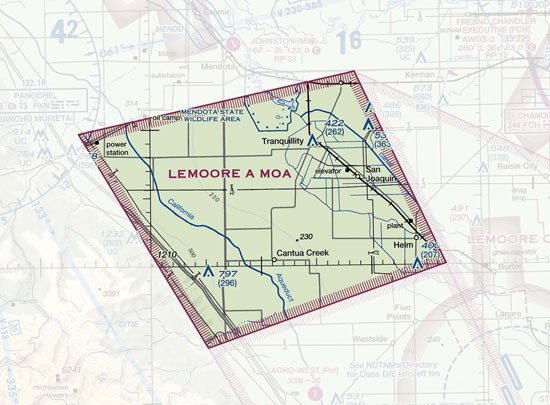

What airspace is this? What are the regulations around entering it?

Military operating area. Civilian aircraft can fly through it, but shouldn’t.

What special permissions do military pilots in a MOA get?

Exempt from the prohibition on aerobatic flight, allowed to fly >250kts even when below 10,000

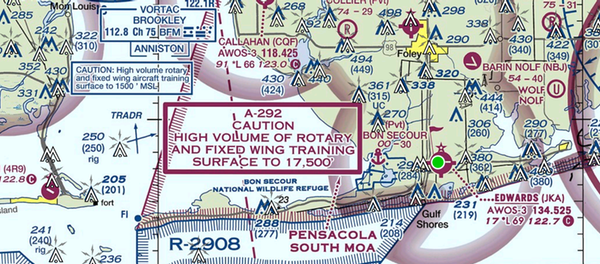

What airspace is this (marked A-292)? What are the regulations around entering it?

Alert area-contains a high volume of pilot training or unusual activity. You can enter, just use caution

What is a CFA, and do they show up on charts?

Controlled firing area, where hazardous activities will be stopped if an aircraft is seen entering the area. They do not show up on charts at all

What is an NSA

National security area-established for safety of ground facilities. Flight is usually allowed but discouraged, but will sometimes be prohibited by notam.

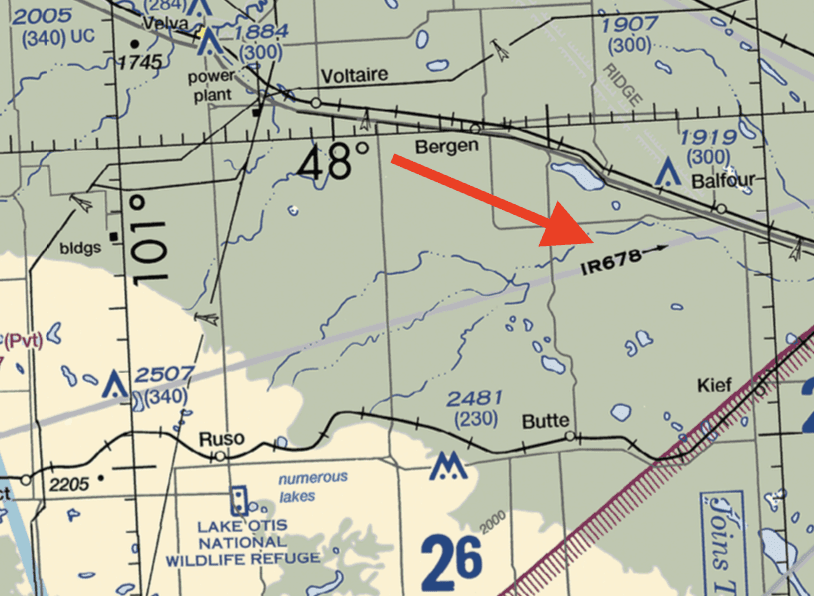

What is this? Can civilians fly through these?

Military training route- allows low level flying at more than 250 kts. Civilians can fly through but shouldn’t

How are MTRs labelled

IR or VR for IFR/VFR. Followed by 4 numbers if below 1500 AGL, or 3 numbers if it contains segments above 1500 AGL

What are the weather requirements on an MTR

IR routes must be flown IFR, VR routes must be flown VFR

VR routes- visibility 5SM, flight must be below ceiling of 3000 AGL

What is a TFR, and can you fly through it?

Temporary flight restriction, published by notam. Cannot fly through these

What is this? Is ATC clearance required?

VFR flyway-helps aid transit around class B. Extends to the surface. Found on the back of TAC chart. No clearance required

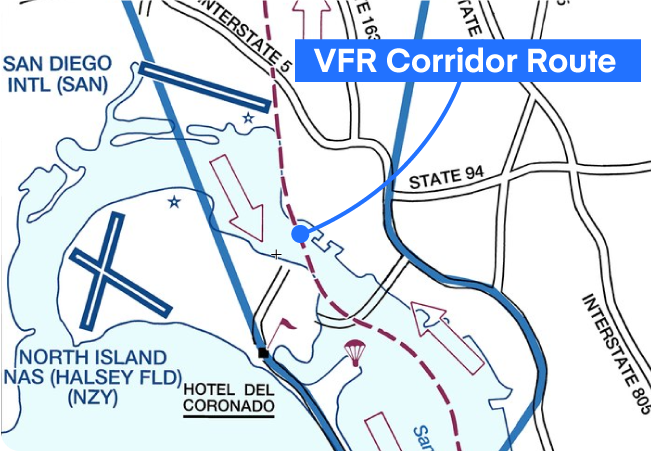

What is a VFR corridor? Is clearance required?

Allows transit through a hole in the class B, does not extend to the surface. Do not need an ATC clearance

What is this? Is ATC clearance required?

VFR transition route, gives specific routes for VFR traffic through class B. Clearance through the bravo is required

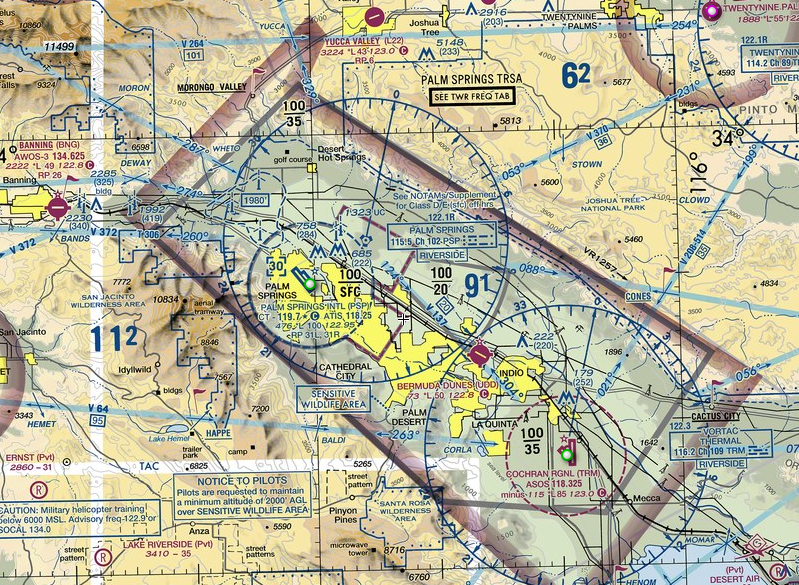

What is a TRSA (shown by the black line and black altitudes)?

terminal radar service area- provides extra radar for traffic seperation. You should follow ATC directions while inside

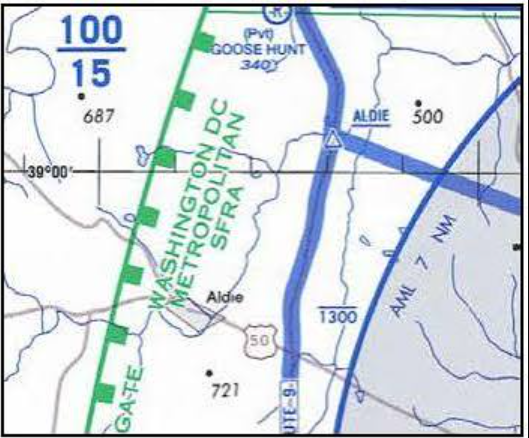

What is this?

Special flight rules area, an area with special air traffic rules (SATR). Located in areas like alaska, florida, washington. For rules of each area, FAR part 93

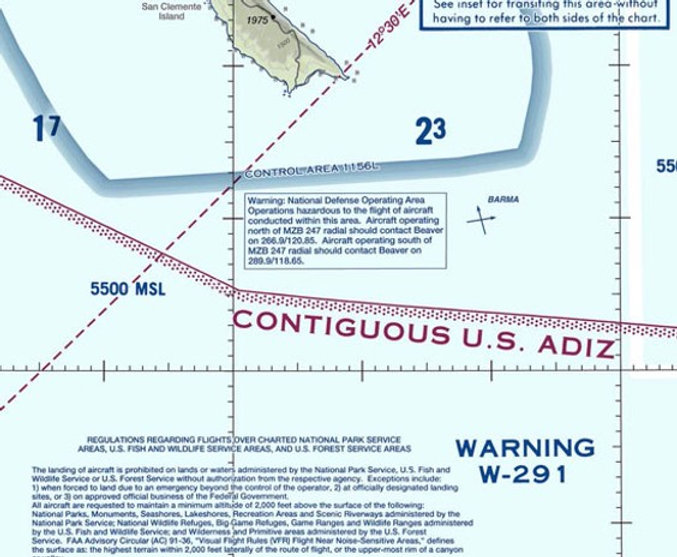

What is this (pink line with dots)?

air defense identification zone, near the US borders, where precise ID and control of all aircraft is important to security

What equipment do you need to fly through an ADIZ

2 way radio, altitude reporting transponder

What must you do to fly through the ADIZ?

File a DVFR (defense VFR) flight plan, with the time and location of entry into the ADIZ, and be on time when you fly that. Must make continuous ATC position reports
