9.1: Side Channels in Hardware

Side Channel Attacks

A method of breaking a secure system by looking at signals produced by a device whilst it’s working on something to figure out what’s happening.

Timing Attacks

Timing the amount of time that a program takes to execute to determine what values are being compared in if statements.

Preventing Timing Attacks

Ensuring code is written in a way such that every possible route takes a constant time to execute.

• Often with bitwise operators - otherwise optimising compilers may give you a bit of a headache

Simple Power Analysis

A side channel analysis of voltage, showing a rough voltage drop over the resistor for every clock cycle that corresponds with what a processor is doing.

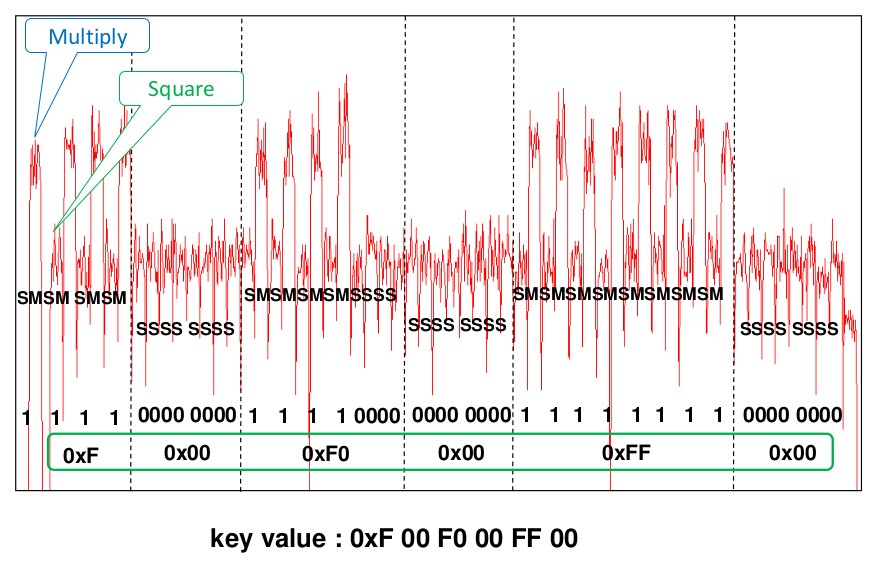

Simple Power Analysis - Example

Take a method that squares an input and multiplies an input when a bit of the key is equal to 1.

• Multiplication voltage amplitude compared to square is visible

Simple Power Analysis - Prevention

• Adding noise

• Decreasing the signal (balance the power consumption)

• Fix the algorithm

Other Possible Side Channels

• Temperature

• Sound

• Electromagnetic Output

• Photonic Emissions

• etc.

AES - SPA Attack on MixColumns

• Send a plaintext x, and “read” MSB(B_o) from the power trace

  • Higher voltage means MSBit is 1, lower means MSBit is 0

• For each key candidate, compute the hypothetical MSB(B₀)

• Repeat with next input/trace until only one candidate remains

• Repeat for each key byte separately

AES - Protection against SPA

• Implement xtime as a constant

  • Compilers may optimise and CPUs may have a non-constant time multiplication

• T-tables optimisation

AES - Timing Attack

• Focus on a single byte, go over all 256 candidates, go over many (x, T) pairs - like with SPA

• For each key candidate k, compute if MSBit = 1 or 0

• Assign the measured time into two “heaps”, one for if MSBit = 1 and one for if MSBit = 0

• Compute each heap’s average for every candidate

• Find the candidate with the highest difference in averages - that’s one of the key bytes

• Repeat for all key bytes

AES - Why the Timing Attack Works

• When the key candidate is correct, one term in the sum is predicted correctly, so that T₀^{^} = 0 + noise + T_rest and T₁^{^} = 1 + noise + T_rest, and the difference often leans towards 1

• When the key candidate is incorrect, only noise is predicted and will often lean towards 0.

Differential Power Analysis

Employs techniques of both Simple Power Analysis and Timing Attacks to potentially leak secrets.

AES - Differential Power Analysis Attack

• For each candidate in k,

  • For each x in the plaintext,

    • Compute hypothetical MSBit(B₀)

    • If MSBit(B₀) is 0, put it in P₀ (heap)

    • Else, put it in P₁ (another heap)

  • Compute the pointwise averages of P₀ and P₁

  • Calculate the difference in averages

• Find the maximum difference in averages amongst candidates - this is the key candidate byte

Differential Power Analysis - Countermeasures (AES)

• Hiding amplitude - noise generation, balanced logic style…

• Hiding time - random delays, dummy cycles, unstable clock…

• Masking the S-Box

Differential Power Analysis - Countermeasure Limitations

• Substantial area and speed overhead

• Requires good randomness (difficult on embedded devices)

• Partially depends on the algorithm

• Can be attacked with higher-order DPA/CPA

Differential Power Analysis - System Level Countermeasures

• Detect - shadow accounts, logging

• Minimise impact - key diversification
