05.L BIO, HN Comparing Photosynthesis & Cellular Respiration (PART L)

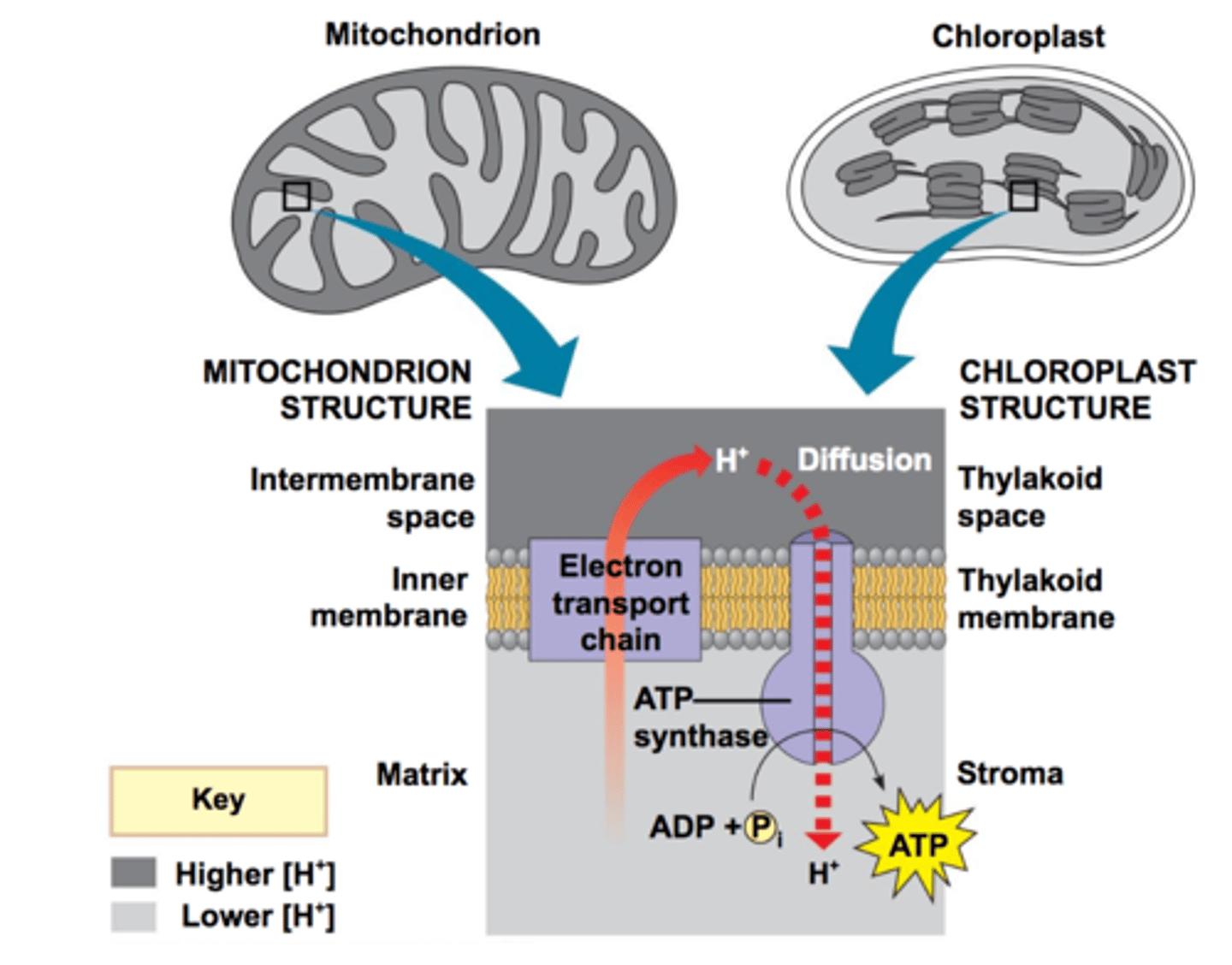

Photosynthesis (Chemiosmosis/Pumping of H+)

In chloroplasts, protons are pumped into the thylakoid space and drive ATP synthesis as the H+ ions diffuse back into the stroma

Cellular Respiration (Chemiosmosis/Pumping of H+)

In mitochondria, protons are pumped to the intermembrane space and drive ATP synthesis as the H+ ions diffuse back into the mitochondrial matrix

Photosynthesis & Cellular Respiration (Similarities)

Electron carriers
Cycles
ETC to produce ATP, using H+ conc.
Proton pump
ATP synthase

Photosynthesis (Energy Flow)

A process that stores energy in autotrophs

Cellular Respiration (Energy Flow)

A process that releases energy through the breakdown of glucose in both autotrophs and hetertrophs

Photosynthesis (Organisms)

A process that occurs in autotrophs, including some bacteria, algae and plants

Cellular Respiration (Organisms)

A process that occurs in both autotrophs and heterotrophs that generates ATP for cellular work

Photosynthesis (Oxygen)

Oxygen is a product

Cellular Respiration (Oxygen)

Oxygen is a reactant

Photosynthesis (Carbon Dioxide)

Carbon dioxide is a reactant

Cellular Respiration (Carbon Dioxide)

Carbon dioxide is a product

Glucose (Photosynthesis)

Glucose is a product

Glucose (Cellular Respiration)

Glucose is a reactant

Photosynthesis (Organelle)

Occurs in chloroplast

Cellular Respiration (Organelle)

Occurs in mitochondria

Photosynthesis (Electron Carrier)

NADPH

Photosynthesis (Electron Acceptor)

NADP+

Cellular Respiration (Electron Carrier)

NADH and FADH2

Cellular Respiration (Electron Acceptor)

NAD+ and FAD

Photosynthesis (Source of Energy)

Light provides energy to excite electrons that drive the production of glucose

Cellular Respiration (Source of Energy)

The breakdown of glucose provides the energy to drive the production of ATP

Photosynthesis (Cycle)

Calvin Cycle

Cellular Respiration (Cycle)

Krebs Cycle / Citric Acid Cycle

Photosynthesis (Light Dependent Reactions - Location)

Occurs in the thylakoid of the chloroplast

Photosynthesis (Calvin Cycle - Location)

Occurs in the stroma of the chloroplast

Cellular Respiration (Glycolysis - Location)

Occurs in the cytoplasm of the cell

Cellular Respiration (Formation of AcetylCoA and Krebs Cycle- Location)

Occurs in the matrix of the mitochondrion

Cellular Respiration (Electron Transport Chain)

Located in the cristae of the mitochondrion

Photosynthesis (Electron Transport Chain)

Located in the thylakoid membrane of the chloroplast

Photosynthesis (Final Electron Acceptor)

Final electron acceptor is NADP+

Cellular Respiration (Final Electron Acceptor)

Final electron acceptor is O2
