Hand Structures

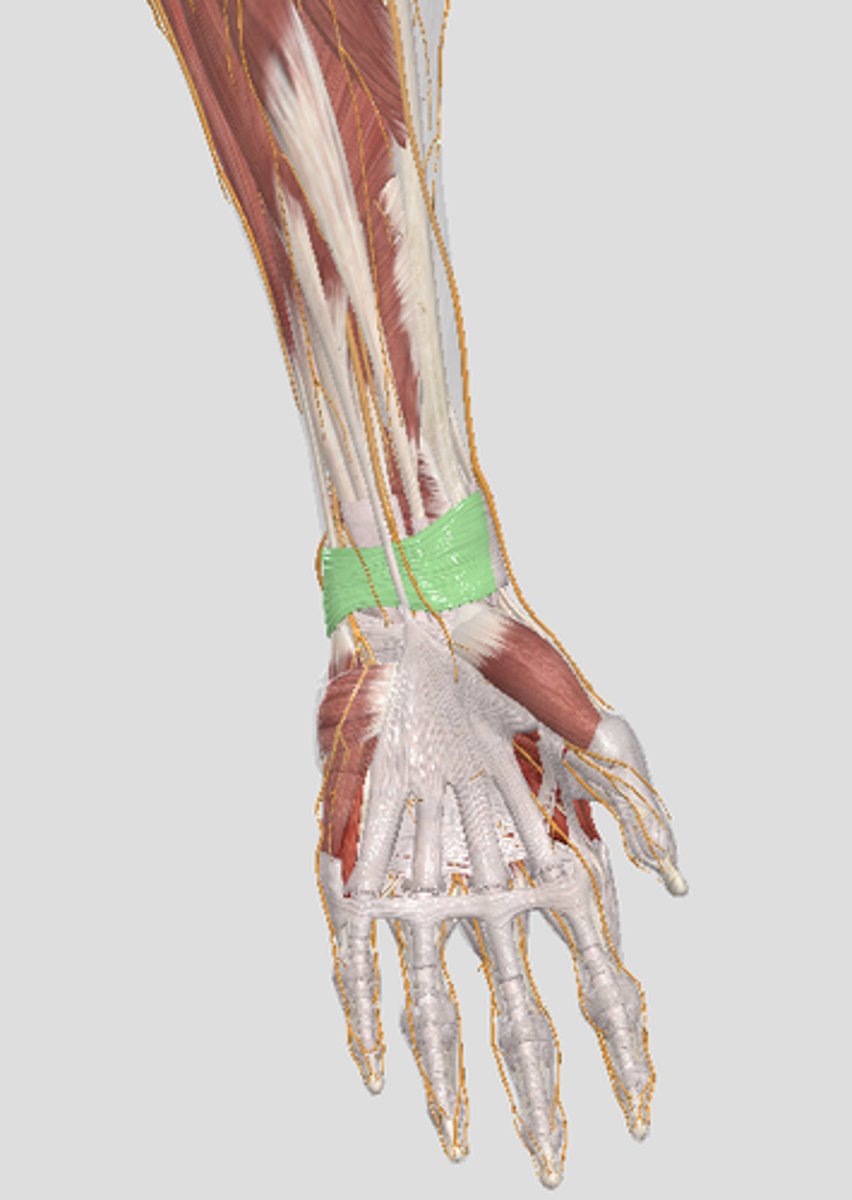

extensor retinaculum

extensor retinaculum function

aligns tendons to facilitate motion and reduce friction, prevents bowstringing

extensor compartment 1

abductor pollicis longus and extensor pollicis brevis

extensor compartment 2

extensor carpi radialis longus and extensor carpi radialis brevis

extensor compartment 3

extensor pollicis longus

extensor compartment 4

extensor digitorum and extensor indicis

extensor compartment 5

extensor digiti minimi

extensor compartment 6

extensor carpi ulnaris

flexor retinaculum

parts of the flexor retinaculum

superficial/palmar carpal, deep layer, transverse carpal ligament

transverse carpal ligament

palmar carpal ligament

palmar aponeurosis

transverse fascicles

longitudinal fascicles

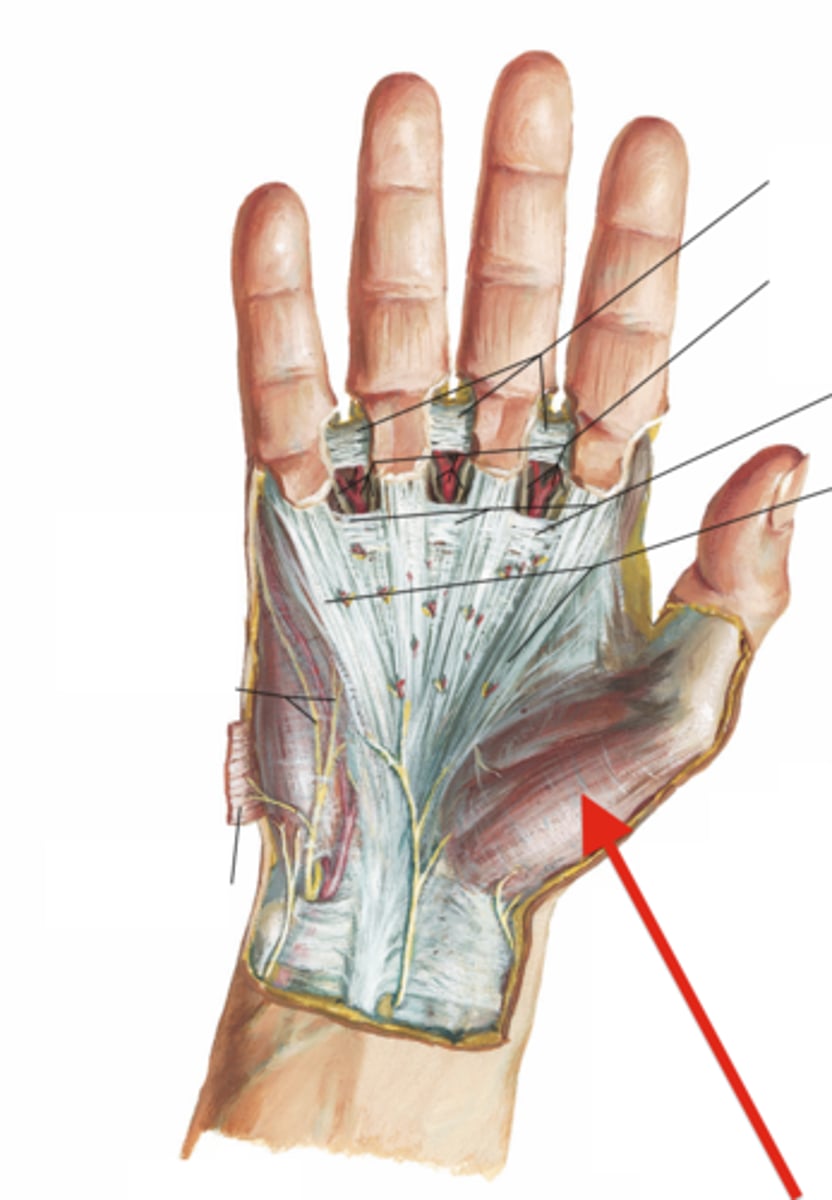

thenar fascia

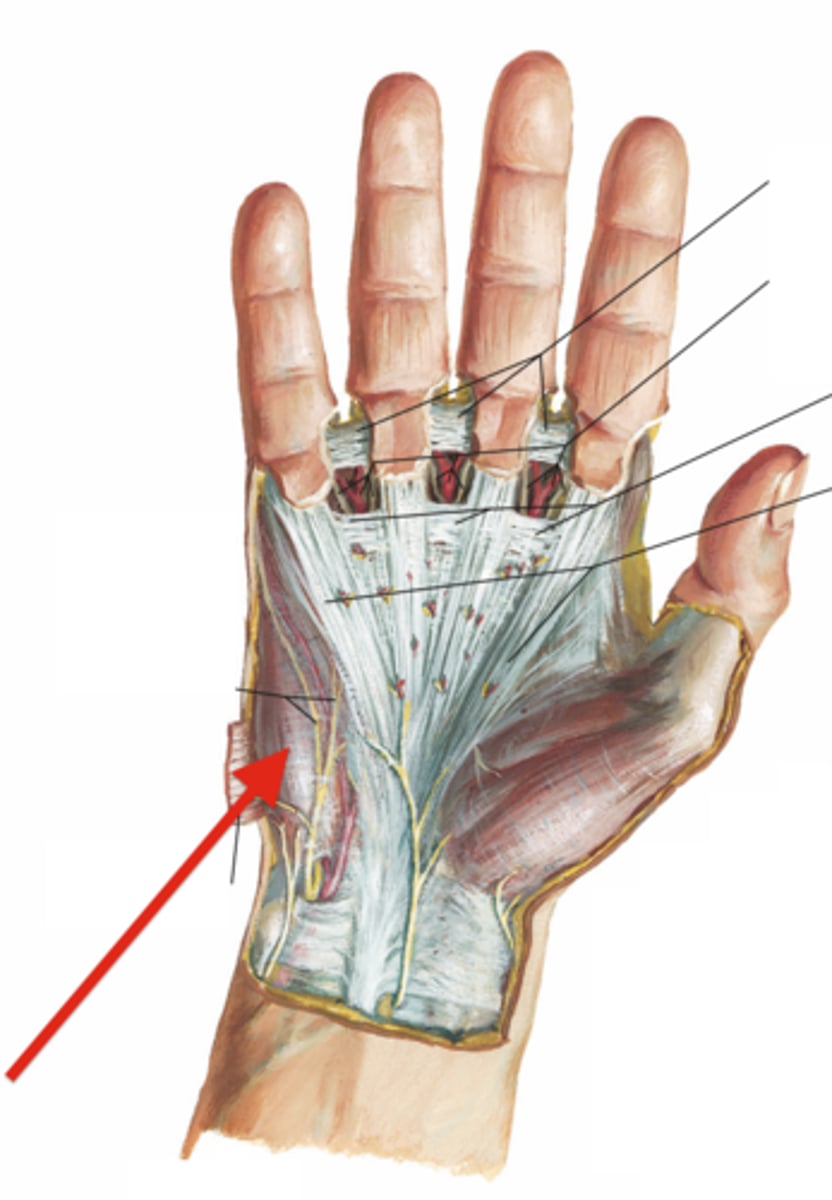

hypothenar fascia

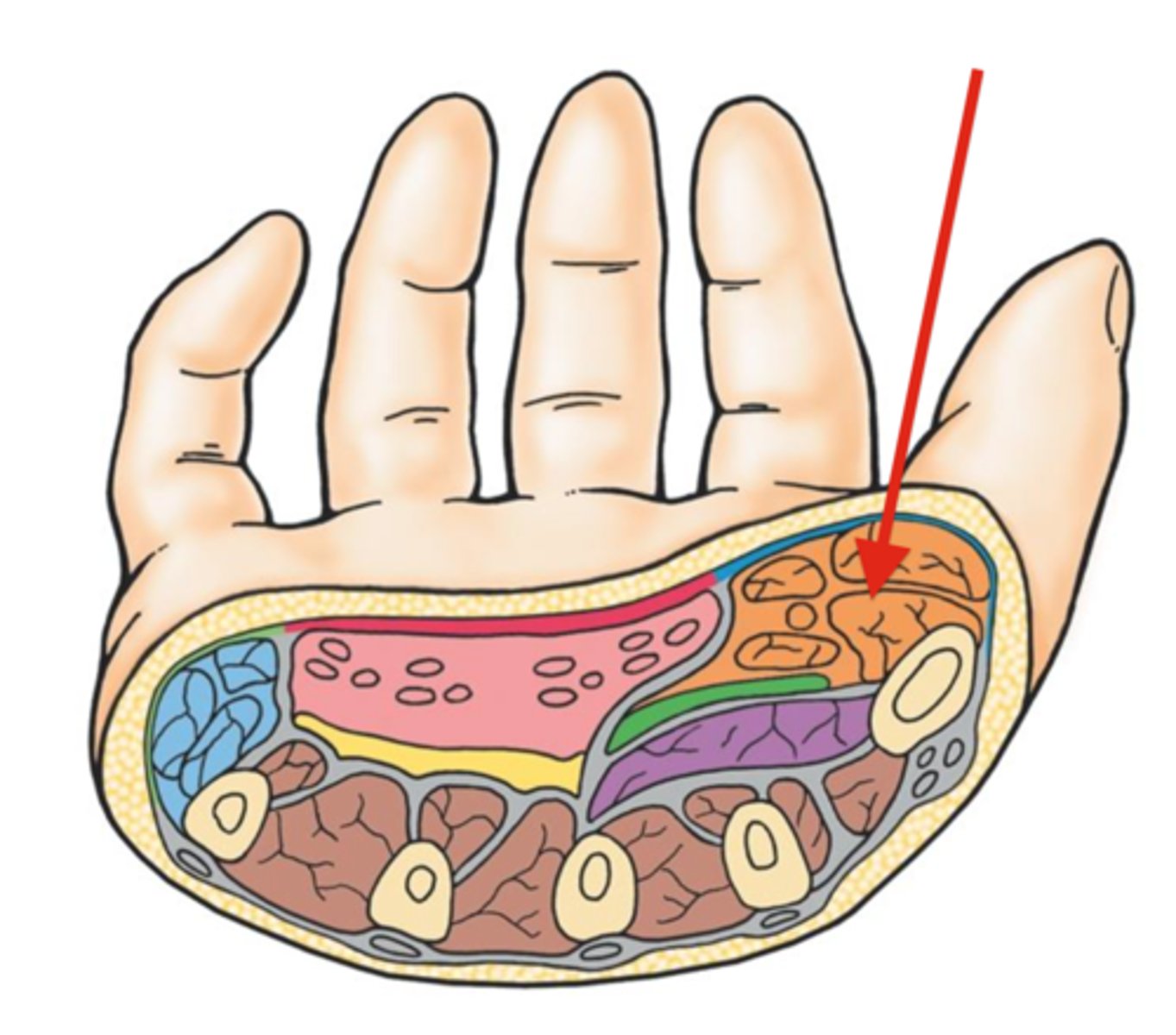

thenar compartment

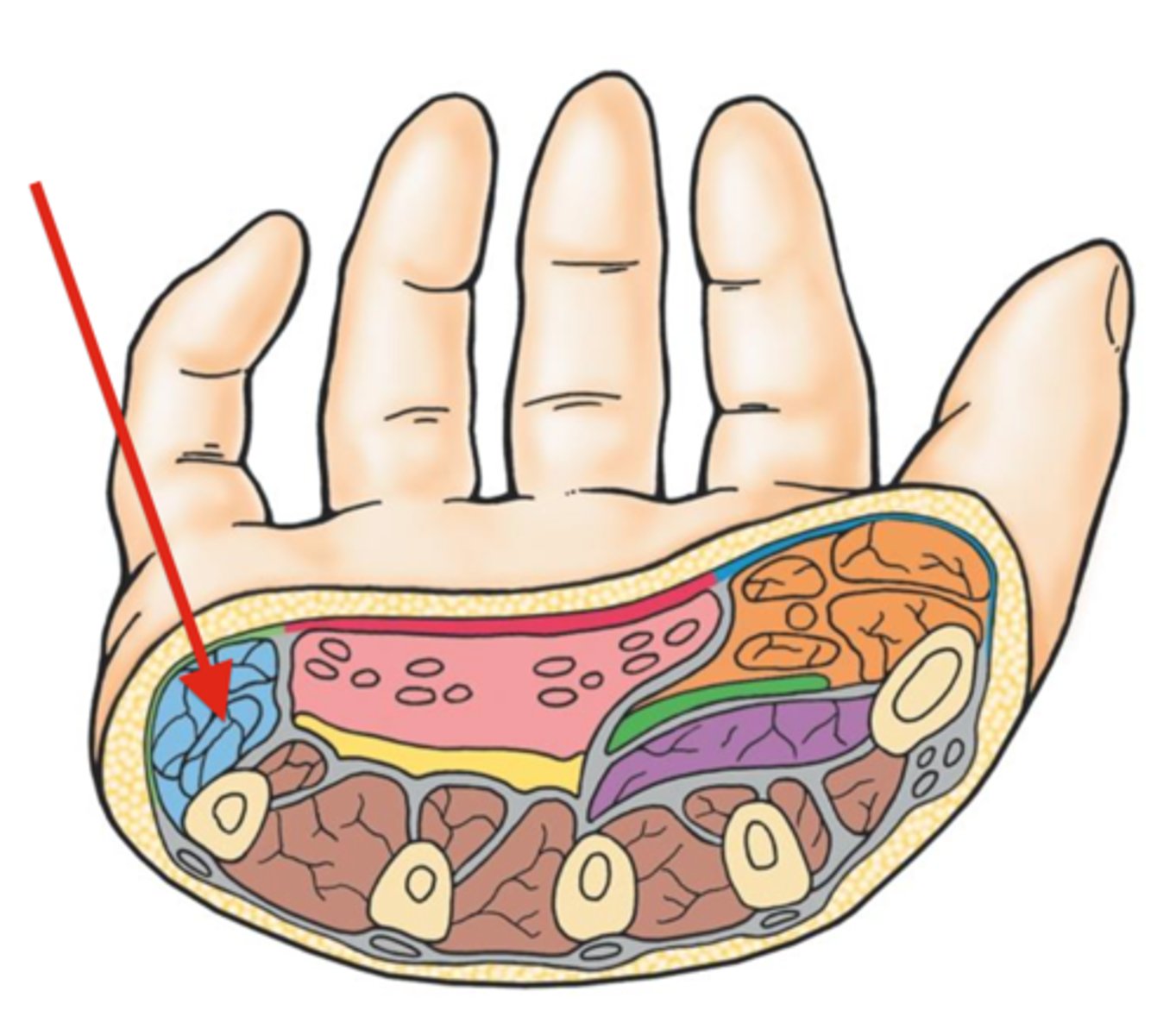

hypothenar compartment

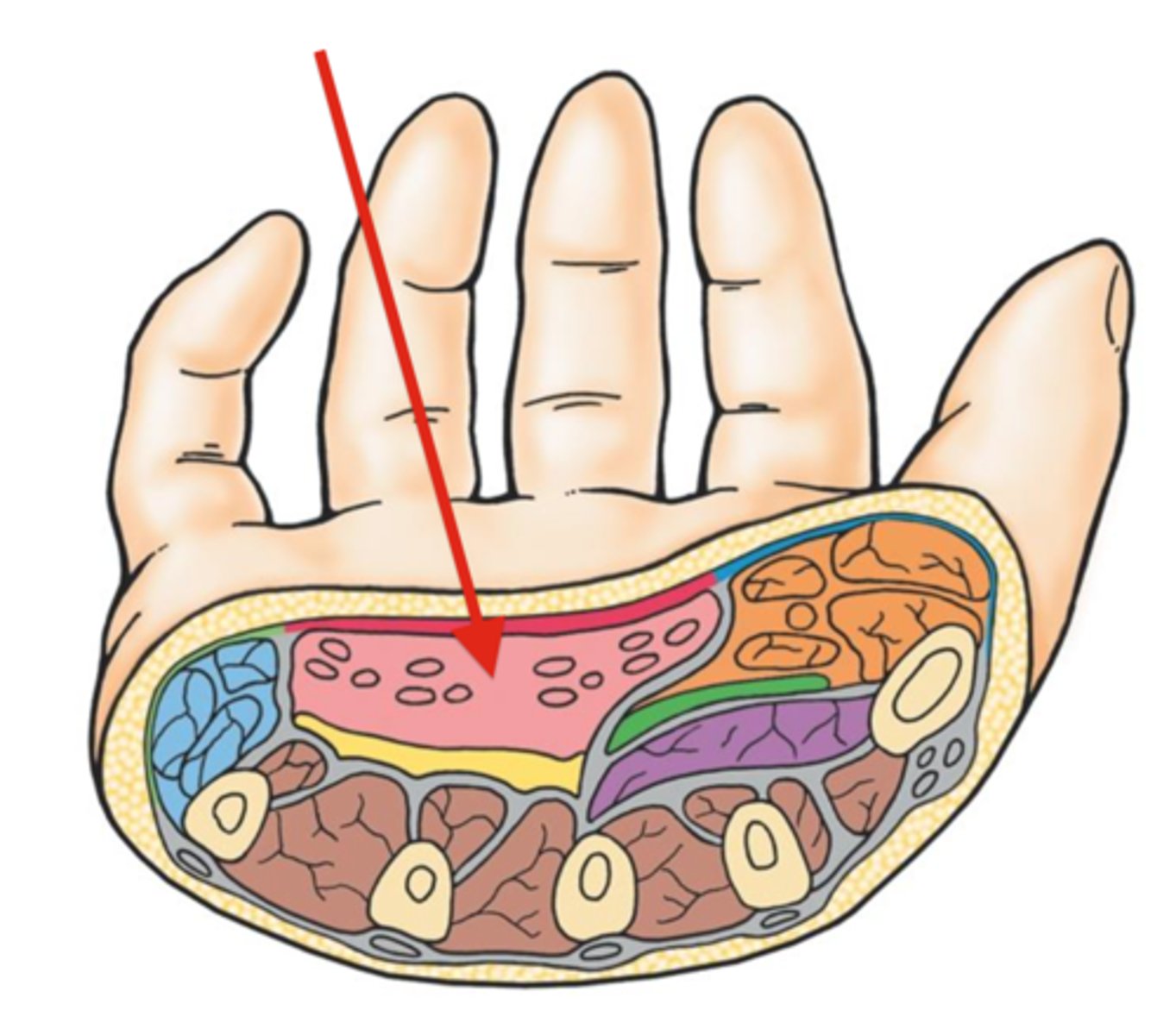

central compartment

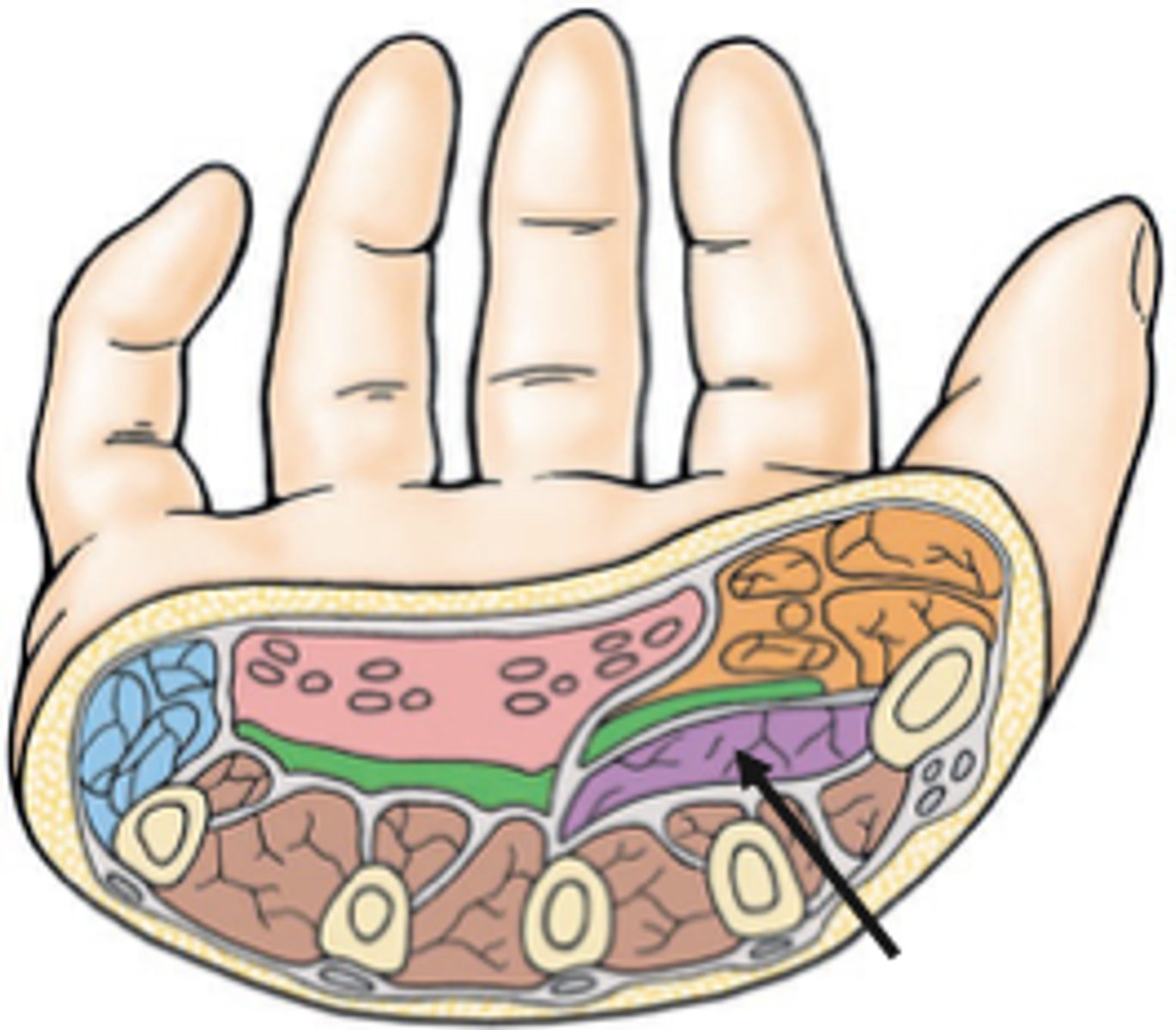

adductor compartment

attachments for transverse carpal ligament

hook of hamate, pisiform, tubercle of trapezium, tubercle of scaphoid

tendons and nerves that run through carpal tunnel

flexor digitorum superficialis, flexor digitorum profundus, flexor pollicis longus, median nerve

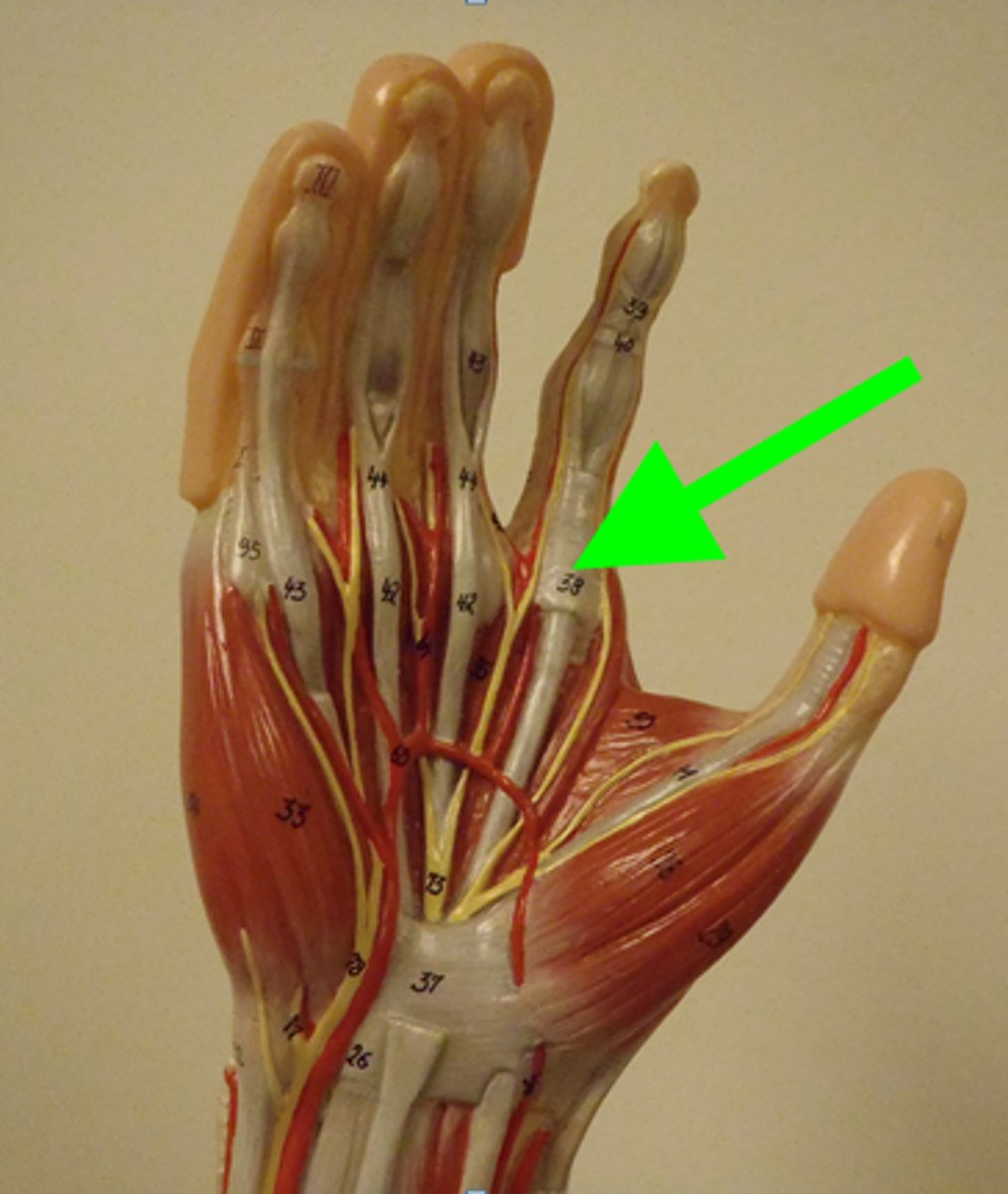

flexor tendon sheath

flexor tendon sheath attachment

volar plates

flexor tendon sheath function

prevent bowstringing

components of flexor tendon sheath

fibrous outer part and synovial inner part

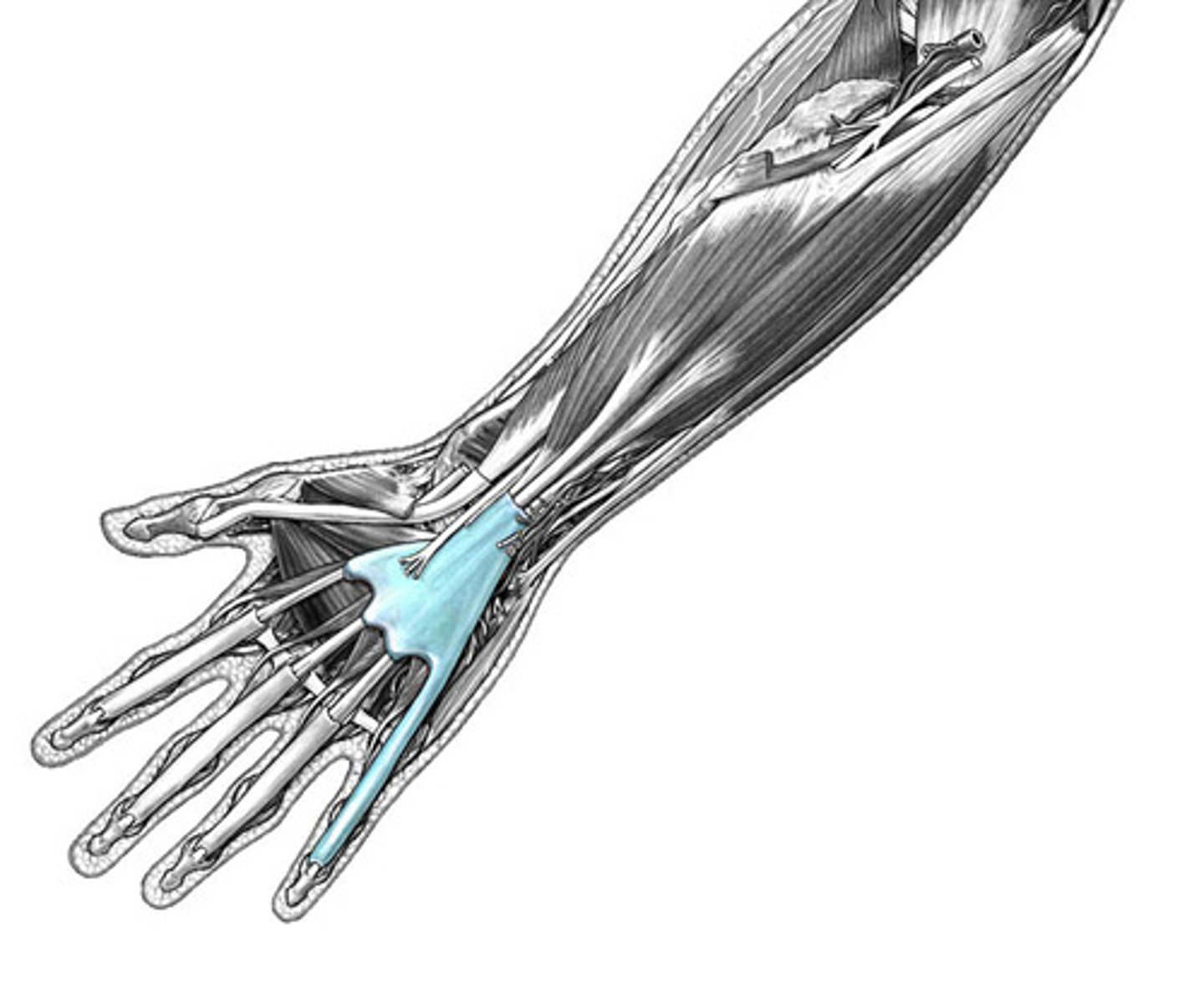

ulnar bursae

extensor hood/dorsal expansion

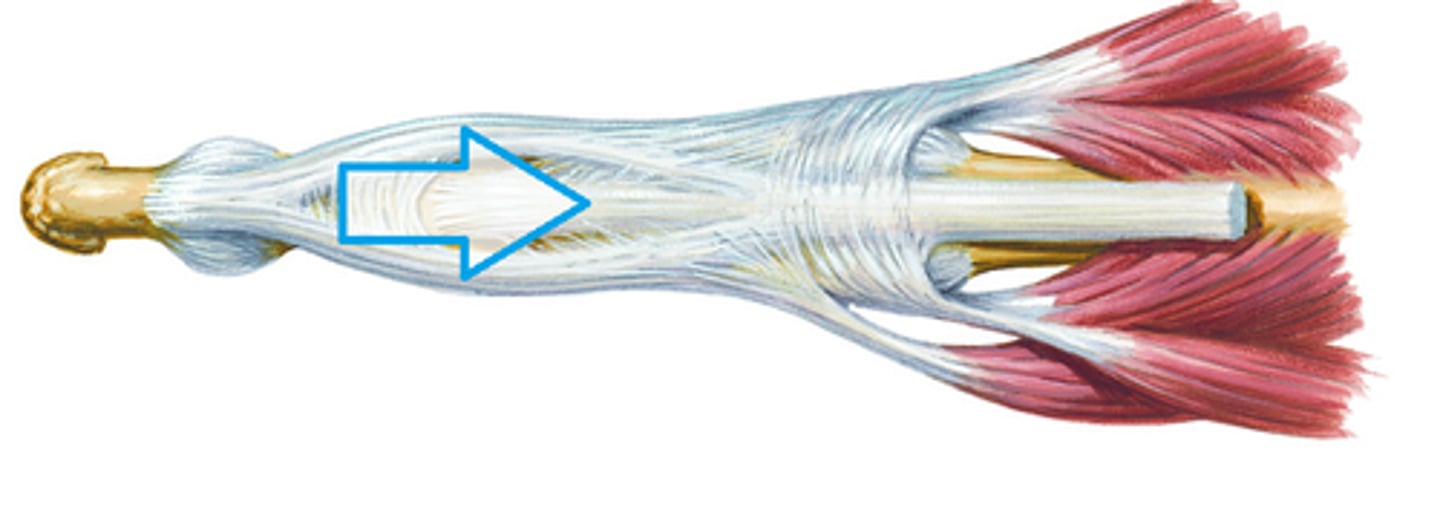

central band

distal portion of extensor digitorum

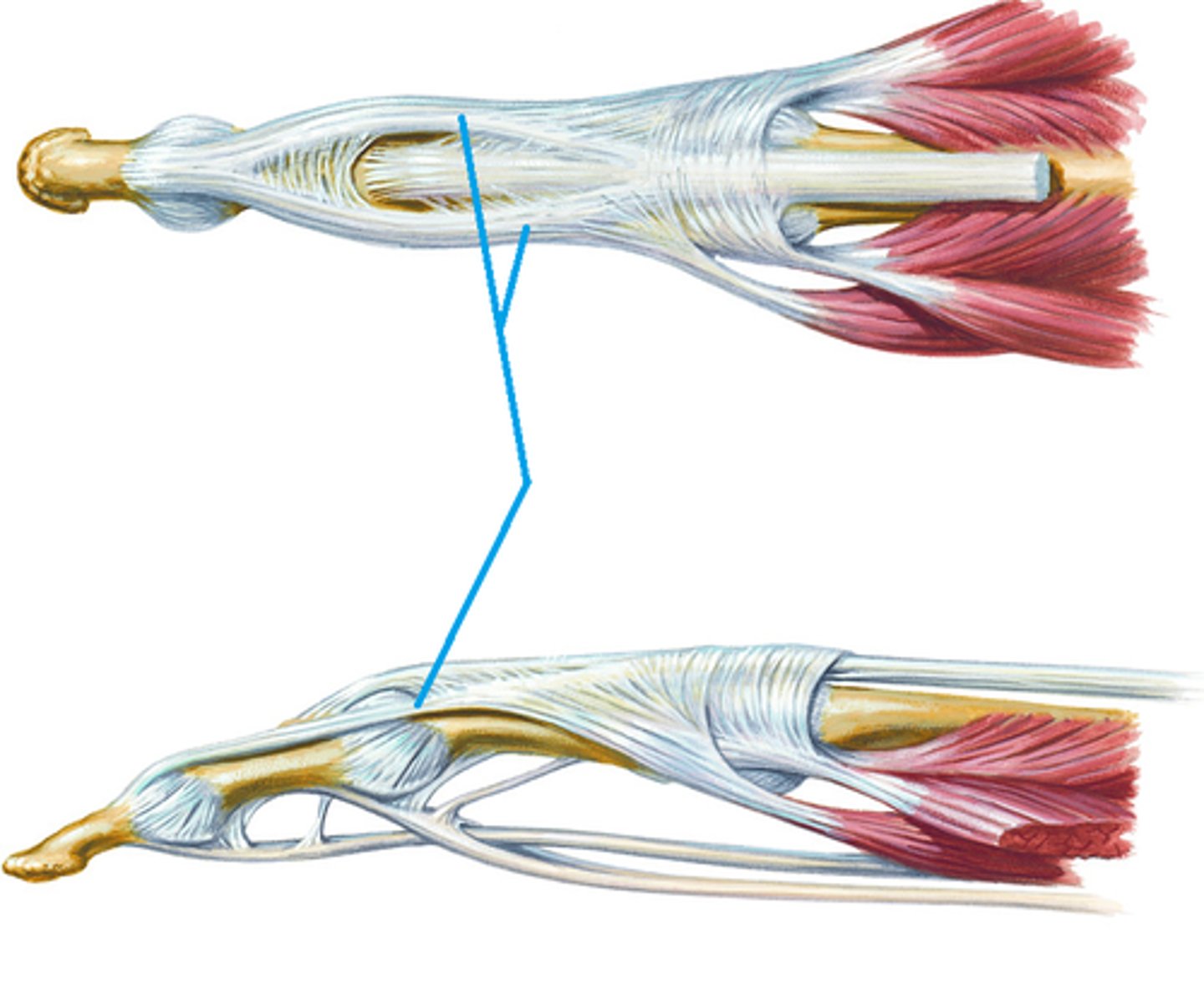

lateral bands

built from fibers of the intrinsic hand muscles

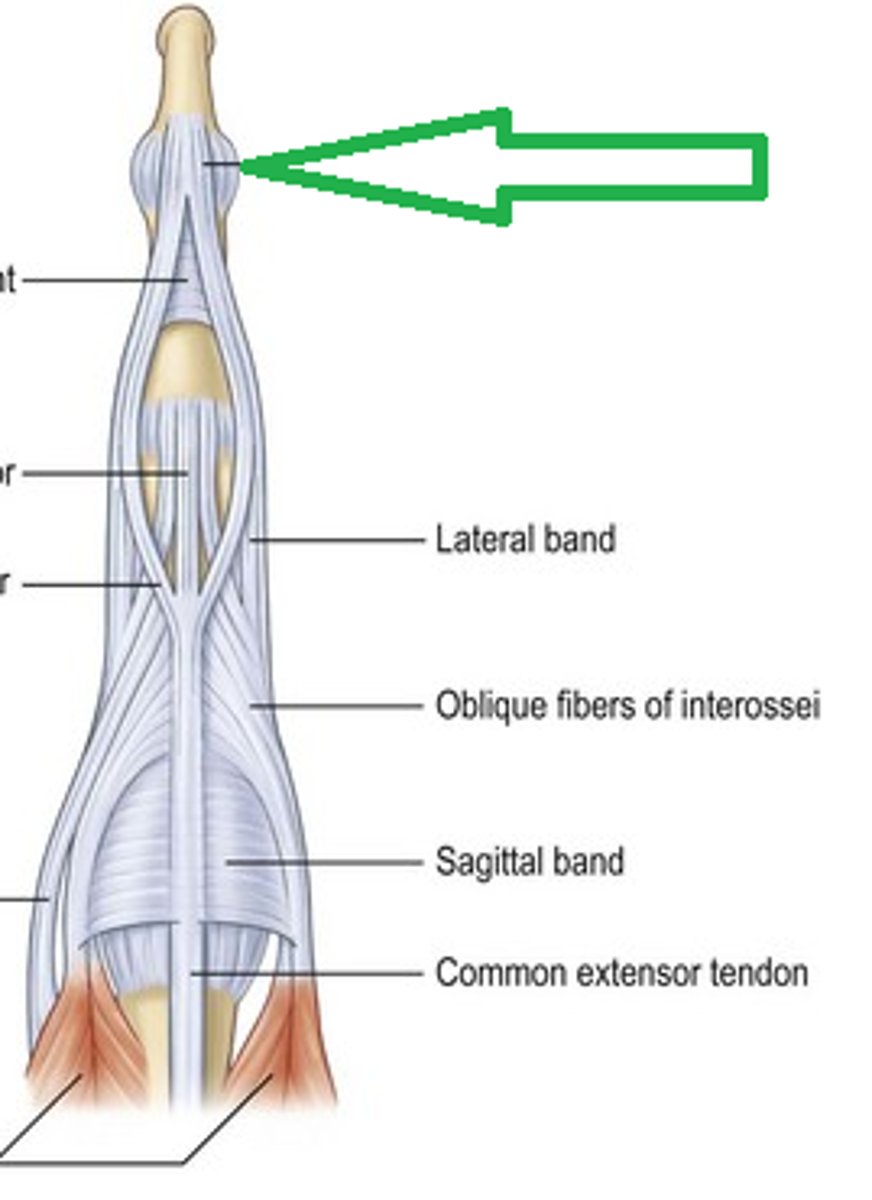

terminal tendon

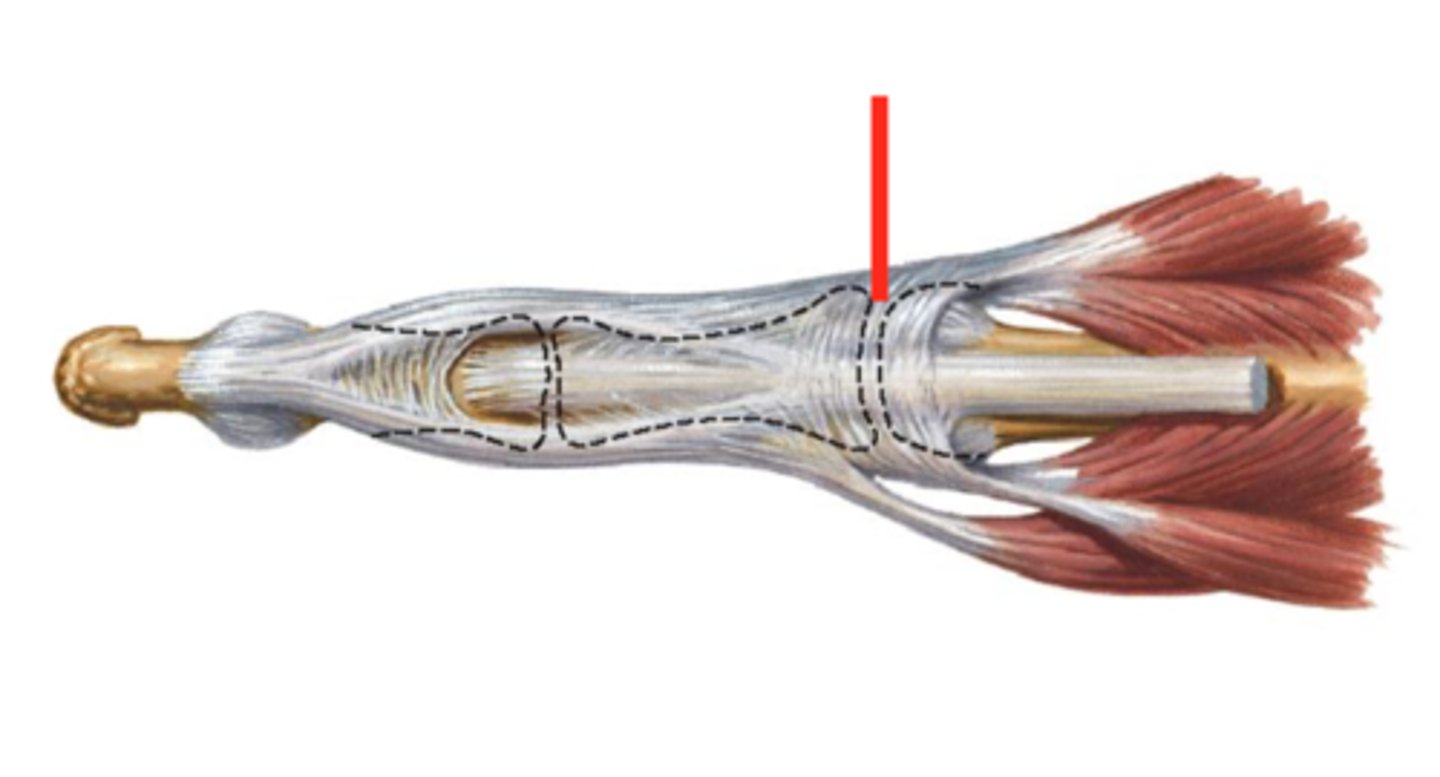

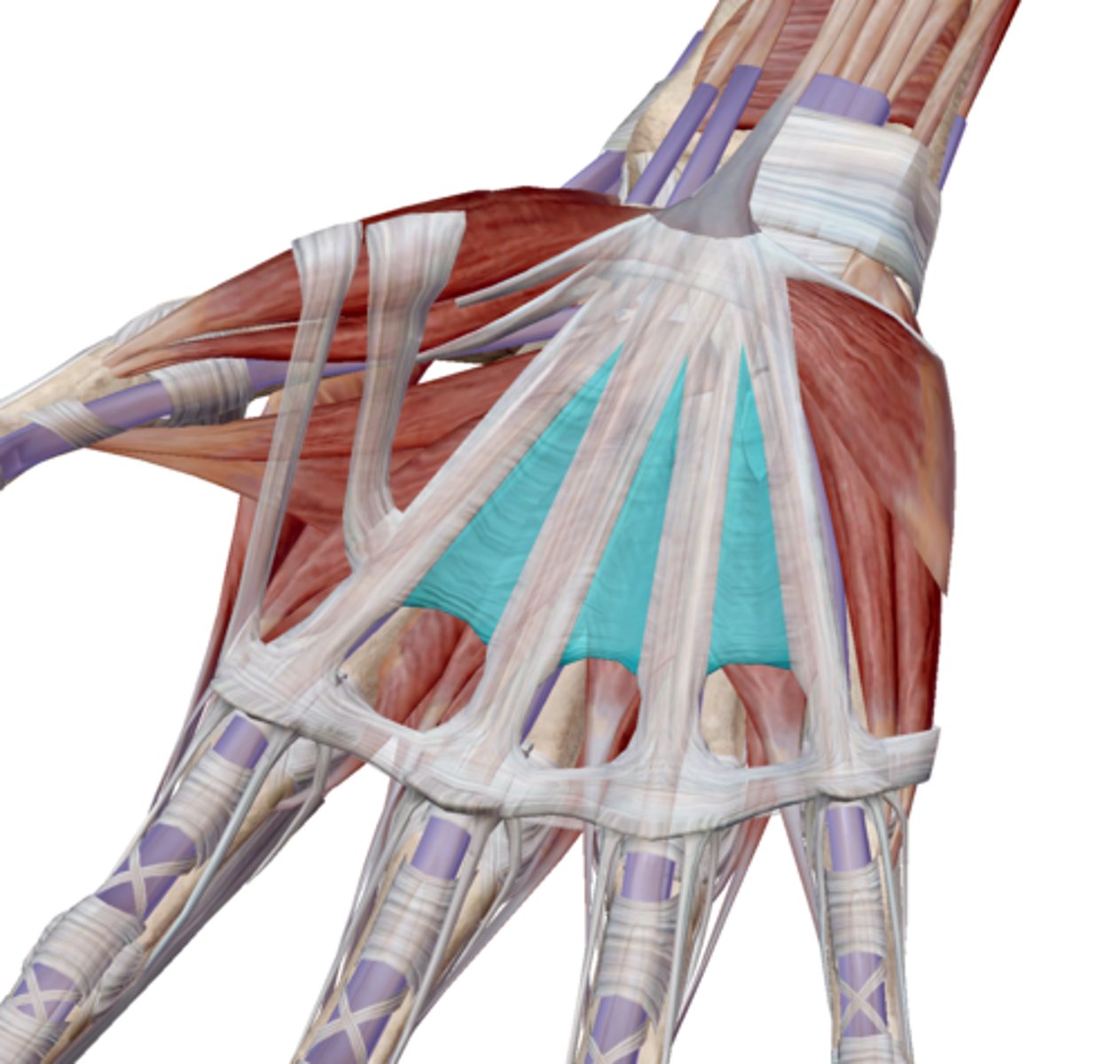

triangular membrane of extensor aponeurosis

connects to each lateral band and holds them in place

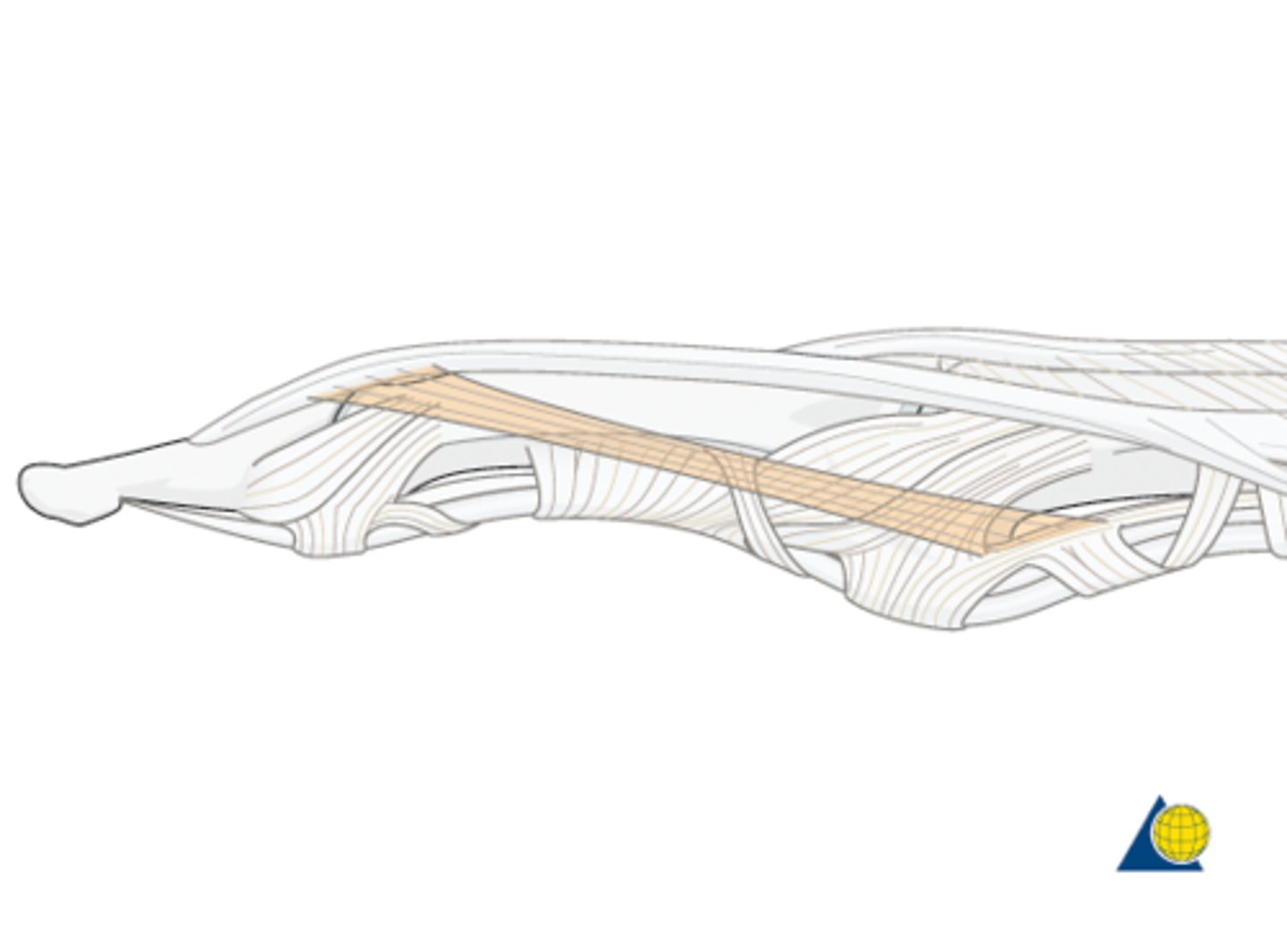

oblique retinacular ligament

helps keep lateral bands in place

hand nerves responsible for motor and sensory information

ulnar and medial nerves

hand nerves responsible for only sensory information

radial nerve

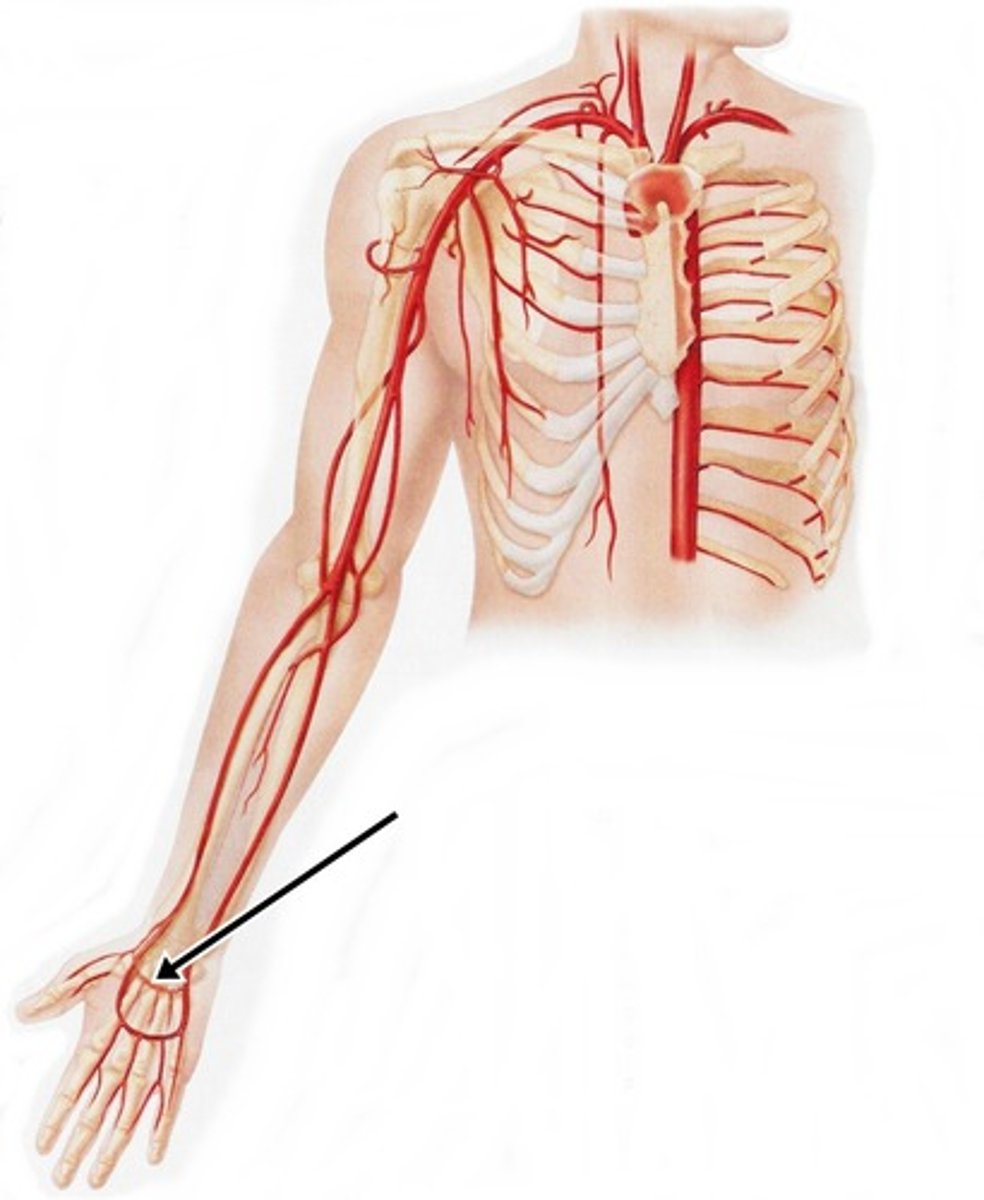

superficial palmar arch

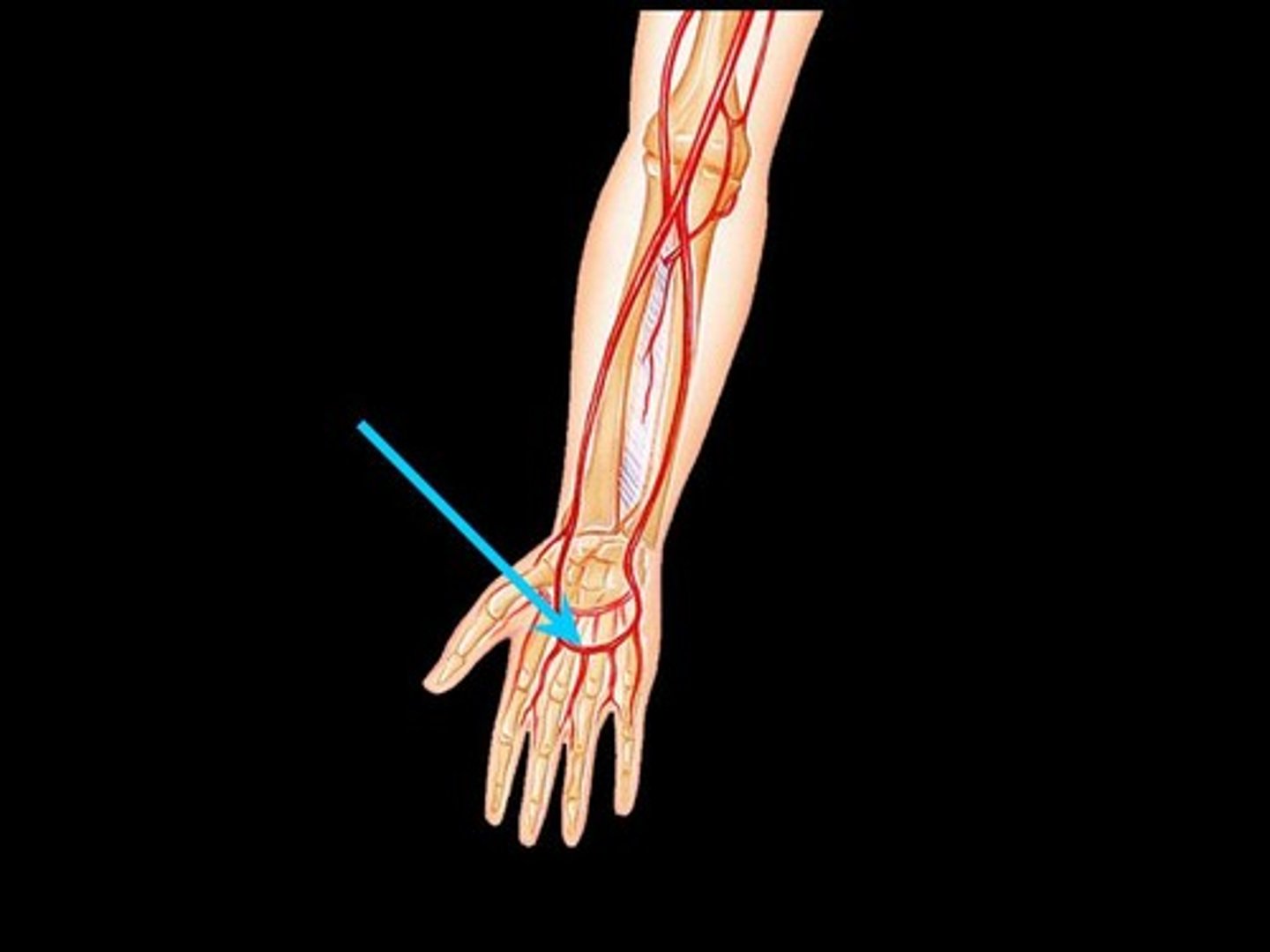

deep palmar arch
