(AnaPhy) Nervous System — Lab

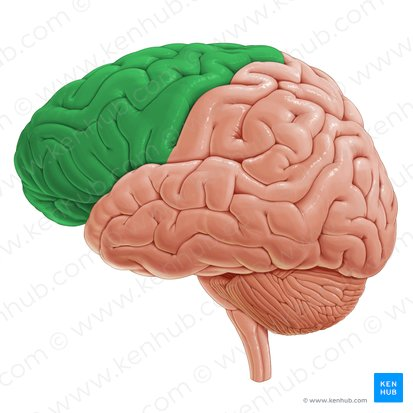

Frontal Lobe

Personality, judgement, intelligence, motor planning

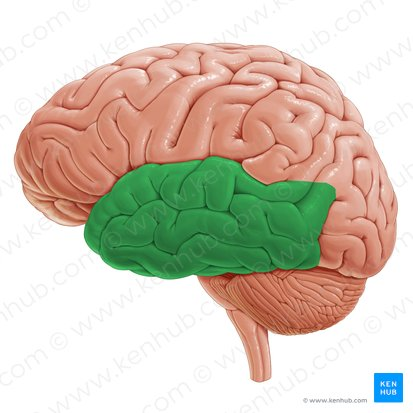

Temporal Lobe

Hearing, taste, and memory

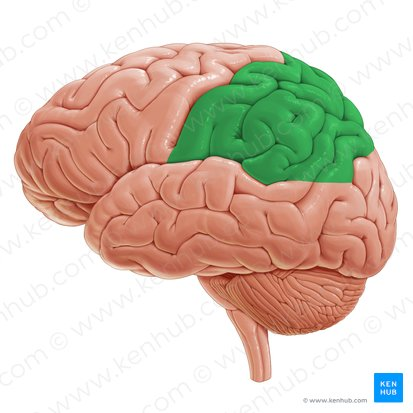

Parietal Lobe

Sensory integration

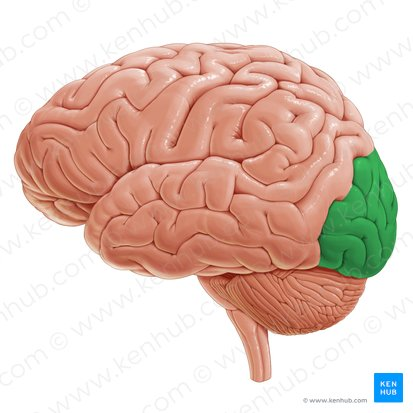

Occipital Lobe

Integration of visual stimuli (eye sight)

Parieto-occipital Fissure

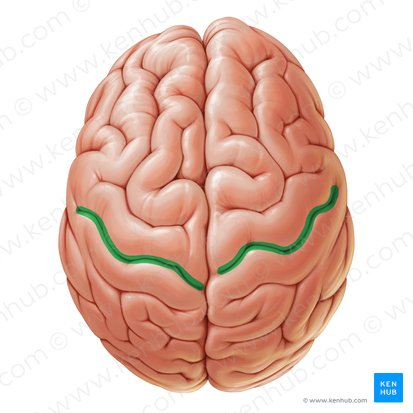

Central Sulcus of Rolando

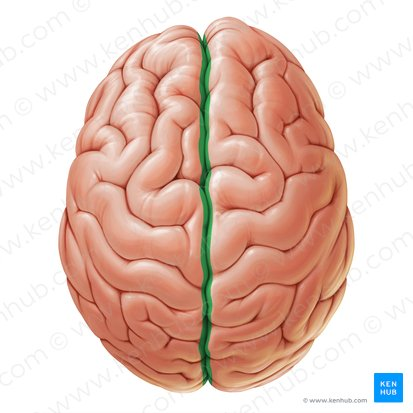

Longitudinal Fissure

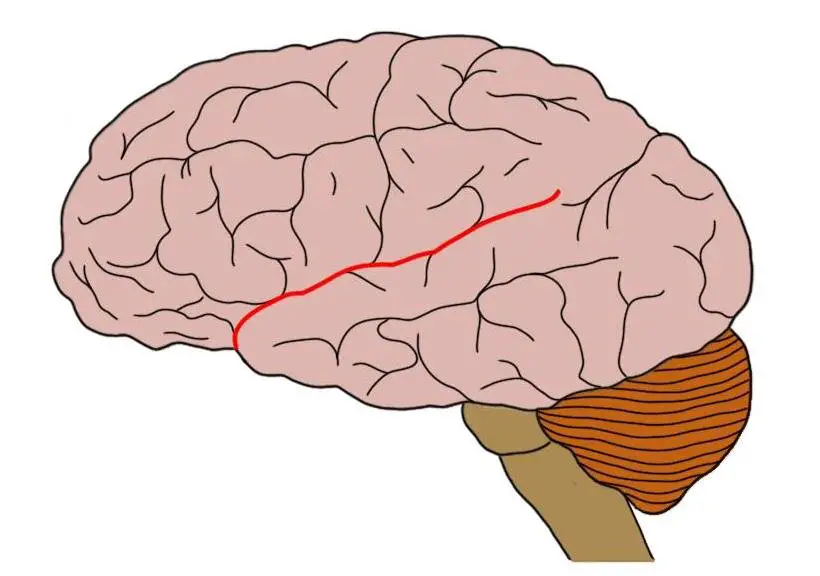

Lateral Sylvian Fissure

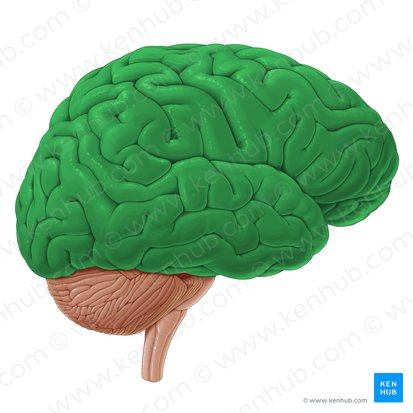

Cerebrum

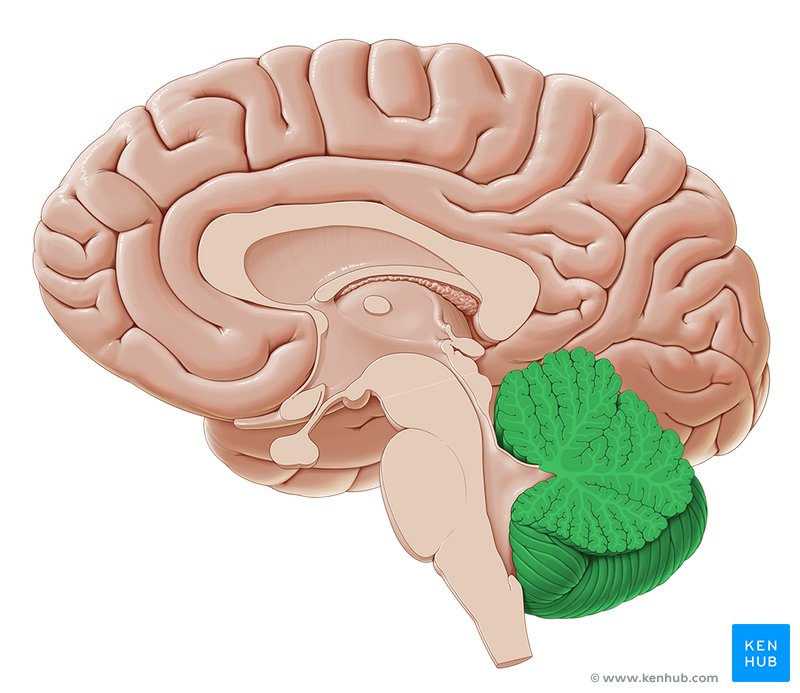

Cerebellum

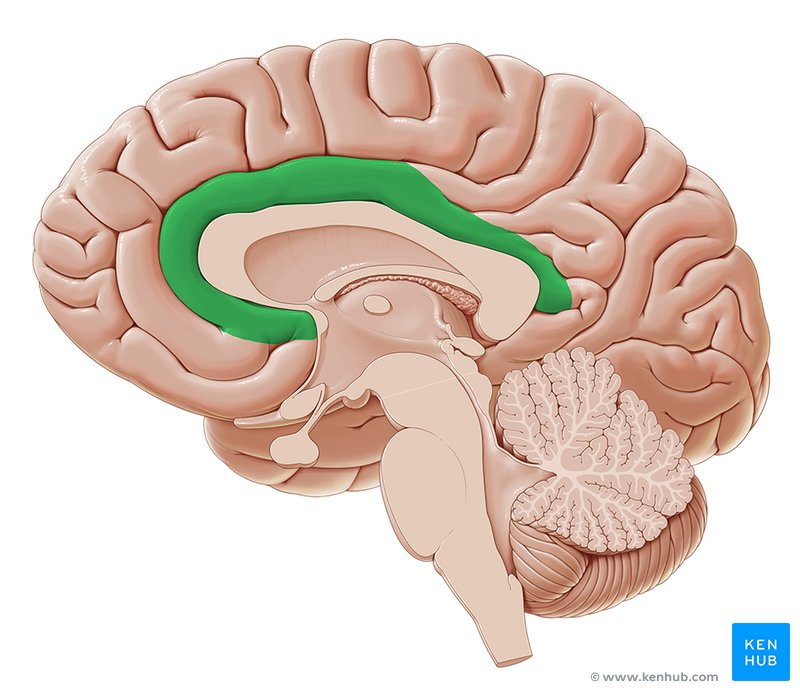

Cingulate Gyrus

Corpus Callosum

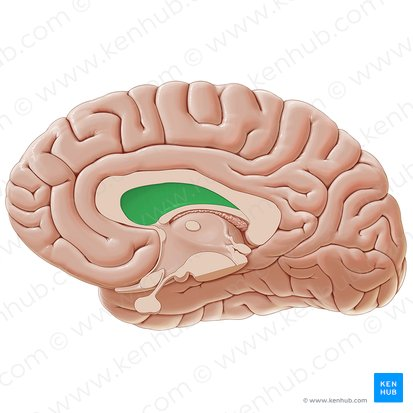

Septum Pellucidum

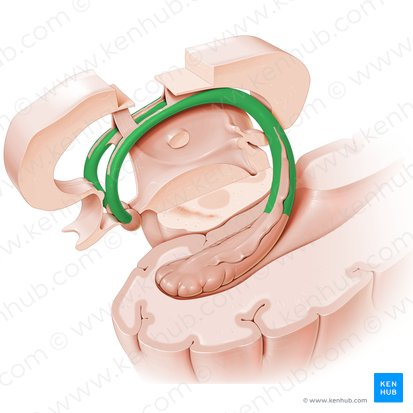

Fornix

Hypothalamus

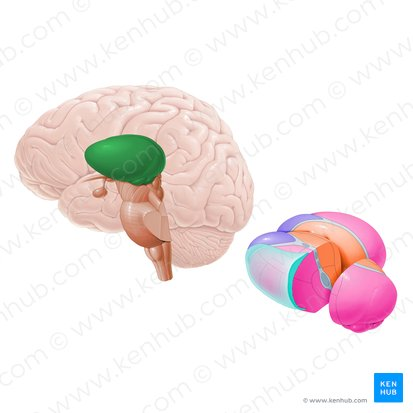

Thalamus

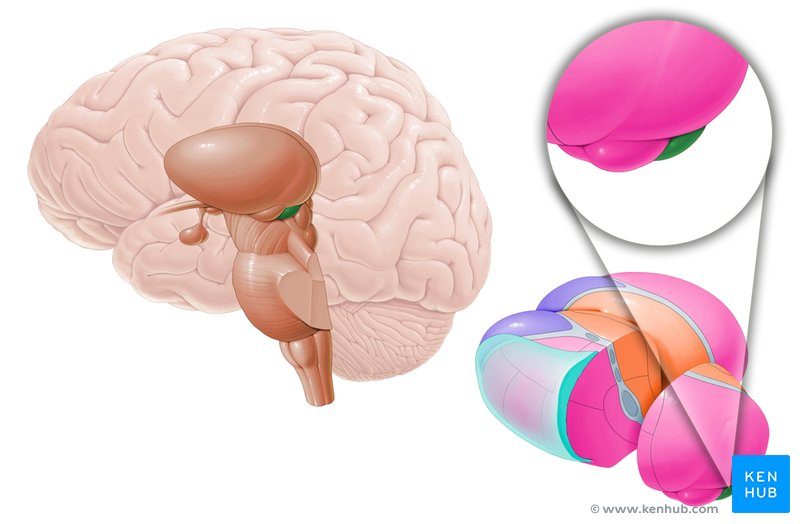

Pineal Gland

Corpora Quadrigemina

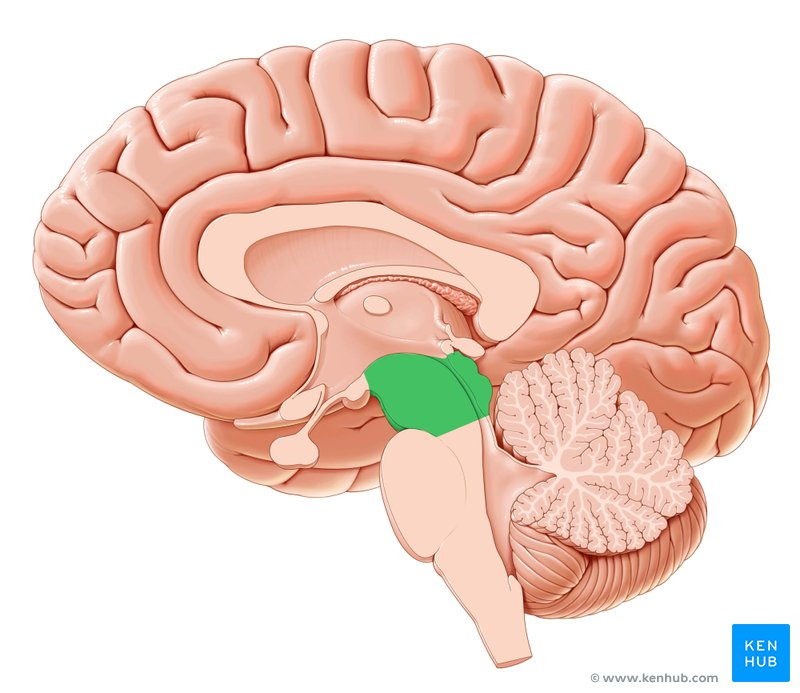

Midbrain

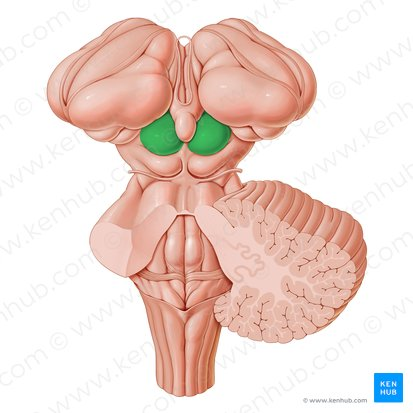

Superior Colliculus

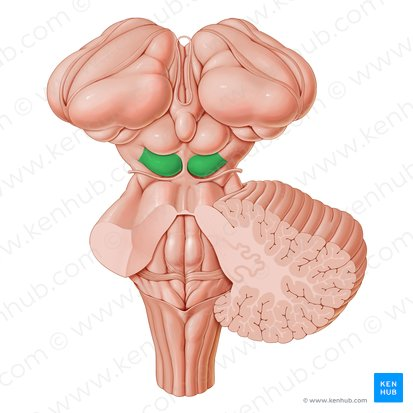

Inferior Colliculus

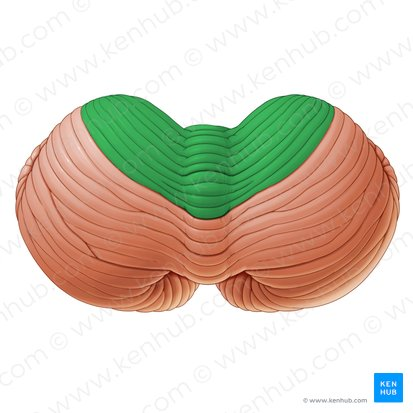

Anterior lobe of Cerebellum

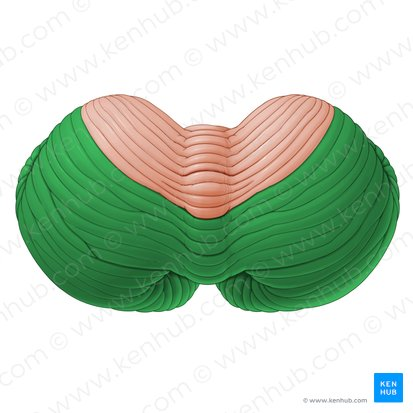

Posterior lobe of Cerebellum

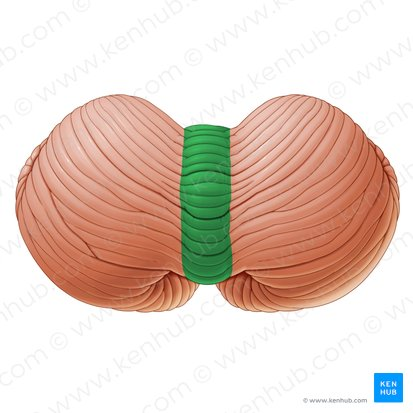

Vermis

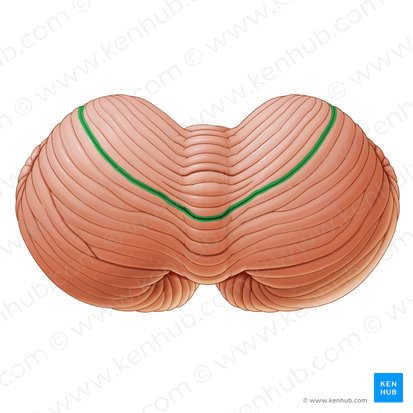

Primary fissure of Cerebellum

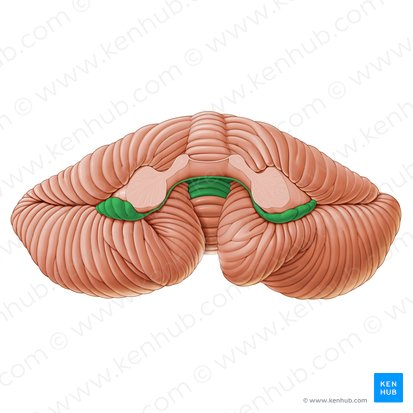

Flocculonodular Lobe

Dorsal / Posterior Horn

Receives sensory input

Ventral / Anterior Horn

Sends motor impulses

Lateral Horn

Sympathetic nervous system

Dorsal Columns

Sensory input about proprioception

Anterior Column

Sensory input about tactile sensations

Lateral Columns

Sensory input about tactile sensations (light touch)

Functions of Cerebrospinal Fluid

• Mechanical protection

• Chemical protection

• Circulation

Ventricles cerebrospinal fluid flows through

1. Lateral ventricles.

2. Foramina of Monro

3. Third ventricle.

4. Cerebral aqueduct (aqueduct of Sylvius).

5. Fourth ventricle

6. Foramina of Luschka (lateral apertures)

7. Foramen of Magendie (median aperture).

Cranial Nerve 1: Olfactory Nerve

Sense of smell

Cranial Nerve 2: Optic Nerve

Vision

Cranial Nerve 3: Oculomotor Nerve

Eye movement (most eye muscles), pupil constriction, and eyelid elevation

Cranial Nerve 4: Trochlear Nerve

Eye movement (superior oblique muscle)

Cranial Nerve 5: Trigeminal Nerve

Facial sensation (touch, pain, temperature), chewing muscles.

Cranial Nerve 6: Abducens Nerve

Eye movement (lateral rectus muscle).

Cranial Nerve 7: Facial Nerve

Facial expression, taste (anterior two-thirds of the tongue), tear and saliva production.

Cranial Nerve 8: Vestibulocochlear Nerve

Hearing and balance

Cranial Nerve 9: Glossopharyngeal Nerve

Taste (posterior one-third of the tongue), swallowing, saliva production.

Cranial Nerve 10: Vagus Nerve

Sensory and motor functions in the viscera (internal organs), including heart rate, digestion, and respiratory rate.

Cranial Nerve 11: Accessory Nerve

Neck and shoulder muscle movement.

Cranial Nerve 12: Hypoglossal Nerve

Tongue movement.

Meninges

Connective tissue layers that surround the brain and spinal cord, including the dura mater, arachnoid mater, and pia mater.
