Design Communications Techniques

What type of diagram is this?

Zoning diagram

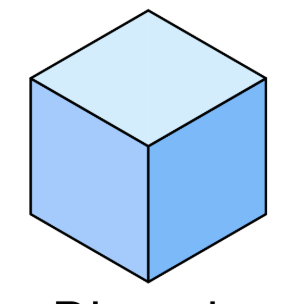

What characterizes an isometric drawing?

3D view of an object in which the object is tilted in relation to the picture plane, with two faces of the object most commonly drawn at 30 degree angles horizontally

What is an oblique drawing?

A 3D drawing with one side of an object parallel to the picture plane

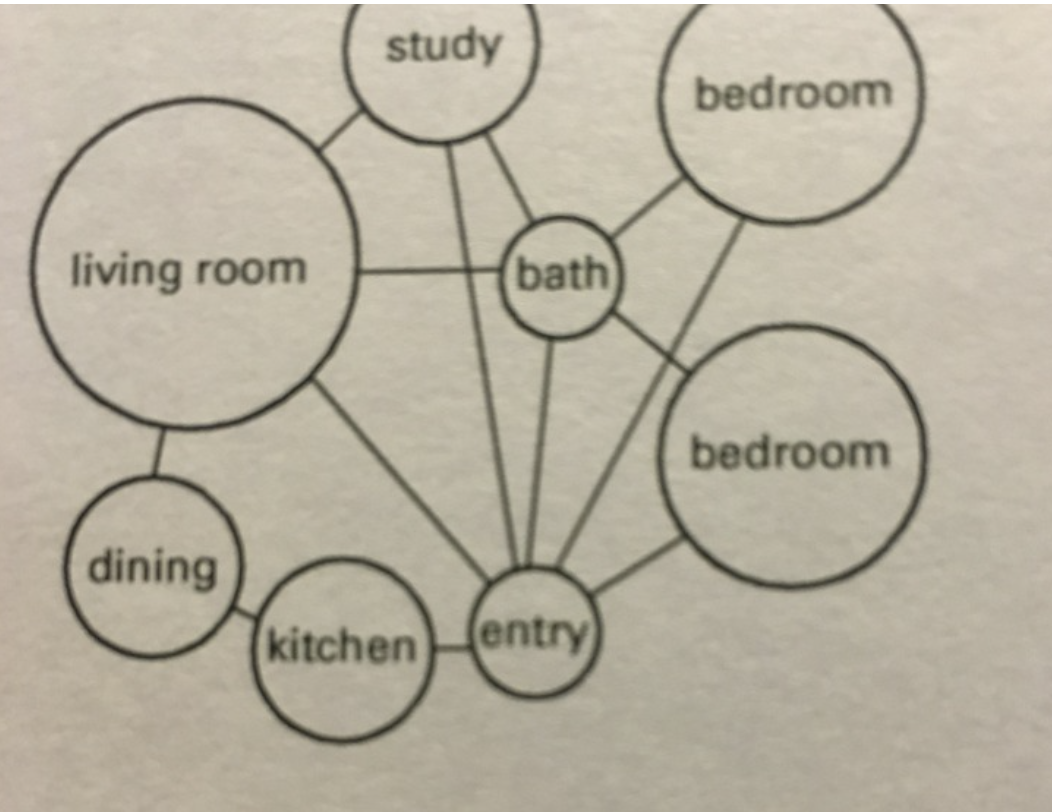

What type of diagram is this?

Bubble diagram

What is inclusive design?

the attempt to serve a full spectrum of people from a diverse market, including using different solutions for different groups of people when necessary

What is this type of diagram?

evaluation matrix

What is a design concept?

An idea or statement concerning an overall physical response to ideas developed during programming

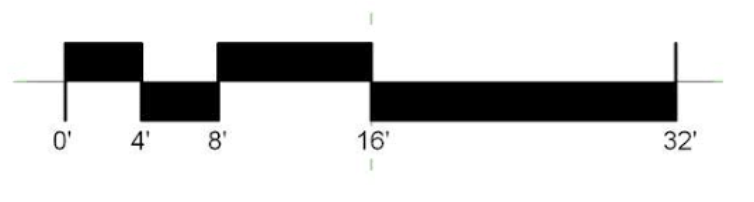

What type of scale is this and when should it be used?

Graphic scale, included on drawings that have been resized in uneven increments or person does not have instrument to scale

What is a mockup?

Full size representation of a portion of a design or piece of furniture

What does VPL and LVP stand for?

left vanishing point

What is a base plan?

A floor plan drawing of an existing space that a designer uses in developing interior design drawings

Providing adjustable desks in an office setting is an example of what type of design?

Inclusive design

What does a schematic floor plan show and why is it used?

Indicated accurate placement of partitions and doors, plumbing fixtures, and built in equipment. Used to finalize space planning prior to beginning construction drawings

3 advantages of a computer model

1. many views

2. fly throughs

3. realistic renderings

how should the designer most accurately communicate material and finish choices to the client?

Material and finish sample boards

What type of conceptual plan arrangement is represented here?

Axial plan

What type of volumetric relationship could be used to functionally and perceptually link two spaces?

Overlapping relationship

To best summarize and assign spaces, a designer planning a project with a large, programmed area that occupies multiple floors should use what type of information summary?

Spreadsheet

What source of information is best to use for researching the flammability and VOC rating of several types of chairs being considered for a client?

Manufacturer’s local representative

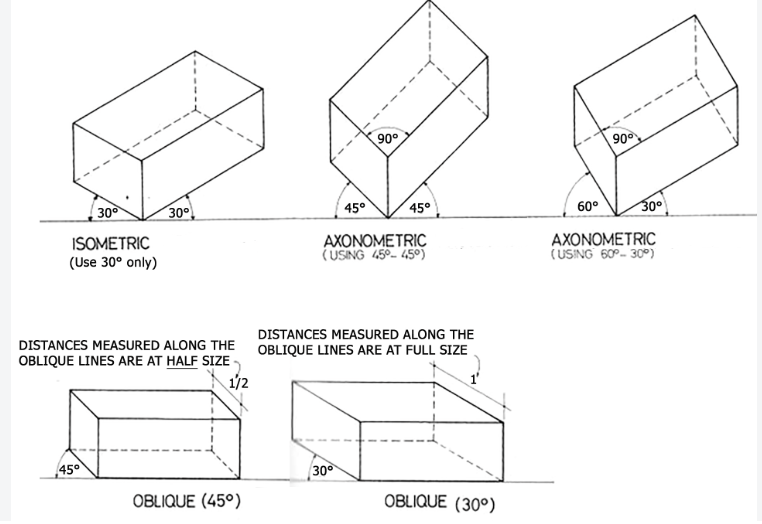

What distinguishes an oblique drawing of an object from an axonometric drawing?

Oblique: drawn with one plane parallel to picture plane

Axonometric: all three planes appear to be at angle to picture plane

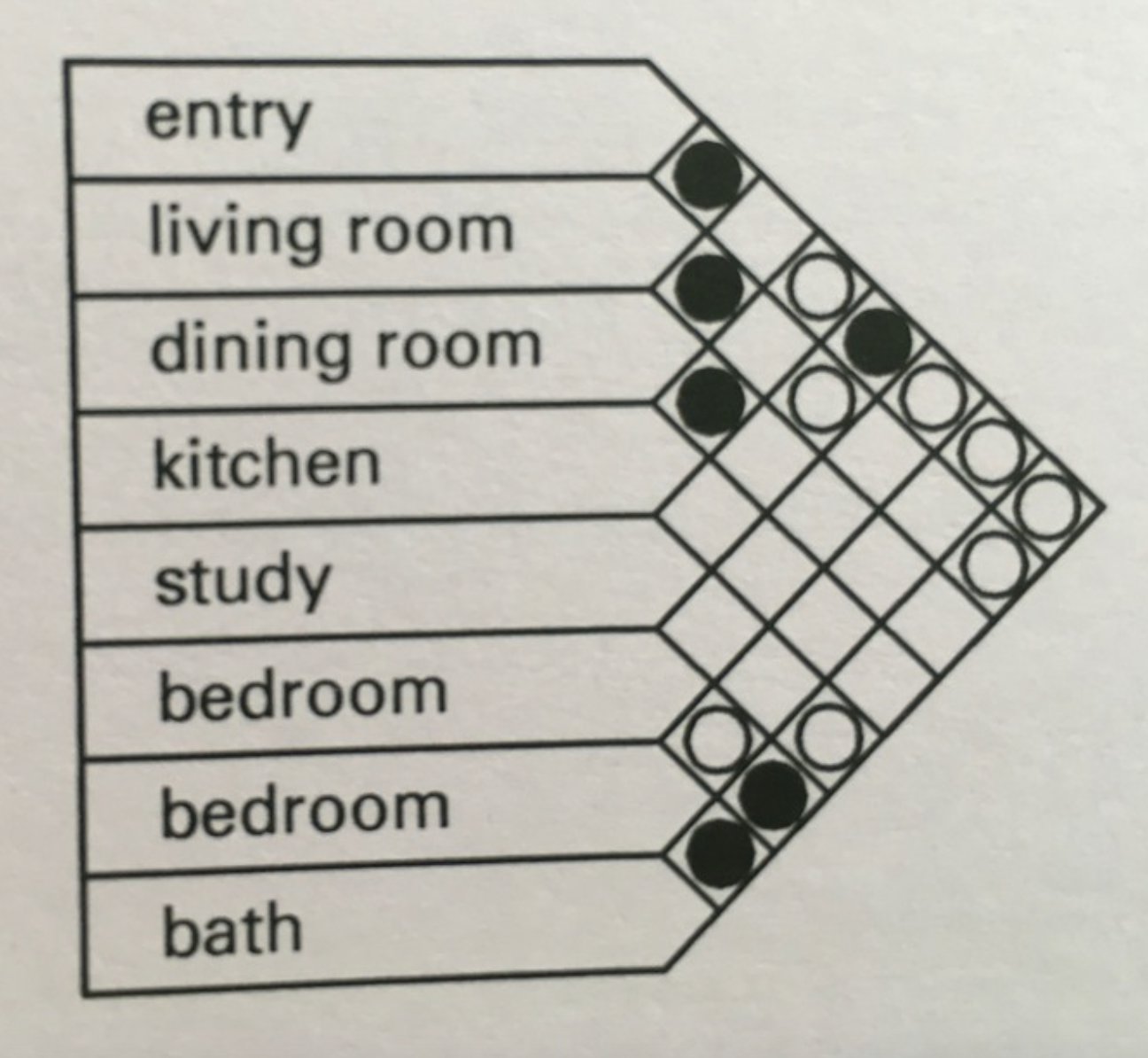

What type of diagram is this?

Adjacency matrix

What is a flow chart and why is it used?

Programming analysis tool used to diagram a client’s sequential business or work procedures

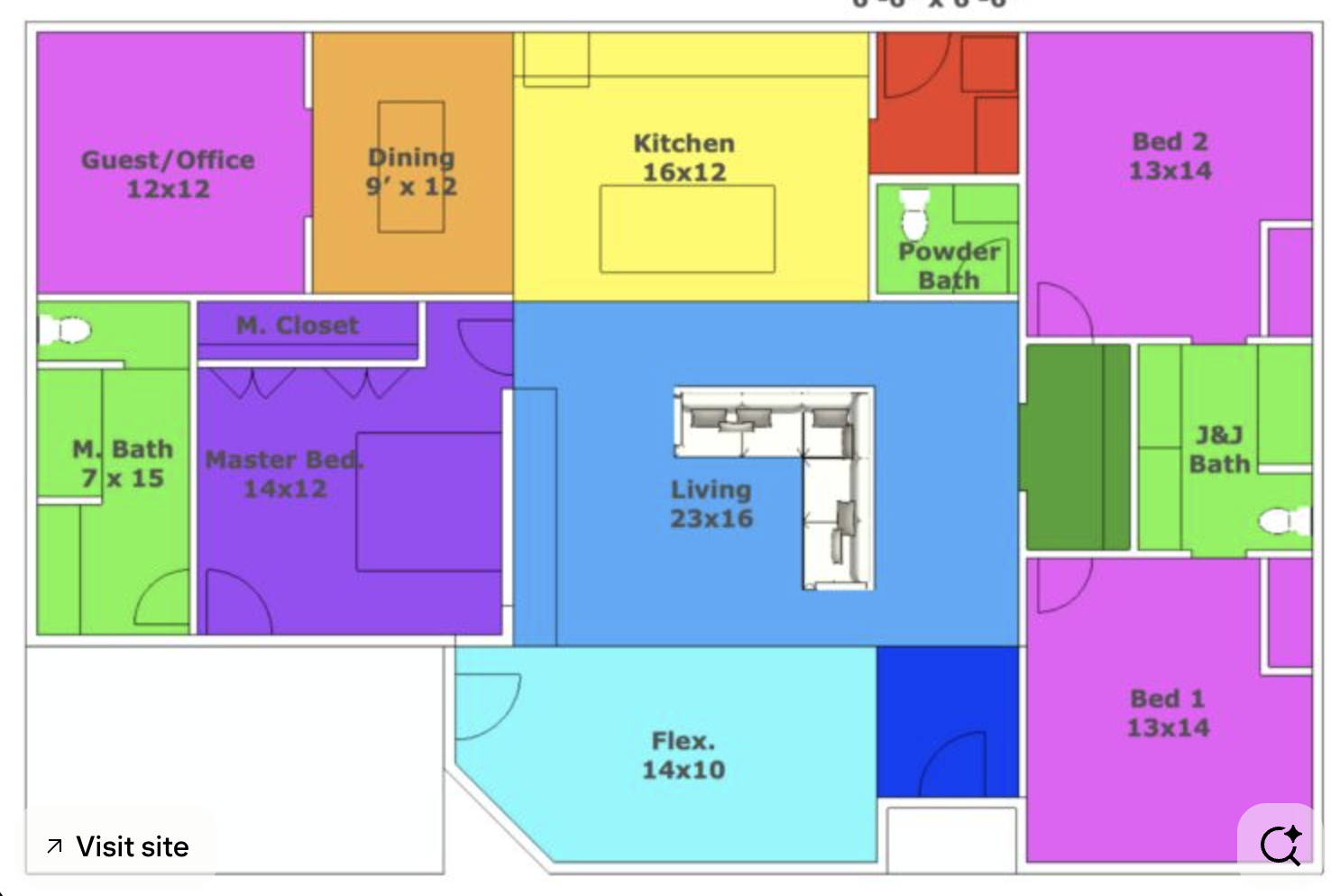

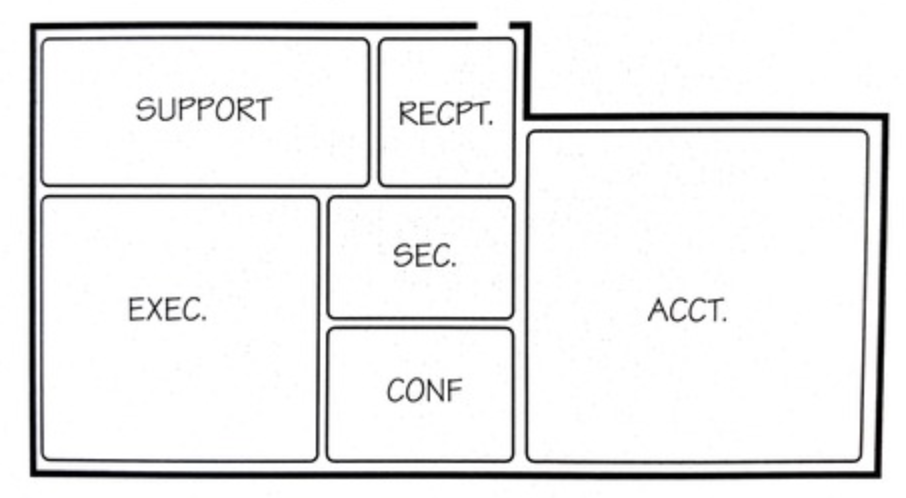

During space planning, what is the best type of diagram to show size and position of individual rooms and areas

Block plan

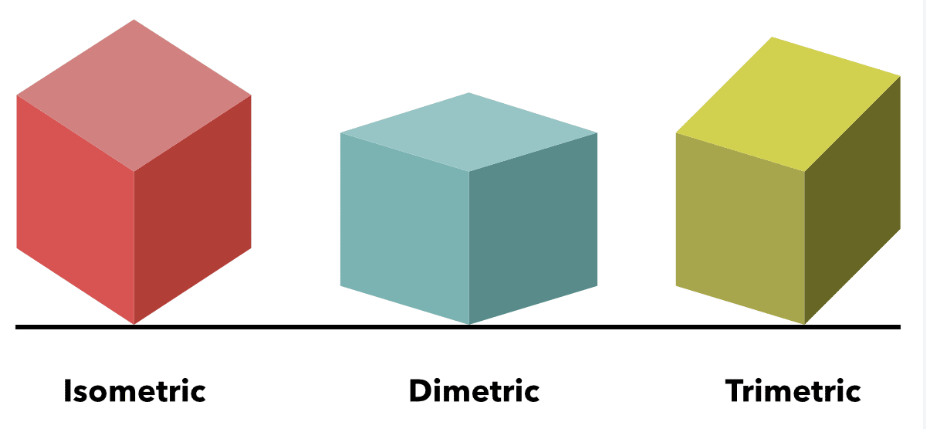

What are the three types of axonometric drawings?

Isometric, dimetric, trimetric

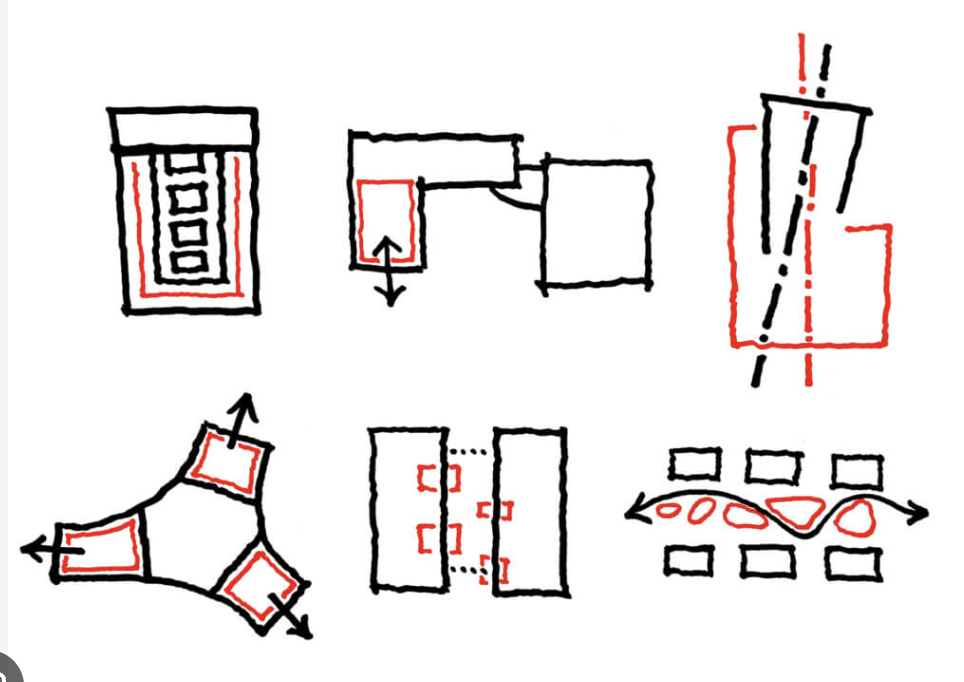

What type of diagram is a good way to represent a design concept in the early schematic design process?

Parti diagram

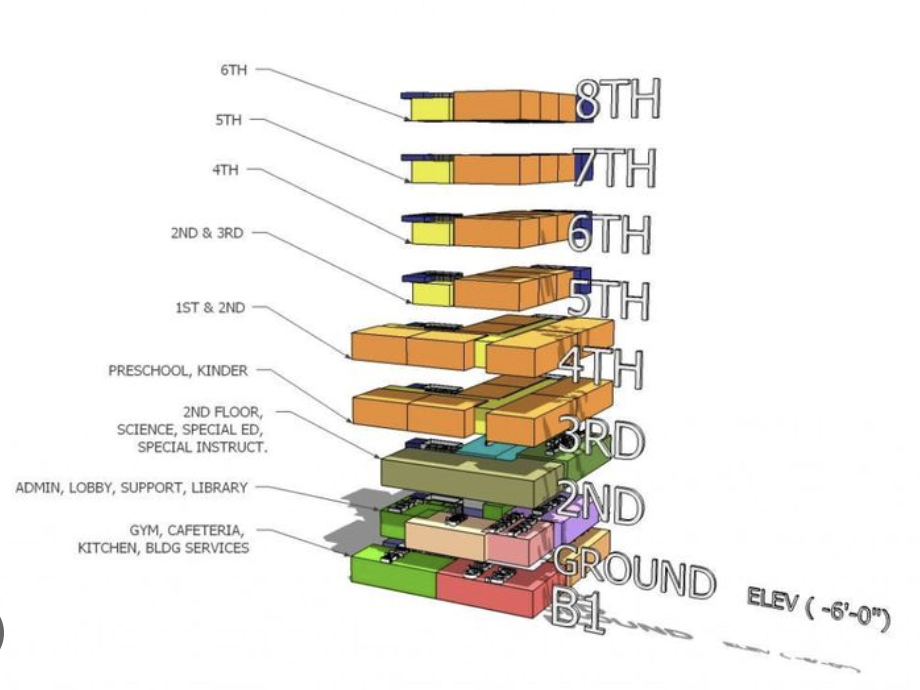

What kind of drawing is often used as an aid in developing a design concept when a proposed project will occupy more than one floor of a building?

Stacking diagram

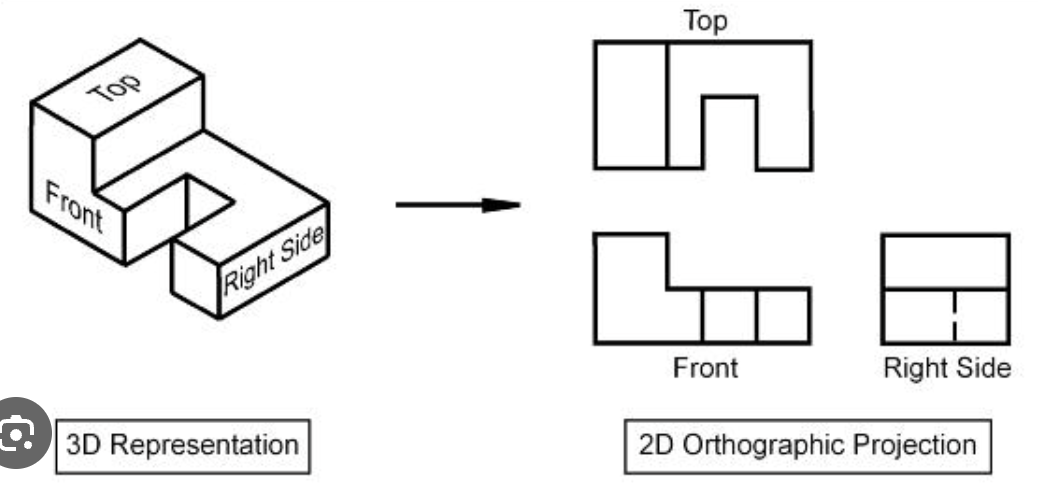

What is orthographic projection?

a method of viewing an object as though the viewer’s line of sight were simultaneously perpendicular to every point on the nearest face of the object

What type of diagram is best for an interior designer to use to show assignment of spaces in a multi floor project?

Stacking diagram

What four types of information should be included in every programming document?

1. client’s goals and objectives

2. required spaces and area requirements

3. required adjacencies between spaces

4. specific client requirements to budget, schedule, furnishings, equipment, and mechanical/electrical systems
