Ch 3 - Processes (Part 2) - VID

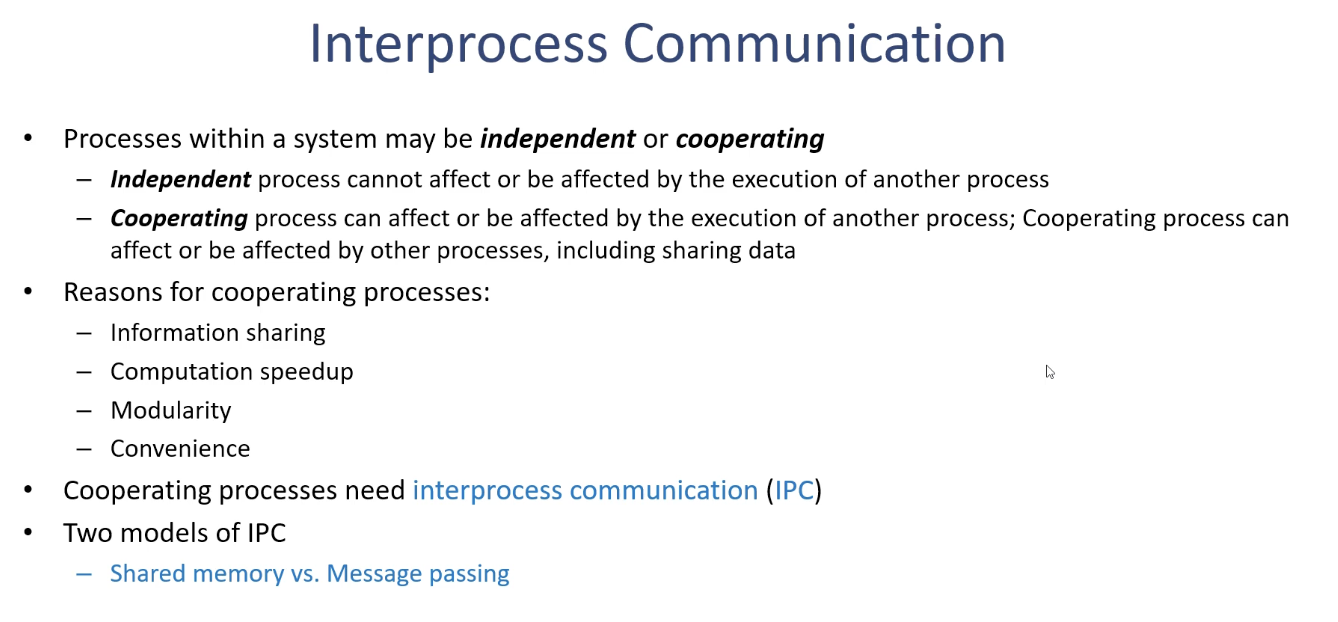

INTERPROCESS COMMUNICATION

Process within a system may be independent or cooperating

What is an independent process vs cooperating process?

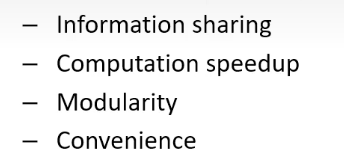

Reasons for cooperating processes: ?

Cooperating processes need IPC.

what is IPC? are what are its models?

INTERPROCESS COMMUNICATION

COMMUNICATIONS MODELS

high level view of message passing and shared memor

Metaphor for message passing and shared memory:

message passing : mailbox approach

shared memory: bulletin board

shared memory:

• in case of shared memory, the processes share portion of the memory as a privately shared bulletin board where only process A and B can access themr

• process A can read or write using the shared memory and so can process B

• this way process A and B can communicate

message passing:

• process cannot communicate directly

• they need to write a message like a mail and put it in the mailbox (message queue in the operating system)

• the message queue, will store and send and deliver the message to the recipient process

What are the pros and cons of message passing vs shared memory?

SHARED MEMORY PROS AND CONS:

• shared memory is easy to use; process A and process B can both write and read in the shared memory area so its fast and easy to use

• BUT because both process A and B can access anywhere in the shared memory, without proper control and careful management, the shared memory data may be corrupted or incorrect information used by the processes

MESSAGES PASSING PROS AND CONS:

• with message passing, you don’t have to worry about the message content as long as they use the same agreed protocol. Process A and B can safely send and receive messages because all messages are delivered and handled by the operating system

• HOWEVER, the message queue is a separate entity from process A and B as well as a regular schedule of the operating system so it means its slower than the shared memeory

• process A has to send msg and wait for the operating system to deliver msg to process B

• the message queue is maintained by the subsystem of the operating system

• Relatively slow speed is the drawback of message passing

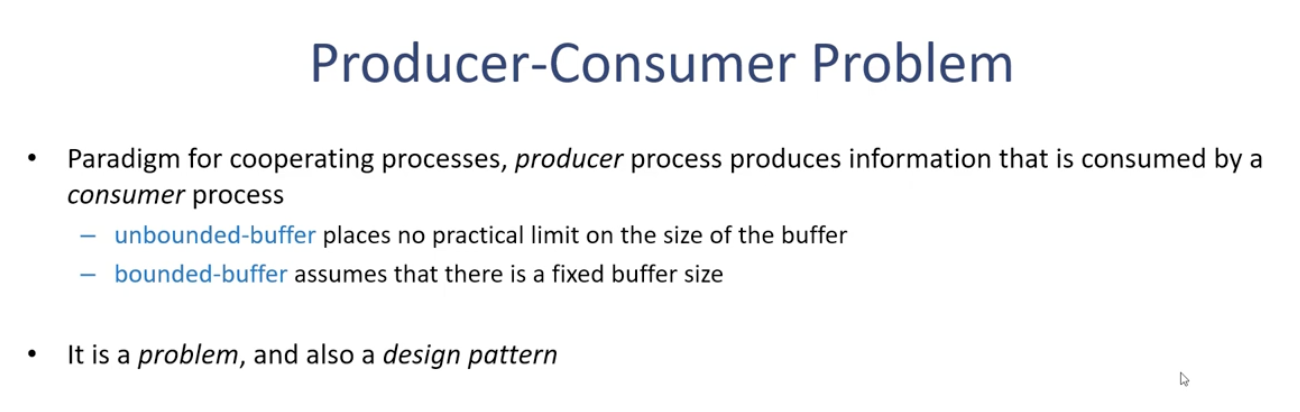

Producer-Consumer Problem

• paradigm for cooperating processes, producer process produces information that is consumed by a consumer process

* What is unbounded-buffer and bounded-buffer ?

• unbounded-buffer places no practical limit on the size of the buffer

• bounded-buffer assumes there is a fixed buffer size

it’s a problem but also a design pattern

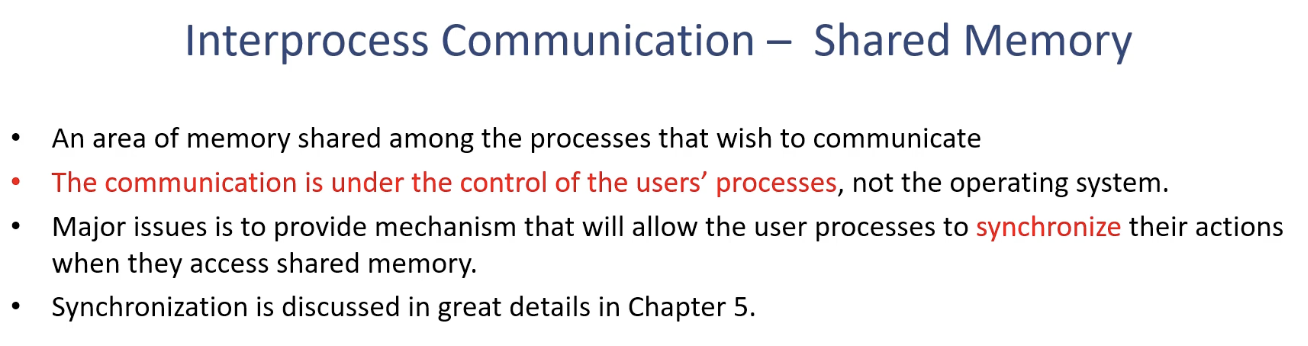

Inter process Communication - Shared Memory

that was the shared memory solution

Interprocess Communication - Message Passing

What is the Message System?

Message System - processes communicate with each other without resorting to shared variables

Interprocess Communication - Message Passing

What is IPC and what two operations does the facility provide?

IPC facility provides two operations:

• send(message)

• receive(message)

the message size is either fixed or variable

Interprocess Communication - Message Passing

this is the message passing solution

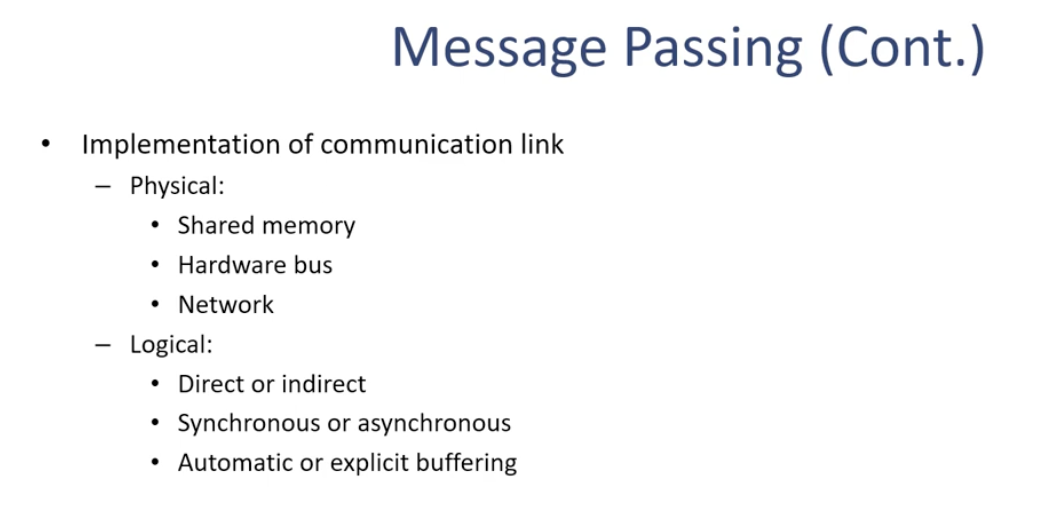

Message Passing (Cont.)

Message Passing (Cont.)

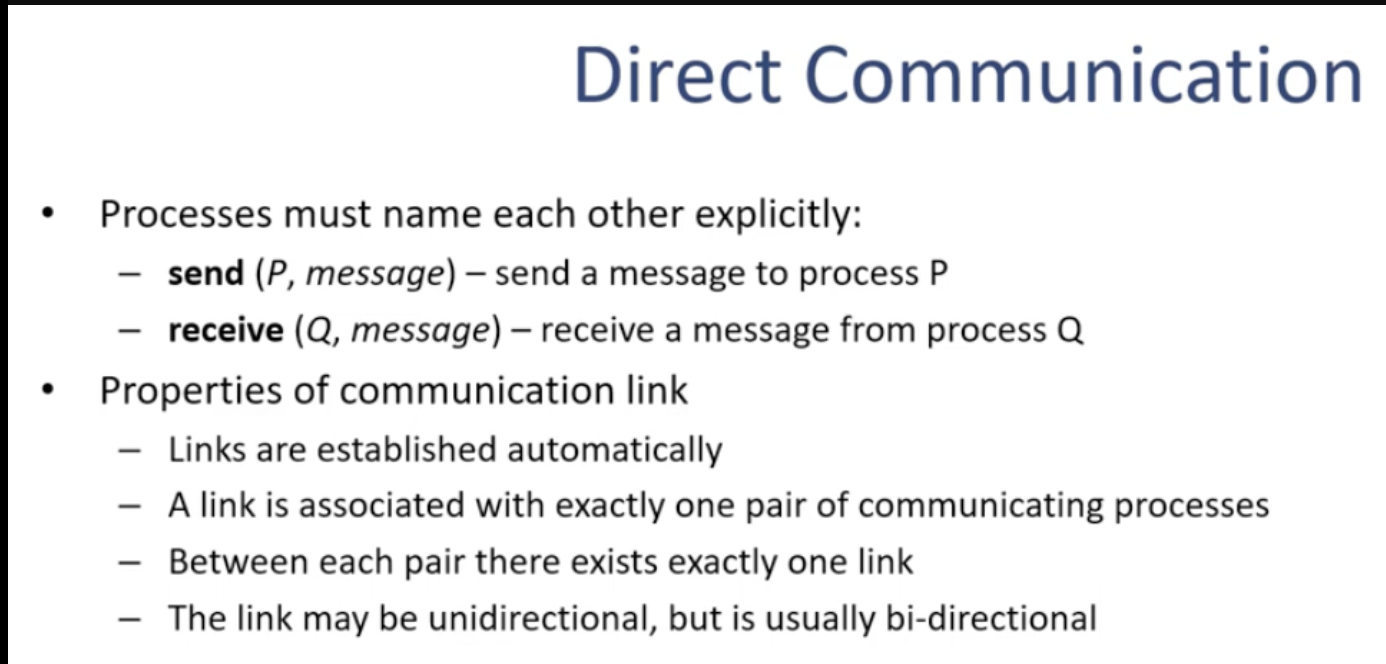

Direct Communication features

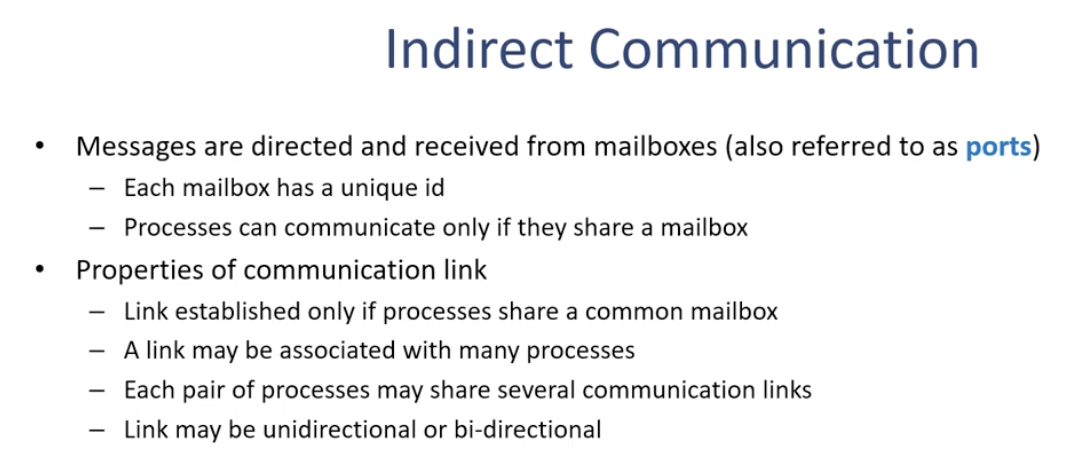

Indirect Communication features

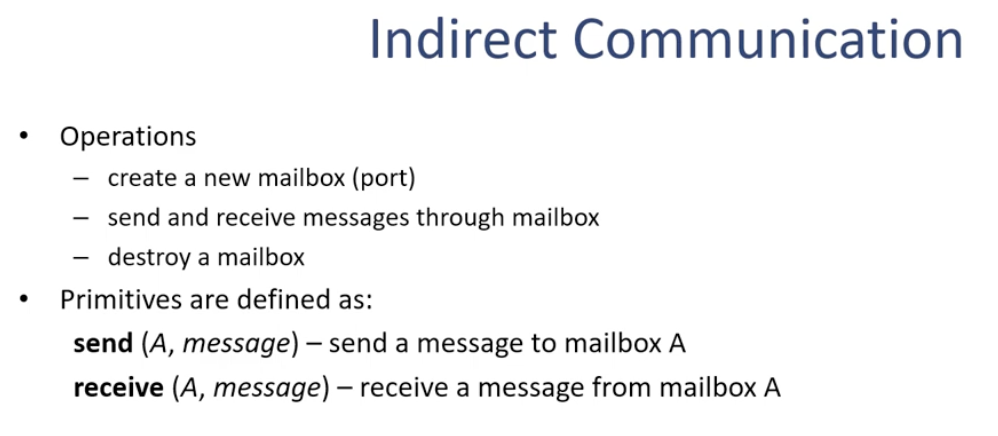

Indirect Communication Operations and Primitives

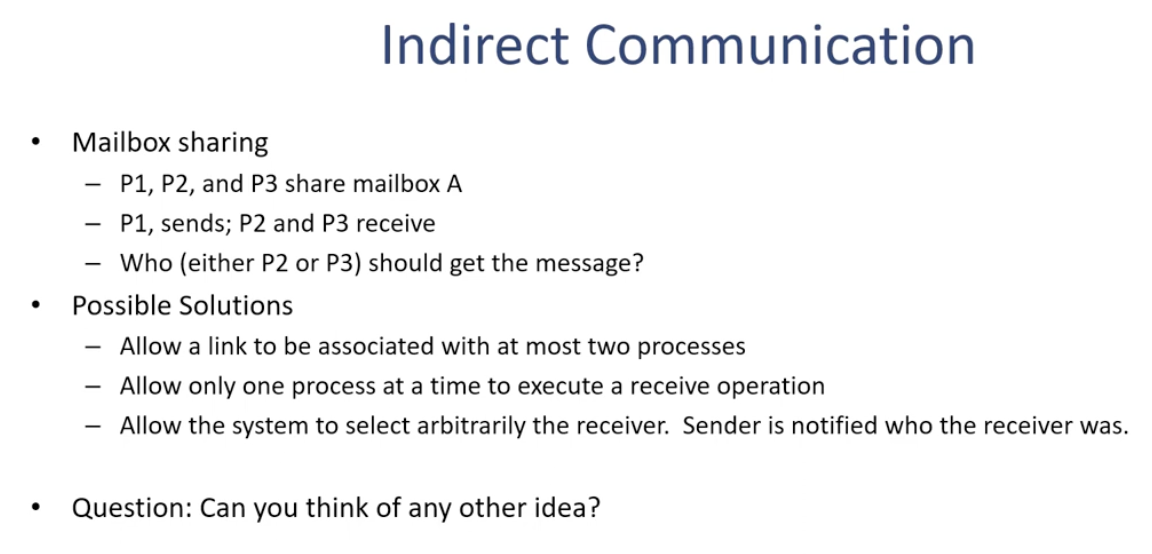

Indirect Communication

Block vs non-blocking in Synchronization

Buffering:

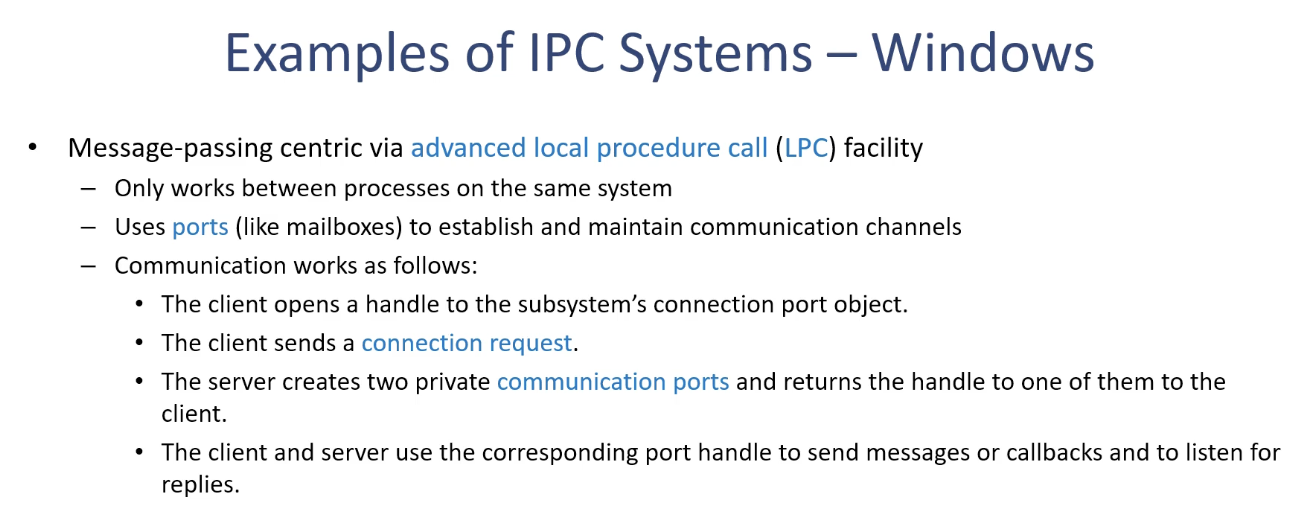

Examples of IPC Systems - Windows

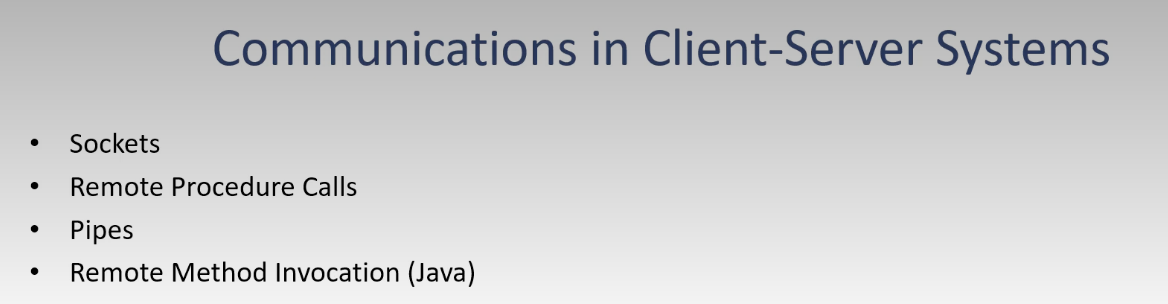

Communications in Client-Server Systems

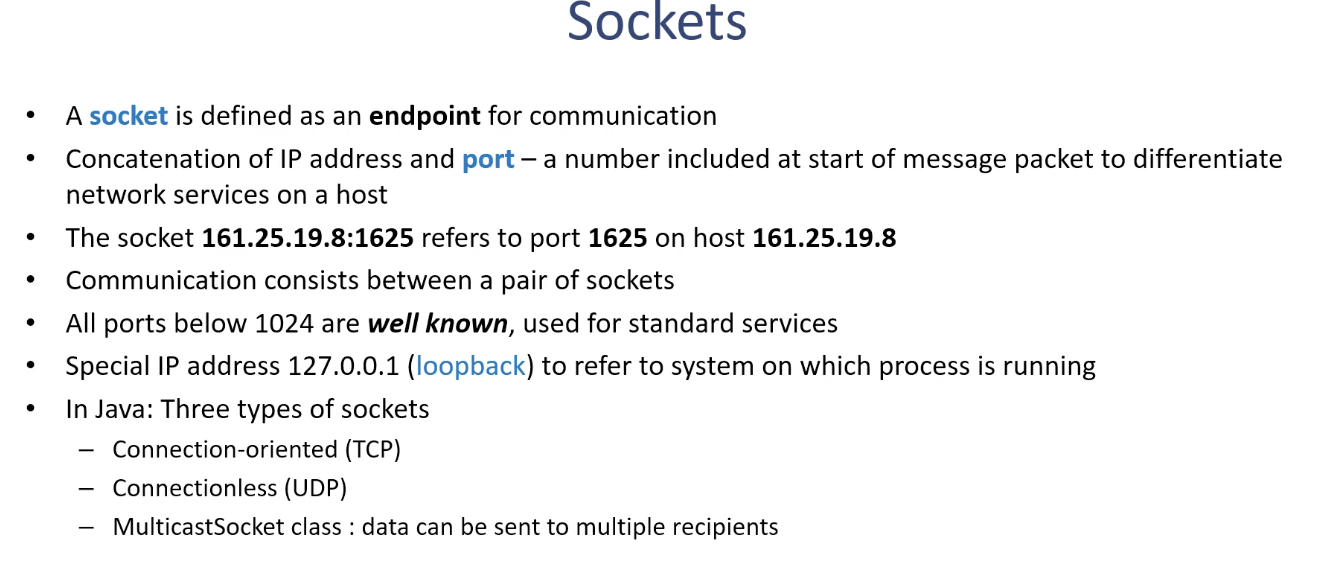

Sockets

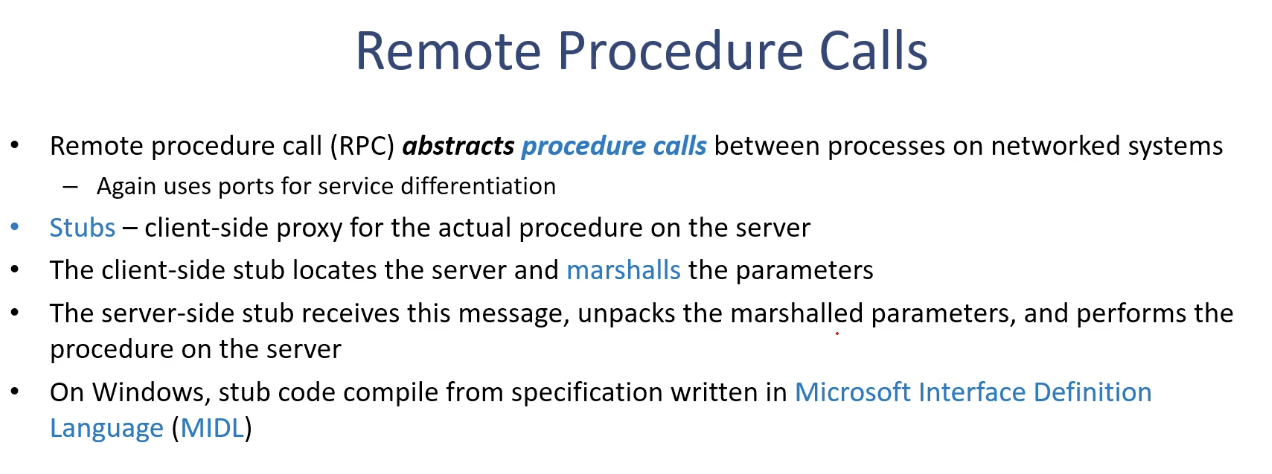

Remote Procedure Calls

Remote Procedure Calls (Cont.)

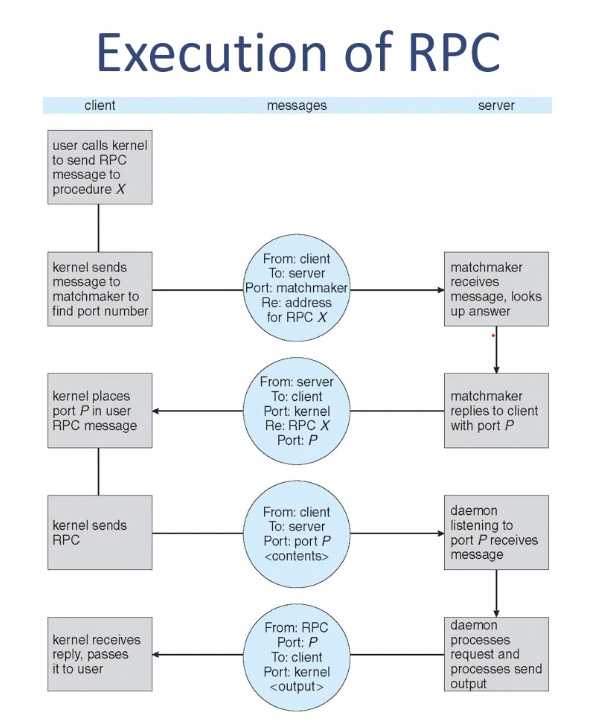

Execution of RPC

Pipes

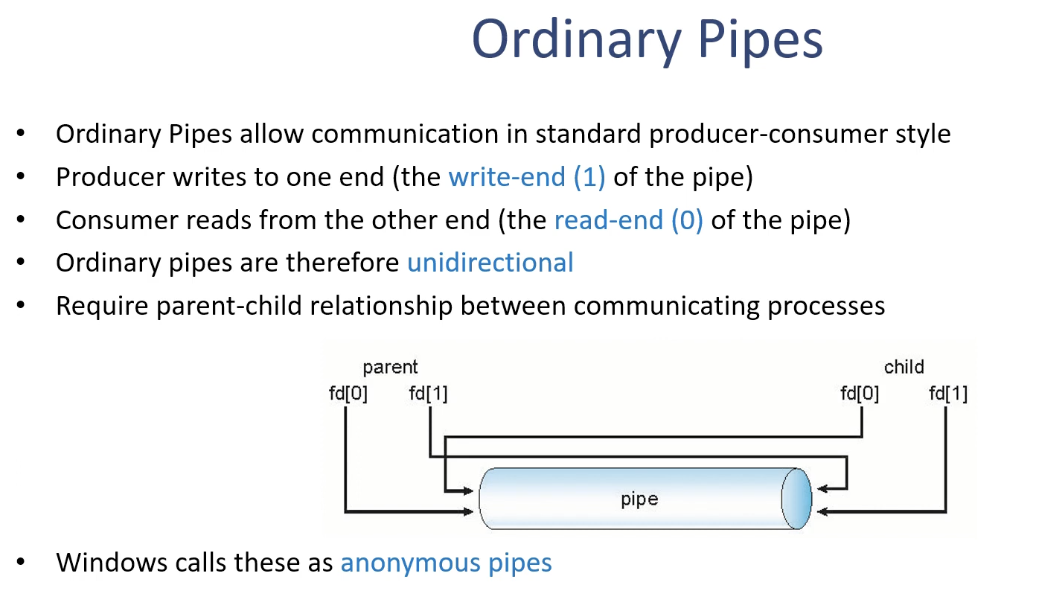

Ordinary Pipes

Named Pipes
