Bones of the skull

Whats the blue region highlighted?

Frontal bone

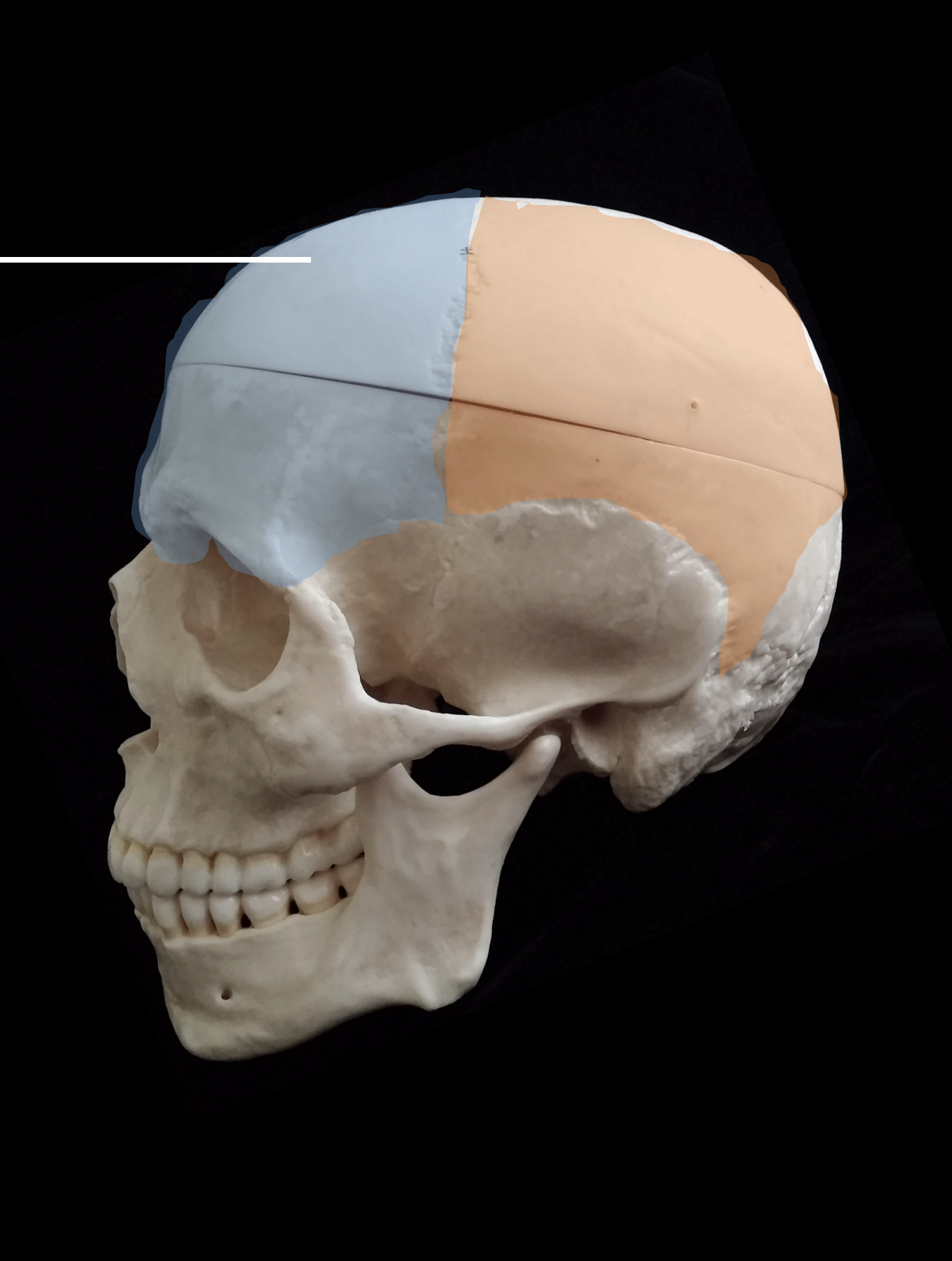

Whats the orange region highlighted?

Parietal Bone

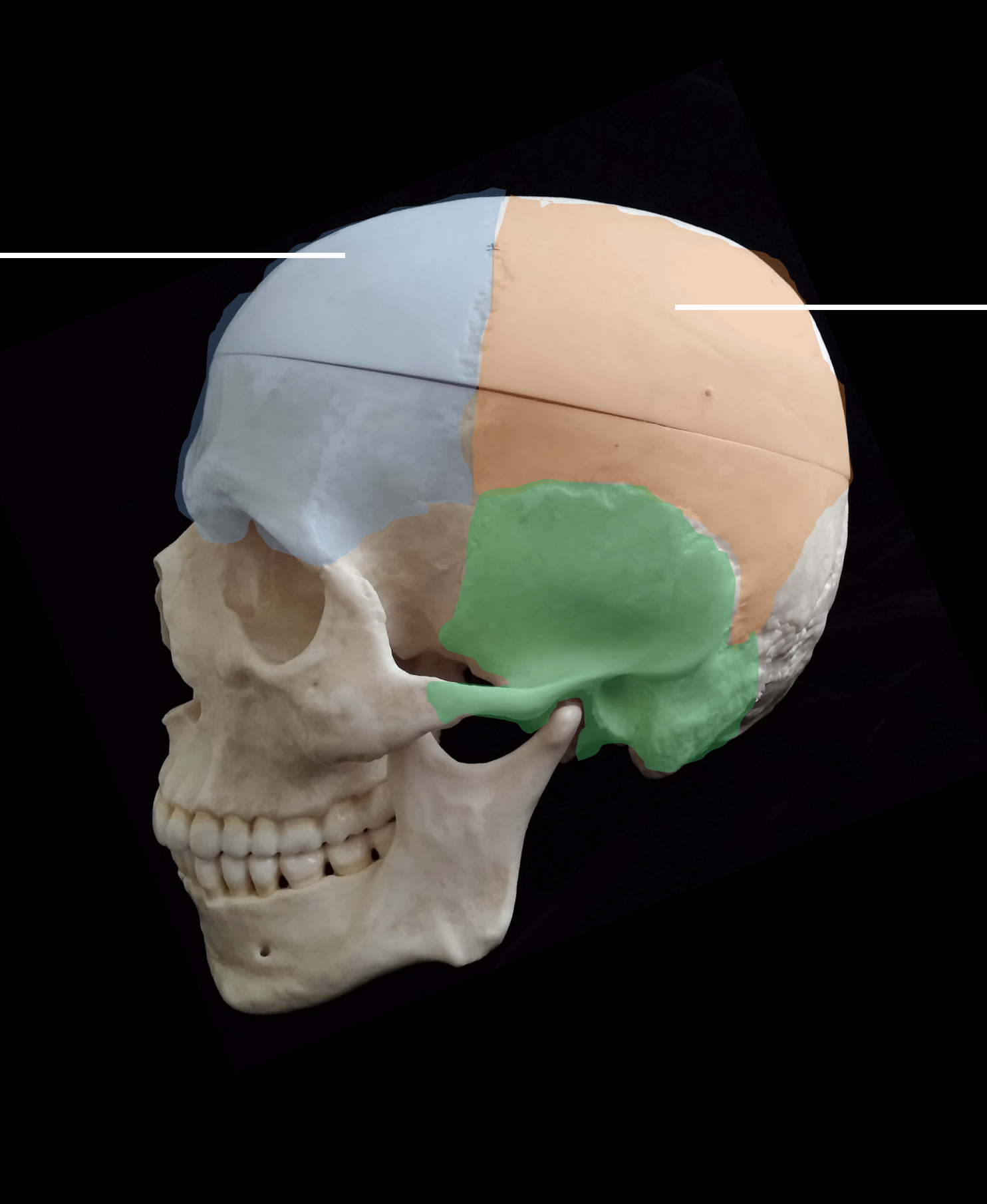

Whats the green region highlighted?

Temporal bone

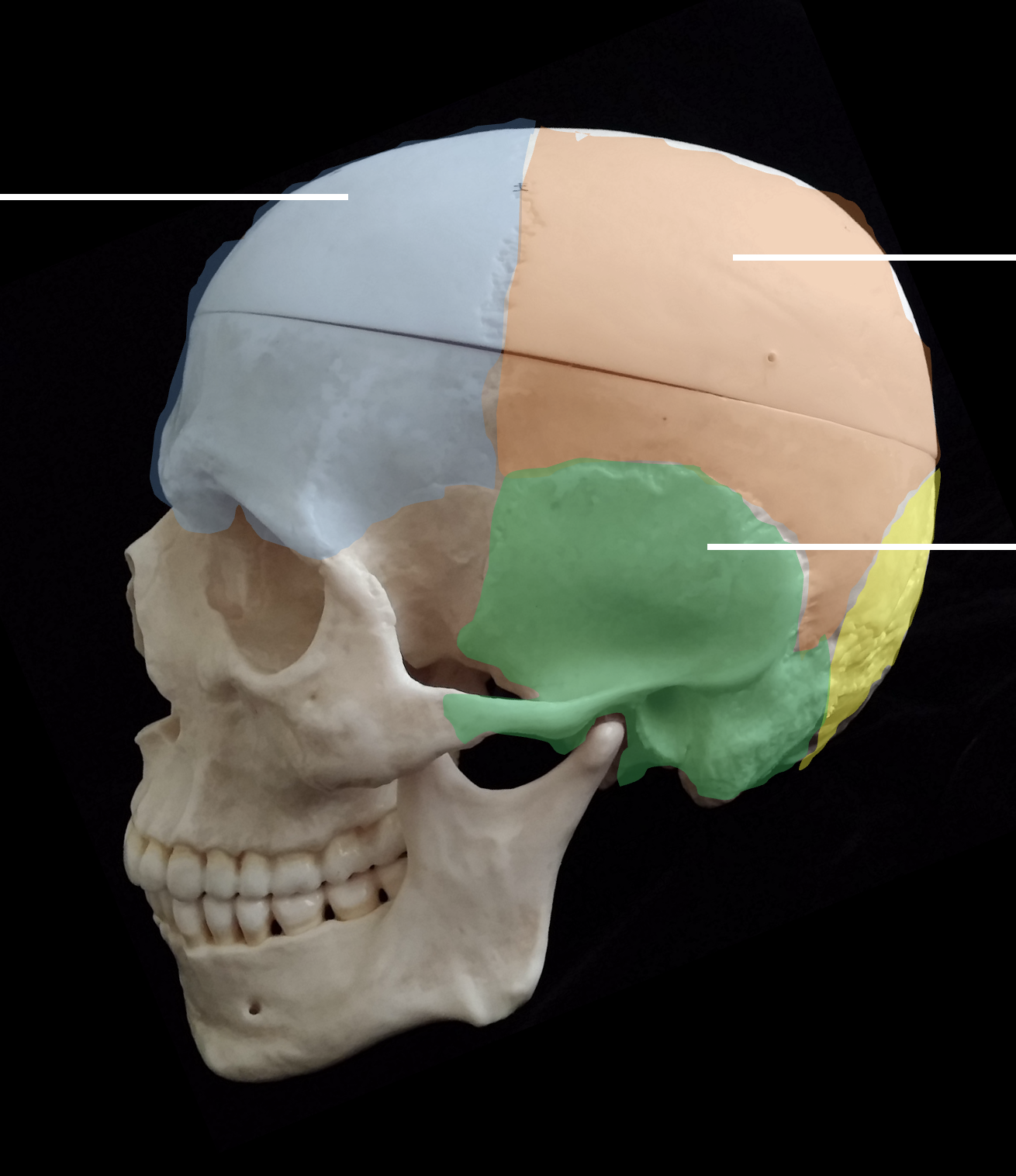

Whats the yellow region highlighted?

Occipital bone

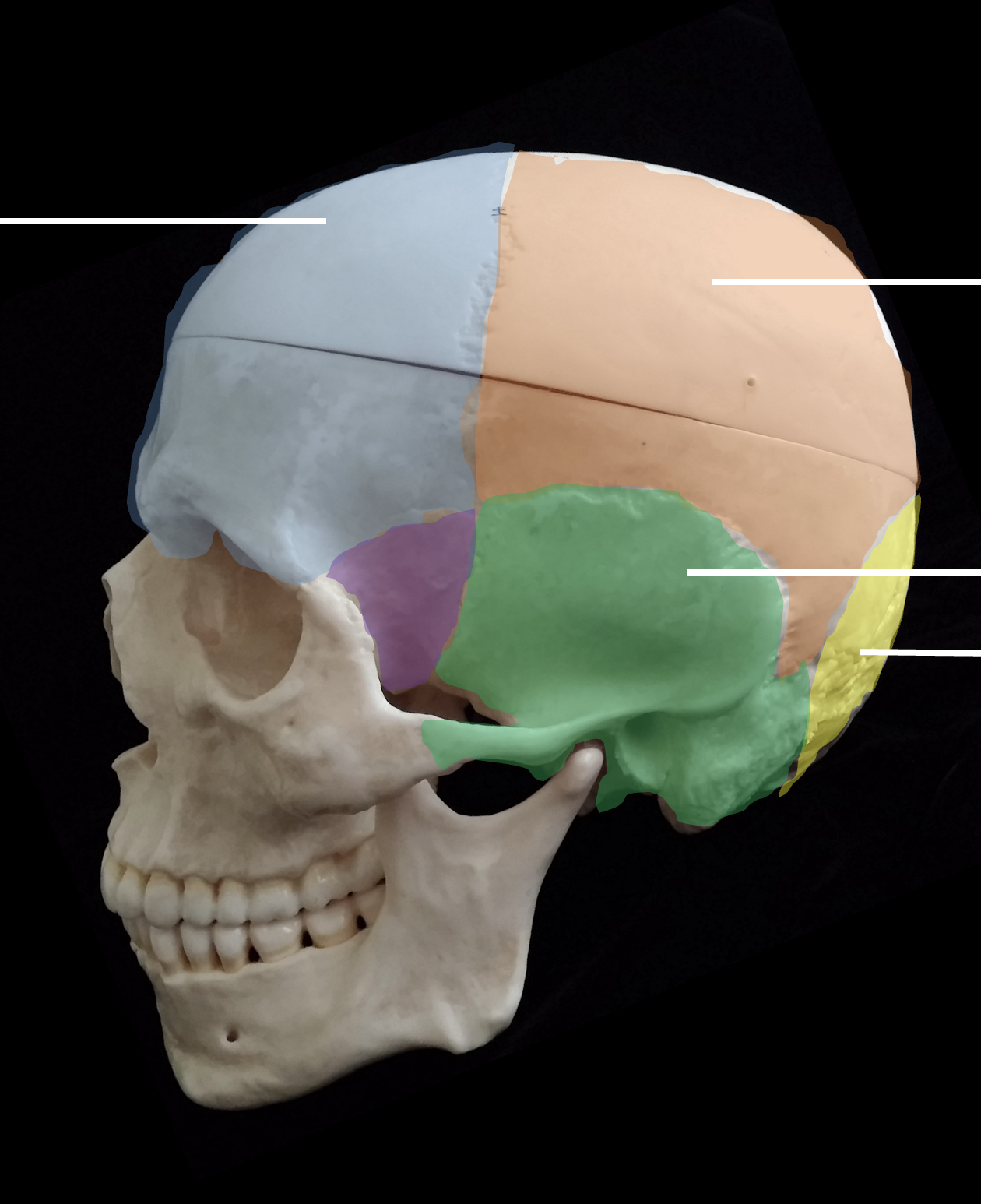

Whats the light purple region highlighted?

Sphenoid bone

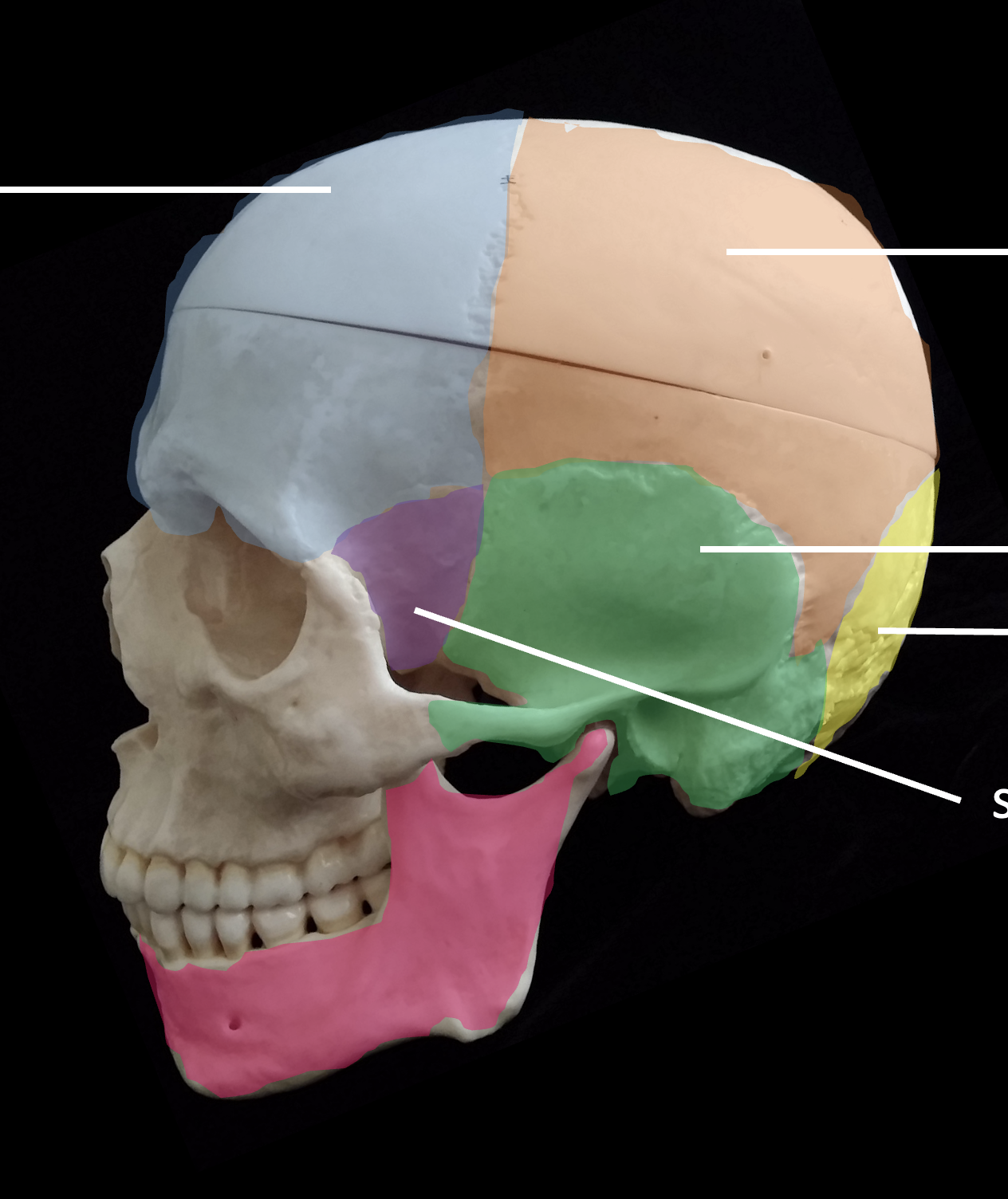

Whats the pink region highlighted?

Mandible

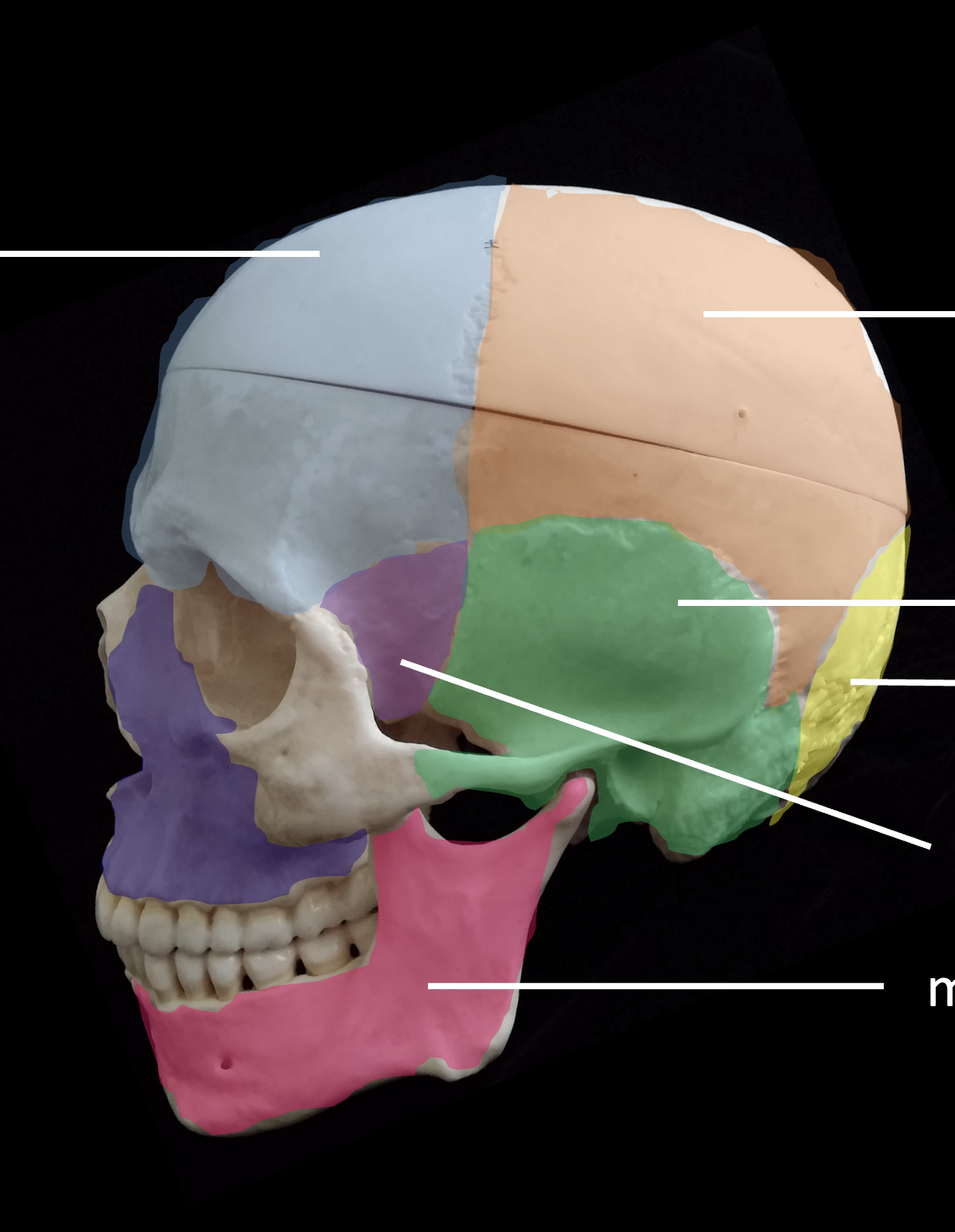

Whats the dark purple region highlighted?

Maxillary bone

What is the brighter orange region highlighted?

Zygomatic bone

Whats the darker green region highlighted?

Lacrimal bone

what’s the red region highlighted?

Nasal bone

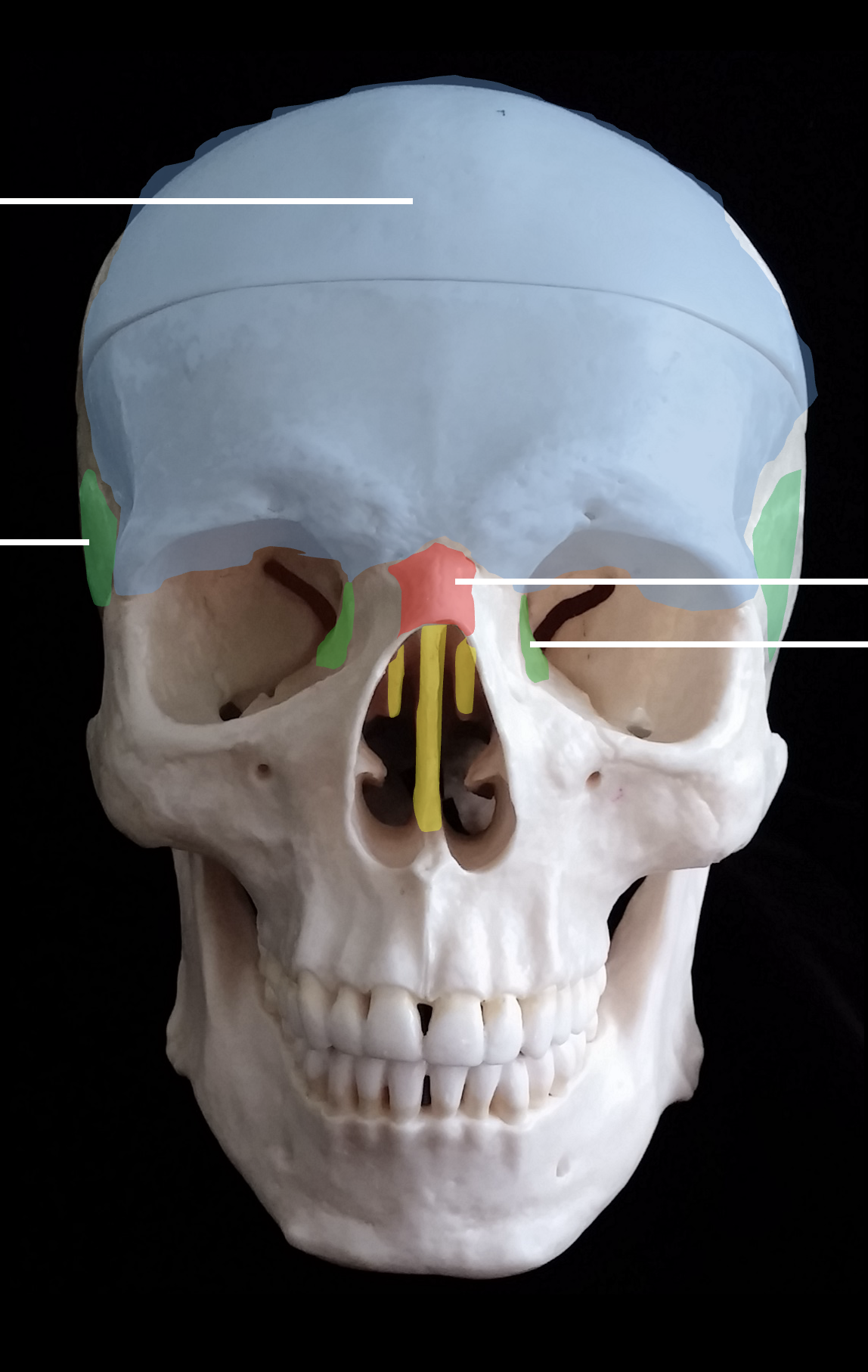

Whats the upper and middle yellow region highlighted?

Ethmoid bone

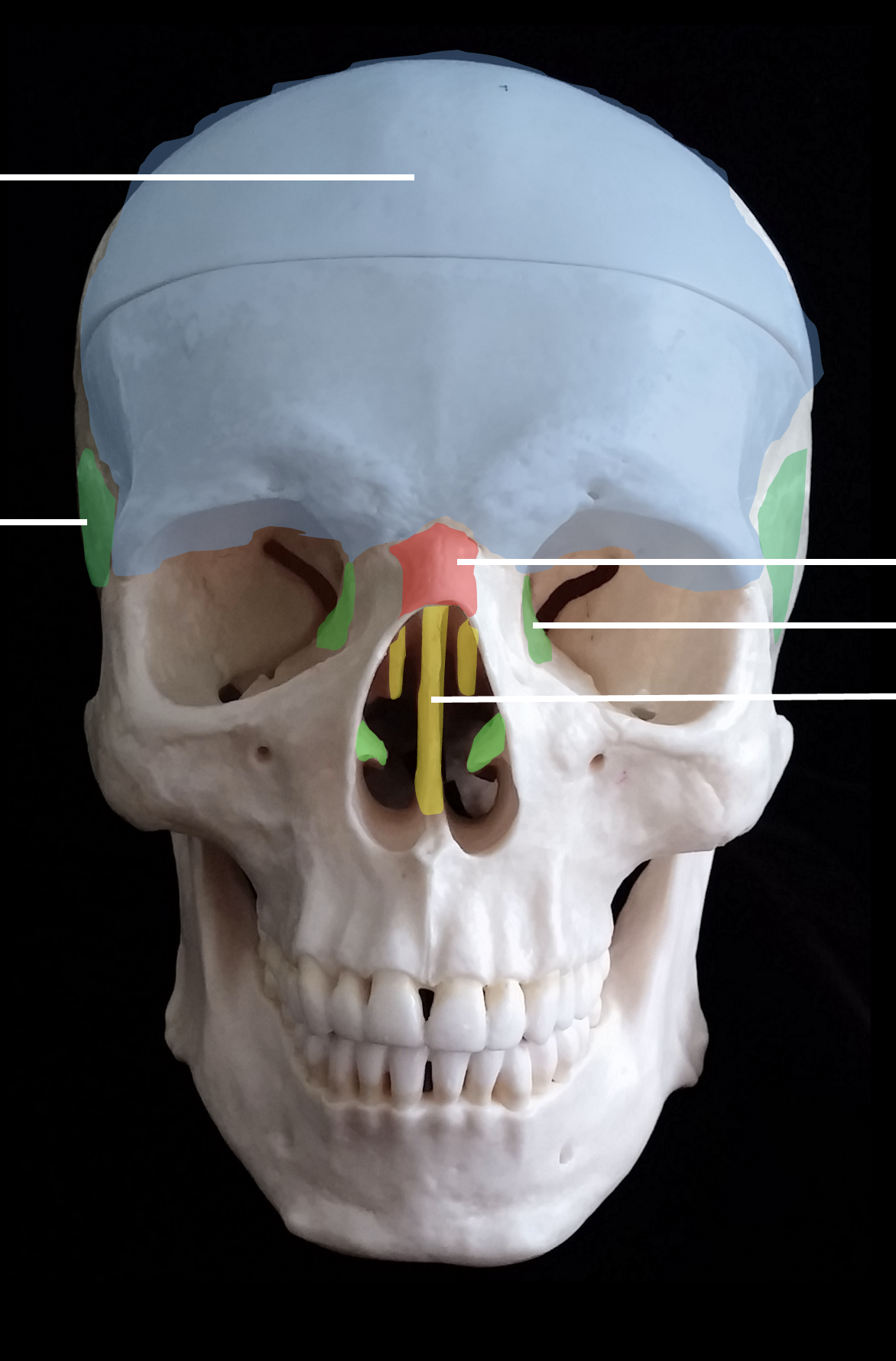

Whats the middle green region highlighted?

Inferior nasal conchae

looking at the x-ray, what’s the yellow region highlighted on the Frontal bone?

Front sinus

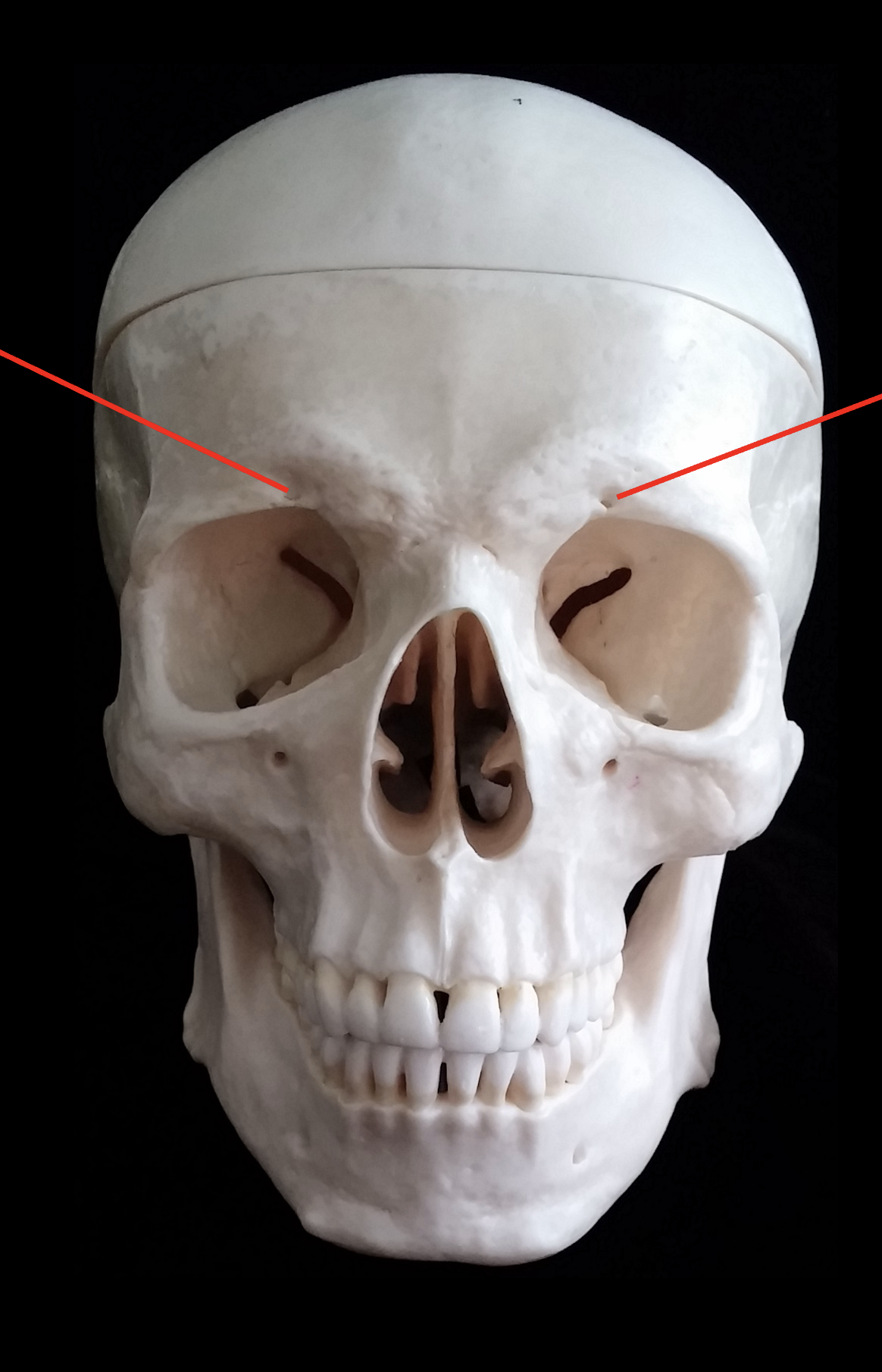

What is the bone pointed at by the two arrows on the Frontal bone?

Supraorbital foramen

What is the pink region highlighted on the occipital bone?

External occipital protuberance

Whats the light purple region highlighted on the occipital bone?

Foramen magnum

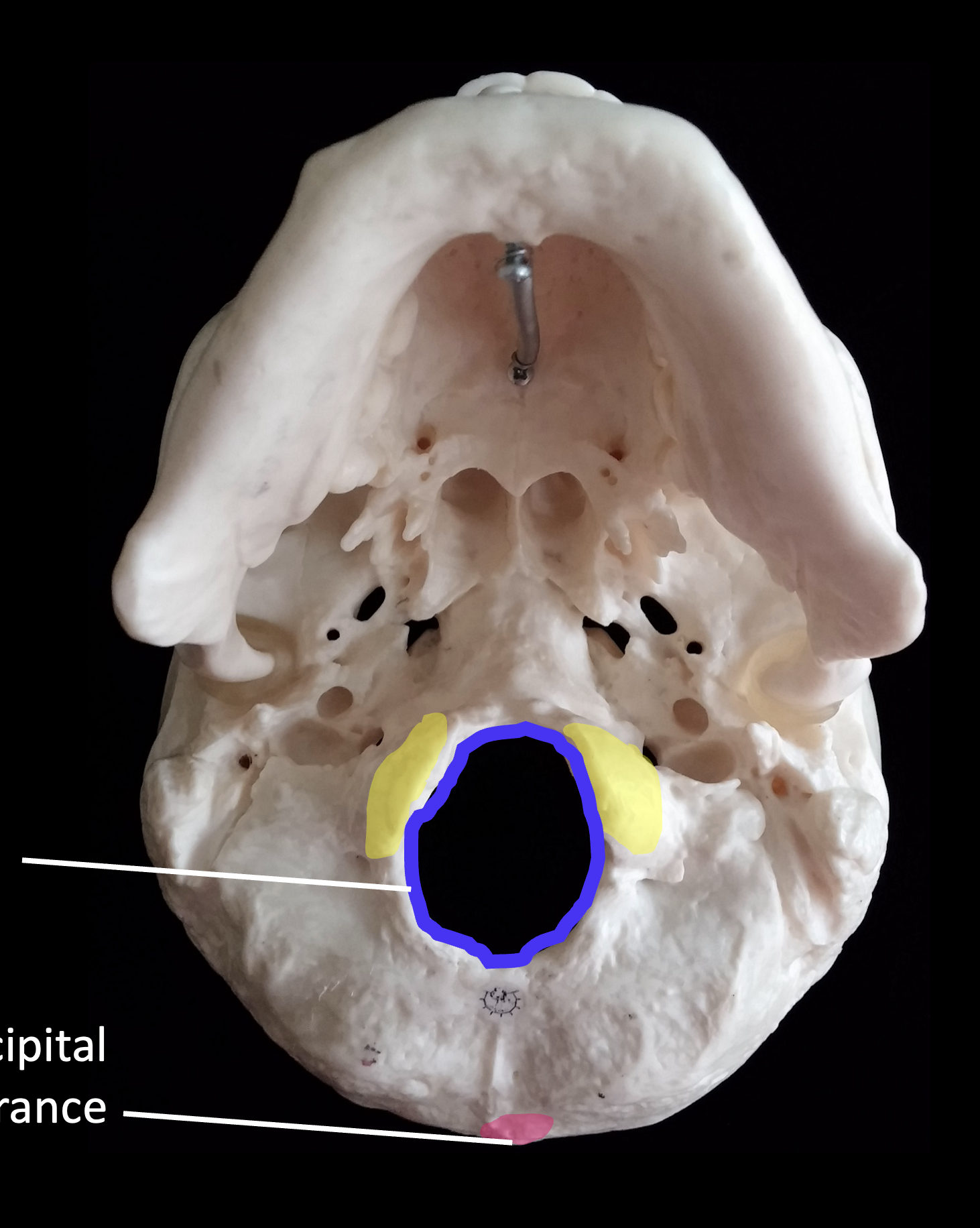

Whats the yellow region highlighted on the occipital bone?

Occipital condyles

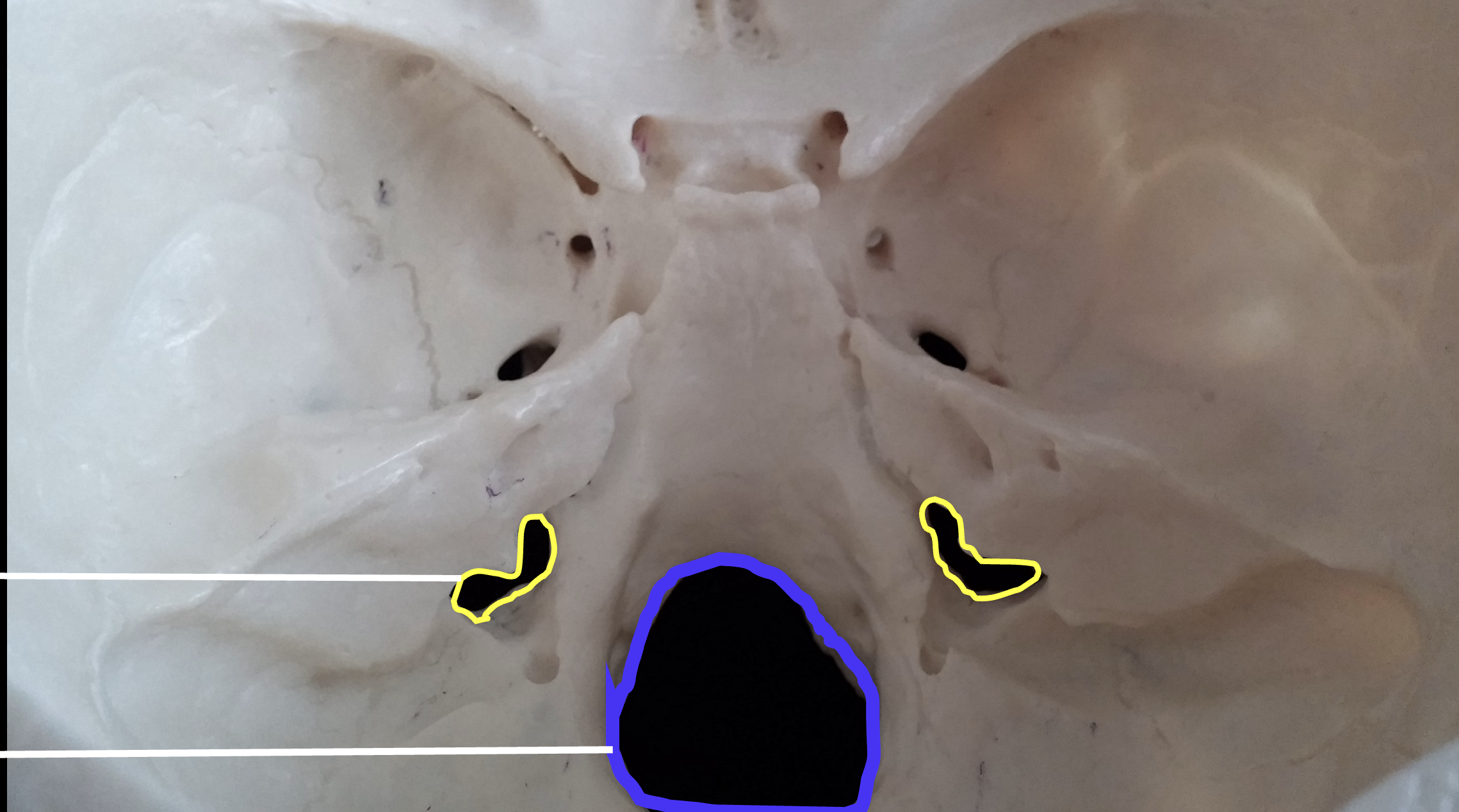

Whats the yellow region highlighted on the occipital bone?

Jugular foramen (occipital bone)

What is the bone highlighted by the yellow circle on the occipital bone?

Hypoglossal canal

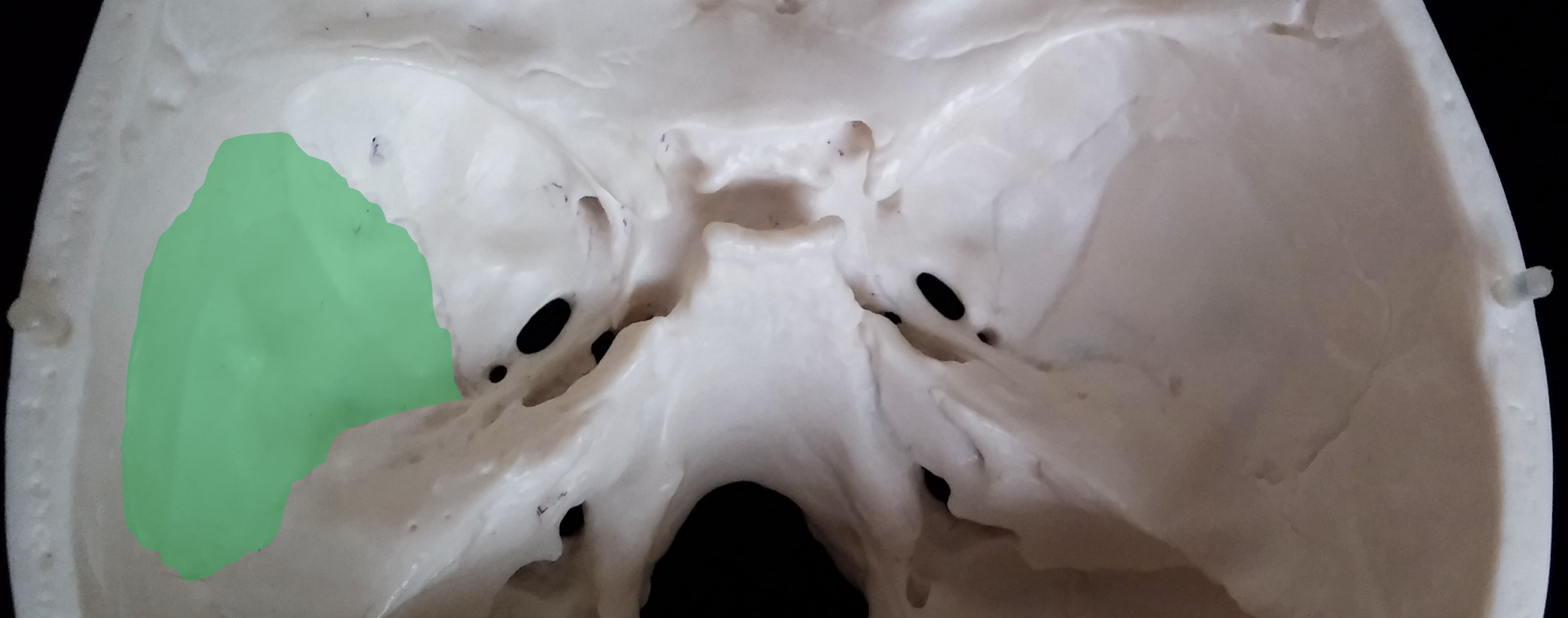

What is the green region highlighted on the temporal bone?

Squamous portion

What is the pink region highlighted on the temporal bone?

Petrous portion

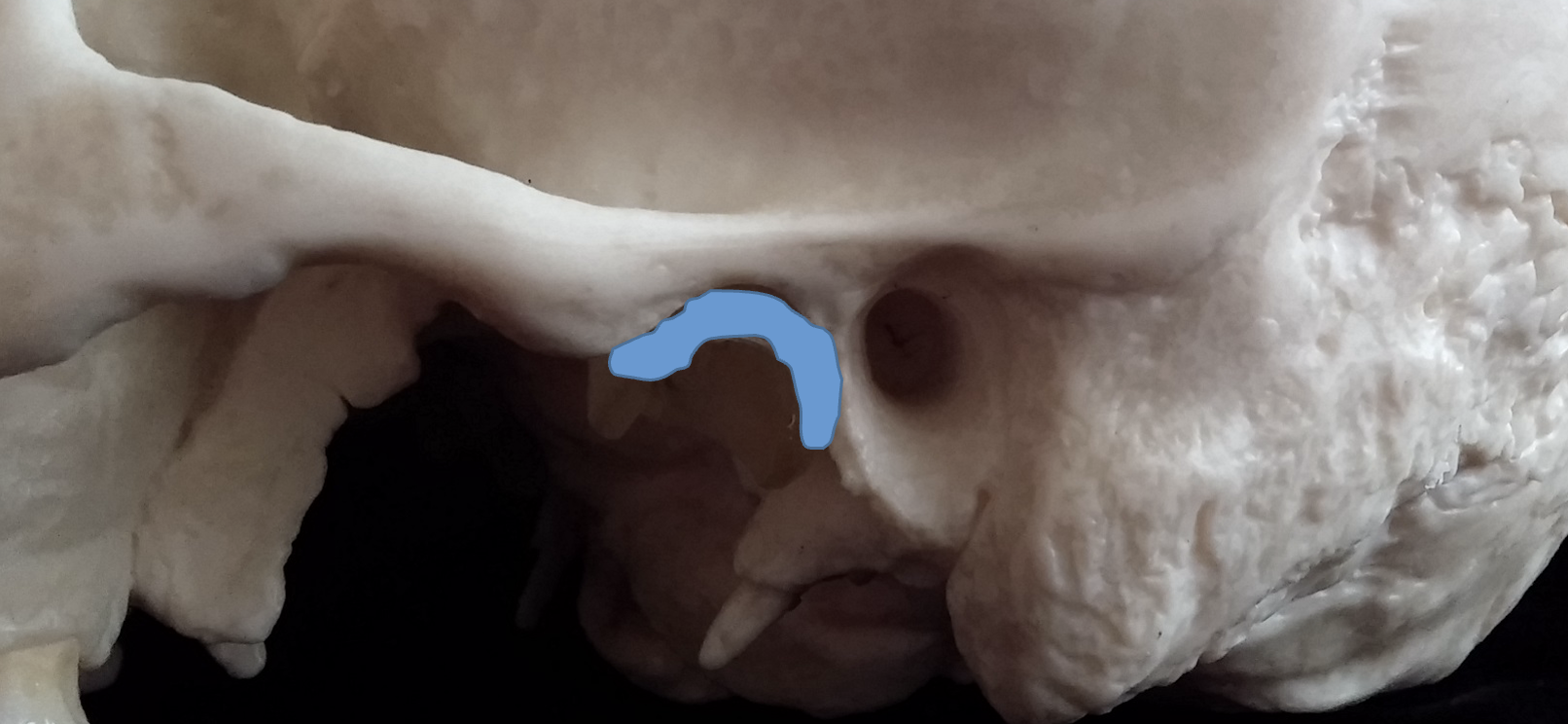

What is the blue region highlighted on the temporal bone?

Mandibular fossa of the temporal bone

What is the bone highlighted by the circle on the temporal bone?

External auditory Canal

What is the dark red region highlighted on the temporal bone?

Styloid Process of the temporal bone

What is the green region highlighted on the temporal bone?

Mastoid process

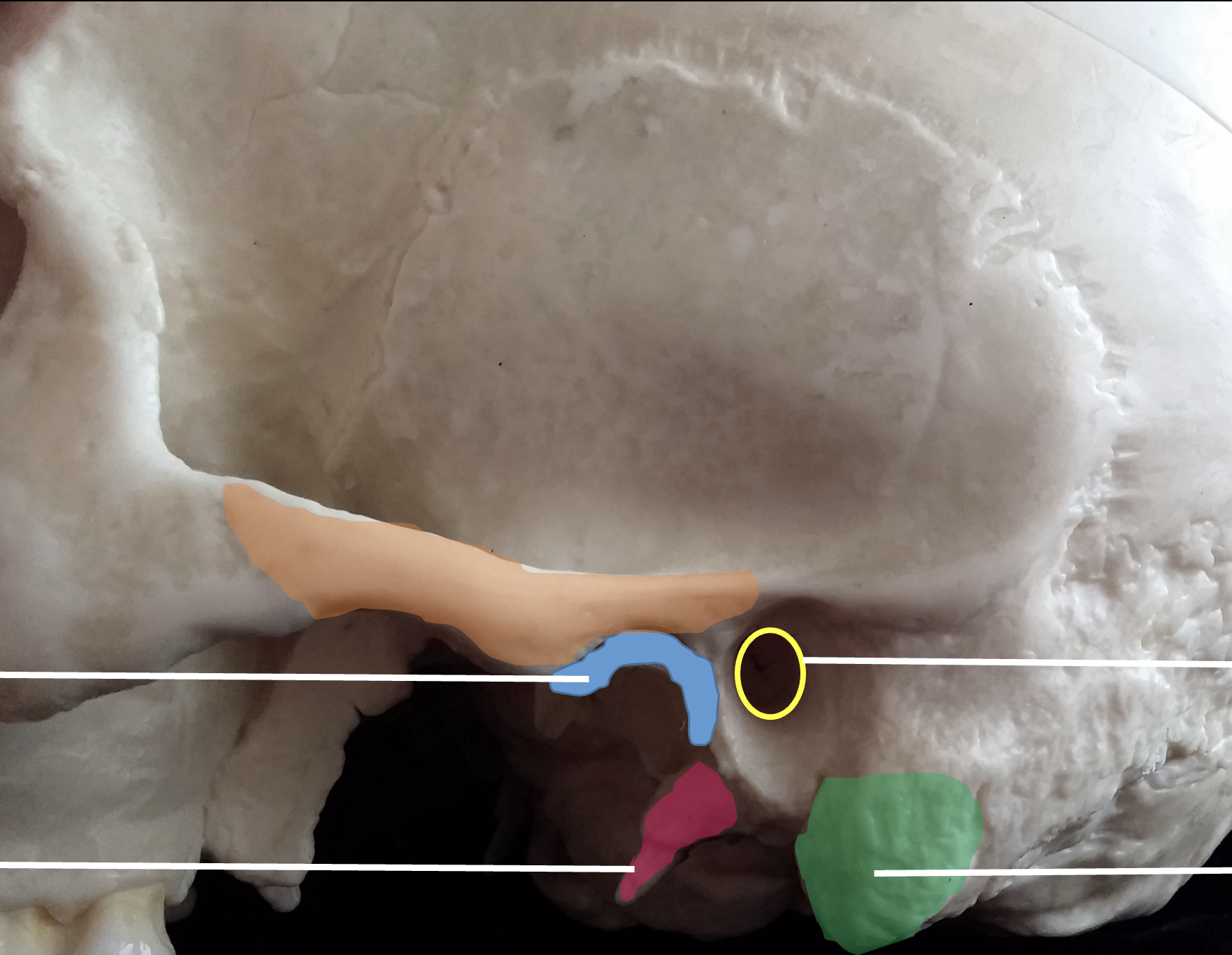

What is the orange region highlighted on the temporal bone?

Zygomatic process of the temporal bone

From the superior view, what is the bone indicated by the arrow on the temporal bone?

Carotid canal

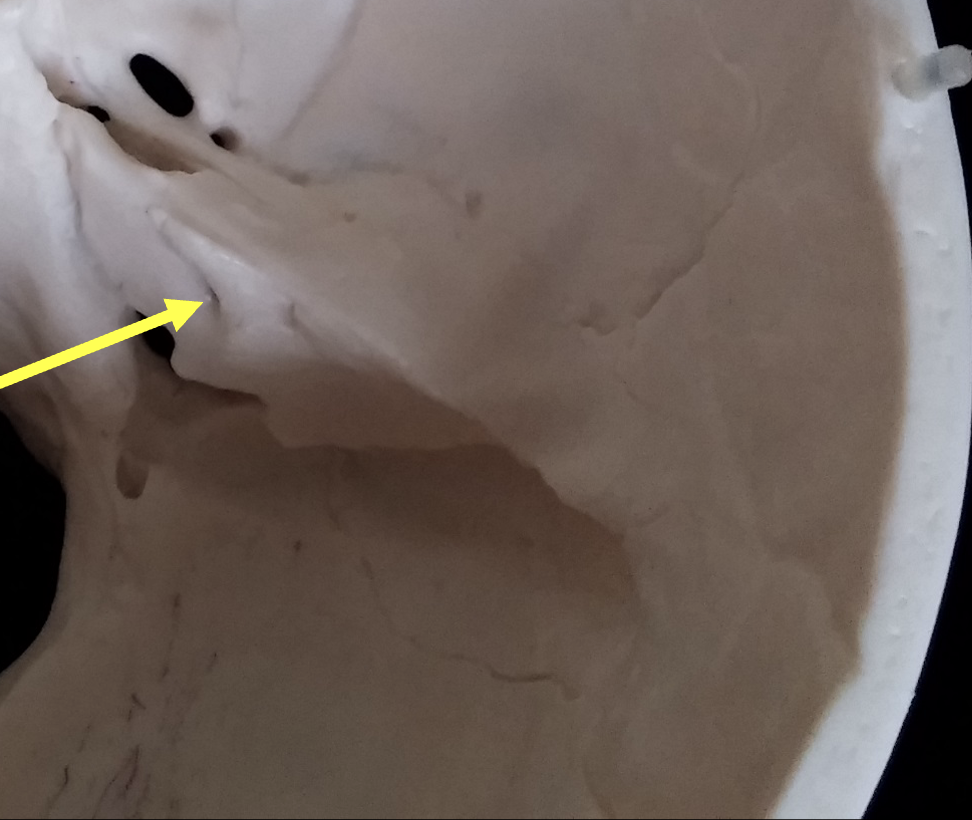

What is the bone indicated by the arrow on the temporal bone?

internal auditory canal

What is the pink region highlighted on the temporal bone?

Jugular foramen (temporal bone)

From the inferior view, what is the bone highlighted by the circle on the temporal bone?

Carotid canal

What is the bone indicated by the arrow on the temporal bone?

Stylomastoid foramen

From the inferior view, what is the blue region highlighted on the temporal bone?

Mandibular fossa of the temporal bone

From the inferior view, what is the pink region highlighted on the temporal bone?

styloid process

From the inferior view, what is the green region highlighted on the temporal bone?

Mastoid process

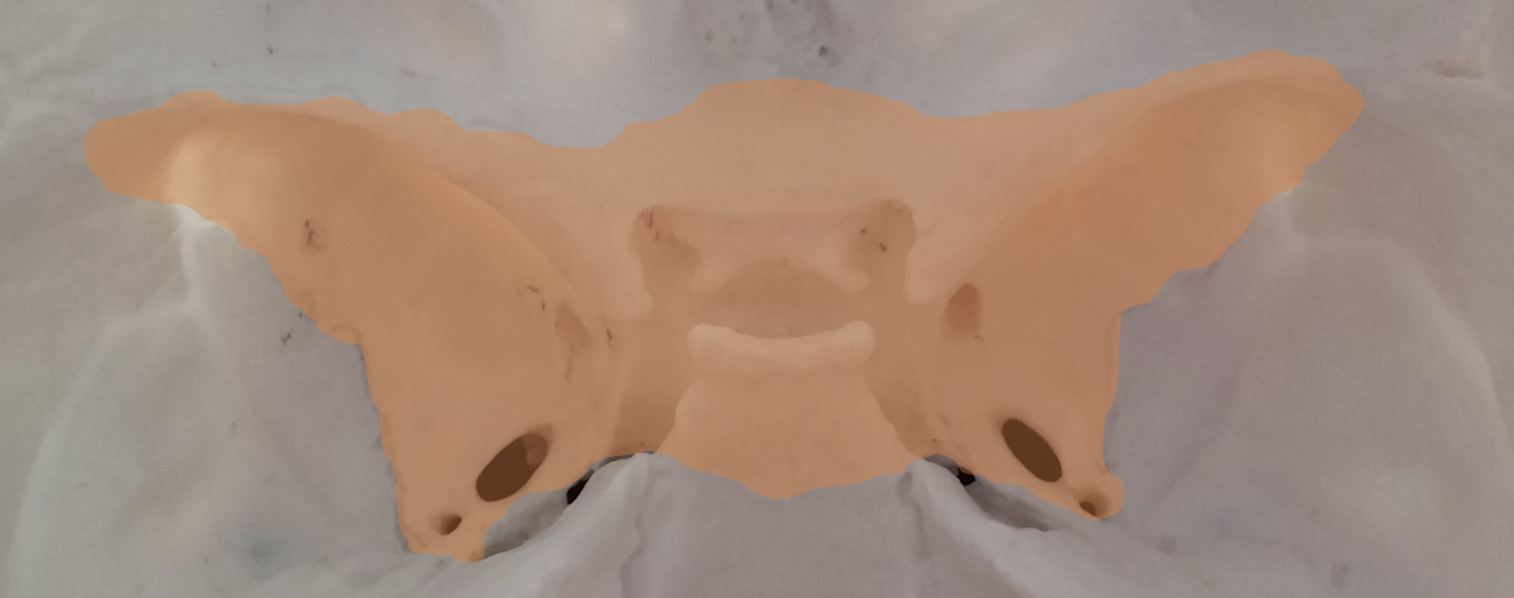

What is the orange region highlighted?

Sphenoid bone

In the following X-ray, what is the green region highlighted?

Sphenoid sinus

What is the blue region highlighted on the sphenoid bone?

Sella turcica

What is the yellow region highlighted on the sphenoid bone?

Hypophyseal fossa

What is bone indicated by the two arrows on the sphenoid bone?

Optic canal

What is the green region highlighted on the sphenoid bone?

Greater wing

What is the pink region highlighted on the sphenoid bone?

Lesser wing

What is the bone highlighted by the two red circles on the sphenoid bone?

Foramen rotundum

What is the bone highlighted by the two orange ovals on the sphenoid bone?

Foramen ovale

What is the bone highlighted by the two blue circles on the sphenoid bone?

Foramen spinosum

What is the bone indicated by the white line on the sphenoid bone?

Foramen lacerum

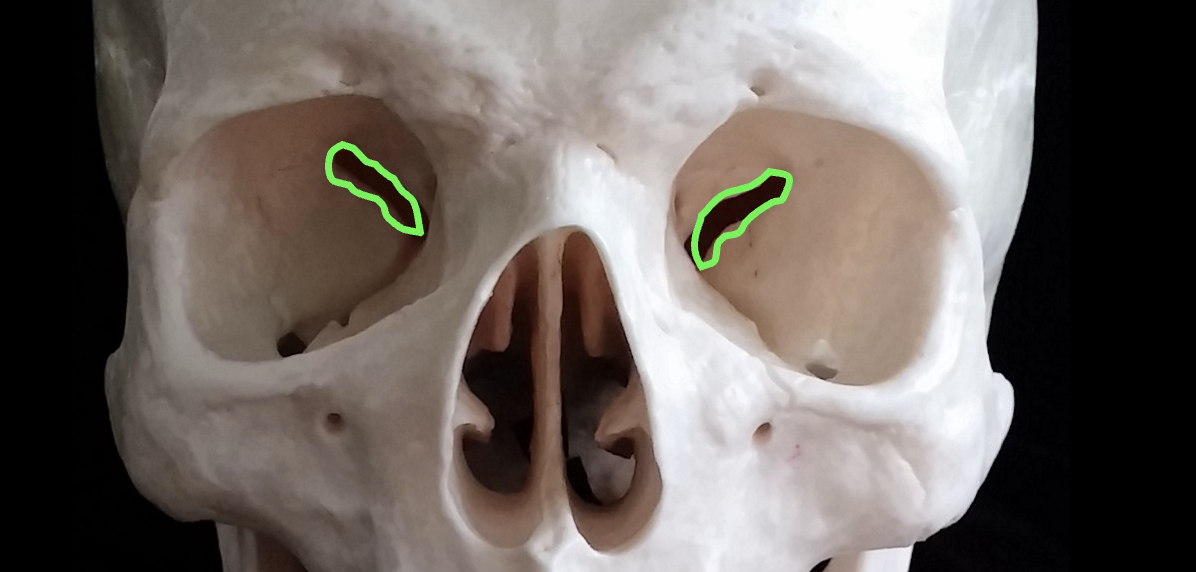

What is the green region highlighted on the sphenoid bone?

Superior orbital fissure

What is the bone indicated by the white line on the sphenoid bone?

Medial pterygoid plate

What is the bone indicated by the white line on the sphenoid bone?

Lateral pterygoid plate

In the x-ray, what is the blue region highlighted on the ethmoid bone?

Ethmoid sinuses

What is the yellow region highlighted on the ethmoid bone?

Ethmoid bone

What is the green region highlighted on the ethmoid bone?

Cribriform plate

What is the pink region highlighted on the ethmoid bone?

The crista Galli

What is the yellow region highlighted on the ethmoid bone?

Perpendicular plate

What is upper green region highlighted on the ethmoid bone?

Middle nasal concha

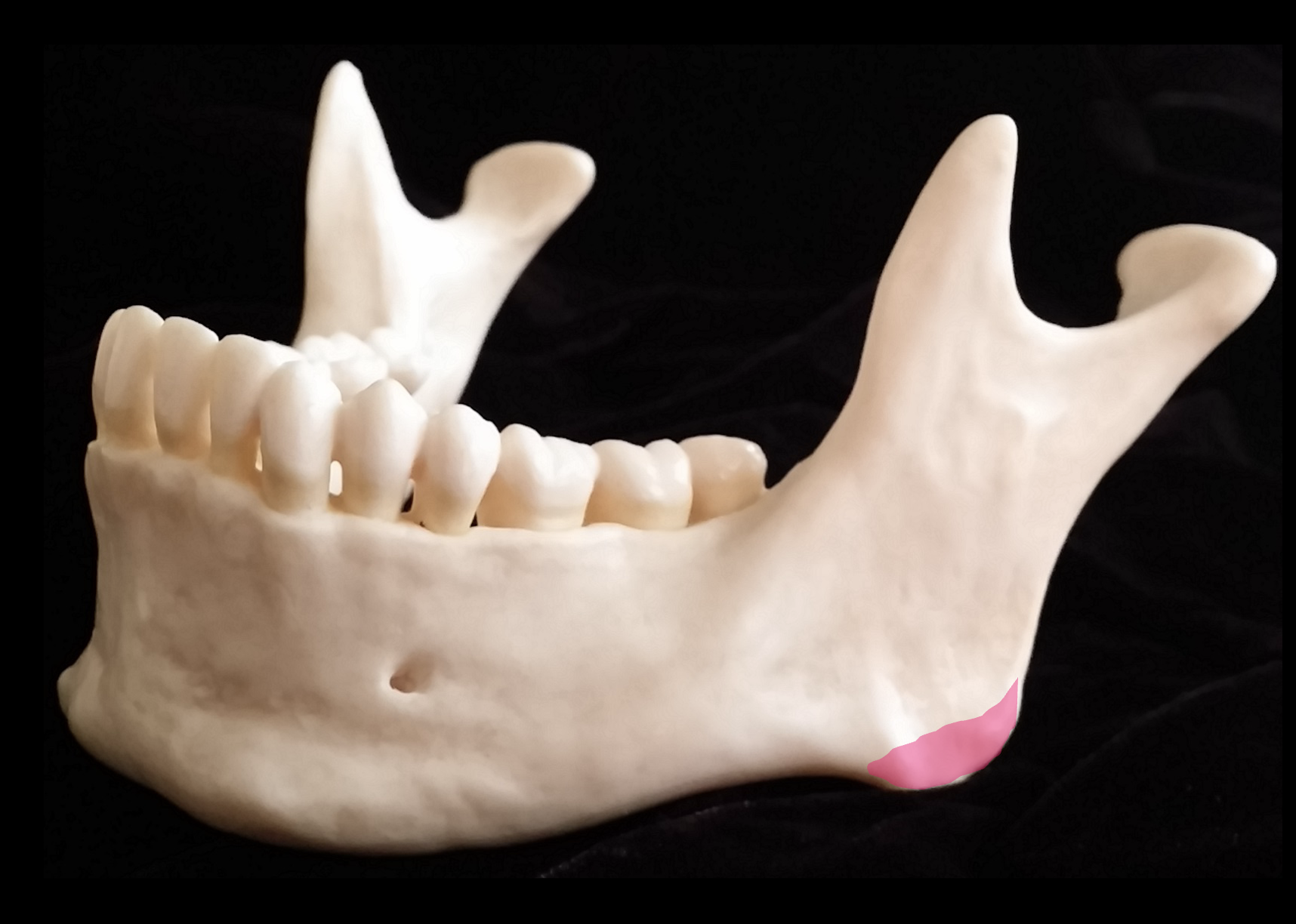

What is the pink region highlighted on the mandible?

Mandibular angle

What is the red region highlighted on the mandible?

Mandibular condyle

What is the blue region highlighted on the mandible?

Body

What is the yellow region highlighted on the mandible

Ramus

What is the orange region highlighted on the mandible

Coronoid process of the mandible

What is the green region highlighted on the mandible?

Mandibular notch

What is the red region highlighted on the mandible

Alveolar process of the mandible

What is the bone highlighted by the black circle on the mandible?

Mental foramen

What is the bone highlighted by the red circle on the mandible?

Mandibular foramen

On the x-ray, what is the blue region highlighted on the maxillary bone?

Maxillary sinus

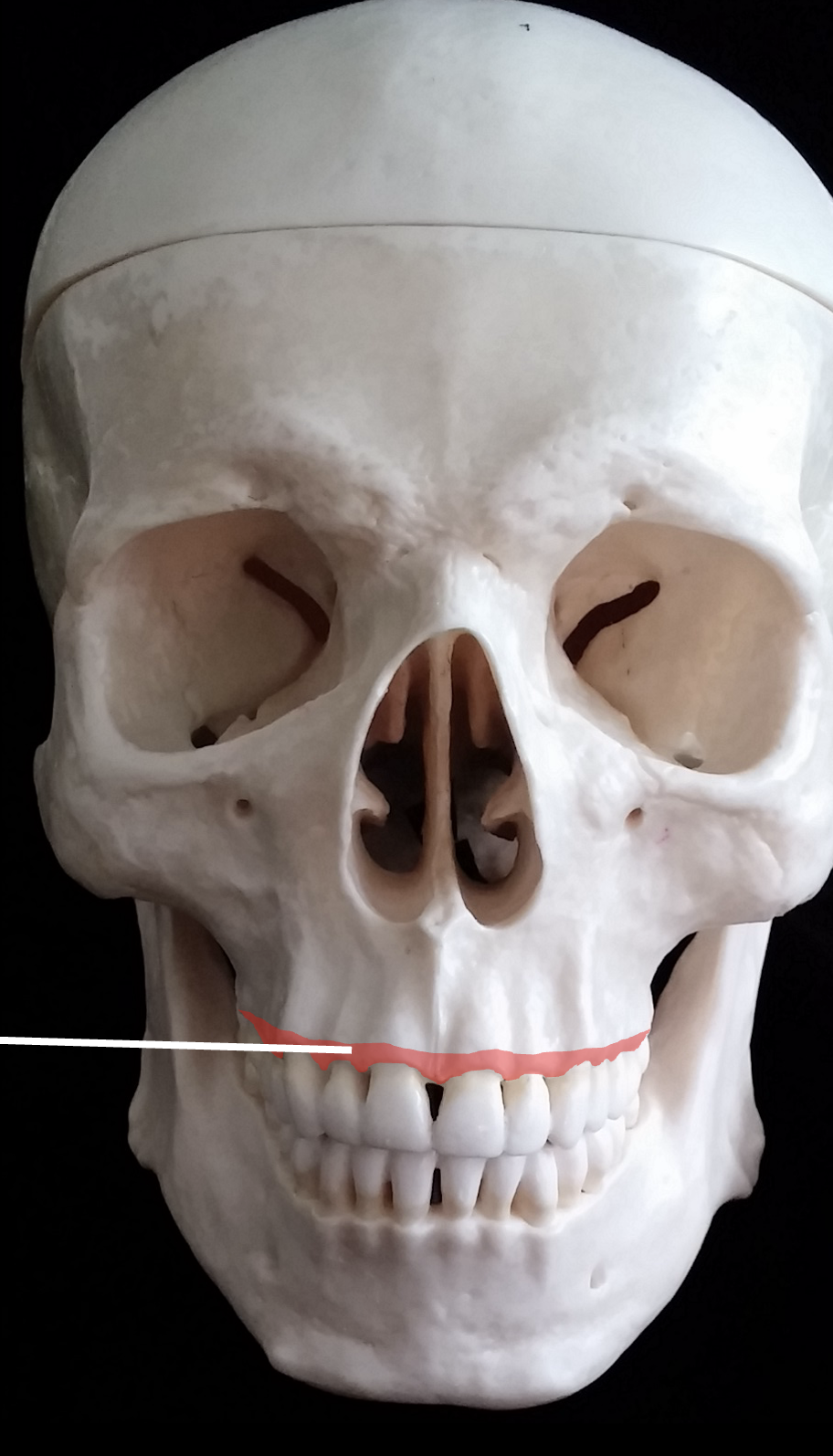

What is the red region highlighted on the maxillary bone?

Alveolar process of the maxillary bone

What is the bone highlighted by the green circle on the maxillary bone?

Infraorbital foramen

What is the green region highlighted on the zygomatic bone?

Temporal process of the zygomatic bone

What is the purple region highlighted?

Vomer

What is the name of the bone?

Hyoid bone

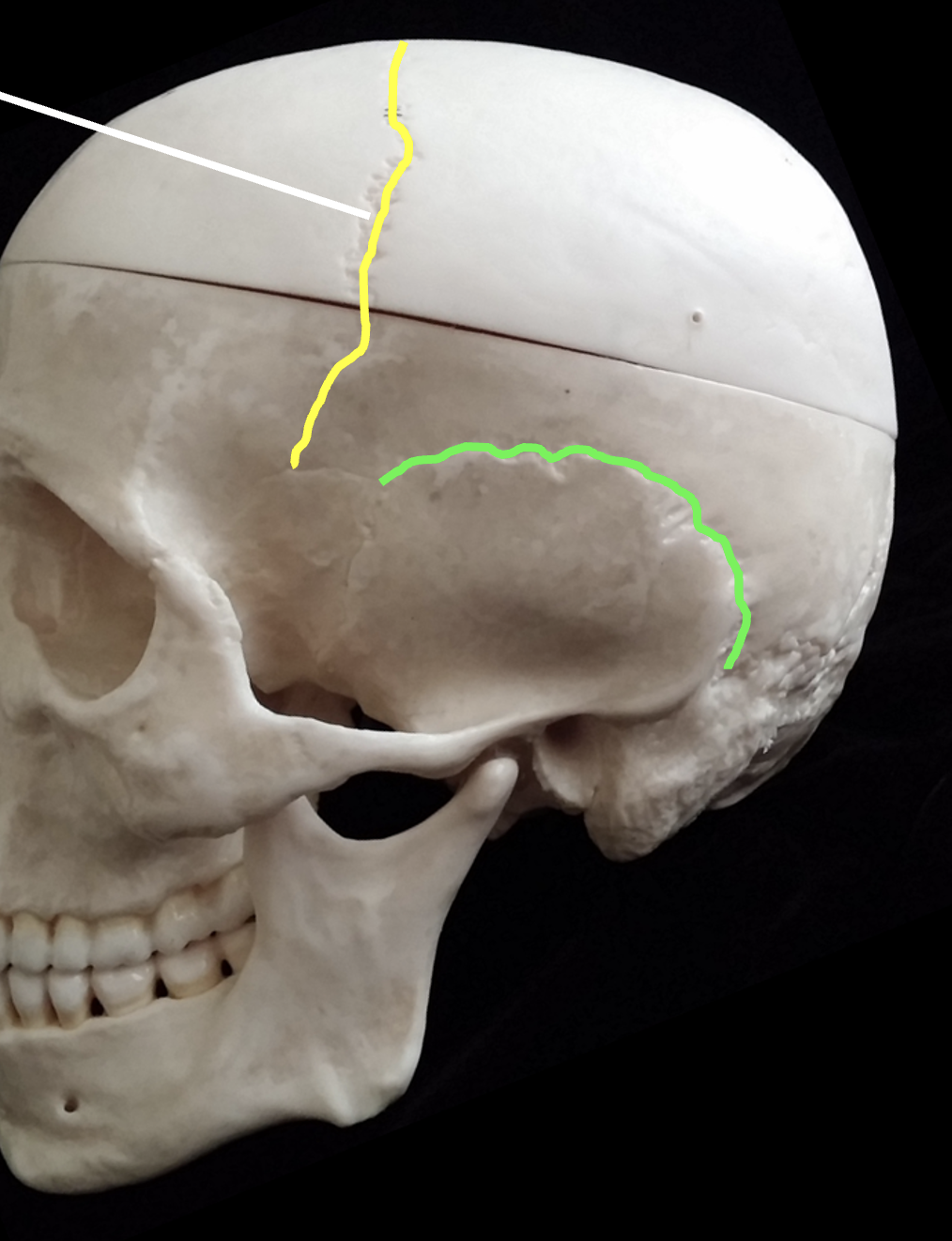

What is the suture highlighted?

Coronal suture

What is the suture highlighted in red?

Sagittal suture

What is the suture highlighted?

Squamous suture

What is the suture highlighted in blue?

Lambdoidal suture

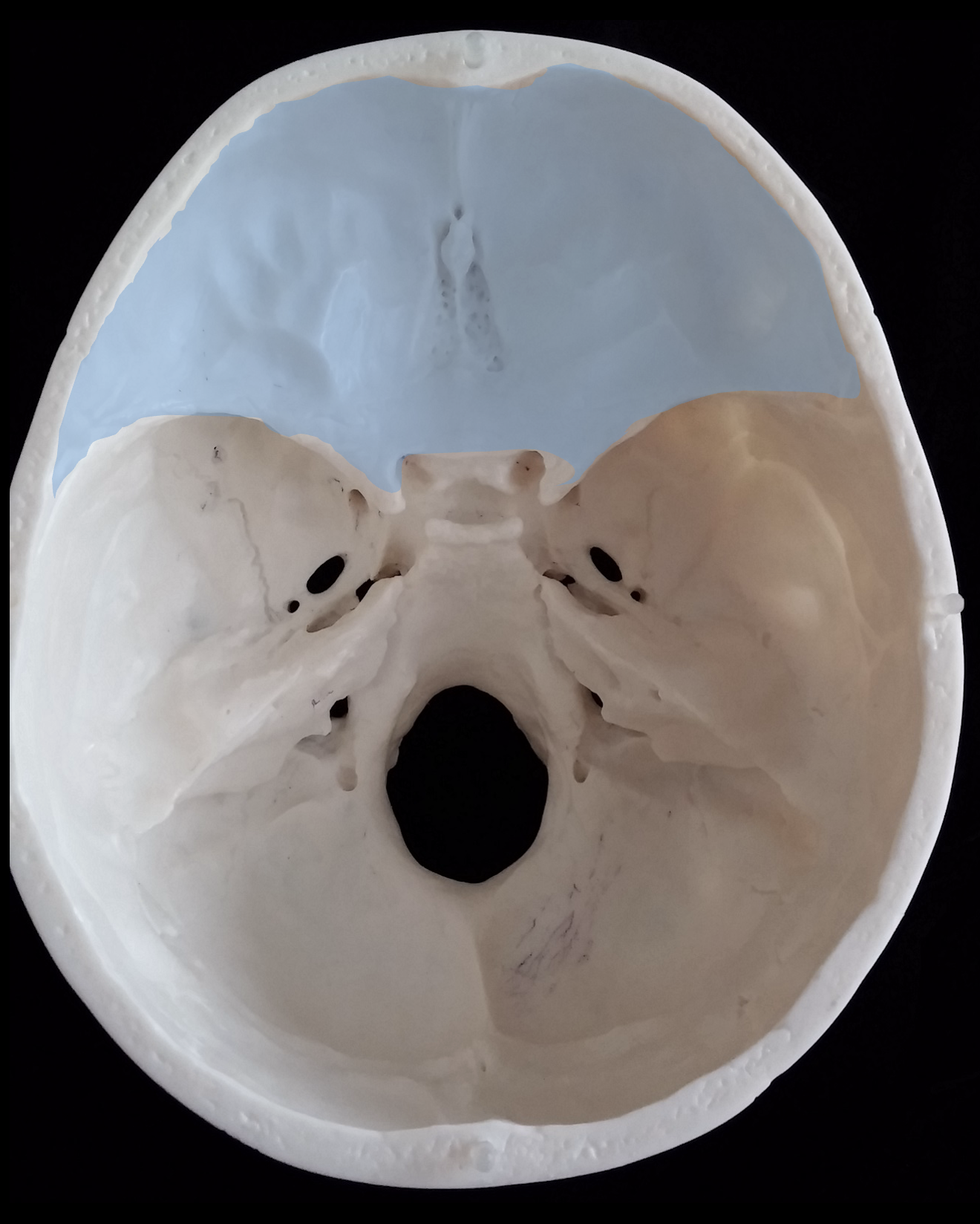

What is the cranial fossae highlighted in blue?

Anterior cranial fossa

What is the cranial fossae highlighted in yellow?

Middle cranial fossa

What is the cranial fossae highlighted pink?

Posterior cranial fossa
