Ultrasound Display Modes and Imaging Systems

Vocabulary flashcards covering ultrasound display modes (A, B, M, and 2-D), scanning techniques, resolution principles, recording equipment, and digital communication systems like DICOM and PACS.

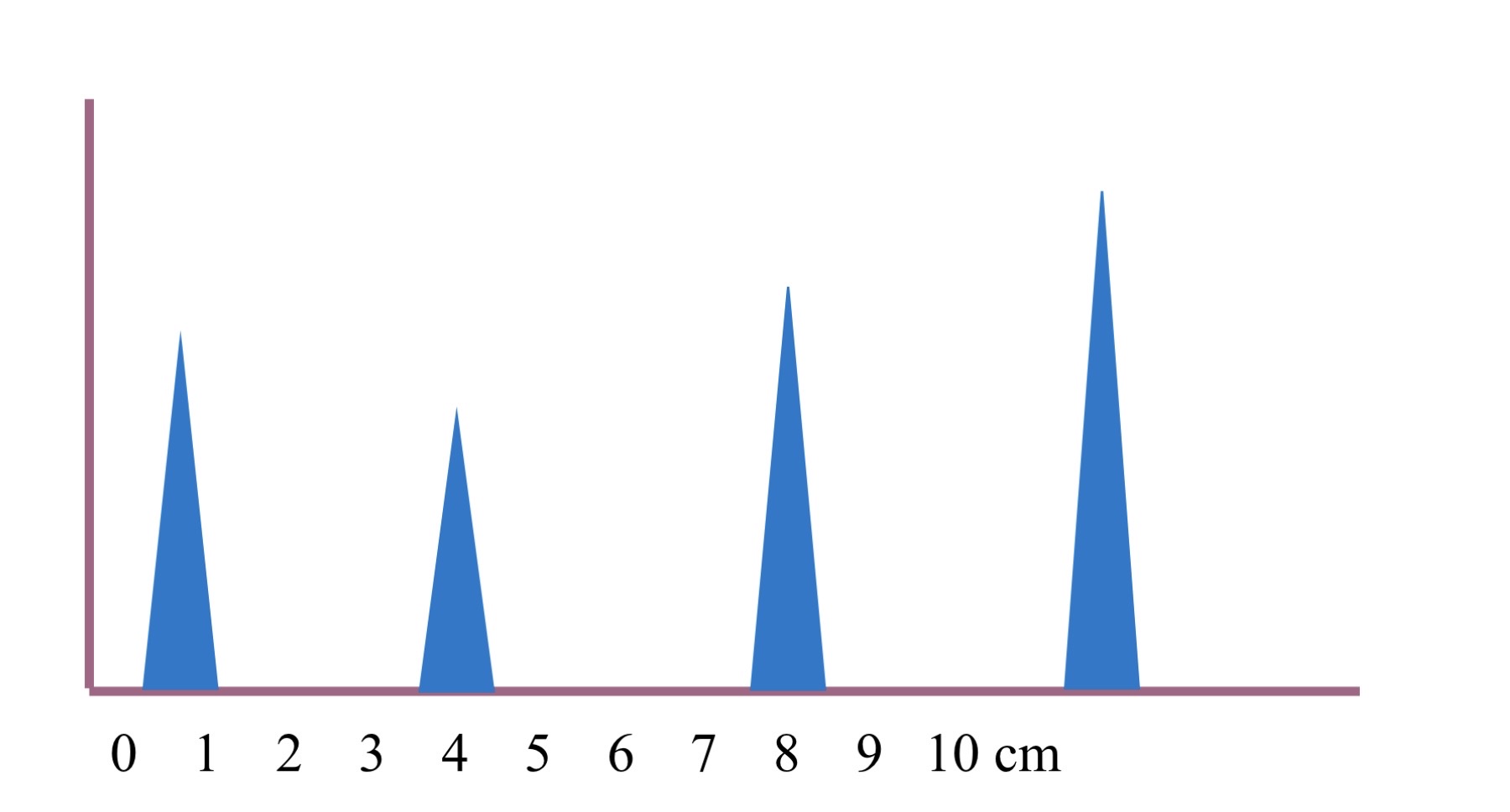

A Mode is also known as?

Also known as amplitude mode.

A mode was original display mode for ?

US

In A mode each spike represents a

reflector or Interface in the body.

In A mode the higher the spike ?

Higher the amplitude the stronger the reflector and show depth image

A mode still used in

Ophthalmic studies also really archaic

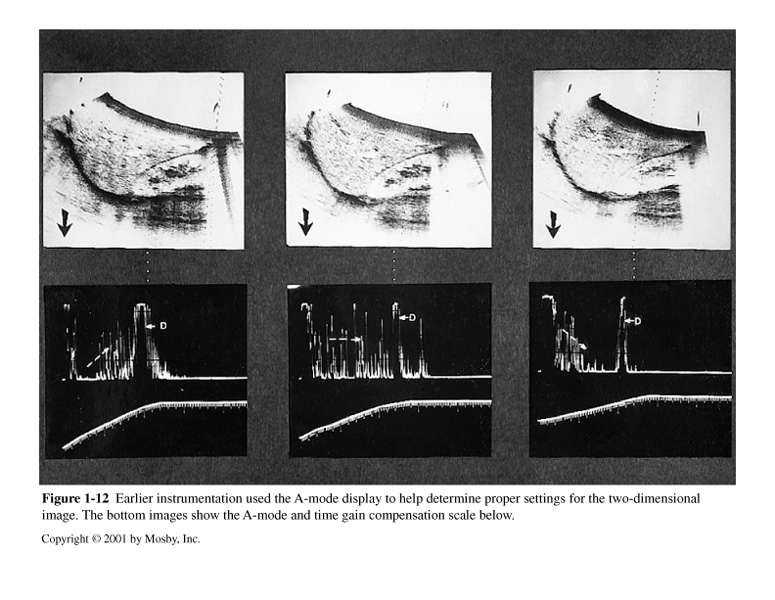

What does these image describes?

A mode

B Mode also know ?

Also known as brightness mode.

B Mode is a series of ?

Series of dot

In B mode each dot represents a

Reflector or interface in the body.

In B mode the brighter the dot. Also represent ?

The stronger the reflector. Also still represents depth along the horizontal axis

M Mode also known as ?

Also known as motion mode.

In M mode straight lines indicates

No reflector motion

In motion mode moving lines indicates

Motion

M mode used most commonly with

Heart imaging

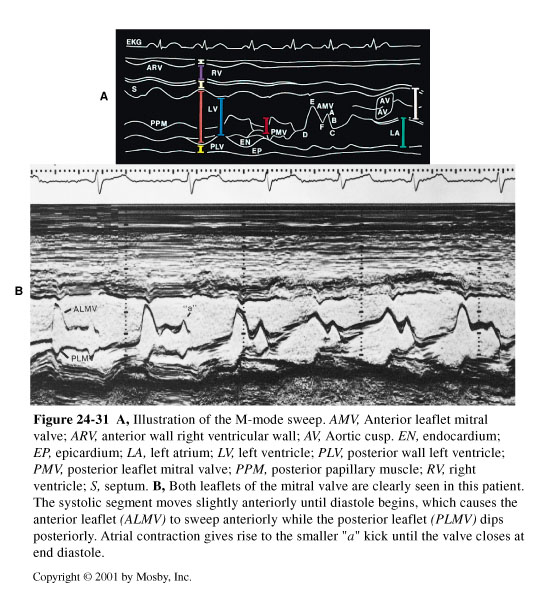

This is image is example of ?

M mode/ motion mode

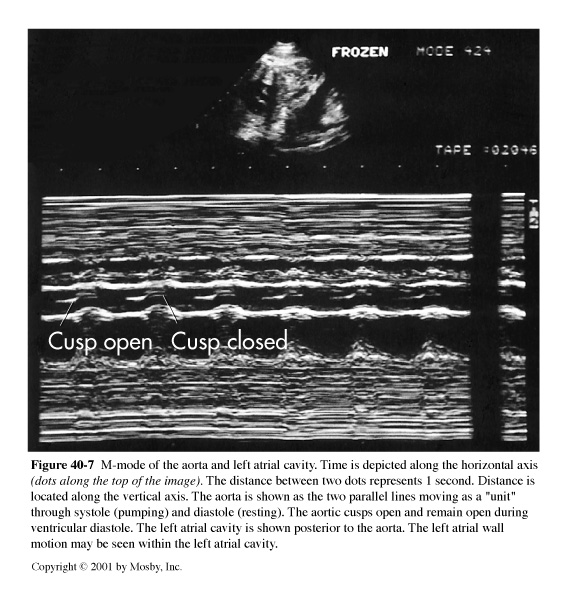

This is image is example of ?

M mode

What is B Scan?

A method where B mode is combined with scanning motion.

B mode dots are image

In a vertical lines

In scan line many vertical lines

Place side by side

In B scan dots represent ?

Depth and location or position within the body and forms a a 2 dimensional image

What are the two types of B scan

Static scanning

Real time of dynamic

Static Scanning

Also called compound or contact scanning, it uses a transducer mounted on an articulated arm that a Sonographer physically moves to 'paint' an image on the screen; it cannot display motion.

Real-Time Scanning

Also called dynamic scanning, the sound beam is swept mechanically or electronically to produce a series of frames in rapid sequence, creating a motion picture effect.

Frame Rate

The number of images produced per second, measured in units of per second or $Hz$; the average is $30$ frames per second.

Flicker Threshold

The human eye can perceive flickering up to $15$ images per second; above this rate, the image appears dynamic or real-time.

Line Density

The number of scan lines used to create a single frame; greater density improves detail resolution but requires more time to create the frame.

Multi-focus Scanning

A process where multiple scan lines are created for each position prior to moving; for example, 3 focal zones require 3 scan lines.

PRF Penetration Equation

The relationship used to avoid range ambiguity, defined as $\text{penetration (cm)} \times \text{PRF (kHz)} < 77$.

Temporal Resolution

The ability of a display to distinguish closely spaced events in time; it improves with an increased frame rate.

Coded Excitation

A technique utilizing ensembles of pulses to generate a scan line with a decoder that interprets the code, resulting in higher intensity driving pulses and a more sensitive receiving system.

Harmonics

A type of filtering that removes the fundamental frequency to improve images by narrowing the primary beam, eliminating grating lobes, and reducing artifacts.

Pulse Inversion

A method using two pulses per scan line (one being the inverse of the first) to improve detail resolution, though it compromises temporal resolution.

Elastography

A technique that estimates tissue stiffness, often called 'imaging' palpation, used to evaluate masses for malignancy and assess myocardium viability.

Fusion Imaging

The combined presentation of an ultrasound image with another imaging modality.

Tissue Doppler

A mode used specifically to measure the movement of muscle.

Laser Film

A recording medium providing superior image quality with $256$ to $4096$ shades of gray, typically used in $14 \times 17$ size.

Color Video Printer

A device that heat-processes images onto paper using cyan, magenta, and yellow ribbons; all three colors together make black.

VCR (Video Cassette Recorder)

A recording device where standard VHS tapes can record $240$ lines and Super VHS tapes can record $425$ lines.

DICOM (Digital Imaging and Communication in Medicine)

A standardized file format and communication protocol for patient data and images, allowing transmission over networks between multiple modalities and PACS.

PACS (Picture Archiving and Communication Systems)

A system consisting of digital acquisition, display workstations, and storage devices interconnected through a Local Area Network (LAN) to handle digital information.

Teleradiology

A PACS application involving the electronic transfer of images from one location to another, allowing physicians to review exams remotely.
