types of angles part 2

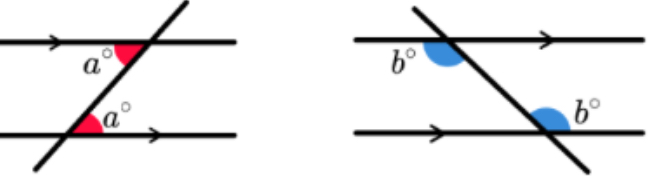

Alternate angles (Z shape)

equal angles, on opposite sides of the transversal line

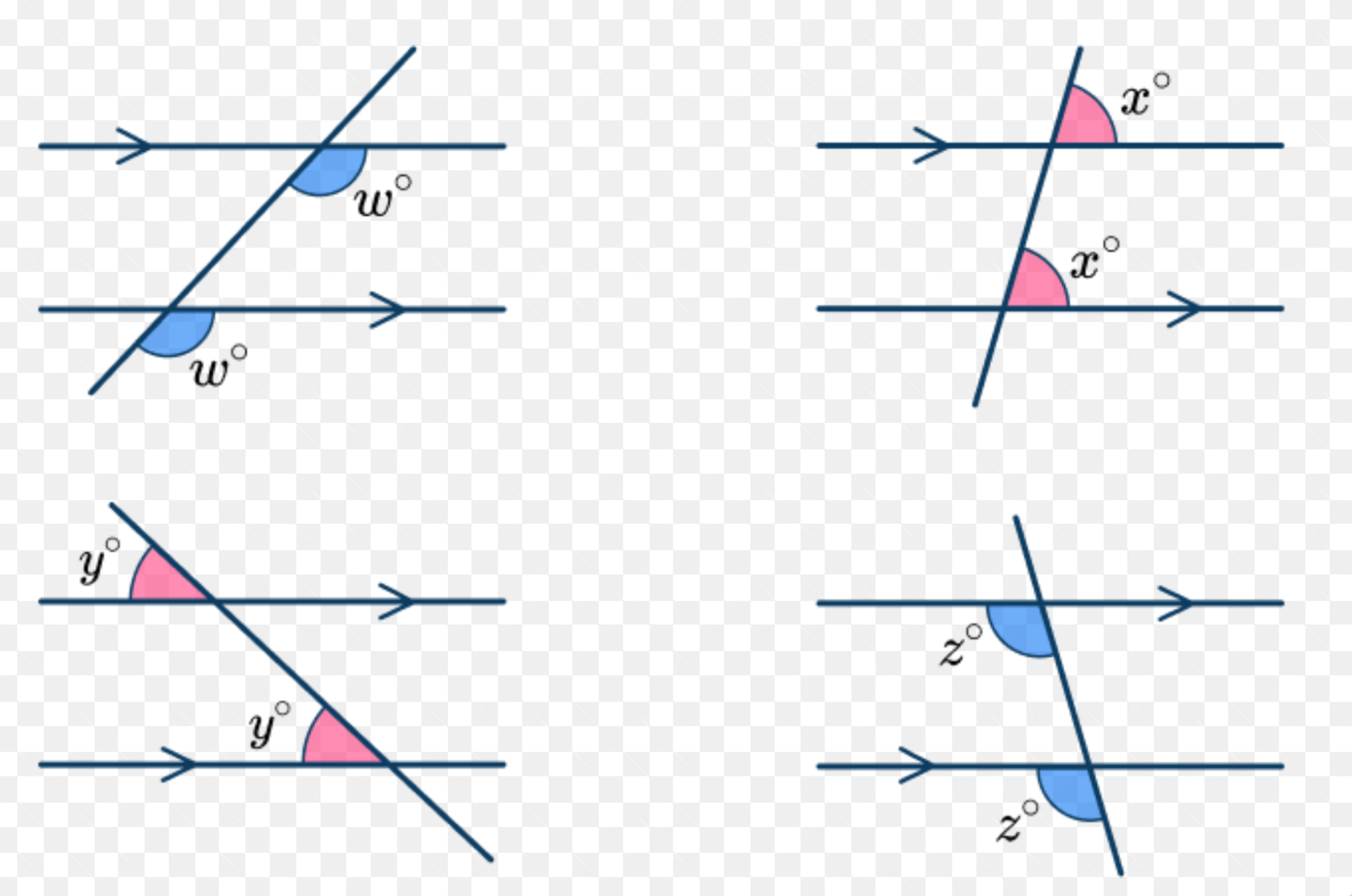

Corresponding angles (F shape)

equal angles,same position at each intersection

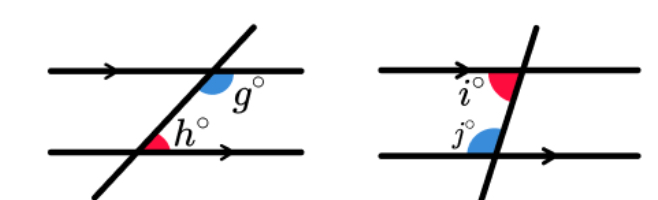

Co-interior angles (C shape)

Inside parallel lines,same side of transversal, add up to 180

Complementary Angles

two angles that add up to 90, can be next to each other or seperate

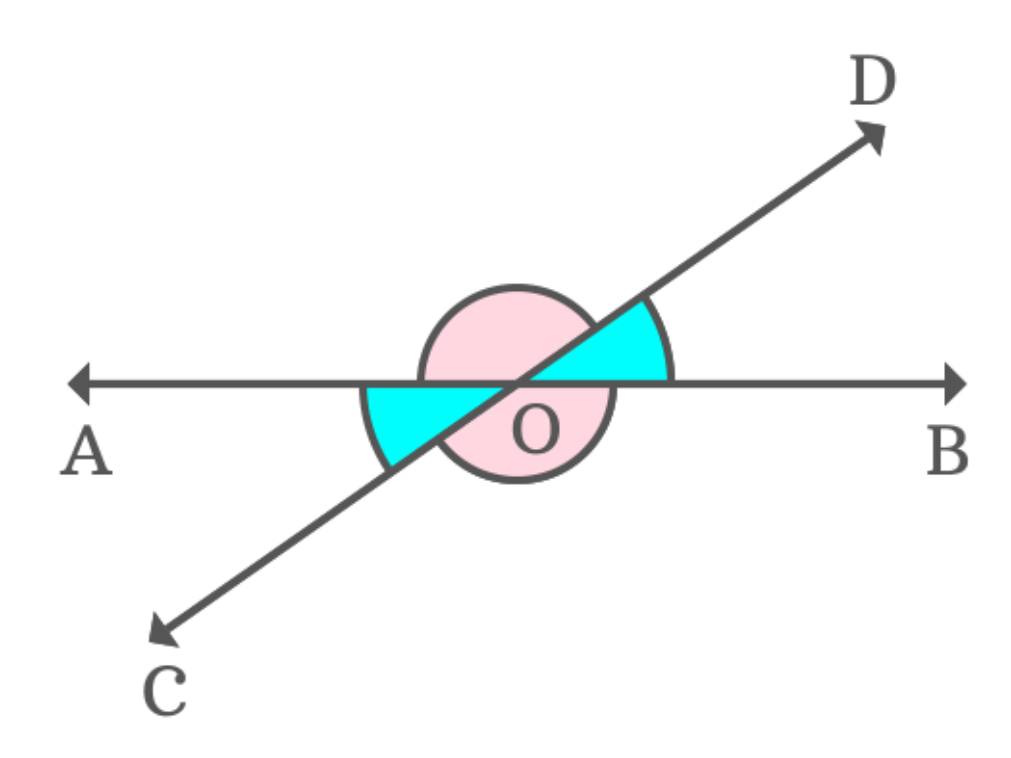

Vertically opposite angles (X)

Equal angles,

Is an alternate equal?

Yes

Is corresponding an F or C and is it equal

F and equal

Co interior adds up to;

180
