Electrical potential energy

0.0(0)
studied byStudied by 0 people
full-widthCall with Kai
GameKnowt Play
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/36

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

37 Terms

1
New cards

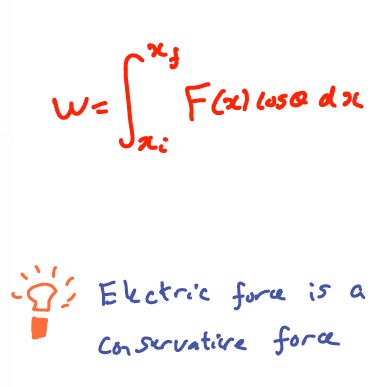

What is the formula for Greg?

knowt flashcard image
2
New cards

Is Electrical force (Coulomb) conservatives?

Closed line integral = 0

<p>Closed line integral = 0</p>
3
New cards

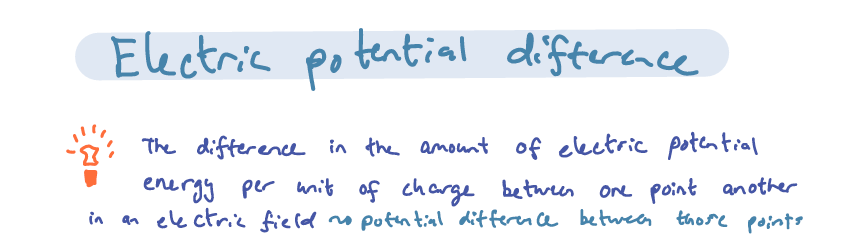

What is electrical potential difference?

knowt flashcard image
4
New cards

What is the formula for electrical potential difference?

knowt flashcard image
5
New cards

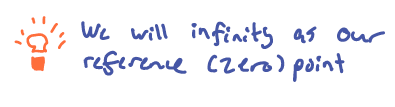

Where do we set our reference point for electrical potential energy?

knowt flashcard image
6
New cards

What do we mean by potential at a point

It is the difference between that point and reference point (0)

<p>It is the difference between that point and reference point (0)</p>
7

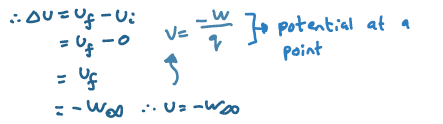

New cards

What is electrical potential?

knowt flashcard image
8
New cards

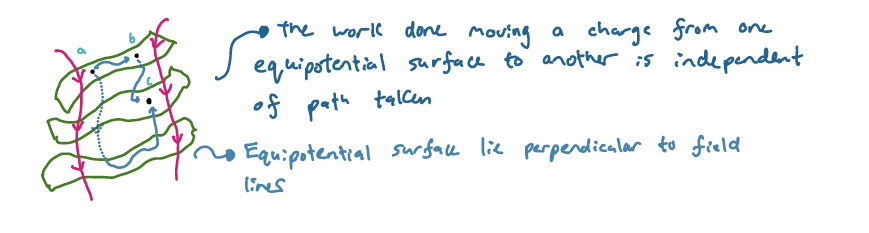

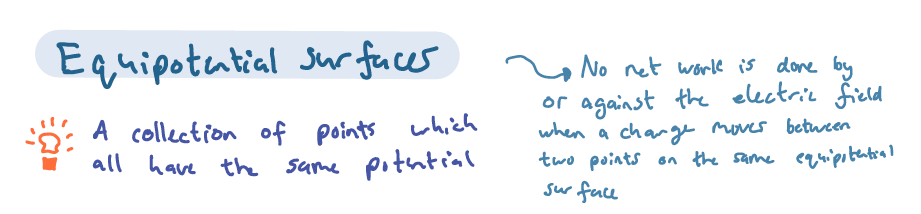

What is equipotential surface?

knowt flashcard image
9
New cards

What is the angle between electrical field and equipotential surface?

Orthogonal

<p>Orthogonal</p>
10
New cards

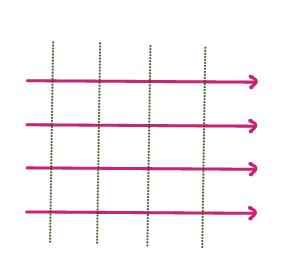

What is the equipotential contours for uniform electrical field?

knowt flashcard image
11
New cards

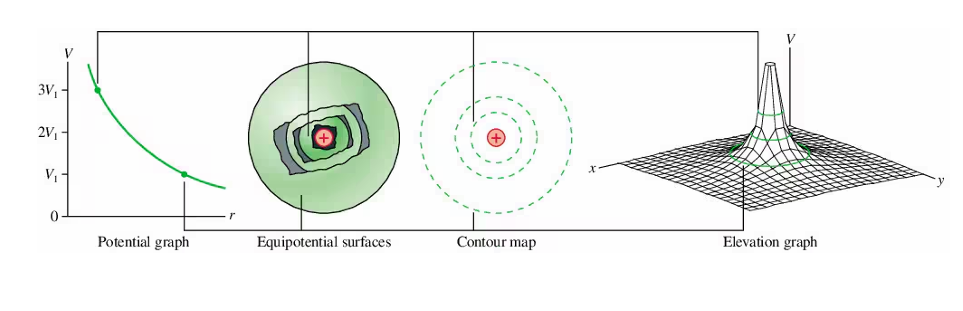

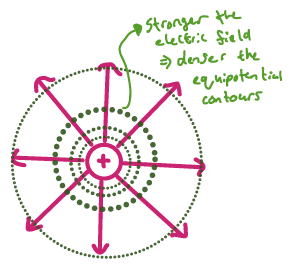

What is the equipotential contours for electrical charge?

knowt flashcard image
12

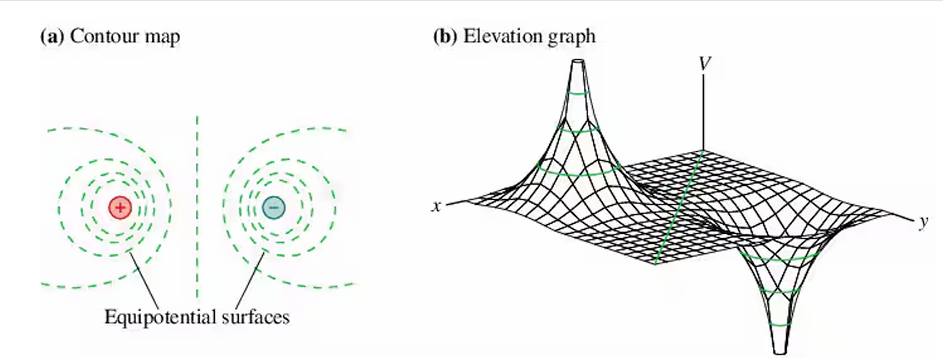

New cards

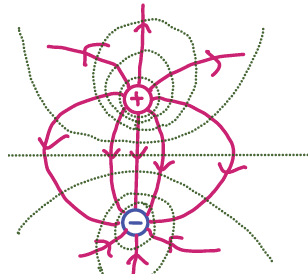

What is the equipotential contours for two opposite electrical charges?

knowt flashcard image
13
New cards

As you get closer to a positive charge → does the potential energy increase or decrease

Increase (test charge) → work done against the field to place the test charge closer to the positive charge

<p>Increase (test charge) → work done against the field to place the test charge closer to the positive charge</p>
14
New cards

As you get closer to a negative charge → does the potential energy increase or decrease

Decrease (test charge) → work done by the field to get test charge closer to the negative charge

<p>Decrease (test charge) → work done by the field to get test charge closer to the negative charge</p>
15

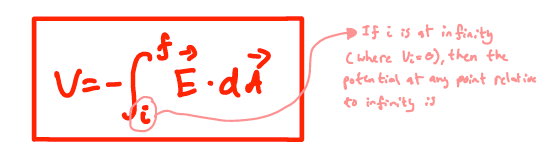

New cards

How to get the electrical potential difference from electrical field?

knowt flashcard image
16
New cards

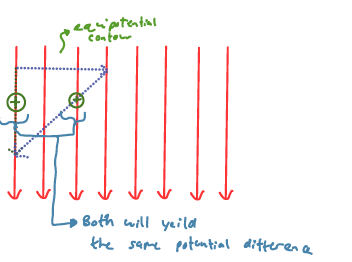

Will the electrical potential difference differ if you take different path (same initial and final point)

No

<p>No</p>
17

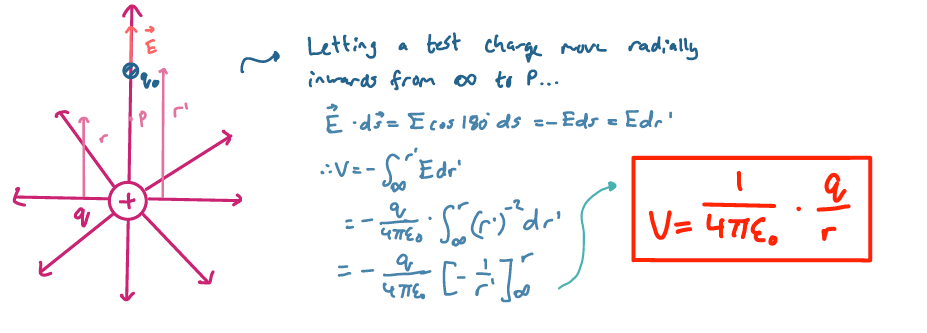

New cards

What is the electrical potential due to a point charge?

knowt flashcard image
18
New cards

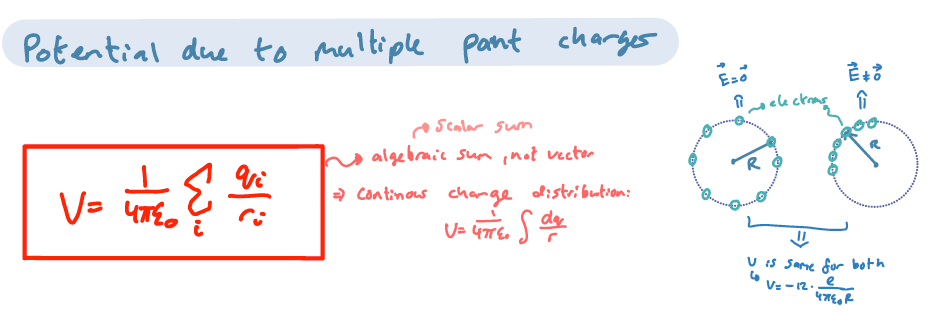

How to you add multiple electrical potential?

As scalars

<p>As scalars</p>
19
New cards

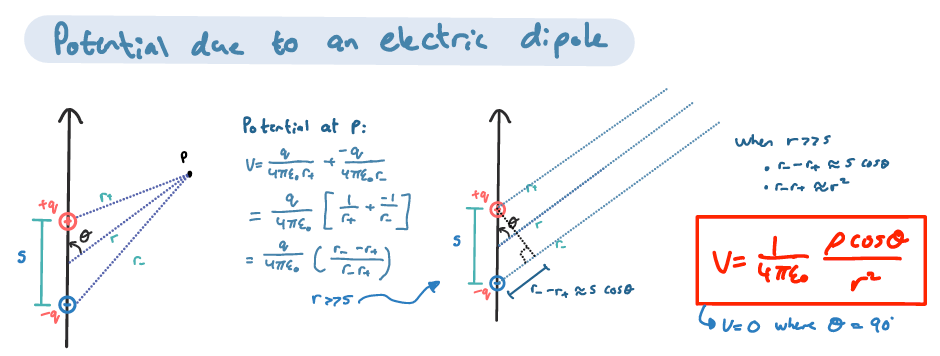

What is the electrical potential due to a electric dipole

knowt flashcard image
20
New cards

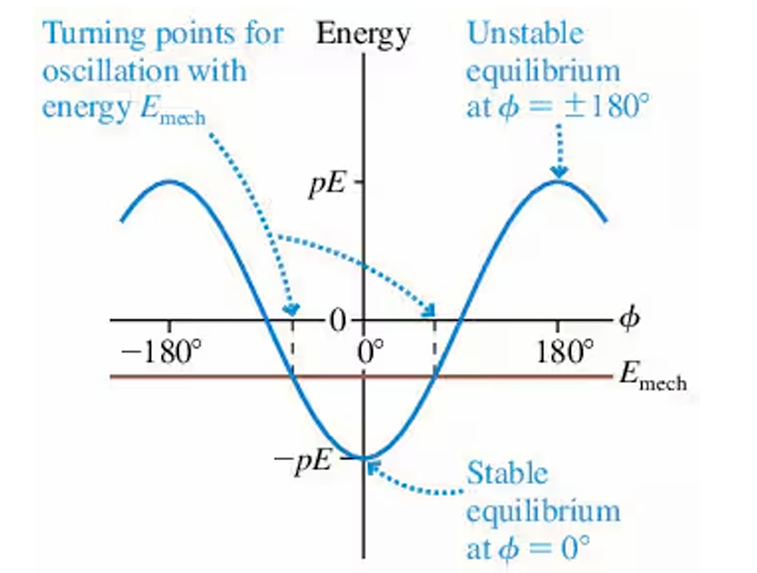

Draw a energy graph of an electric dipole

knowt flashcard image
21
New cards

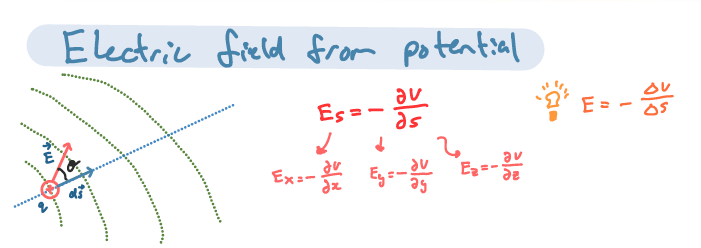

How do you find electrical field from electrical potential?

knowt flashcard image
22
New cards

What is the formula for electrical potential energy?

knowt flashcard image
23
New cards

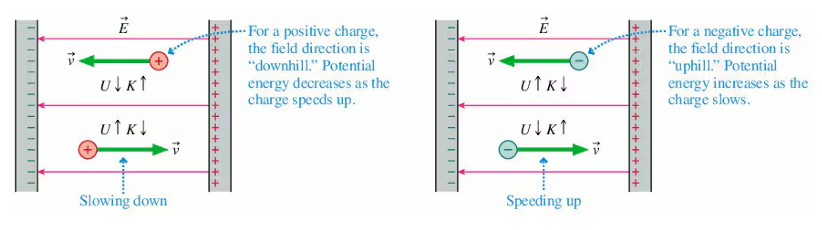

How does positive charge and negative charge behave in the same electrical field?

knowt flashcard image
24
New cards

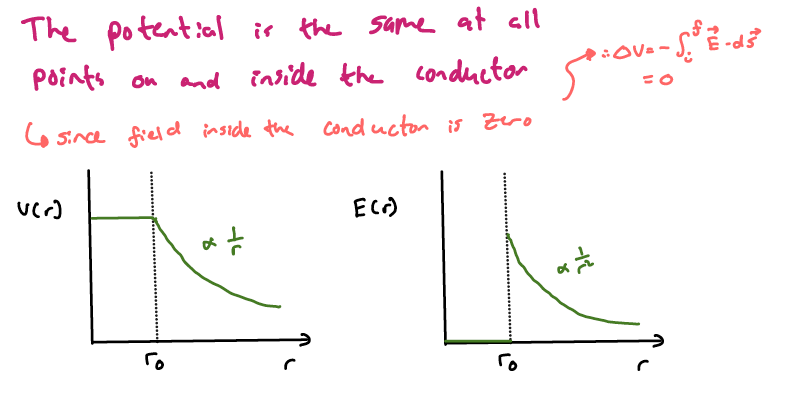

What is the electrical potential and electric fiend inside and outside a conductor

knowt flashcard image
25
New cards

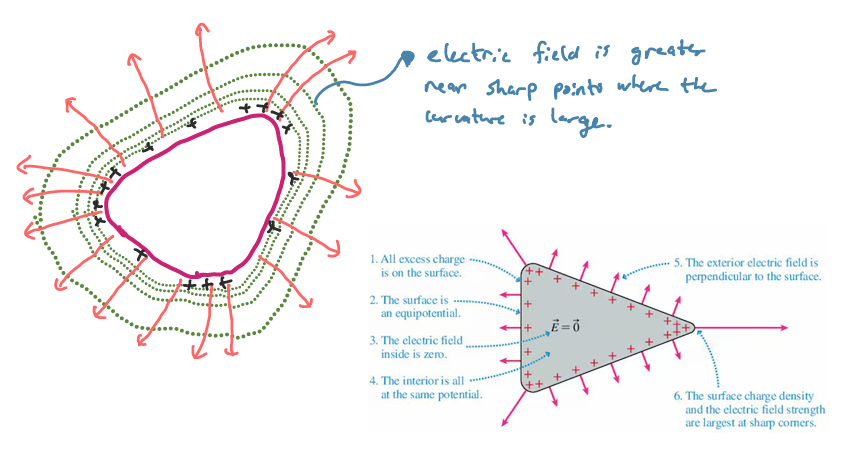

Why does charge build up at sharp edges?

knowt flashcard image
26

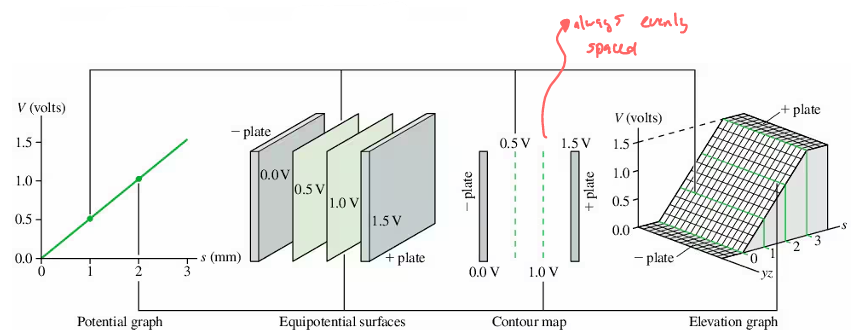

New cards

Are the equipotential contour evenly spaced in a capacitor?

Yes

<p>Yes</p>
27
New cards

What is the formula for charge in a capacitior?

knowt flashcard image
28

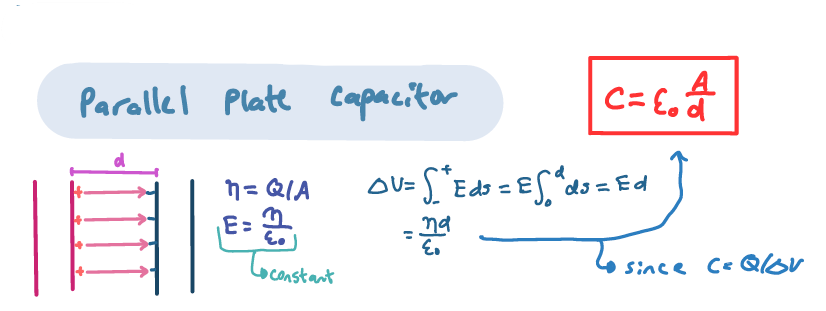

New cards

What is the formula for parallel plate capacitance?

knowt flashcard image
29
New cards

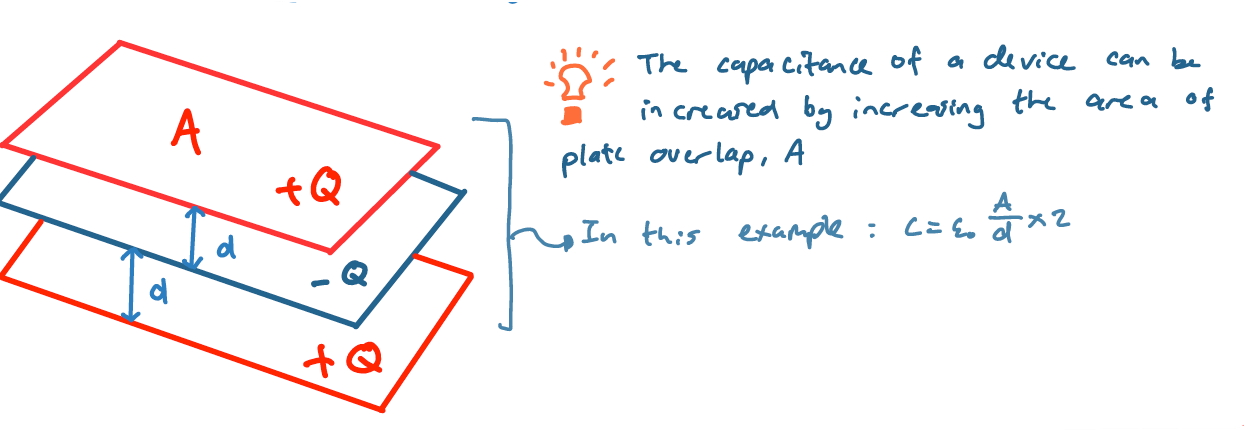

What happens if you stack alternating electric plate for capacitor?

knowt flashcard image
30
New cards

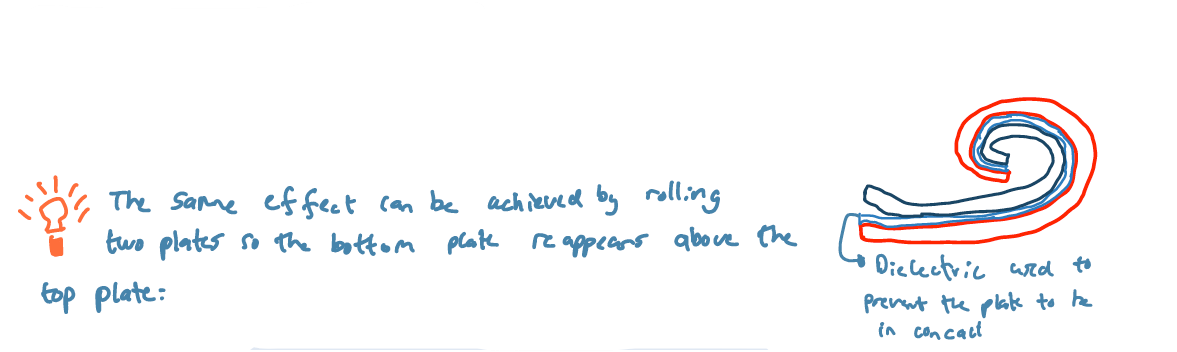

How will the capacitance be if you roll the plates?

knowt flashcard image
31
New cards

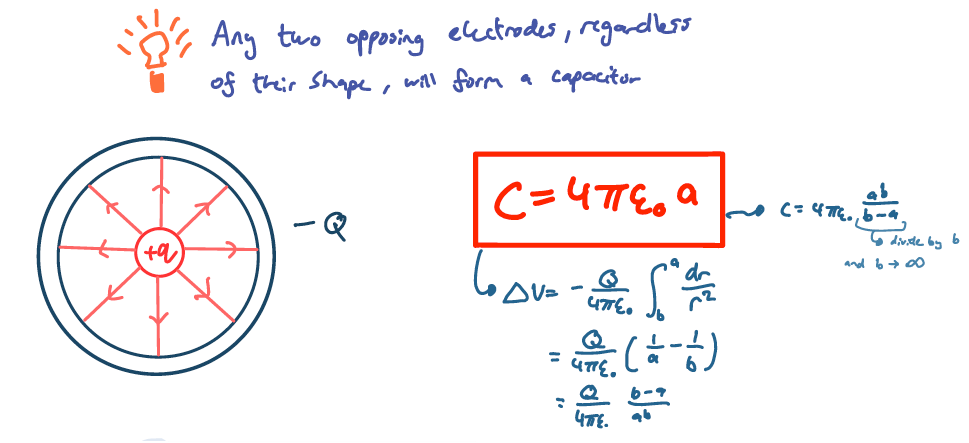

What is the formula for spherical capacitance?

knowt flashcard image
32
New cards

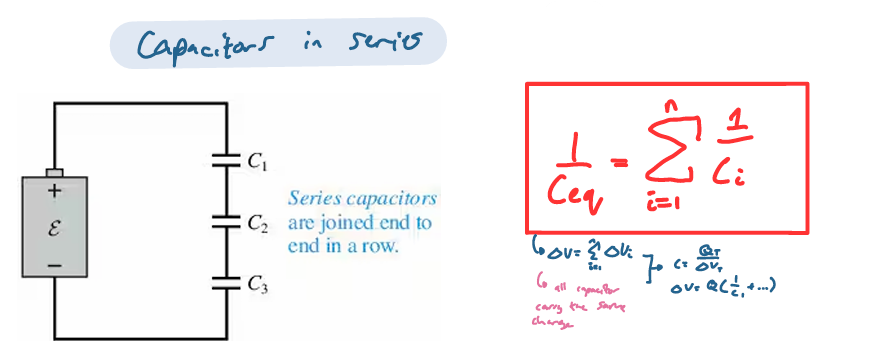

How do you add capacitors in series?

knowt flashcard image
33
New cards

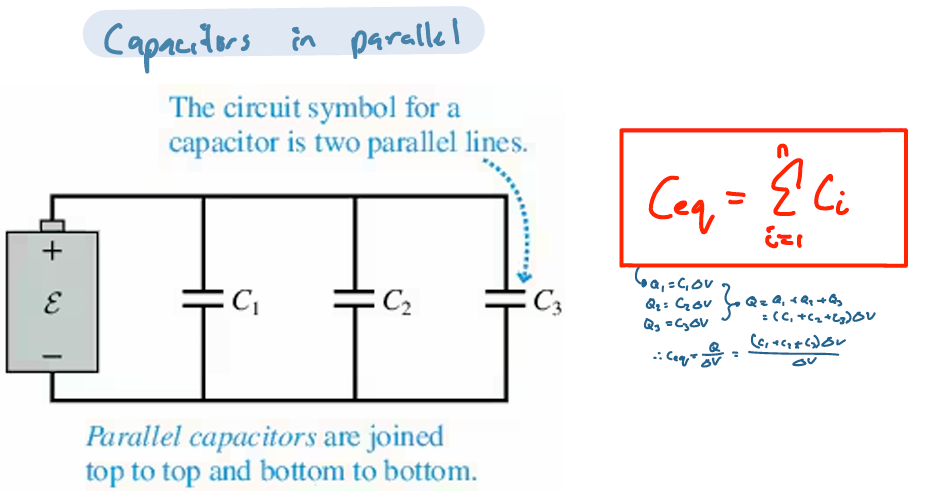

What is the formula for the sum of capacitor in parallel?

knowt flashcard image
34
New cards

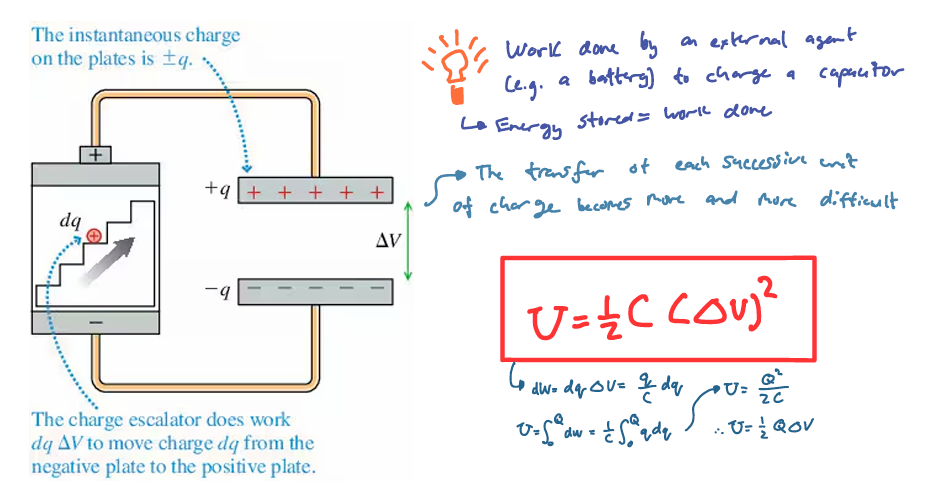

What is the formula for energy stored in a capacitor?

knowt flashcard image
35
New cards

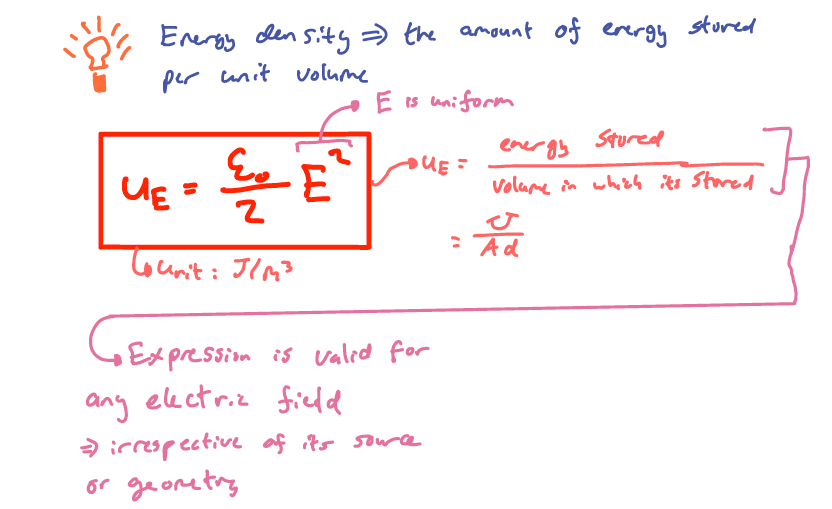

What is the formula for energy charge density?

knowt flashcard image
36
New cards

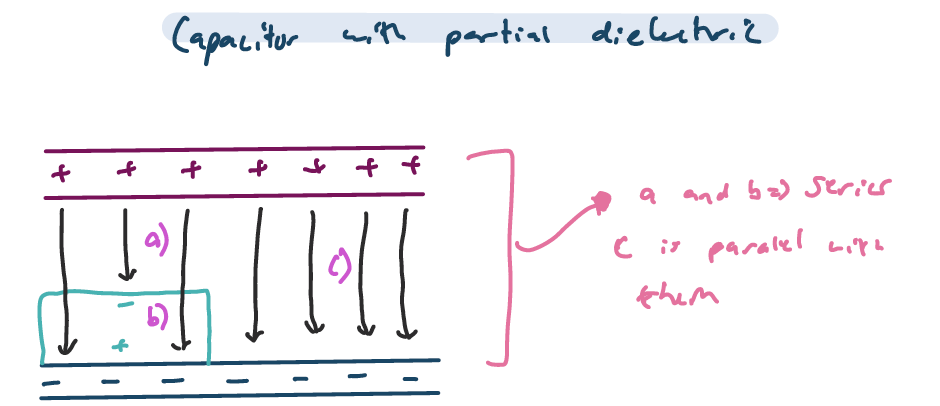

What happens if the dielectric does not fill up the whole capacitor?

knowt flashcard image
37
New cards

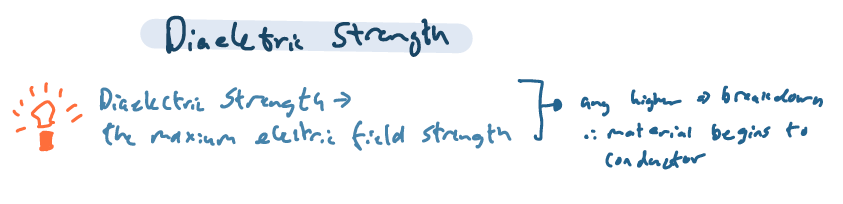

What is dielectric strength

knowt flashcard image
