D&T Topic: Hand Tools

Steel Rule

Measuring straight lines and lengths accurately

Try Square

Checking and marking 90° angles on wood/metal

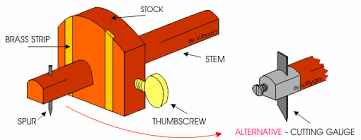

Marking Gauge

Marking parallel lines to edges on wood

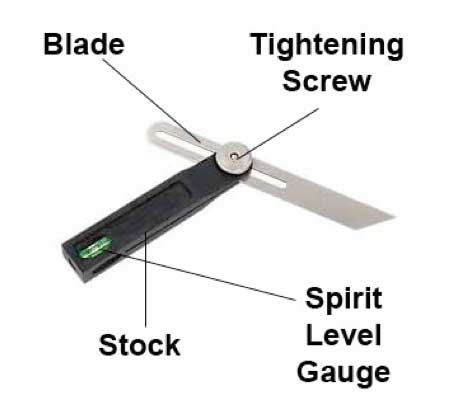

Sliding Bevel

Marking and transferring angles other than 90°

Dividers/Compass

Drawing circles or arcs, transferring measurements

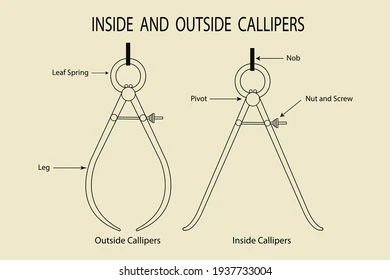

Calipers (inside/outside)

Measuring internal or external dimensions

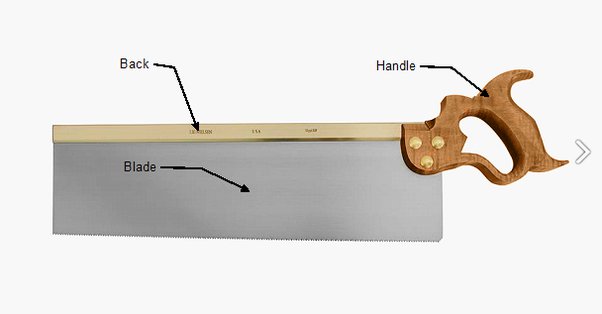

Tenon Saw

Cutting straight lines in wood, especially joints

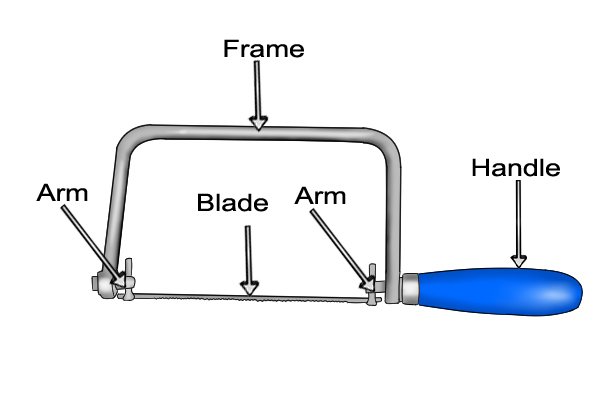

Coping Saw

Cutting curves and intricate shapes in wood/plastic

Chisels (Firmer, Bevel-edge, Mortise)

Cutting, shaping, or removing wood, especially joints

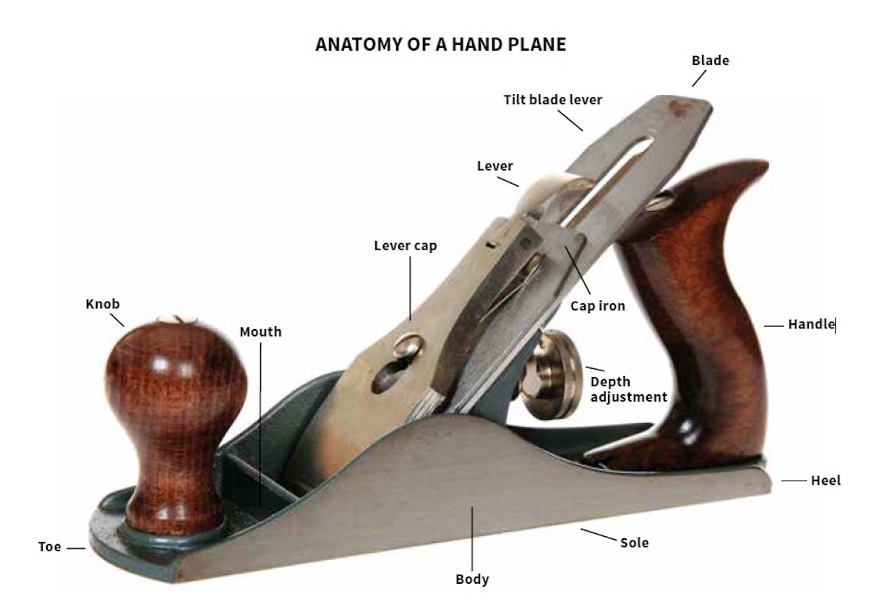

Hand Plane (Jack Plane, Block Plane)

Smoothing and flattening wood surfaces

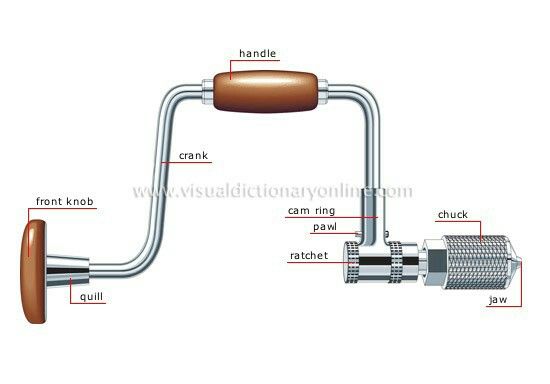

Hand Drill/Brace

Drilling holes manually in wood or metal

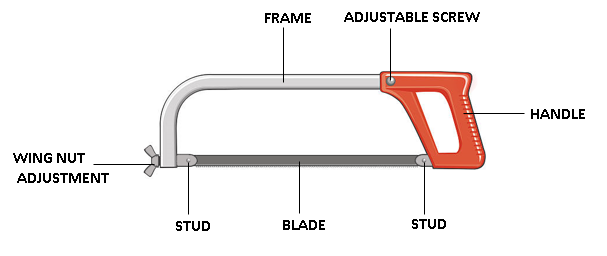

Hacksaw

Cutting metal rods, pipes, and plastics

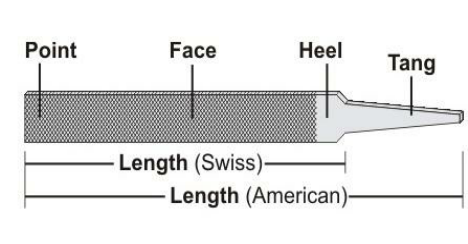

Files

Smoothing or shaping metal, plastic, or wood edges

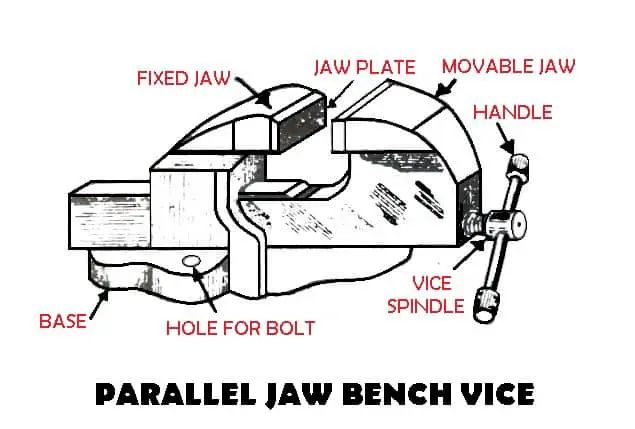

Bench Vice

Holding workpieces firmly on a workbench

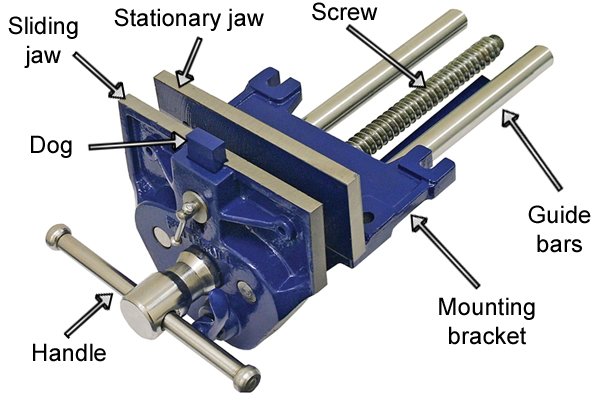

Woodworking Vice

Holding wood securely while cutting or shaping

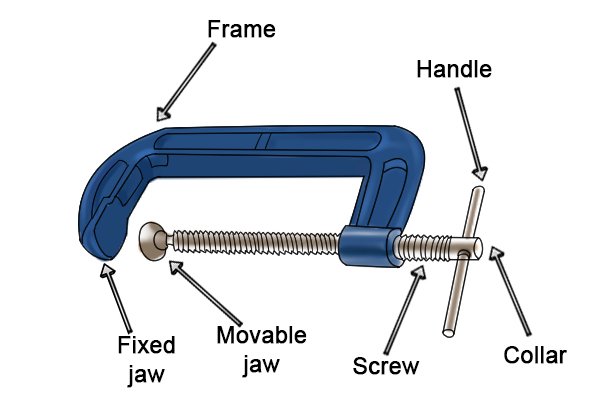

G-Clamp

Temporary holding of materials together during work

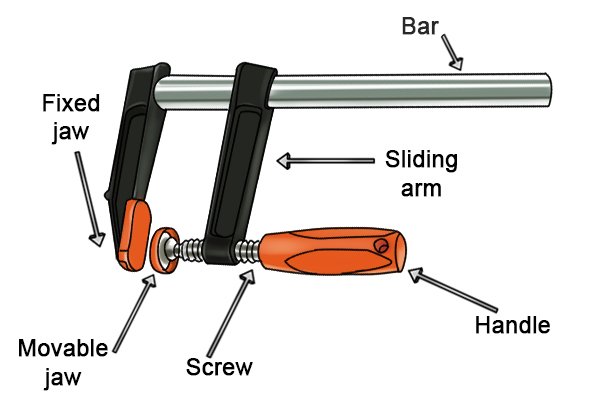

F-Clamp/Bar Clamp

Clamping larger workpieces or assemblies

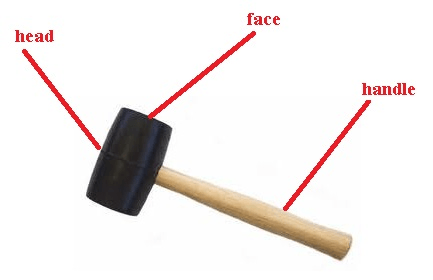

Mallet

Striking chisels or adjusting joints without damage

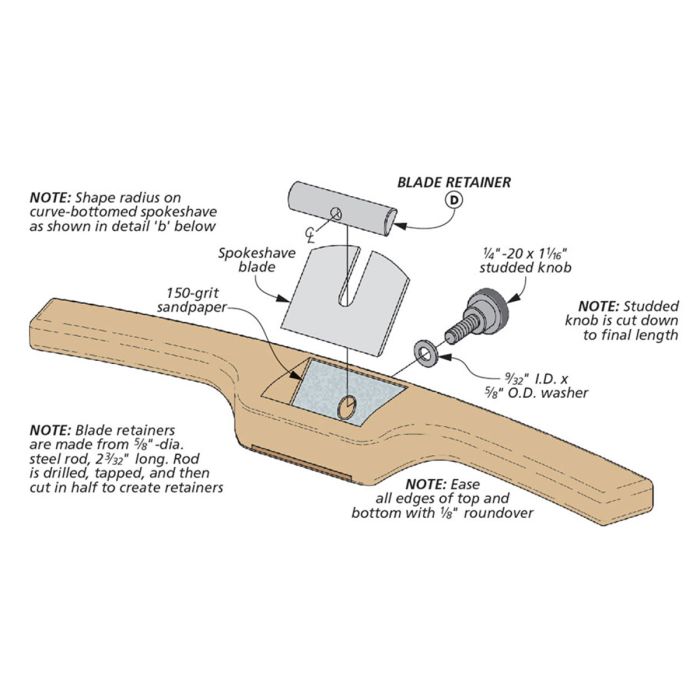

Spokeshave

Smoothing and shaping curved surfaces in wood

Sandpaper with Block

Smoothing surfaces, removing rough edges/finishes
