VSEPR Shapes and Bond Angles

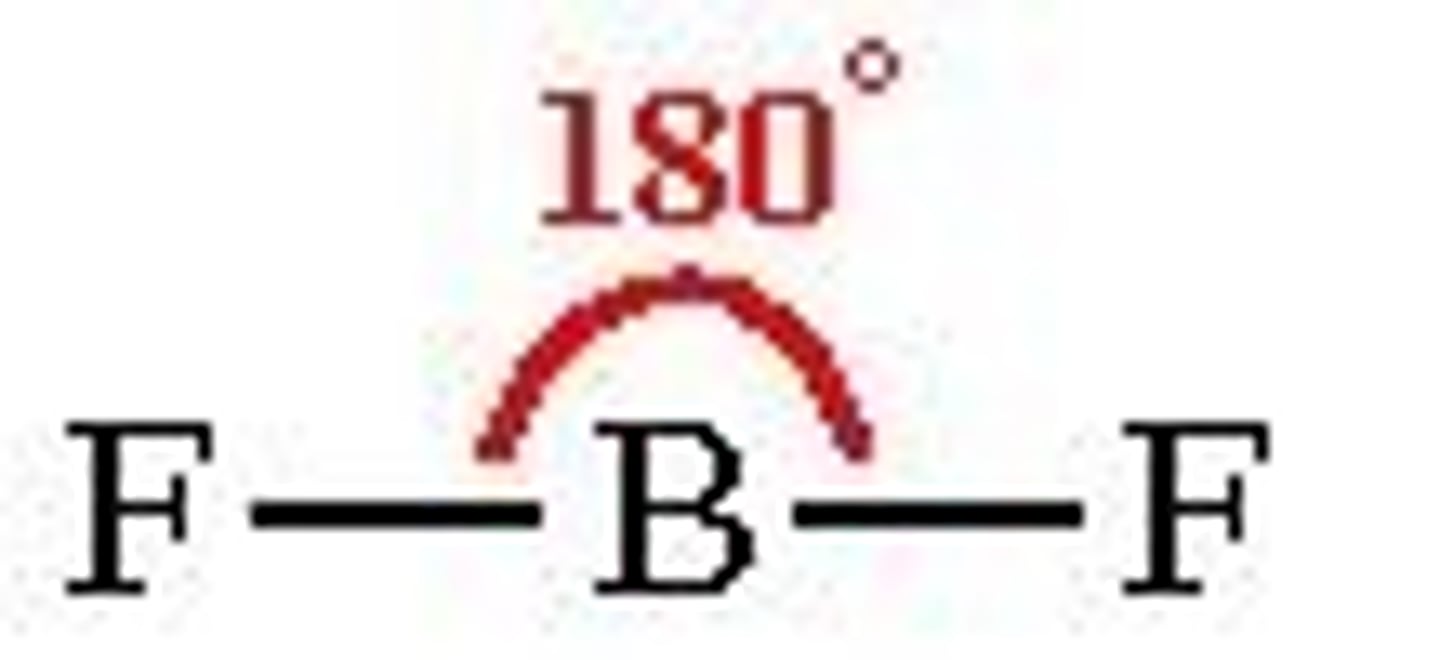

linear

2 bonds

bent

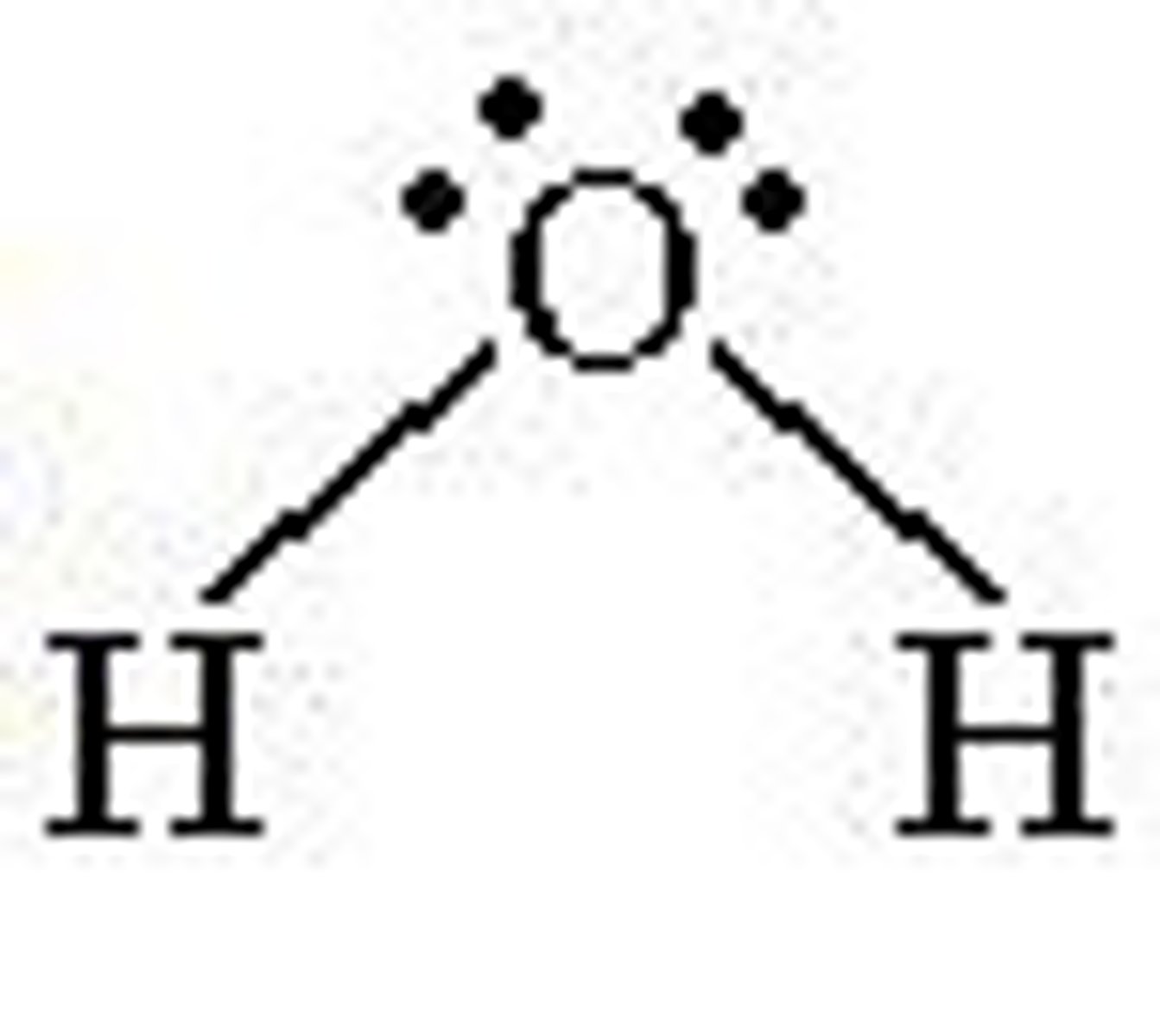

2 bonds, 2 lone pairs (or 2 bonds, 1 lone pair (ex. SO₂))

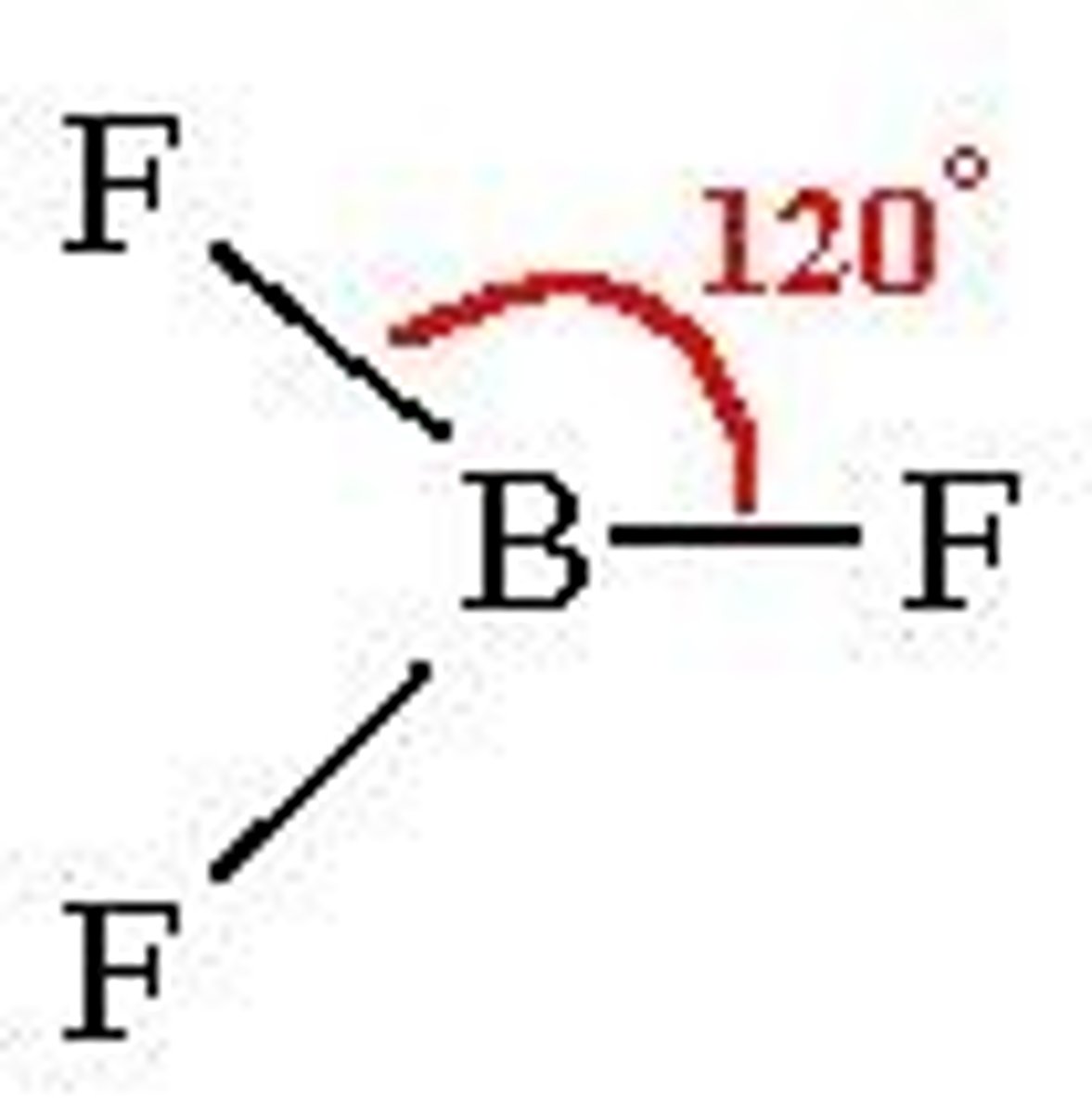

trigonal planar

3 bonds

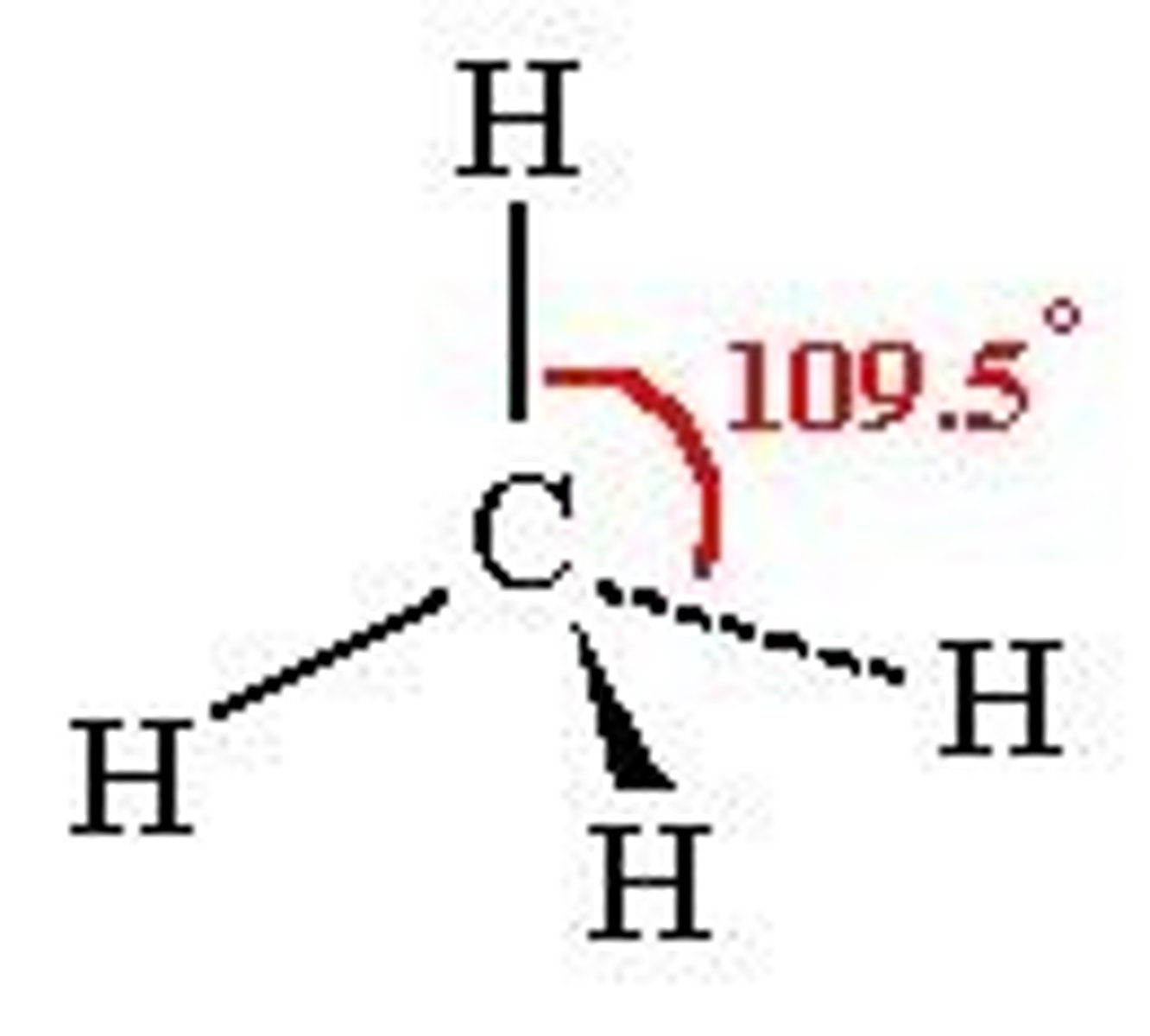

tetrahedral

4 bonds

trigonal pyramidal

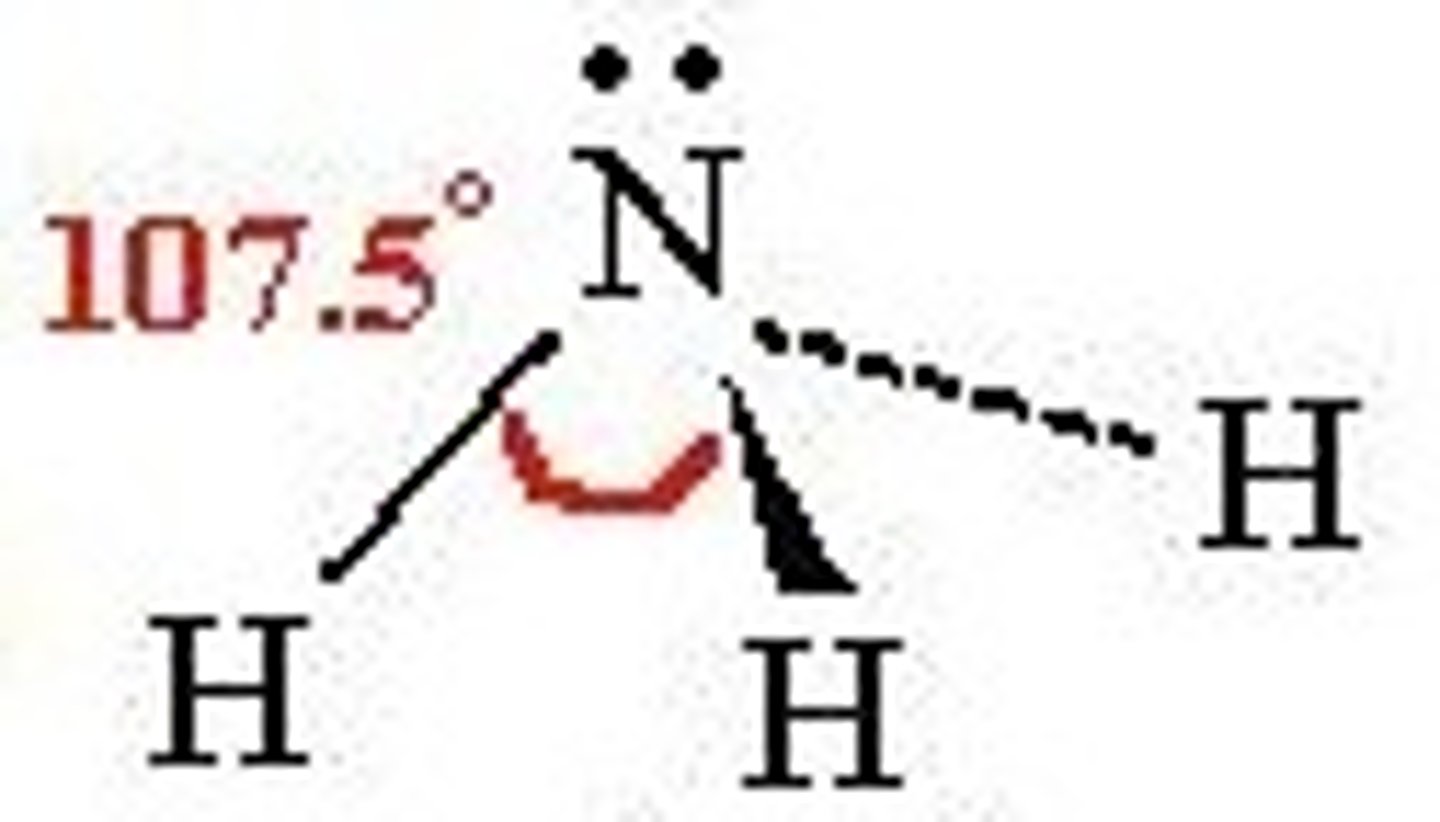

3 bonds, 1 lone pair

trigonal bipyramidal

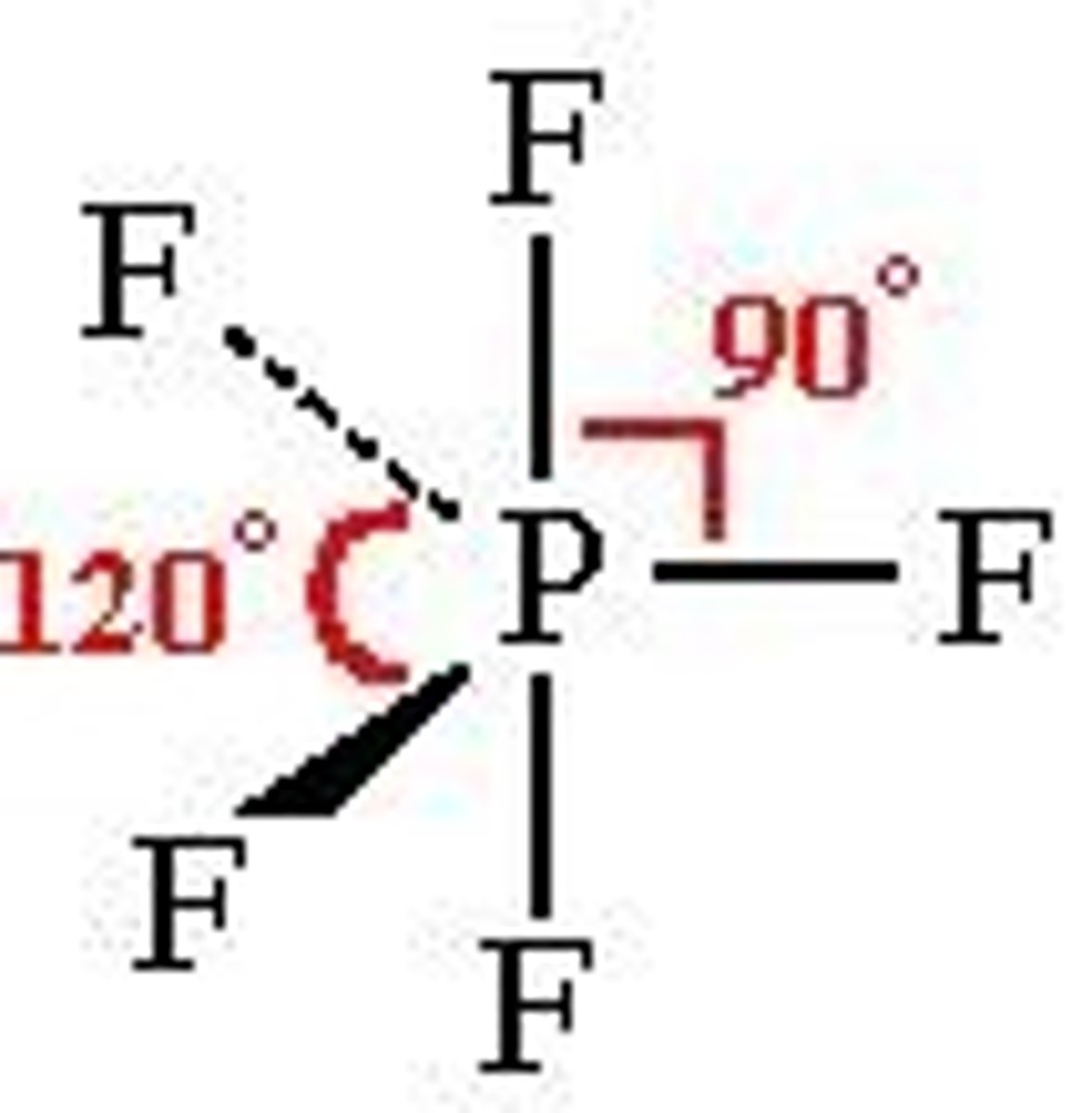

5 bonds

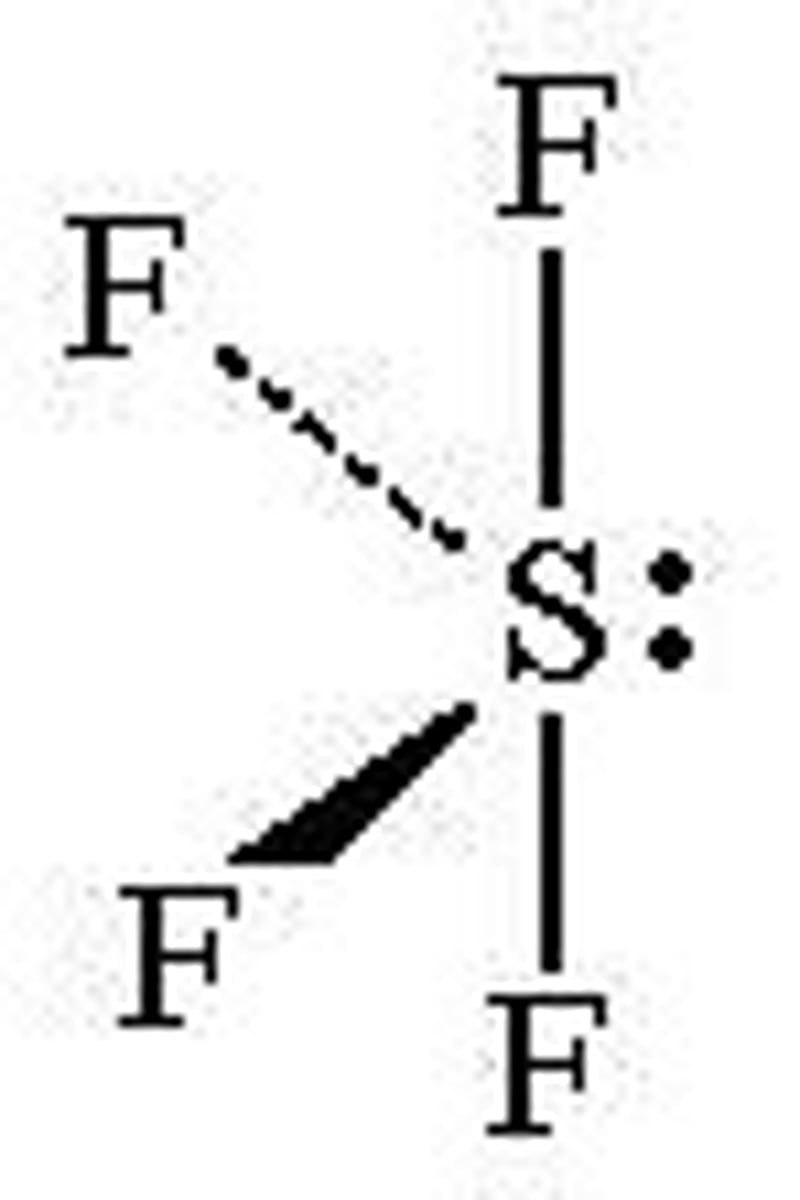

seesaw

4 bonds, 1 lone pair

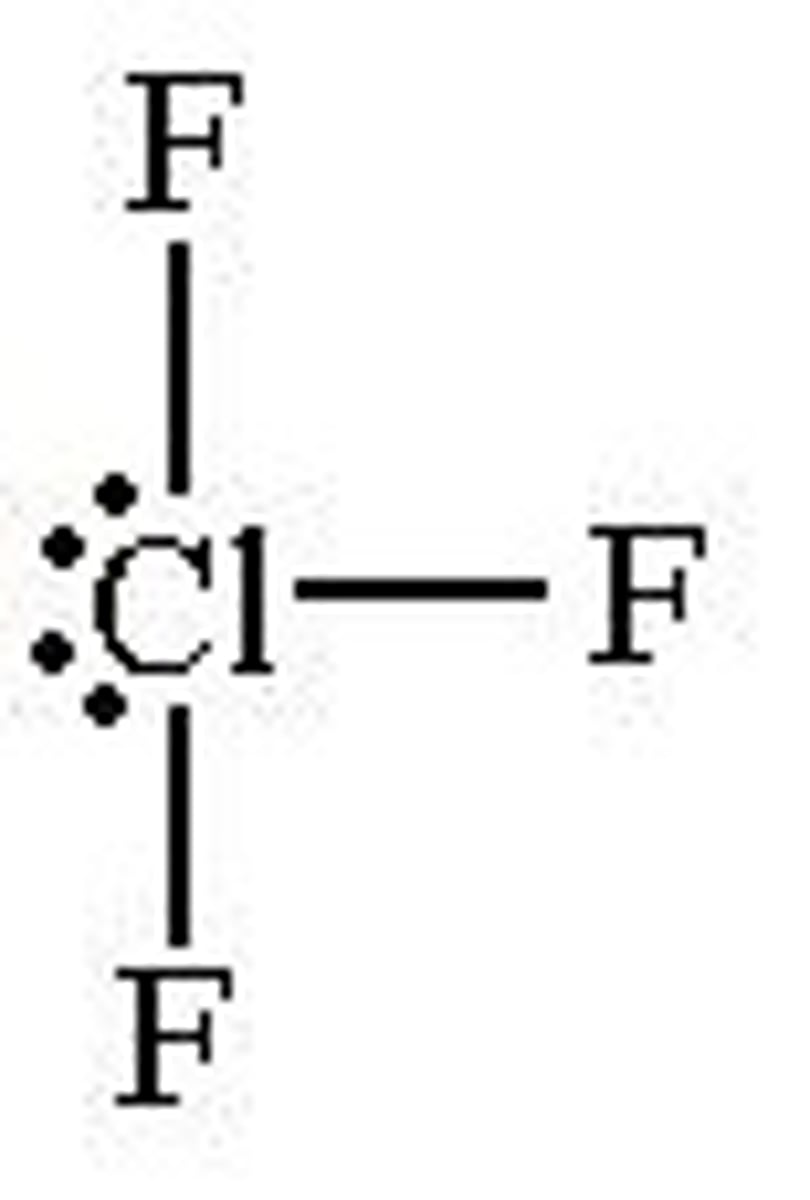

t-shaped

3 bonds, 2 lone pairs

linear (second way)

2 bonds, 3 lone pairs

octahedral

6 bonds

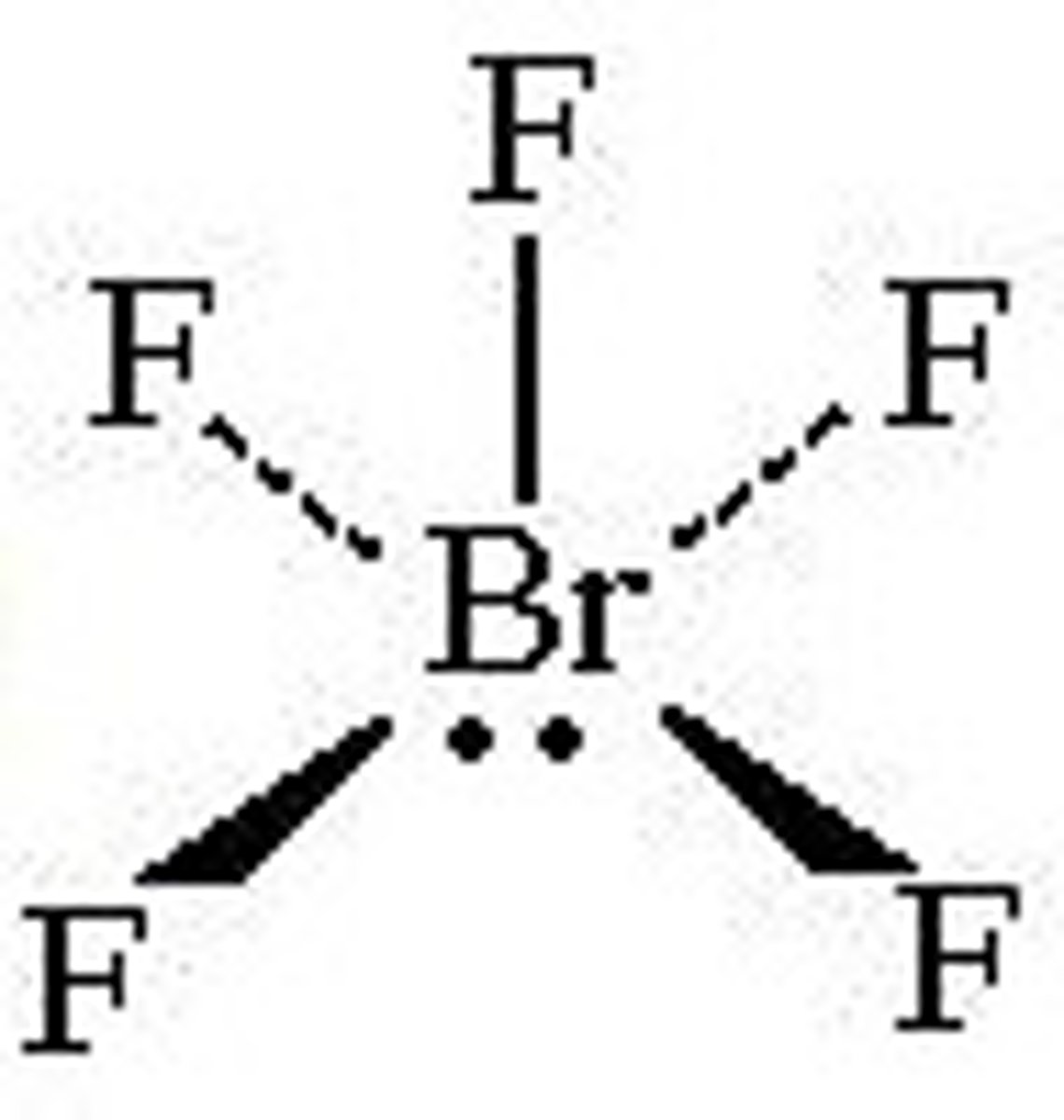

square pyramidal

5 bonds, 1 lone pair

square planar

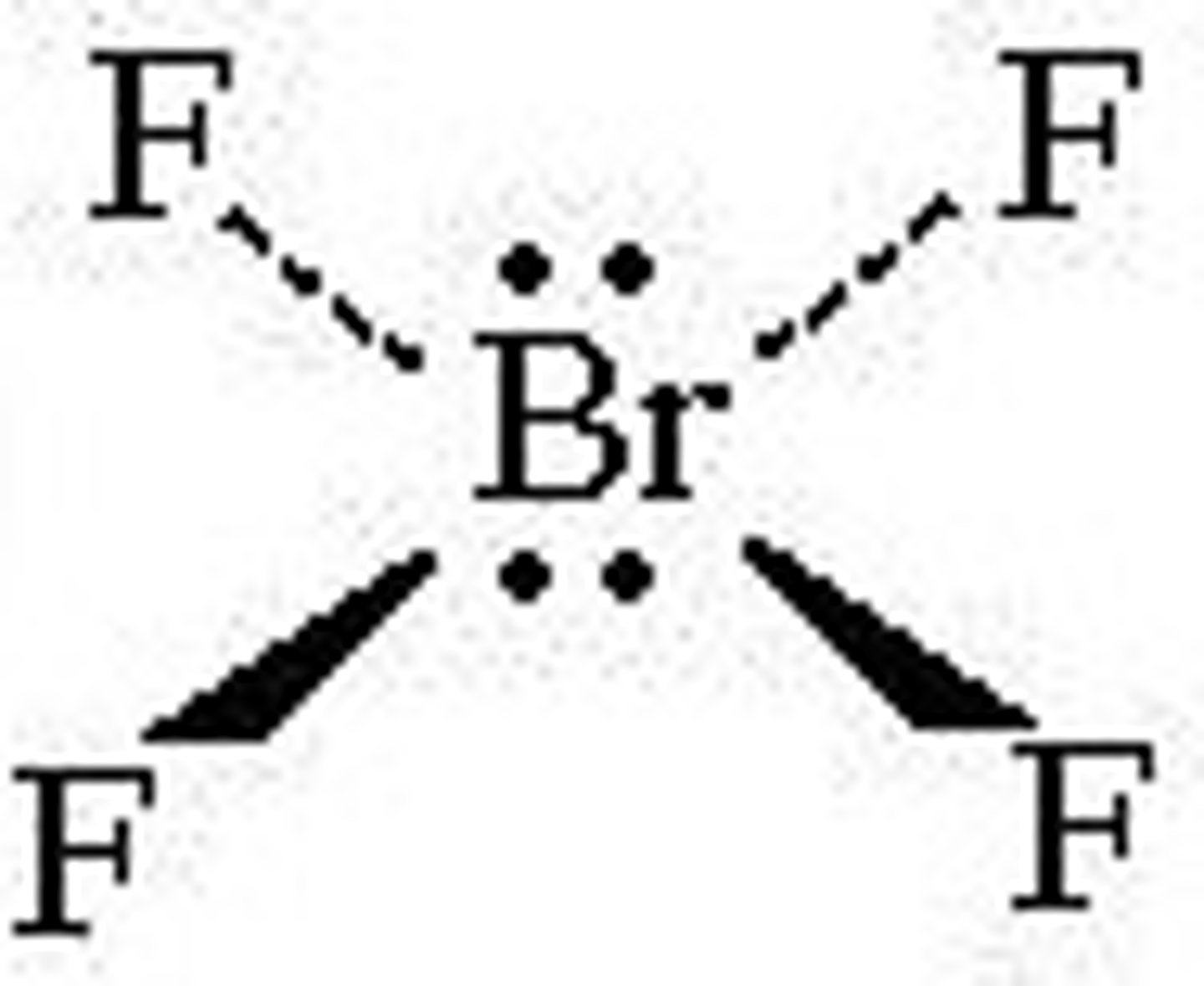

4 bonds, 2 lone pairs

180

bond angle of linear

120

bond angle of trigonal planar

<120

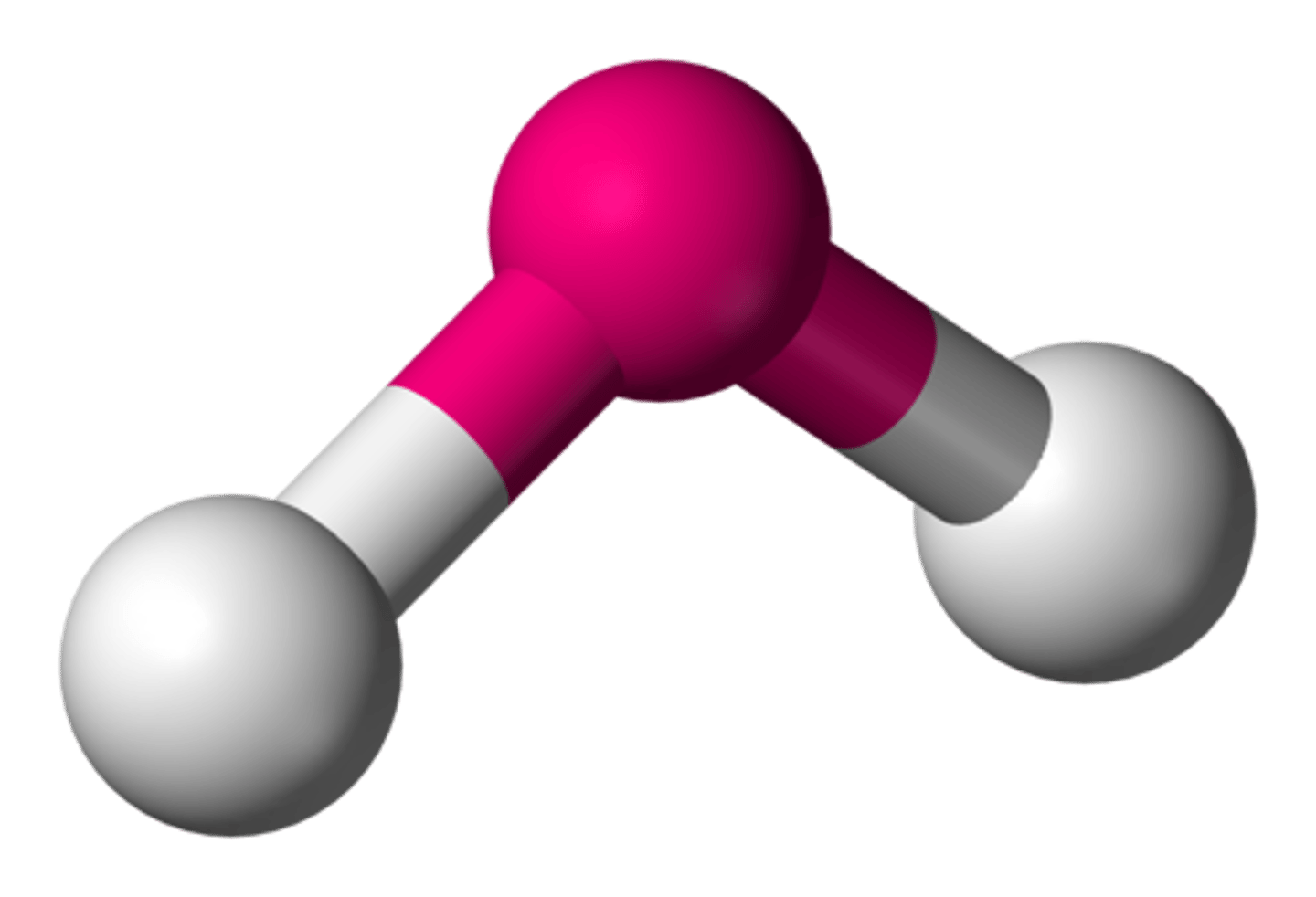

bond angle of bent (1 lone pair)

109

bond angle of tetrahedral

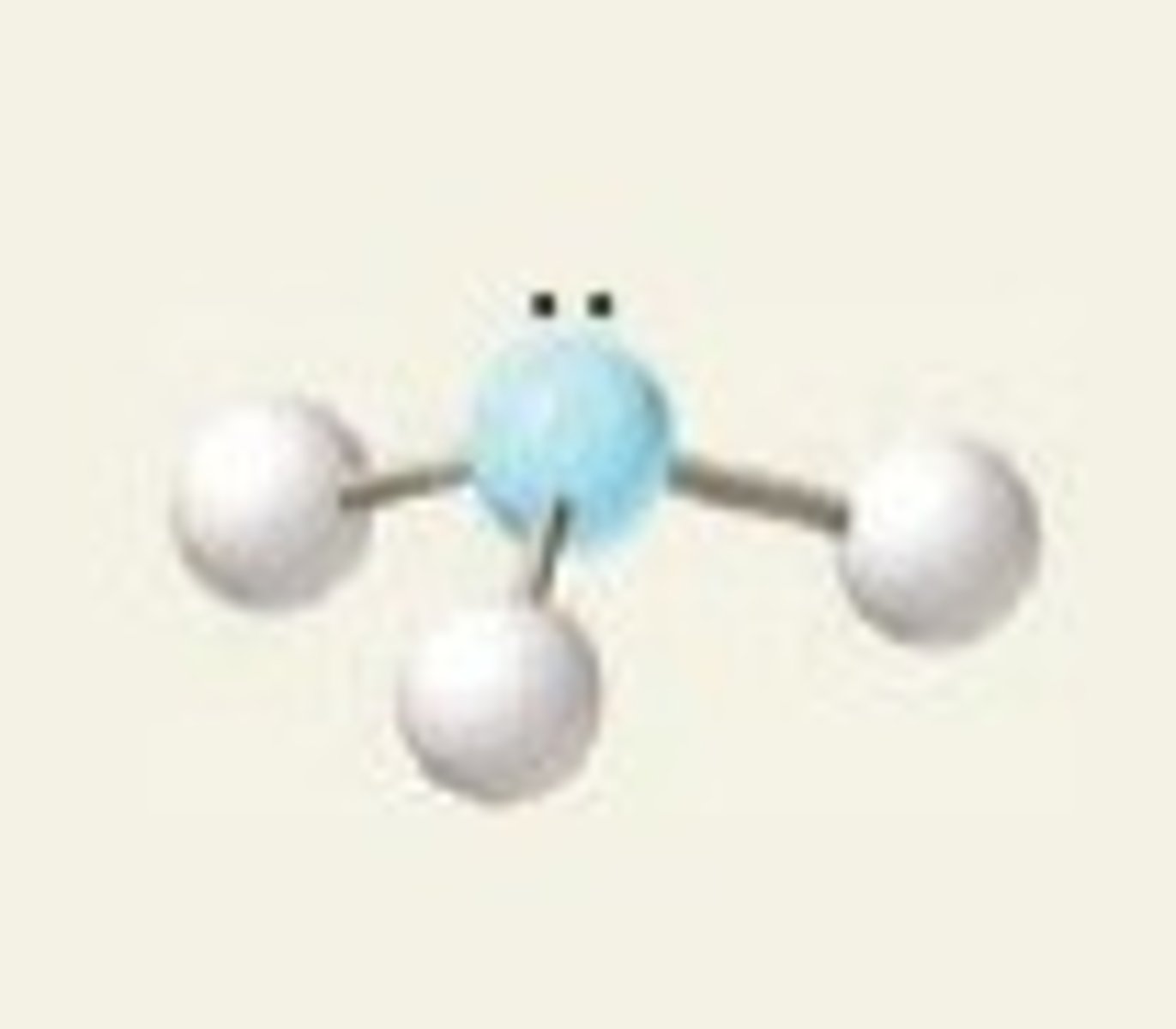

107

bond angle of trigonal pyramidal

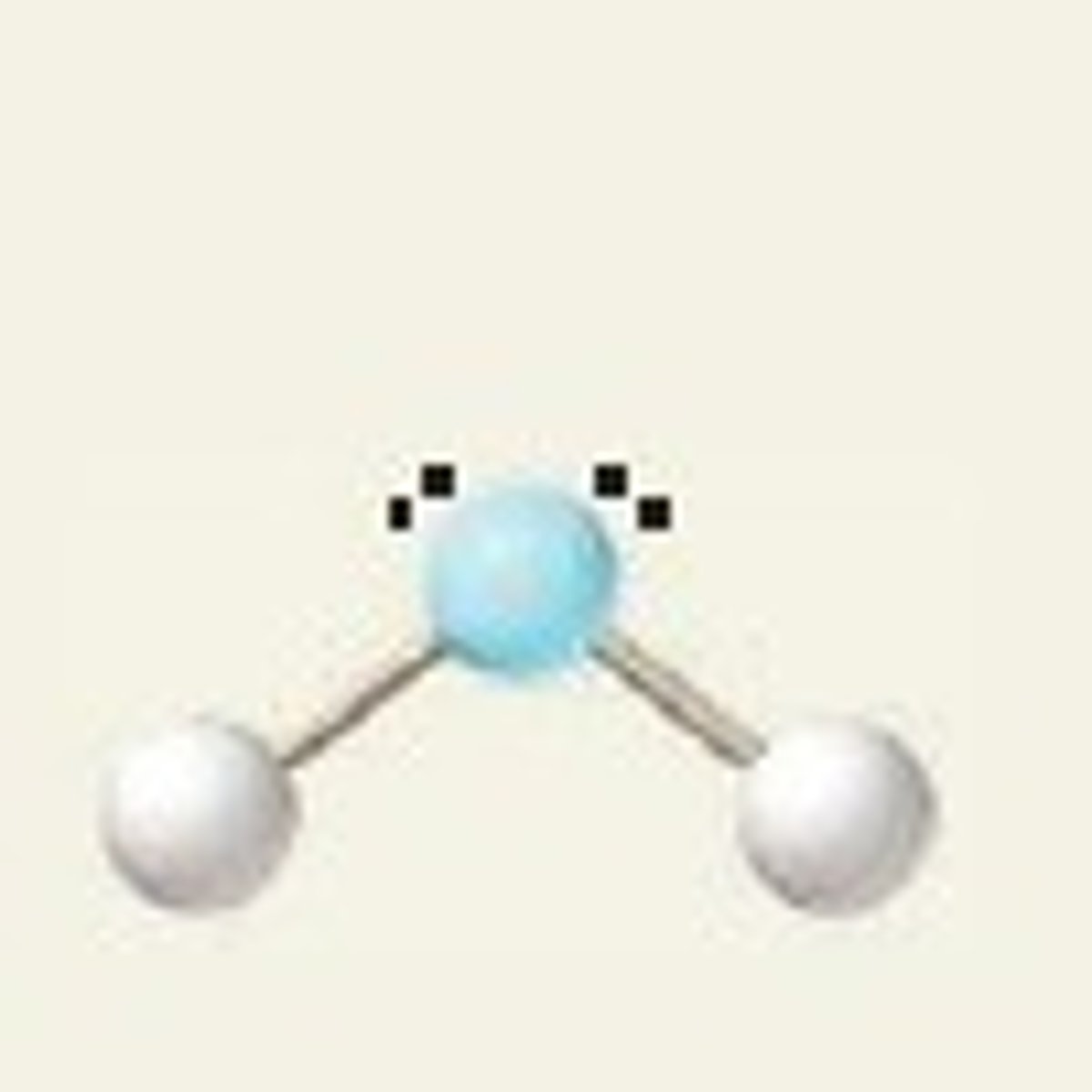

104.5

bond angle of bent (two lone pair electrons)

90, 120, 180

bond angle of trigonal bipyramidal

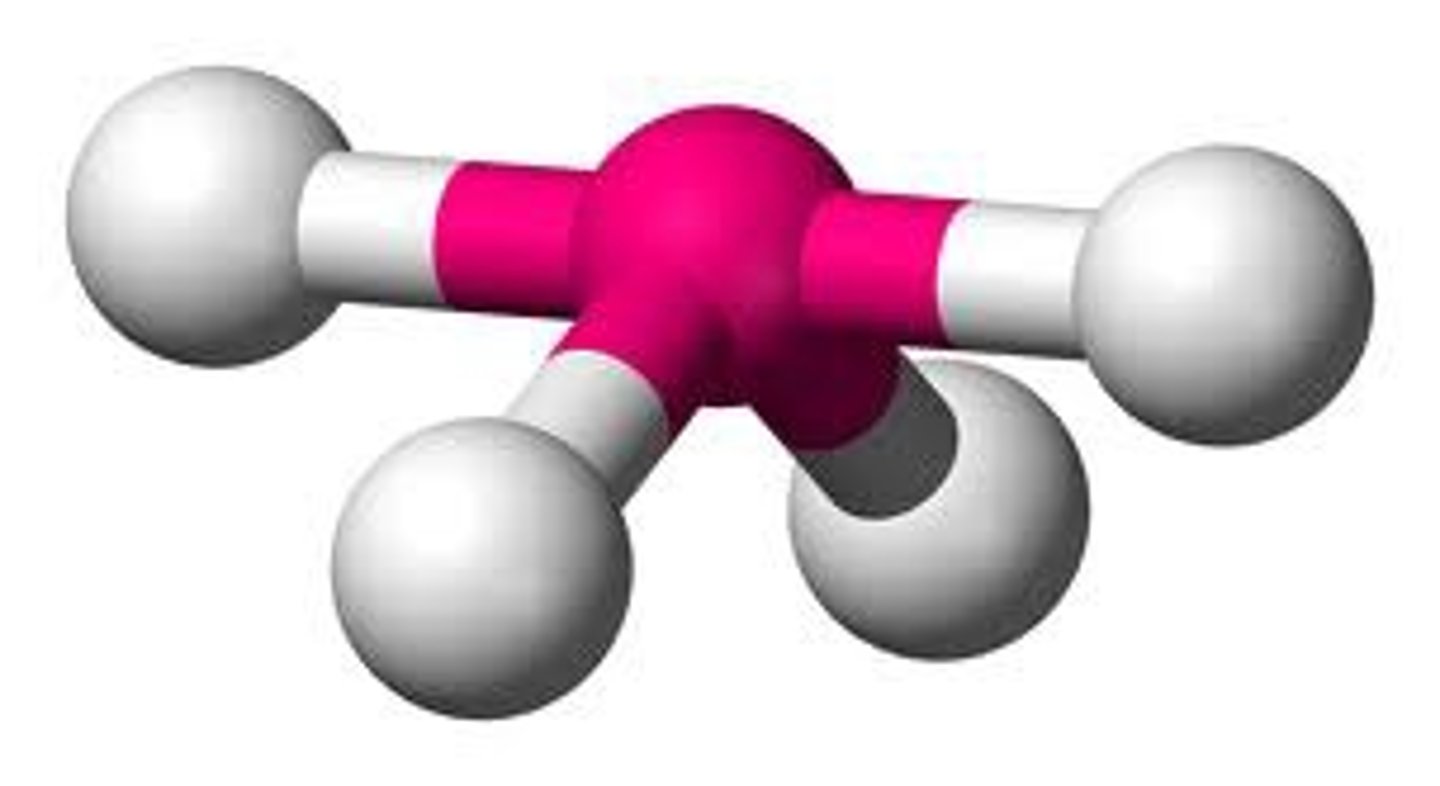

90, 120. 180

bond angle of seesaw

<90

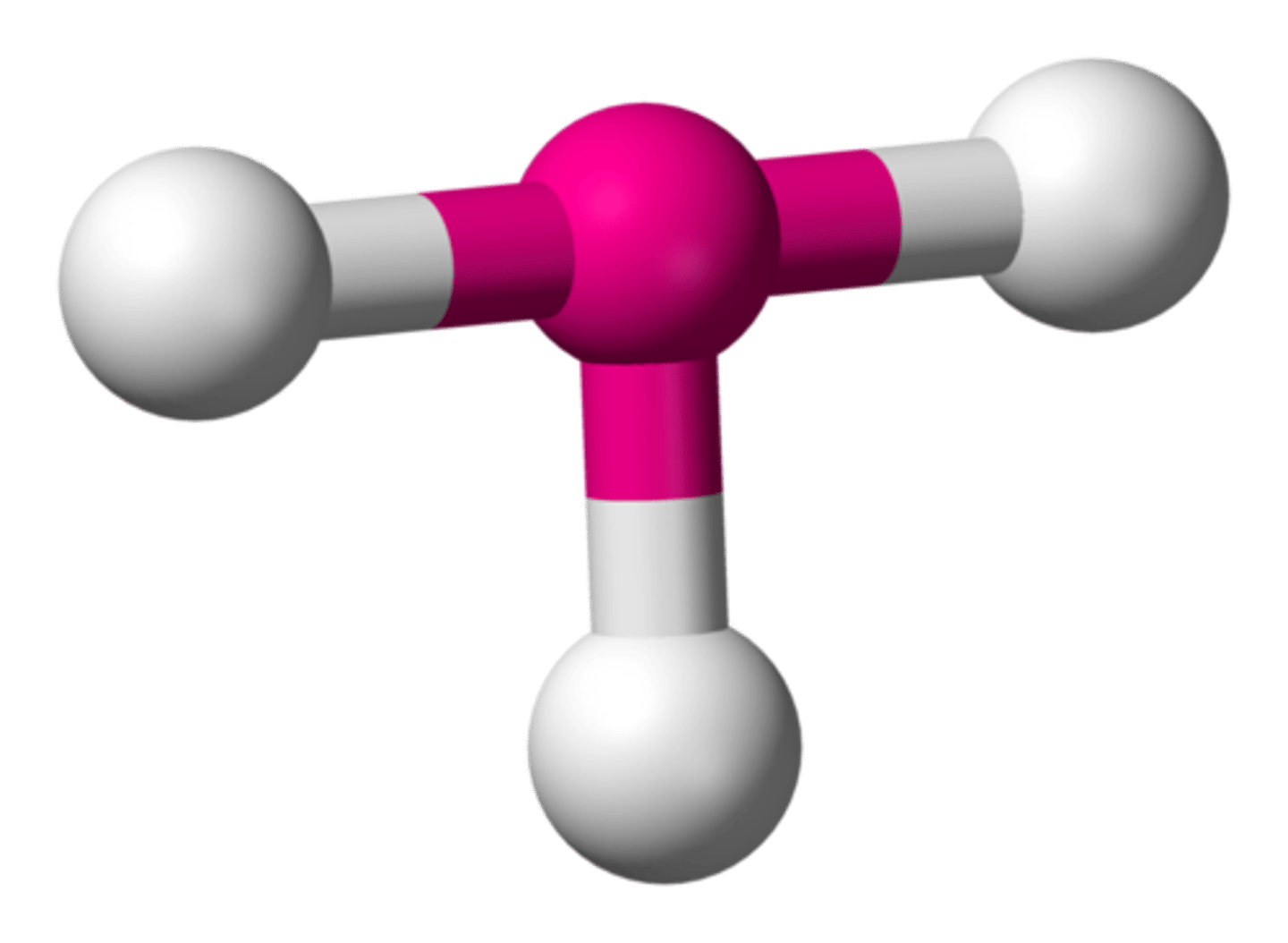

bond angle of t-shaped

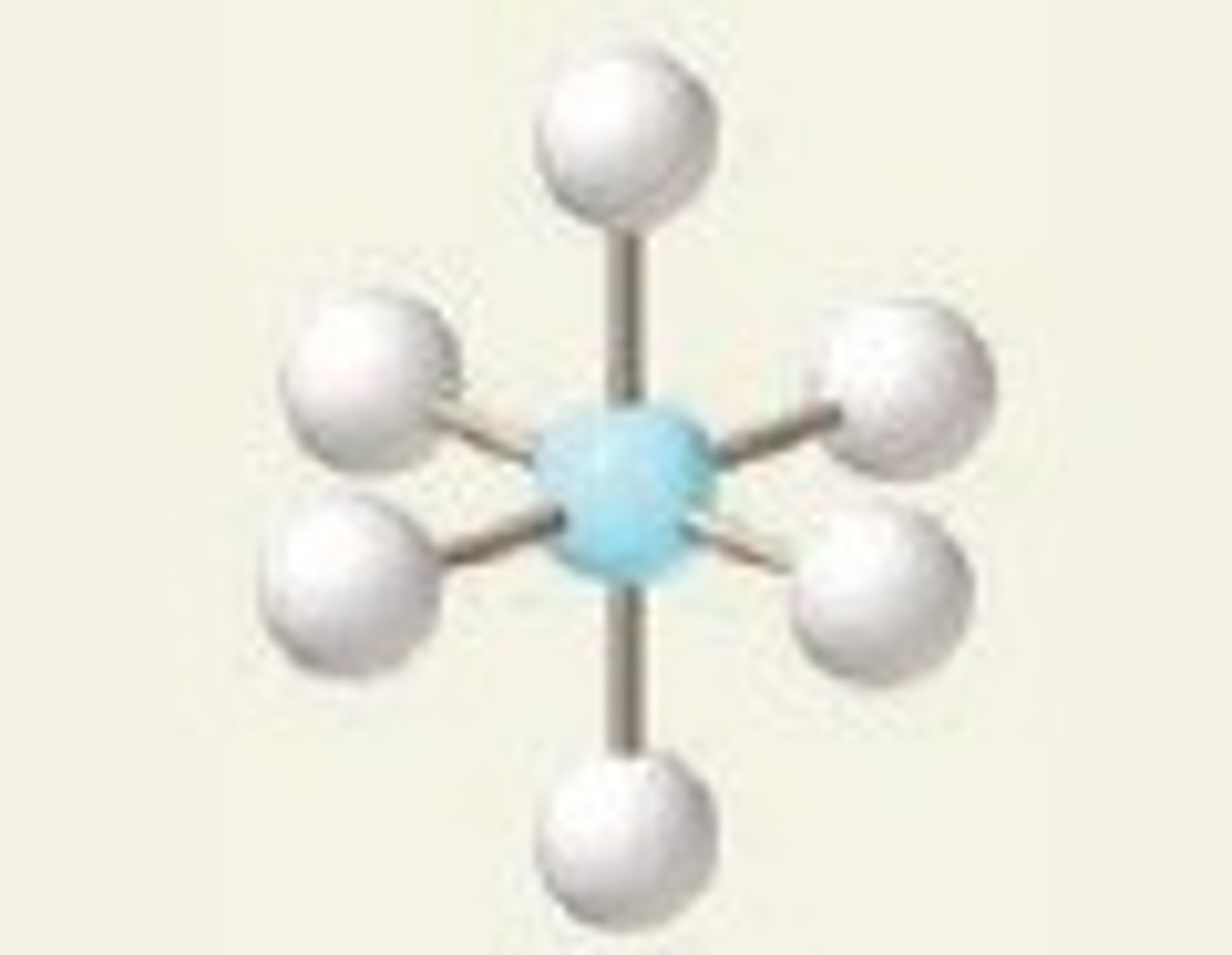

90, 180

bond angle of octahedral

<90

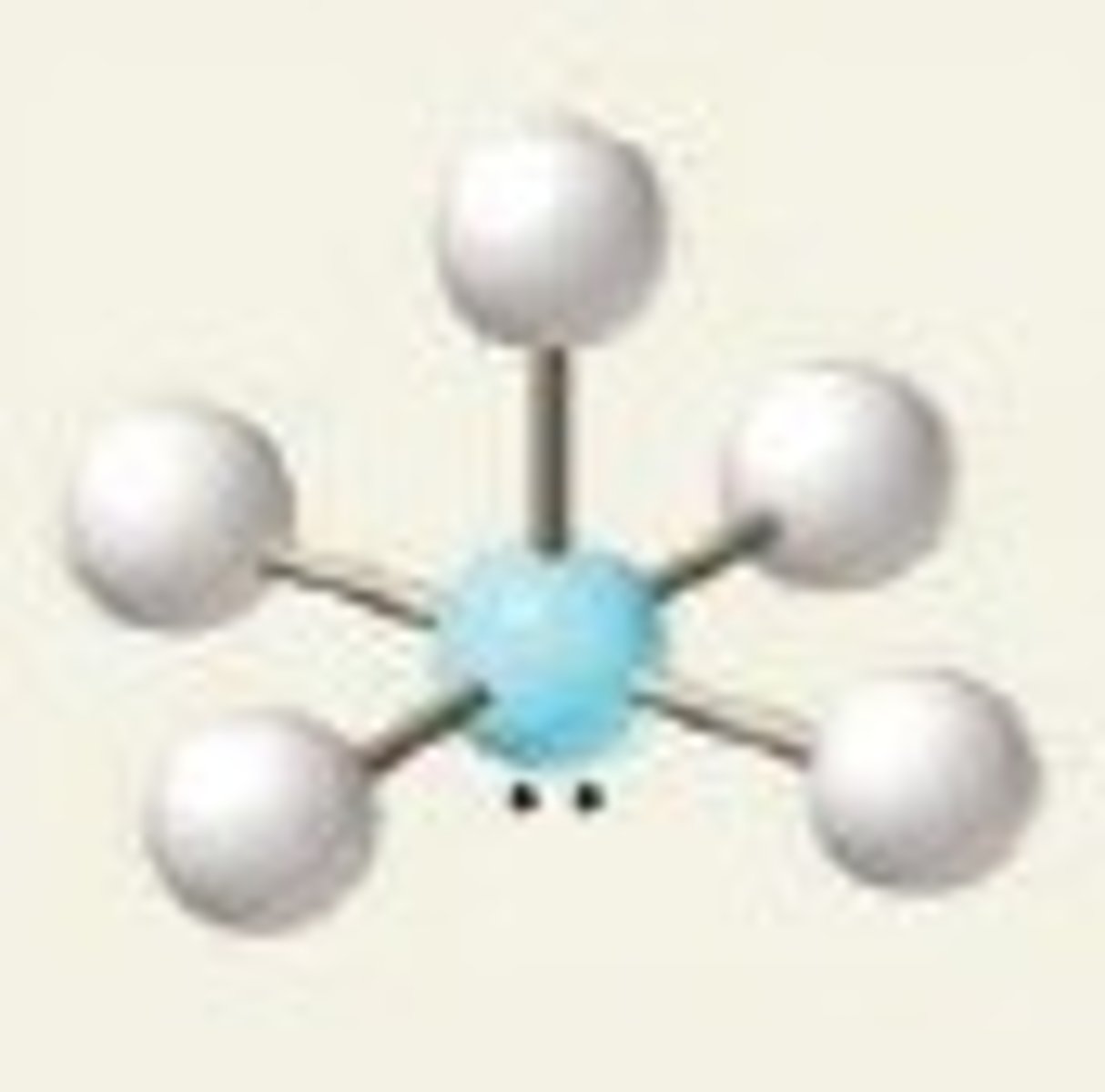

bond angle of square pyramidal

90, 180

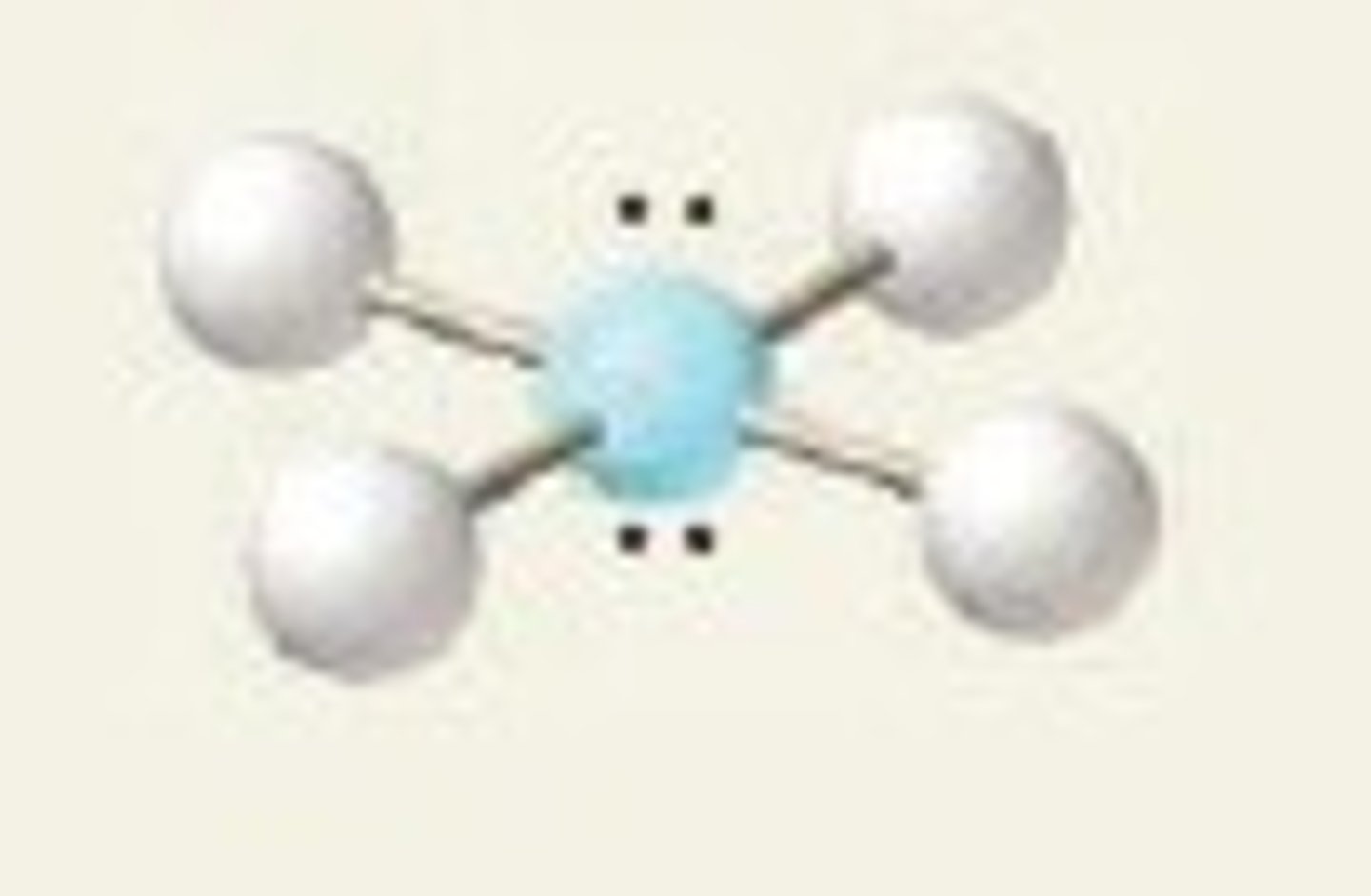

bond angle of square planar
