EOP-FR-Z.2 Response to Containment Flooding

0.0(0)
studied byStudied by 0 people
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
Card Sorting

1/9

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

10 Terms

1
New cards

Entry Path

knowt flashcard image
2
New cards

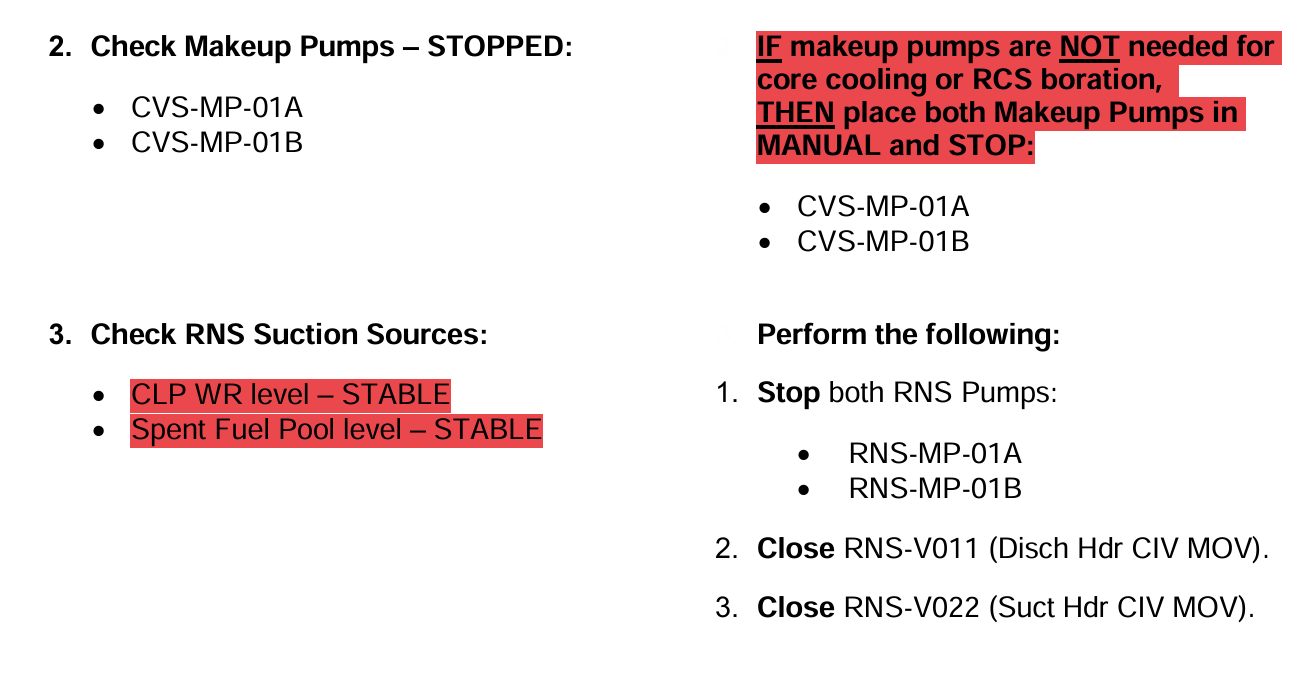

CVS and RNS

(Step 2 & 3)

knowt flashcard image
3
New cards

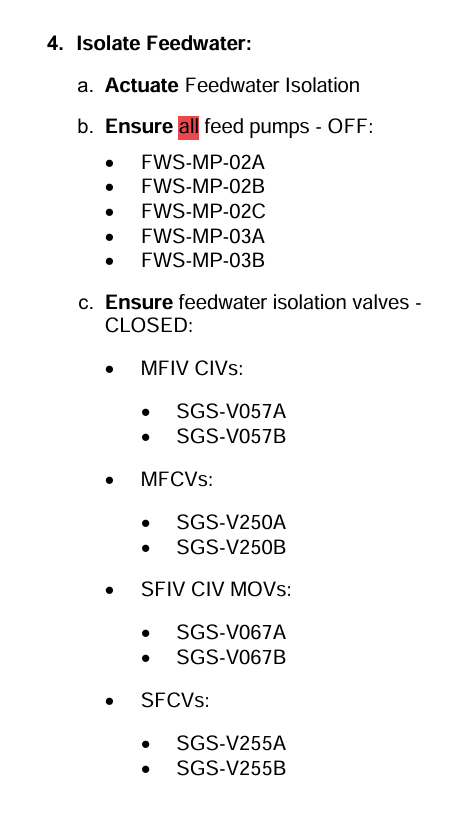

FWS

(Step 4)

ALL Pumps OFF

ALL Paths Isolated

<p>ALL Pumps OFF</p><p>ALL Paths Isolated</p>
4
New cards

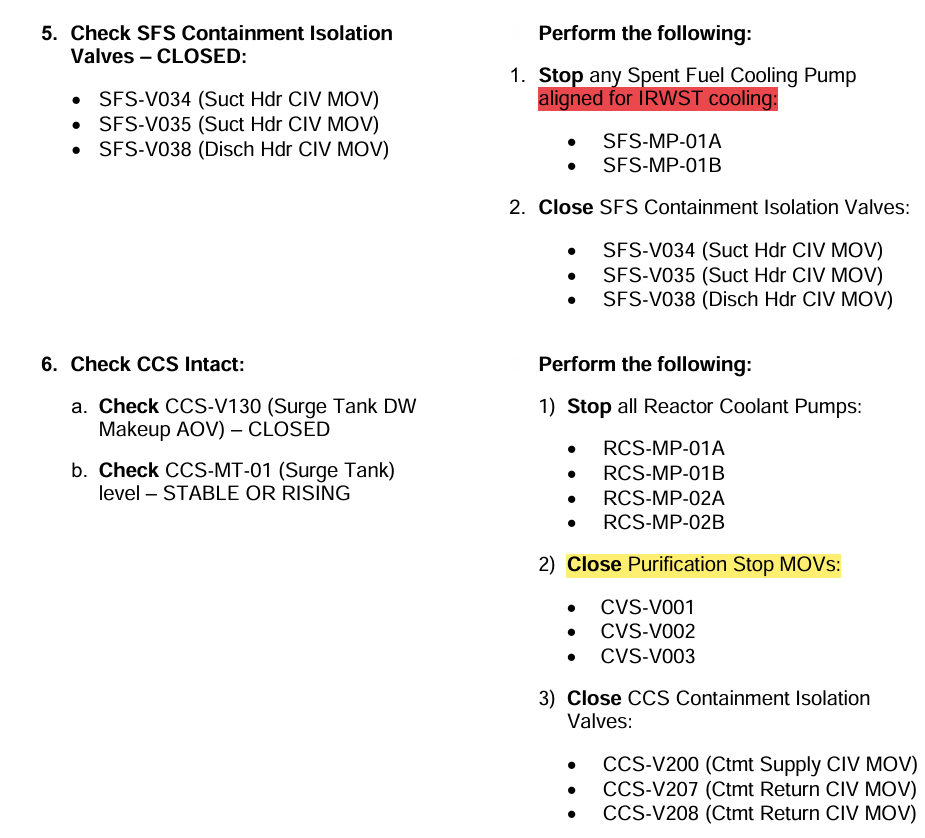

SGS and CCS

(Step 5 & 6)

knowt flashcard image
5
New cards

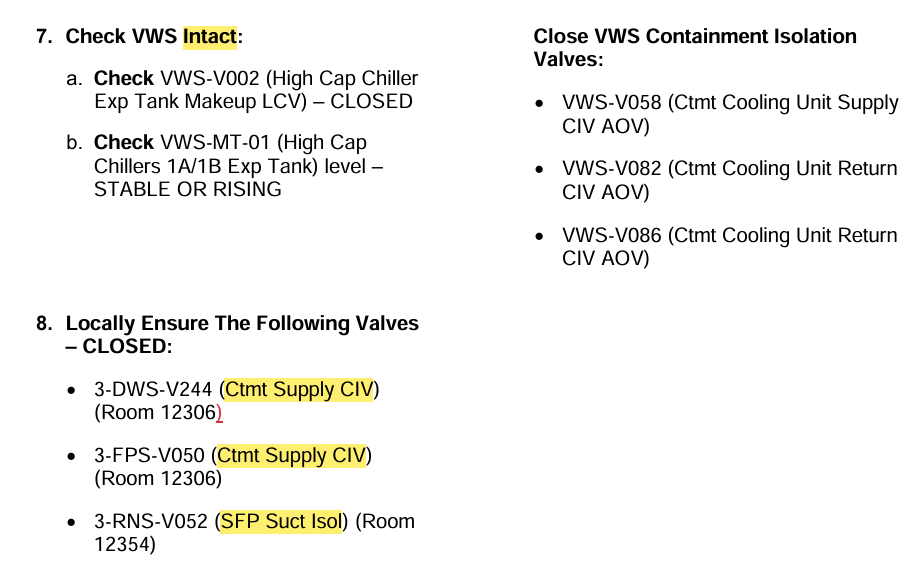

VWS, DWS, FPS, SFP Cooling

(Step 7 & 8)

knowt flashcard image
6
New cards

Final Status of Systems at Procedure Completion

CVS: OFF if not needed for core cooling or boration

RNS: Stopped if leaking from CLP/SFP with V011&V022 Closed

FWS: ALL Stopped and Isolated

SFS: Isolated from CNS

CCS: Isolated if Not Intact (RCPs tripped and Isolated to CNS)

VWS: Isolated if Not Intact

DWS/FPS/RNS from SFP: Locally Isolated

7
New cards

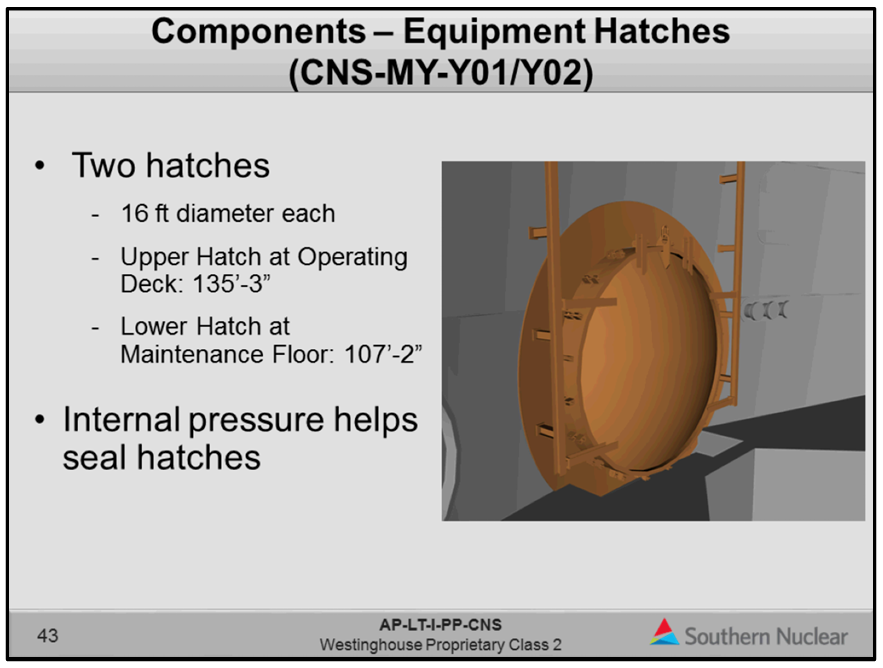

CNS Equipment Hatches

Elevation Locations

Upper: 135’

Lower: 107’

<p><strong>Upper: 135’</strong></p><p><strong>Lower: 107’</strong></p>
8
New cards

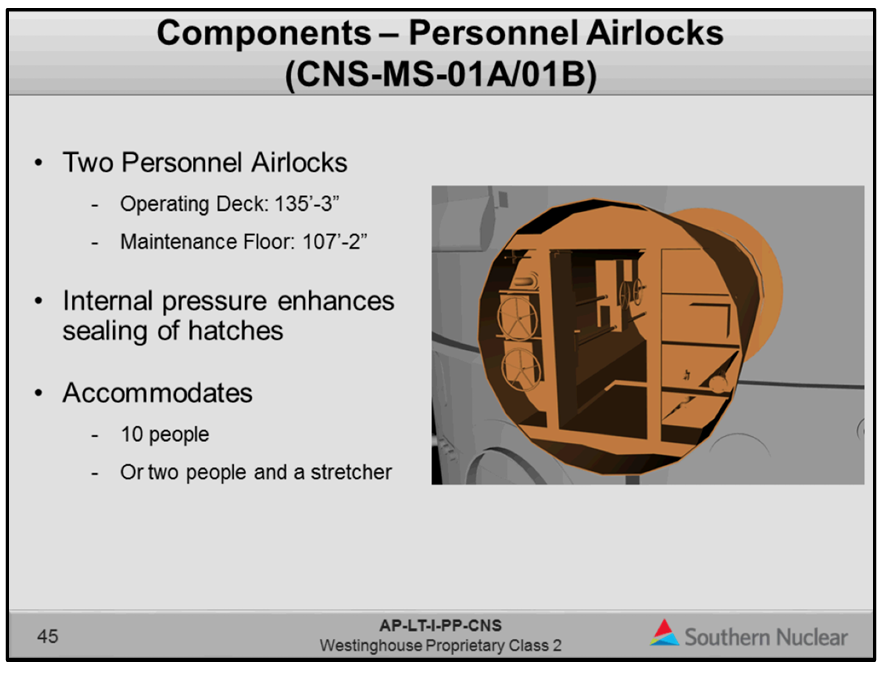

CNS Personnel Airlocks

Elevation Locations

Upper: 135’

Lower: 107’

<p><strong>Upper: 135’</strong></p><p><strong>Lower: 107’</strong></p>
9
New cards

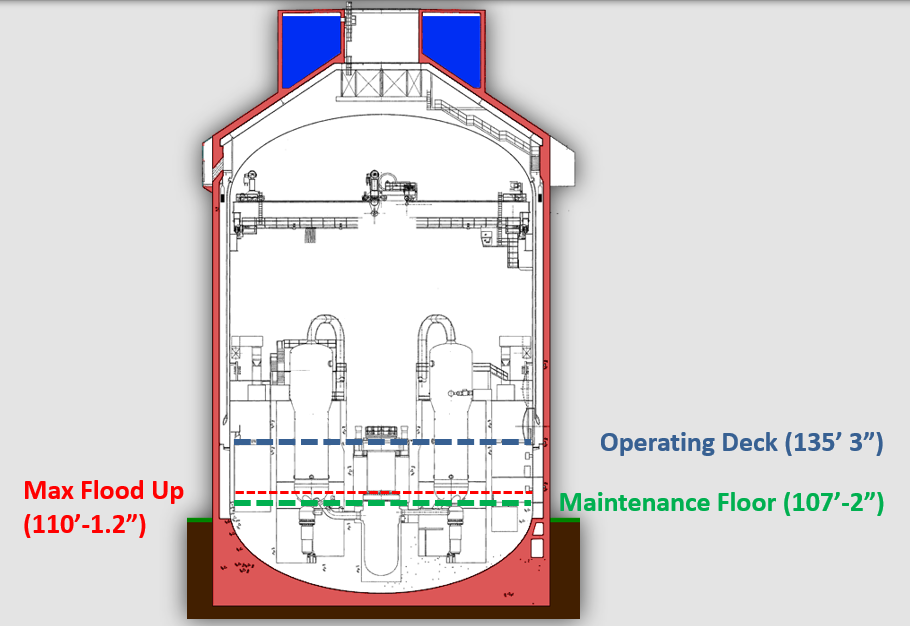

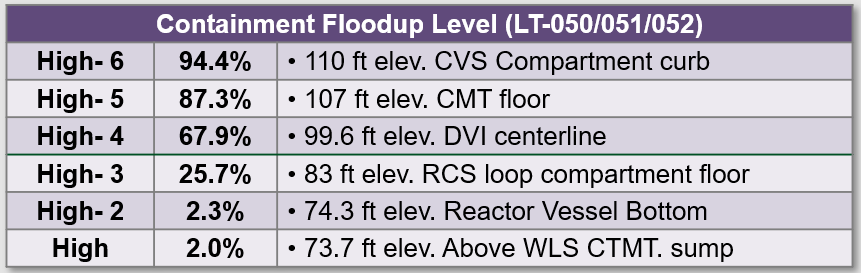

Containment Floodup Levels (1/2)

knowt flashcard image
10
New cards

Containment Floodup Levels (2/2)

Credited Floodup Sources:

RCS

TWO Accumulators

TWO CMTs

IRWST

Cask Loading Pil (CLP)

Boric Acid Tank (BAST)

Common Distractors:

CWP, CCS, CST

<p>Credited Floodup Sources:</p><p>RCS</p><p>TWO Accumulators</p><p>TWO CMTs</p><p>IRWST</p><p>Cask Loading Pil (CLP)</p><p>Boric Acid Tank (BAST)</p><p></p><p><em>Common Distractors:</em></p><p><em>CWP, CCS, CST</em></p>
