13 Terms

1
New cards

Hand neutralization

determining the power of a lens using trial lenses by observing the prismatic effect.

2
New cards

base, apex

Through a prism, the ray bends towards the _____ where as the image moves towards the _____

(Two answers)

3
New cards

plus

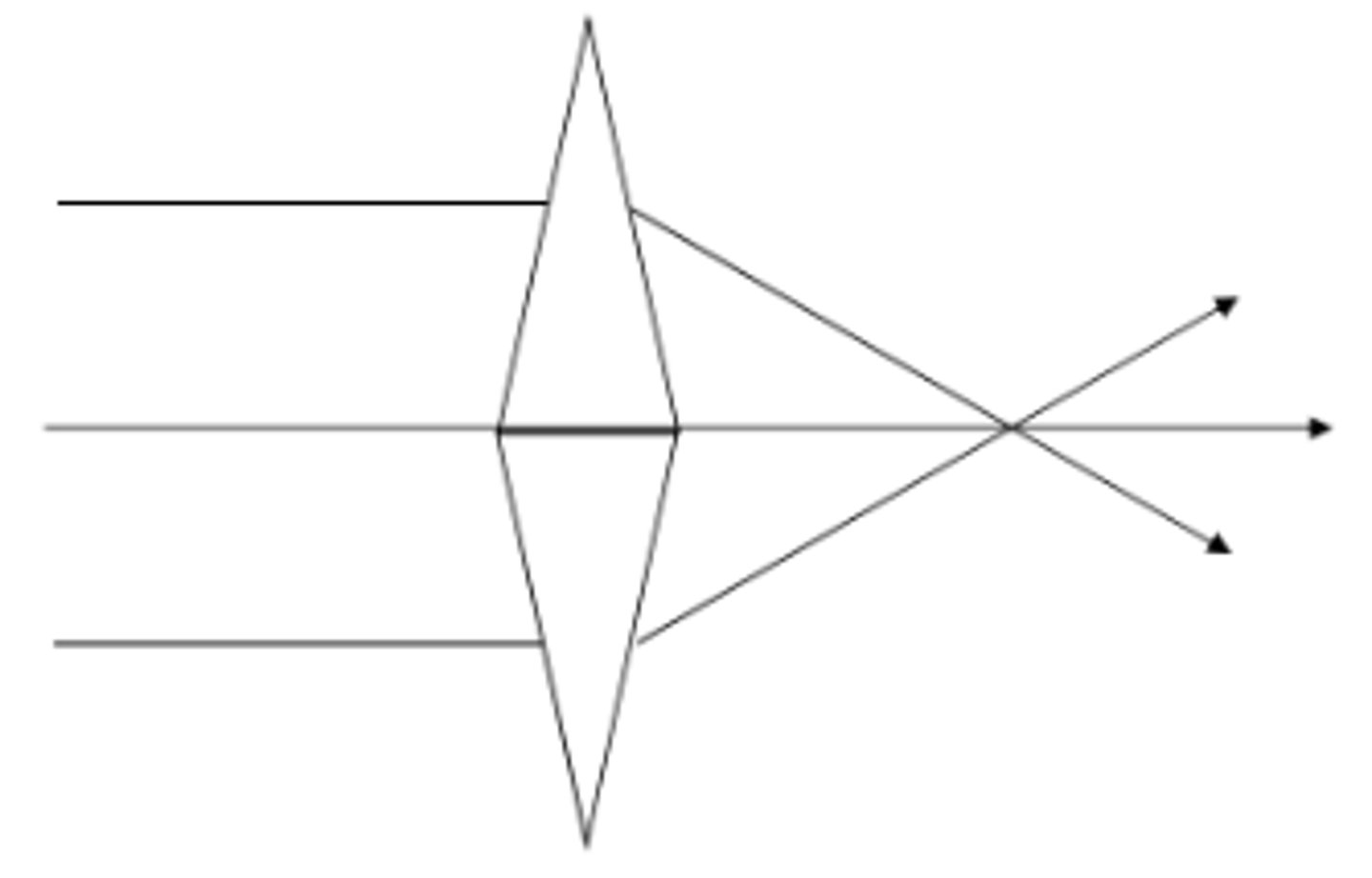

Does a plus or minus lens act like two prisms placed base to base ultimately converging the incident light?

<p>Does a plus or minus lens act like two prisms placed base to base ultimately converging the incident light?</p>
4
New cards

minus

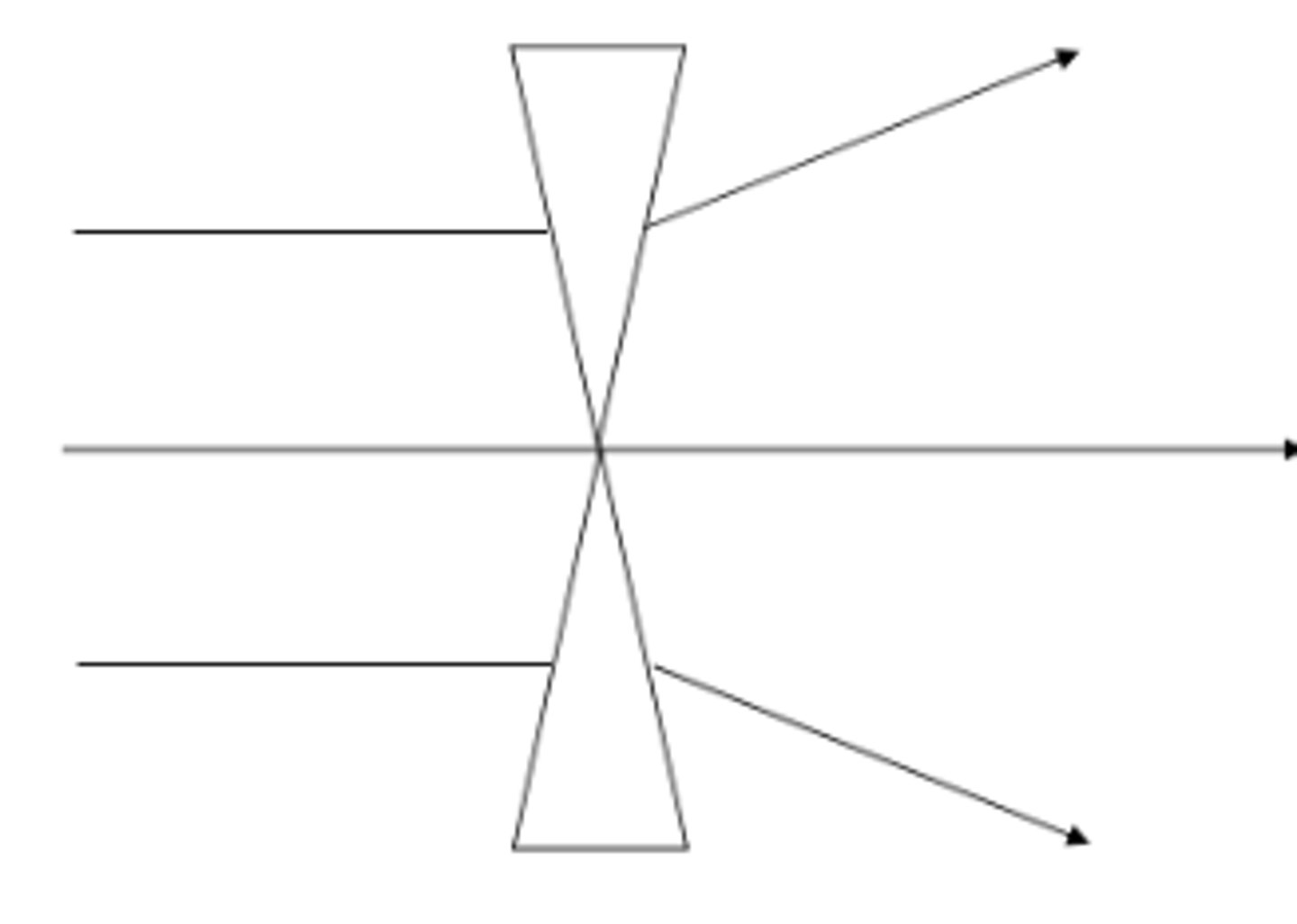

Does a plus or minus lens act like two prisms placed apex to apex ultimately diverging the incident light?

<p>Does a plus or minus lens act like two prisms placed apex to apex ultimately diverging the incident light?</p>
5
New cards

plus, against, minus

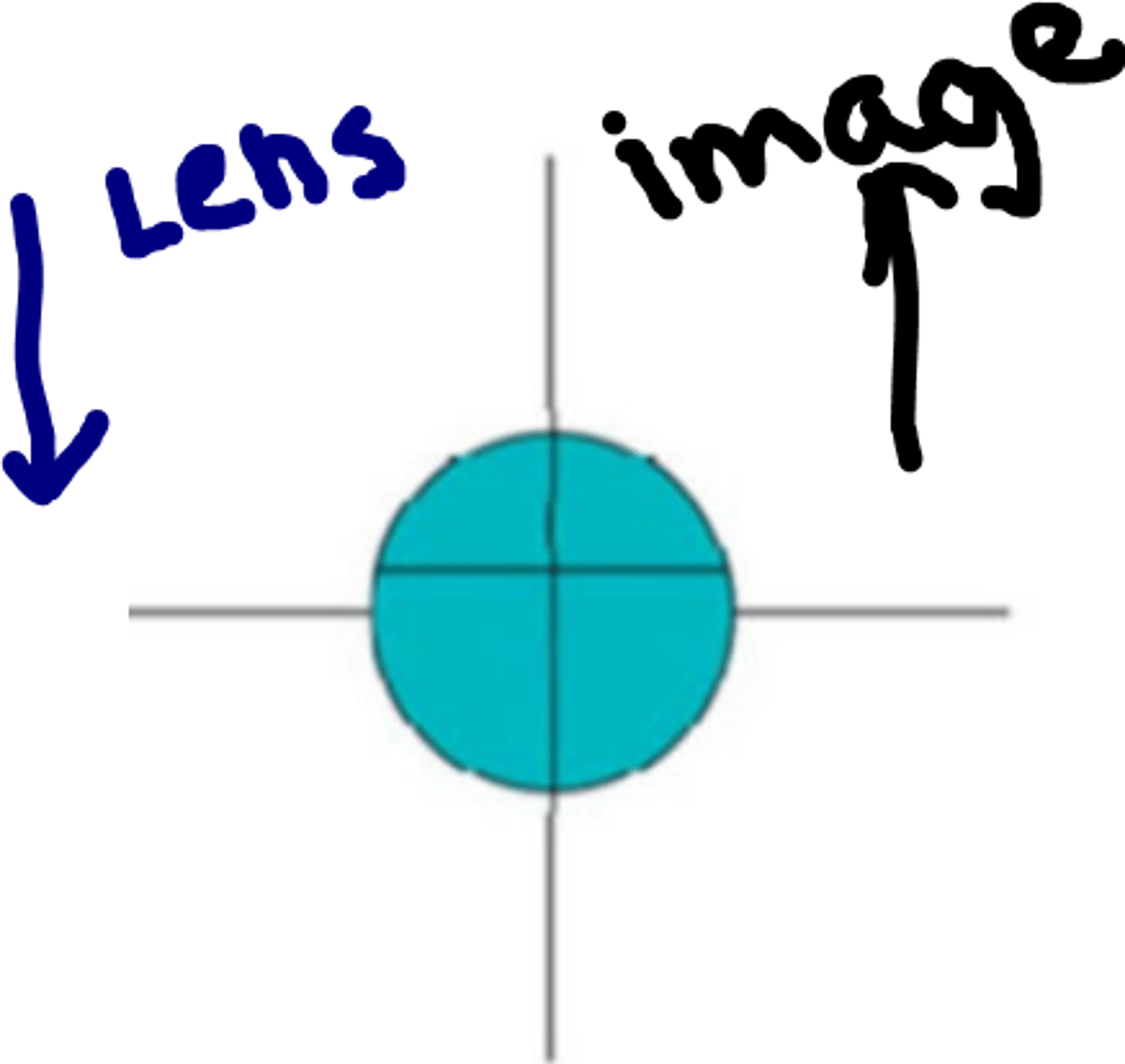

By moving a _____ lens downward, the prism will move the light downward but the image upward, showing ______ motion. This motion is then neutralize with a _______ lens.

(three answers)

<p>By moving a _____ lens downward, the prism will move the light downward but the image upward, showing ______ motion. This motion is then neutralize with a _______ lens.</p><p>(three answers)</p>
6
New cards

minus, with, plus

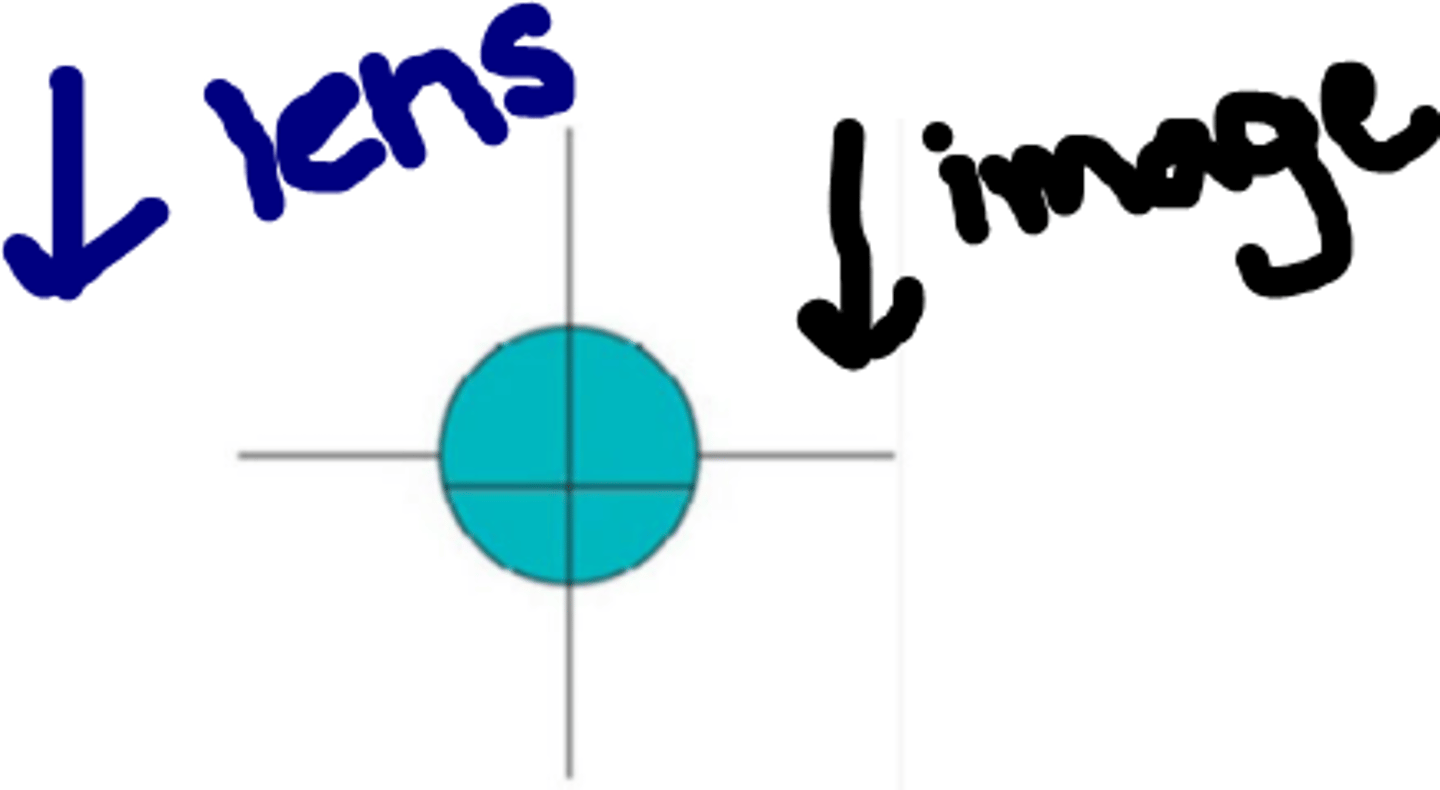

By moving a _____ lens downward, the prism will move the light upward but the image downward, showing ______ motion. This motion is then neutralized with a _____ lens.

(three answers)

<p>By moving a _____ lens downward, the prism will move the light upward but the image downward, showing ______ motion. This motion is then neutralized with a _____ lens.</p><p>(three answers)</p>
7
New cards

plano

A _____ lens will show no motion because it has no prismatic effect.

8
New cards

toric

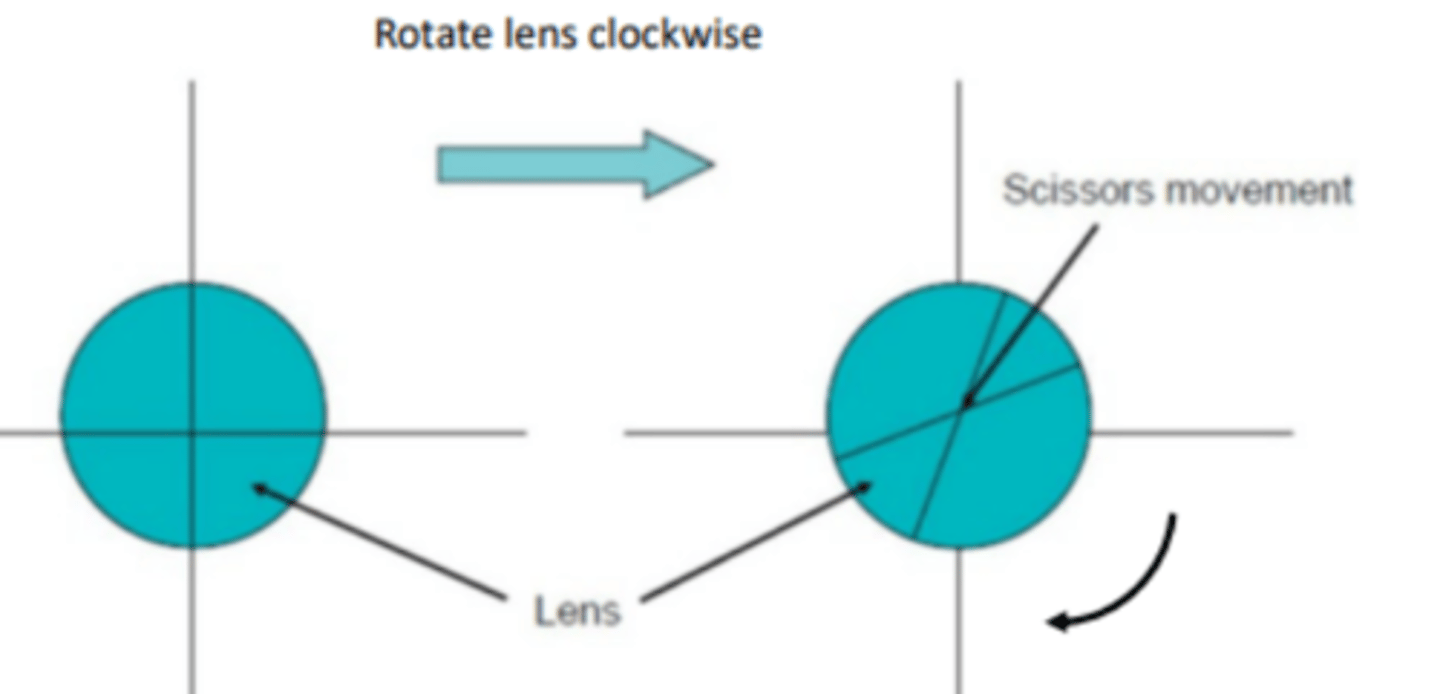

If the cross shows a scissor movement with rotation, then you know it is a _____ lens.

<p>If the cross shows a scissor movement with rotation, then you know it is a _____ lens.</p>
9
New cards

against break meridian

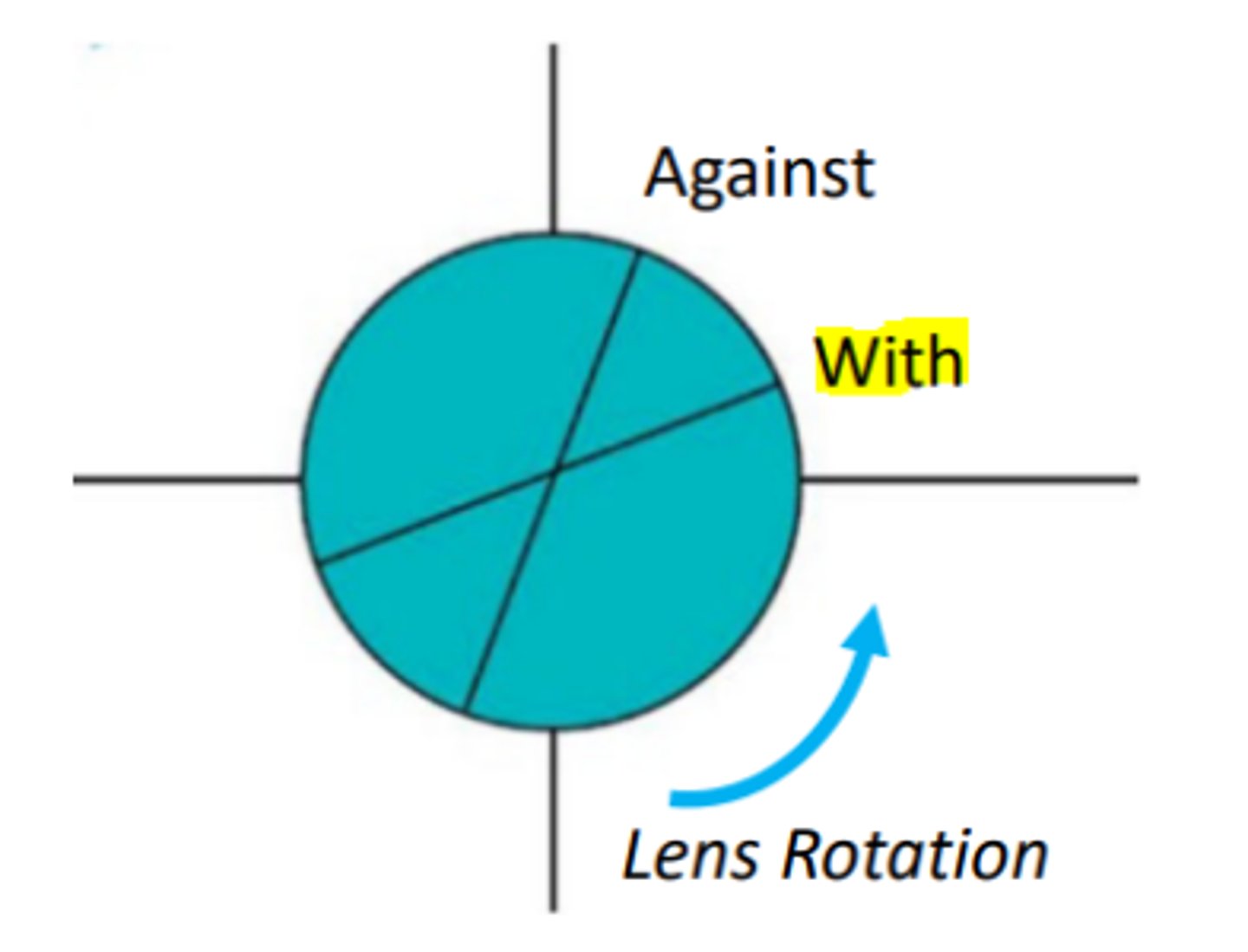

The meridian of a toric lens which shows a motion opposite to the direction of lens rotation.

<p>The meridian of a toric lens which shows a motion opposite to the direction of lens rotation.</p>
10
New cards

with break meridian

The meridian of a toric lens which shows a motion in the same direction of lens rotation. This will also represent the minus cylinder axis of the lens.

<p>The meridian of a toric lens which shows a motion in the same direction of lens rotation. This will also represent the minus cylinder axis of the lens.</p>
11
New cards

vertical

When moving a toric lens up and down, you are neutralizing which meridian?

12
New cards

horizontal

When moving a toric lens left and right, you are neutralizing which meridian?

13
New cards

OD: -2.00-2.00x060

OS: -4.00-1.00x030

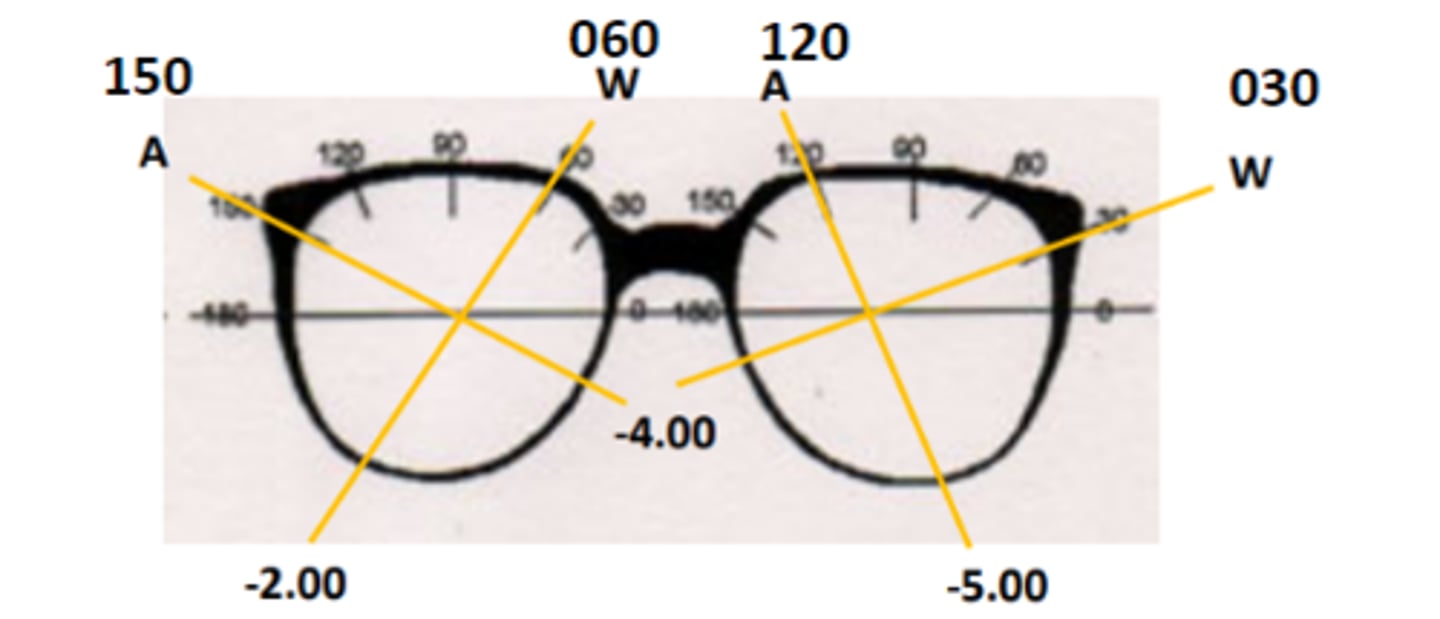

What is the Rx in minus cylinder form?

<p>What is the Rx in minus cylinder form?</p>
