ECHO 3 : Prosthetic Valves

what is this?

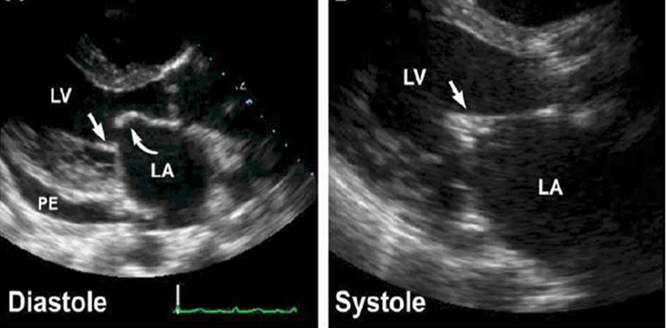

parachute mitral valve

what is this?

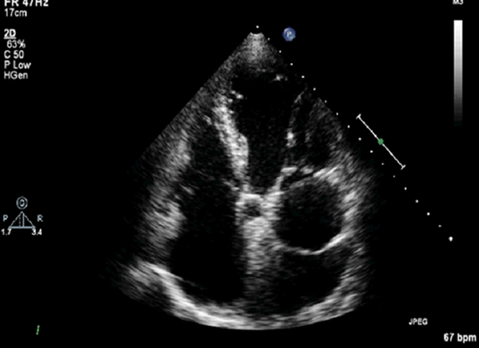

cor triatriatum

what is this?

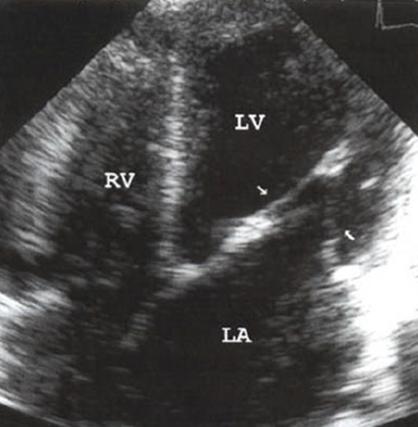

mitral stenosis (hockey stick)

what is this?

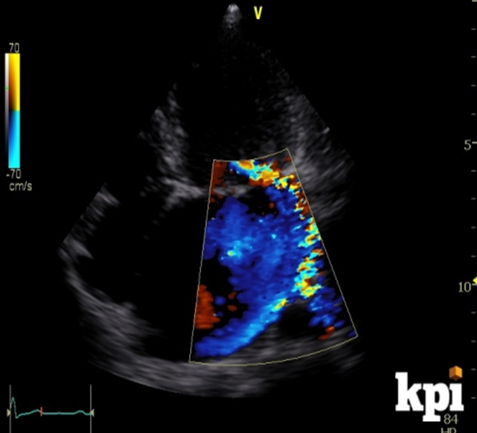

eccentric regurgitant

what is the method of choice to assess prosthetic valves?

echo with doppler

for prosthetic valves is TTE or TEE more effective?

TTE more effective due to less doppler error and more windows

is TEE better with mitral or aortic evaluation?

mitral

most prosthetic valves are

inherently mildly stenotic

what are the two different types of prosthetic valves

mechanical and tissue(biologic)

what are the types of mechanical valves?

ball cage

single tilting disc/monoleaflet

double tilting disc/bileaflet

single tilting disc/monoleaflet is aka

bjork shiley

double tilting disc/bileaflet is aka

st jude

what are the types of biologic/tissue valves?

heterografts (stented or stentless)

homografts

autografts

where do heterografts come from?

bovine (cow) or porcine (pig) tissue

where do homografts come from?

cadaveric sources (other humans)

where do autografts come from?

from self (usually pericardial or pulm valv origin)

what is the ross procedure?

when pts have ao stenosis doctors take pulmonic valve and moves to aortic valve (less likely to reject valve)

what is the most used method for ao valve replacement?

TAVR/TAVI (transcatheter aortic valve replacement/implantation)

• minimally invasive

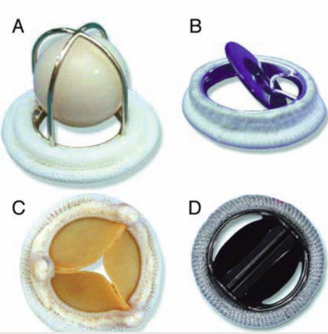

what valves do these represent?

mechanical (except c)

a. ball in cage

b single disc (bjork shiley)

d. double disk (st jude)

in which type of prosthetic valves is regurg more common

normal physiological regurg in all types of mechanical valves

biological have minimal or no intrinsic regurg

which valves are more associated with high incidence of thromboembloic complications?

mechanical (thats why pts must be on blood thinners)

why is it important to do a baseline echo after a valve replacement?

different manufacturers produce different valves that have different gradients/values

prosthetic valve endocarditis is — than native valve endocarditis?

worse prognosis

why is evaluation of prosthetic valves difficult in ECHO?

dense shadows and reverb

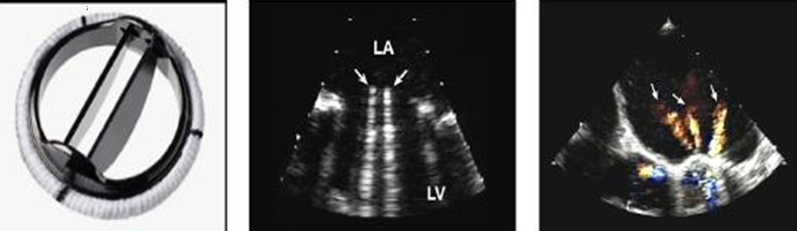

what is this?

bileaflet (st jude)

what is this?

single leaflet (bjork shiley)

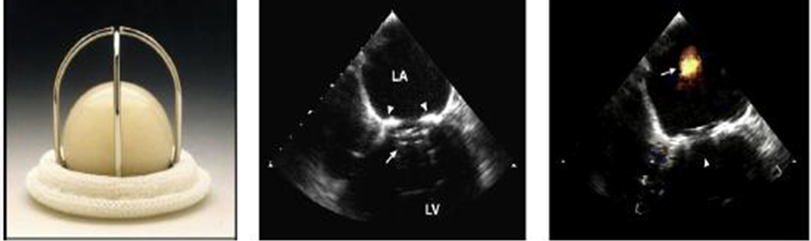

what is this?

ball in cage (starr edwards)

what kind of pressure gradients do ball cage prosthetic valves have?

HIGH pressure gradients

what is normal regurgitant volume for ball cage prosthetic valves?

2-6ml/beat

how many orifices do prosthetic bileaflet (st judes) valves have?

3 orifices (3 color jets)

where do we sample velocities?

there are 2 large orifices and one smaller.

sample flow from the smaller orifice with higher velocities

what is the normal regurg volume for monoleaflet (bjork shiley) prosthetic valve?

5-9mL

how do mean gradients compare in prosthetic vs native valves?

CW doppler shows increased mean gradients in prosthetic valves compared to native valves

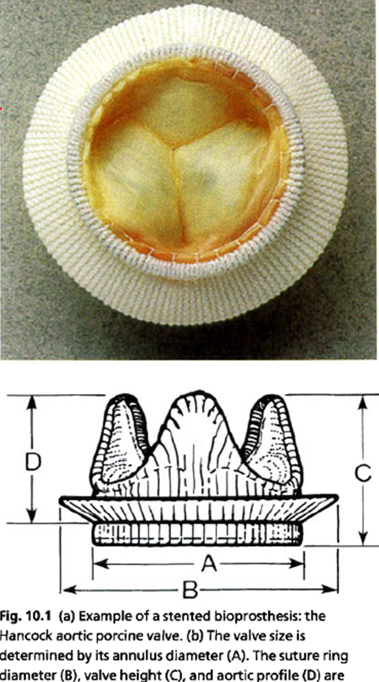

stented heterograft can be confused with - because of -

sclerosis

echogenic annulus in stented valves

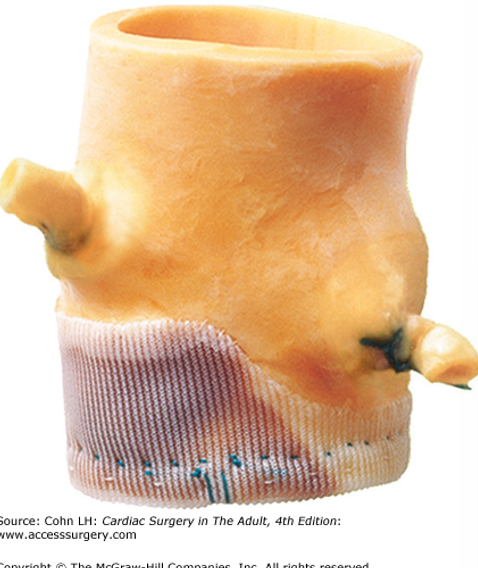

stentless heterografts are made from

porcine aortic valves or bovine pericardium

heterografts biologic are only used for

aorta

how does the appearance of stentless graft compare to stented graft?

stentless have no rigid sewing ring or support status

what is another name for heterograft?

xenograft

homograft is aka?

allograft

how are homografts acquired?

harvested from human cadavers within in 24 hours of death and treated with antibiotics and cryopreserved

how to assess for prosthetic paravalv regurg/periannular leakage?

color doppler

how does CSA compare in valve replacements vs native valves?

valve replacements CSA smaller than native valves

what is the dimensionless index?

ratio of max LVOT velocity to max transaortic velocity used for ao valve replacements

• LVOT peak or VTI / aortic peak or VTI

what is the typical value for dimensionless index of prosthetic valve?

.35 - .5

dimensionless index of prosthetic valves can help assess

aortic stenosis **without continuity equation

all people with prosthetic valves shoud be prescribed

aspirin —> prevents clots through antiplatelets (coumadin)
