ADV CONS DOC - Quiz 2

Contain both fire and smoke to one location

The main purpose of a building’s fire barrier protection system is to ....

Firestopping

Is simply the maintenance of holes and gaps of penetrating items through these systems.

Fire Wall

Wall with a specified degree of fire resistance that is designed to prevent the spread of fire within a structure or between adjacent structures.

Fire and Smoke Dampers

Required when HVAC systems penetrate fire walls that have a fire-resistance rating of 2 hours or greater.

Damper

This is a device to restrict passage of flames in duct systems.

Party walls

A wall that is located on a lot line between two buildings and is common to both buildings.

Fire partitions

Walls may not extend continuously through a building. These walls are erected from a floor to the underside of the floor or roof above or to the bottom of a fire-rated floor/ceiling assembly.

Fire barrier

Walls that are required to terminate at the floor or roof deck. Fired resistant rated walls must be continues & extended vertically from top of floor assembly to bottom of floor/ceiling assembly.

Curtain wall

Non load-bearing exterior wall attached to the outside of a building.

Fire partitions & fire barriers

___ _______ _ ____ _____ are vertical building elements. They are walls & shafts enclosures that have fire resistant ratings. Number of openings is limited. Openings & penetrations must be rated too.

Horizontal Assemblies

________ __________ are floor or ceiling, ceiling or roof assembly that has fire resistant rating.

Walls, Floor & Ceiling

_____, ____ & _____ assemblies surrounding an area having the same fire-resistance rating create complete compartmentation or enclosure.

ASTM E119

Standard Test methods for Fire Tests of Building Construction and Materials

UL 263

Standard for Fire Tests of Building Construction and Materials

NFPA 221

Standard for High Challenge Fire Walls, Fire Walls, and Fire Barrier Walls

ASTM E-119 & UL 263

These two are testing standards for walls that ensure an assembly can resist fuel loading through heat transfer.

Fuel loading

___ ______ is when materials (ie. Boxes, wall paper, books) on one side of a wall are subjected to enough heat transfer from the opposite side of the wall that they ignite.

one-hour

When it comes to a fire barrier, the IBC requires that it must have no less than a __-_____ fire-resistance rating.

However, rating requirements for this can extend to a four-hour rating depending on the type of occupancy of a particular building.

30

On the other hand, a fire partition must have a fire-resistance rating of no less than _____ minutes.

do not, same level

According to IBC, fire partitions ___ ____ provide the ____ ____ of protection as fire barriers.

1 hour

Fire partitions must have a rating of at least ___ _____.

Automatic Sprinkler system

If fire partitions are less than one-hour rated, an ____ _____ ______ must be installed.

prevent the passage

Fire rated doors are used in buildings to _____ ___ ______ of fire and smoke between two compartments or areas.

NFPA 80

Standard for Fire Doors and Other Opening Protectives -- installation and maintenance of fire doors.

doors and frames

The International Building Code and International Residential Code require that _____ ____ _______ be given a fire-resistance rating after extensive testing by an approved agency.

20, 3

Fired rating doors & frames vary from __ min to _ hours, which represent the duration of the fire protection.

steel

Only ____ doors and frames have earned a three-hour rating.

110 V and 220 V

These are the 2 distinct types of power sources you will find in your home.

110

The most common electrical outlet in any home is a ___ volt.

15 amp & 20 amp

What are the two variations of the 110 volt outlet?

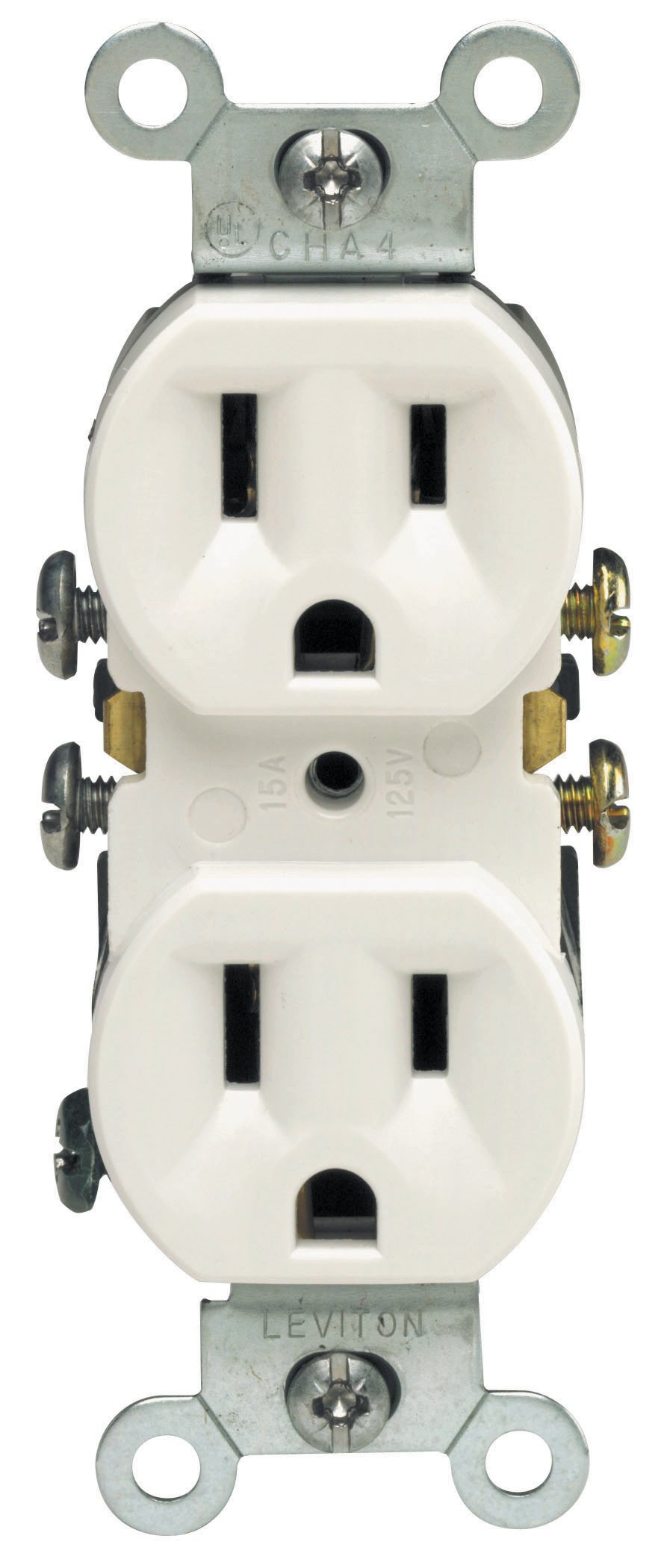

110 Volts & 15 Amp

This is suitable for the majority of your electronic needs, such as TVs, microwaves, small air conditioners, etc.

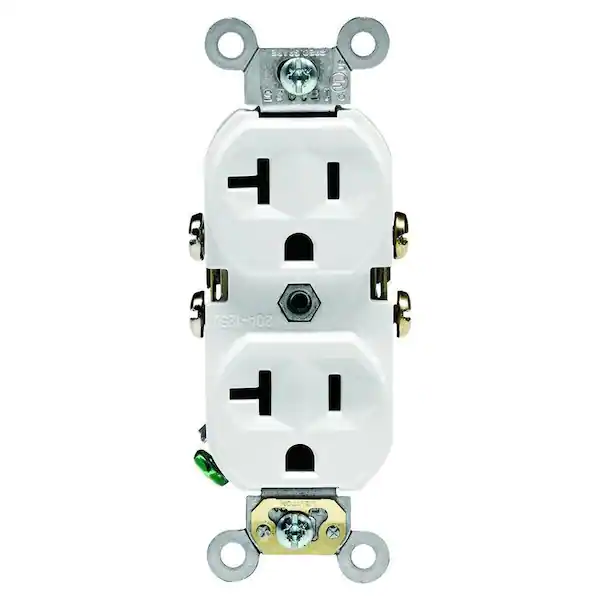

110 Volts & 20 Amp

Small dryers and washing machines often use this socket.

220 volt

With the increased electrical demands of larger appliances, such as ranges, the power supply is doubled by combining 2 circuits and creating a _______ outlet.

15, 20, and 30 Amp

What are the three types of variations for a 220 volt outlet?

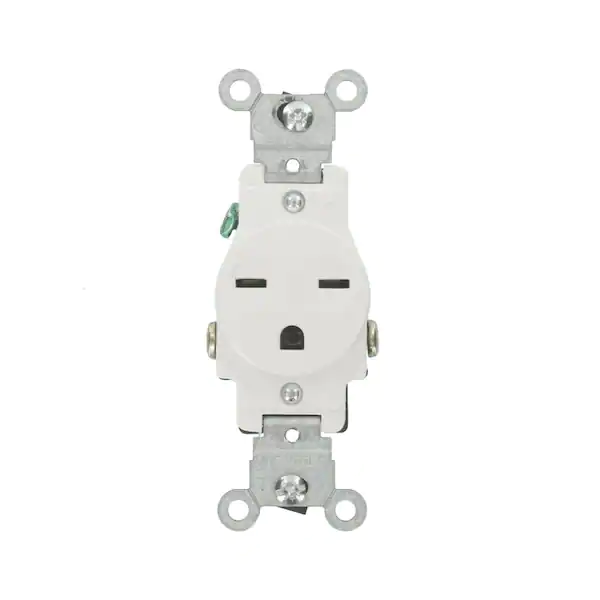

220 Volt & 15 Amp

More powerful appliances increase the demand on your electrical system. These are larger plugs than normal 110 Volt, and it would be impossible to confuse the two. Washers, dryers, and commercial-sized air conditioners commonly use this plug.

Safety, expenses

Why not make all outlets 220 volts?

Two areas of concern:
1. _____
2. _______

220 volt outlet uses

This volt outlet is for rooms with appliances such as a washer, dryer, oven, furnace, etc that require the extra voltage.

Ground-Fault Circuit Interrupter

This is an inexpensive electrical device that can either be installed in your electrical system or built into a power cord to protect you from severe electrical shocks. GFCIs have played a key role in reducing electrocutions.

800

Before the widespread adoption of GFCI (ground-fault circuit interrupter) outlets, around ___ people died annually in the United States of electrocution.

bathrooms, rain, standing water

GCFIs are usually placed in _______ or places exposed to ___ or _____ _____.

Junction Box

These metal or plastic boxes houses and safely protect a structure's electrical connections. They serve as the communal meeting spot for electrical wires, where they connect before moving on.

2l x 3w x 2.5d - 2l x 3w x 3.5d

There are two standard sizes for junction boxes;

1. Three-wire box size
2. Five-wire box size

Telecommunications Outlets

This is popularly known as data/voice outlet, describes a connecting device (e.g., 4-pair outlet or optical connector/adapter) in the work area on which horizontal cable (commercial cabling term) or outlet cable (residential cabling term) terminates.

electrical system information

Interior designers are responsible for showing _____ ______ ________ on their drawings.

interior design drawings, electrical engineer

The ______ _____ ________ often indicate all electrical outlets, switches, and lighting fixtures and their type.

The _______ __________ uses the interior design drawings to help design the electrical system.

Indicated, along with their electrical requirements

Large equipment and appliances should be _____ ......

Communication system

_______ ________ equipment, like public phones, phone outlets, and related equipment, and computer outlets are shown.

location and size, plenum

The designer should be familiar with the ______ ____ ____ of the electrical panels, and with the building systems that affect the type of wiring used, such as _______ mechanical systems.

NFPA 70

Also known as the National Electric Code, sets the minimum standard for all electrical design for construction, and is revised every three years. It is the only model electrical code published, and is the basis for electrical codes in almost all jurisdictions.

ANSI, NEMA, and UL

Standards for electrical and communications systems are set by

National Electrical Manufacturers
Association

What does NEMA stand for?

Underwriters Laboratories

What does UL stand for?

ADA

____ will specify mounting heights for outlets and fixtures in handicapped accessible spaces.
