33 Terms
What connector type is this?
MPO/MTP
What connector type is this?
ST (Straight Tip)
What connector type is this?
LC (Lucent Connector)
What connector type is this?
SC (Standard Connector)

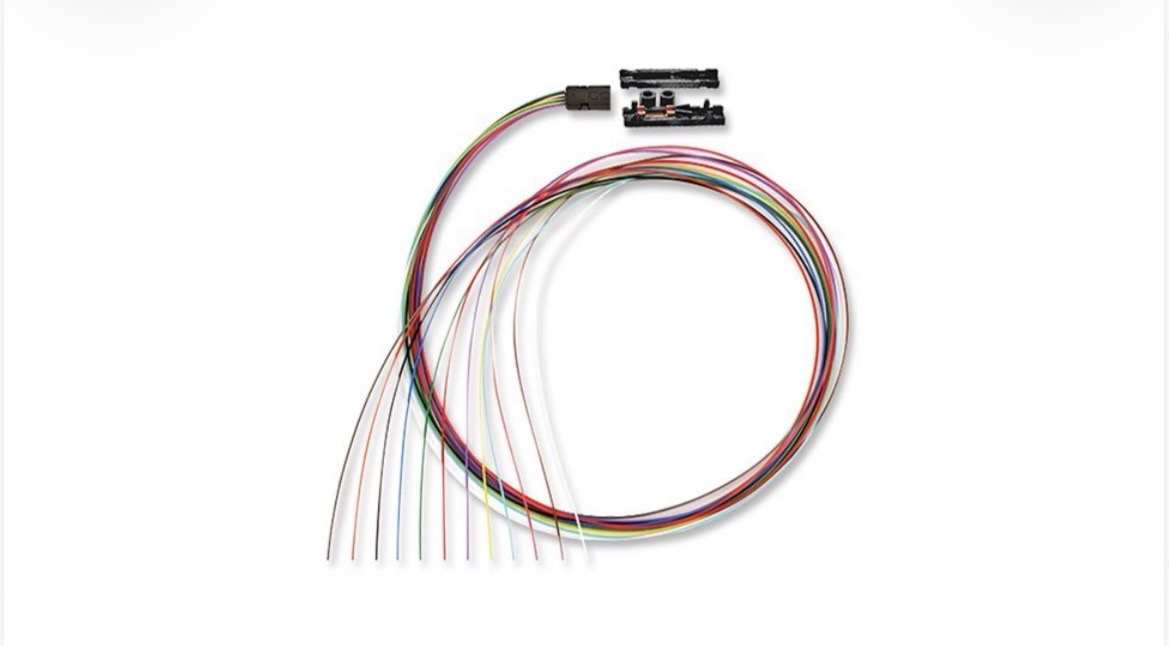

What is this?
Fanout Kit

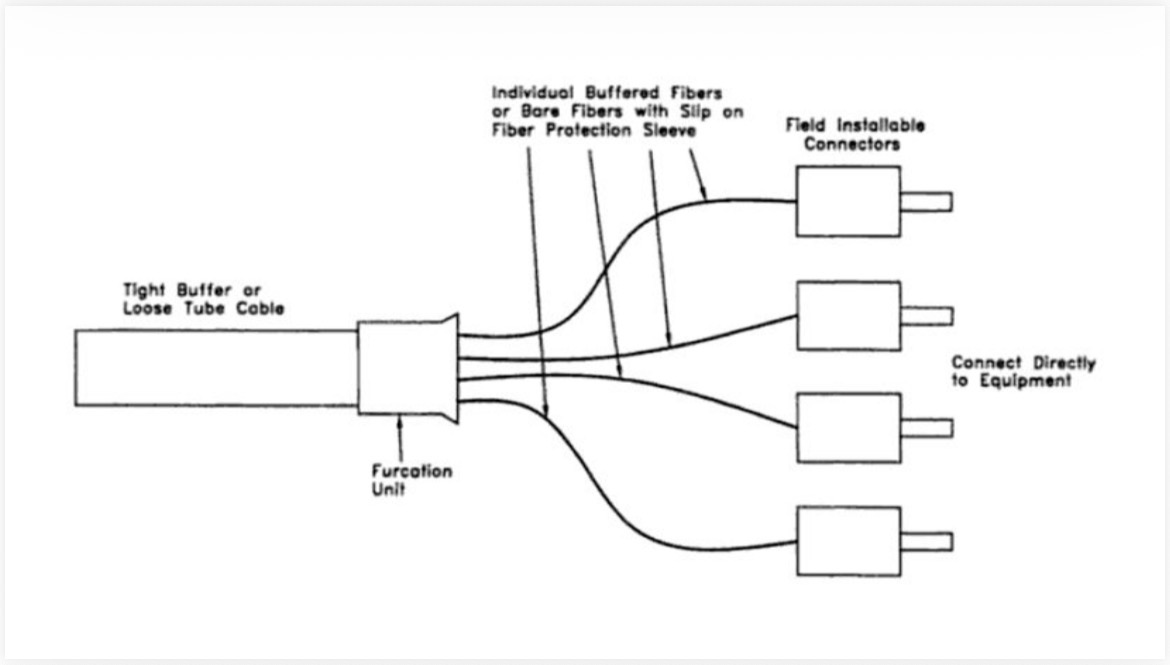

What is this?
Breakout Kit

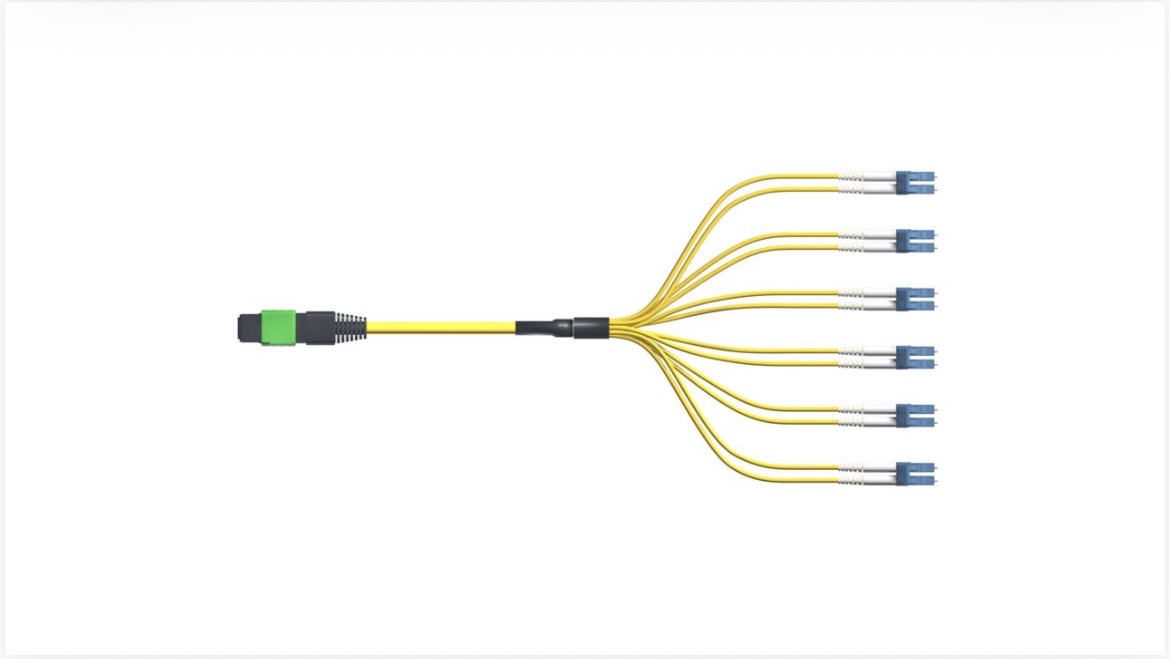

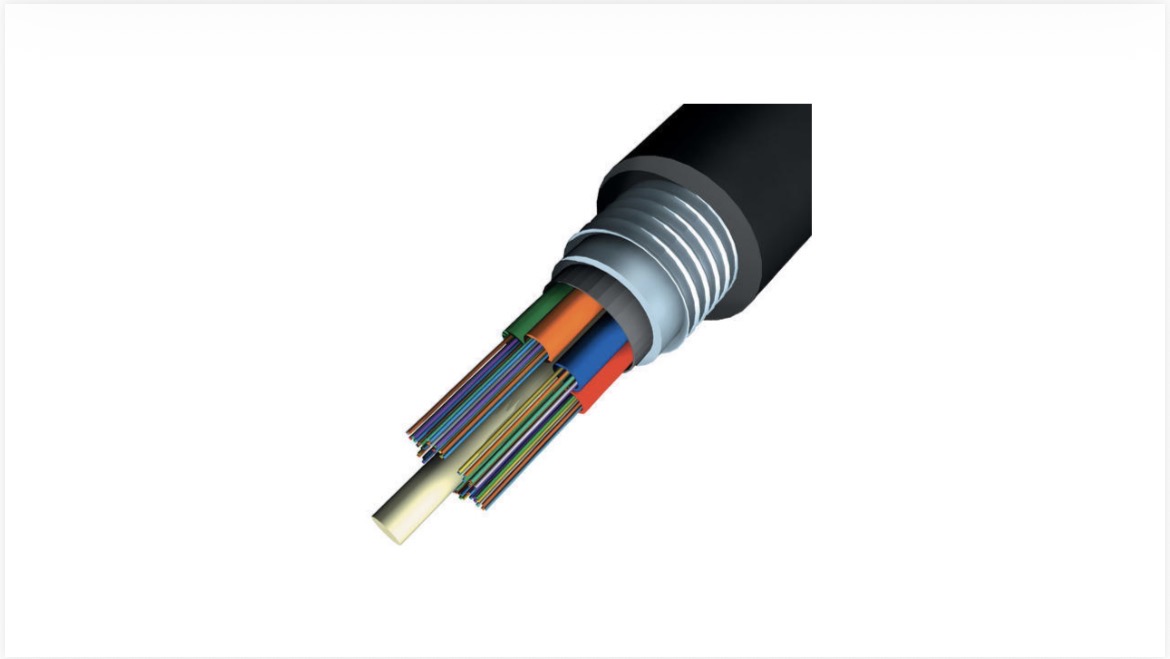

What is this?
Armored Cable

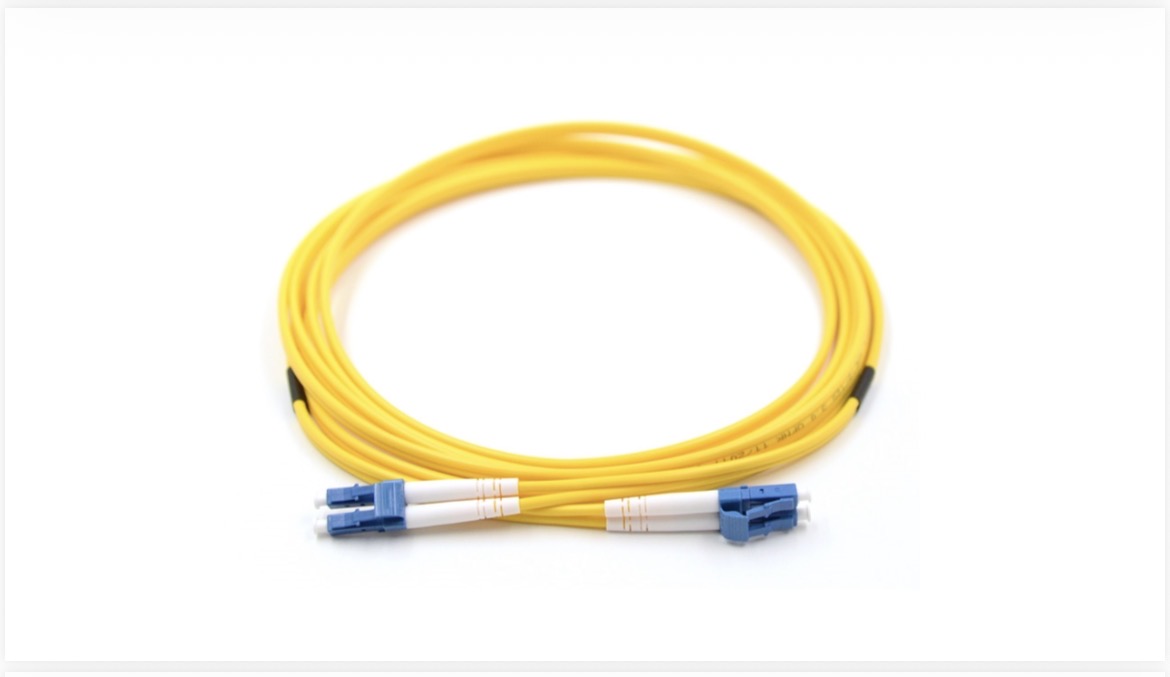

What is this?
Breakout Cable

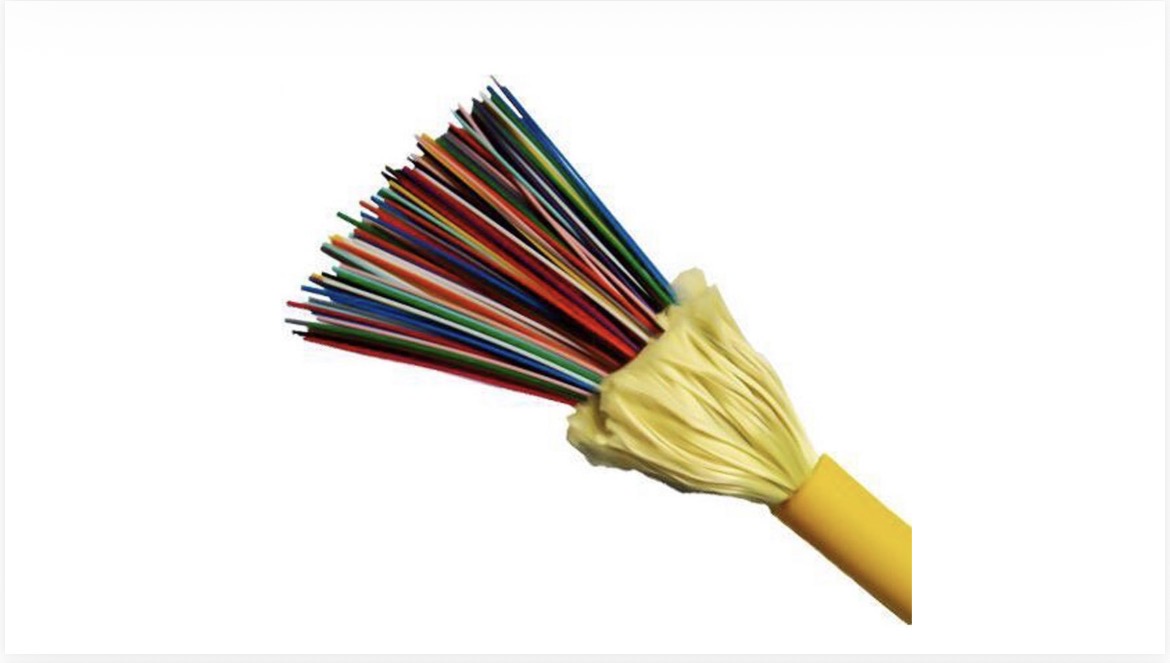

What is this?
Distro

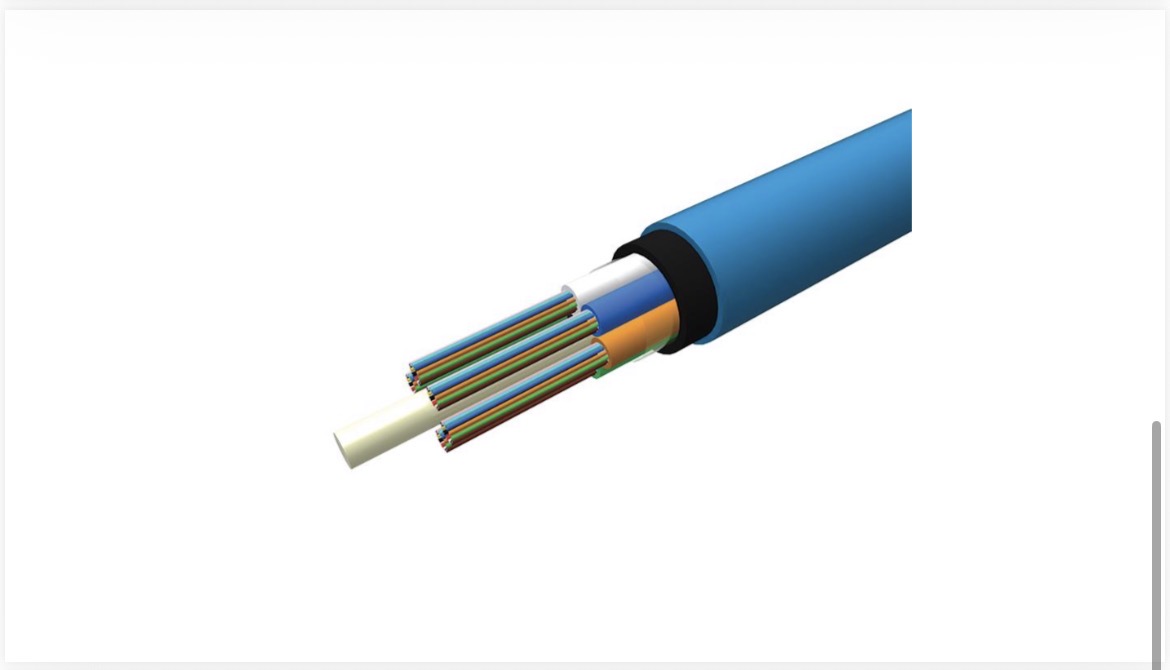

What is this?
Loose Tube Cable

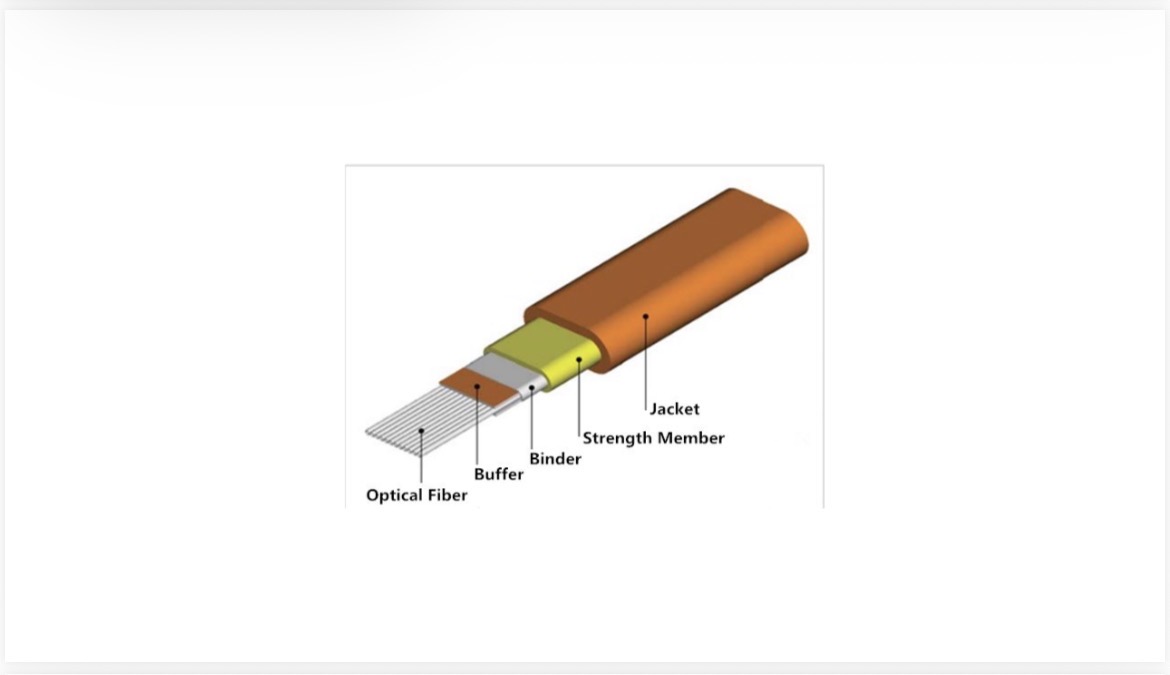

What is this?
Ribbon
What is this?
Single Mode

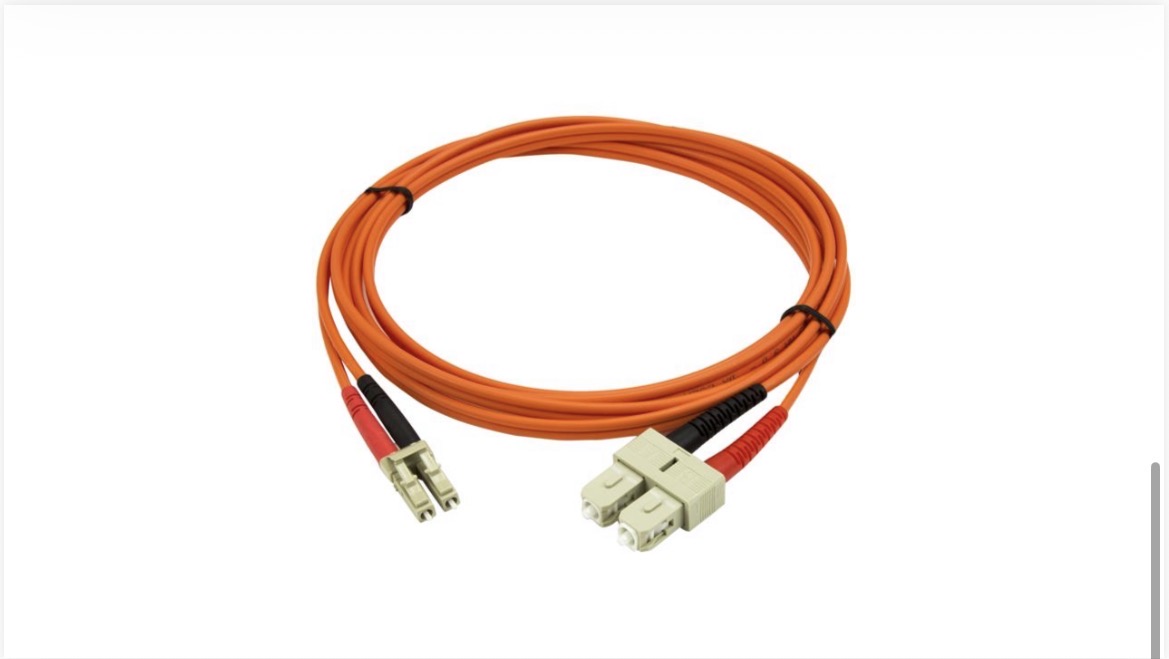

What is this?
Multimode
How many different Tube/Fiber colors are there?
12
Name all of the colors in order
Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
What are the three components in order?
Core, Cladding, and Coating
What is the definition for a Decibel (dB)?
Used to express gain or loss relative to a known value
What measure is Absolute Power?
1 milliwatt (mW)
What is Refraction?
The change in the direction of light as it changes speeds passing from one material into another
What is a Fresnel Reflection?
Occur when light changes speed as it moves from a material with a given index of refraction into a material with a different index of refraction
What are the Core sizes commonly used?
9μm, 50μm, and 62.5μm
What are the Cladding sizes commonly used?
125μm and 140μm
What are the Cladding sizes that support Core sizes?
125μm supports 9μm, 50μm, 62.5μm, and 85μm
What is the Cladding size that supports a 100μm Core?
140μm
What does a Hybrid Cable do?
As applied to fiber optics, it combines multimode and single-mode optical fibers in one cable
Which color is Laser Optimized?
Acqua
What is the cable markings found outside?
Sequential Markings
What is the max loss you can have when you splice?
0.3dB
The scoring blade should be held _____________ to the optical fiber
Perpendicular
The air gap will cause a loss and produce a _______ __________
Fresnel Reflection
The maximum insertion loss allowed by ANSI/TIA-568-C.3 for a multimode or single-mode mated connector pair is ______
0.75dB
The scattering of light is a form of _________ ___________
Intrinsic Attenuation
