ARC 1013 - Briar Jones/MSST - Test 2

"Dead" Load

forces from all the "immovable" elements of a building (weight of building materials, walls, floors, etc)

"Live" Load

forces from all the "movable" elements of a building (people, equipment, furniture, etc)

Compression

capacity to resist being pushed together

Tension

capacity to resist being pulled apart

Post & Beam/Lintel

1. wood beam, steel cupping post

2. steel beam, welded steel post

3. 2 steel beams welded together

Frame

wood

steel (tall buildings; light weights; thin walls; take veneers of brick, stone, stucco, etc)

Masonry

brick

concrete

stone (heavy, thick walls, costly (today), good insulation)

Menhirs

single stone standing upright

Dolmen

several stones supporting a stone slab

Henges

circular ditches around which some Megalithic monuments are arranged

Cromlech

circle of stones

Trabeation

post & lintel

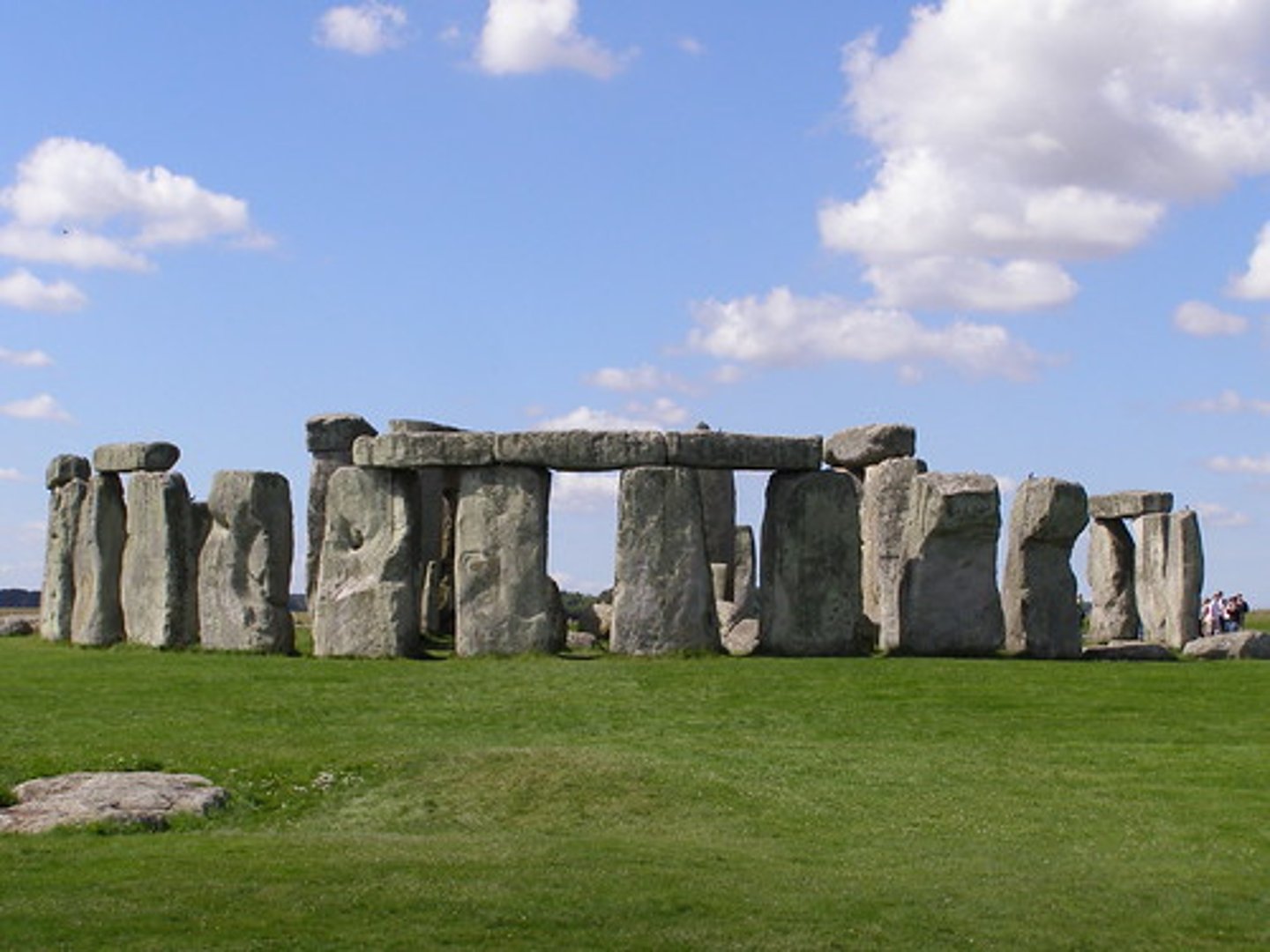

Stonehenge

most famous Neolithic monument

built 3000 BC - 2100 BC

tops of stones/columns - mortise and tenon

1. step - Saqqara: Doser's Step Pyramid

2. bent - Sneferu's South Pyramid; Dahshur, Egypt

3. straight - Cheops' Pyramid; Giza, Egypt

3 types of pyramids

Ziggurat

stepped structure (mud brick)

some of oldest pyramids (2125 BC)

1. Great Pyramid

2. Hanging Gardens of Babylon

3. Temple of Artemis @ Ephesus (Fire)

4. Statue of Zeus (Fire)

5. Mausoleum of Halicarnassus (Earthquake)

6. Lighthouse of Alexandria (Earthquake)

7. Colossus of Rhodes (Earthquake)

7 wonders of the ancient world

First Recorded Architect

Imhotep

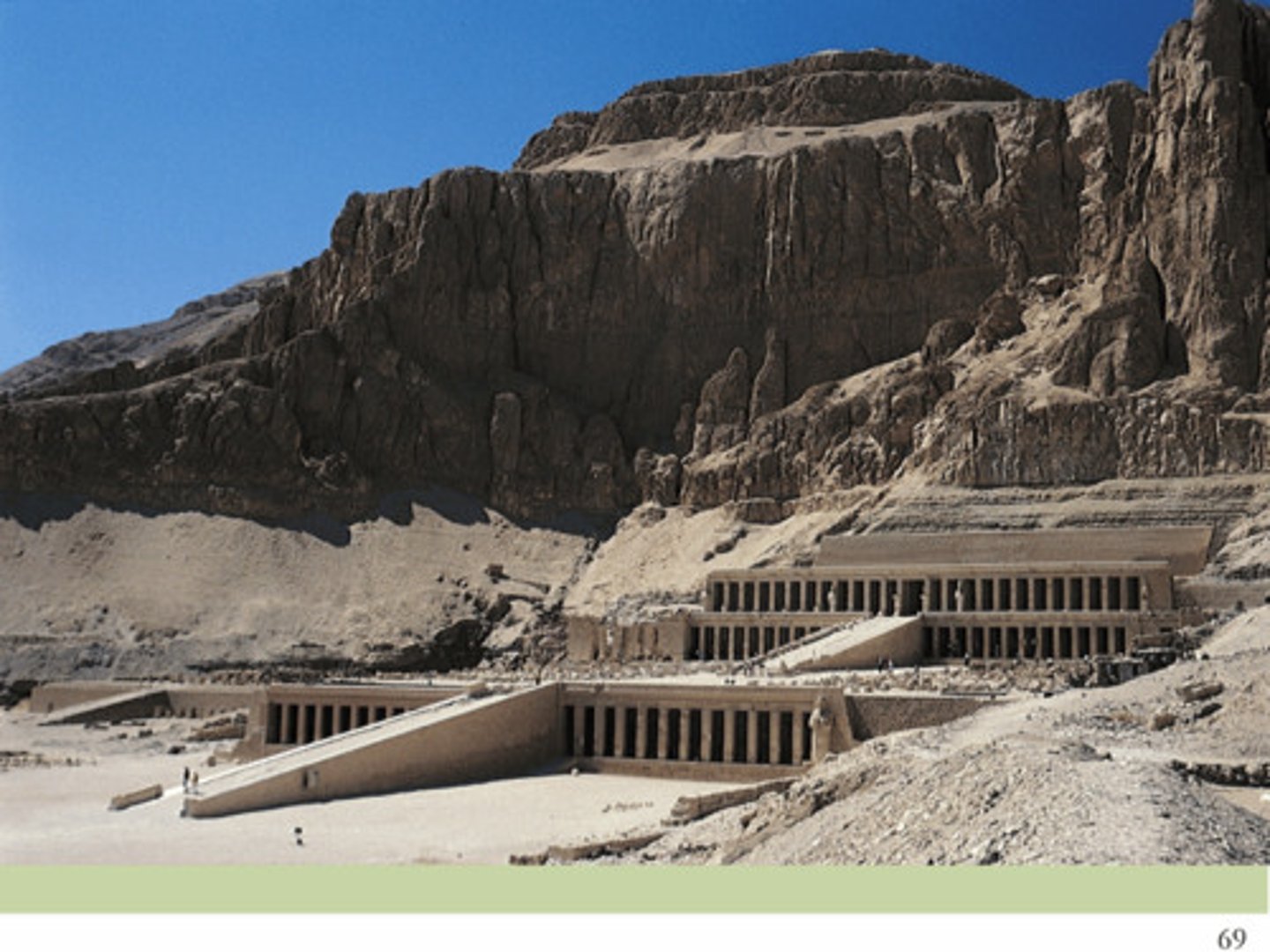

Mortuary Temple of Queen Hatshepsut

first tomb built into mountain; help stop looters

Hypostyle Halls

large space w/ flat roof supported by rows of columns

mid 19th century

When was the Egyptian revival?

Pyramids in Central America

used as temples

ziggurats

often added onto over time (new temple over old)

Mycenae

Lion Gate, precursor to Greek Arch (forerunner to post & lintel)

sense of structure was inheritance from Neolithic Period

lion element from Egypt

Greek will refine post & lintel

Greek Architecture

united by language

founded on: private property, individual freedom (less than 35% weren't slaves), democracy

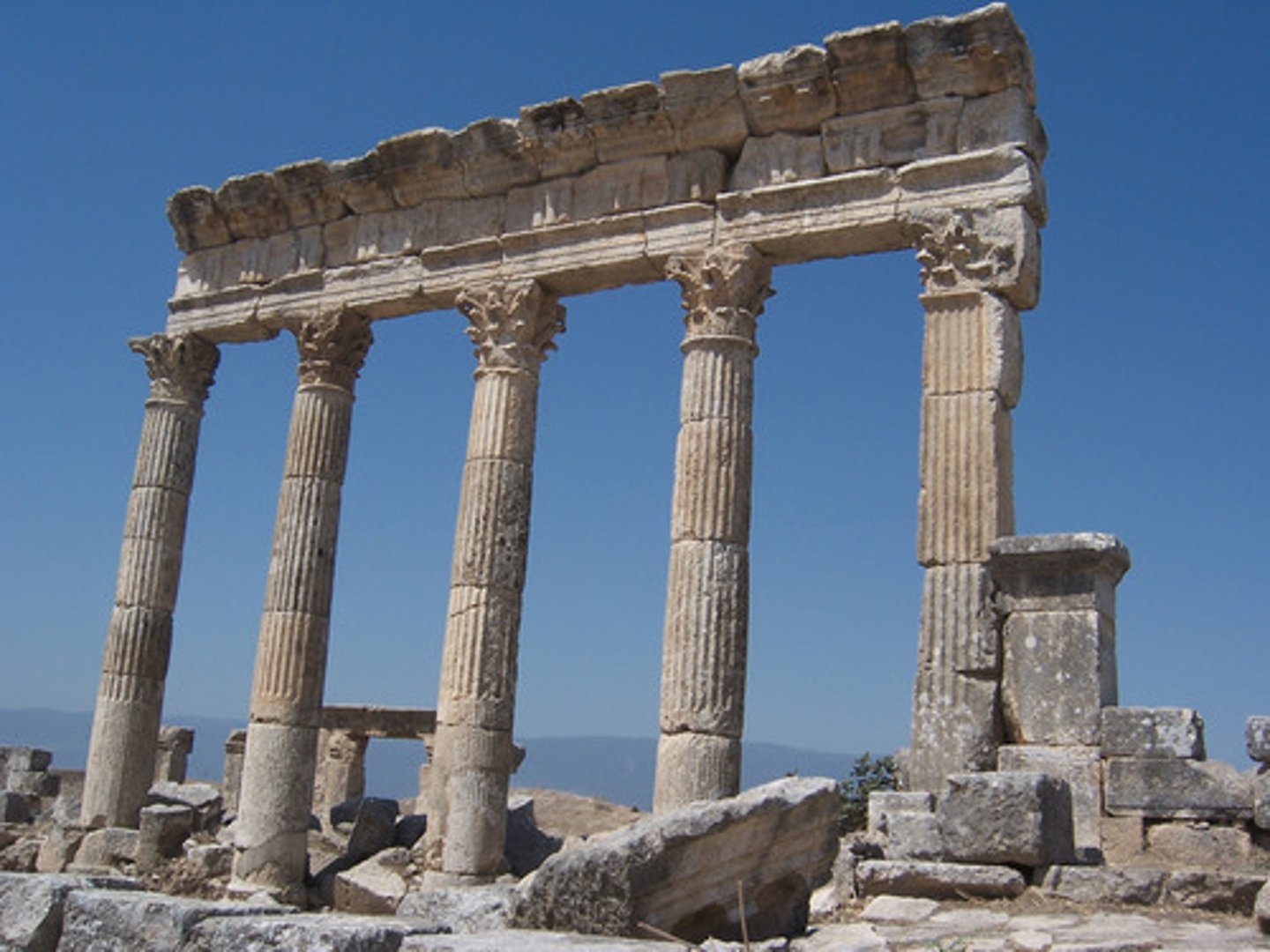

Colonnade

series of regularly spaced columns supporting an entablature & usually 1 side of a roof structure

housed gods

impress non-Greeks (vivid color, floral design)

Why were temples built

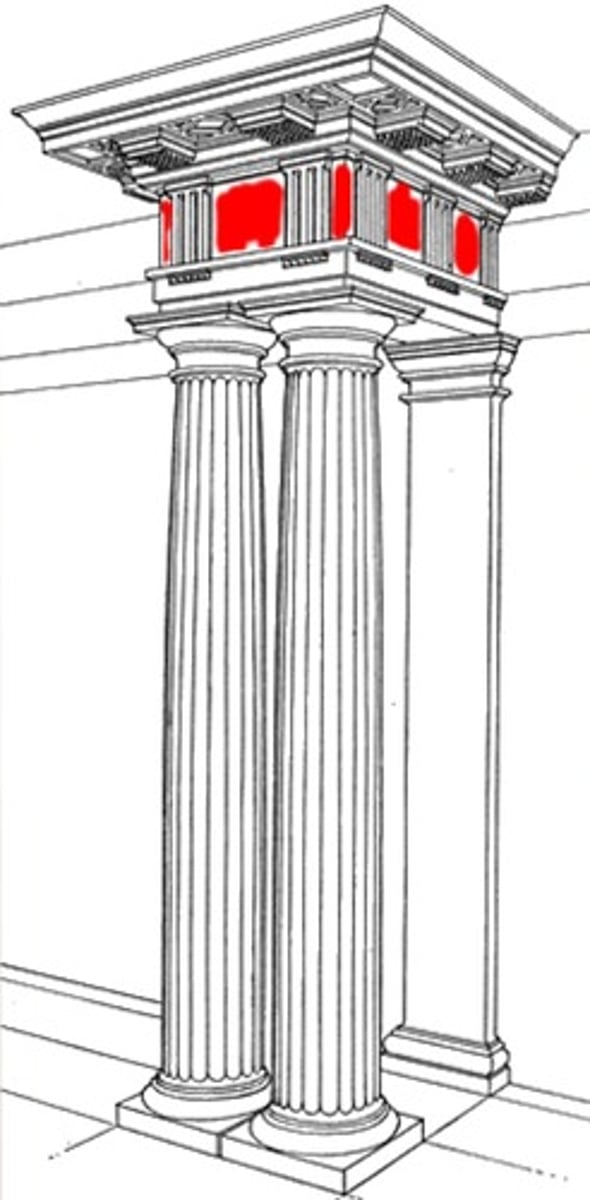

Metope

any of the panels, either decorated or plain, b/t the triglyph on a Doric frieze

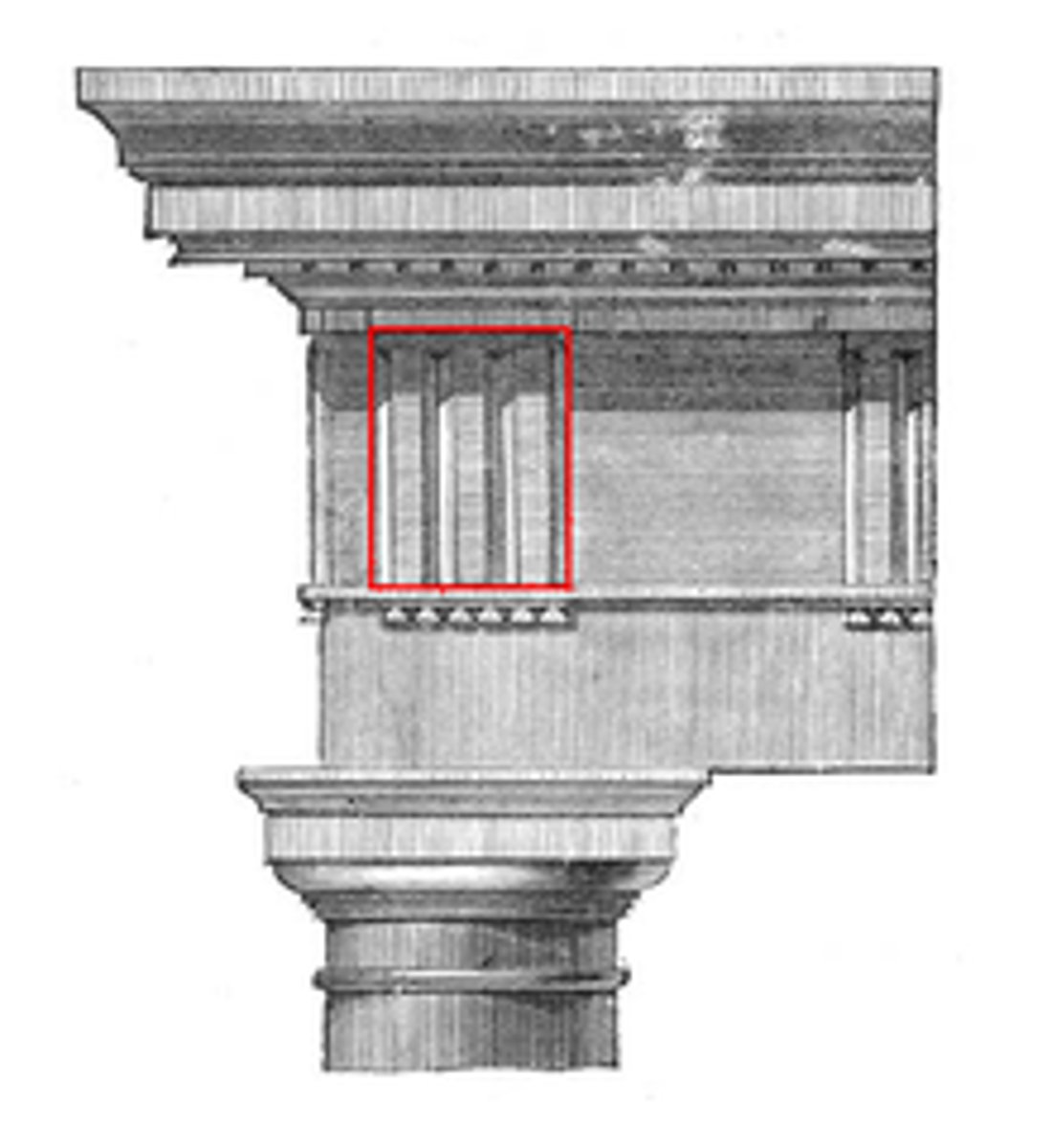

Triglyph

1 of the vertical blocks separating the metopes on a Doric frieze

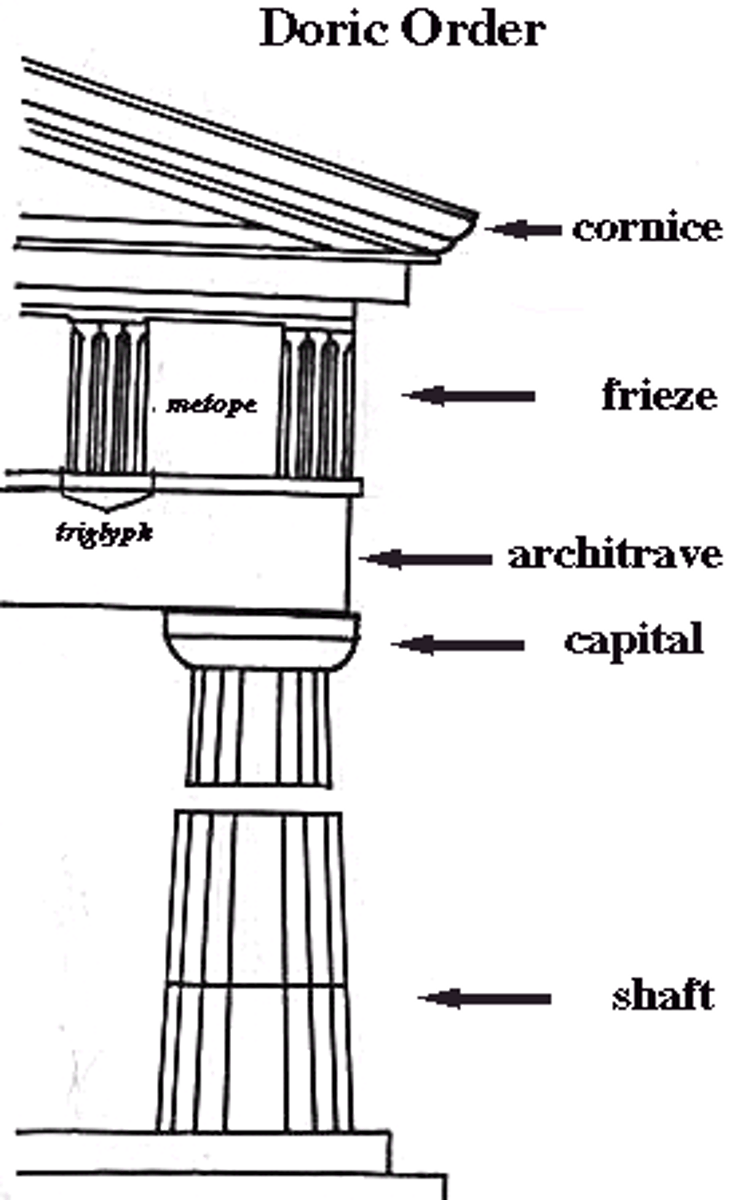

Doric Order

columns placed close, no base

plain capitals

metopes & triglyph

perfection of Doric - Parthenon

Ionic Order

smaller buildings & interiors

recognizable by capital

perfection of Ionic - Temple of Athena Nike

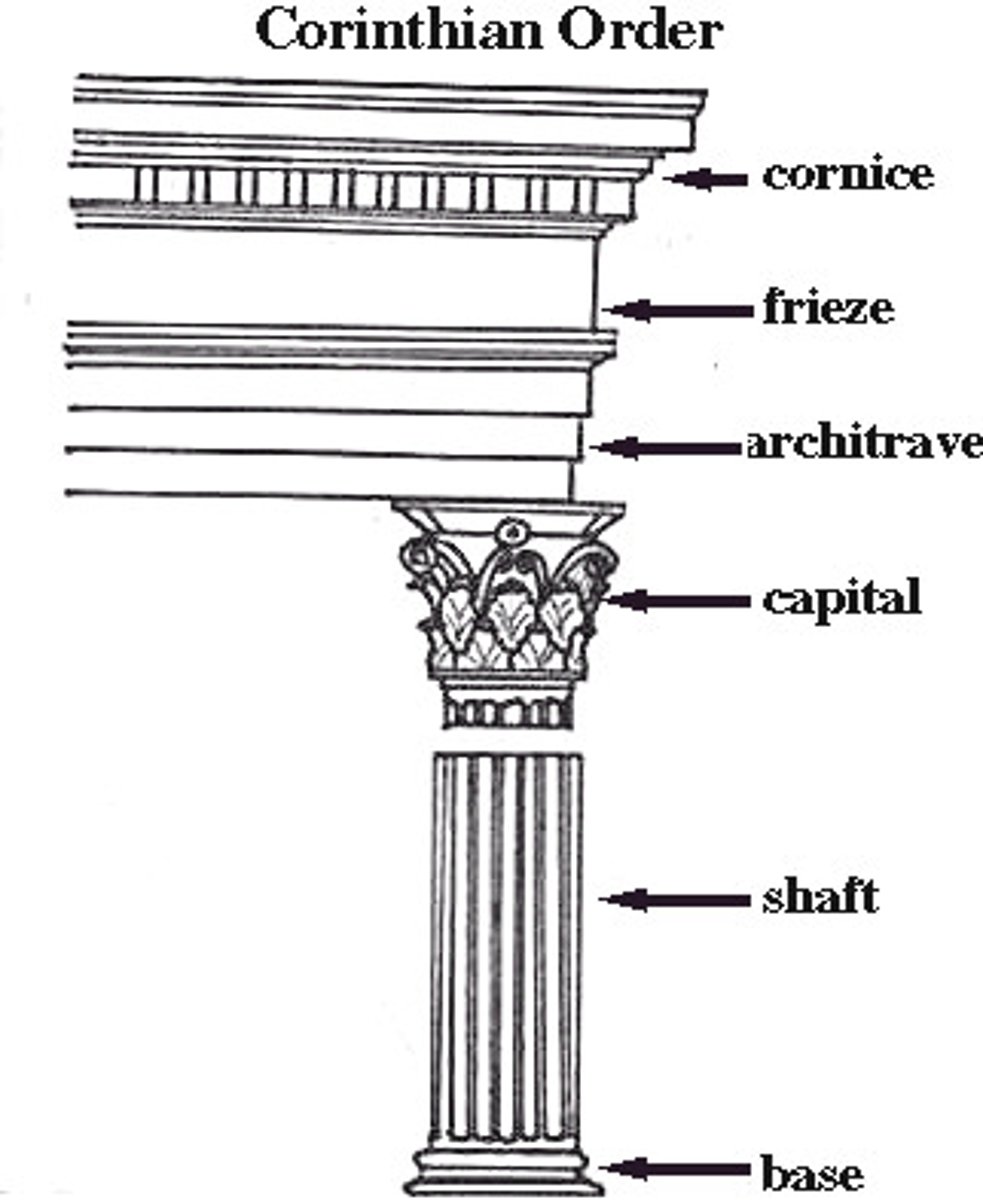

Corinthian Order

different capital from Ionic (leaves)

found on interiors

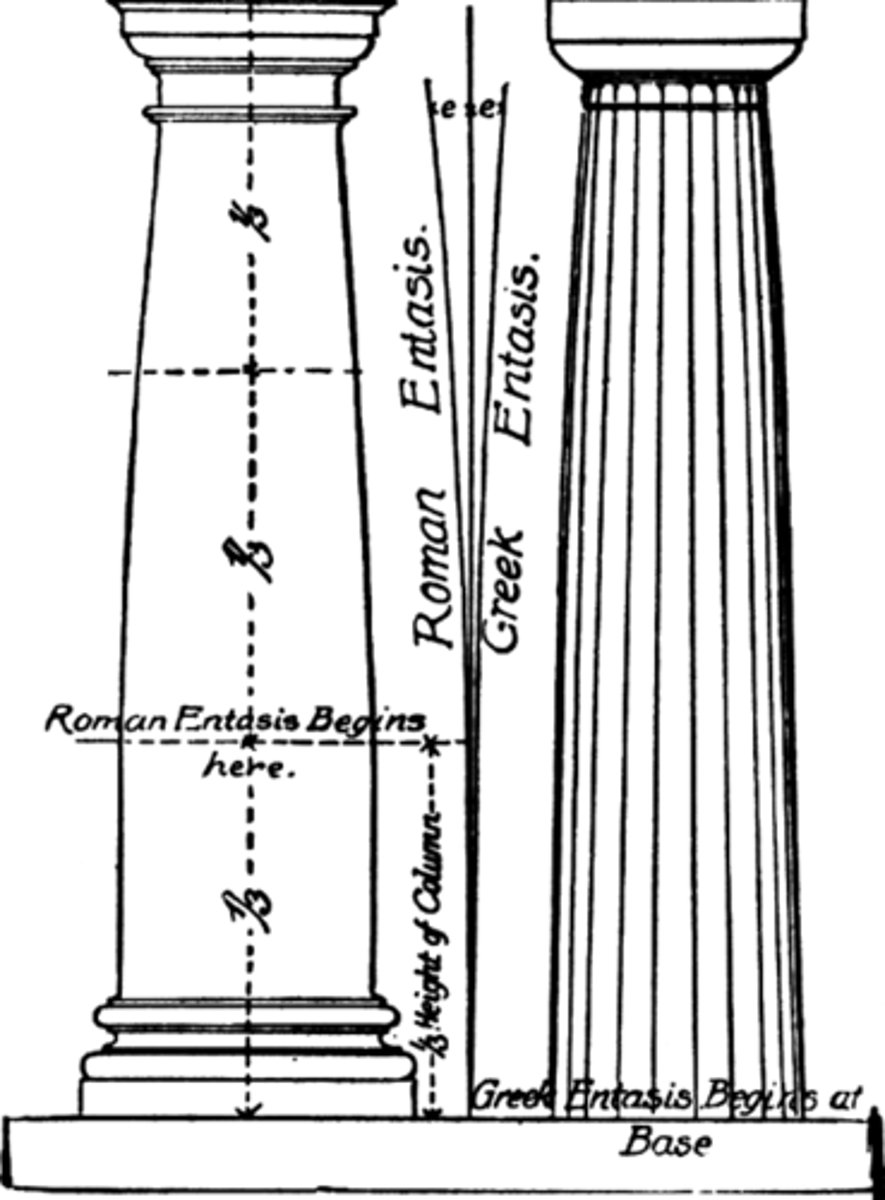

Entasis

slight convex bulge given to a column to offset the optical illusion that it is thinner in the middle

agora

open meeting place or market

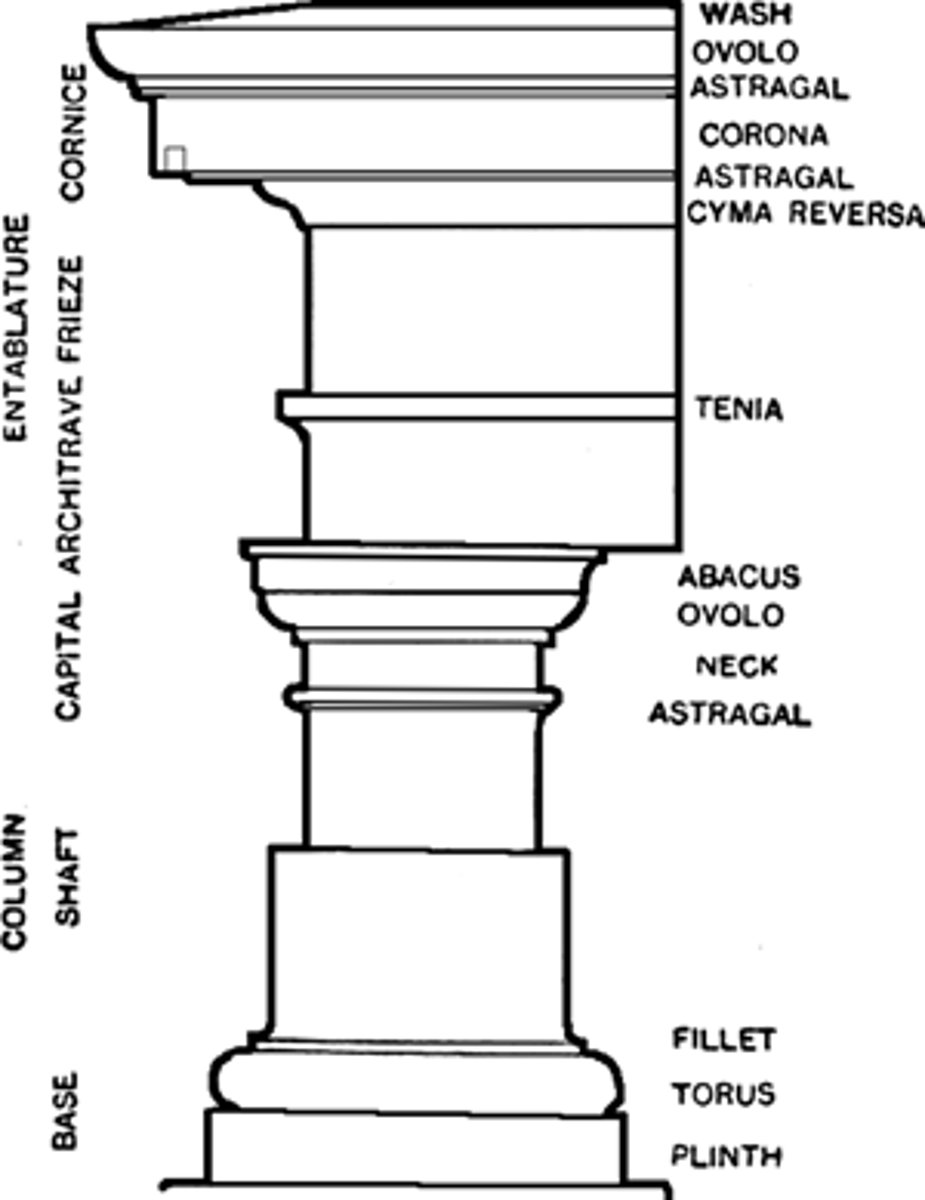

Tuscan Order

unlike Doric, supports an entablature w/ no decoration (wooden temple w/ pitched roof)

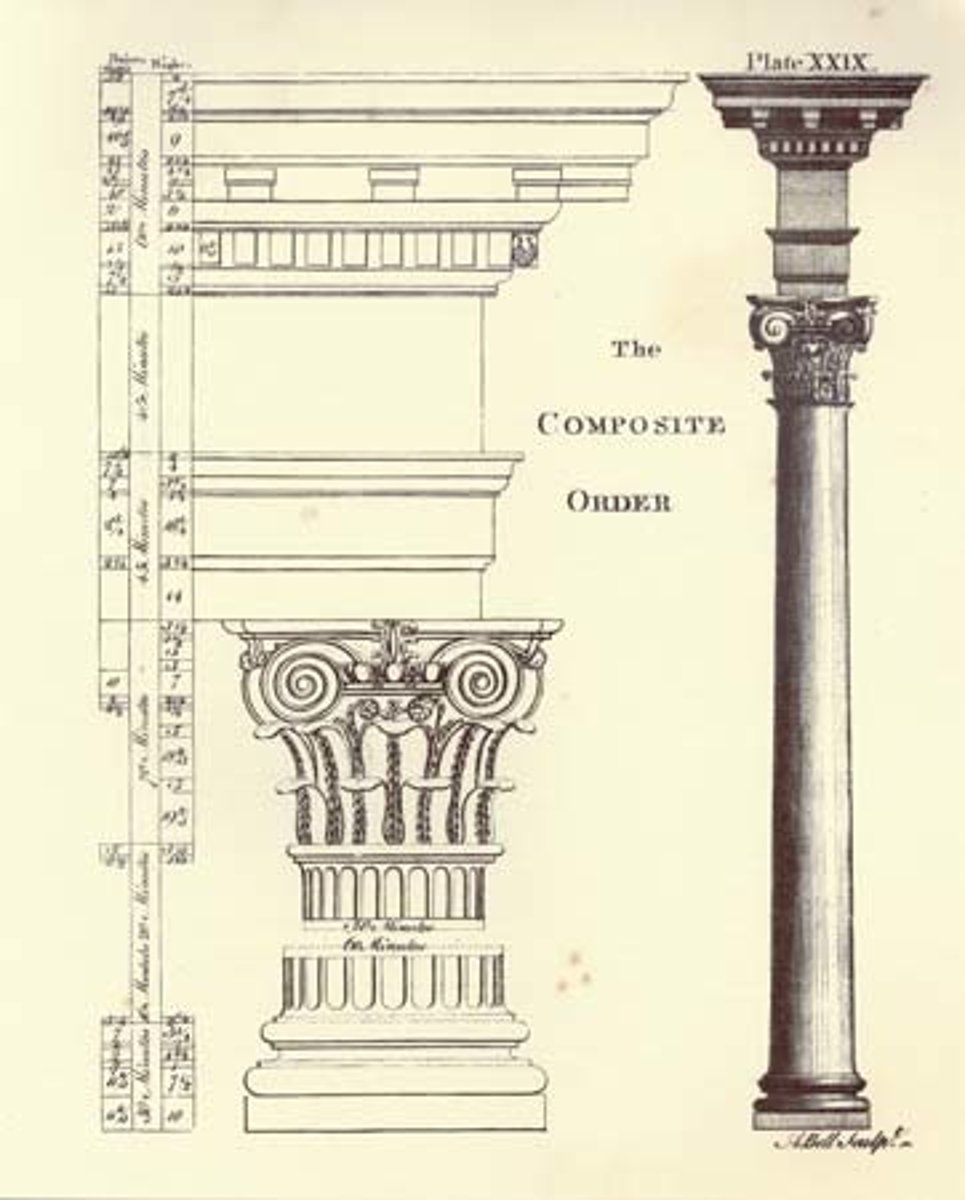

Composite Order

Ionic and Corinthian; roman innovation

G: objects in landscape (balance harmony refinement of form, not structure), post and beam

R: made space (images in context), the arch, vault, dome, concrete

Greeks vs Romans

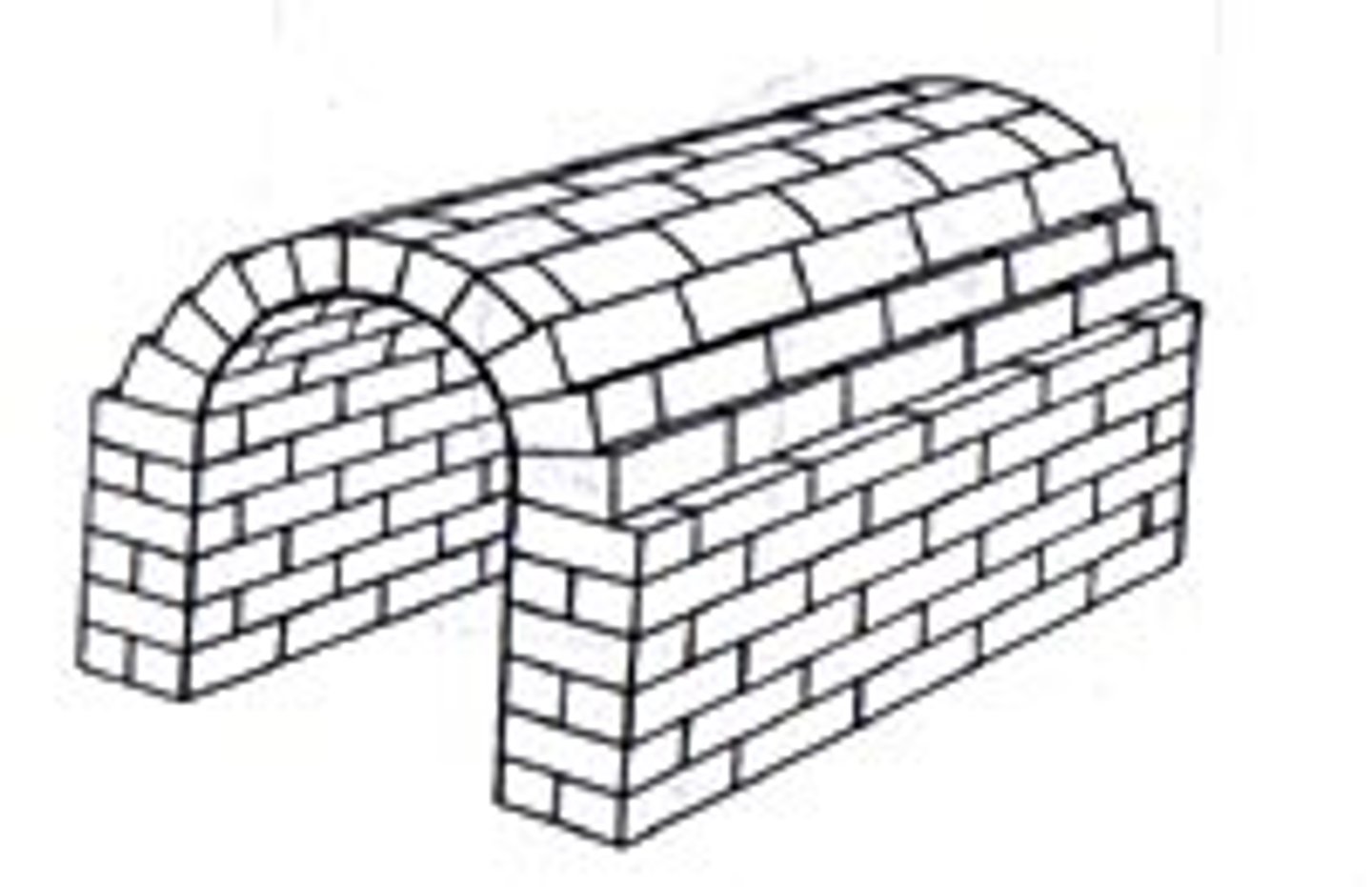

Barrel Vault

extending an arch along its depth

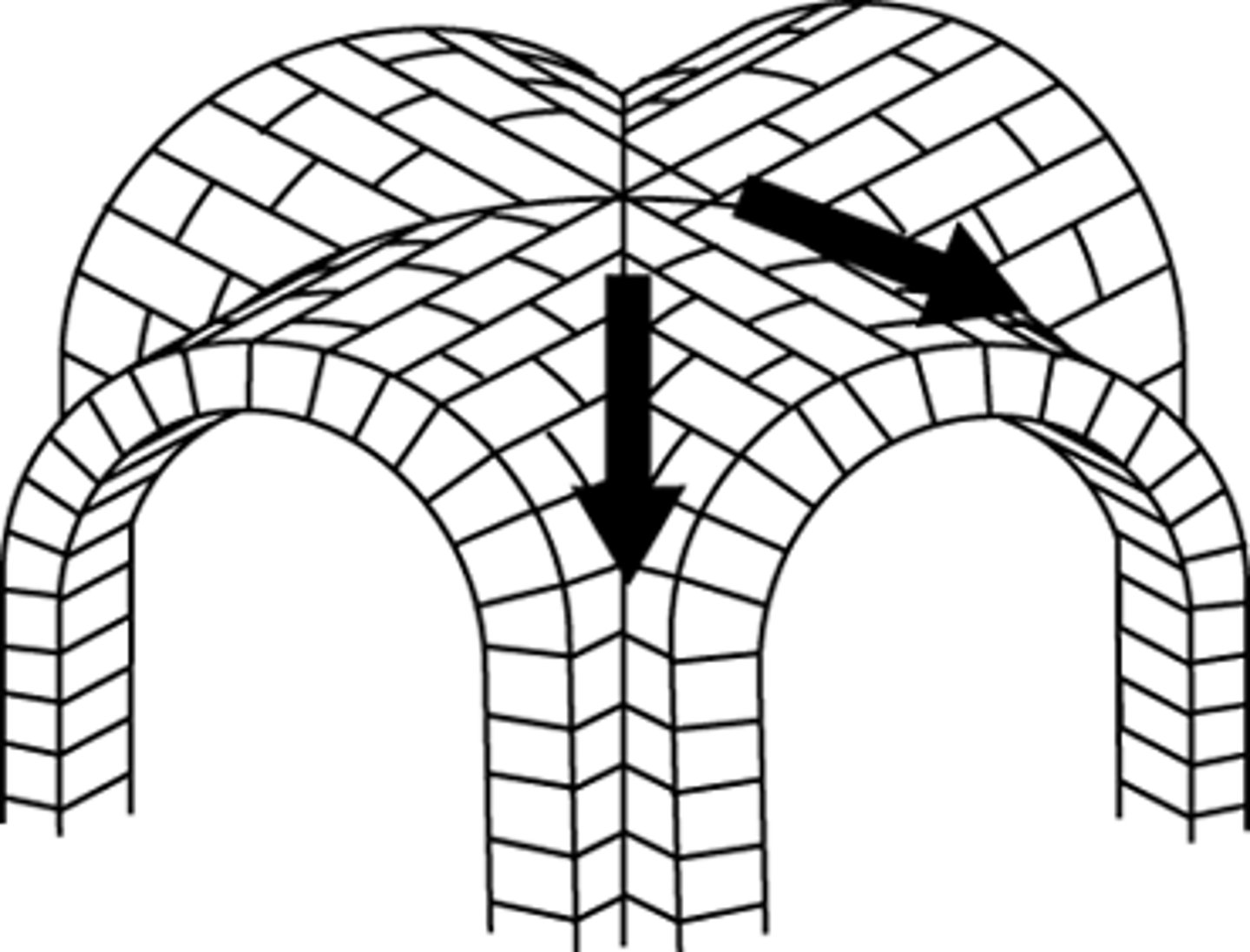

Groin vault

2 intersecting barrel vaults in 4 directions, used in huge interiors (gyms and baths)

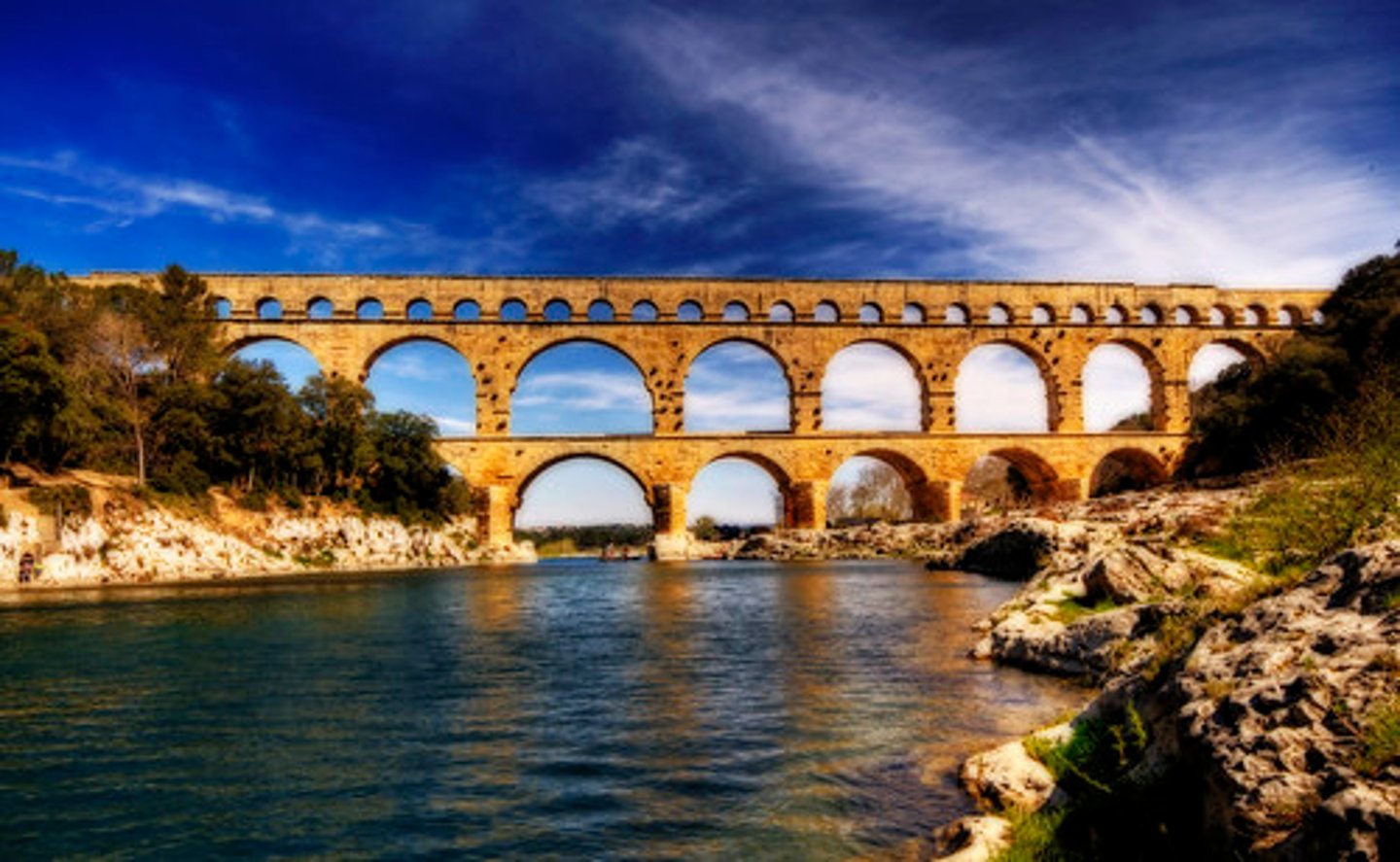

Pont Du Gard

Nimes, France (20-16 BC)

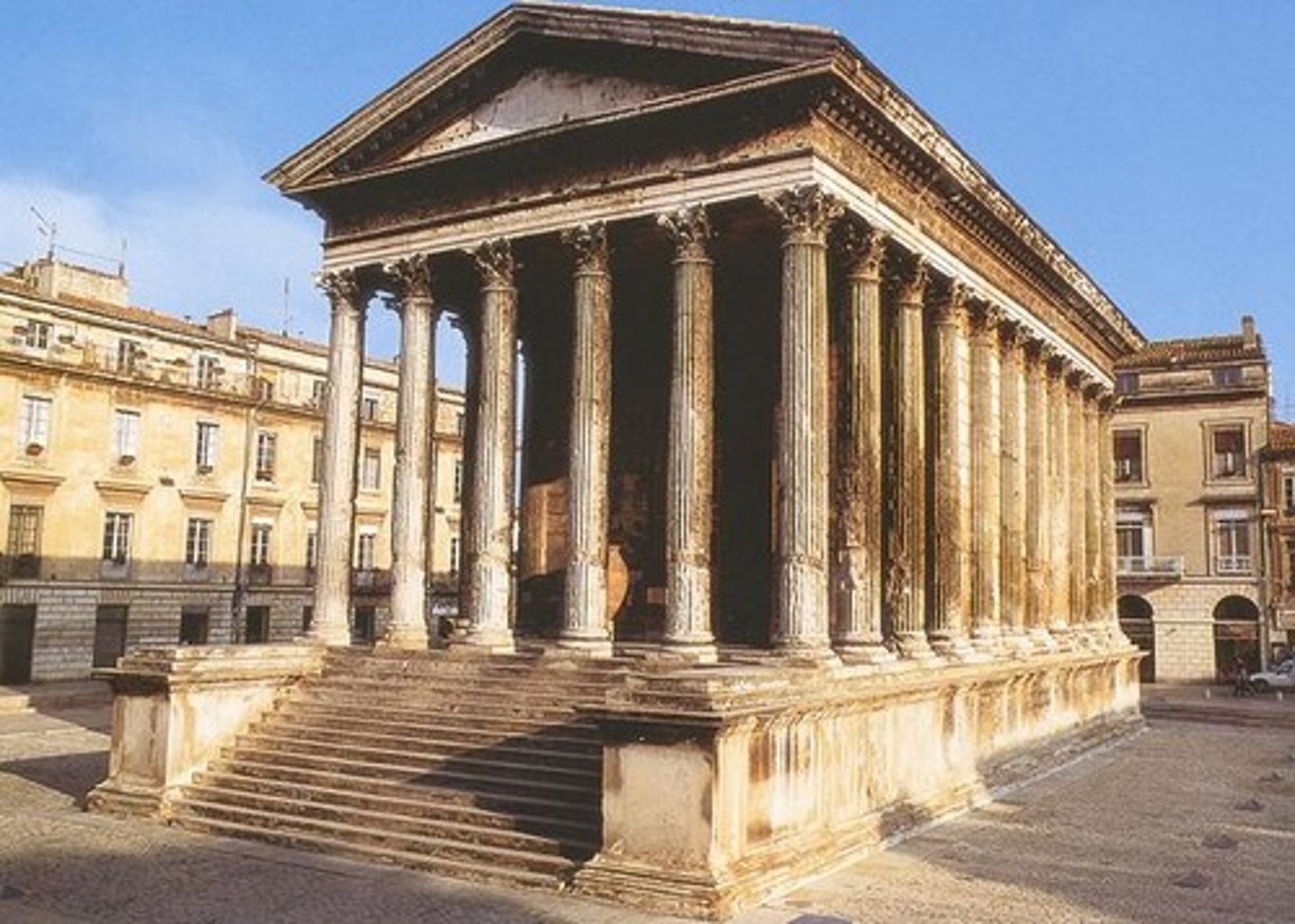

Maison Carree

Nimes, France (10 ACE)

Concrete

volcanic ash, lime ash, sand, water, and gravel

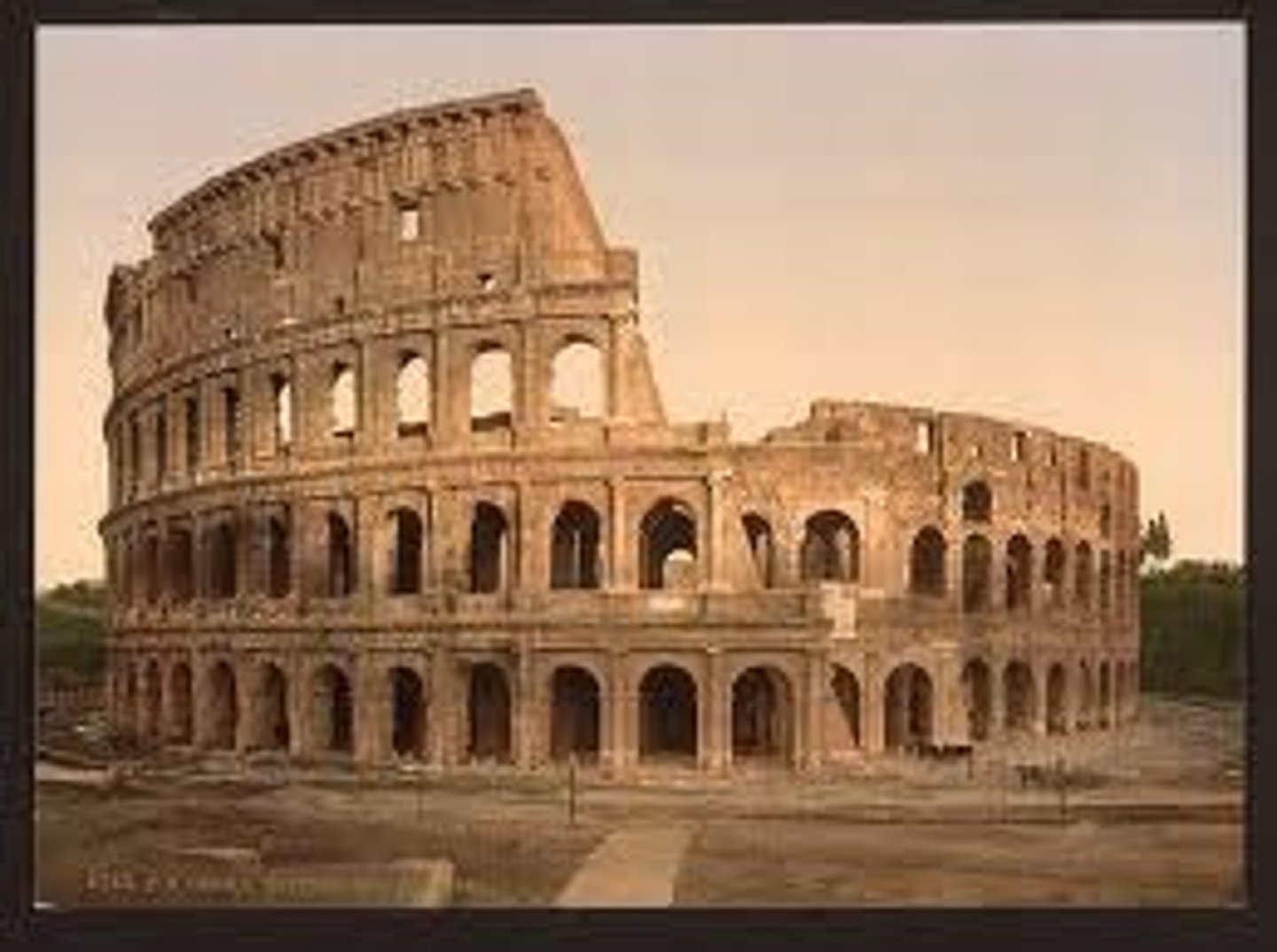

Coliseum in Rome

completed around 80 ACE, seats 50k, orders differ by levels

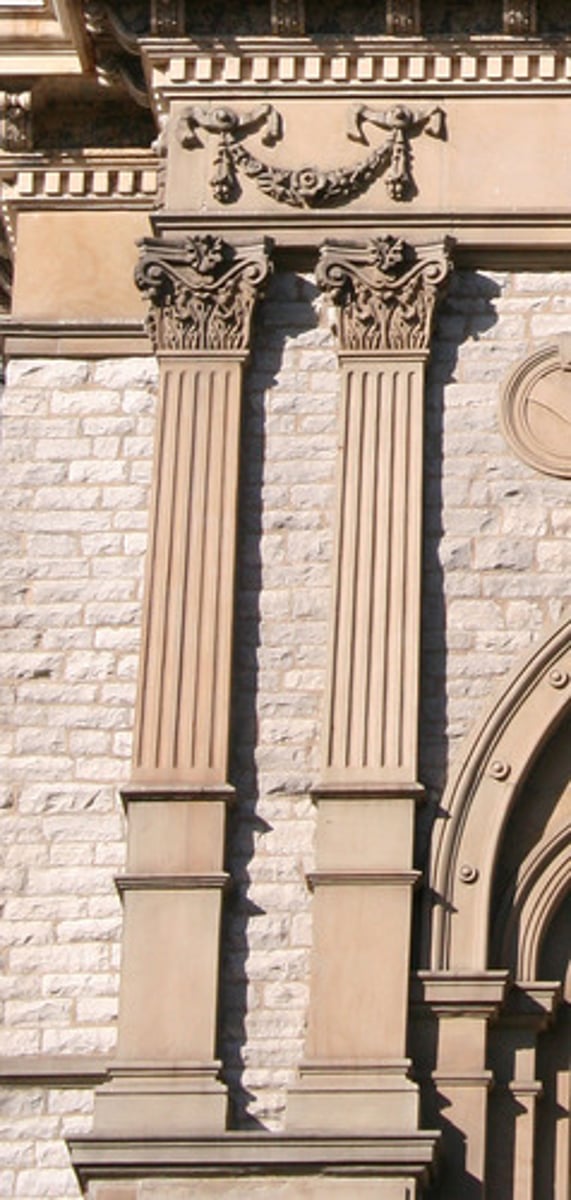

Pilaster

column in wall

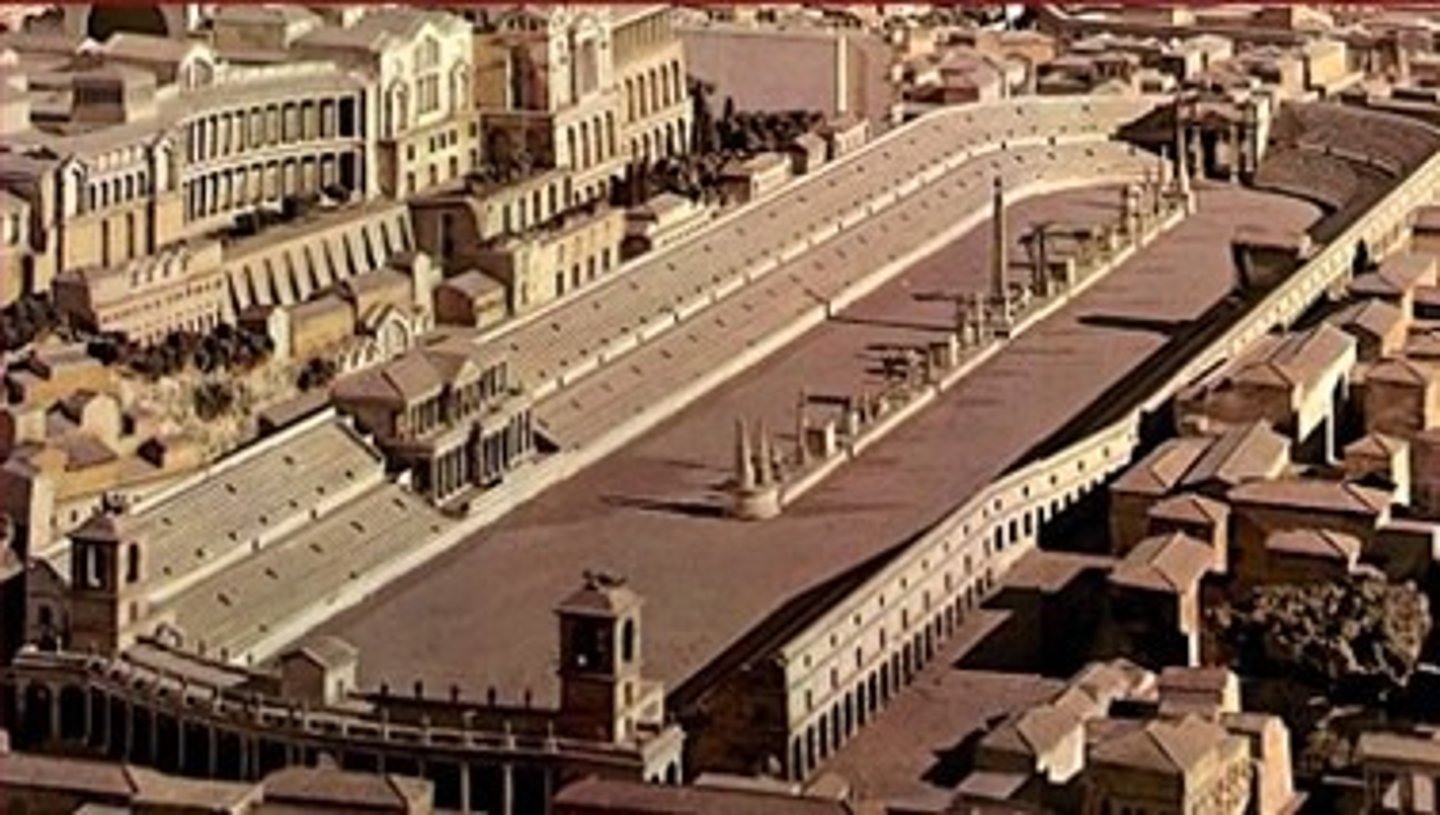

Circus Maximus

seated 250k; precursor to NASCAR

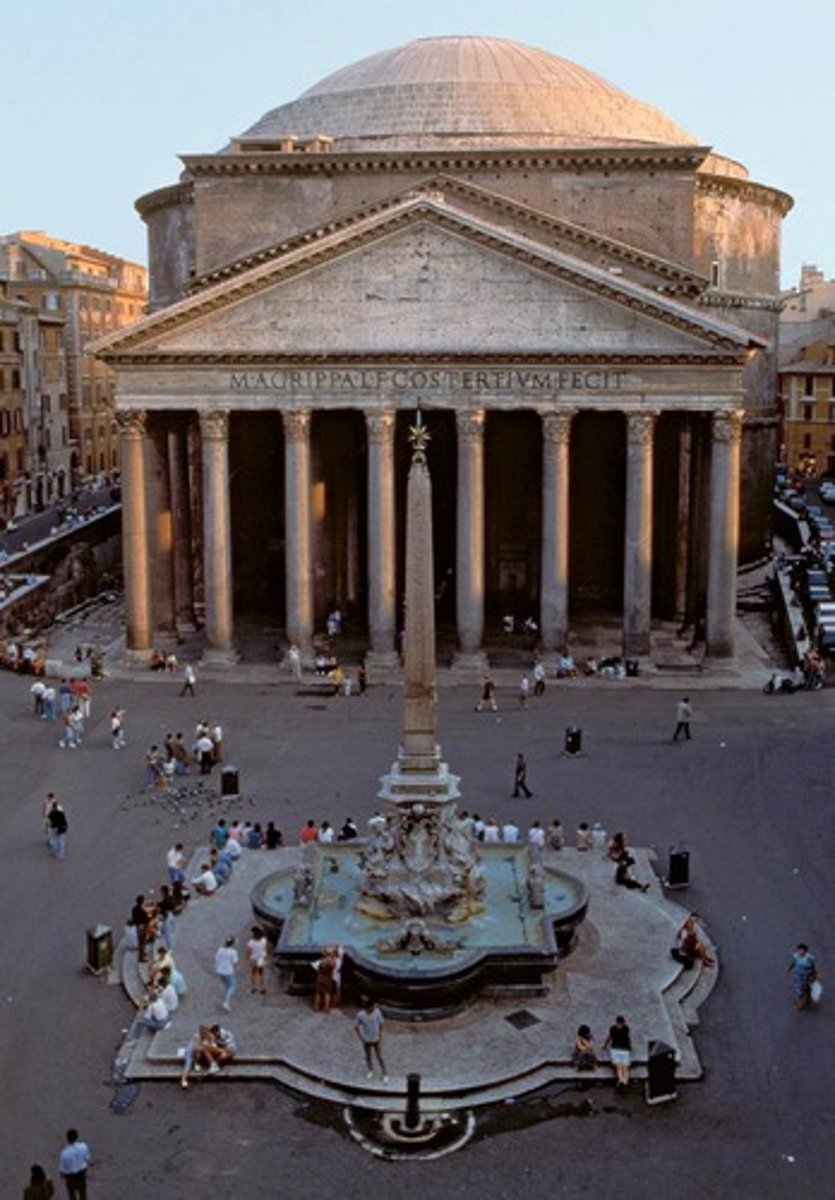

Pantheon (125 CE)

double pediment, oculus, built under Hadrian (117-138 ACE)

Pediment

triangle shape over colonnade

Portico

a colonnade space forming an entrance or vestibule

Constantine I (306-337 ACE)

Edict of Milan (313) - proclaimed tolerance of all religions which gave Christians authority to build churches

Early Christian Churches

Basilica Plan

Pendentives

curved triangular panels which hold the load of a dome

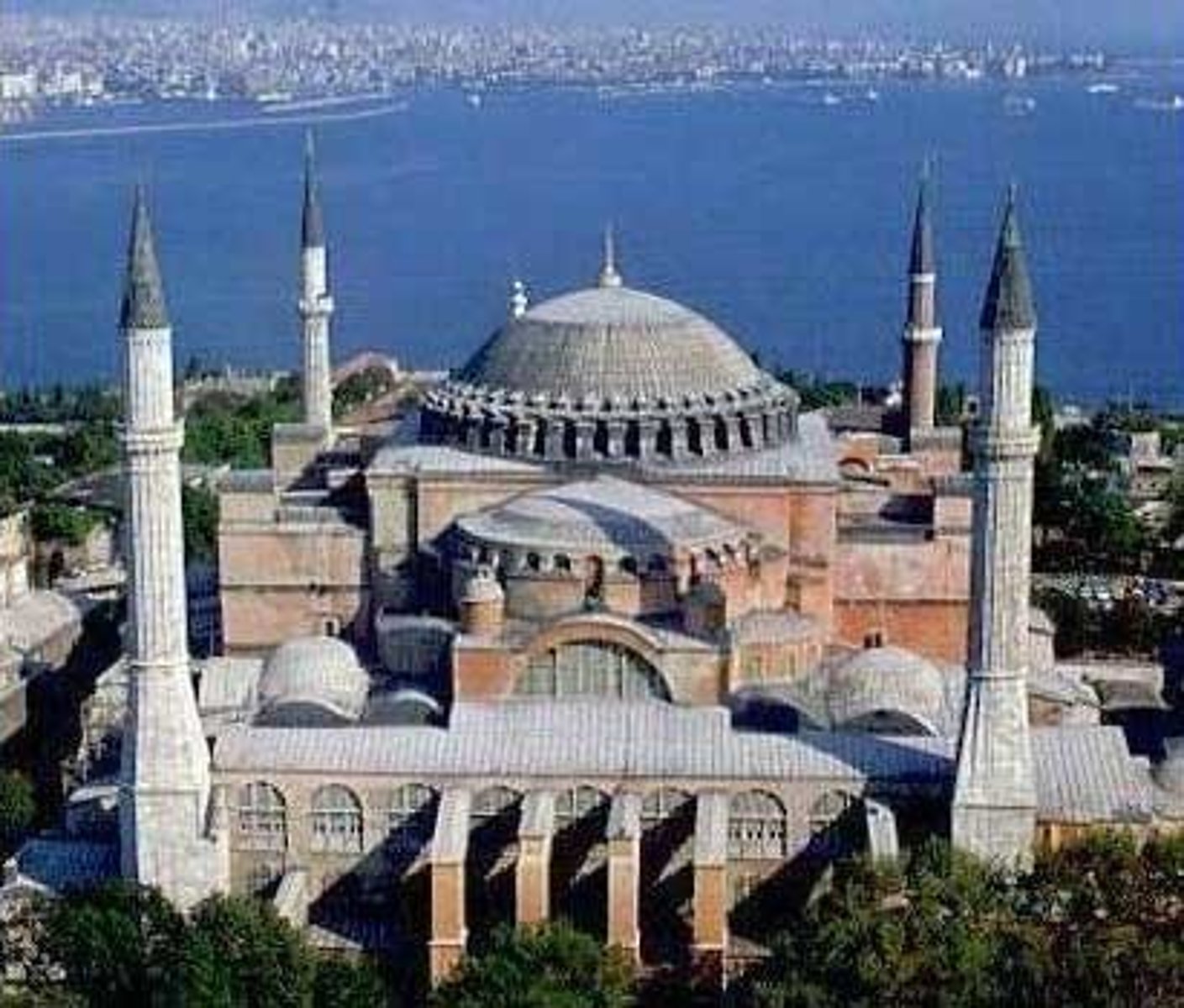

Hagia Sophia

built by Justine

Byzantium

new Roman capital

changed to Constantinople (Constantine I)

now Istanbul, Turkey

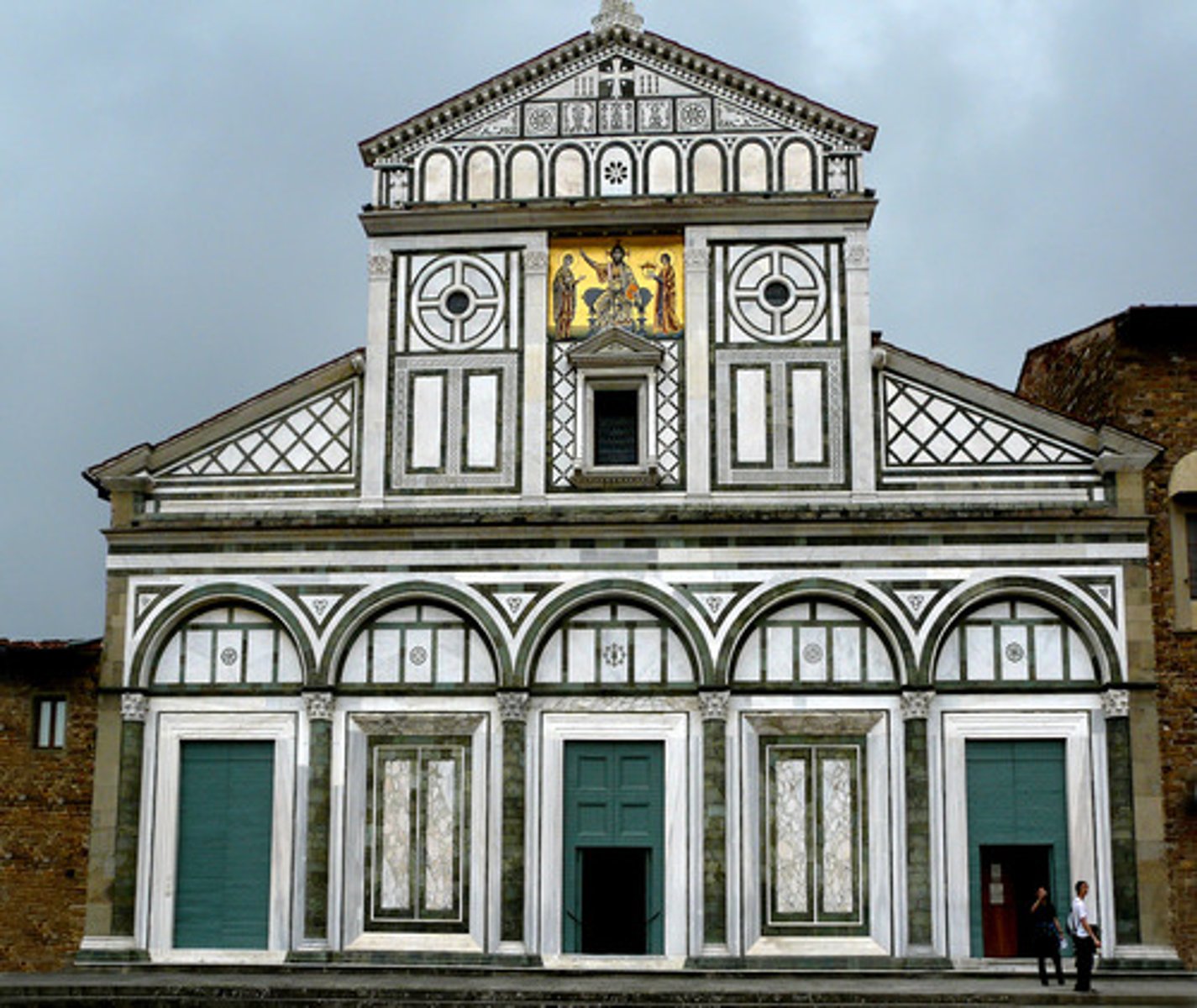

St. Miniato al Monte

Florence, Italy (1062-90)

Gothic Architecture

structure is also ornament (like Greeks)

not thick walls; use buttresses @ 90 degree to take collected pressures of ribbed vault and arch

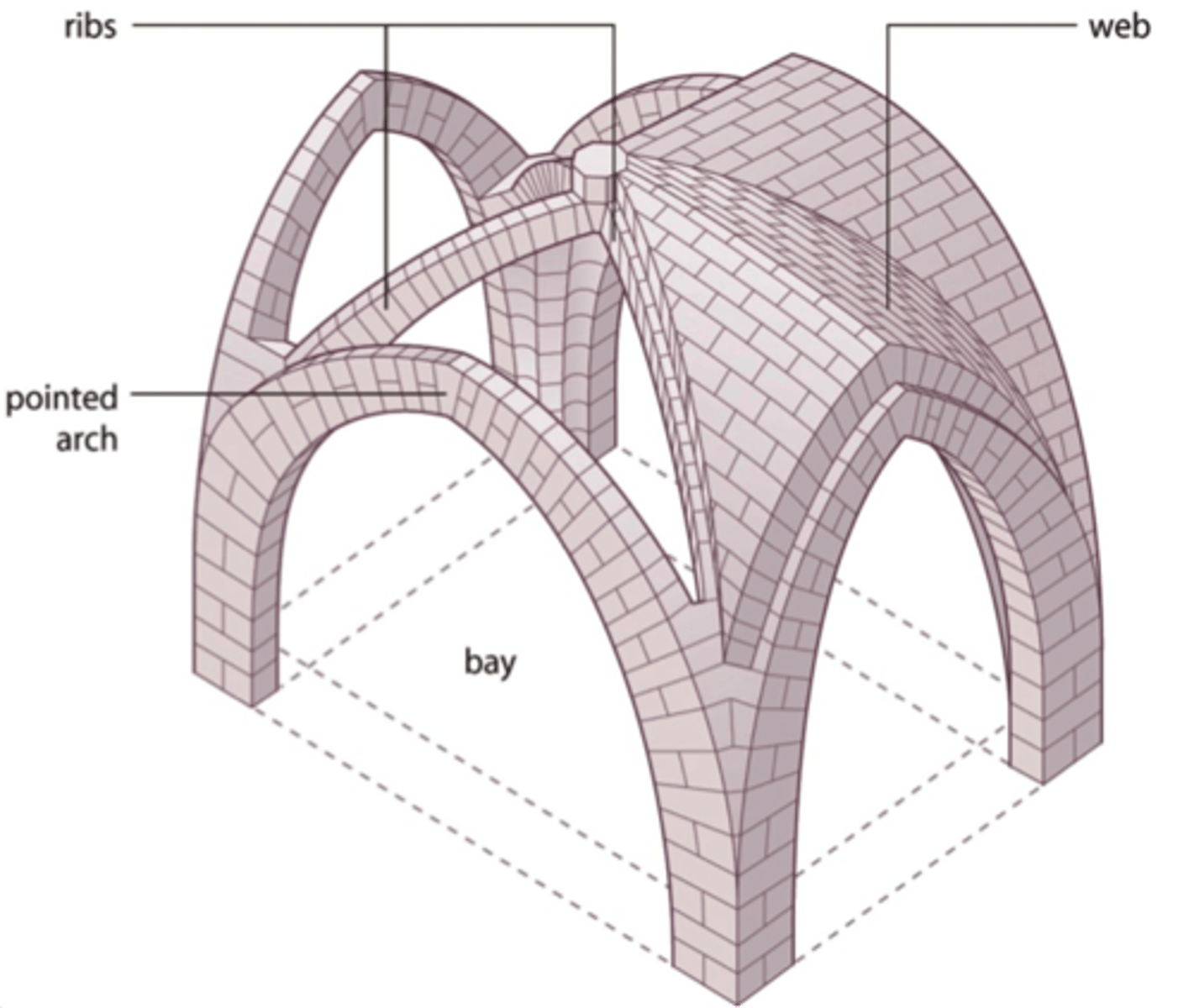

Ribbed Groin Vault

groin vault + pointed arch

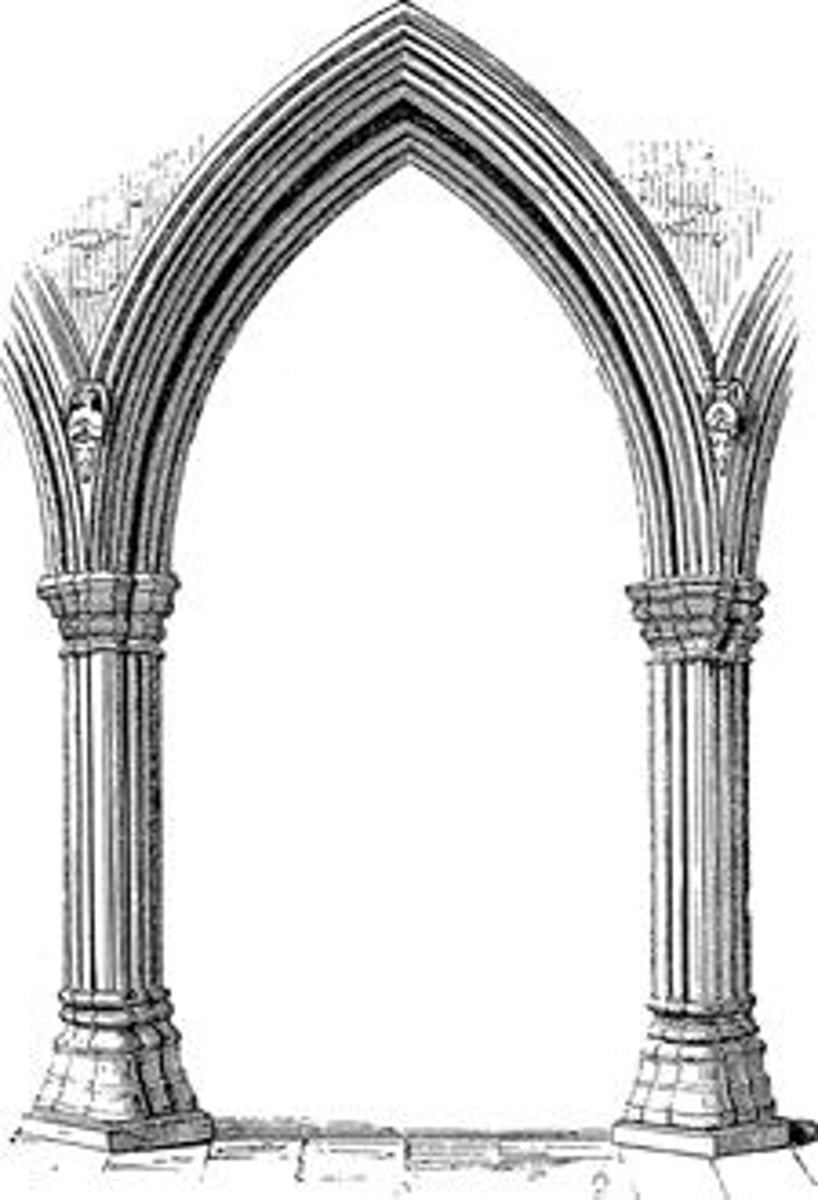

Pointed Arch

signals gothic architecture/style

Buttresses & Pinnacles

How does English gothic architecture differ from French gothic architecture?

English is more rectangular (churches)

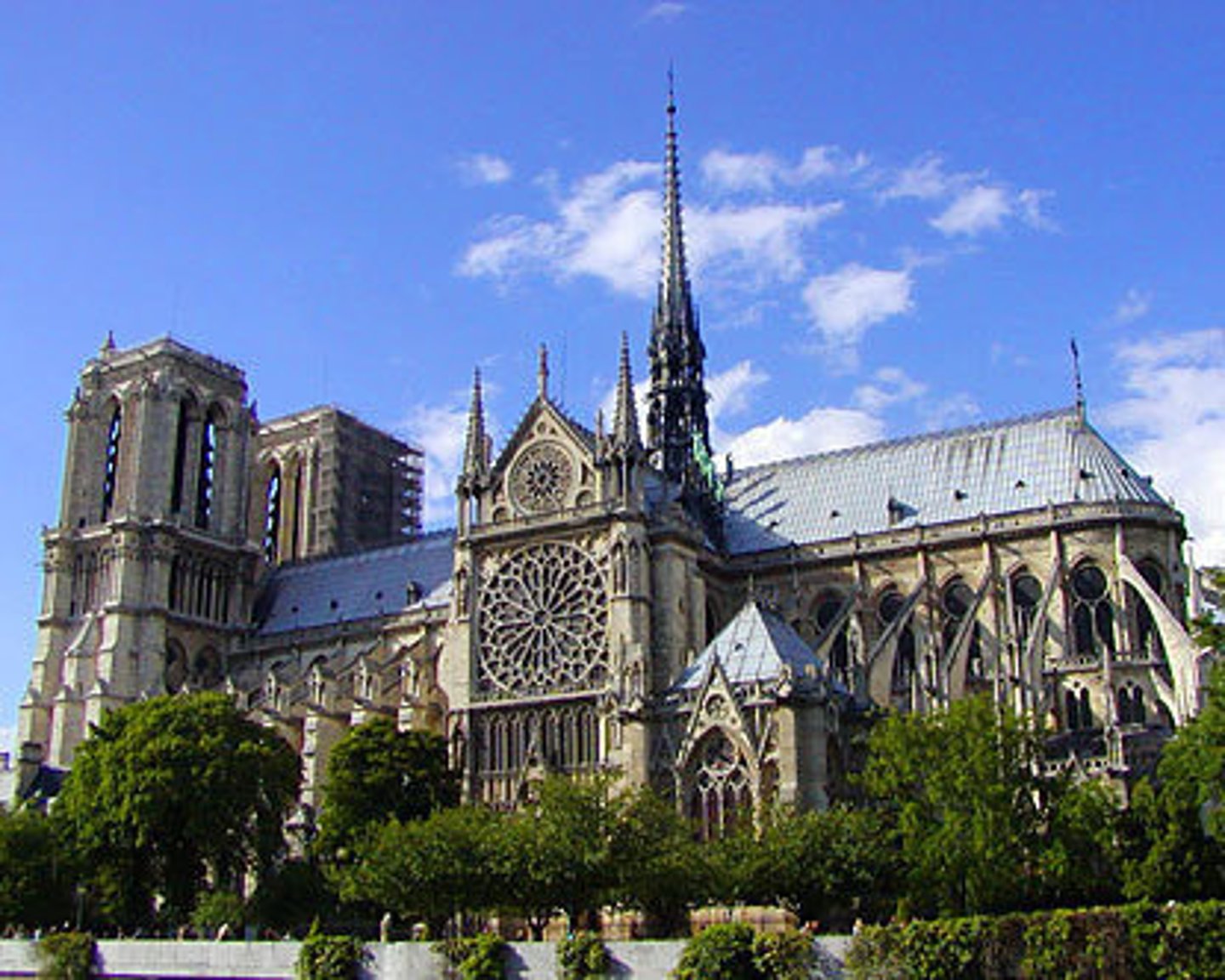

Notre Dame de Paris (1163-1250)

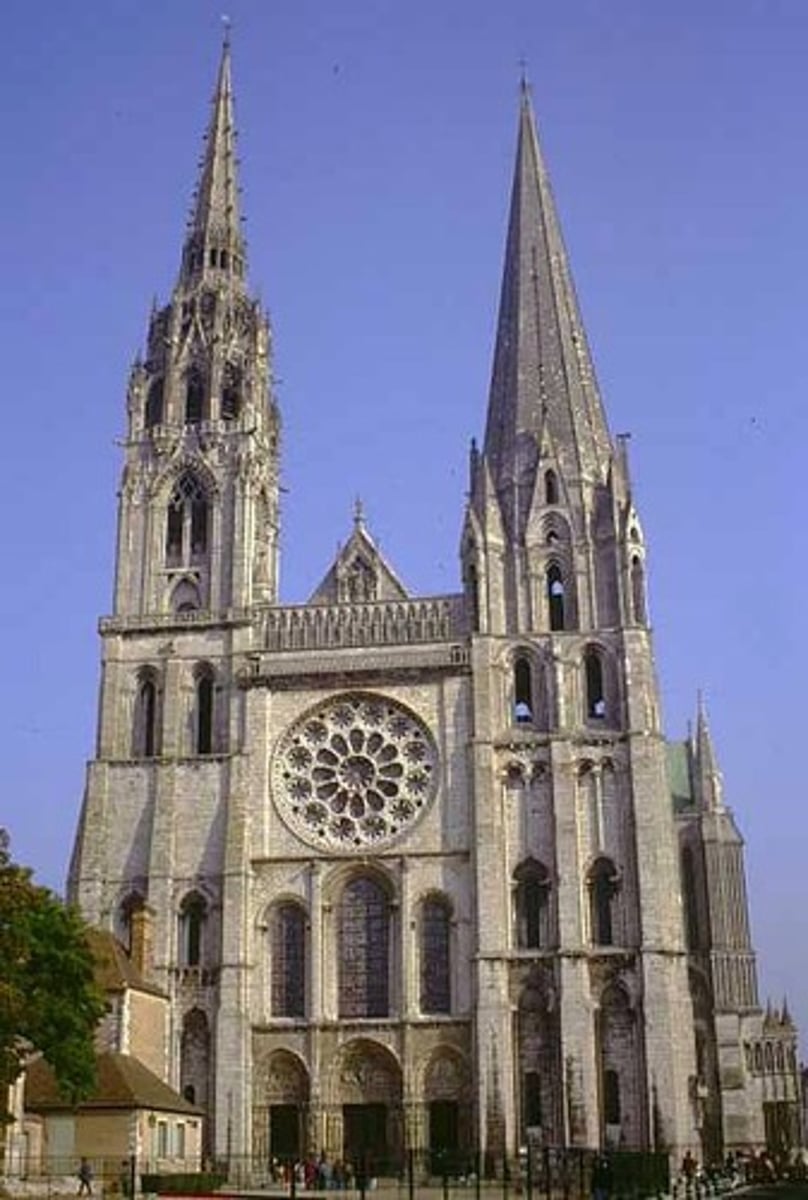

Chartres Cathedral (1130-1260)

Apse

semi circular projection, containing an altar

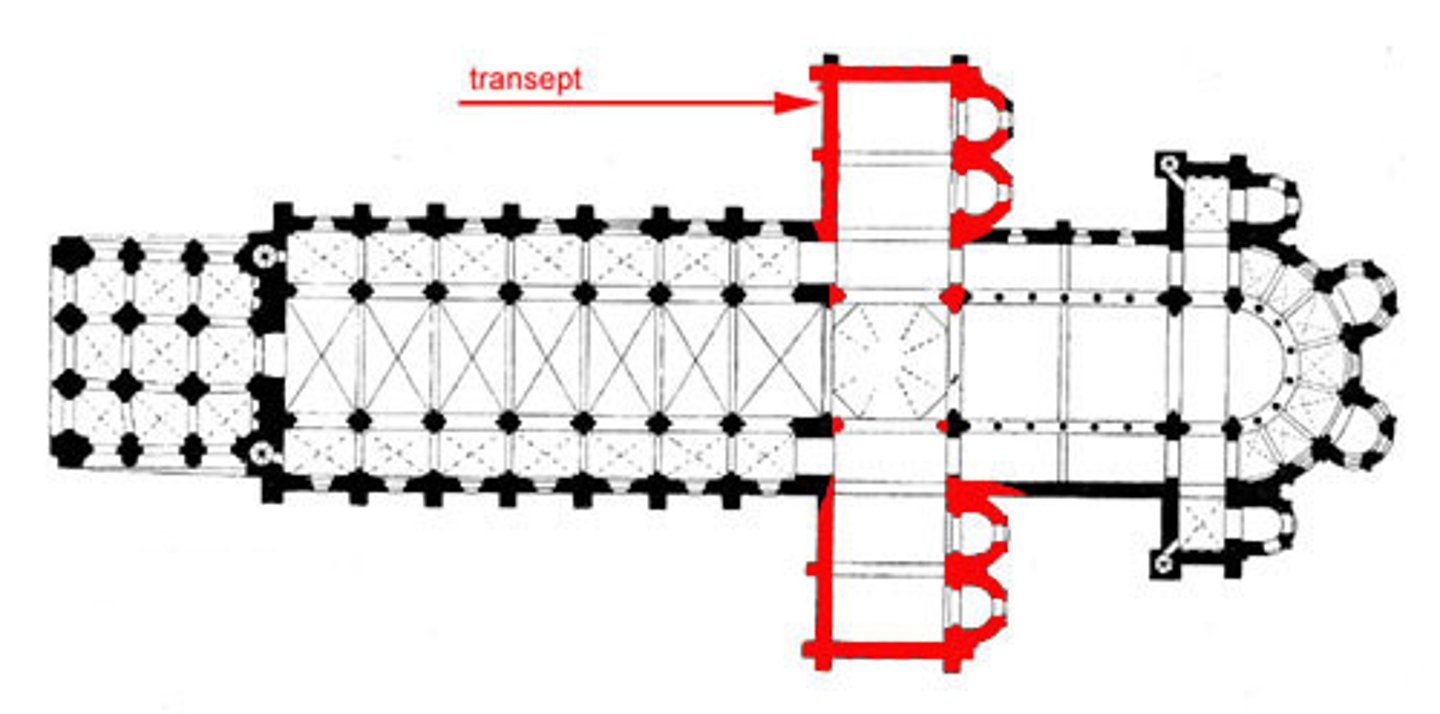

Transept

2 arms in a "Latin cross" plan

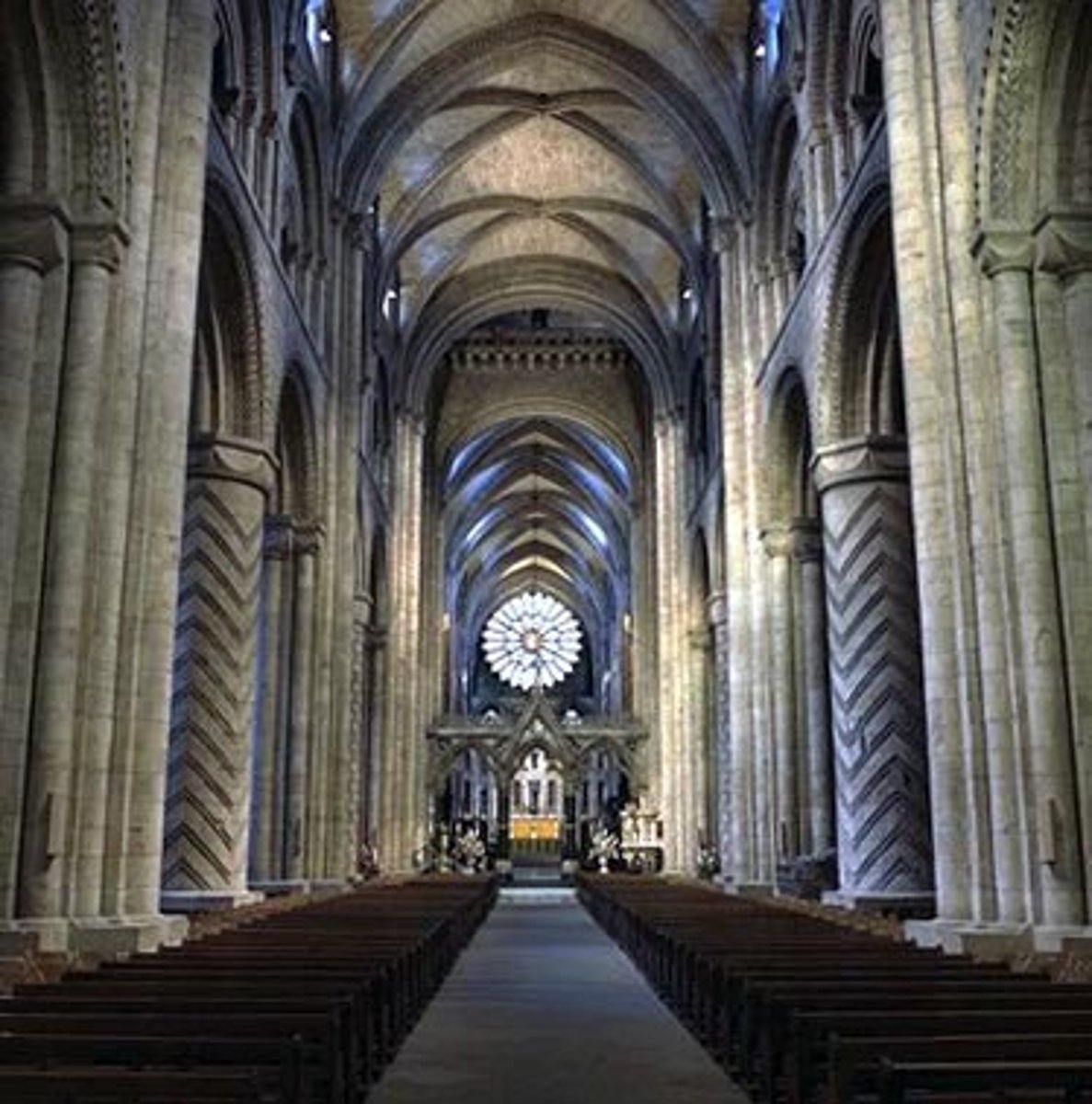

Nave

space beyond transept crossing toward west/"front" of church

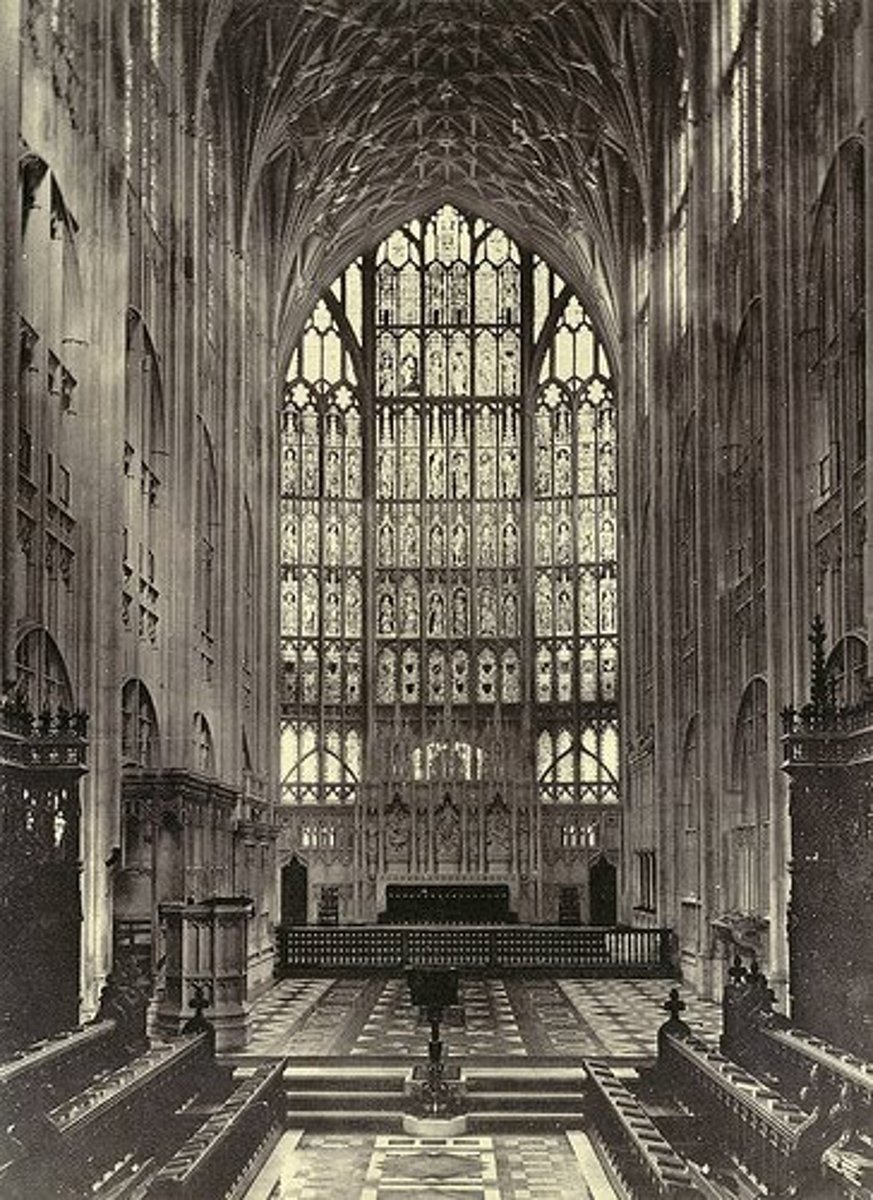

Choir

where monks sit
